Model Whirlpool ET20PMXDN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

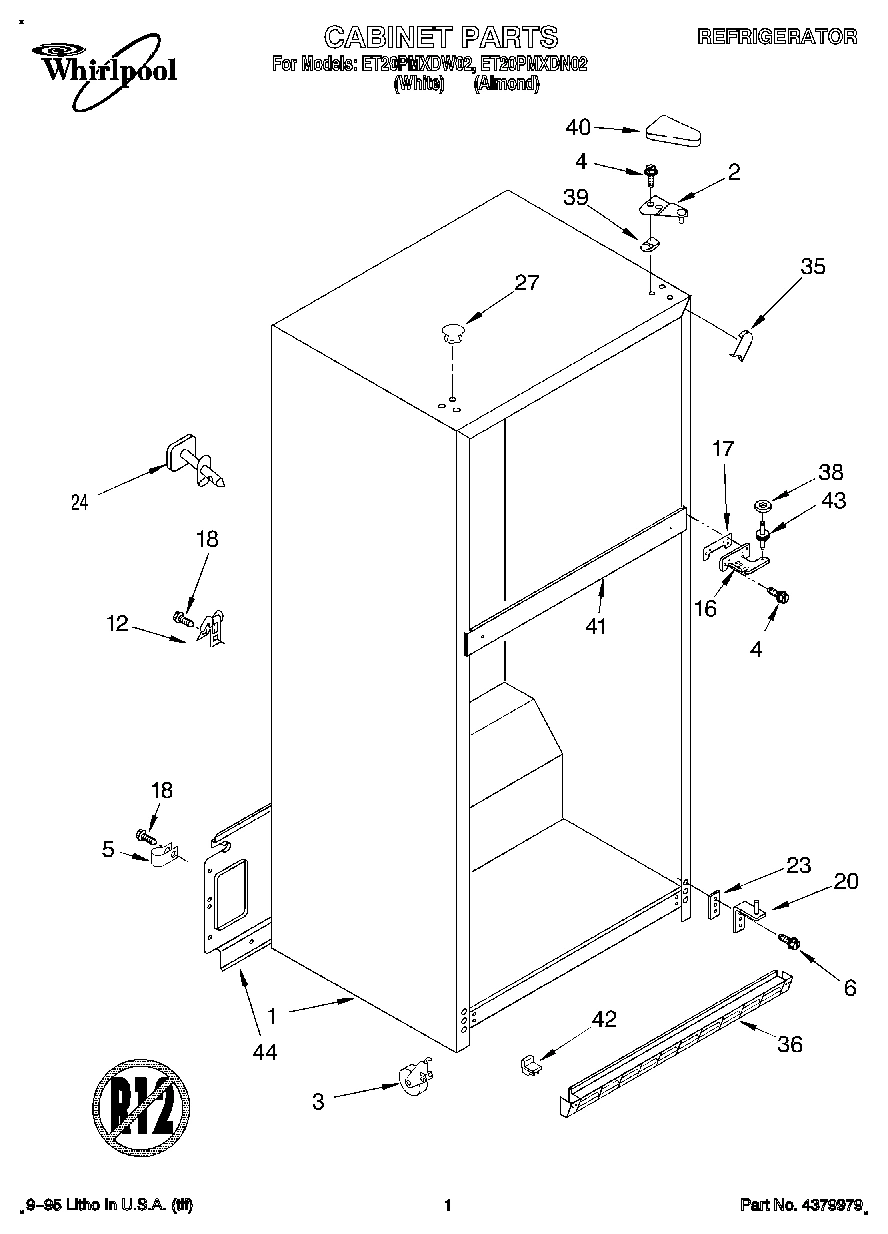

01 - CABINET
05 - ICEMAKER
03 - LINER
02 - DOOR
04 - UNIT
06 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET20PMXDN02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2180401 WPL LIT2180401 Contact Us For Availability
WPL LIT2182509 WPL LIT2182509 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Almond) WPL 2159280 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Glass, Full Shelf WPL 2166217 Contact Us For Availability
4
Cover, Egg Bin WPL 2170949 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Shelf, Cantilever WPL 2163860 Contact Us For Availability
8
Trim, Shelf Front WPL 2176263 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Door Bin, Narrow WPL 2170616 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
13
Overload (Production) WPL 2169407 Contact Us For Availability
13
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
14
Door Bin, Wide WPL 2170615 Contact Us For Availability
14
Glass, Shelf WPL 2166218 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163863 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163885 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159273 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Almond) WPL 2159274 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI49230A1 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
22
Divider-Door Bin WPL 2152335 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2176379 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
25
Freezer Floor WPL 2163825 Contact Us For Availability
25
Retainer, Bottle WPL 2163566 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
31
Screw WPL 489473 Contact Us For Availability
32
Capacitor (Service Comp.) WPL 2169137 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
37
Trim-Door (2) WPL 2171153 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
38
Wire Harness, Freezer WPL 2179823 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
42
Trim, Door WPL 2171148 Contact Us For Availability
42
Wire Assy., Unit WPL 2182379 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179884 Contact Us For Availability
47
Tube, Suction WPL 2179779 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
