Model Whirlpool ET20PMXDN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - UNIT
05 - ICEMAKER

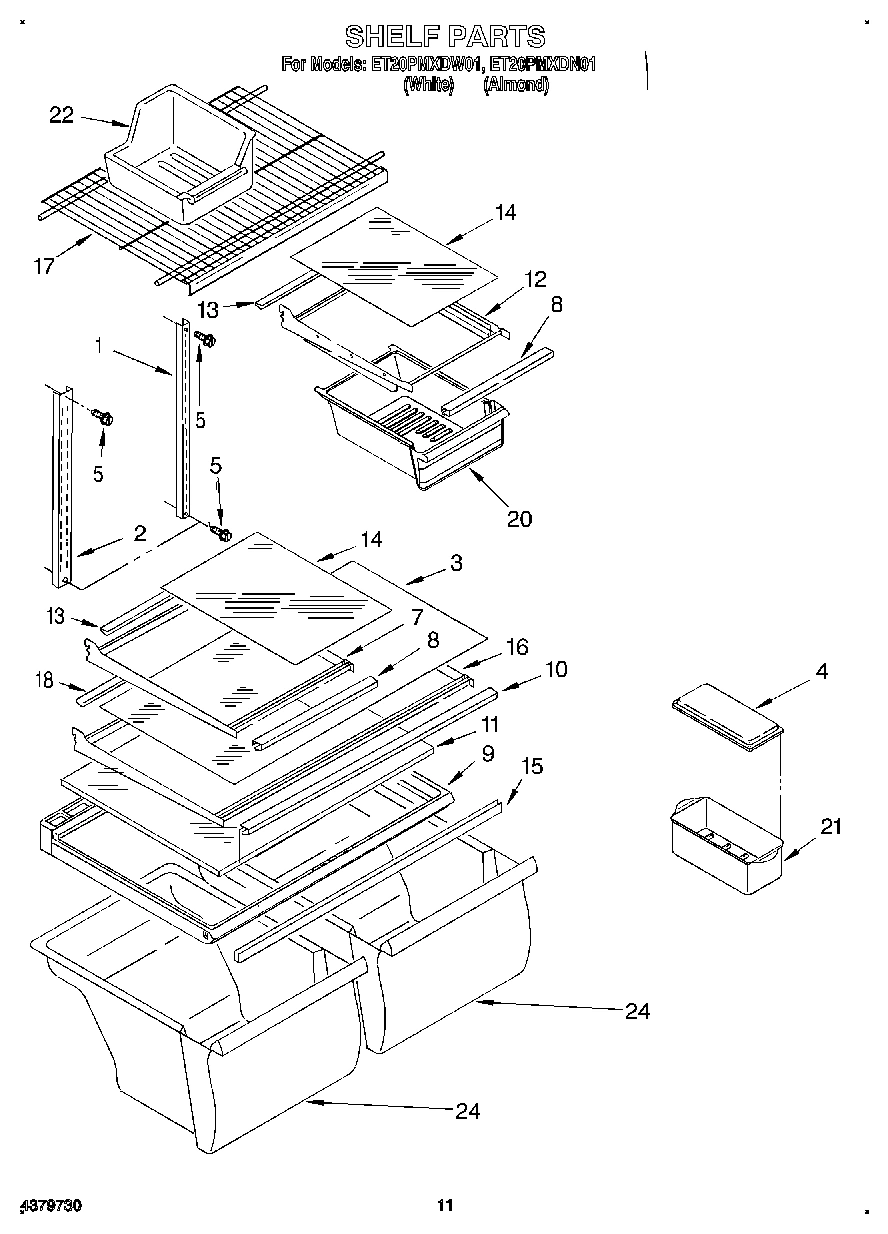

06 - SHELF, LIT/OPTIONAL

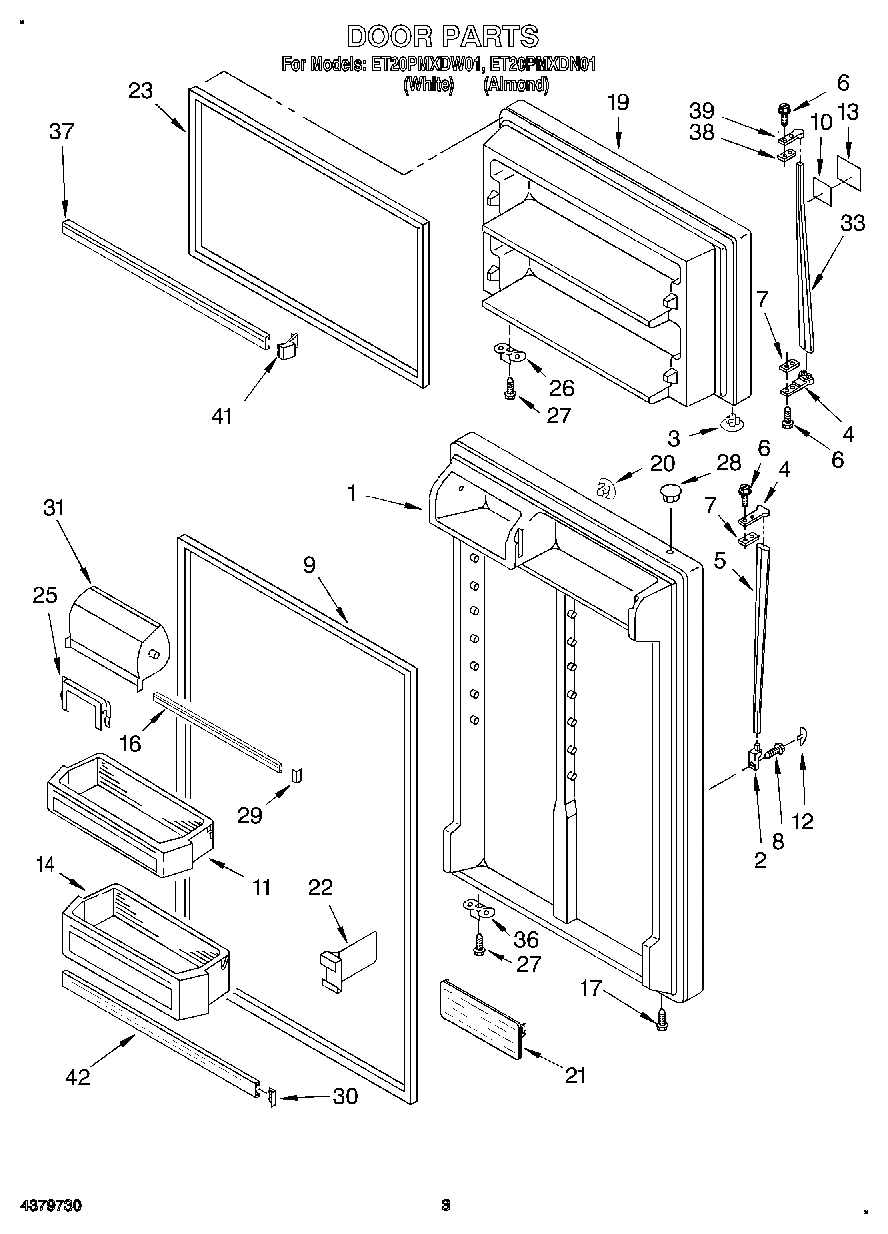

02 - DOOR

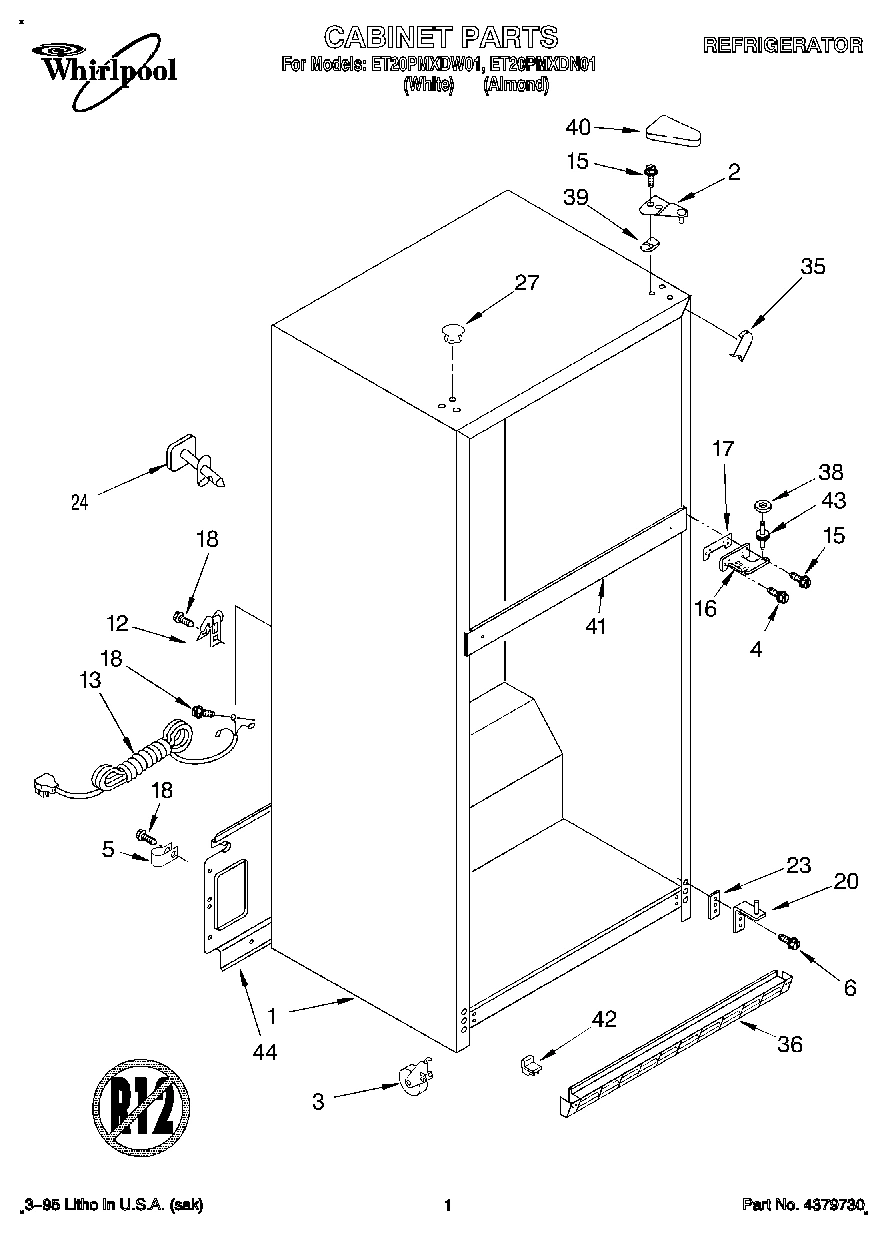

01 - CABINET

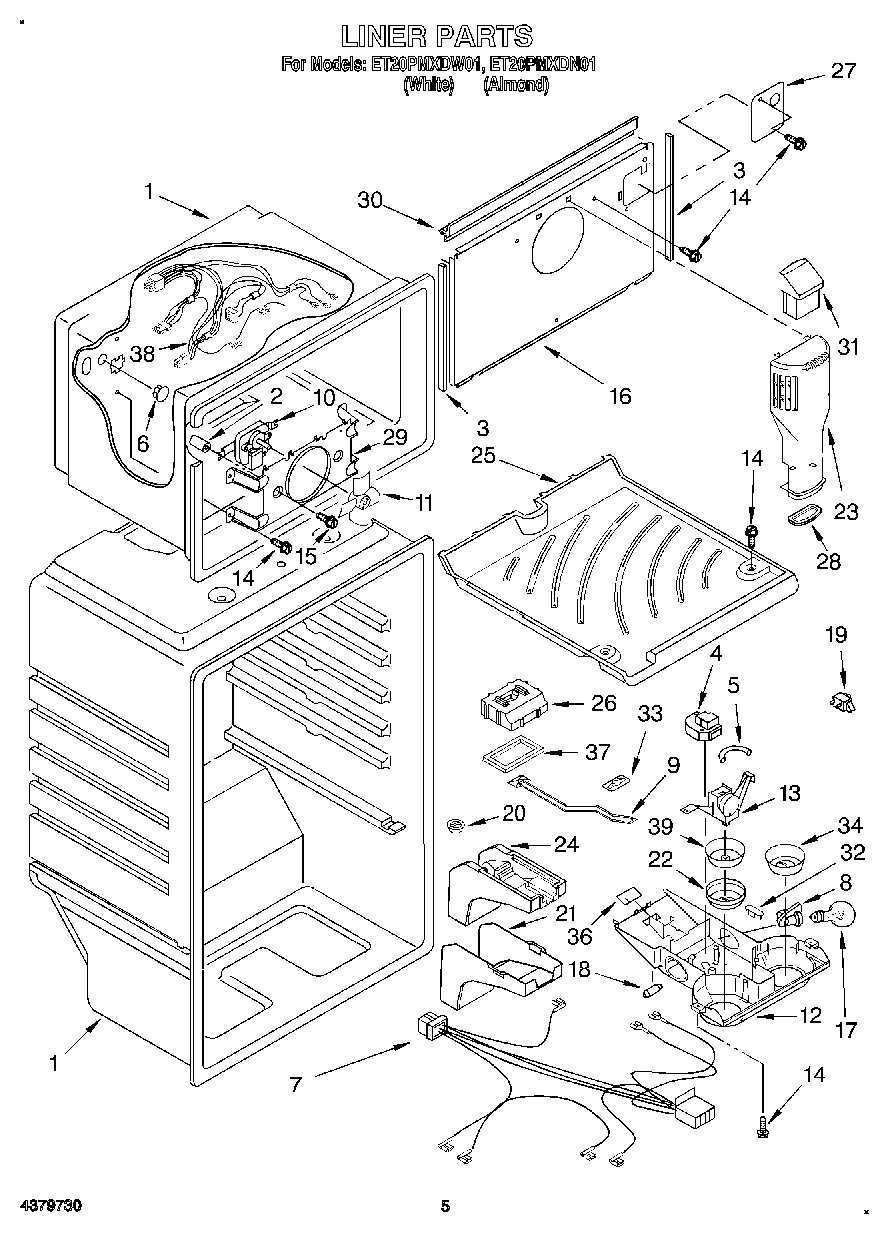

03 - LINER
Common parts from model Whirlpool ET20PMXDN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2180401 WPL LIT2180401 Contact Us For Availability
WPL LIT2180452 WPL LIT2180452 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Almond) WPL 2159280 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49221A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49224A5 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Glass, Full Shelf WPL 2166217 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
4
Cover, Egg Bin WPL 2170949 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Shelf, Cantilever WPL 2163860 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Trim, Shelf Front WPL 2176263 Contact Us For Availability
9
Damper, Air WPL 2176268 Contact Us For Availability
10
Trim, Shelf Front WPL 2163868 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Door Bin, Narrow WPL 2170616 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
12
Control Box WPL 2174672 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
14
Glass, Shelf WPL 2166218 Contact Us For Availability
14
Door Bin, Wide WPL 2170615 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163863 Contact Us For Availability
16
Cover-Evaporator WPL 2163819 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163885 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159273 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Almond) WPL 2159274 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Divider-Door Bin WPL 2152335 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2176379 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI49222A3 Contact Us For Availability
25
Retainer, Bottle WPL 2163566 Contact Us For Availability
25
Freezer Floor WPL 2172680 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Gasket, Air Tower WPL 2179839 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
32
Hole Plug WPL 2174667 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2174669 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
36
Grille (White) WPL 2179840 Contact Us For Availability
36
Grille (Almond) WPL 2179841 Contact Us For Availability
37
Trim-Door (2) WPL 2171153 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
38
Wire Harness, Freezer WPL 2174610 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI49223A6 Contact Us For Availability
42
Trim, Door WPL 2171148 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
44
Cover, Unit WPL 2163815 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
