Model Whirlpool ET1MHEXRQ02 REFRIGERATOR – Common Parts & Diagrams
06 - SHELF PARTS, OPTIONAL PARTS
01 - CABINET PARTS

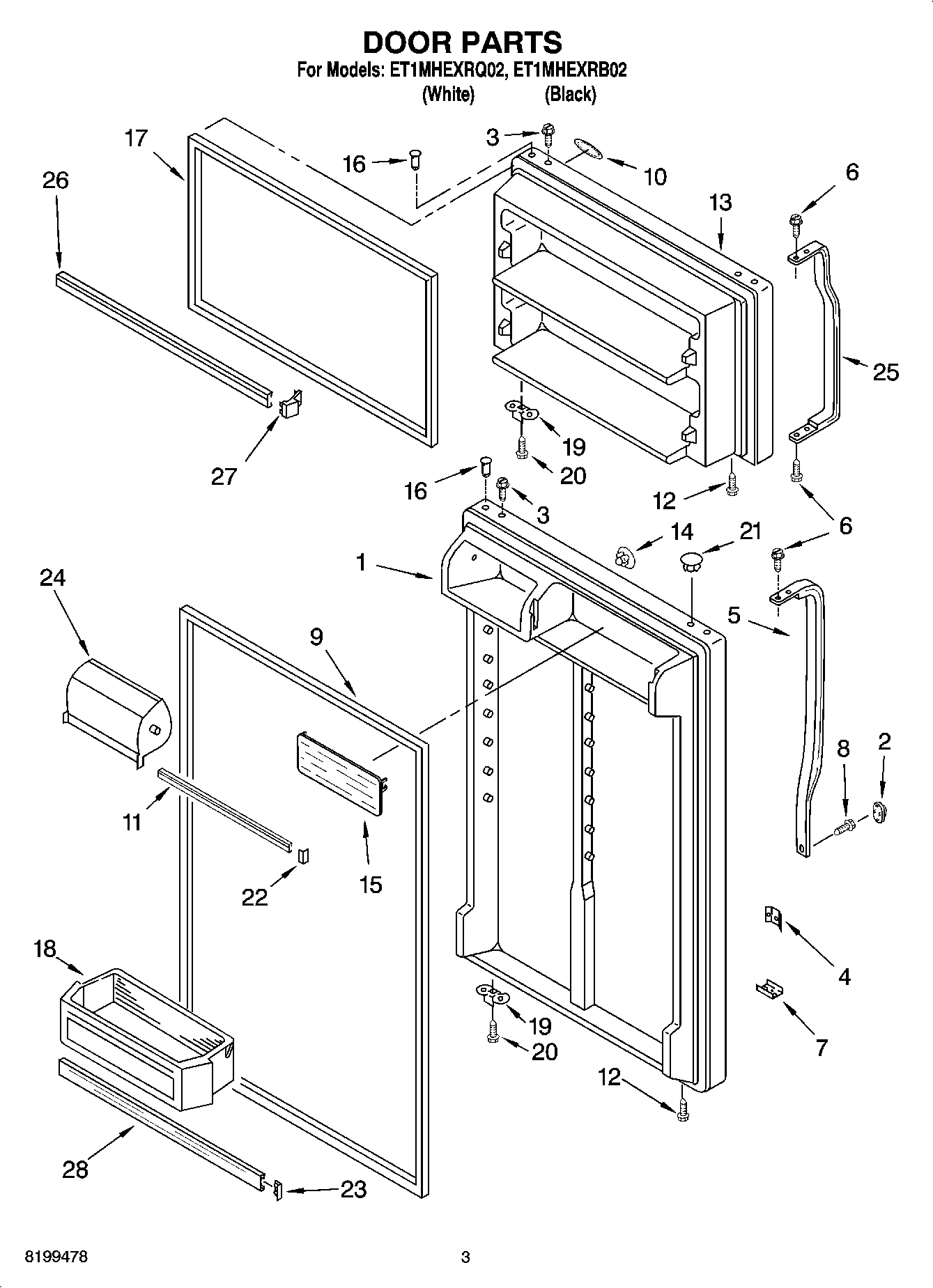

02 - DOOR PARTS

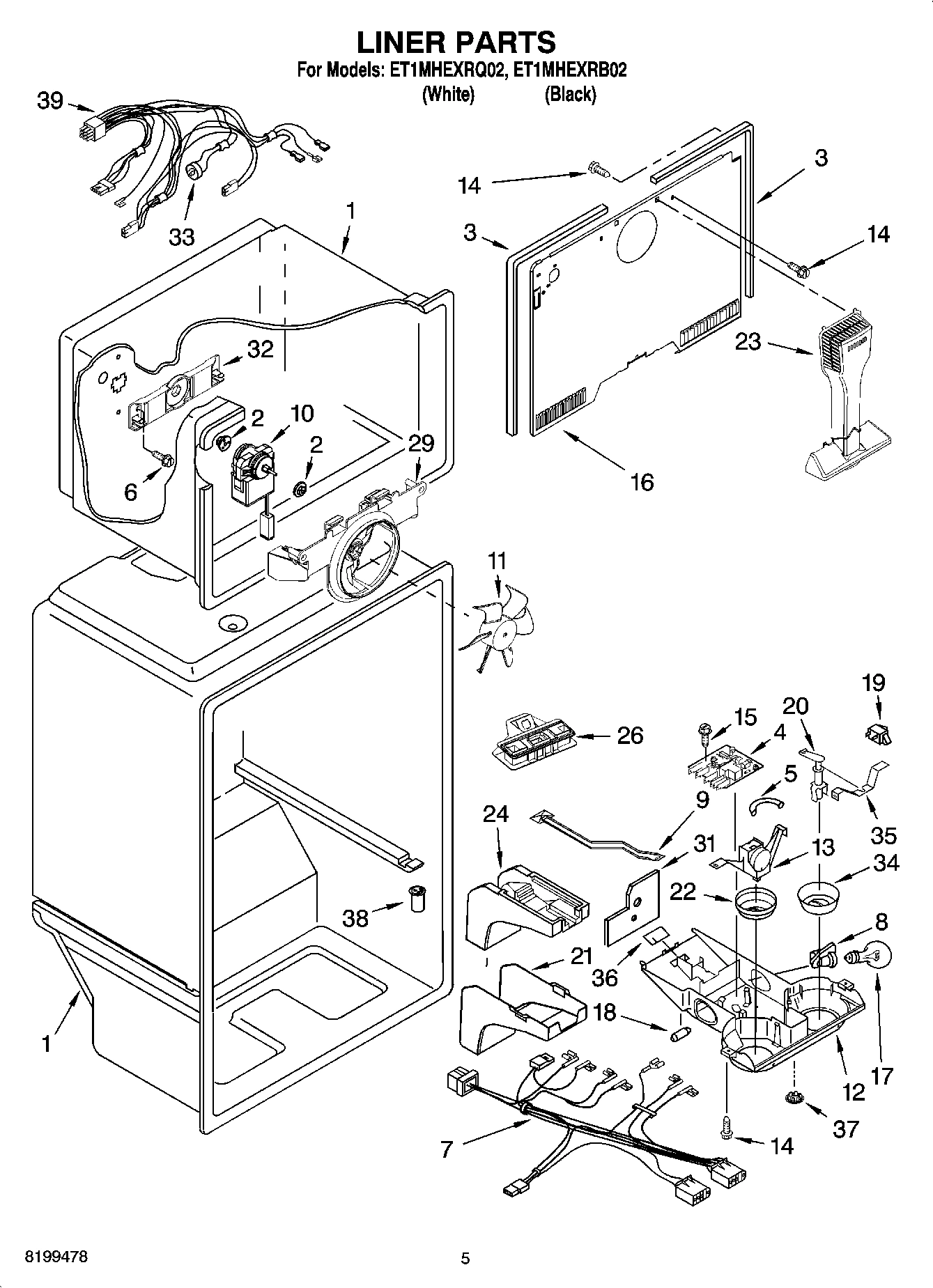

03 - LINER PARTS

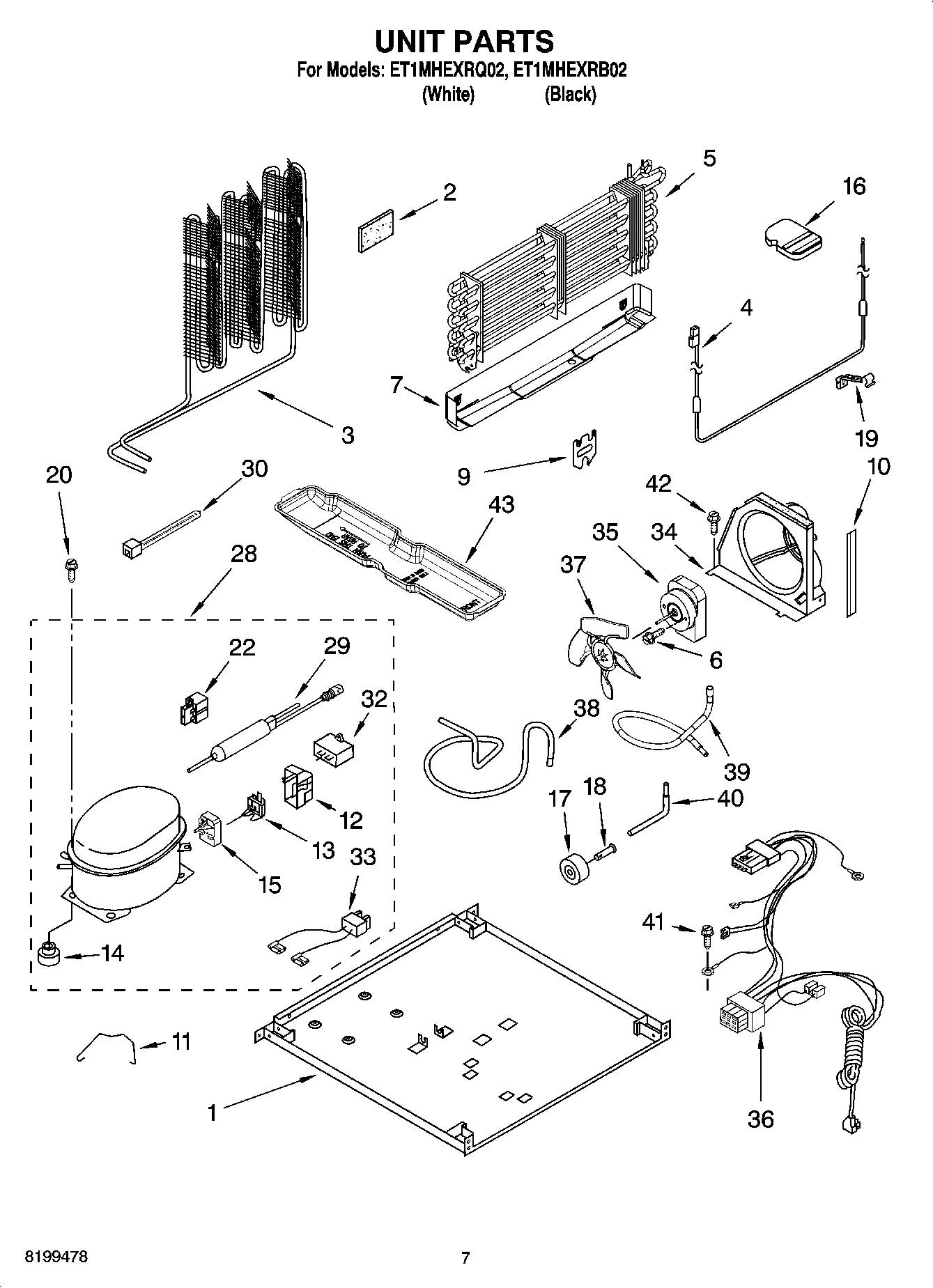

04 - UNIT PARTS

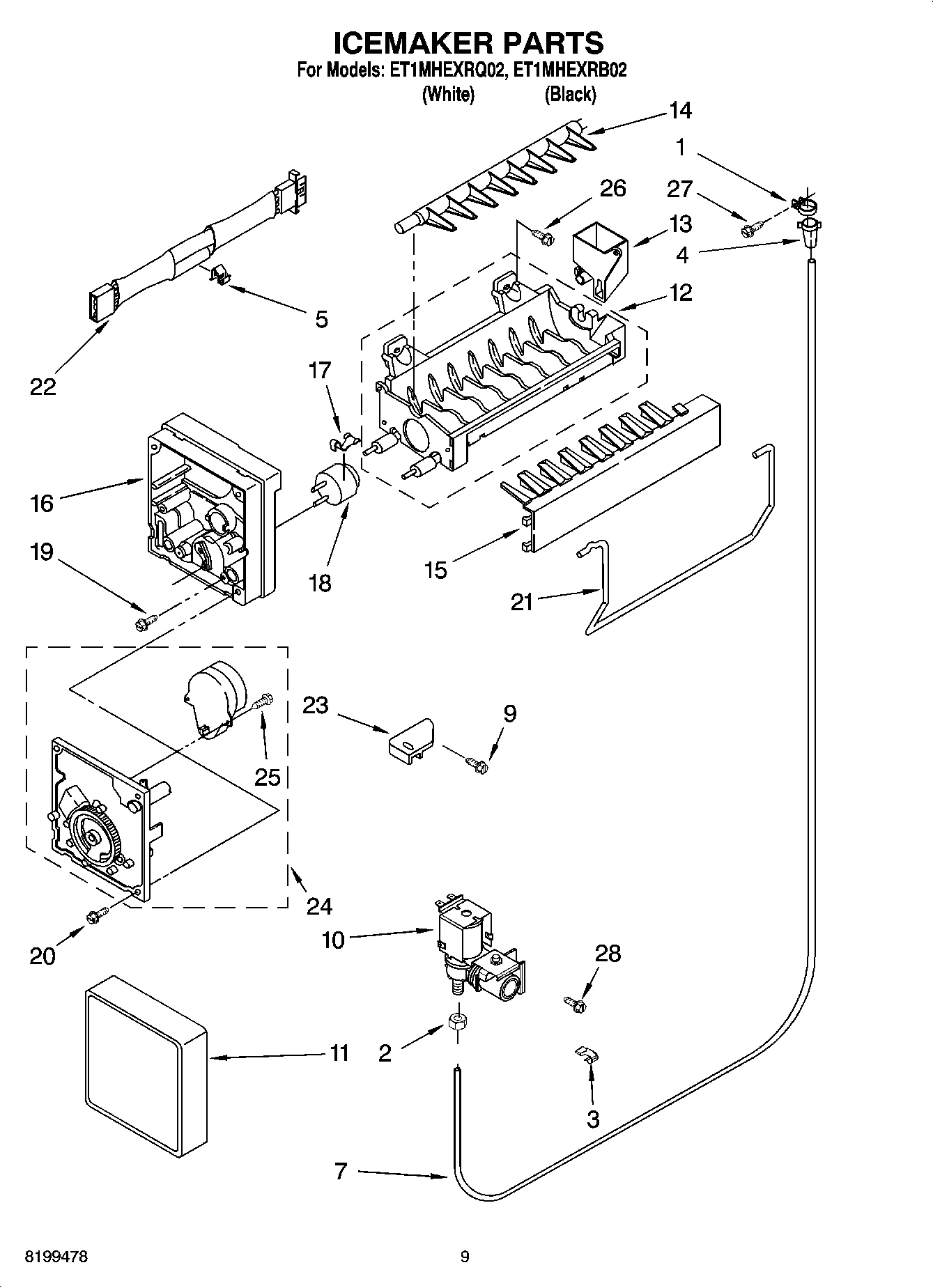

05 - ICEMAKER PARTS
Common parts from model Whirlpool ET1MHEXRQ02 REFRIGERATOR
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
WPL 876029 WPL 876029 Contact Us For Availability
WPL 833938 WPL 833938 Contact Us For Availability
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
Bag, Insulation (36-5/8`` x 46``) WPL 606755 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
1
Plate, Unit Mounting WPL 2225596 Contact Us For Availability
3
Cup, Shelf Mtg. WPL 2163762 Contact Us For Availability
3
Clip, Water Valve WPL 2210495 Contact Us For Availability
5
Handle, Refrigerator (Black) WPL 2202807B Contact Us For Availability
5
EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability
6
TRIM, SHELF FRONT WPL 2188691 Contact Us For Availability
7
Drain Pan WPL 2254295 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2300638 Contact Us For Availability
12
Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability
13
Thermostat Assy. (Includes Illus. 5 & 18) WPL 2200859 Contact Us For Availability
16
Support Block WPL 2201185 Contact Us For Availability
17
Shelf, Freezer WPL 2189454 Contact Us For Availability
18
Grille (Includes Illus. 21) (White) WPL 2254313 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Screw WPL 8533917 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability
22
Relay (Service Only) WPL 2183454 Contact Us For Availability
25
SCREW 3-24 X 23/64 WPL 489136 Contact Us For Availability
26
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
29
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
32
BRACKET EVAP. FAN, REAR WPL 2254454 Contact Us For Availability
34
Knob, Damper WPL 2302536 Contact Us For Availability
34
Air Baffle WPL 2302249 Contact Us For Availability
36
WIRE ASSEMBLY, UNIT WPL 2187382 Contact Us For Availability
37
Hole Plug, Control Box WPL 940014 Contact Us For Availability
38
Tube, Discharge WPL 2205384 Contact Us For Availability
39
Wire Assembly, Freezer Compartment (Includes WPL 2310039 Contact Us For Availability
39
Tube, Suction WPL 2225237 Contact Us For Availability
40
Tube, Process WPL 2154109 Contact Us For Availability
42
Screw WPL 3400518 Contact Us For Availability
43
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
43
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
43
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
43
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
43
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
43
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
43
Following Parts Not Illustrated and Optional WPL ARI47346A8 Contact Us For Availability
43
REFRIGERANT CHARGE 4.00 Ozs. (R134A) WPL ARI47347A2 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
× ![]()
