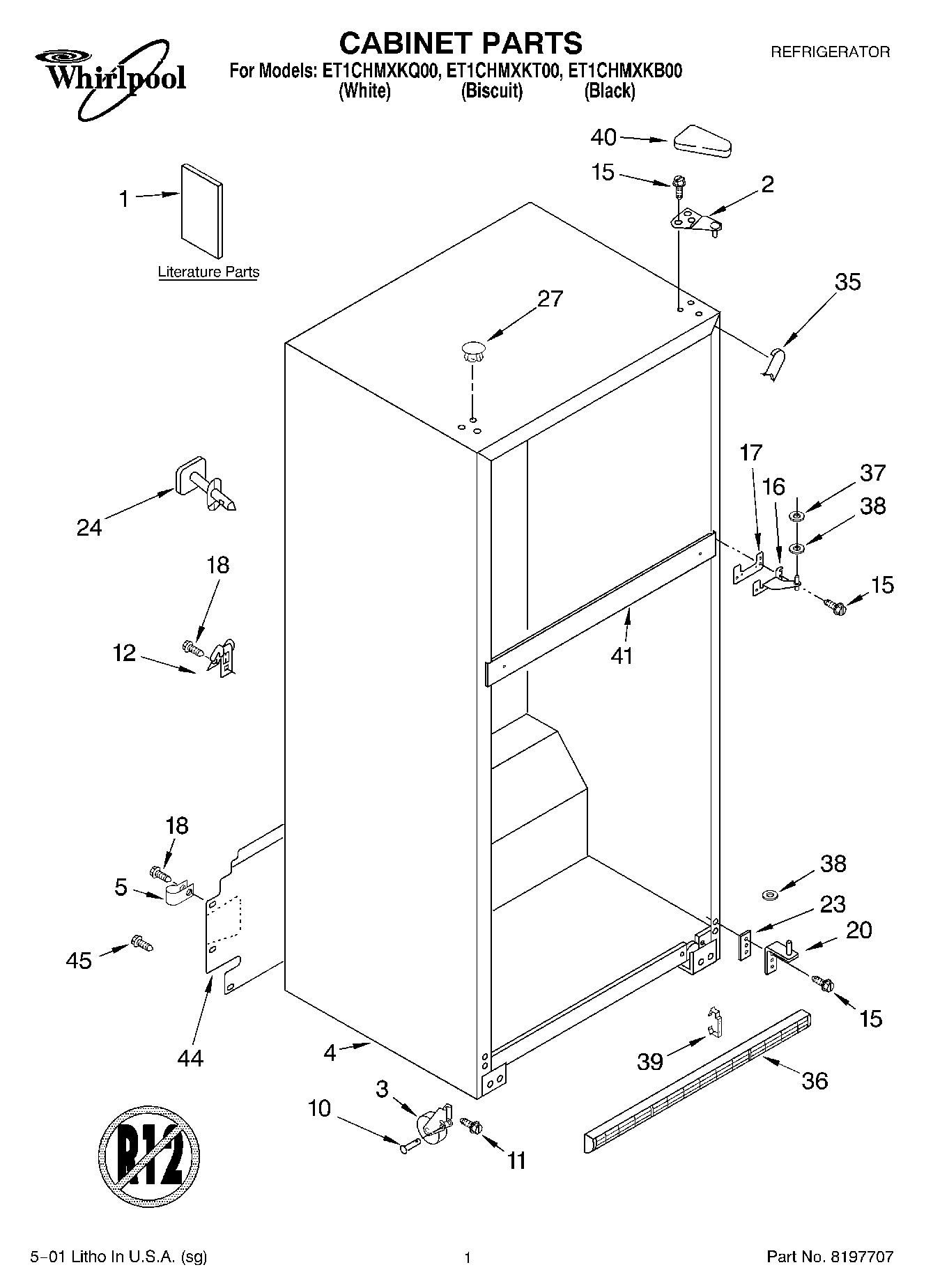

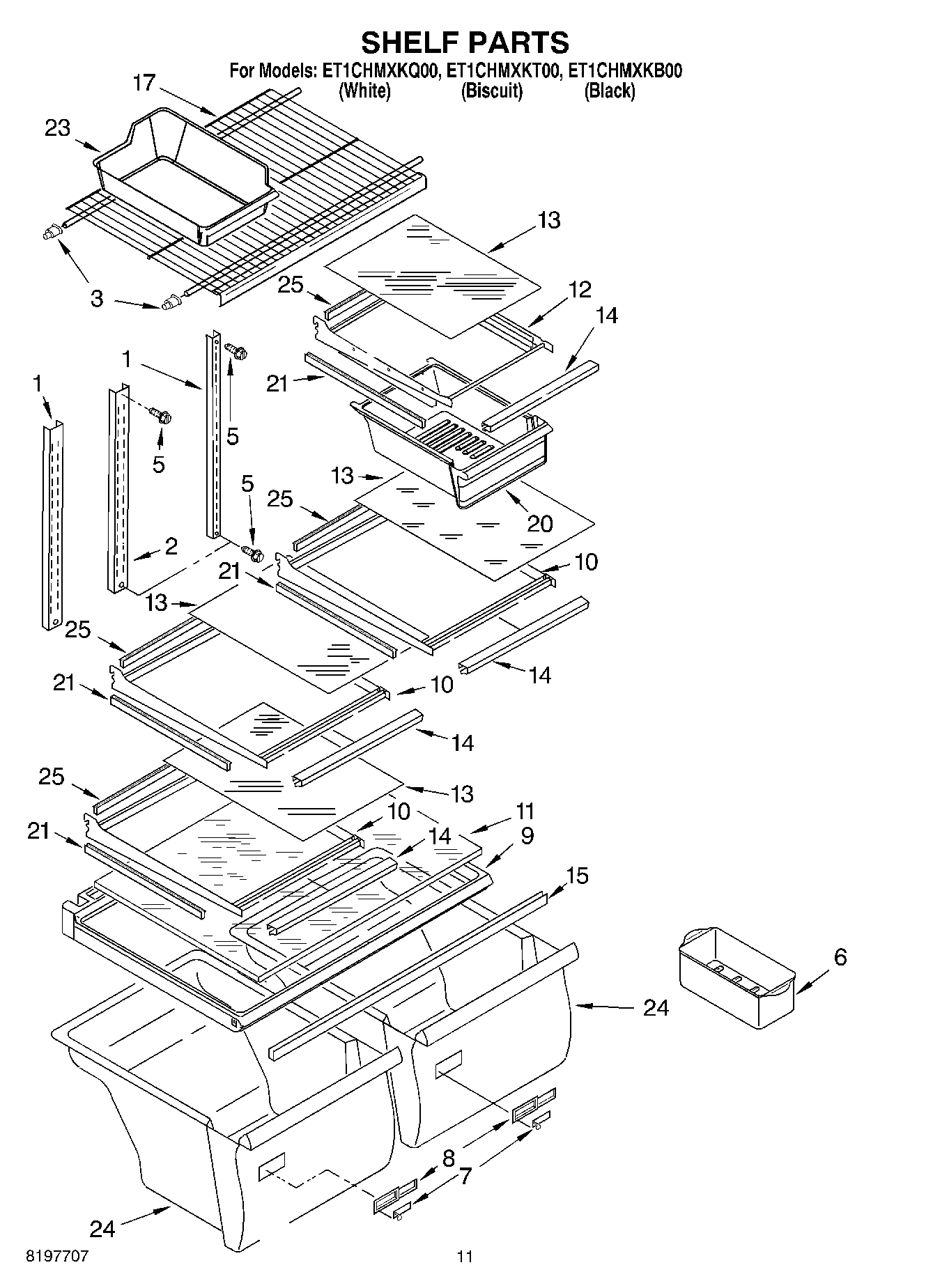

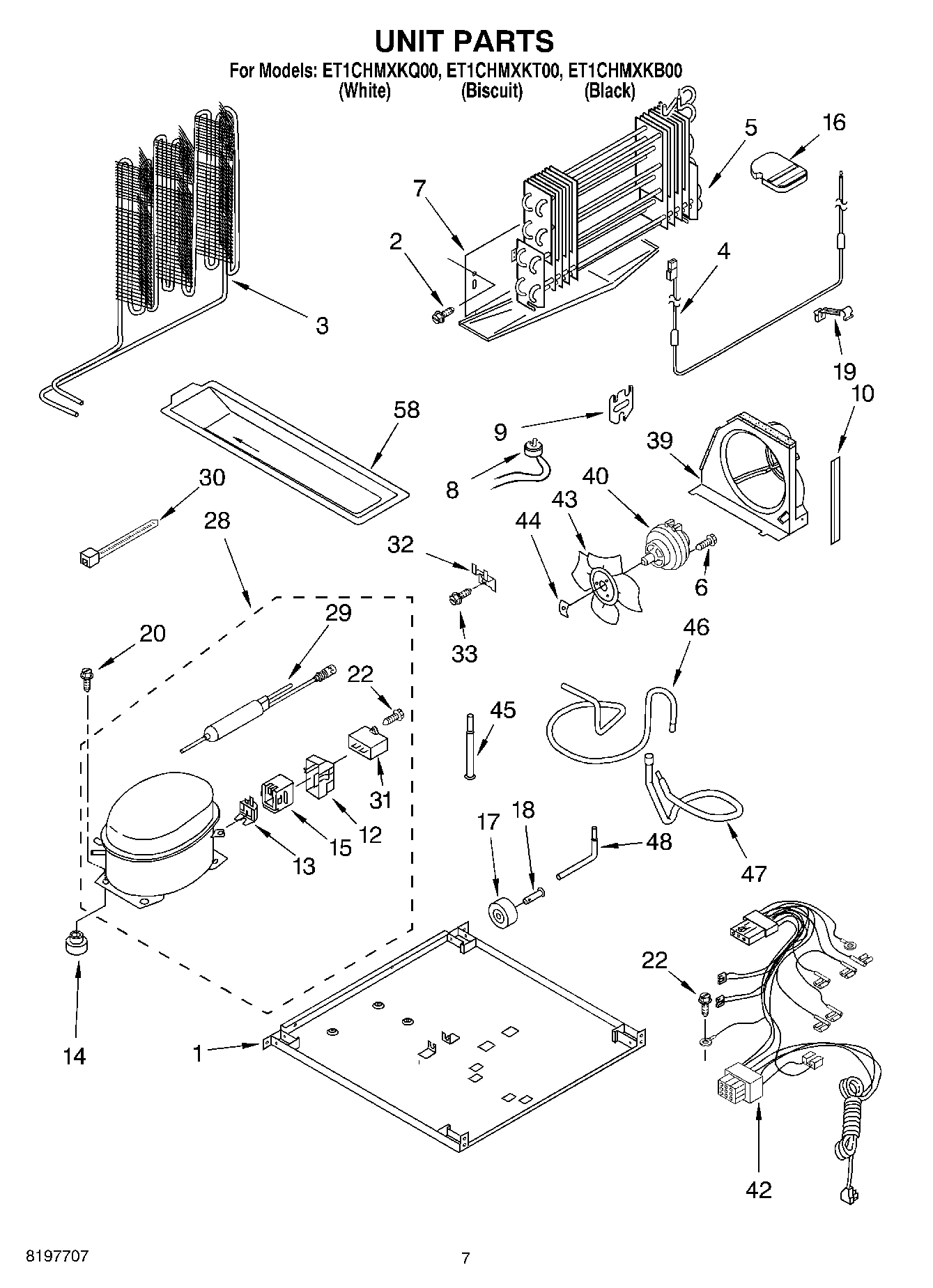

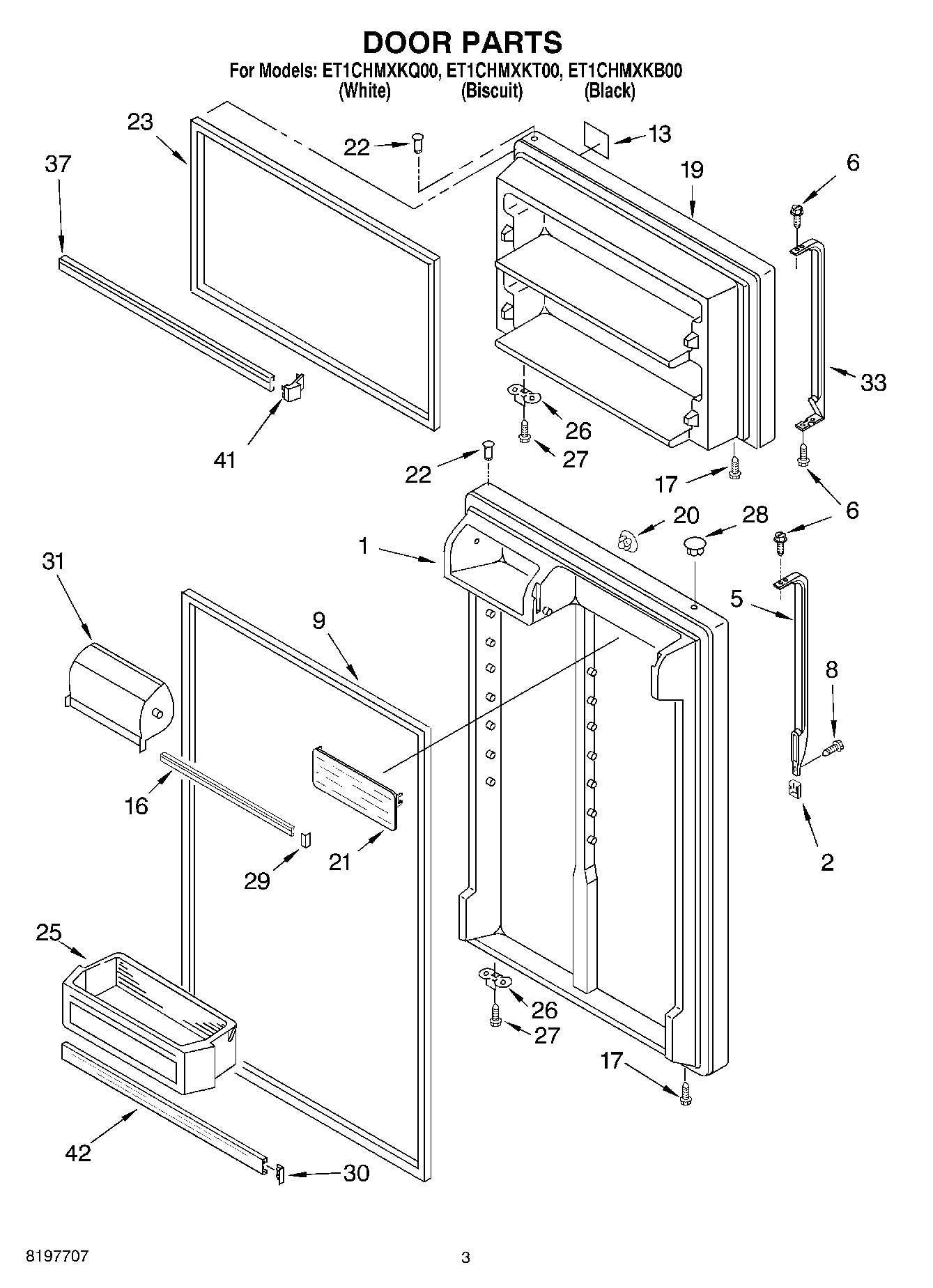

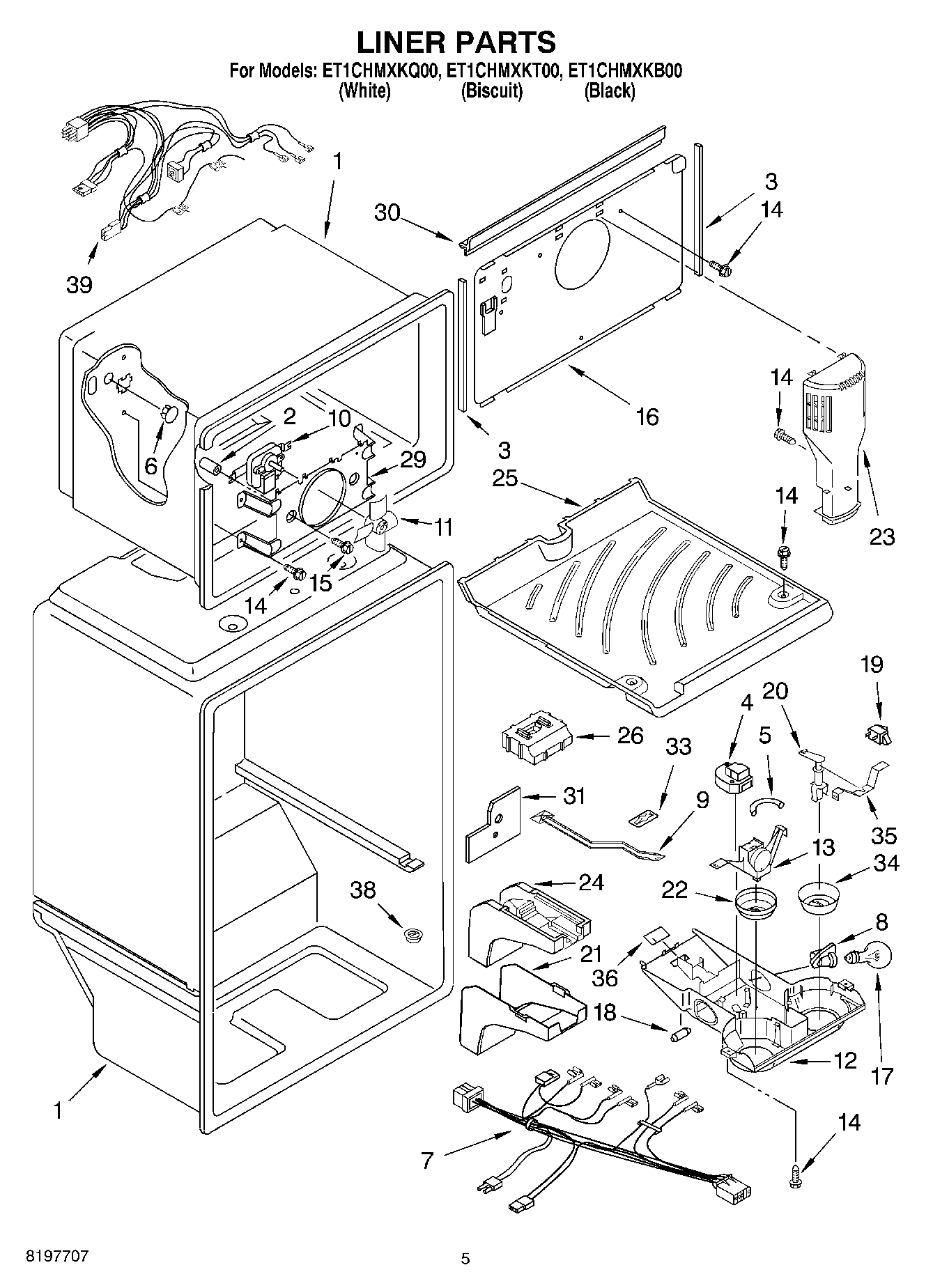

Model Whirlpool ET1CHMXKQ00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2205266 Contact Us For Availability

1

Energy Label WPL LIT2218261 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Literature Parts (Do-It-Yourself Manual Ref./ WPL LIT677969 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

4

Cabinet (Not A Serviceable Part) WPL ARI45993A7 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw WPL 983604 Contact Us For Availability

6

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

8

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

9

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

9

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $103.84

10

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

10

Shelf, Cantilever WPL 2201102E Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability

13

Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability

13

Glass, Shelf WPL 2200987 Contact Us For Availability

14

Trim, Shelf Front WPL 2188526 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Support Block WPL 2201185 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Clip, Heater WPL 2182338 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $102.95

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

WP2188236 Whirlpool Refrigerator Shelf Door In Stock WPL WP2188236 $32.24

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Trim, Shelf Side WPL 2188517 Contact Us For Availability

22

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Fitting, Water Tube (Not Serviced) WPL ARI45994A3 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2188689 Whirlpool Refrigerator Shelf Trim Backorder WPL WP2188689 $40.70

WP2204812 Whirlpool Refrigerator Door Bin In Stock WPL WP2204812 $44.93

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

Installation Kit WPL 482801 Contact Us For Availability

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

31

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

35

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Grille (White) WPL 2201006 Contact Us For Availability

Grille (Black) WPL 2201008 Contact Us For Availability

Grille (Biscuit) WPL 2201020 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

37

TRIM, DOOR (2) WPL 2195947 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

41

Rail Center (Not Serviced) WPL ARI45995A3 Contact Us For Availability

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2202884 Contact Us For Availability

45

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Tray, Evaporator WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
