Model Whirlpool ET18YKXAN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

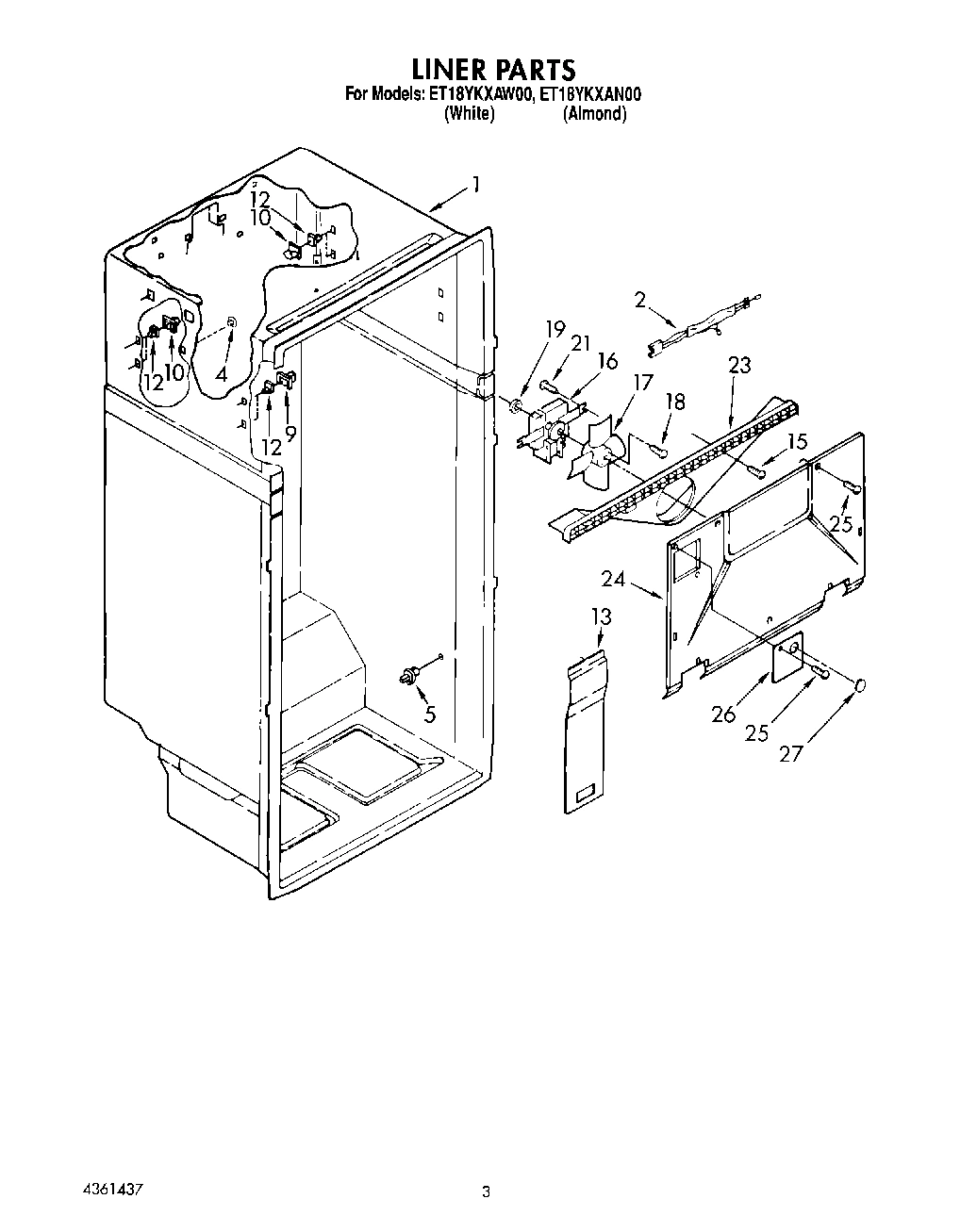

02 - LINER

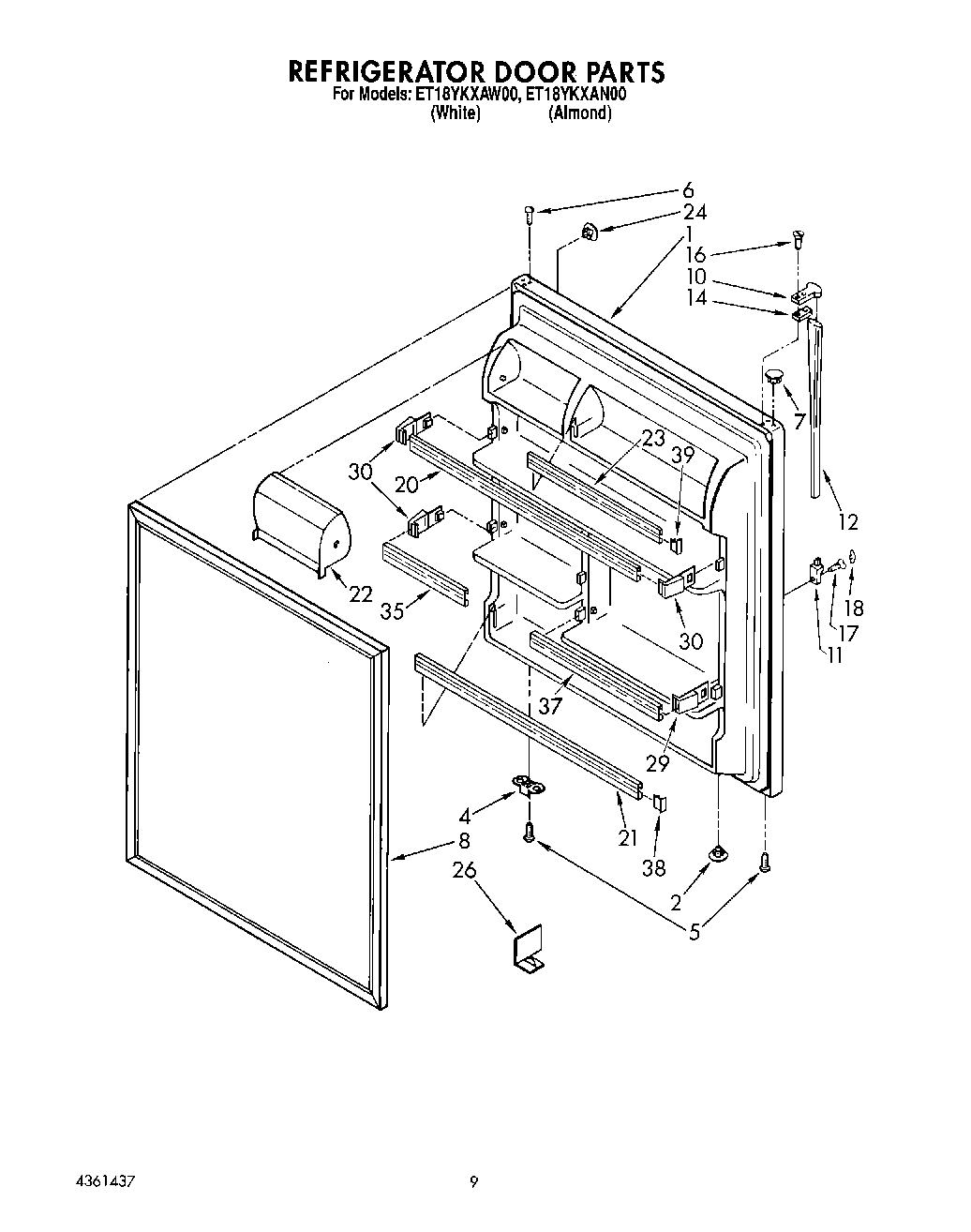

07 - REFRIGERATOR DOOR, LIT/OPTIONAL
01 - CABINET
03 - COMPARTMENT SEPARATOR
06 - UNIT
04 - SHELF
05 - FREEZER DOOR
Common parts from model Whirlpool ET18YKXAN00 TOP MOUNT REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI45310A8 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2156054 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2159223 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1118117 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
8
Trim, Shelf WPL 1118121 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2159052 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
9
Crisper Cover WPL 2148047 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Trim, Crisper Cover WPL 1116712 Contact Us For Availability
11
Clip, Mullion (3) WPL 2149060 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Center Rail (Almond) WPL 1116543 Contact Us For Availability
13
Retainer, Glass WPL 1118119 Contact Us For Availability
14
Spacer, Handle Door Panel WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2148030 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2159216 Contact Us For Availability
18
Nameplate WPL 2152334 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Trim, Shelf Front WPL 1118112 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Dampener (2) WPL 2149670 Contact Us For Availability
19
Pan, Crisper WPL 2148977 Contact Us For Availability
20
Tube Clamp (2) WPL 2159720 Contact Us For Availability
20
Pan, Meat WPL 2148978 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Trim, Full Shelf WPL 2148050 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Relay (See Overload) WPL ARI45312A5 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Overload (Includes Relay) WPL 2154945 Contact Us For Availability
23
Overload (Includes Relay) WPL 2159611 Contact Us For Availability
24
Muffler WPL 2159588 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Unit, Cover Bottom WPL 2160517 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
39
WPL 876029 WPL 876029 Contact Us For Availability
39
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
39
Torx Key WPL 1117510 Contact Us For Availability
39
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
39
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
39
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
39
CEMENT, AL WPL 542639 Contact Us For Availability
39
WPL 799833 WPL 799833 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Hole Plug (White) WPL 1129062 Contact Us For Availability
41
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
46
Fitting, Drain WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
