Model Whirlpool ET18PKXDN05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

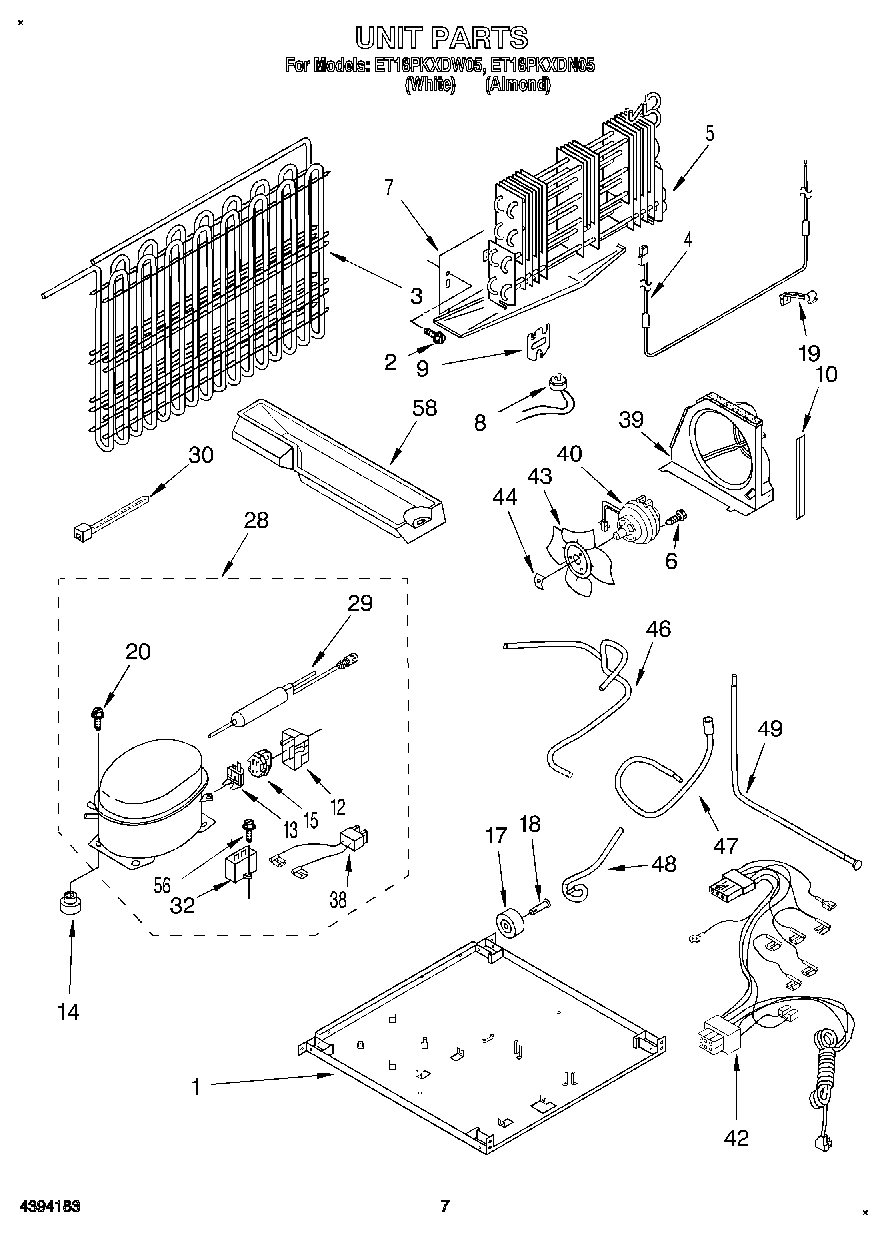

04 - UNIT

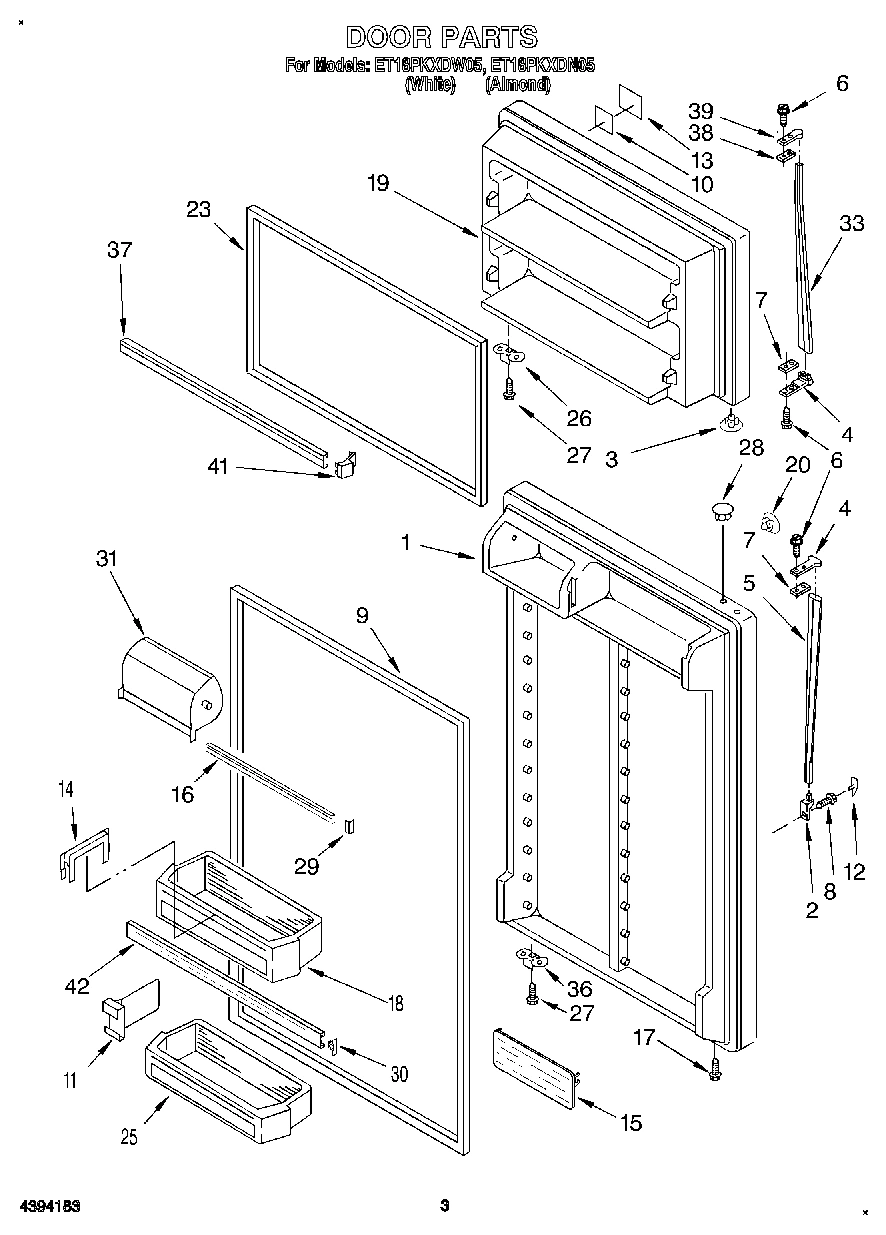

02 - DOOR
01 - CABINET
03 - LINER
05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool ET18PKXDN05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2182506 WPL LIT2182506 Contact Us For Availability
WPL LIT2184592 WPL LIT2184592 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44820A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44825A4 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf WPL 2163859 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Shelf, Ladder WPL 2172638 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
14
Screw WPL 489459 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
16
Cover WPL 2169935 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Shelf Front WPL 2176262 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159271 Contact Us For Availability
19
Trim, Shelf Rear WPL 2163882 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Glass, Half Shelf WPL 2166216 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Screw WPL 2174650 Contact Us For Availability
21
Glass, Full Shelf WPL 2166215 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
22
Shelf, Cantilever WPL 2163862 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI44821A1 Contact Us For Availability
24
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
25
Door Bin, Narrow (2) WPL 2175882 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
25
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
26
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
26
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Door Reversal Instructions WPL 2172516 Contact Us For Availability
26
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
26
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
26
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI44822A9 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI44823A9 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
33
Wire Assembly Freezer Compt. WPL 2179823 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Post, Damper WPL 2179859 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Trim-Door (2) WPL 2171037 Contact Us For Availability
37
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI44824A5 Contact Us For Availability
42
Trim, Door WPL 2184570 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
