Model Whirlpool ET18NKXFN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
WPL  LIT2195481
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
View on Model
WPL  LIT2195584
WPL LIT2195584 WPL LIT2195584 Contact Us For Availability
View on Model
WPL  LIT2199009
WPL LIT2199009 WPL LIT2199009 Contact Us For Availability
View on Model
WPL  LIT677969
WPL LIT677969 WPL LIT677969 Contact Us For Availability
View on Model
WPL  LIT677971
WPL LIT677971 WPL LIT677971 Contact Us For Availability
View on Model

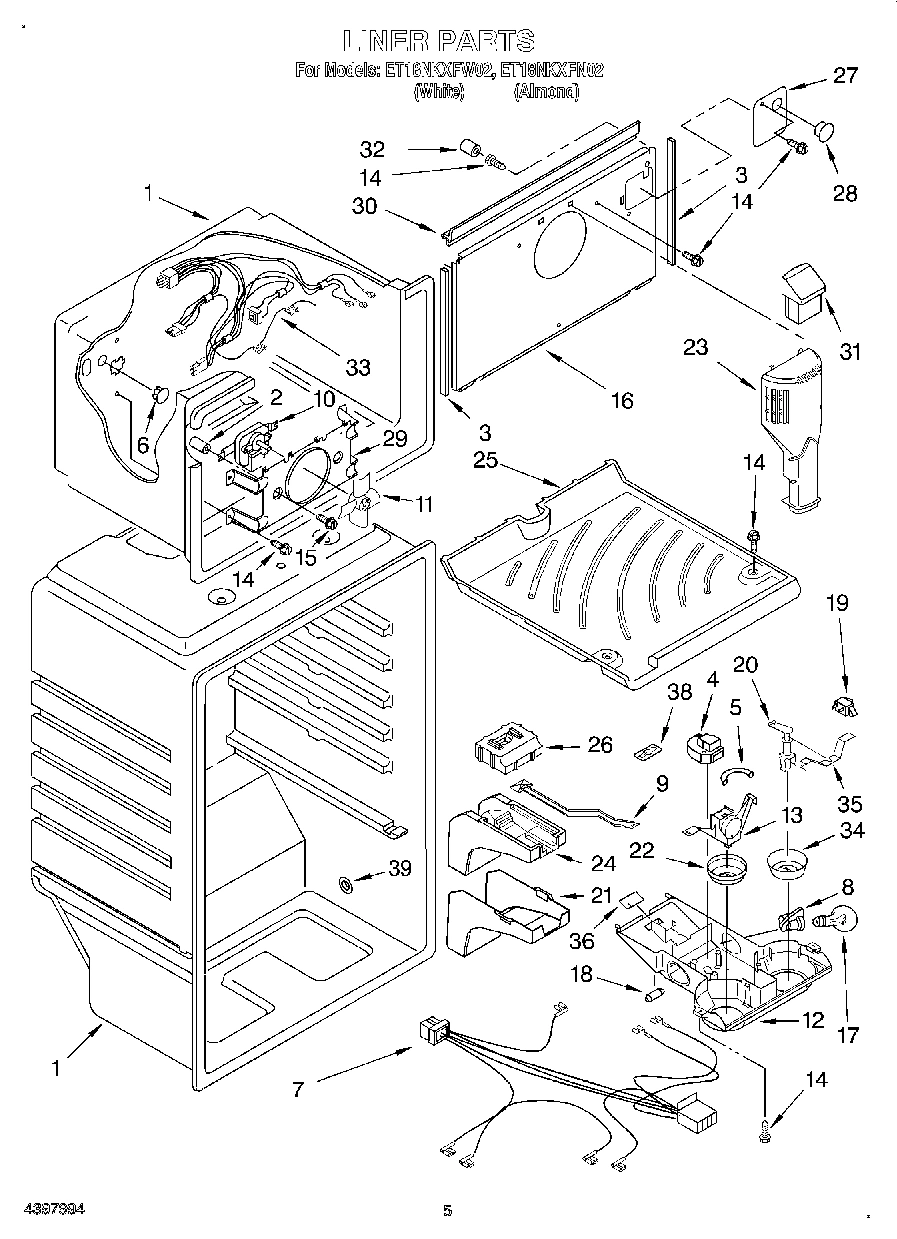

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI44433A1 Contact Us For Availability
View on Model
2
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
2
Shelf (2)
Shelf (2) WPL 2163856 Contact Us For Availability
View on Model
4
Timer, Defrost
Timer, Defrost WPL 2199008 Contact Us For Availability
View on Model
7
Spacer
Spacer WPL 943188 Contact Us For Availability
View on Model
7
Wire Assy. Control Box
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
View on Model
9
Damper, Air
Damper, Air WPL 2179858 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 2183833 Contact Us For Availability
View on Model
11
Shelf, Ladder (2)
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
View on Model
12
Cover, Screw (White)
Cover, Screw (White) WPL 9791769 Contact Us For Availability
View on Model
12
Cover, Screw (Almond)
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
View on Model
12
Control Box
Control Box WPL 2179790 Contact Us For Availability
View on Model
12
Shelf Ladder,
Shelf Ladder, WPL 2163826 Contact Us For Availability
View on Model
13
Screw Support
Screw Support WPL 2189314 Contact Us For Availability
View on Model
14
Pan, Meat
Pan, Meat WPL 2169919 Contact Us For Availability
View on Model
15
Trim, Door
Trim, Door WPL 2195942 Contact Us For Availability
View on Model
15
Cover, Meat Pan
Cover, Meat Pan WPL 2163848 Contact Us For Availability
View on Model
15
Screw
Screw WPL 489412 Contact Us For Availability
View on Model
16
Cover, Evaporator
Cover, Evaporator WPL 2183154 Contact Us For Availability
View on Model
18
Trim, Door
Trim, Door WPL 2195941 Contact Us For Availability
View on Model
18
Weight, Thermal
Weight, Thermal WPL 2163802 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
20
Post, Damper
Post, Damper WPL 2179859 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
22
Knob, Thermostat
Knob, Thermostat WPL 2193455 Contact Us For Availability
View on Model
23
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
25
Freezer Floor
Freezer Floor WPL 2172565 Contact Us For Availability
View on Model
26
Air Diffuser, Top
Air Diffuser, Top WPL 2179877 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
29
Bracket, Fan Motor
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
View on Model
33
Wire Assembly, Freezer Compartment
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2176297 Contact Us For Availability
View on Model
35
Bracket, Damper Knob
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
View on Model
36
Grille (Almond)
Grille (Almond) WPL 2183994 Contact Us For Availability
View on Model
38
Shim
Shim WPL 943187 Contact Us For Availability
View on Model
38
Clip, Defrost Timer
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
View on Model
40
Cover, Hinge (Almond)
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
View on Model
41
Rail Center (Not Serviced)
Rail Center (Not Serviced) WPL ARI44432A4 Contact Us For Availability
View on Model
42
Corner Filler, Grille (White)
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
View on Model
42
Corner Filler, Grille (Almond)
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
View on Model
43
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
Door Reversal Instructions
Door Reversal Instructions WPL 2176379 Contact Us For Availability
View on Model
100
Featurepak (Includes 14,15) Also See Door Pg.
Featurepak (Includes 14,15) Also See Door Pg. WPL 2182569 Contact Us For Availability
View on Model
100
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
100
KIT, PORCELAIN REPAIR (WHITE)
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
View on Model
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
100
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
