Model Whirlpool ET18JMXWN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

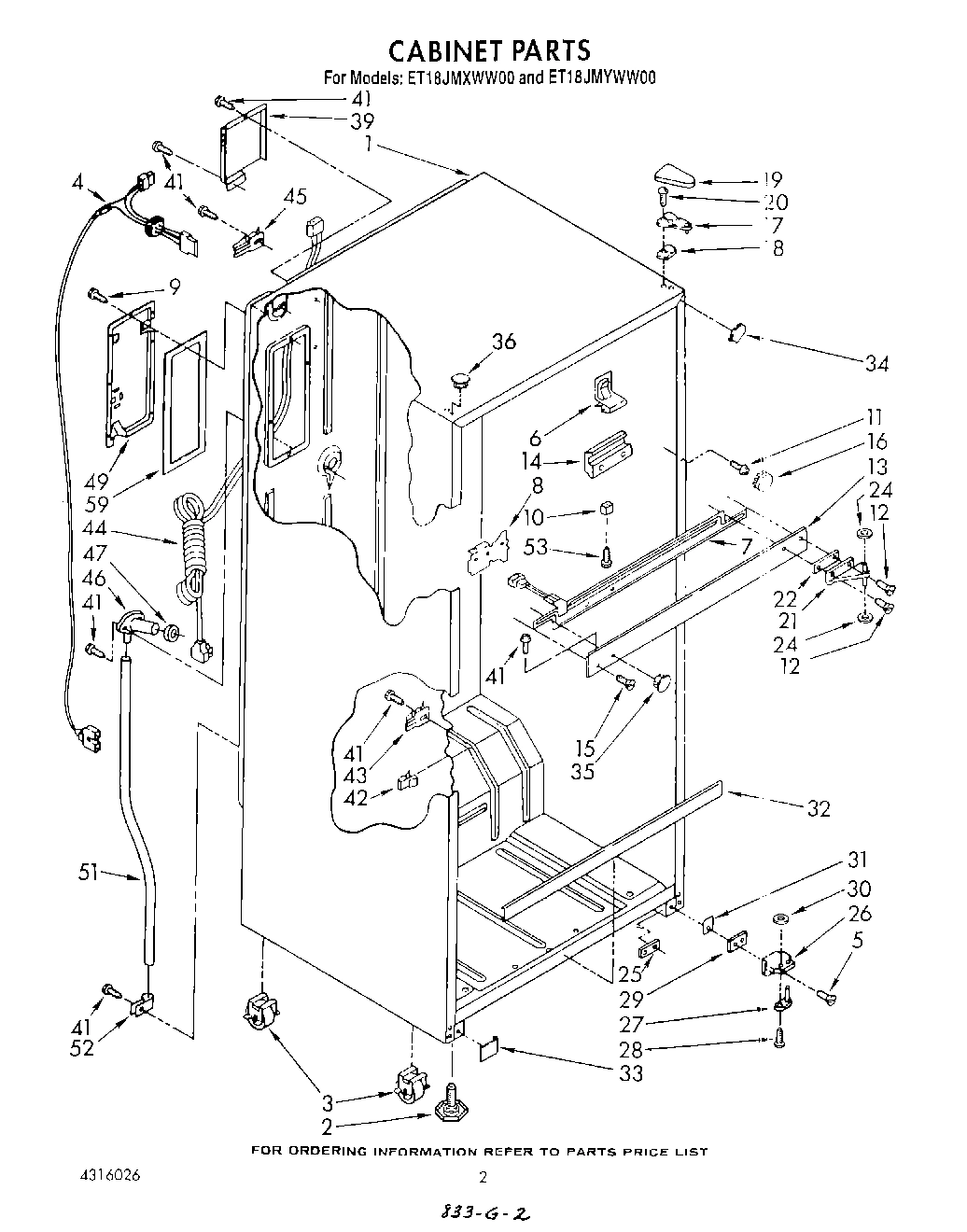

02 - CABINET

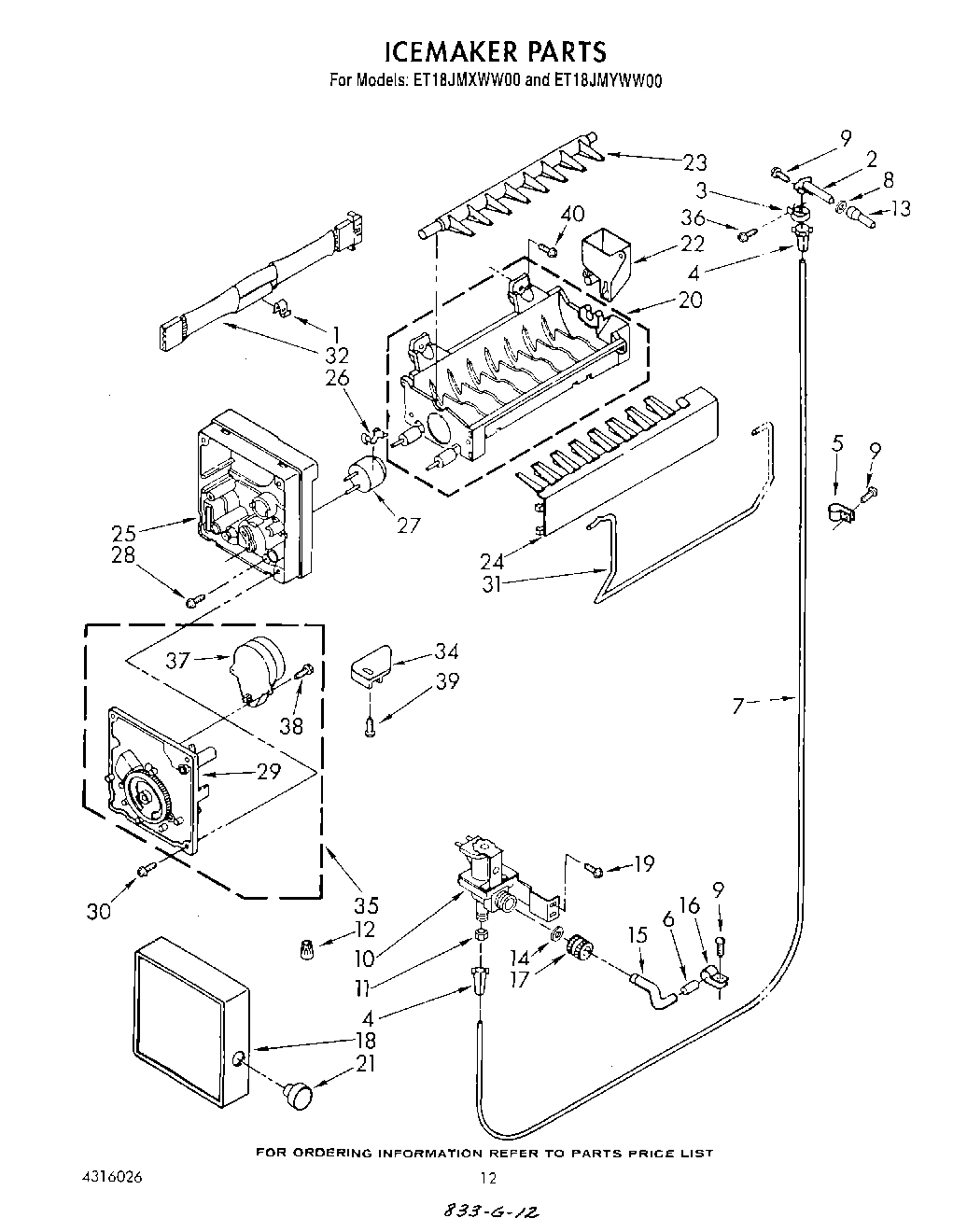

09 - ICEMAKER , LIT/OPTIONAL

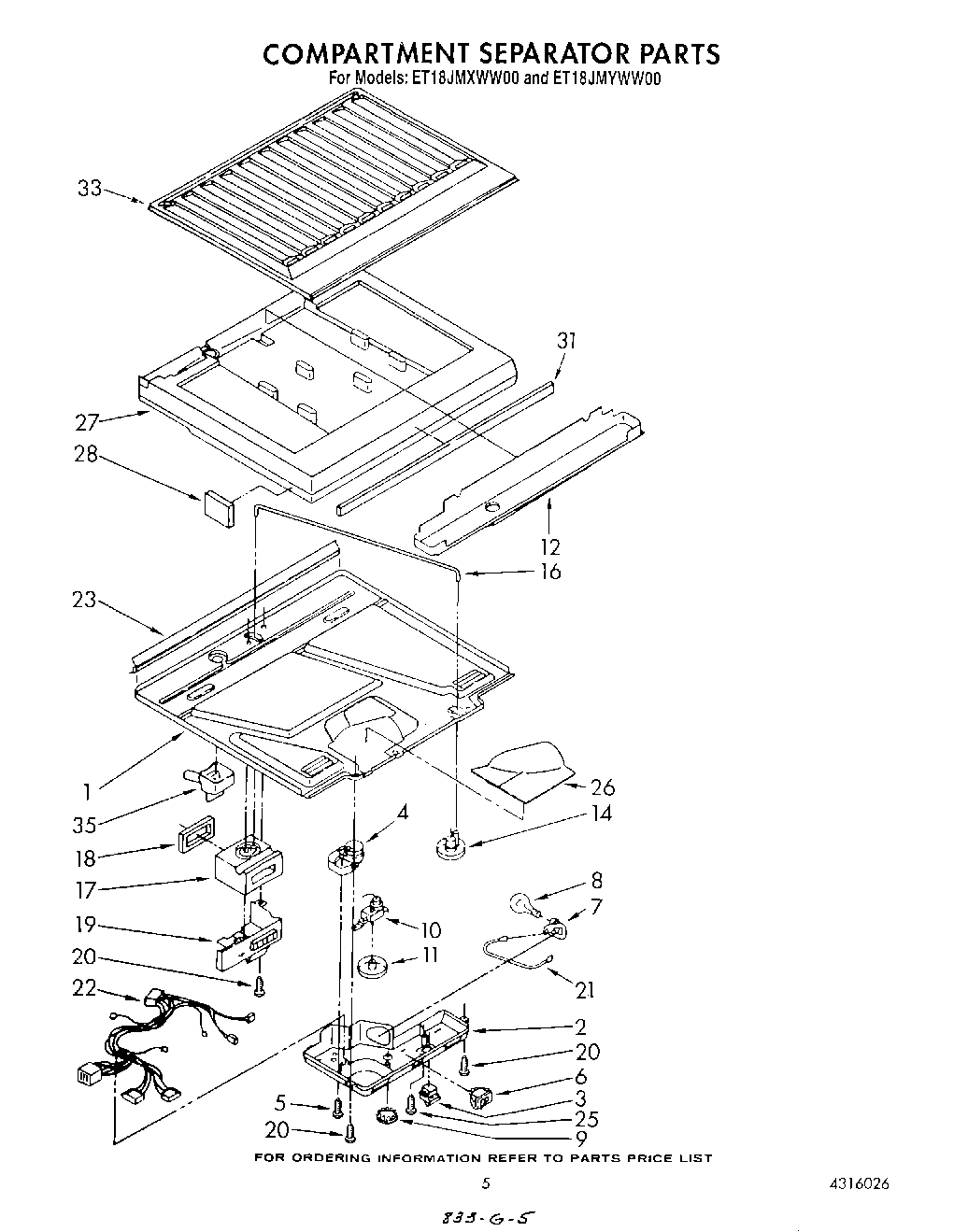

04 - COMPARTMENT SEPARATOR

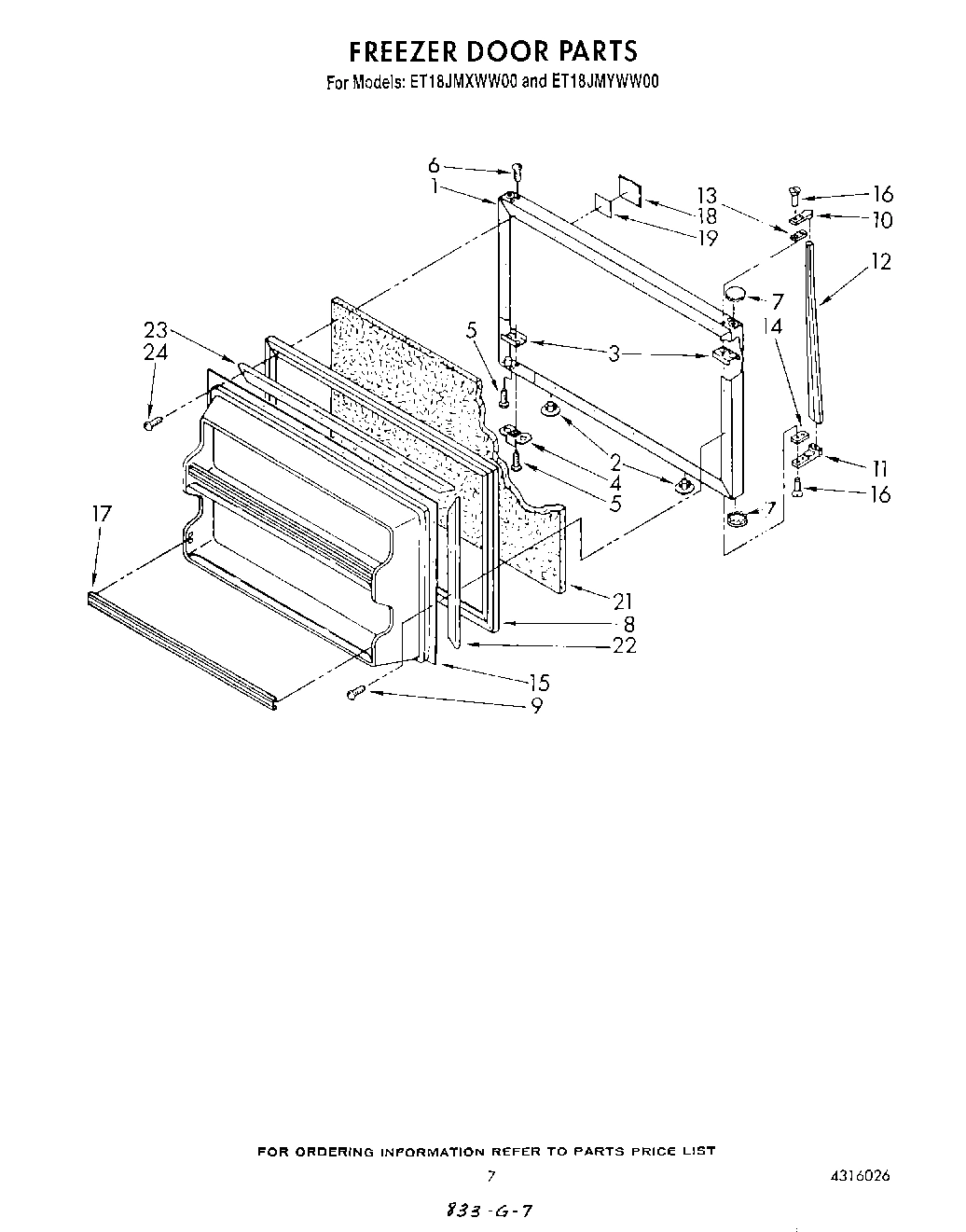

06 - FREEZER DOOR

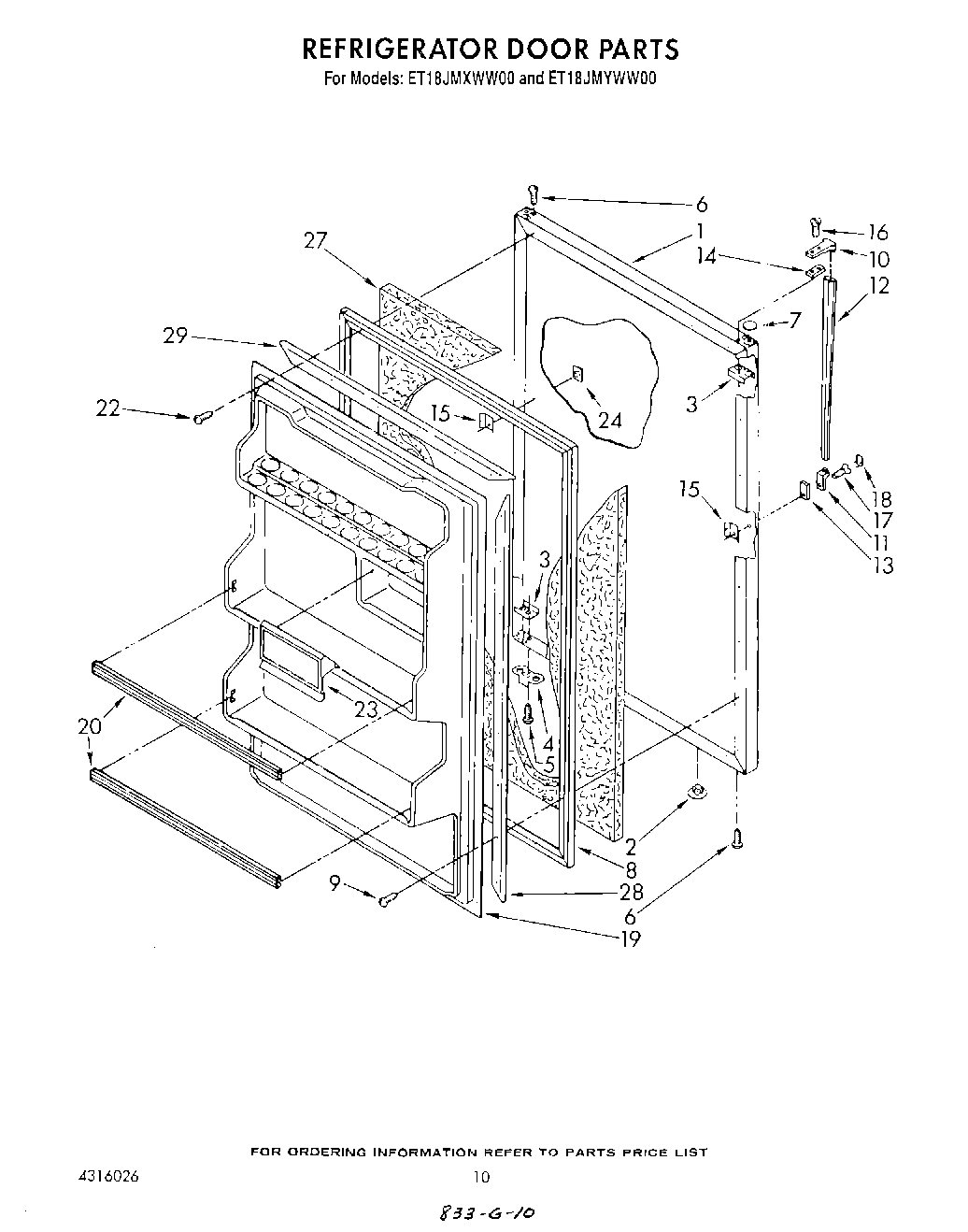

08 - REFRIGERATOR DOOR

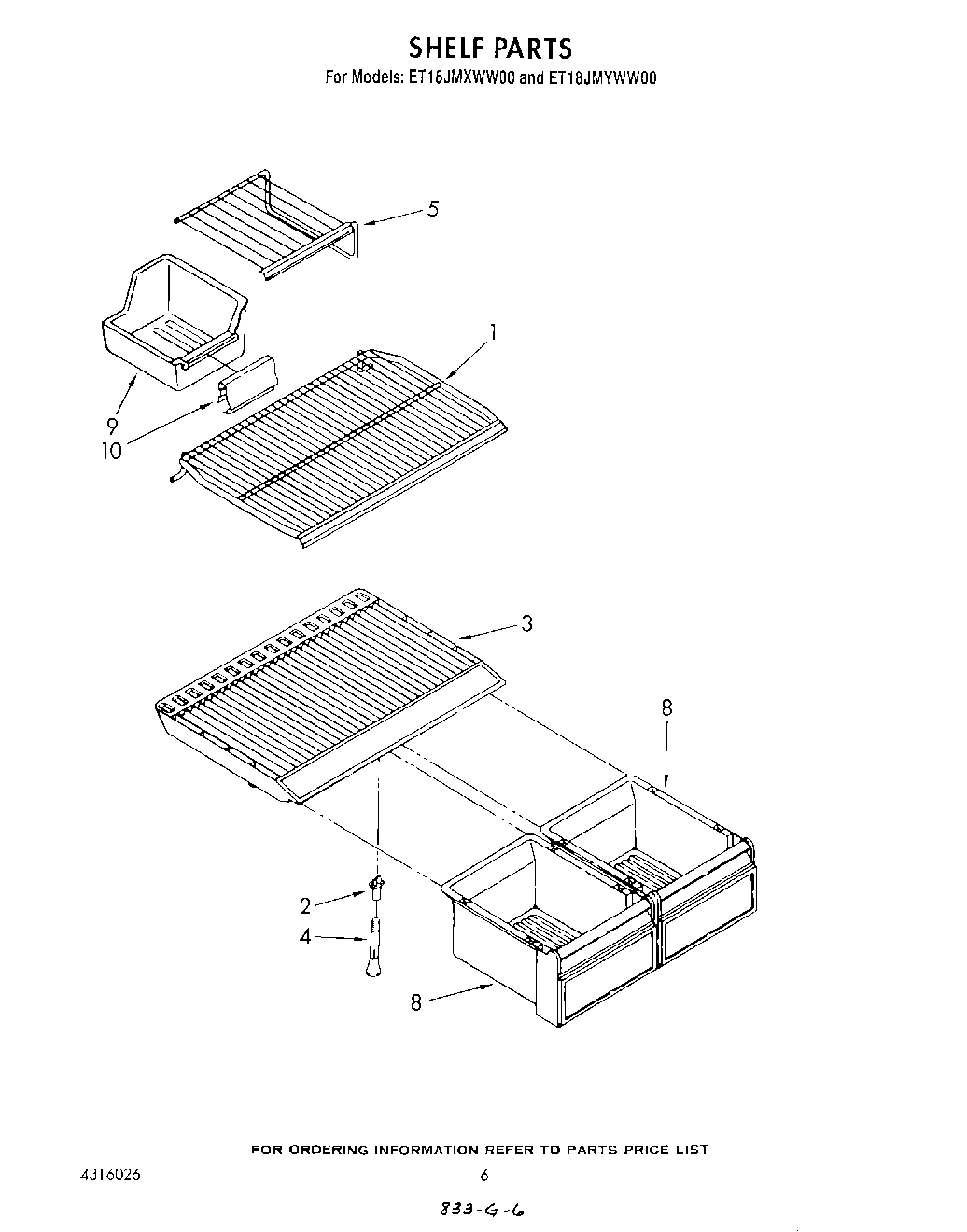

05 - SHELF

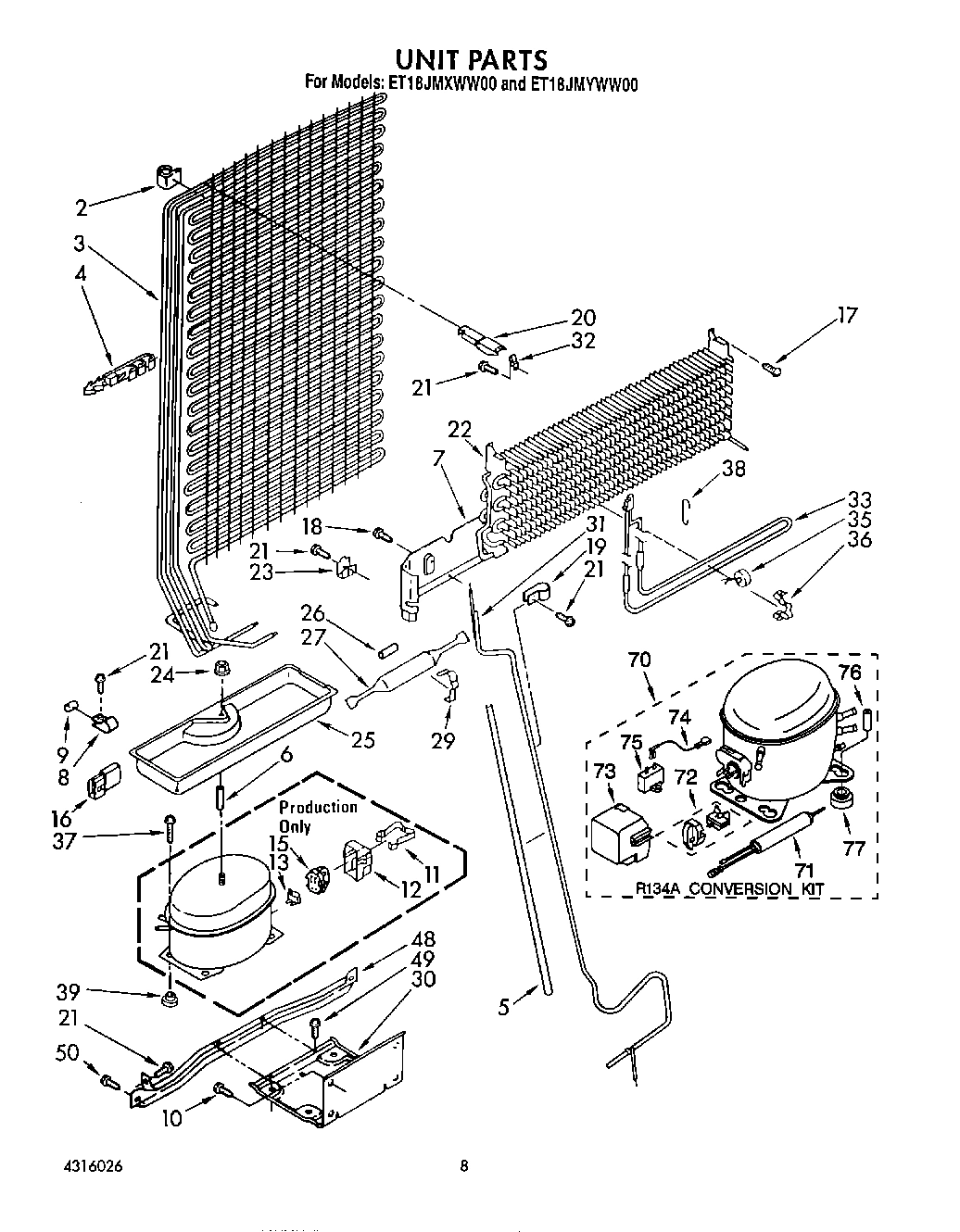

07 - UNIT

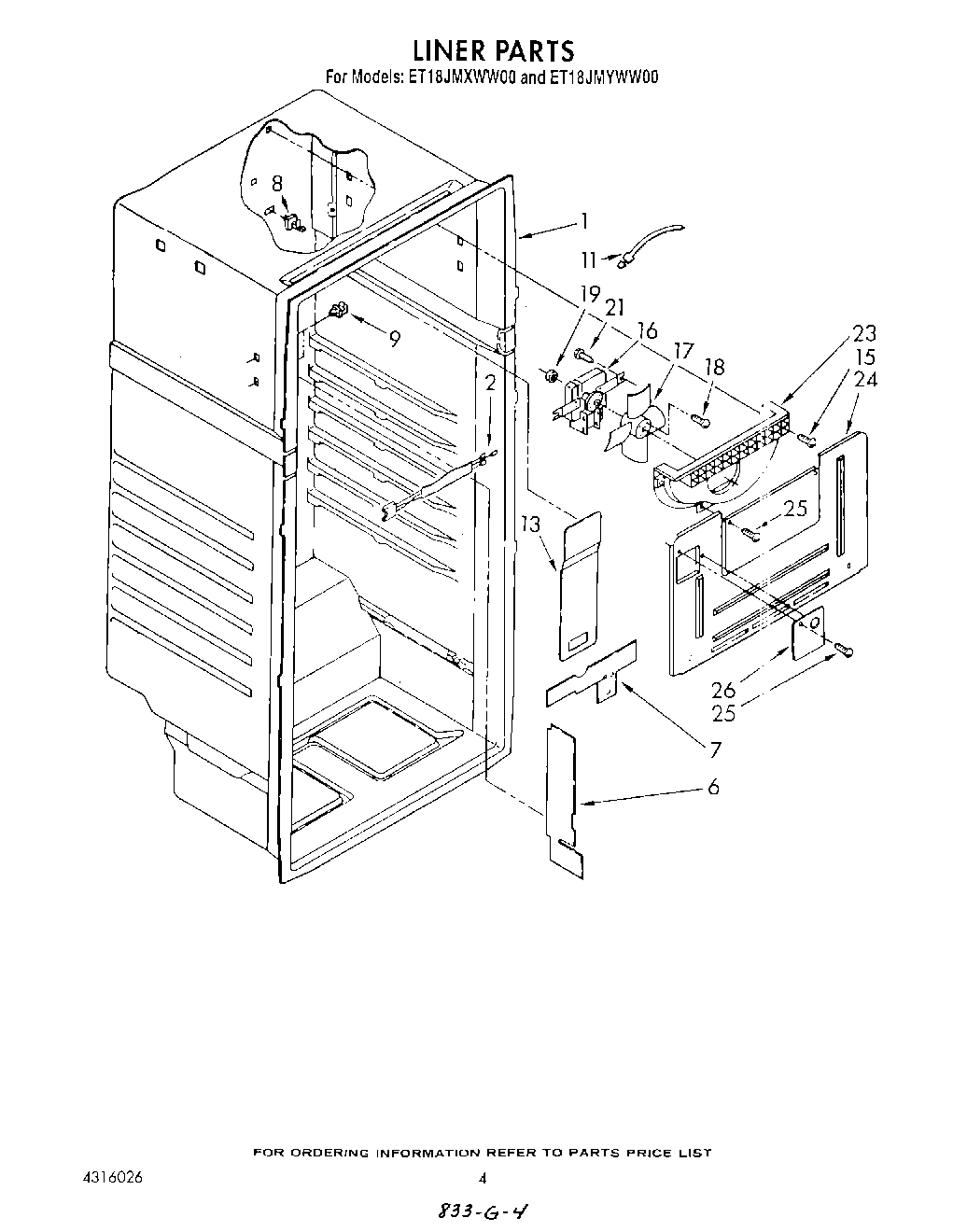

03 - LINER
Common parts from model Whirlpool ET18JMXWN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT4316026 WPL LIT4316026 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104636 Contact Us For Availability
1
Shelf, Pullout (3) WPL 944732 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44094A3 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
3
Cover, Crisper WPL 1116059 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1127615 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Tube, Retainer WPL 1118652 Contact Us For Availability
5
Cover, Ice Tray WPL 1120714 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Top, Electric Shield WPL 1129068 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122830 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122827 Contact Us For Availability
8
Pan, Crisper WPL 1111804 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Ice Cube Pan WPL 946400 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
10
Trim, Ice Pan WPL 539567 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120631 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Trim, Door Shelf WPL 1116065 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1120630 Contact Us For Availability
19
Tube, Clamp WPL 489151 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Trim, Door (2) WPL 1116062 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100636 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
22
Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123915 Contact Us For Availability
23
Compartment, Butter Door WPL 2150402 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
25
Screw, 8-15 x 1-3/8 WPL 488678 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123391 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
31
Exchanger, Heat WPL 1127721 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119325 Contact Us For Availability
33
Heater, Defrost WPL 1127660 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
38
Support, Heater WPL 1108172 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
