Model Whirlpool ET18JMXWM01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

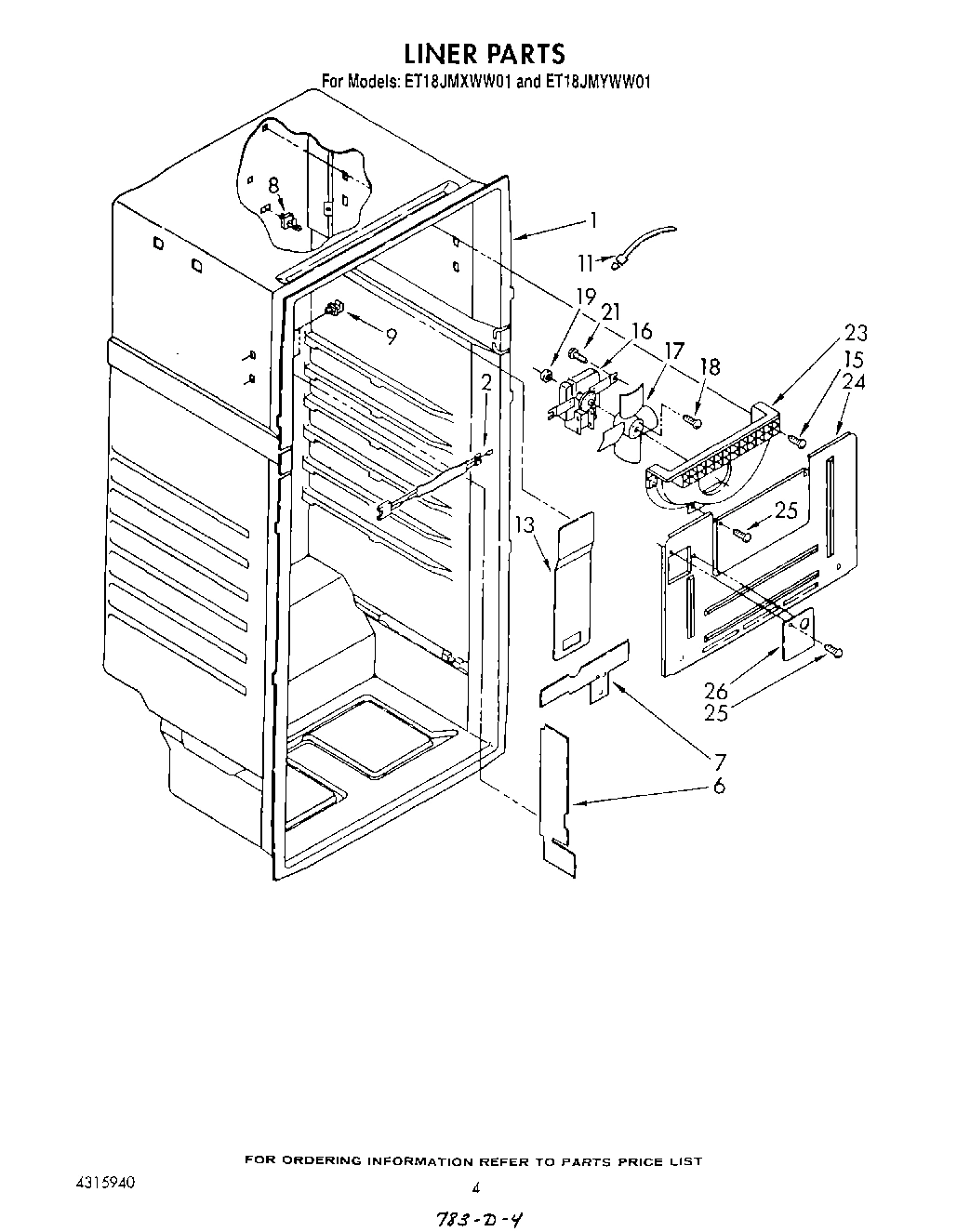

03 - LINER

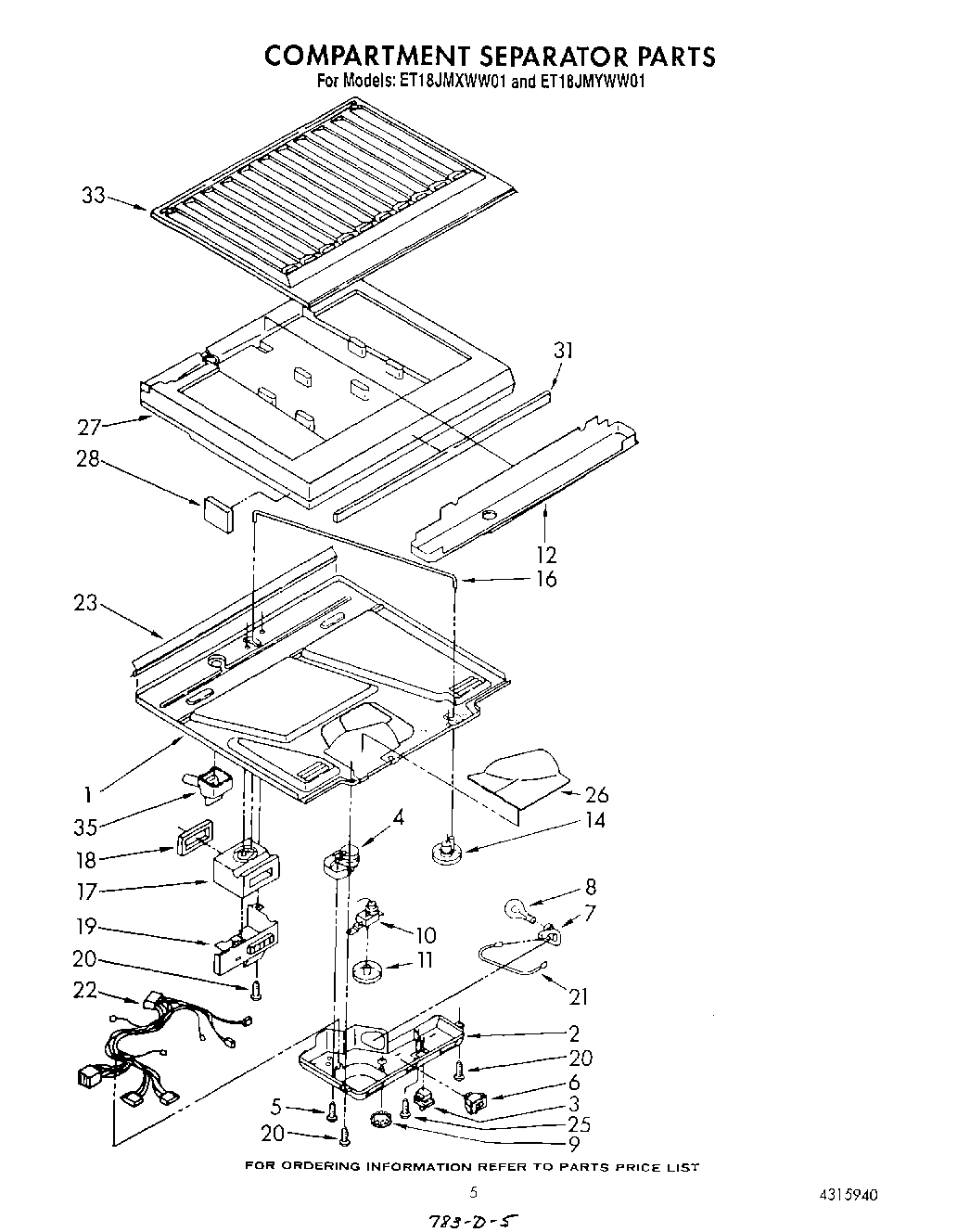

04 - COMPARTMENT SEPARATOR

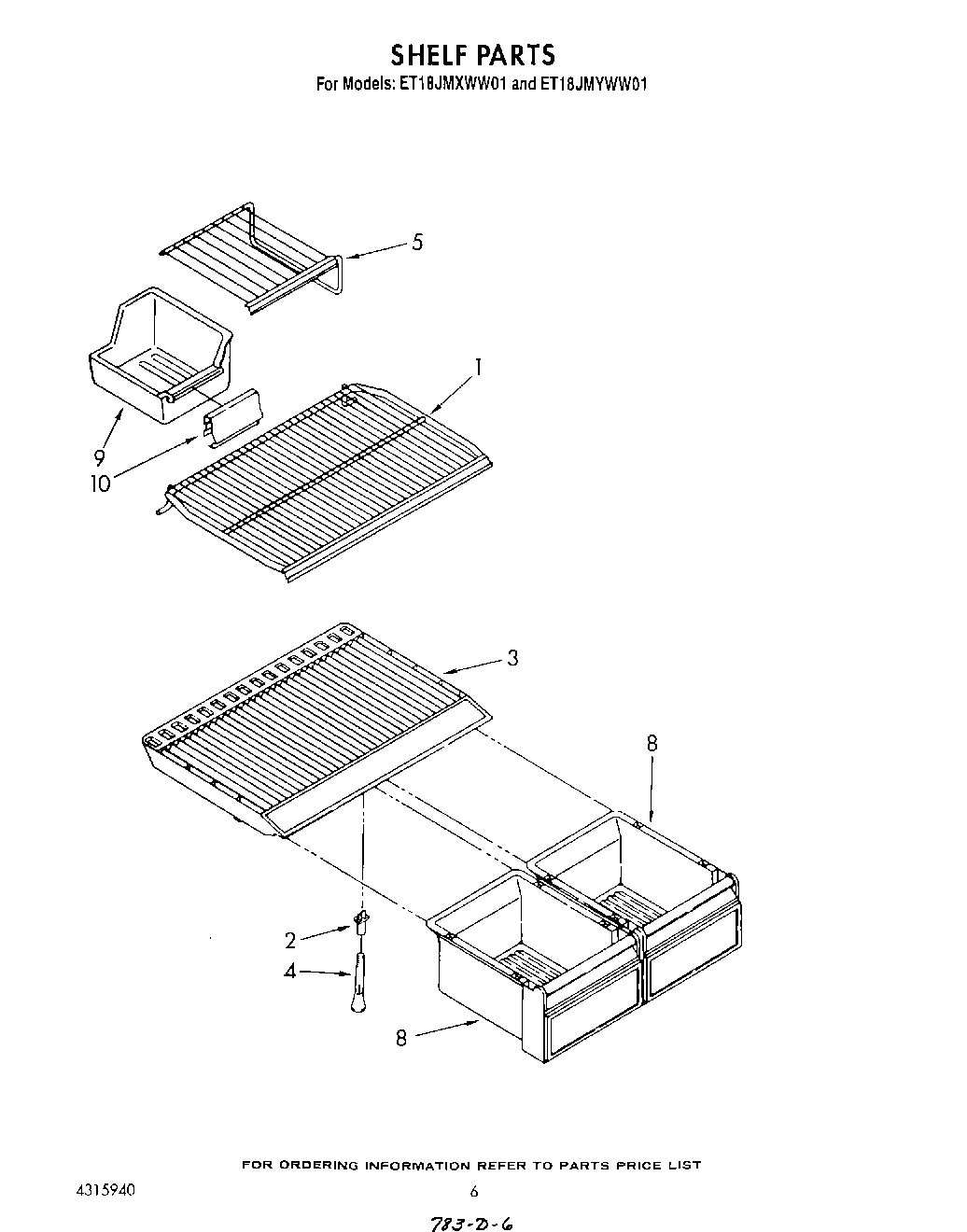

05 - SHELF

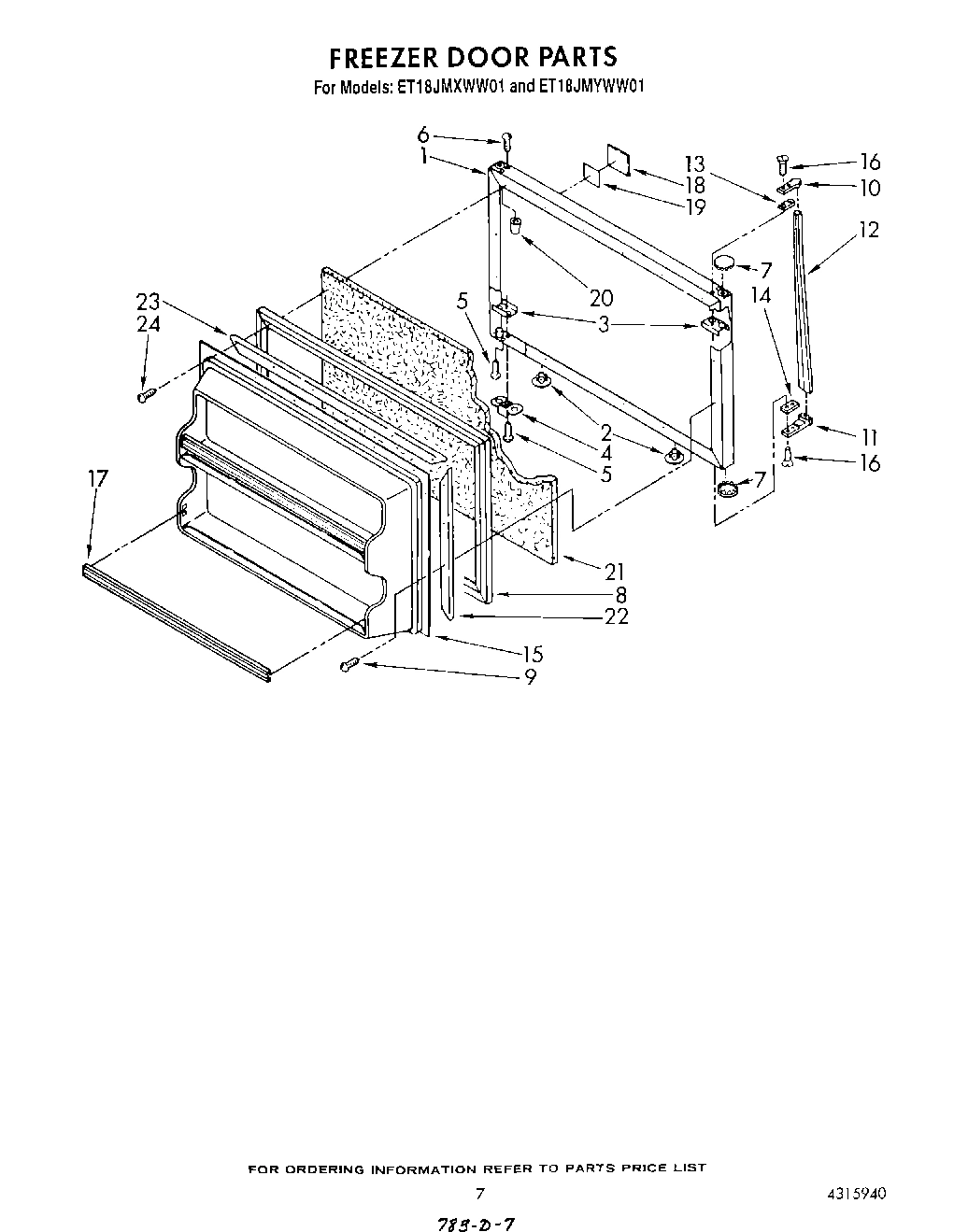

06 - FREEZER DOOR

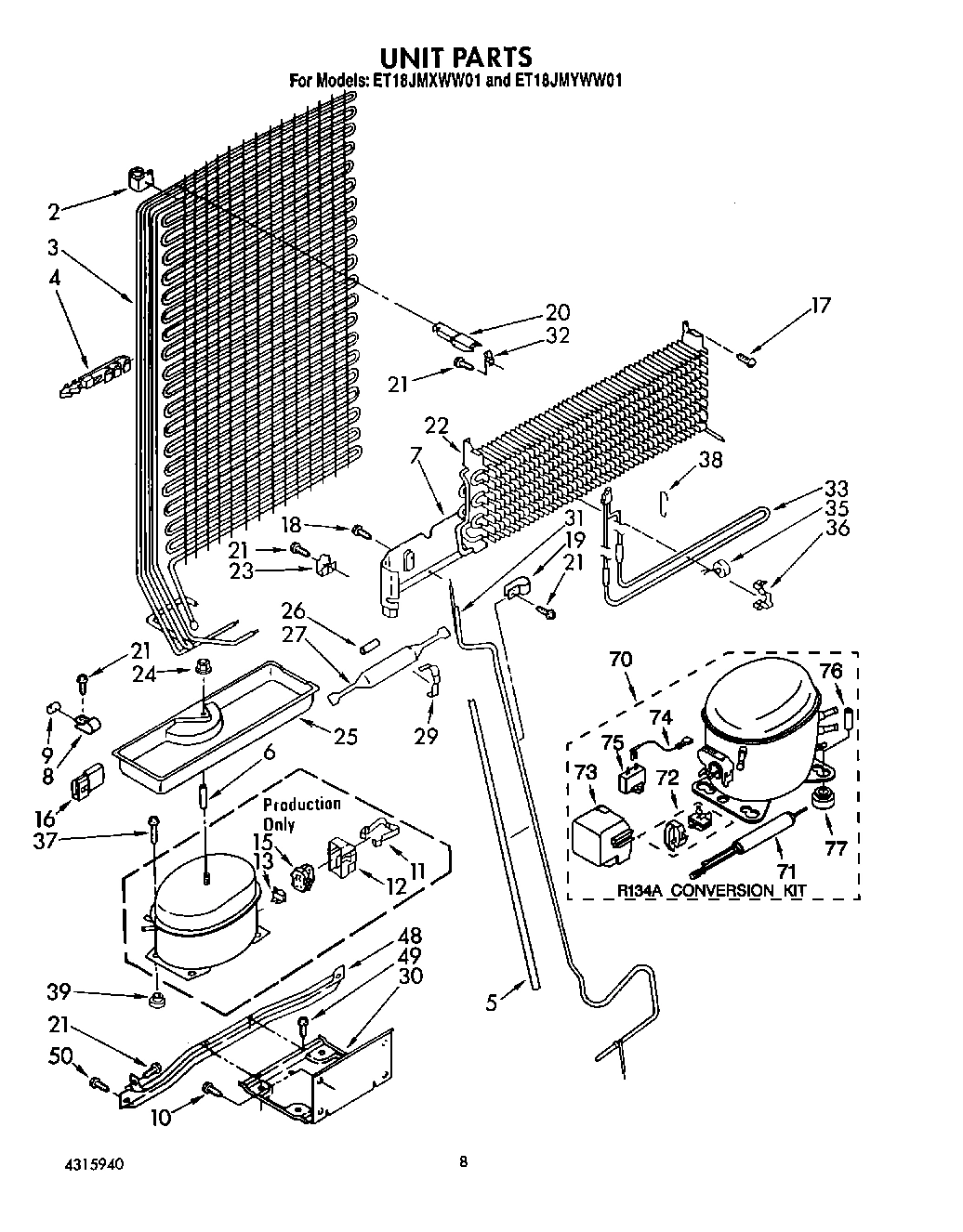

07 - UNIT

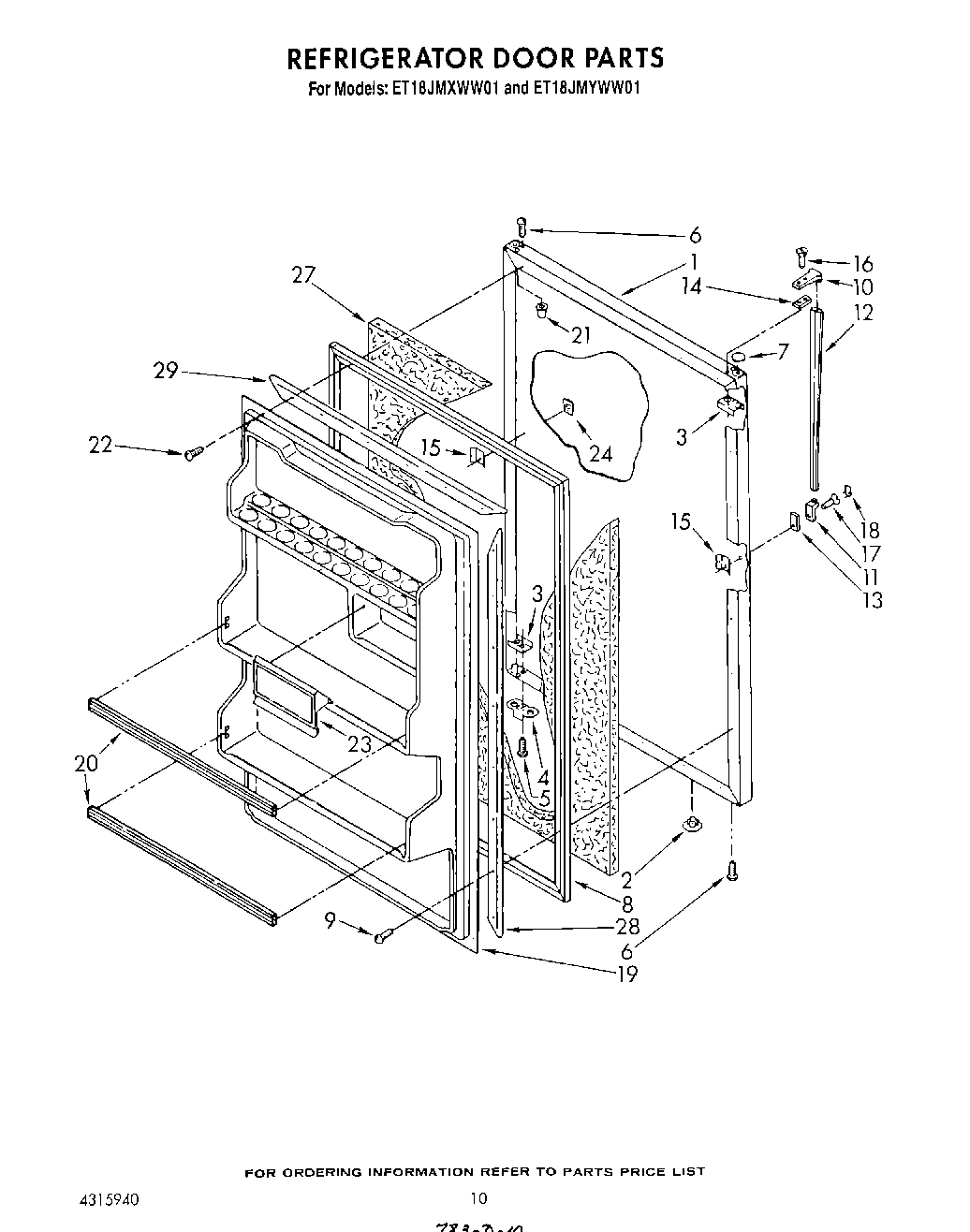

08 - REFRIGERATOR DOOR

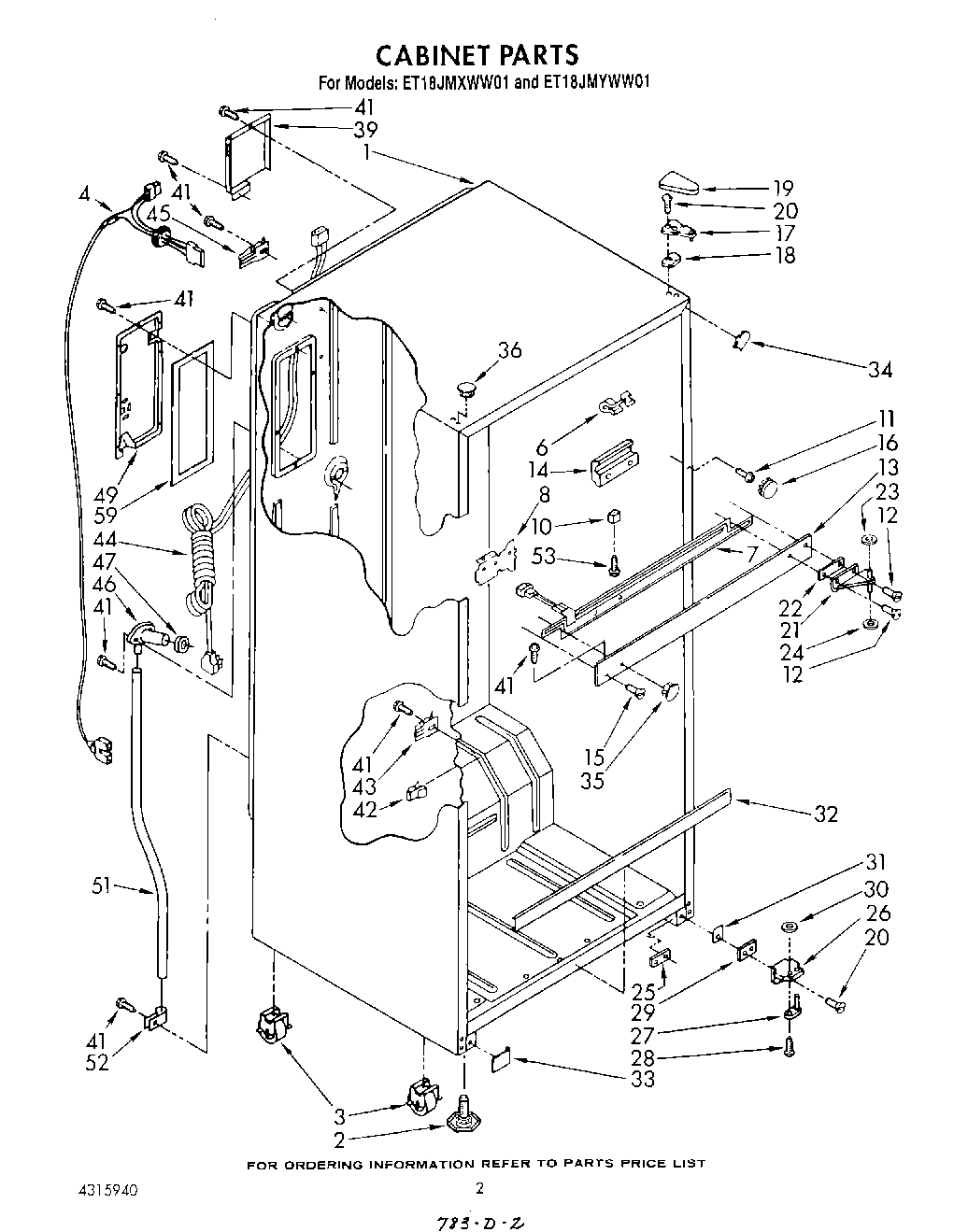

02 - CABINET

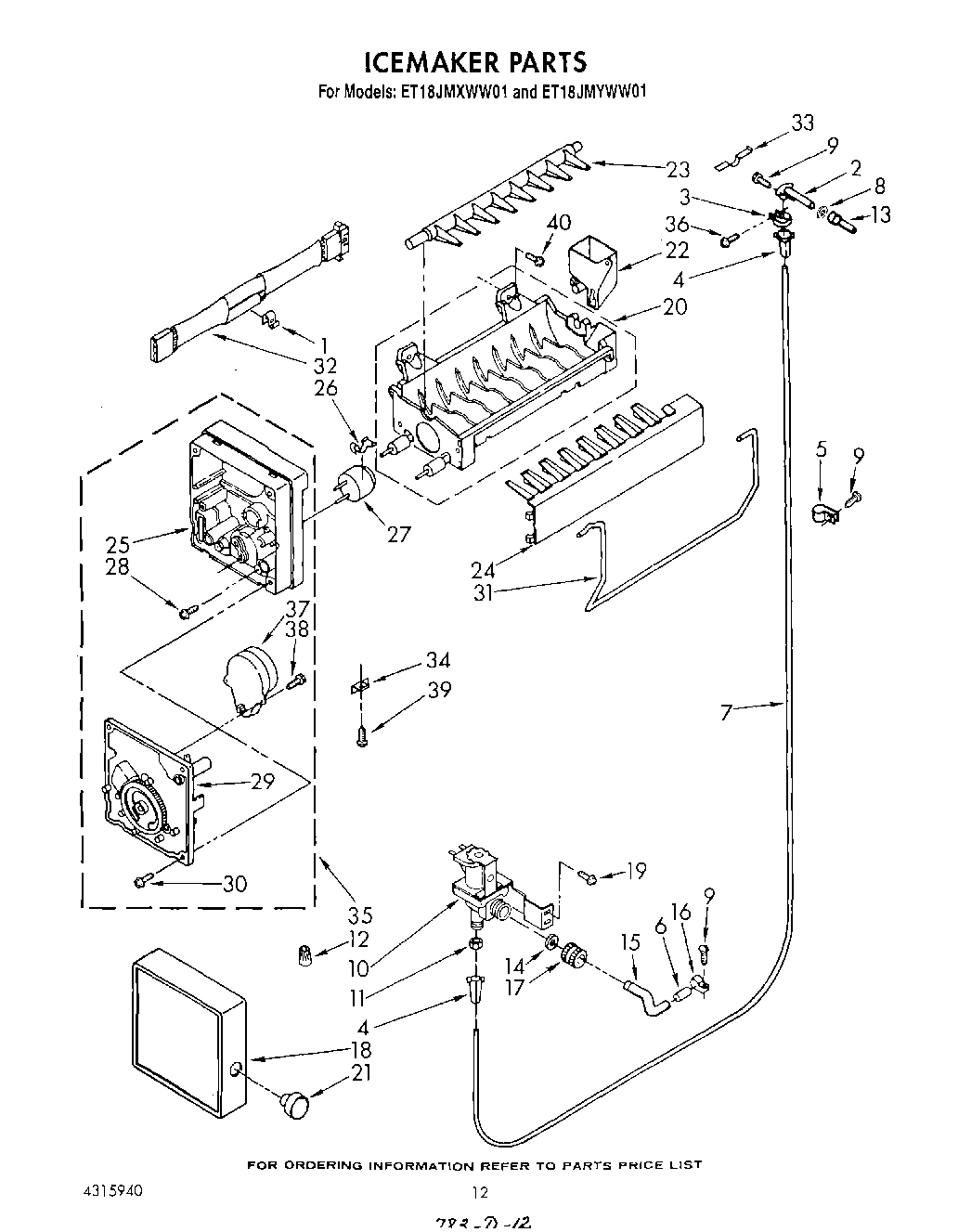

09 - ICEMAKER , LIT/OPTIONAL
Common parts from model Whirlpool ET18JMXWM01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1120604 WPL LIT1120604 Contact Us For Availability
WPL LIT1124779 WPL LIT1124779 Contact Us For Availability
WPL LIT1127724 WPL LIT1127724 Contact Us For Availability
WPL LIT4315940 WPL LIT4315940 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104634 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104636 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104637 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1104638 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44091A8 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Leveler (2) WPL 944766 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1127615 Contact Us For Availability
3
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Tube, Retainer WPL 1118652 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122830 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122827 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
10
Spacer WPL 940024 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
12
Screw WPL 489179 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Center Rail (White) WPL 1120501 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1120502 Contact Us For Availability
13
Center Rail (Almond) WPL 1120503 Contact Us For Availability
13
Center Rail (Toast) WPL 1120504 Contact Us For Availability
13
Center Rail (Platinum) WPL 1120505 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
14
Washer WPL 489323 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120631 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
16
Hole Plug (2) (Platinum) WPL 1126568 Contact Us For Availability
16
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
16
Hole Plug (2) (Toast) WPL 1126570 Contact Us For Availability
16
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
17
Trim, Door Shelf WPL 1116065 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Tube, Clamp WPL 489151 Contact Us For Availability
19
Interior Door Panel WPL 1120630 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100636 Contact Us For Availability
20
Trim, Door (2) WPL 1116062 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
23
Compartment, Butter Door WPL 1110148 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
24
Hole Plug, Handle (Toast) WPL 1122695 Contact Us For Availability
24
Hole Plug, Handle (Platinum) WPL 1122696 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
25
Tap Plate (2) WPL 2147312 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Gasket Ret WPL 1120615 Contact Us For Availability
29
WPL 1120616 WPL 1120616 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Exchanger, Heat WPL 1127721 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1119399 Contact Us For Availability
32
Cover, Deck Rail (Golden Harv WPL 1119400 Contact Us For Availability
32
WPL 1119401 WPL 1119401 Contact Us For Availability
32
WPL 1119402 WPL 1119402 Contact Us For Availability
32
WPL 1119403 WPL 1119403 Contact Us For Availability
33
Heater, Defrost WPL 1127660 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Clip WPL 652604 Contact Us For Availability
34
WPL 1118058 WPL 1118058 Contact Us For Availability
34
WPL 1118059 WPL 1118059 Contact Us For Availability
34
WPL 1118060 WPL 1118060 Contact Us For Availability
34
WPL 1118061 WPL 1118061 Contact Us For Availability
34
WPL 1118062 WPL 1118062 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
WPL 1129062 WPL 1129062 Contact Us For Availability
36
WPL 1129063 WPL 1129063 Contact Us For Availability
36
WPL 1129064 WPL 1129064 Contact Us For Availability
36
WPL 1129065 WPL 1129065 Contact Us For Availability
36
WPL 1129066 WPL 1129066 Contact Us For Availability
38
Support, Heater WPL 1108172 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
40
TAPE, VIN WPL 479502 Contact Us For Availability
40
WPL 542639 WPL 542639 Contact Us For Availability
40
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
40
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
40
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
40
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
40
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
40
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
40
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
WPL 72112 WPL 72112 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
59
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
