Model Whirlpool ET18JMXSW04 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER DOOR
04 - COMPARTMENT SEPARATOR

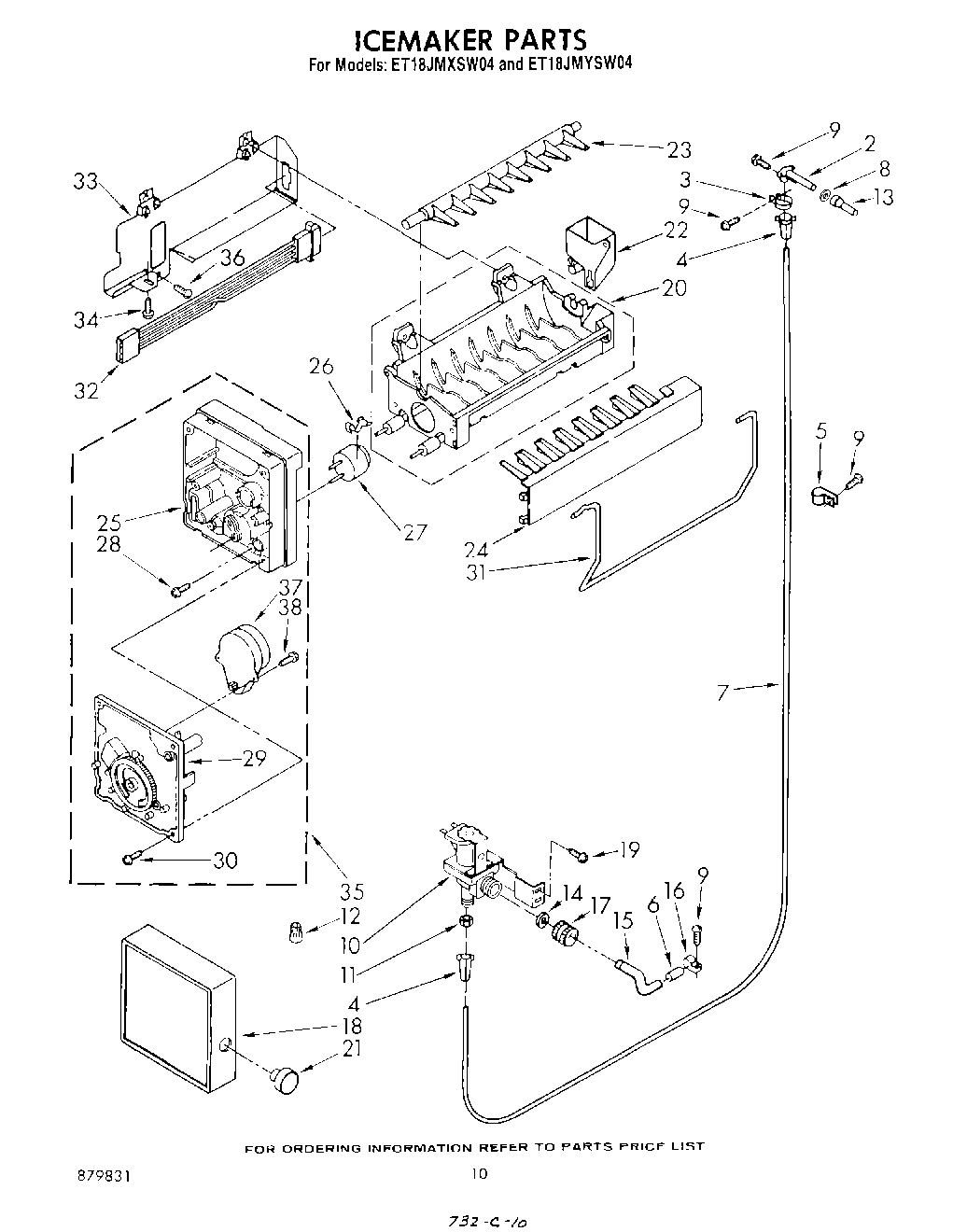

08 - ICEMAKER

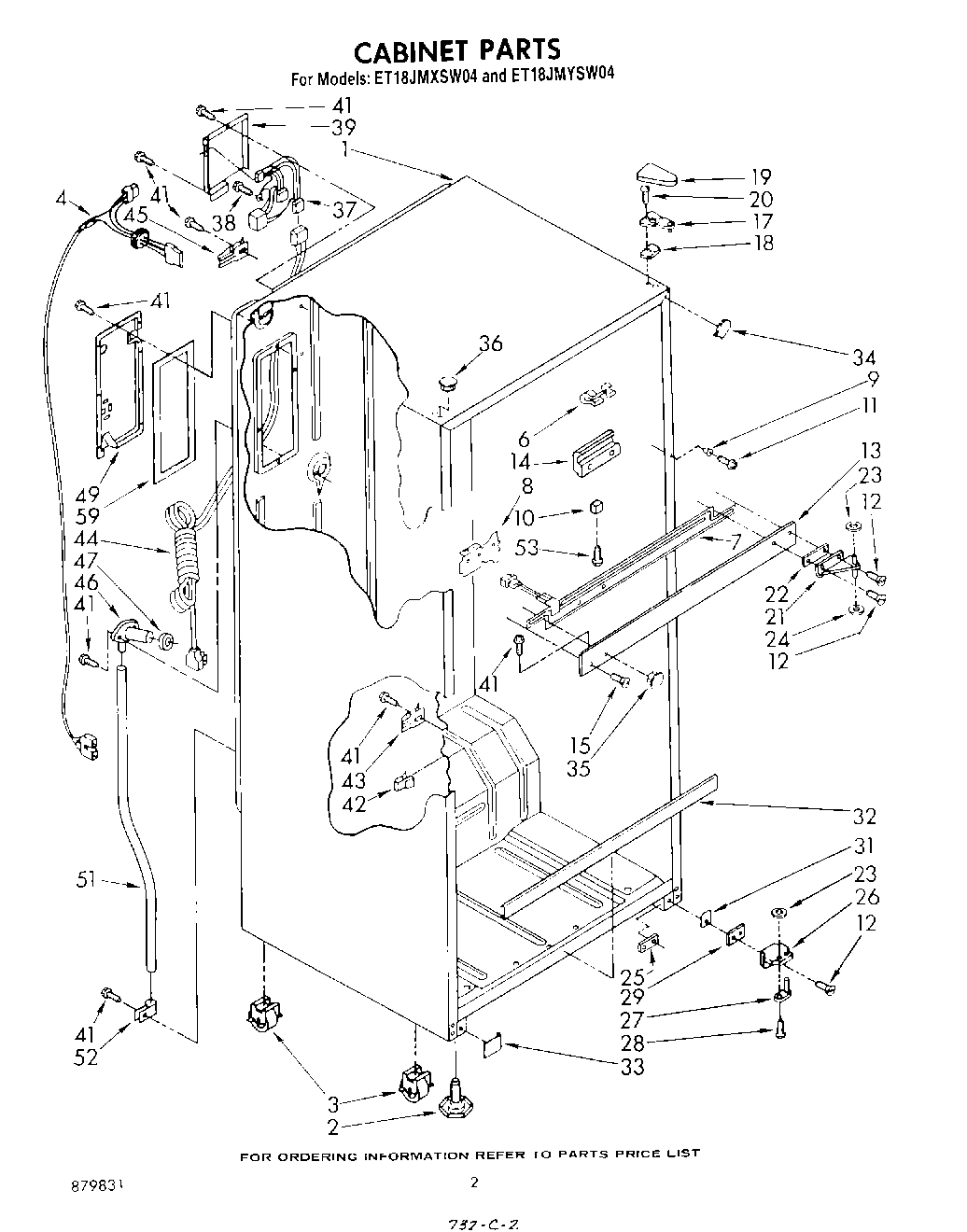

02 - CABINET

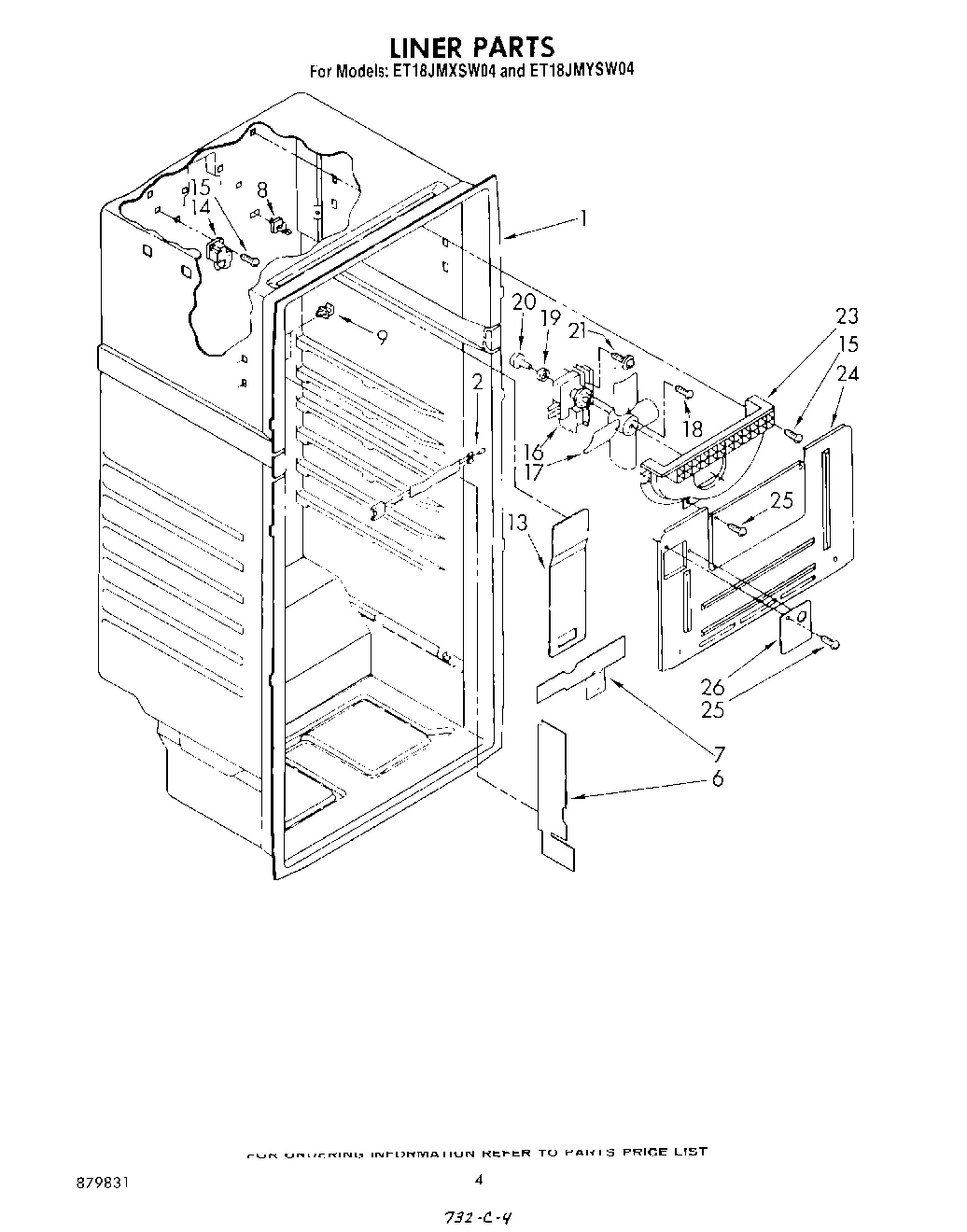

03 - LINER

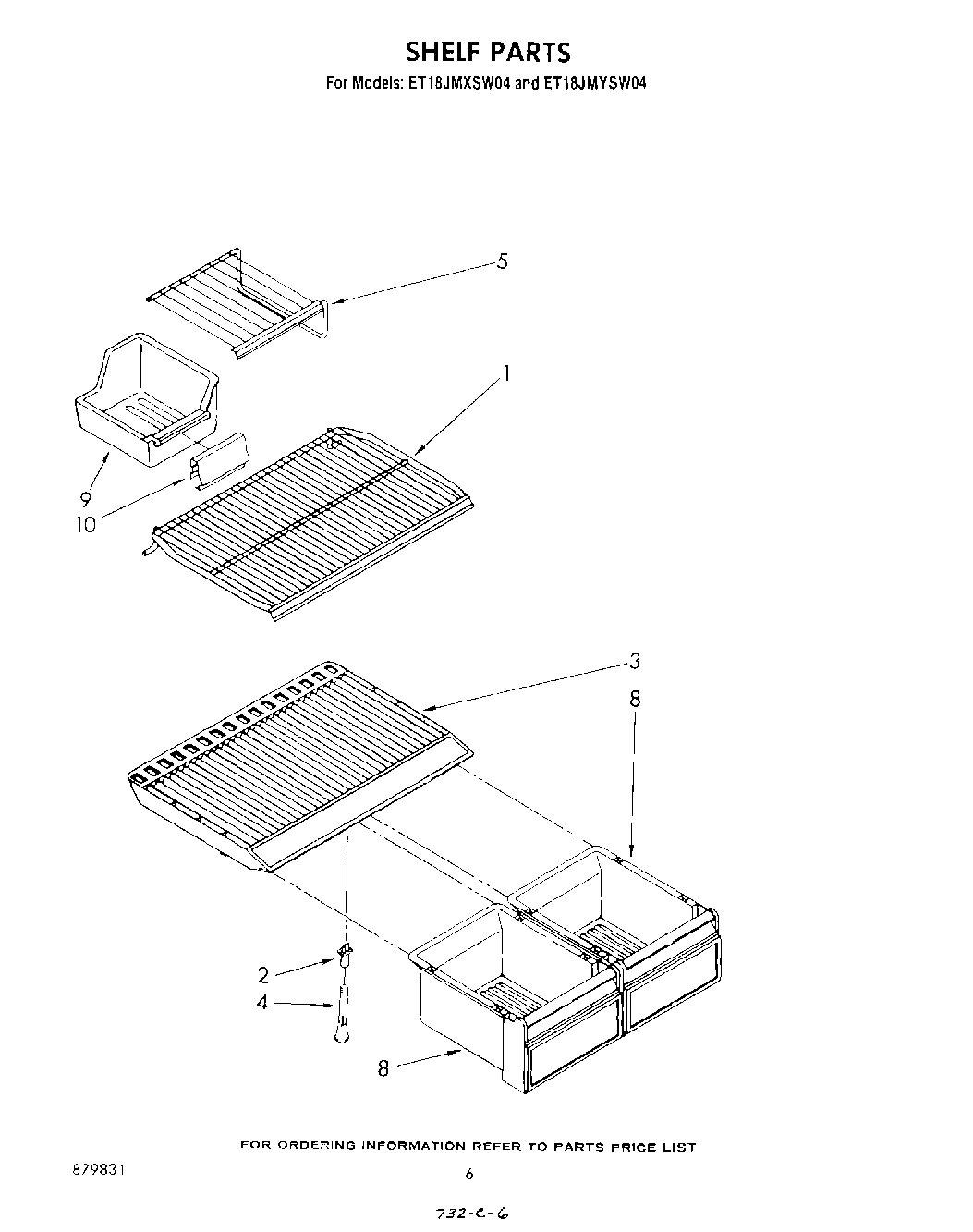

05 - SHELF

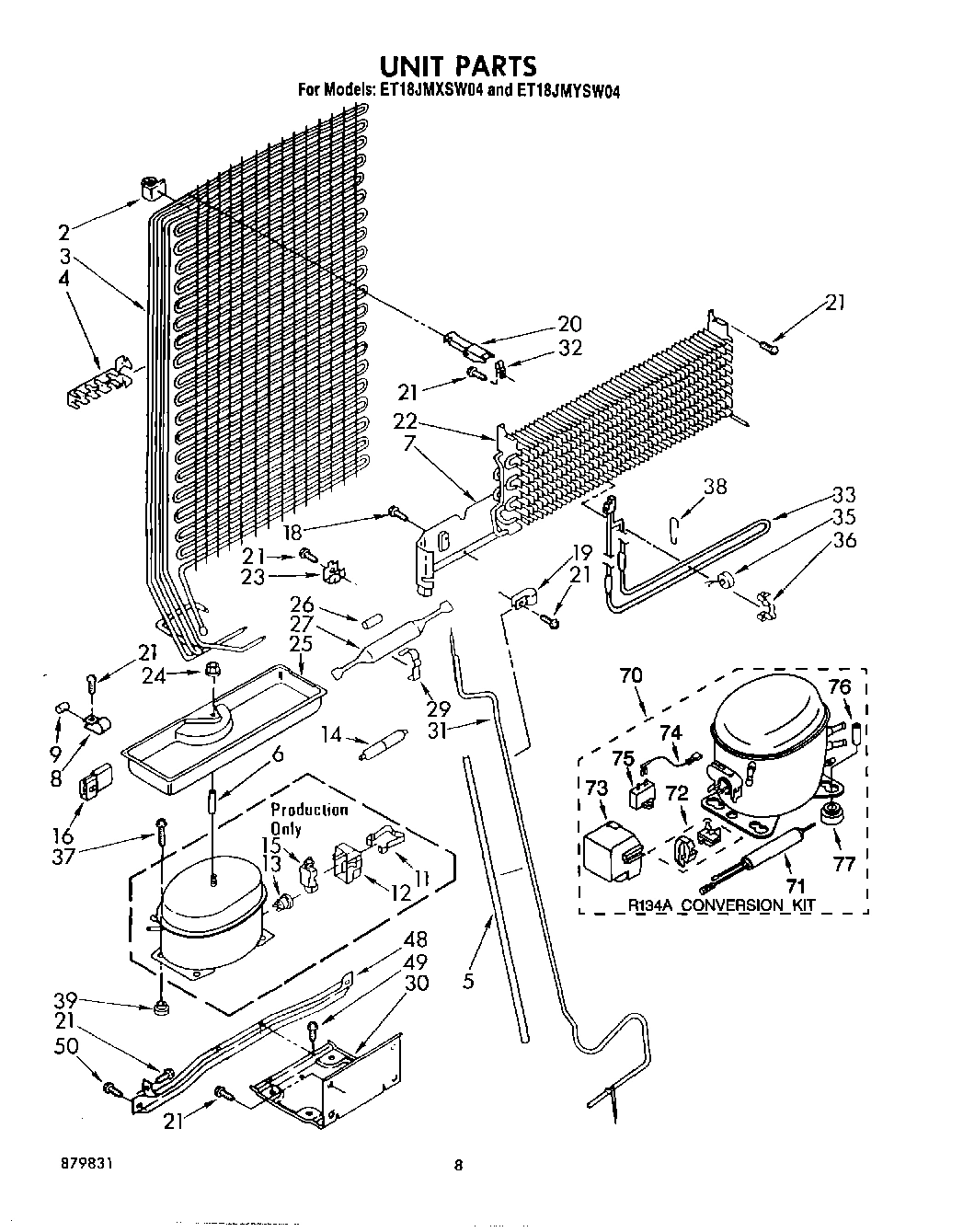

07 - UNIT

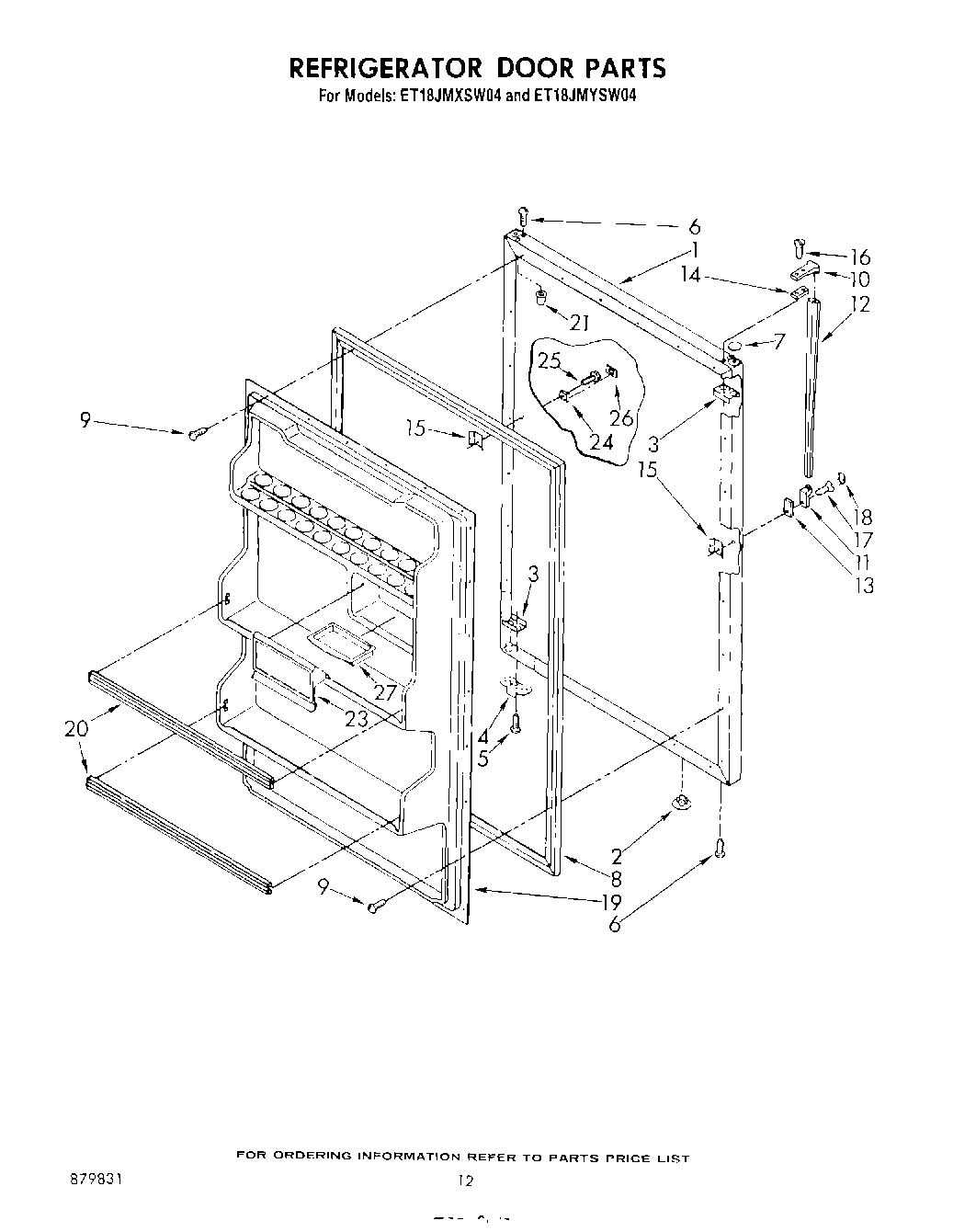

09 - REFRIGERATOR DOOR , LIT/OPTIONAL
Common parts from model Whirlpool ET18JMXSW04 TOP MOUNT REFRIGERATOR
WPL LIT1114025 WPL LIT1114025 Contact Us For Availability
WPL LIT1115572 WPL LIT1115572 Contact Us For Availability
WPL LIT1116067 WPL LIT1116067 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
WPL LIT879831 WPL LIT879831 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI44075A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI44076A1 Contact Us For Availability
1
Shelf, Pullout (3) WPL 943719 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1104636 Contact Us For Availability
1
Panel, Refrigerator Door (Toast) WPL 1104637 Contact Us For Availability
1
Panel, Refrigerator Door (Platinum) WPL 1104638 Contact Us For Availability
2
Leveler WPL 944766 Contact Us For Availability
2
Wiring, Fan Motor WPL 943796 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
3
Cover, Crisper WPL 1116059 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1108183 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Tube, Retainer WPL 1106781 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Breaker, Trim Clip (3) WPL 534365 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
7
Top, Electric Shield WPL 946351 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Pan, Crisper WPL 1111804 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1109186 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Ferrule, Center Rail WPL 942737 Contact Us For Availability
9
Ice Cube Pan WPL 946400 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
10
Spacer WPL 940024 Contact Us For Availability
10
Trim, Ice Pan WPL 539567 Contact Us For Availability
11
Screw WPL 489183 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Screw WPL 489179 Contact Us For Availability
12
Case, Relay WPL 1108144 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Center Rail (White) WPL 1110343 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1110344 Contact Us For Availability
13
Center Rail (Almond) WPL 1110345 Contact Us For Availability
13
Center Rail (Toast) WPL 1110346 Contact Us For Availability
13
Center Rail (Platinum) WPL 1110347 Contact Us For Availability
13
Cover, Air Duct WPL 1111420 Contact Us For Availability
13
Overload WPL 1105163 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Muffler WPL 1101043 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
15
Relay WPL 946615 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
18
Shim, Top Hinge WPL 1100509 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Tube, Clamp WPL 489151 Contact Us For Availability
19
Interior Door Panel WPL 945886 Contact Us For Availability
20
Screw (Repair) WPL 488949 Contact Us For Availability
20
Spacer, Fan Motor (2) WPL 935701 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100636 Contact Us For Availability
20
Trim, Door (2) WPL 1116062 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Screw, 8 x 1-1/4 WPL 489042 Contact Us For Availability
21
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
23
Scroll, Fan WPL 942846 Contact Us For Availability
23
Compartment, Butter Door WPL 1110148 Contact Us For Availability
24
Evaporator Cover WPL 943741 Contact Us For Availability
24
Clip, Medallion WPL 1107329 Contact Us For Availability
25
Tap Plate (2) WPL 944813 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Hinge Butt, Bottom WPL 944783 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Medallion WPL 1111705 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
WPL 479502 WPL 479502 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
27
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
27
Paint, Spray (13 Oz.) (Plati WPL 285366 Contact Us For Availability
27
WPL 285367 WPL 285367 Contact Us For Availability
27
WPL 285368 WPL 285368 Contact Us For Availability
27
WPL 350941 WPL 350941 Contact Us For Availability
27
WPL 542639 WPL 542639 Contact Us For Availability
27
WPL 72112 WPL 72112 Contact Us For Availability
27
WPL 799832 WPL 799832 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 799908 WPL 799908 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw, 10-32 x 43/64 WPL 489163 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
31
Exchanger, Heat WPL 1108092 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109366 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability
32
Cover, Deck Rail (Toast) WPL 1109373 Contact Us For Availability
32
Cover, Deck Rail (Platinum) WPL 1109374 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
33
Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Heater, Defrost WPL 1105165 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
38
Support, Heater WPL 1108172 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Rail, Unit Mounting WPL 943755 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 WPL 488973 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
59
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
