Model Whirlpool ET16JMYSG03 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
08 - REFRIGERATOR DOOR
04 - COMPARTMENT SEPARATOR

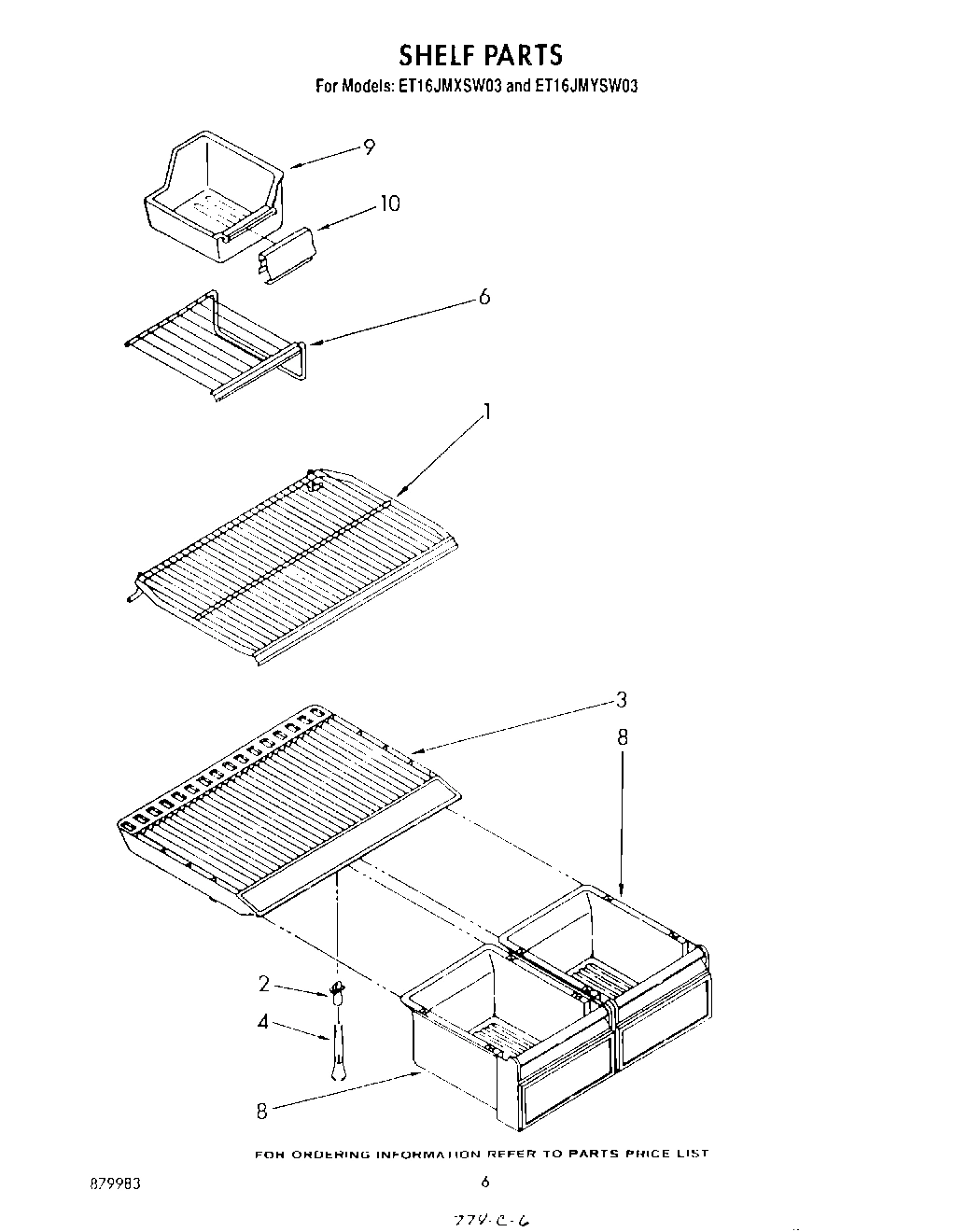

05 - SHELF

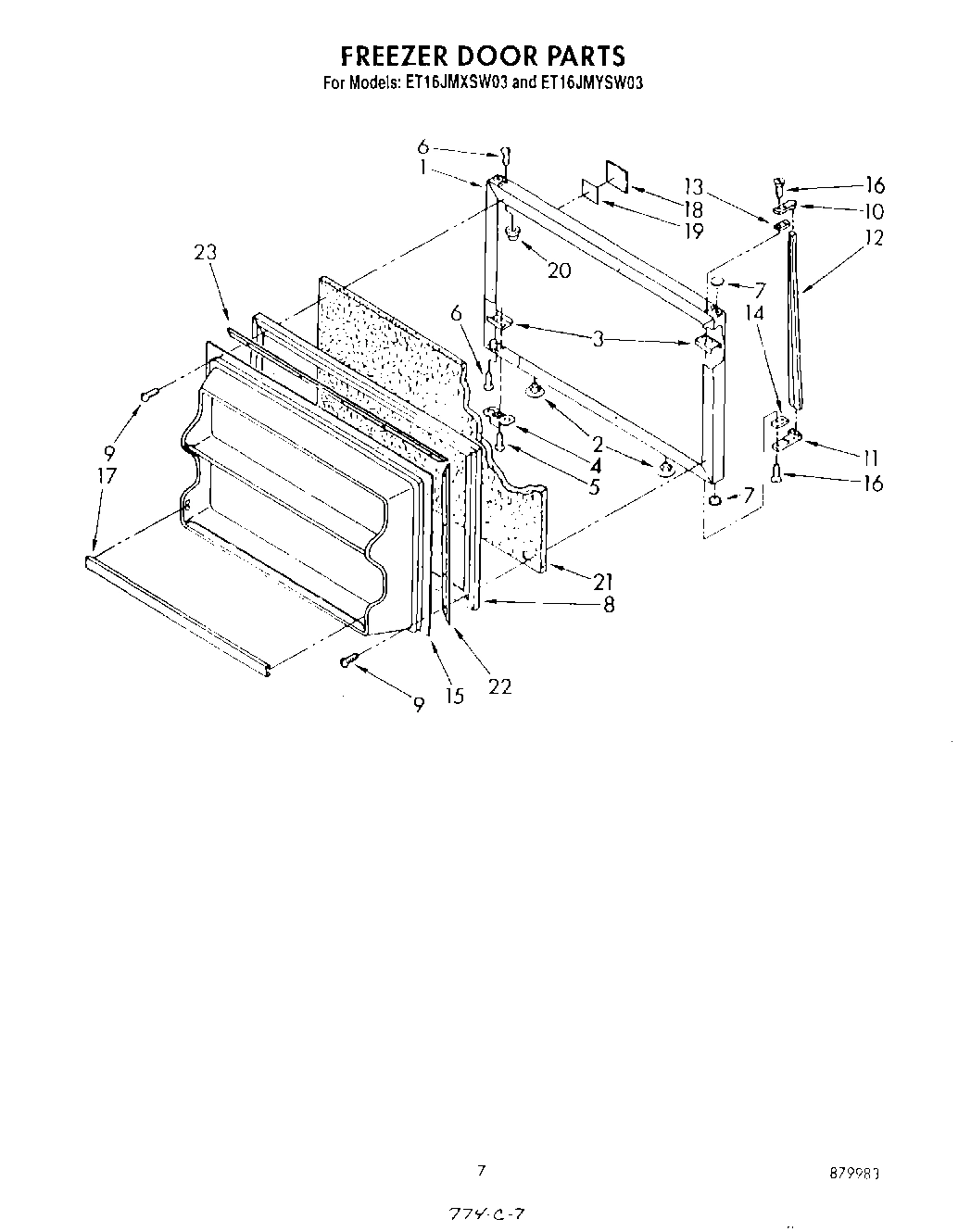

06 - FREEZER DOOR

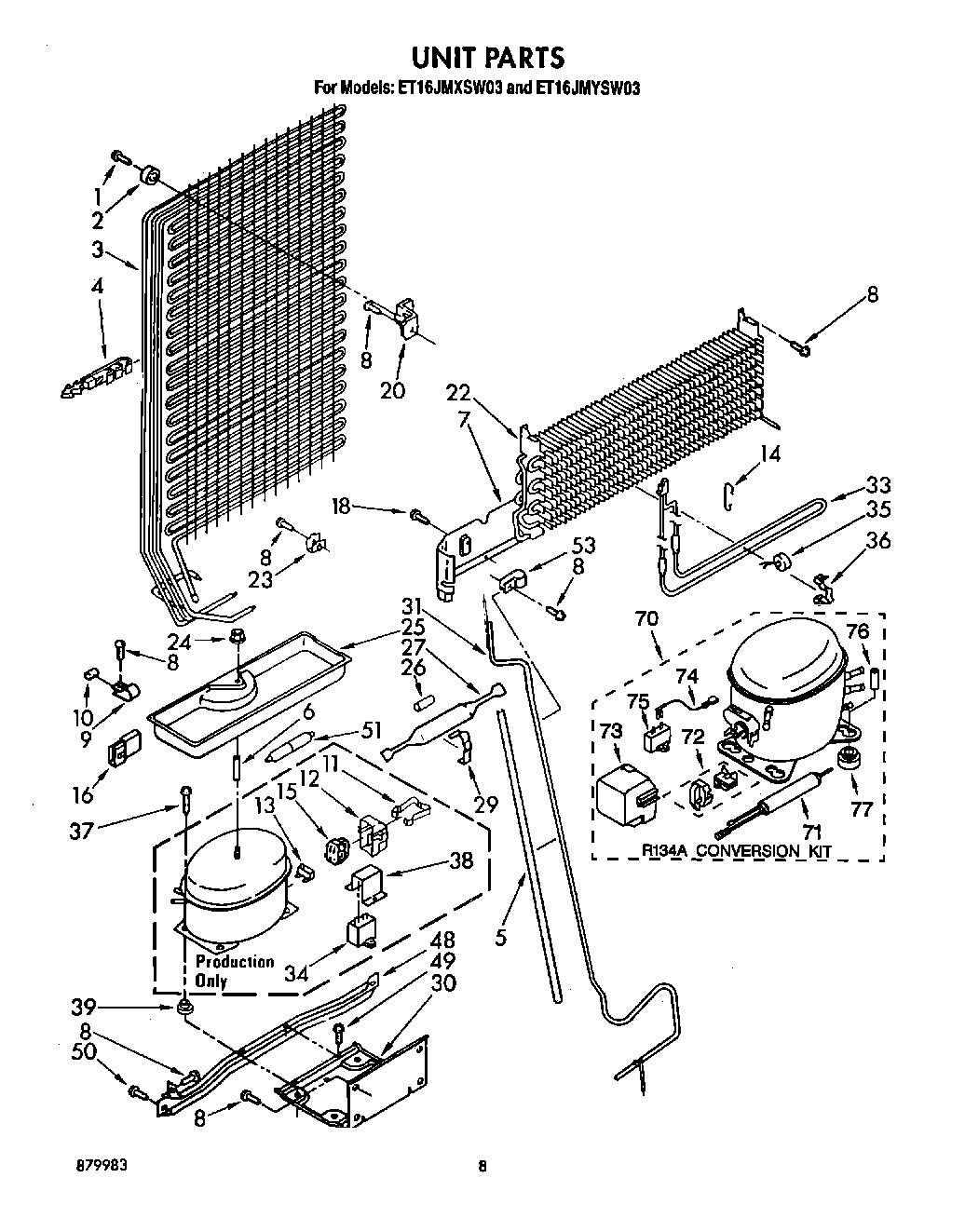

07 - UNIT

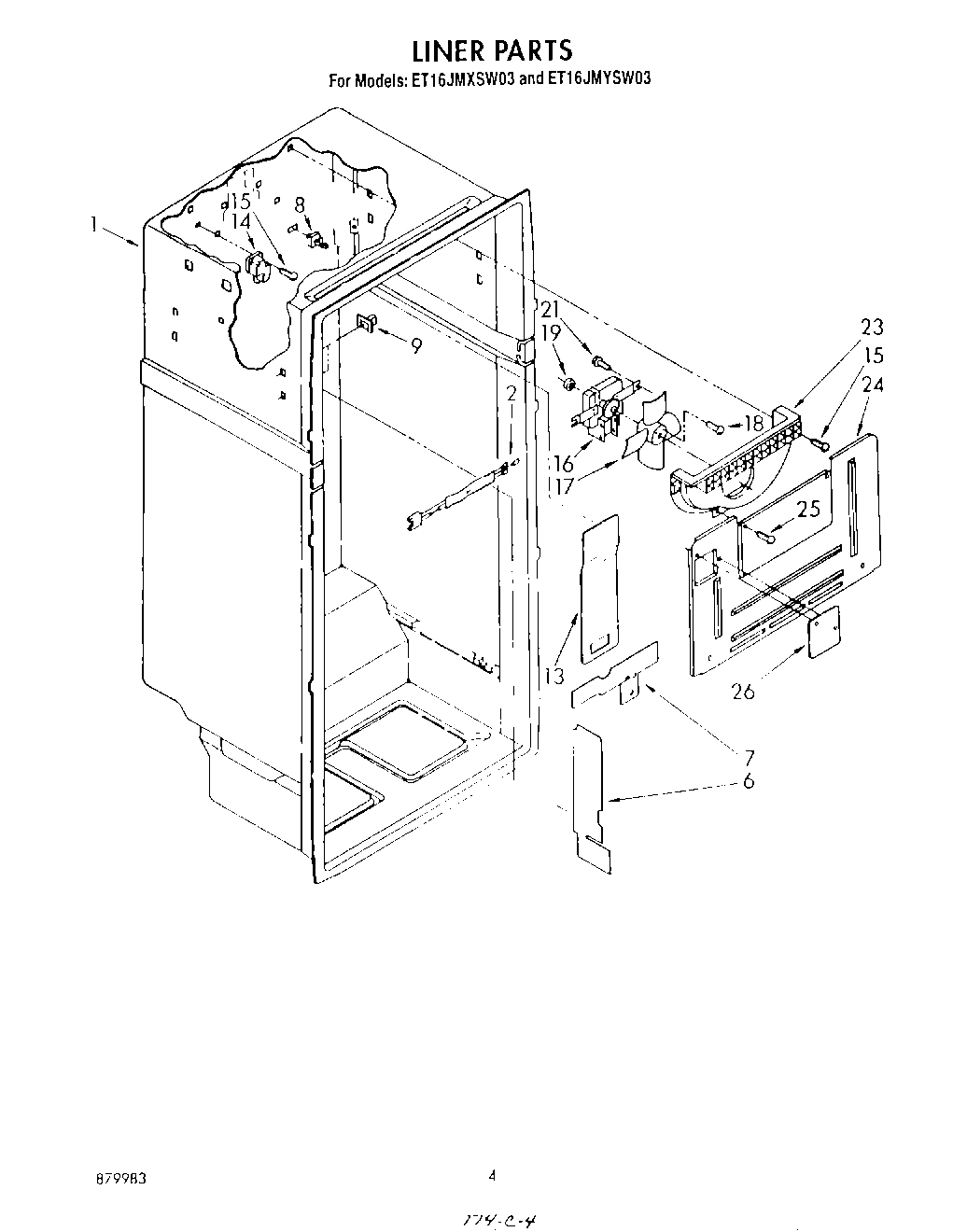

03 - LINER

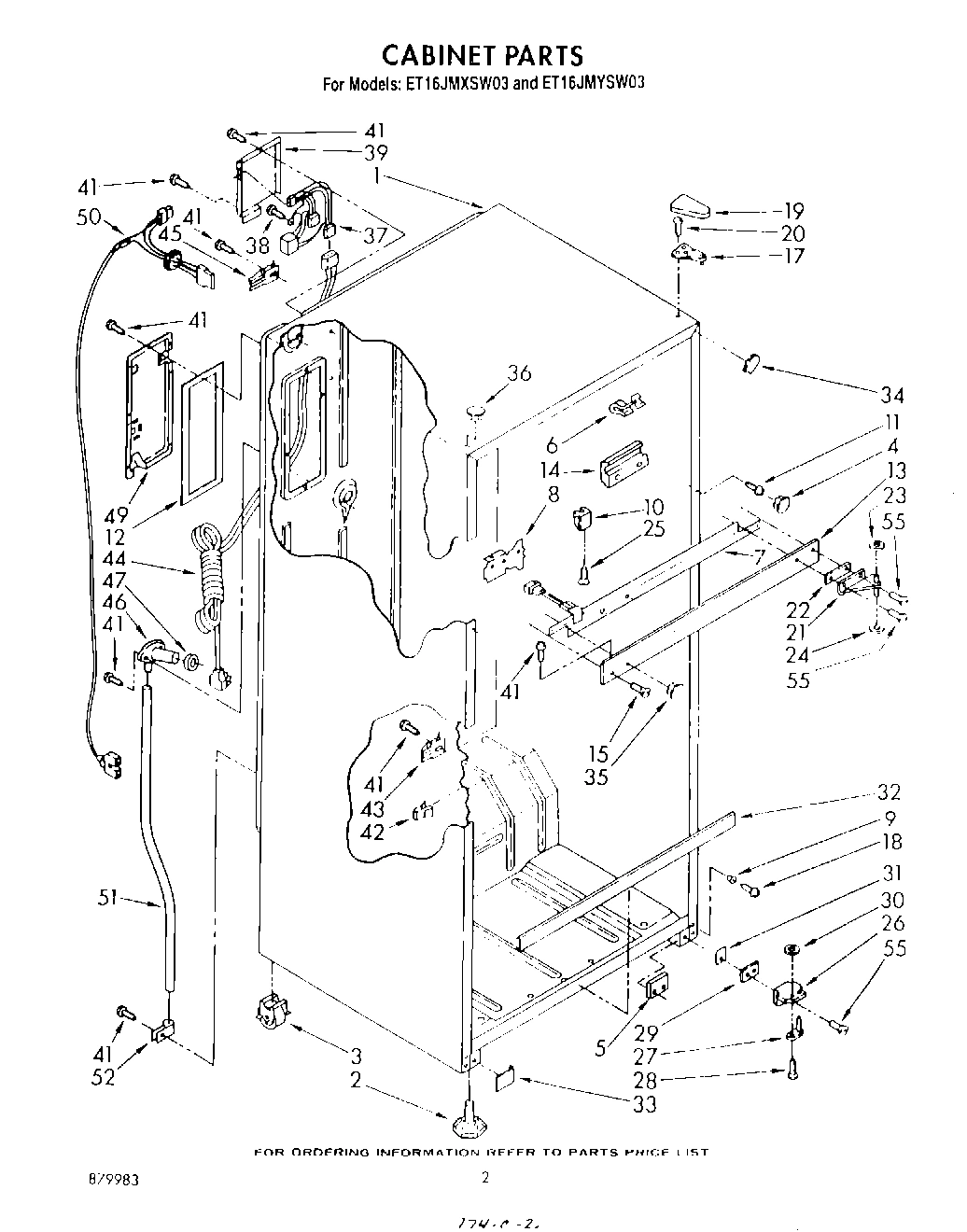

02 - CABINET

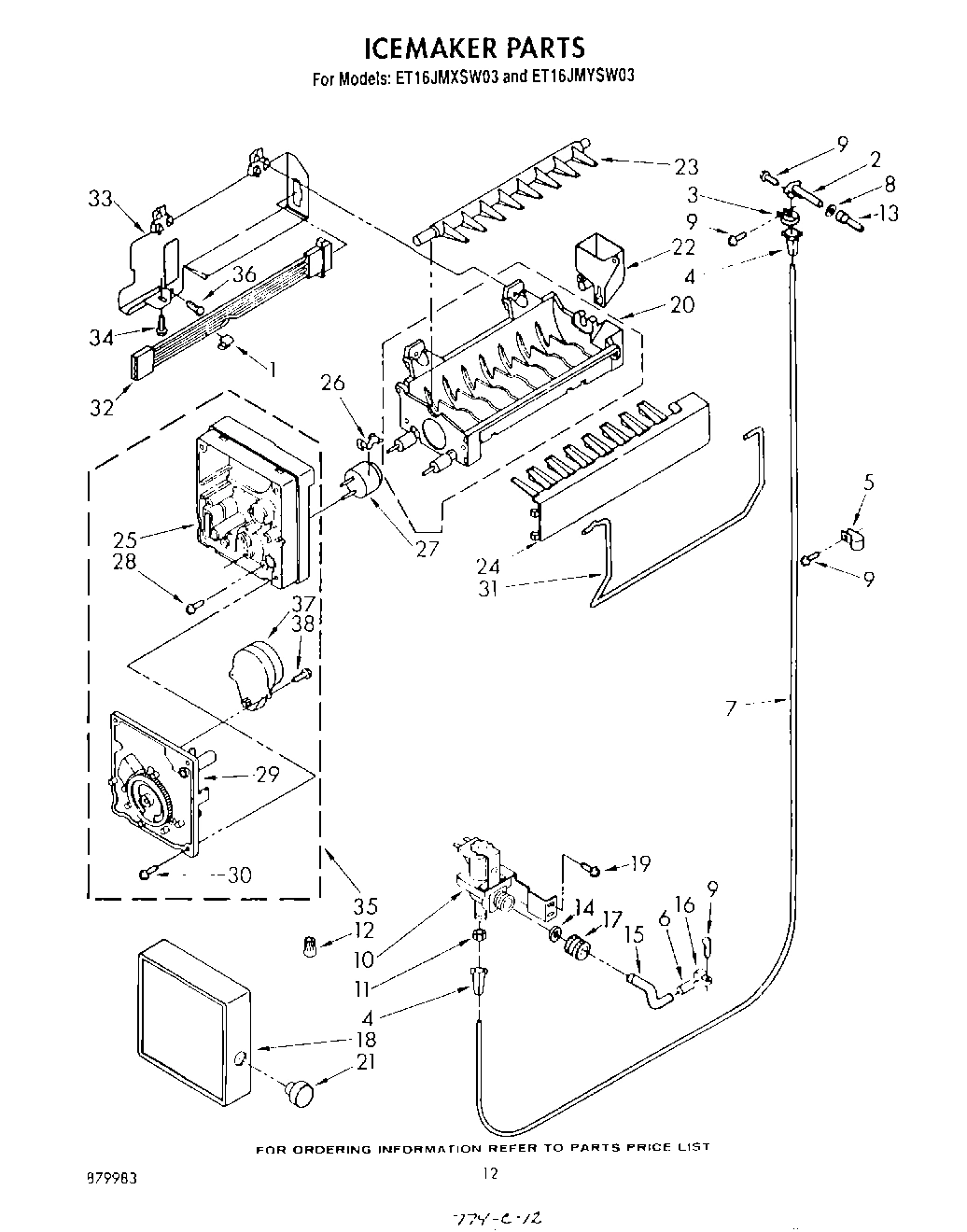

09 - ICE MAKER , NOT ILLUSTRATED
Common parts from model Whirlpool ET16JMYSG03 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1116051 WPL LIT1116051 Contact Us For Availability
WPL LIT1118724 WPL LIT1118724 Contact Us For Availability
WPL LIT1120602 WPL LIT1120602 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
WPL LIT879983 WPL LIT879983 Contact Us For Availability
1
Shelf, Pullout (3) WPL 942824 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Toa WPL 1103943 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1103944 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42968A6 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42967A9 Contact Us For Availability
2
Support, Crisper Cover WPL 1103731 Contact Us For Availability
2
Hole Plug (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Wheat) WPL 989879 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Wiring, Fan Motor WPL 943722 Contact Us For Availability
2
Leveler (2) WPL 944766 Contact Us For Availability
3
Cover, Crisper WPL 1116047 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1108012 Contact Us For Availability
3
Roller, Front & Rear (4) WPL 937216 Contact Us For Availability
4
Post, Cripser Cover WPL 836410 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
4
Hole Plug (2) (Platinum) WPL 1126568 Contact Us For Availability
4
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
4
Hole Plug (2) (Toast) WPL 1126570 Contact Us For Availability
4
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
5
Tap Plate (2) WPL 944813 Contact Us For Availability
6
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Screw (Repair) WPL 489221 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Breaker, Trim Clip WPL 534365 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Top, Electric Shield WPL 946350 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
8
Pan, Crisper (2) WPL 1111755 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud Hook (2) WPL 939065 Contact Us For Availability
9
Ice Cube Pan WPL 946400 Contact Us For Availability
9
Ferrule (2) WPL 942737 Contact Us For Availability
10
Trim, Ice Pan WPL 539567 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
10
Spacer (2) WPL 940024 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Screw (2) WPL 489277 Contact Us For Availability
12
Handle, Center WPL 1106194 Contact Us For Availability
12
Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Seal, Gasket WPL 1106510 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
13
Center Rail (Toast) WPL 1111513 Contact Us For Availability
13
Center Rail (Platinum) WPL 1111514 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Support, Heater WPL 1108172 Contact Us For Availability
14
Terminal Block, Multiple WPL 942842 Contact Us For Availability
14
Center, Rail Shim (2) WPL 939034 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
16
Screw (Repair) WPL 489250 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Trim, Door Shelf WPL 1116038 Contact Us For Availability
17
Hinge, Top WPL 1126695 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
18
Screw (2) WPL 488428 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet (2) WPL 1114354 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Evaporator Cover WPL 942847 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110350 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Screw WPL 489218 Contact Us For Availability
28
Screw, 10-32 x 49/64 WPL 489258 Contact Us For Availability
29
Drain Pan WPL 1108170 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
29
Shim, Bottom Hinge WPL 942812 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Insulation, Seal Strip WPL 1119645 Contact Us For Availability
31
Exchanger, Heat WPL 1105103 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
WPL 1109363 WPL 1109363 Contact Us For Availability
32
WPL 1109371 WPL 1109371 Contact Us For Availability
32
WPL 1109372 WPL 1109372 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119324 Contact Us For Availability
33
Heater, Defrost WPL 1105164 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
38
WPL 876029 WPL 876029 Contact Us For Availability
38
TAPE, VINYL (3/4 WPL 479502 Contact Us For Availability
38
Clamp, Capacitor WPL 1118525 Contact Us For Availability
38
WPL 542639 WPL 542639 Contact Us For Availability
38
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
38
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
38
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
38
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
38
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
38
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
WPL 72112 WPL 72112 Contact Us For Availability
38
WPL 799340 WPL 799340 Contact Us For Availability
38
WPL 799832 WPL 799832 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 799908 WPL 799908 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
51
Muffler WPL 1105136 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
53
Tube, Clamp WPL 489151 Contact Us For Availability
55
WPL 488949 WPL 488949 Contact Us For Availability
55
WPL 489179 WPL 489179 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
