Model Whirlpool ET14ZKYAW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
04 - UNIT

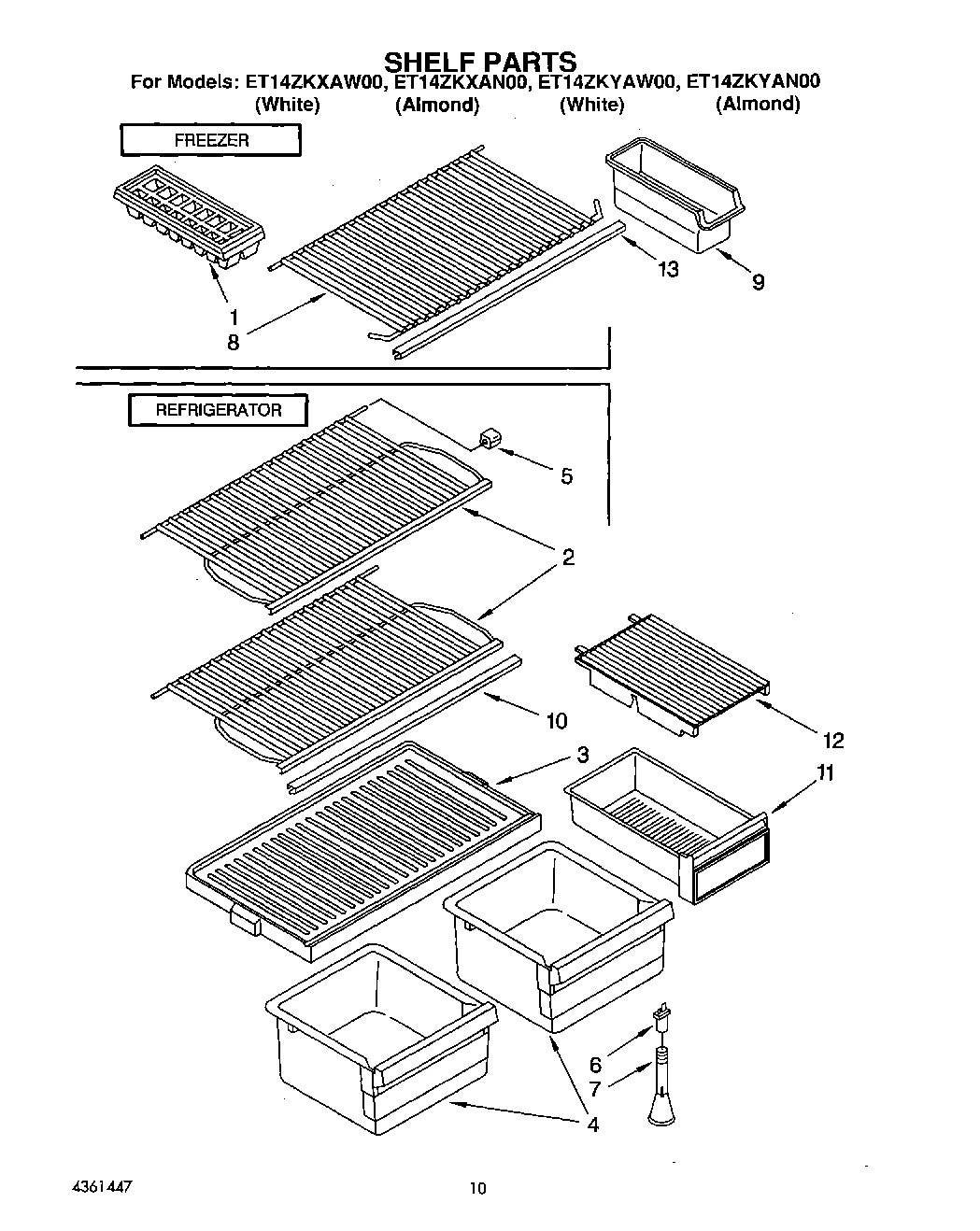

05 - SHELF

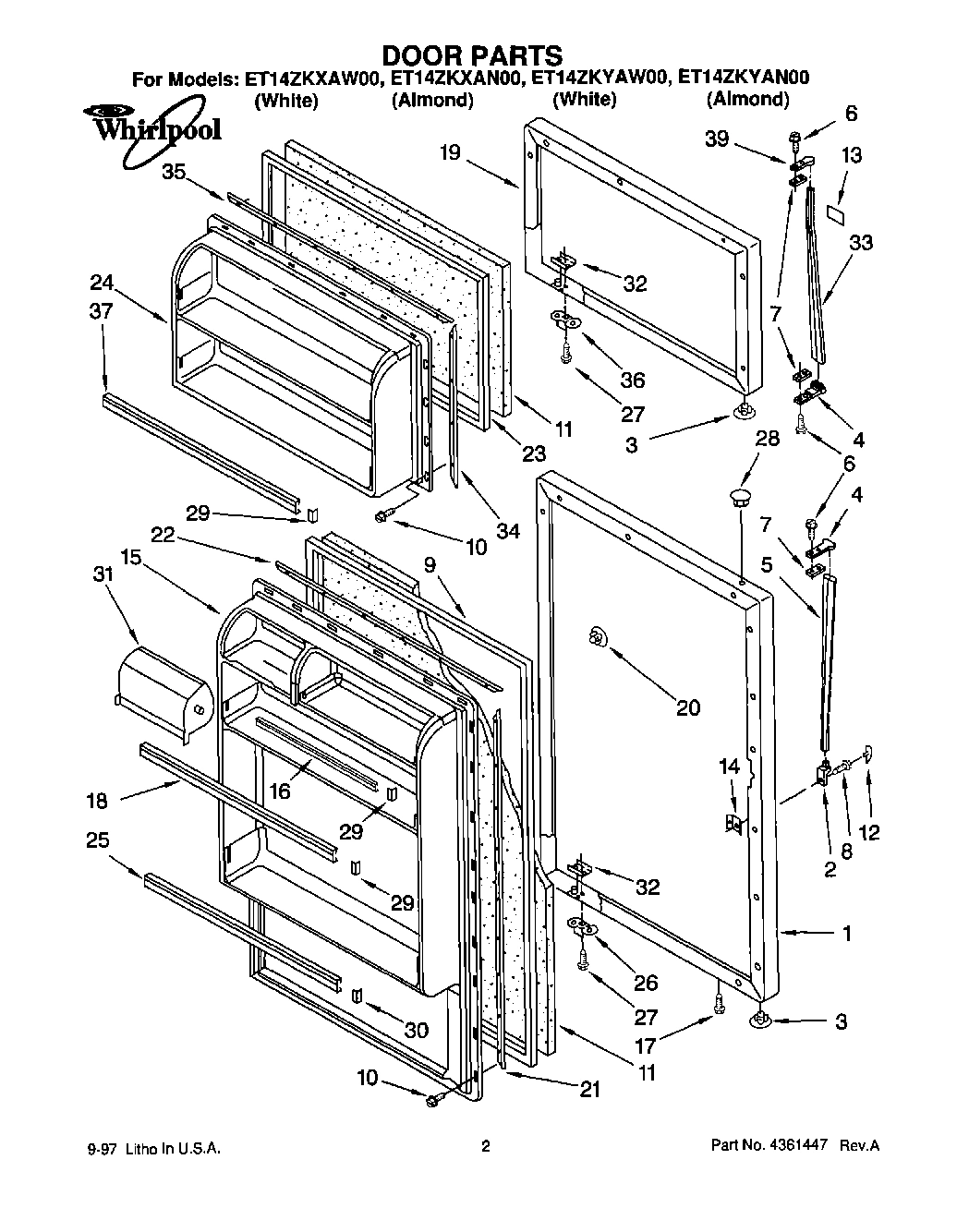

01 - DOOR

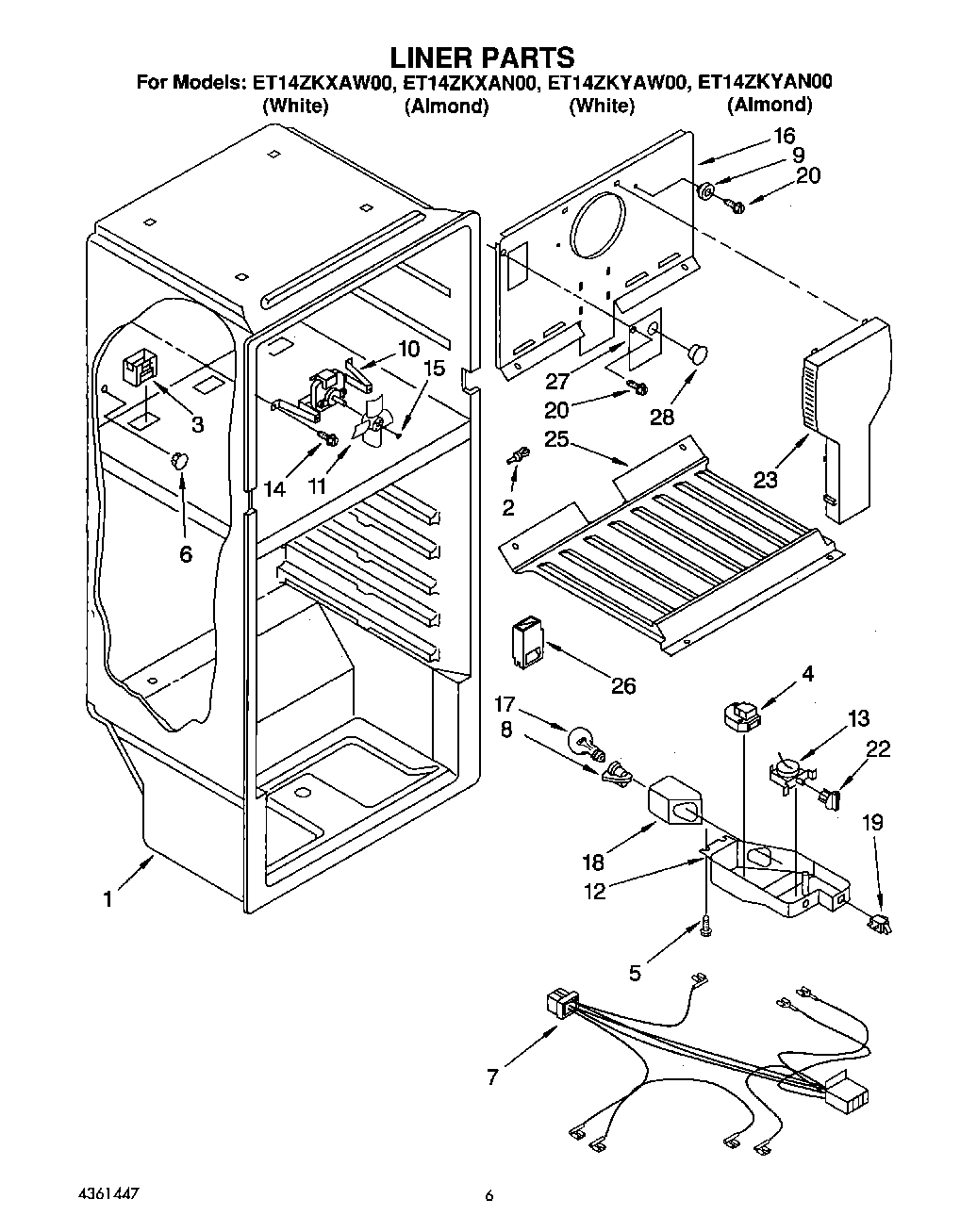

03 - LINER, LIT/OPTIONAL
Common parts from model Whirlpool ET14ZKYAW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2160150 WPL LIT2160150 Contact Us For Availability
WPL LIT4361447 WPL LIT4361447 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT9791409 WPL LIT9791409 Contact Us For Availability
WPL LIT9791481 WPL LIT9791481 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9790362 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9791629 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42564A8 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Diffuser-Air WPL 9791377 Contact Us For Availability
5
Thimble WPL 9791835 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
6
Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
9
Grommet WPL 531933 Contact Us For Availability
10
Trim, Shelf WPL 9791694 Contact Us For Availability
10
Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Pan, Meat WPL 2162635 Contact Us For Availability
11
Fan Blade WPL 2160471 Contact Us For Availability
12
Cover, Meat Pan WPL 9790379 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Trim, Shelf F.C. WPL 9791704 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
15
Ring, Compression WPL 992953 Contact Us For Availability
16
Trim, Door Shelf WPL 9791756 Contact Us For Availability
16
Cover-Evaporator WPL 9790382 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
18
Trim, Door WPL 9791755 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Screw, 8 x 1/2 WPL 489168 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
23
Air Tower WPL 2166026 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Trim, Door Shelf WPL 2162652 Contact Us For Availability
25
Freezer Floor WPL 9790380 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
26
Stop-Door WPL 1115910 Contact Us For Availability
26
Air Diffuser WPL 9790402 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
28
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
31
Compartment Door WPL 2162644 Contact Us For Availability
33
Handle, F.C. (Almond Model) WPL 2148069 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
35
Retainer, Gasket WPL 1120614 Contact Us For Availability
36
Heat Exchanger WPL 9791825 Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
37
Trim-Door WPL 9791754 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
58
Evaporator Tray WPL 1101002 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388007 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
Start Kit WPL 482278 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
