Model Whirlpool ET14ZKXAW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

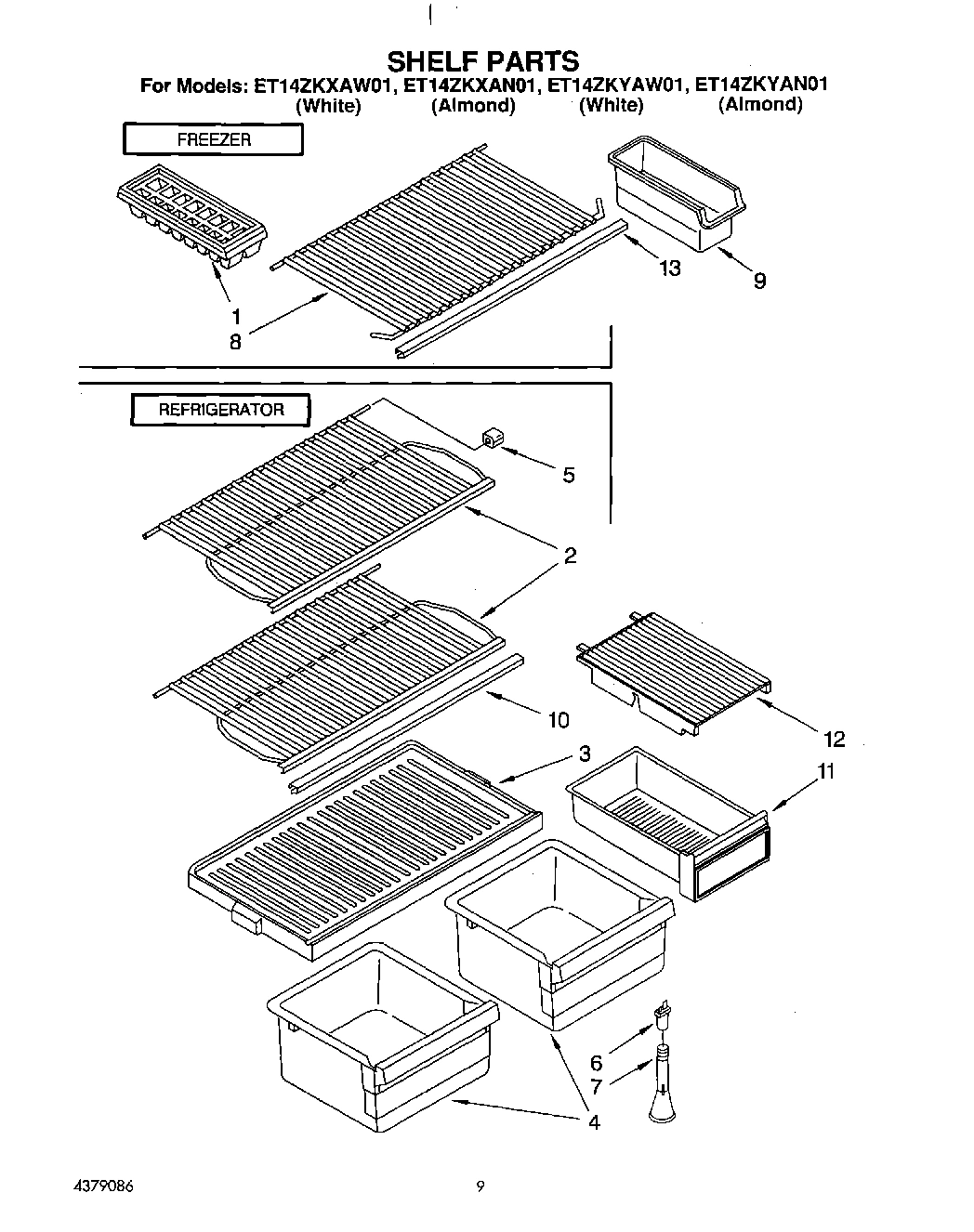

05 - SHELF

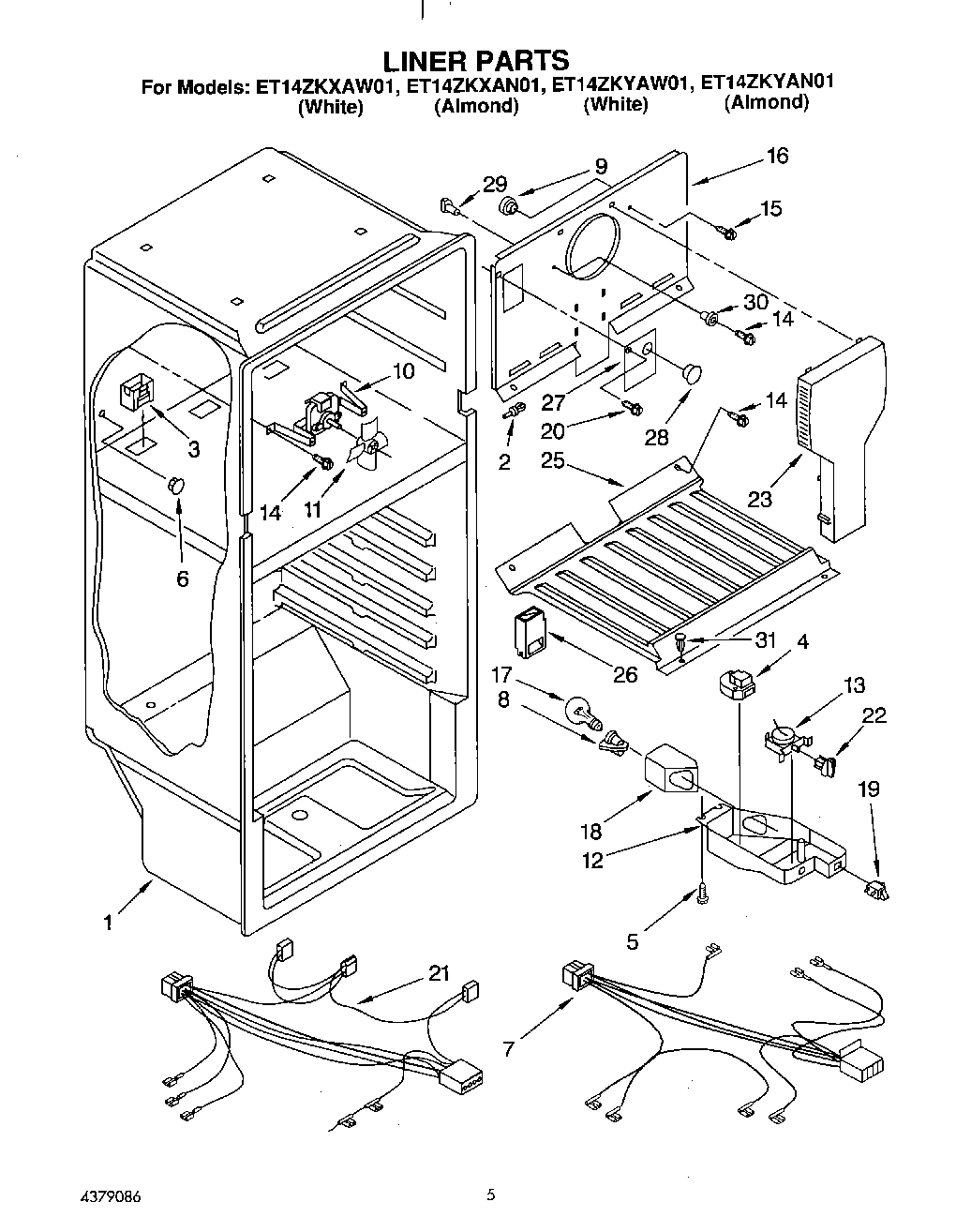

03 - LINER, LIT\OPTIONAL

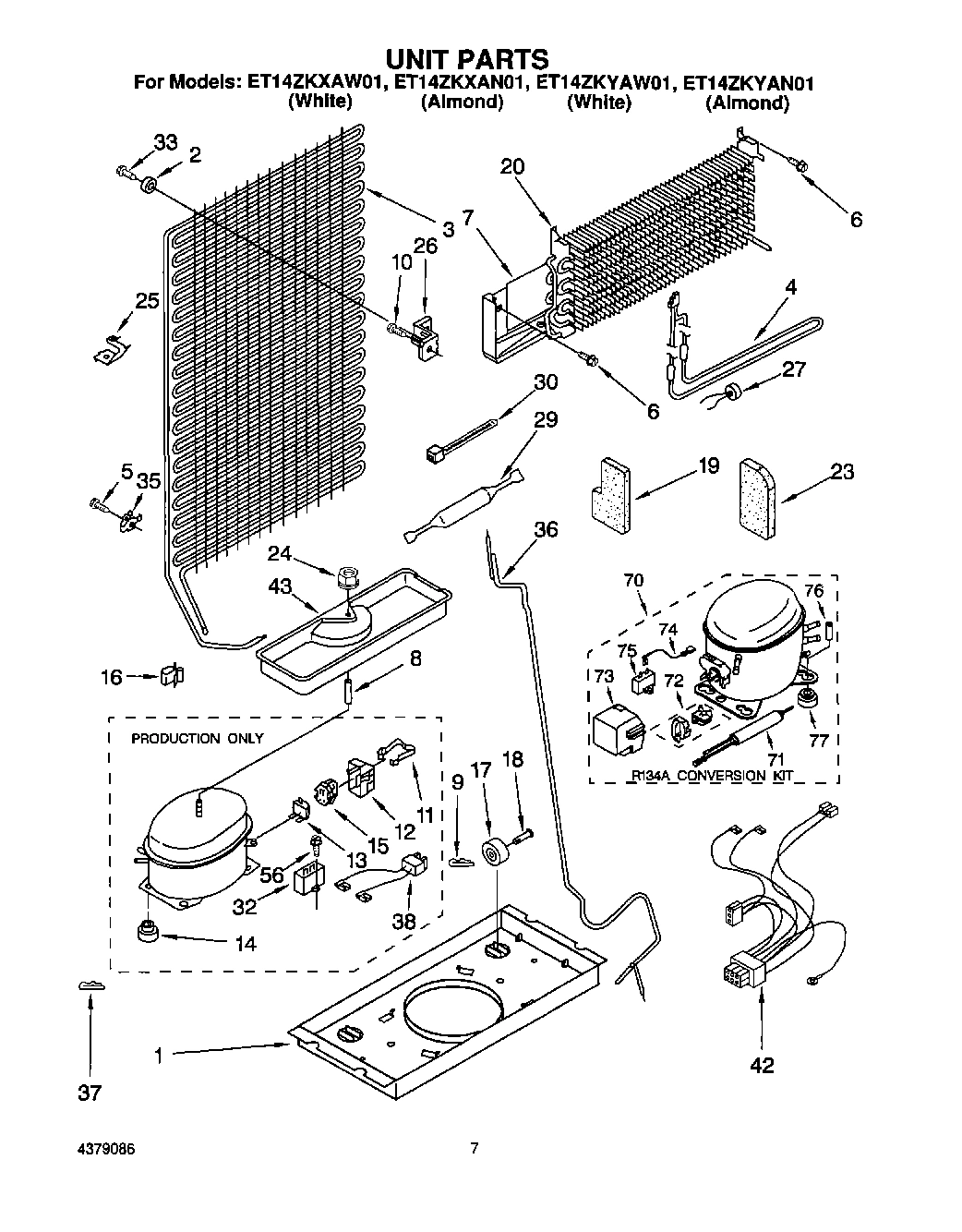

04 - UNIT

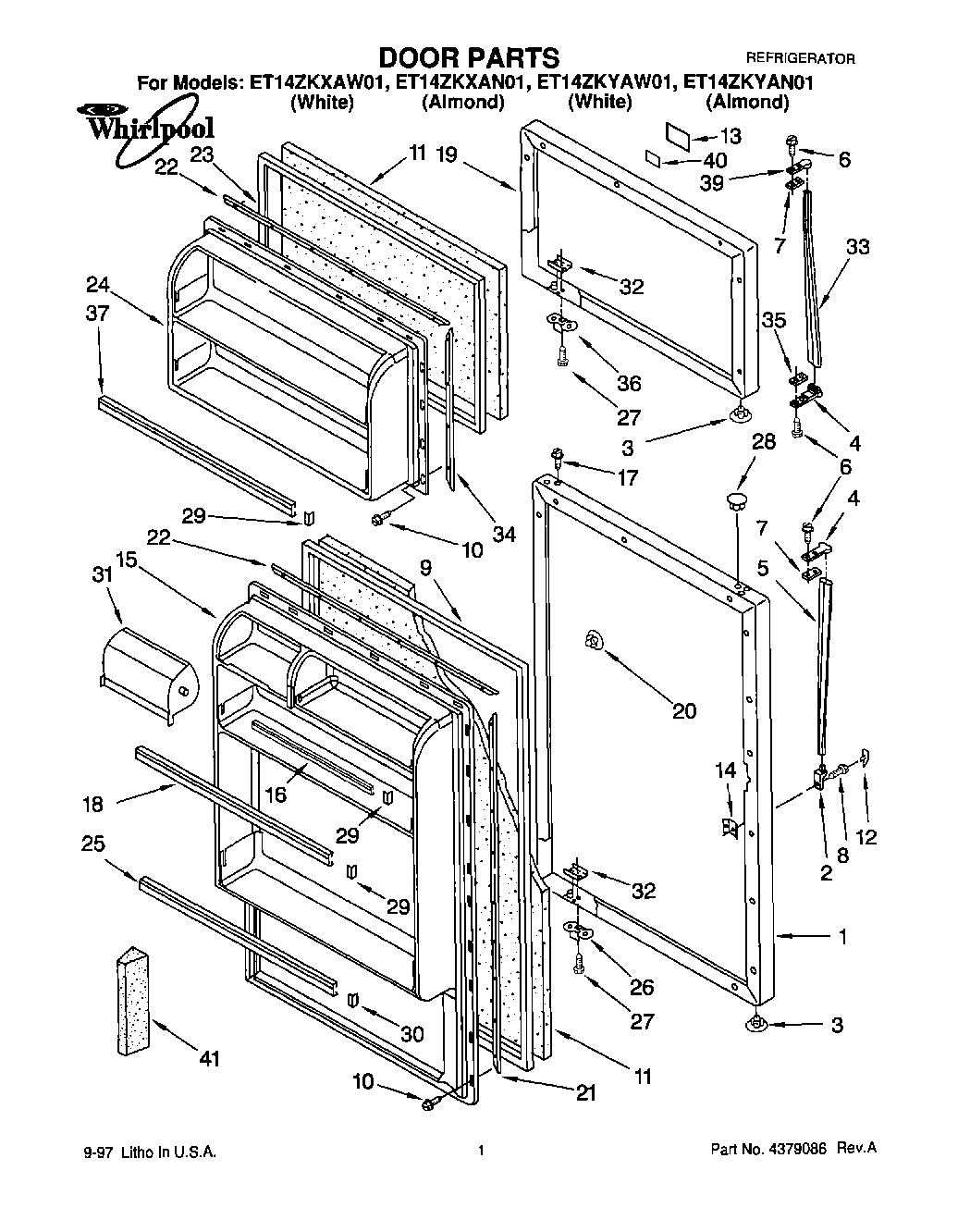

01 - DOOR

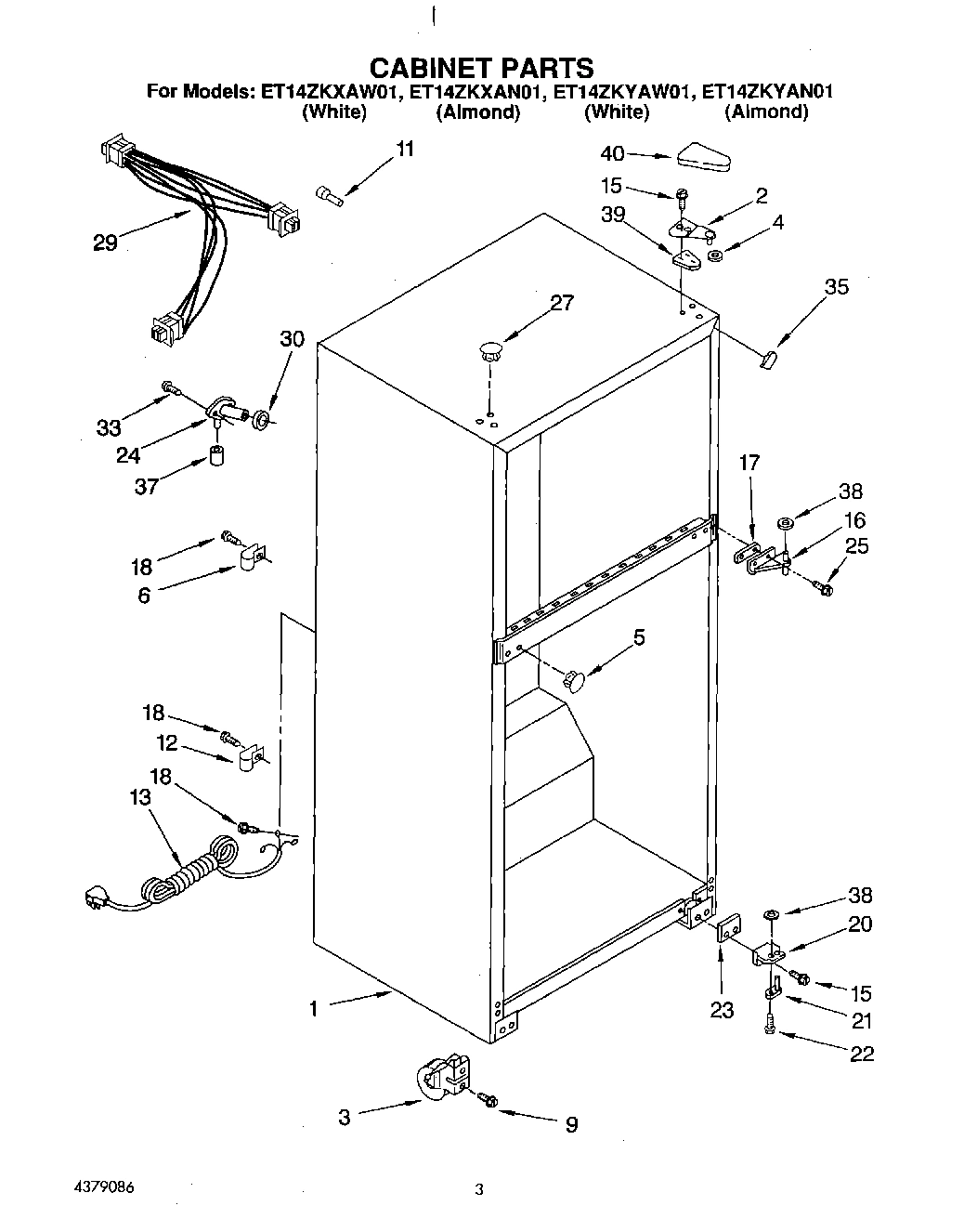

02 - CABINET
Common parts from model Whirlpool ET14ZKXAW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9790362 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9791629 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42525A3 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Roller-Front WPL 9790461 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Hole Plug (White) WPL 1129062 Contact Us For Availability
5
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
6
Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
7
Heat Shield WPL 2166058 Contact Us For Availability
8
Spacer WPL 2154438 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
9
Screw (2) WPL 9791768 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Tube, Water Inlet WPL 836490 Contact Us For Availability
12
Cover, Meat Pan WPL 9790379 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Overload (Service) WPL 1108114 Contact Us For Availability
13
Overload (Production) WPL 2154758 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
16
Trim, Door Shelf WPL 9791756 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
18
Trim, Door WPL 9791755 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
22
Retainer, Gasket WPL 1120614 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Trim, Door Shelf WPL 2162652 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
26
Stop-Door WPL 1115910 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 9790418 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Compartment Door WPL 2162644 Contact Us For Availability
33
Handle, F.C. (Almond Model) WPL 2148069 Contact Us For Availability
33
Screw WPL 489050 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Spacer WPL 943188 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
35
Corner Filler (Almond) WPL 2166004 Contact Us For Availability
36
Heat Exchanger (Not Serviced) WPL ARI42527A2 Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
37
Trim-Door WPL 9791754 Contact Us For Availability
38
Washer WPL 489201 Contact Us For Availability
39
Shim WPL 2157272 Contact Us For Availability
40
Tape WPL 991259 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Wedge-Foam WPL 2166029 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
43
Evaporator Tray WPL 1101002 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388007 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
Start Kit WPL 482278 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
