Model Whirlpool ET14ZKXAN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
Common parts from model Whirlpool ET14ZKXAN02 TOP MOUNT REFRIGERATOR
1

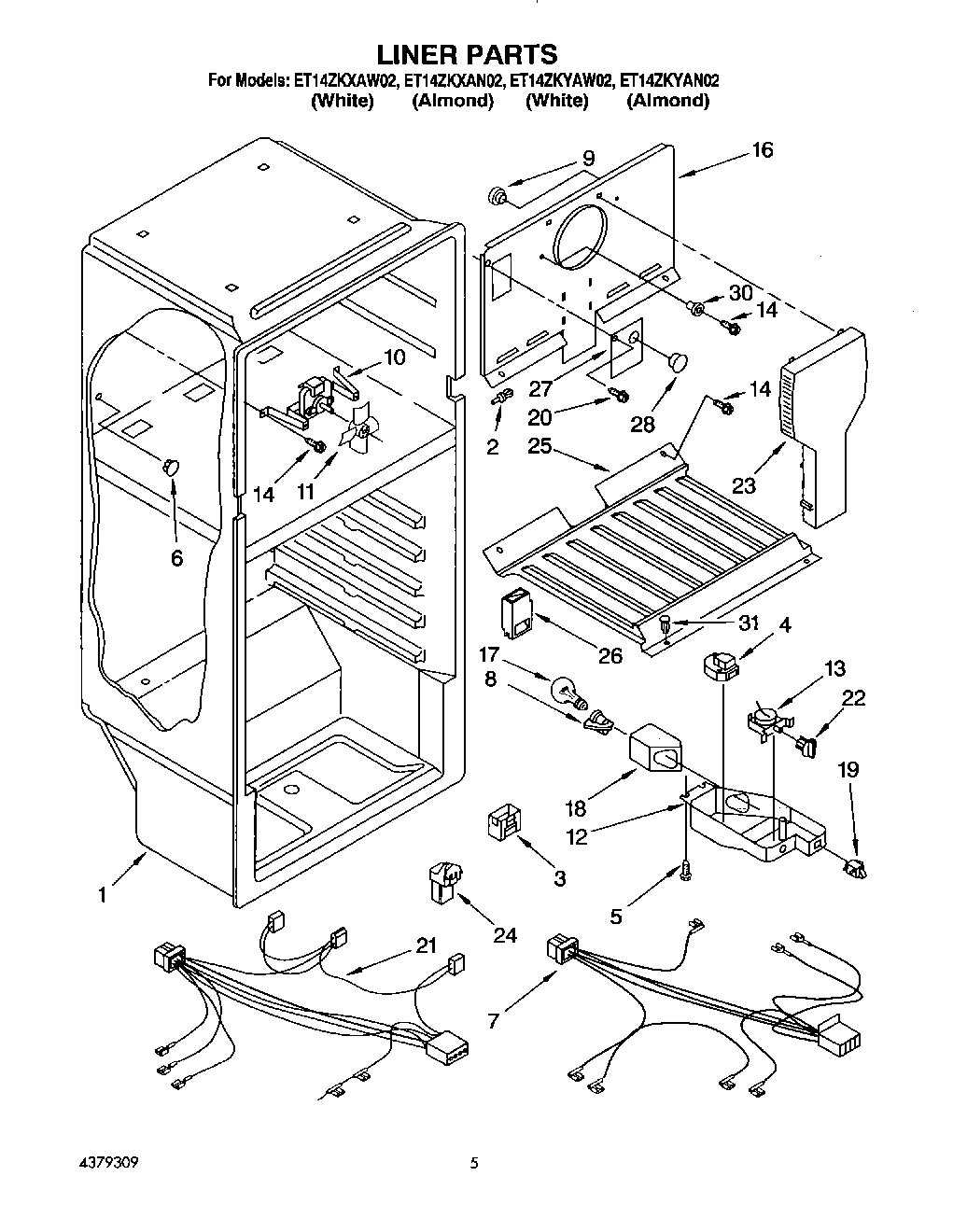

Liner (Not A Serviceable Part) WPL ARI42521A5 Contact Us For Availability
1

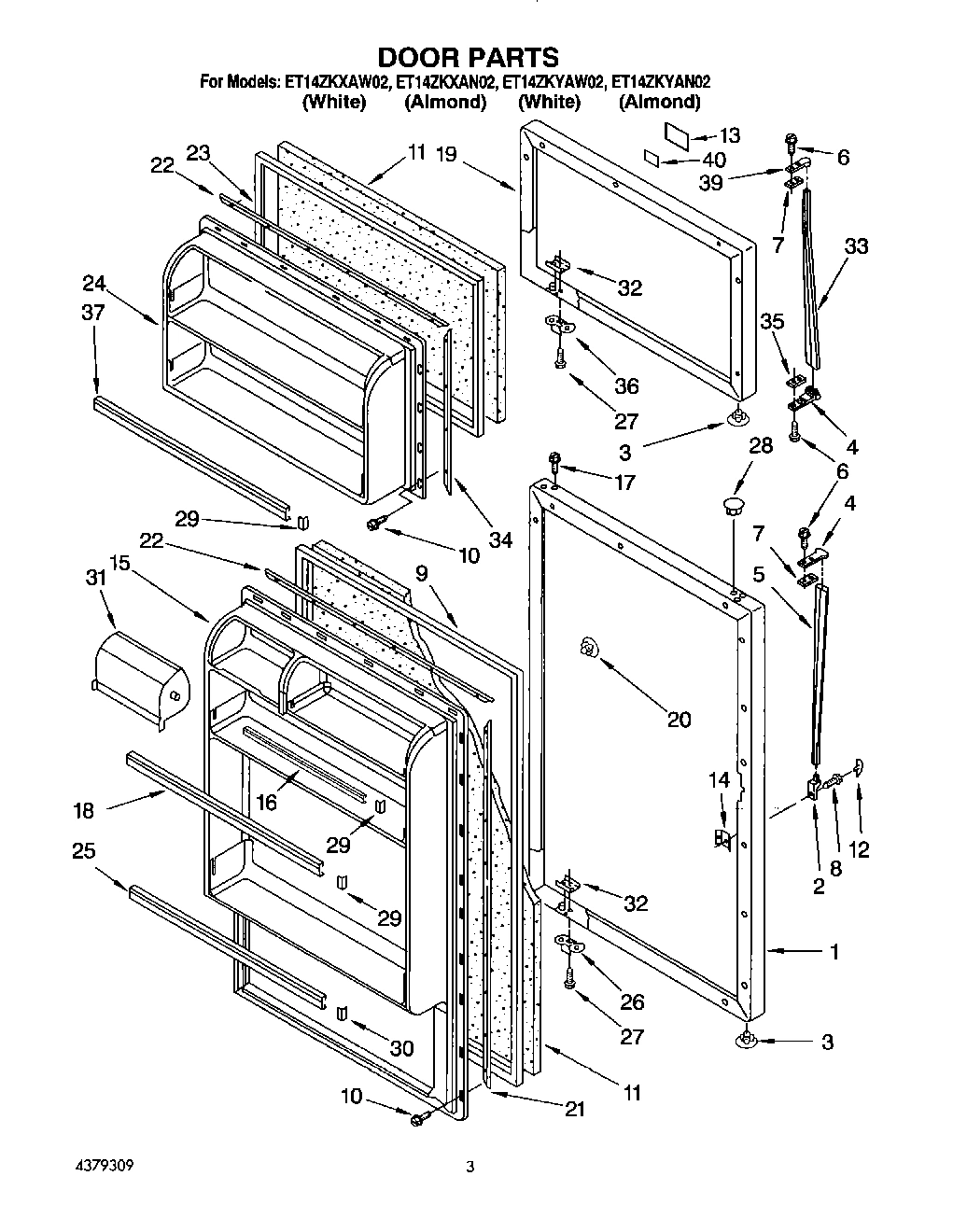

Refrigerator Door Panel (Also Order Item 11) WPL 9790362 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9791629 Contact Us For Availability
3
Diffuser-Air WPL 9791377 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
5
Thimble WPL 9791835 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
6

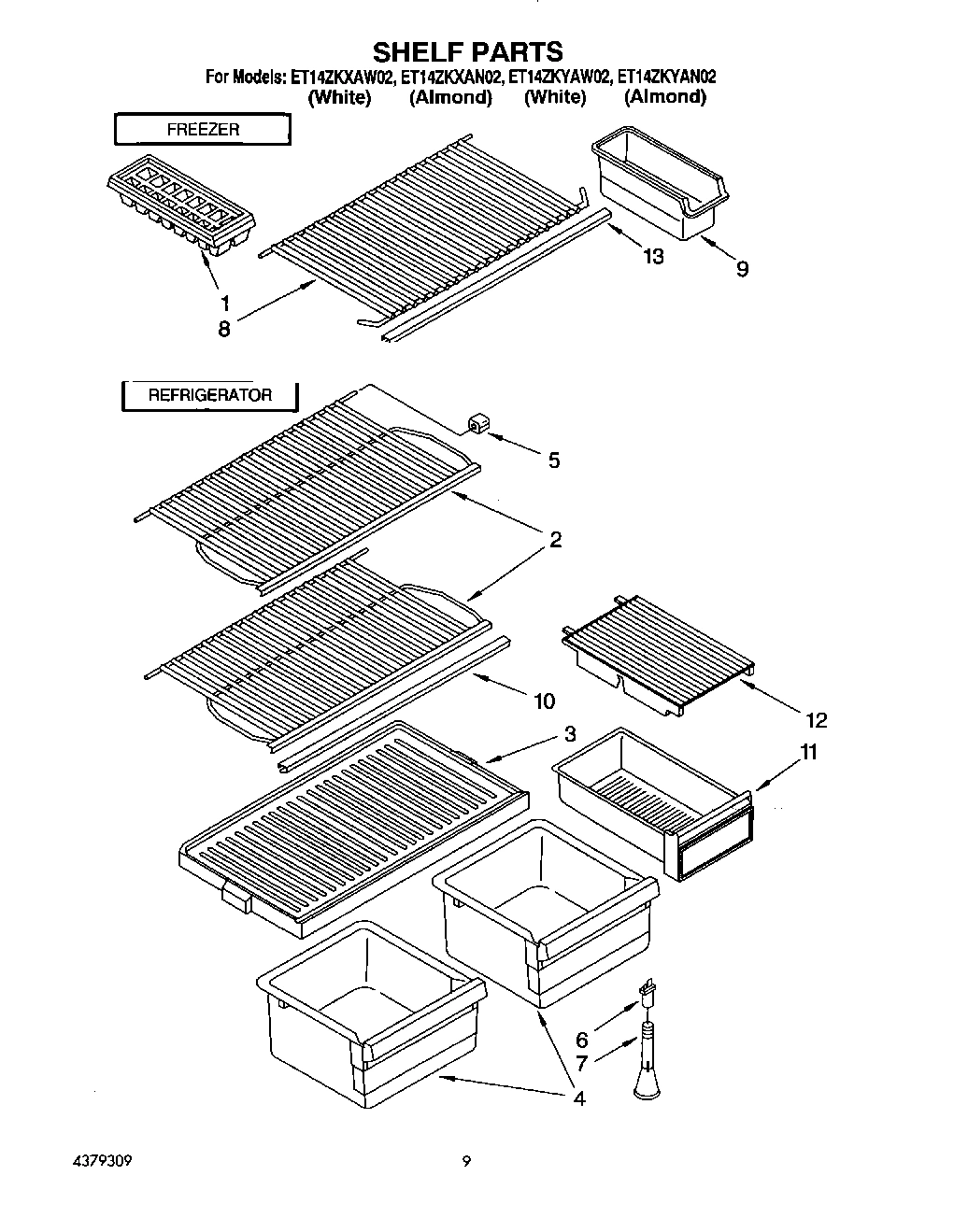

Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
9
Grommet WPL 531933 Contact Us For Availability
10
Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability
10
Trim, Shelf WPL 9791694 Contact Us For Availability
11
Fan Blade WPL 2169141 Contact Us For Availability
11
Pan, Meat WPL 2162635 Contact Us For Availability
12
Cover, Meat Pan WPL 9790379 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Trim, Shelf F.C. WPL 9791704 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
16
Cover-Evaporator WPL 9790382 Contact Us For Availability
16
Trim, Door Shelf WPL 9791756 Contact Us For Availability
18
Trim, Door WPL 9791755 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Wiring-Freezer WPL 9791403 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
22
Retainer, Gasket WPL 1120614 Contact Us For Availability
23
Air Tower WPL 2166065 Contact Us For Availability
24
Hood & Foil Assembly WPL 2166082 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Freezer Floor WPL 2166077 Contact Us For Availability
25
Trim, Door Shelf WPL 2162652 Contact Us For Availability
26
Air Diffuser WPL 9790402 Contact Us For Availability
26
Stop-Door WPL 1115910 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
30
Sleeve WPL 2166010 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
31
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
WPL 9791757 WPL 9791757 Contact Us For Availability
31
Compartment Door WPL 2162644 Contact Us For Availability
32
Run Capacitor WPL 2154565 Contact Us For Availability
33
Handle, F.C. (Almond Model) WPL 2148069 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Spacer WPL 943188 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
37
Trim-Door WPL 9791754 Contact Us For Availability
40
Tape WPL 991259 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
43
Evaporator Tray WPL 1101002 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
Start Kit WPL 482278 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
