Model Whirlpool ET14JMYSW05 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

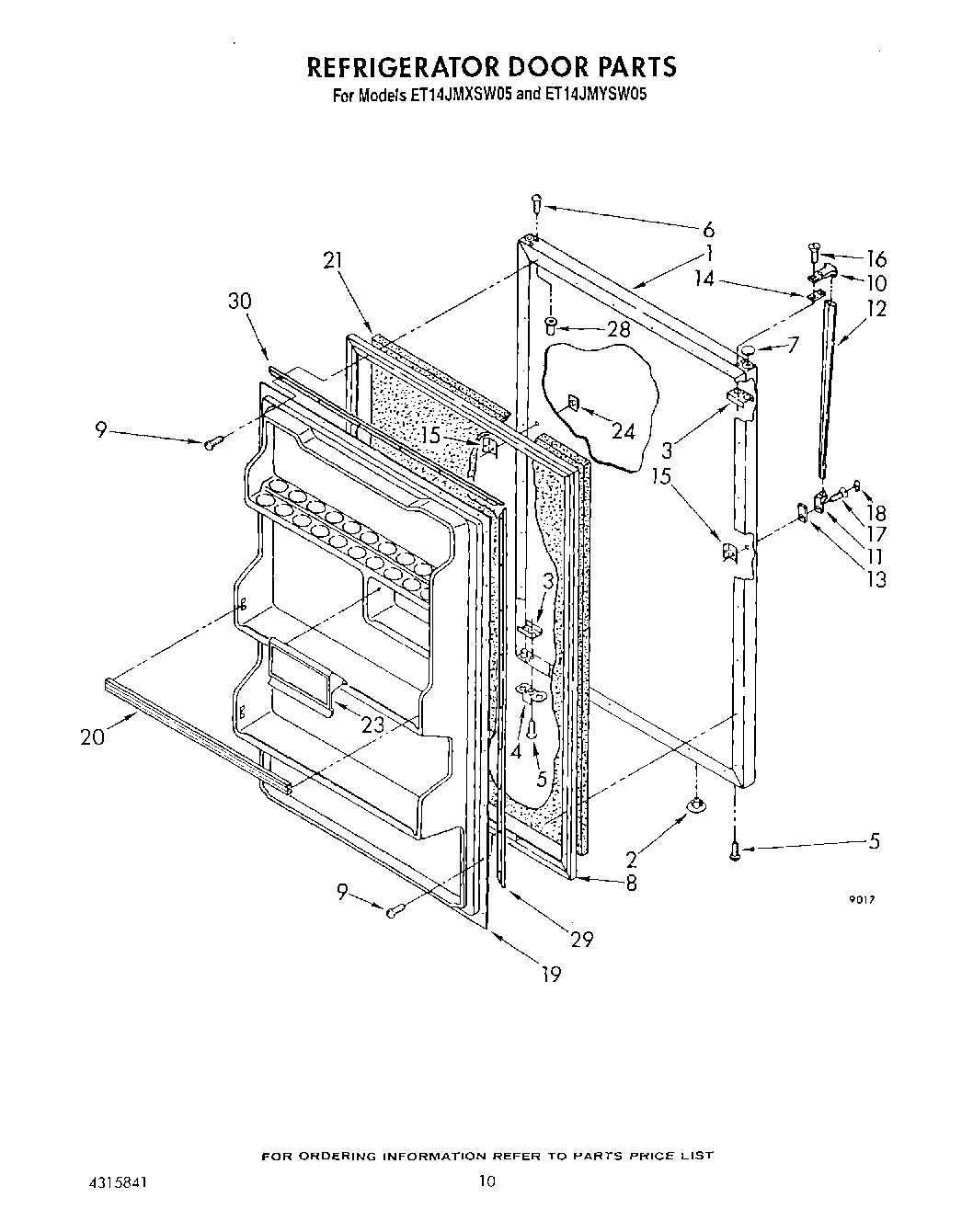

08 - REFRIGERATOR DOOR
03 - LINER
06 - FREEZER DOOR
07 - UNIT
04 - COMPARTMENT SEPARATOR
05 - SHELF
02 - CABINET
09 - ICEMAKER , LIT/OPTIONAL
Common parts from model Whirlpool ET14JMYSW05 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1118724 WPL LIT1118724 Contact Us For Availability
WPL LIT1124665 WPL LIT1124665 Contact Us For Availability
WPL LIT116042 WPL LIT116042 Contact Us For Availability
WPL LIT4315841 WPL LIT4315841 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Pla WPL 1103944 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111798 Contact Us For Availability
1
Shelf, Pullout (2) WPL 1105974 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42419A1 Contact Us For Availability
2
Hole Plug (Toast) WPL 1100196 Contact Us For Availability
2
Hole Plug (Platinum) WPL 1100197 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Spacer (2) WPL 940024 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability
3
Cover, Crisper WPL 1120649 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1114283 Contact Us For Availability
4
Support, Crisper Cover WPL 1103731 Contact Us For Availability
4
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
4
Hole Plug (2) (Platinum) WPL 1126568 Contact Us For Availability
4
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
4
Hole Plug (2) (Toast) WPL 1126570 Contact Us For Availability
4
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
5
Post, Cripser Cover WPL 836410 Contact Us For Availability
5
Roller (4) WPL 937216 Contact Us For Availability
6
Screw (Repair) WPL 489221 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability
6
Leveler (2) WPL 944766 Contact Us For Availability
7
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
8
Pan, Crisper (2) WPL 1111909 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud (2) WPL 939065 Contact Us For Availability
10
Trim Ice Cube Pan WPL 837122 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Knob, Thermostat WPL 1111759 Contact Us For Availability
11
Screw (2) WPL 489277 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Drain Pan WPL 1108170 Contact Us For Availability
12
Tap Plate (2) WPL 944813 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
13
Retainer, Knob WPL 1111792 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
13
Center Rail (Toast) WPL 1111513 Contact Us For Availability
13
Center Rail (Platinum) WPL 1111514 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1126711 Contact Us For Availability
14
Breaker, Trim Clip WPL 534365 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
15
Screw WPL 489184 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
16
Screw (Repair) WPL 489250 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Rod, Connecting WPL 1111270 Contact Us For Availability
16
Center, Rail Shim WPL 939034 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1116038 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118973 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
19
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
19
Cover, Air Diffuser WPL 937226 Contact Us For Availability
19
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
20
Tape Strip WPL 991259 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
21
Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 1108180 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 1118849 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123916 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge, Bottom WPL 1123882 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1110242 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
28
Screw, 10-32 x 49/64 WPL 489258 Contact Us For Availability
29
Clamp, Drier WPL 547637 Contact Us For Availability
29
Shim, Bottom WPL 942812 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Exchanger, Heat WPL 1105103 Contact Us For Availability
31
Insulation, Seal Strip WPL 1119645 Contact Us For Availability
31
Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability
31
Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
32
Cover, Deck Rail (To WPL 1109371 Contact Us For Availability
32
WPL 1109372 WPL 1109372 Contact Us For Availability
33
Heater, Defrost WPL 1105164 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119323 Contact Us For Availability
33
WPL 1100681 WPL 1100681 Contact Us For Availability
33
WPL 1100682 WPL 1100682 Contact Us For Availability
33
WPL 943552 WPL 943552 Contact Us For Availability
33
WPL 944831 WPL 944831 Contact Us For Availability
33
WPL 944833 WPL 944833 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
34
Cover, Capacitor WPL 1118525 Contact Us For Availability
34
Drain Insert, Separator WPL 942849 Contact Us For Availability
34
WPL 1110684 WPL 1110684 Contact Us For Availability
34
WPL 1110685 WPL 1110685 Contact Us For Availability
34
WPL 1110686 WPL 1110686 Contact Us For Availability
34
WPL 1110687 WPL 1110687 Contact Us For Availability
34
WPL 1110688 WPL 1110688 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
35
WPL 1119710 WPL 1119710 Contact Us For Availability
35
WPL 1119711 WPL 1119711 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
WPL 1100176 WPL 1100176 Contact Us For Availability
36
WPL 1100177 WPL 1100177 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
WPL 942844 WPL 942844 Contact Us For Availability
39
WPL 479502 WPL 479502 Contact Us For Availability
39
WPL 799344 WPL 799344 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
39
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
39
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
39
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
39
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
39
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
39
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
39
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
39
WPL 542639 WPL 542639 Contact Us For Availability
39
WPL 652604 WPL 652604 Contact Us For Availability
39
WPL 72112 WPL 72112 Contact Us For Availability
39
WPL 799340 WPL 799340 Contact Us For Availability
39
WPL 799833 WPL 799833 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
41
WPL 498242 WPL 498242 Contact Us For Availability
42
Muffler WPL 1105136 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
50
WPL 488949 WPL 488949 Contact Us For Availability
50
WPL 489179 WPL 489179 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
54
Support, Heater WPL 1108172 Contact Us For Availability
54
WPL 489218 WPL 489218 Contact Us For Availability
63
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
