Model Whirlpool ET14JMXWW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

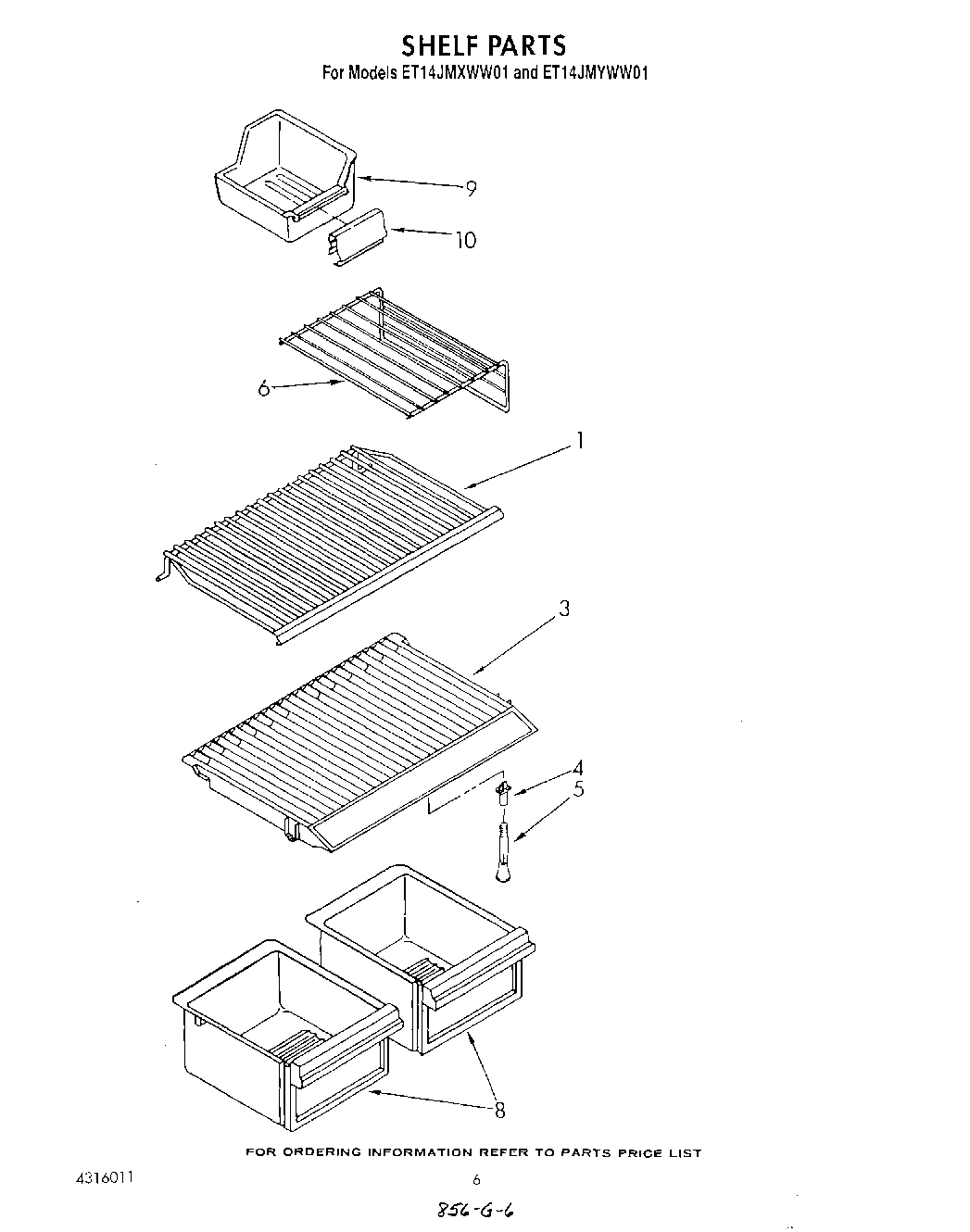

05 - SHELF

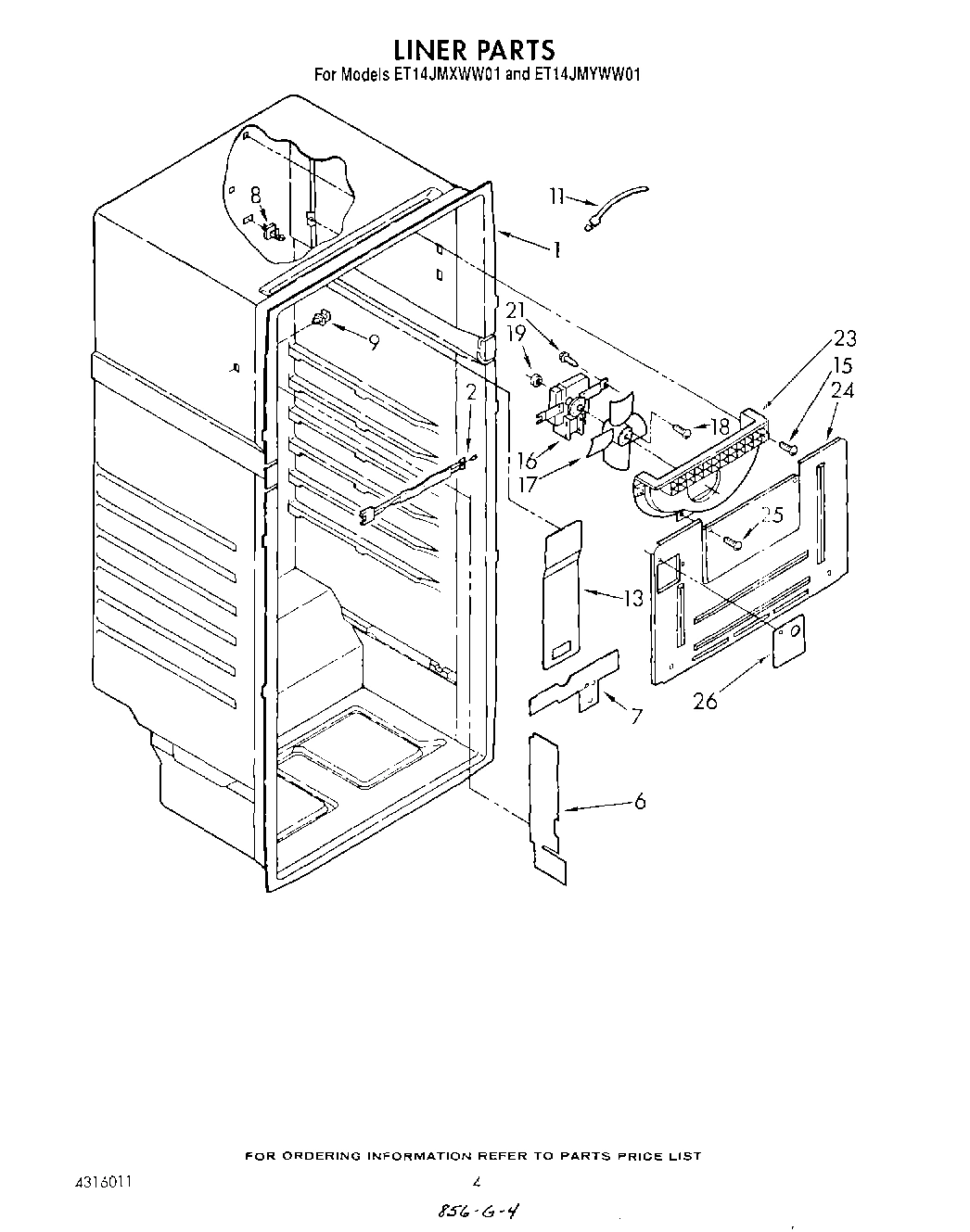

03 - LINER
04 - COMPARTMENT SEPARATOR
07 - UNIT
02 - CABINET
09 - ICEMAKER , LIT/OPTIONAL
06 - FREEZER DOOR
08 - REFRIGERATOR DOOR
Common parts from model Whirlpool ET14JMXWW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124665 WPL LIT1124665 Contact Us For Availability
WPL LIT1124888 WPL LIT1124888 Contact Us For Availability
WPL LIT2149681 WPL LIT2149681 Contact Us For Availability
WPL LIT4316011 WPL LIT4316011 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI42287A7 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) (Also Order WPL 1103919 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Spacer (2) WPL 940024 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
4
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
4
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Post, Cripser Cover WPL 836410 Contact Us For Availability
5
Roller (4) WPL 937216 Contact Us For Availability
6
Leveler (2) WPL 944766 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud (2) WPL 939065 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Tap Plate (2) WPL 2147312 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Handle, Center WPL 1109171 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Overload WPL 1127963 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Clip, Center Rail (3) WPL 1129018 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
16
Screw (Repair) WPL 488923 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1116038 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Nameplate WPL 945119 Contact Us For Availability
19
Interior Door Panel WPL 1120628 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
20
Tape Strip WPL 991259 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Evaporator WPL 1108180 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
23
Compartment, Butter Door WPL 1110148 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Tray, Evaporator WPL 942875 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Hinge, Bottom WPL 1123882 Contact Us For Availability
27
Pin, Hinge WPL 654366 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
31
Exchanger, Heat WPL 1127957 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
36
Hole Plug (2) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (2) (Almond) WPL 1129063 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
52
Clamp (2) WPL 519405 Contact Us For Availability
54
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
54
Support, Heater WPL 1108172 Contact Us For Availability
63
Seal, Gasket WPL 1106510 Contact Us For Availability
70
Install Kit (Also Order Item 78) WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388008 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
