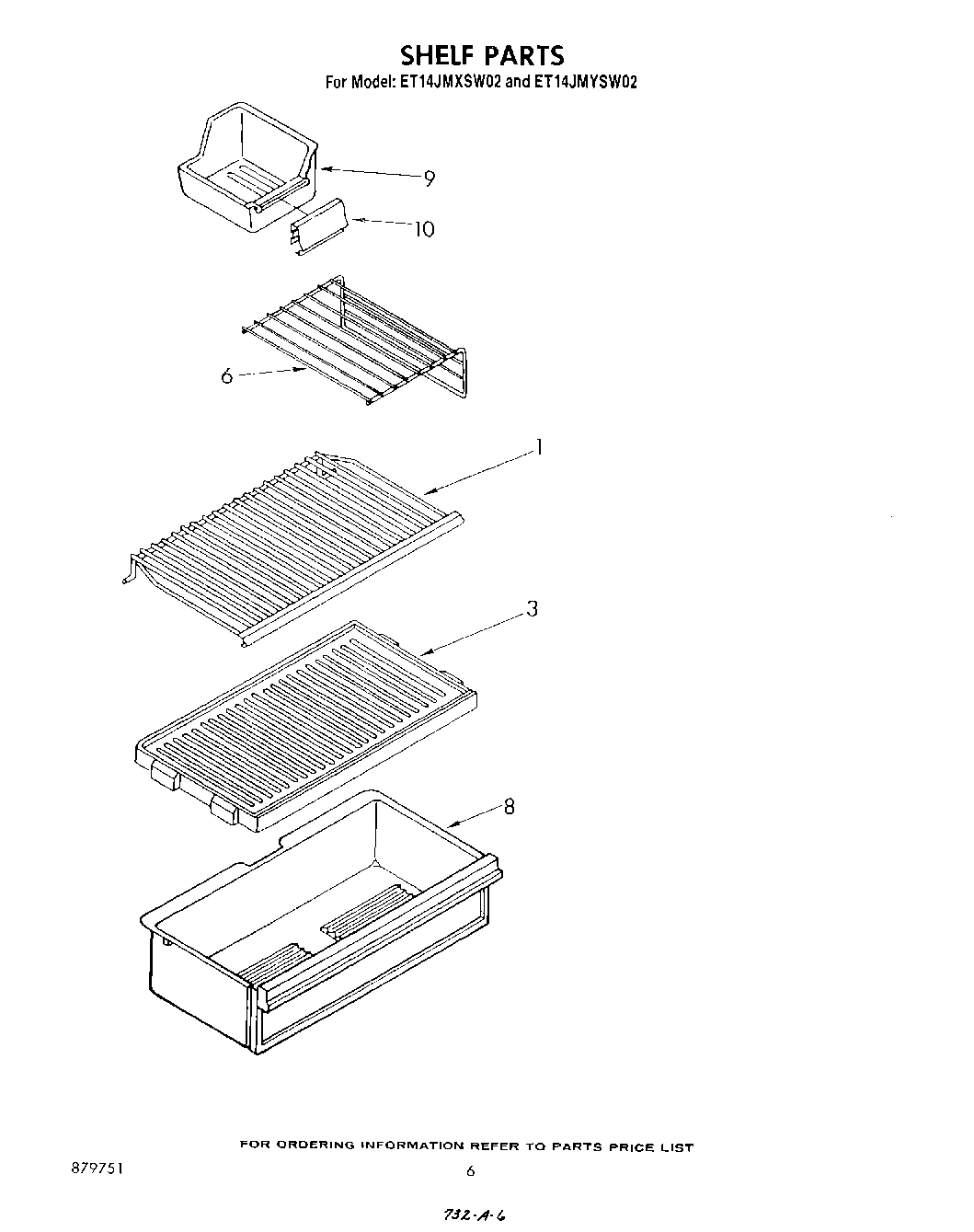

Model Whirlpool ET14JMXSW02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

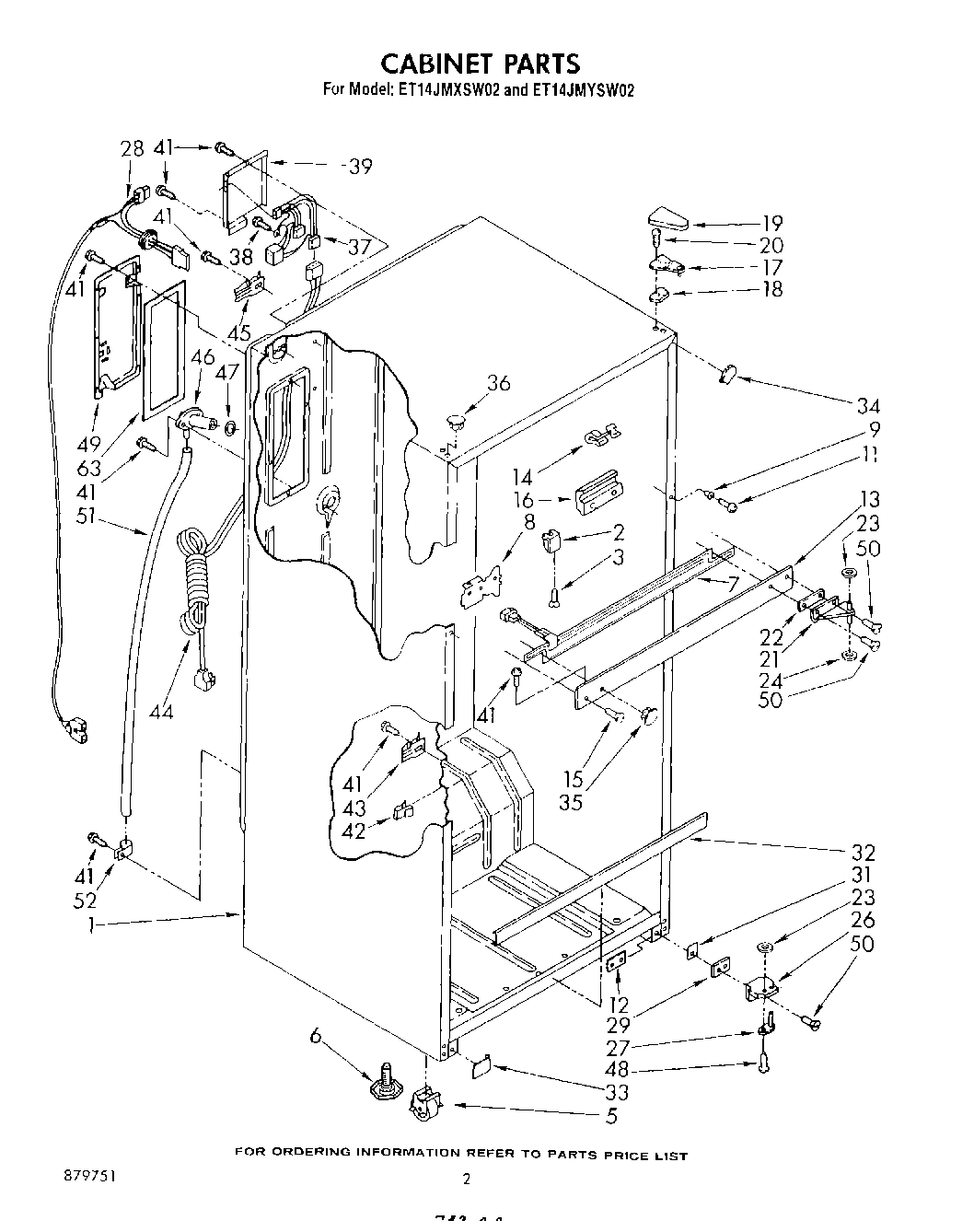

1

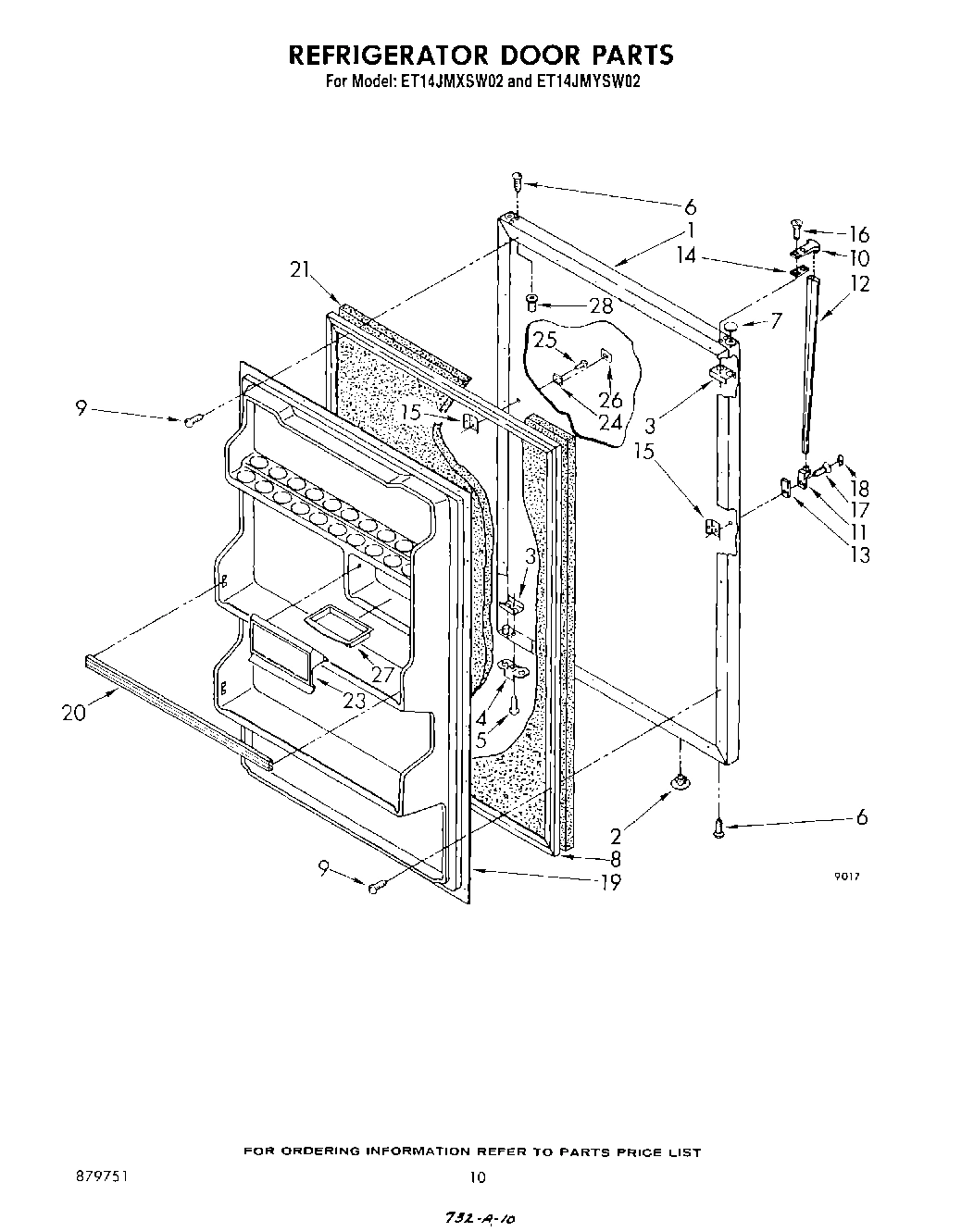

Panel, Refrigerator Door (White) WPL 1103917 Contact Us For Availability

1

Panel, Refrigerator Door (Golden Harvest) WPL 1103918 Contact Us For Availability

1

Panel, Refrigerator Door (Almond) WPL 1103919 Contact Us For Availability

1

Panel, Refrigerator Door (Toast) WPL 1103920 Contact Us For Availability

1

Panel, Refrigerator Door (Platinum) (Also Ord WPL 1103921 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI42273A8 Contact Us For Availability

1

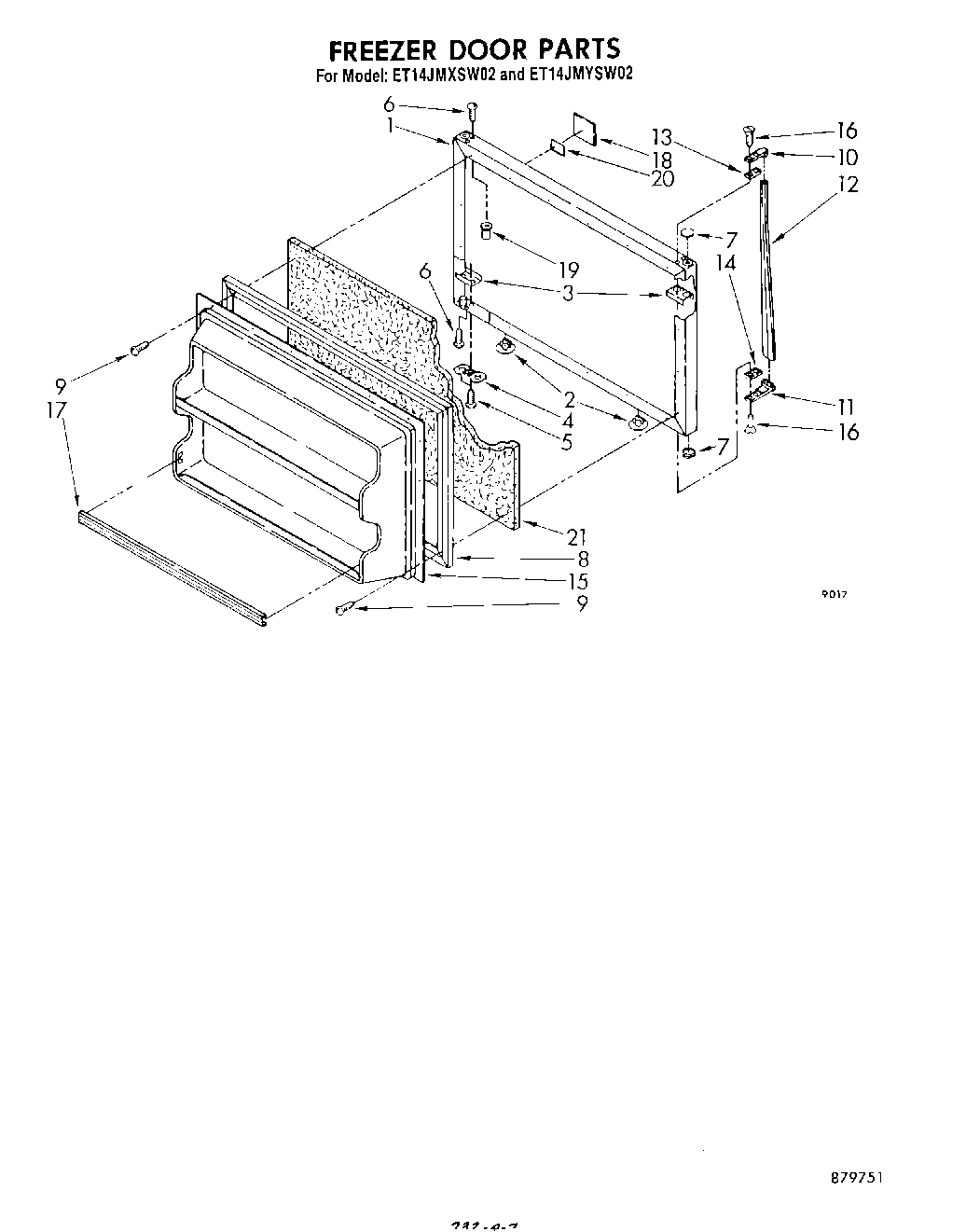

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Toa WPL 1103943 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Pla WPL 1103944 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Bumper (2) WPL 944772 Contact Us For Availability

2

Hole Plug (White) WPL 534927 Contact Us For Availability

2

Spacer (2) WPL 940024 Contact Us For Availability

2

Hole Plug (Toast) WPL 1100196 Contact Us For Availability

2

Hole Plug (Platinum) WPL 1100197 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

3

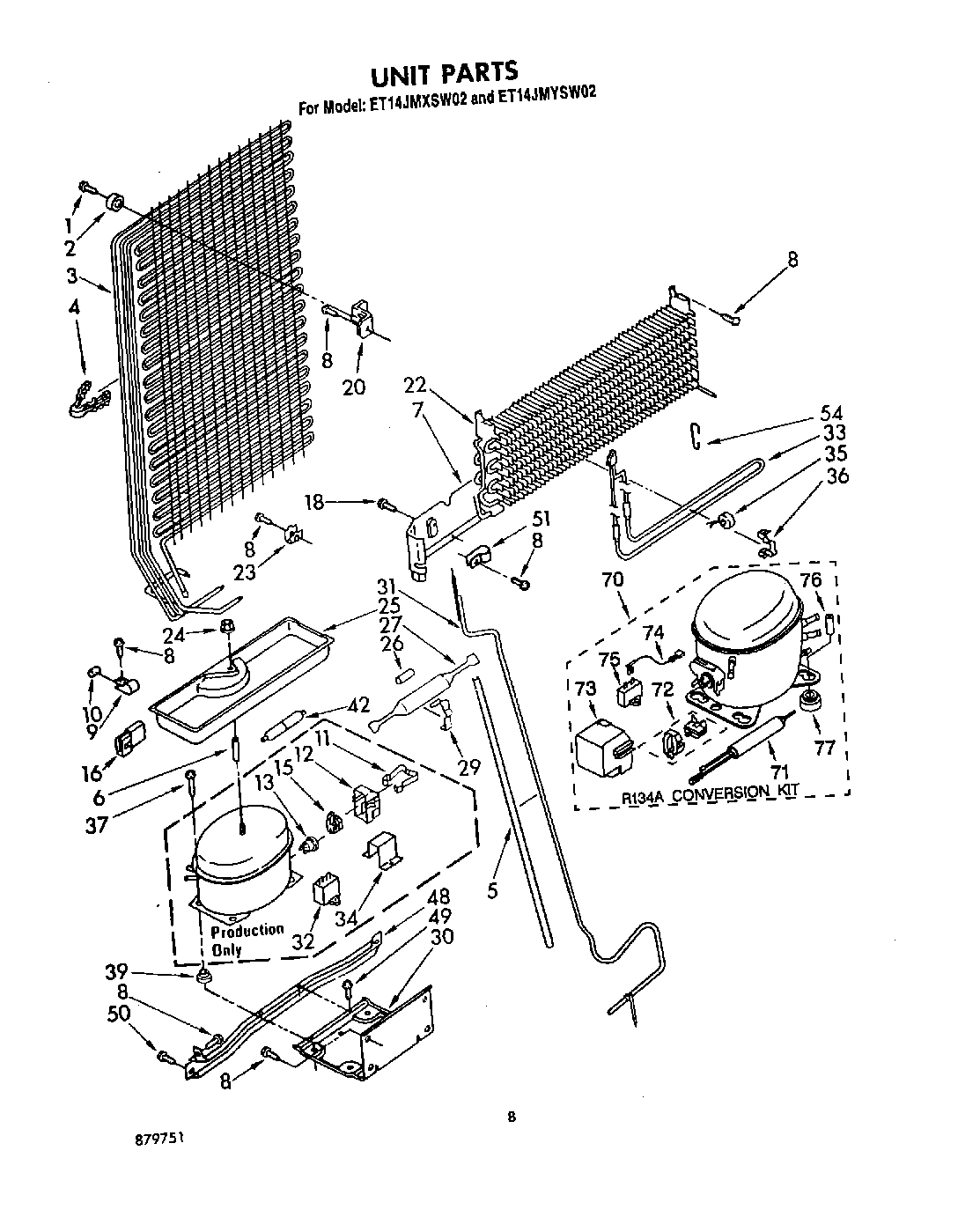

Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

Clip Tube (2) WPL 942739 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Roller (4) WPL 937216 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

6

Spacer WPL 1105130 Contact Us For Availability

6

Screw (Repair) WPL 488930 Contact Us For Availability

6

Leveler (2) WPL 944766 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

Heat Shield Evaporator WPL 1108169 Contact Us For Availability

7

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

7

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Heater, Mullion WPL 1108140 Contact Us For Availability

8

2188445A Whirlpool Refrigerator Door Gasket S In Stock WPL 2188445A $57.49

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $105.83

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

NLA:SCREW Backorder WPL WPW10141645 $3.70

9

Stud (2) WPL 939065 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

9

Ferrule, Center Rail WPL 942737 Contact Us For Availability

10

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

10

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $32.24

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Spring, Relay Case WPL 938384 Contact Us For Availability

Screw WPL 489183 Contact Us For Availability

Connector Wire WPL 227991 Contact Us For Availability

Case, Relay WPL 1108144 Contact Us For Availability

Handle, Center WPL 1106189 Contact Us For Availability

Handle Center (For Platinum Model Only) WPL 1109166 Contact Us For Availability

Tap Plate (2) WPL 944813 Contact Us For Availability

Handle, Center WPL 1106194 Contact Us For Availability

Handle, Center (For Platinum Model Only) WPL 1109171 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Tube, Water Inlet WPL 939027 Contact Us For Availability

Overload WPL 1105172 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

Center Rail (Toast) WPL 1111513 Contact Us For Availability

Center Rail (Platinum) WPL 1111514 Contact Us For Availability

14

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Breaker, Trim Clip WPL 534365 Contact Us For Availability

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $53.03

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Tube, Inlet Valve WPL 627883 Contact Us For Availability

Screw WPL 489184 Contact Us For Availability

Panel, Interior Door (Freezer) WPL 945701 Contact Us For Availability

16

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

16

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

16

Center, Rail Shim WPL 939034 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Nut, Valve WPL 537588 Contact Us For Availability

Shim, Hinge Top WPL 1100513 Contact Us For Availability

Trim, Door Shelf (2) WPL 1116038 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Shim, Top Hinge WPL 1100509 Contact Us For Availability

Nameplate WPL 945119 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Interior Door Panel WPL 1100015 Contact Us For Availability

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

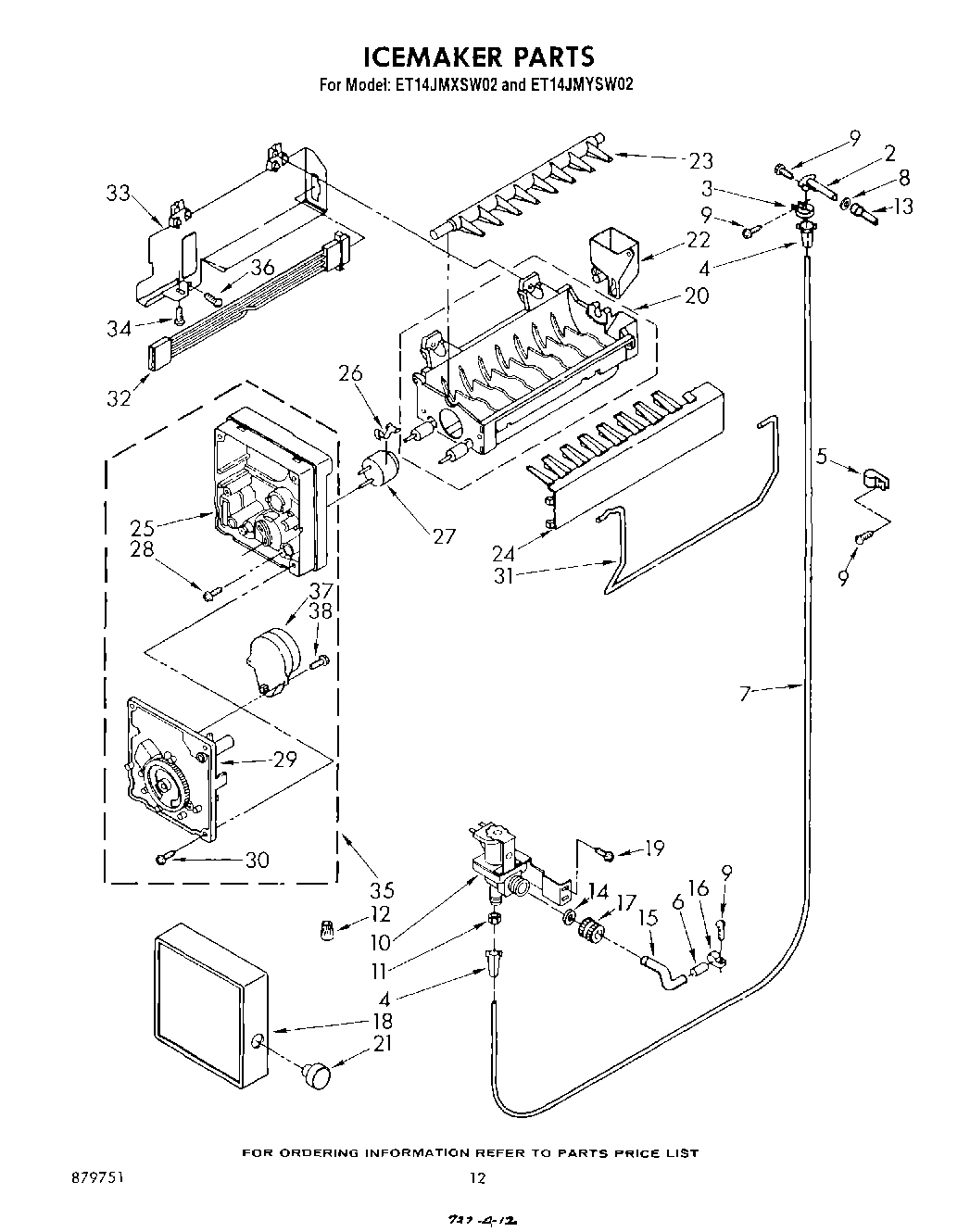

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

21

Hinge, Center WPL 944788 Contact Us For Availability

21

Knob WPL 627992 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

22

Evaporator WPL 1108180 Contact Us For Availability

22

Shim, Hinge Center WPL 836155 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Compartment, Butter Door WPL 1110148 Contact Us For Availability

285002 Whirlpool Nut Backorder WPL 285002 $7.58

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Clip, Medallion WPL 1107329 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

Evaporator Tray WPL 1101002 Contact Us For Availability

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Restrictor Sleeve WPL 510446 Contact Us For Availability

Medallion WPL 1111705 Contact Us For Availability

Hinge, Bottom WPL 944783 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Cement Alumilastic) WPL 542369 Contact Us For Availability

28

WP2187501 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187501 $55.06

28

Screw, 10-32 x 43/64 WPL 489163 Contact Us For Availability

29

Clamp, Drier WPL 547637 Contact Us For Availability

29

Shim, Bottom WPL 942812 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Unit Mounting Plate WPL 942860 Contact Us For Availability

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

Exchanger, Heat WPL 1105103 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100685 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100686 Contact Us For Availability

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Cover, Deck Rail (Toast) WPL 1109371 Contact Us For Availability

Cover, Deck Rail (Platinum) WPL 1109372 Contact Us For Availability

Shield, Heat WPL 627751 Contact Us For Availability

Heater, Defrost WPL 1105164 Contact Us For Availability

Cover, Glider Rail (Platinum) WPL 1100681 Contact Us For Availability

Cover, Glider Rail (Toast) WPL 1100682 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Cov WPL 944833 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Cover, Capacitor WPL 1118525 Contact Us For Availability

WPL 1110684 WPL 1110684 Contact Us For Availability

WPL 1110685 WPL 1110685 Contact Us For Availability

WPL 1110686 WPL 1110686 Contact Us For Availability

WPL 1110687 WPL 1110687 Contact Us For Availability

WPL 1110688 WPL 1110688 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $43.87

Cup, Drain WPL 939191 Contact Us For Availability

WPL 1119707 WPL 1119707 Contact Us For Availability

WPL 1119708 WPL 1119708 Contact Us For Availability

WPL 1119709 WPL 1119709 Contact Us For Availability

WPL 1119710 WPL 1119710 Contact Us For Availability

WPL 1119711 WPL 1119711 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

WPL 1100176 WPL 1100176 Contact Us For Availability

WPL 1100177 WPL 1100177 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WPL 942845 WPL 942845 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

42

Muffler WPL 1105136 Contact Us For Availability

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

44

WPL 937360 WPL 937360 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

48

WPL 488714 WPL 488714 Contact Us For Availability

48

Unit Mounting Rail WPL 942859 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

WPL 942854 WPL 942854 Contact Us For Availability

50

Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability

50

WPL 488949 WPL 488949 Contact Us For Availability

50

WPL 489179 WPL 489179 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $38.47

51

Clamp WPL 489151 Contact Us For Availability

52

WPL 519405 WPL 519405 Contact Us For Availability

54

Support, Heater WPL 1108172 Contact Us For Availability

63

WPL 1106510 WPL 1106510 Contact Us For Availability

70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

70

Install Kit WPL 482801 Contact Us For Availability

70

Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability

71

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

72

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

73

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

74

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

76

Sleeve WPL 4387559 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
