Model Whirlpool ET14GKYBN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER, LIT/OPTIONAL
01 - CABINET

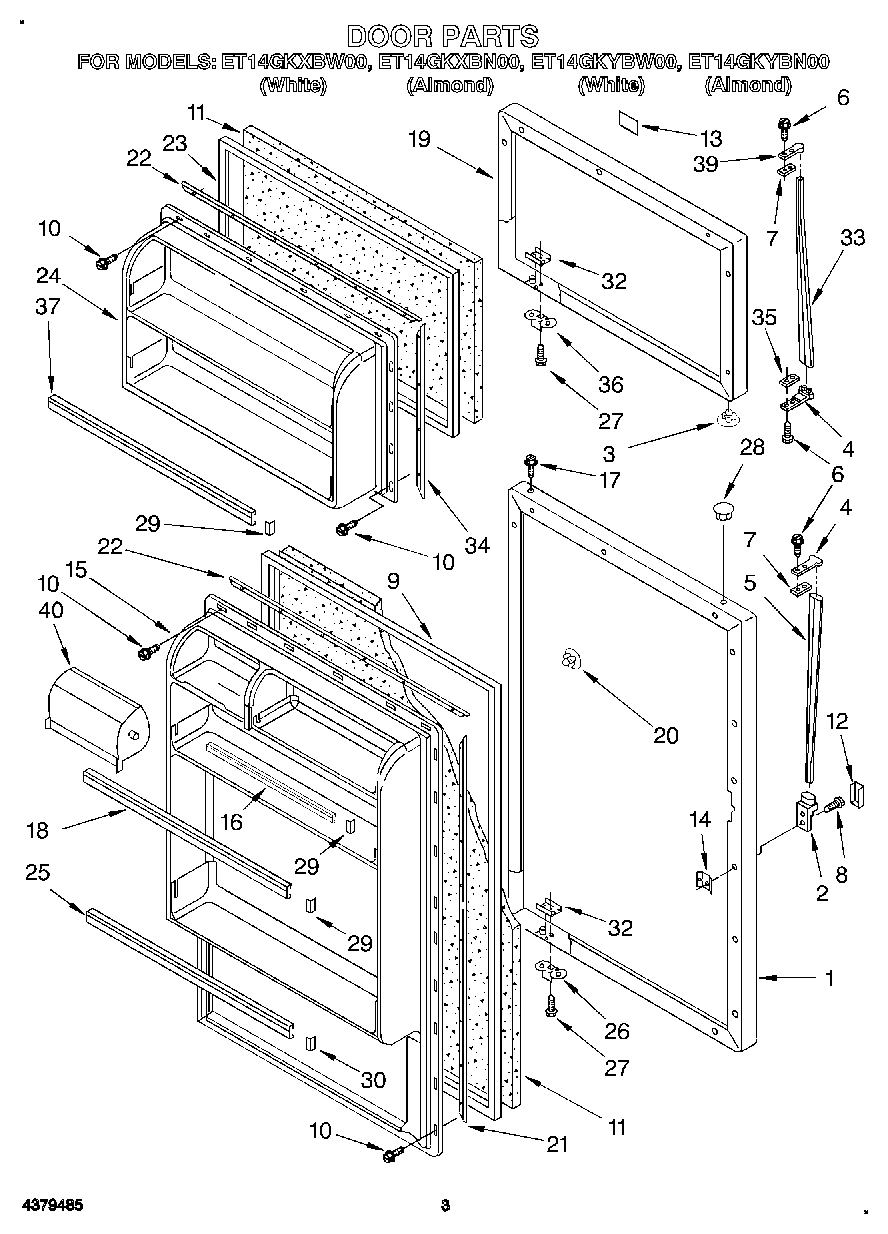

02 - DOOR

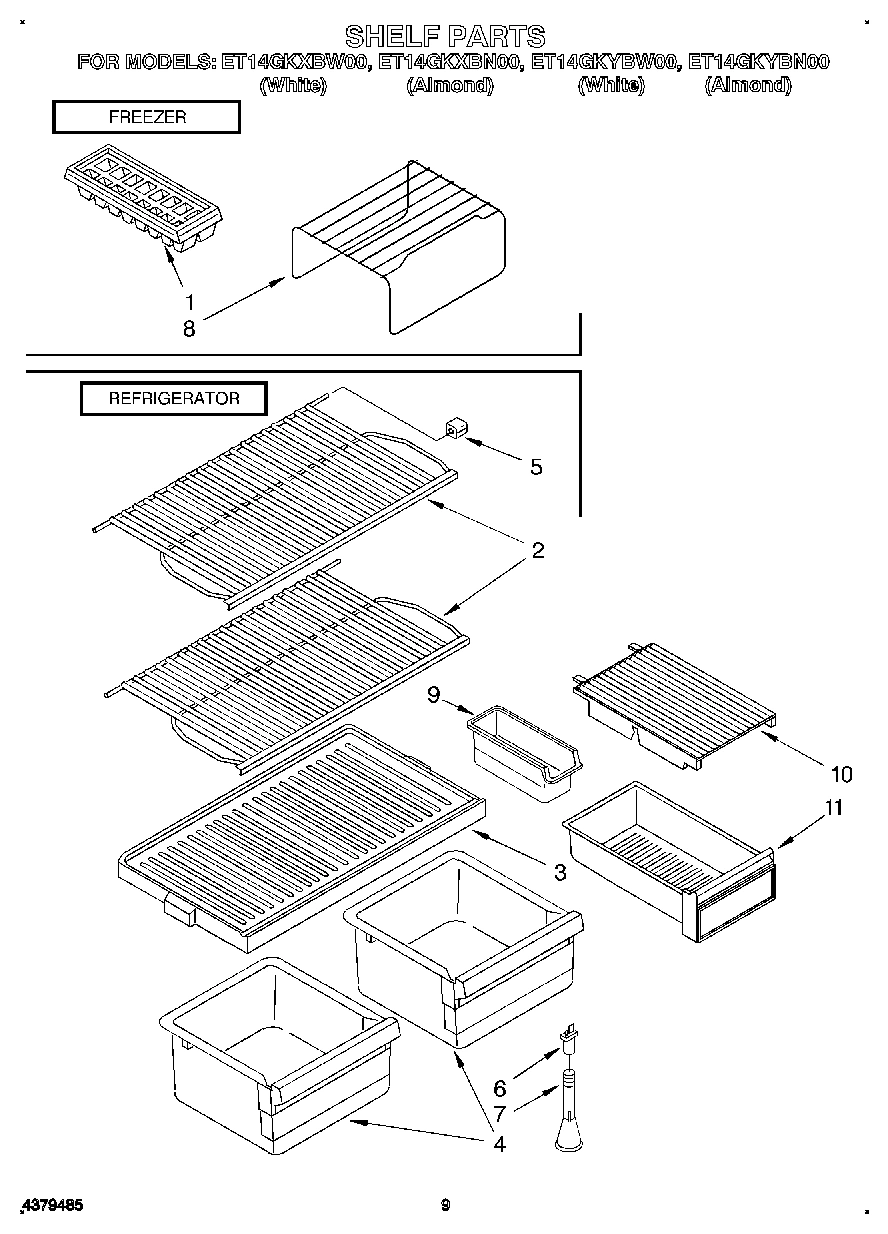

05 - SHELF

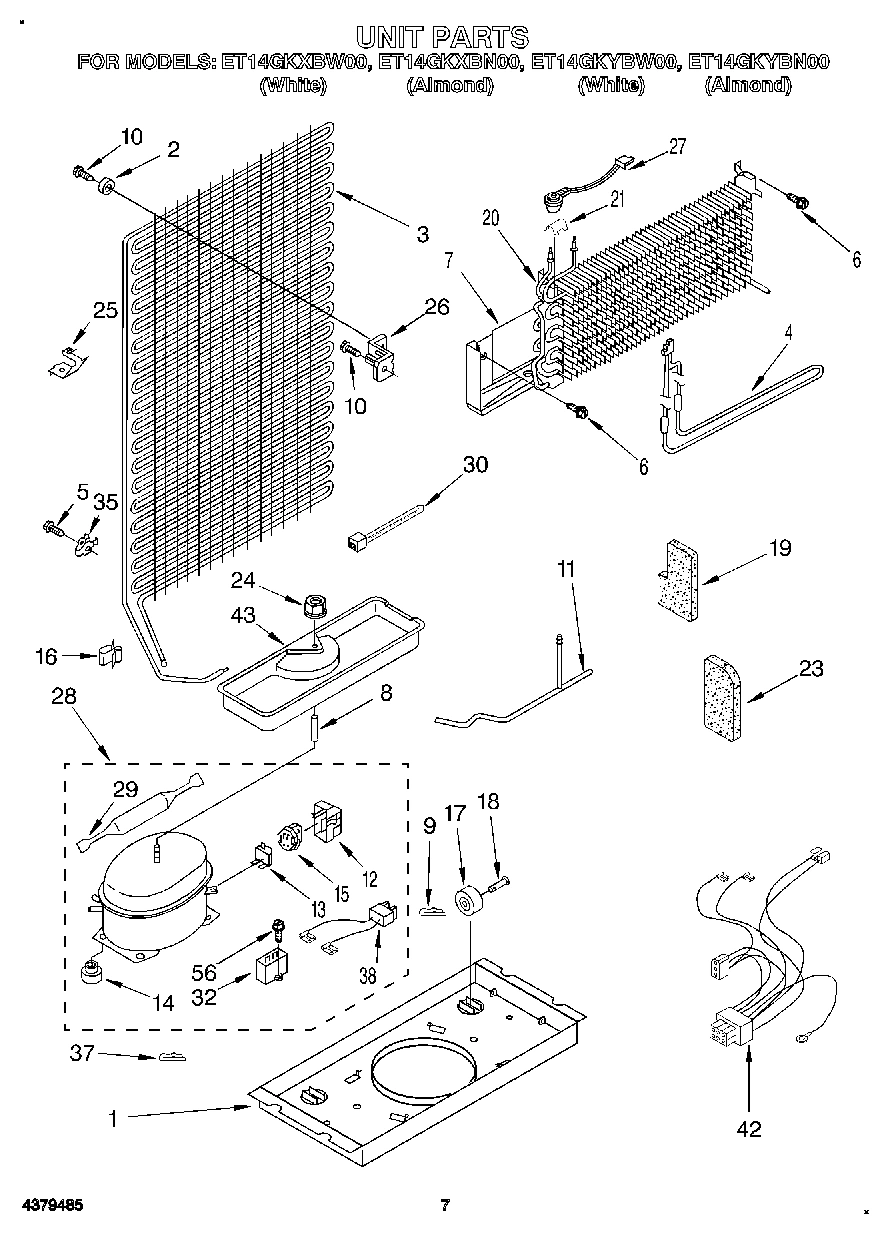

04 - UNIT
Common parts from model Whirlpool ET14GKYBN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9790362 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 9791629 Contact Us For Availability
2
Bumper WPL 944772 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Thimble WPL 9791835 Contact Us For Availability
6
Support, Crisper WPL 9791824 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Post, Crisper WPL 836410 Contact Us For Availability
7
Heat Shield WPL 2166097 Contact Us For Availability
8
Spacer WPL 2154438 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
10
Cover, Meat Pan WPL 9790379 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Meat Pan WPL 2170818 Contact Us For Availability
11
Evacuation Tube Assembly WPL 9791808 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
15
Relay (See Overload) WPL ARI41846A5 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
22
Retainer, Gasket WPL 1120614 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Trim, Door Shelf WPL 2170617 Contact Us For Availability
26
Stop, Door WPL 2159368 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
27
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 9790418 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
32
Run Capacitor WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2148069 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Spacer WPL 943188 Contact Us For Availability
35
Corner Filler (Almond) WPL 2166004 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
39
Shim WPL 2157272 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Door Compartment WPL 2170940 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
43
Evaporator Tray WPL 1101002 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
Start Kit WPL 482278 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
