Model Whirlpool ER9FHKXTQ00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI40961A6 WPL ARI40961A6 Contact Us For Availability

WPL ARI40962A1 WPL ARI40962A1 Contact Us For Availability

WPL ARI40963A8 WPL ARI40963A8 Contact Us For Availability

WPL ARI40964A5 WPL ARI40964A5 Contact Us For Availability

WPL ARI40965A3 WPL ARI40965A3 Contact Us For Availability

1

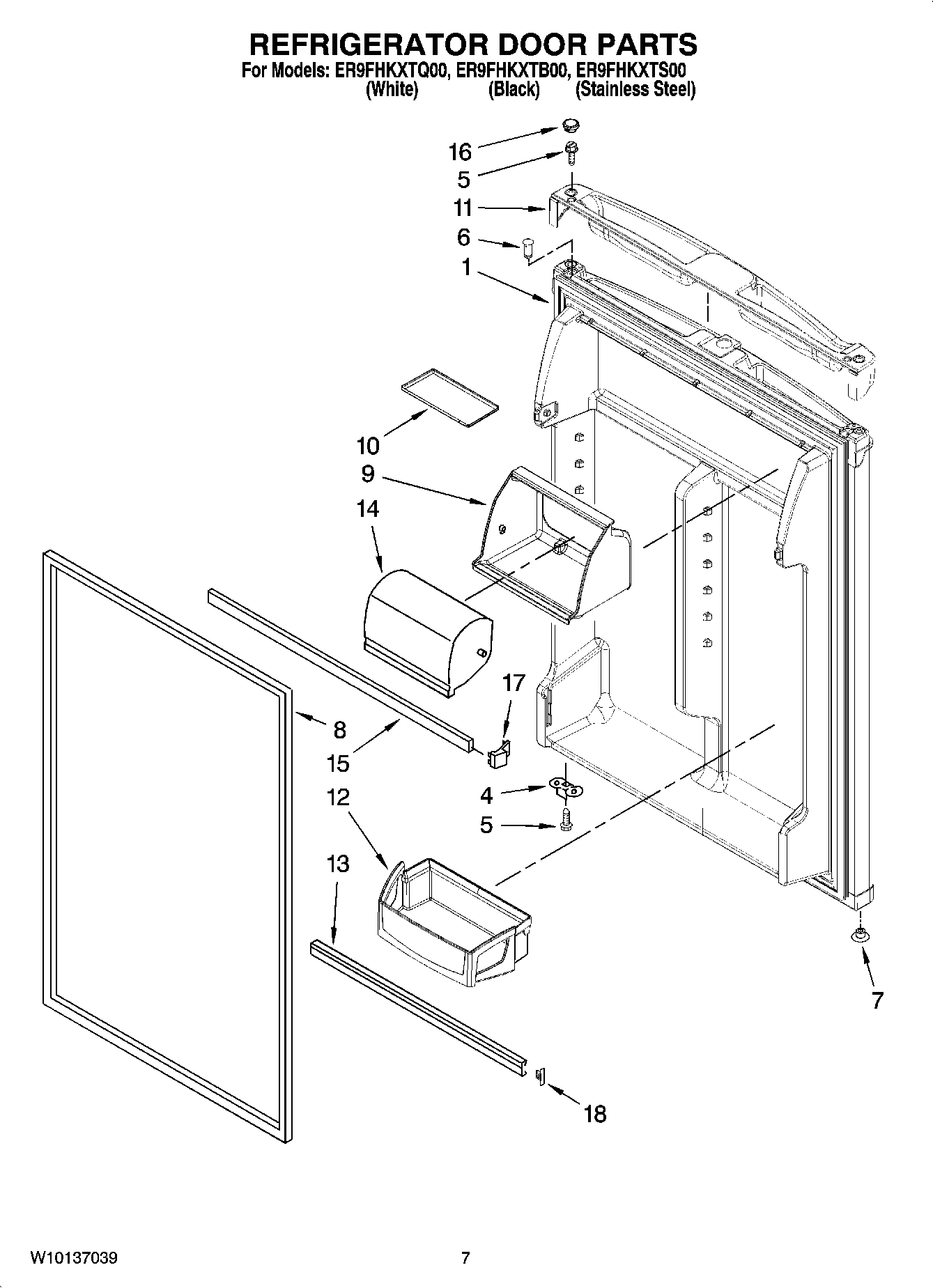

Refrigerator Door (Includes Illus. 6 & 8) (Wh WPL 2205395 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (Bl WPL 2205398 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (St WPL 2218280 Contact Us For Availability

1

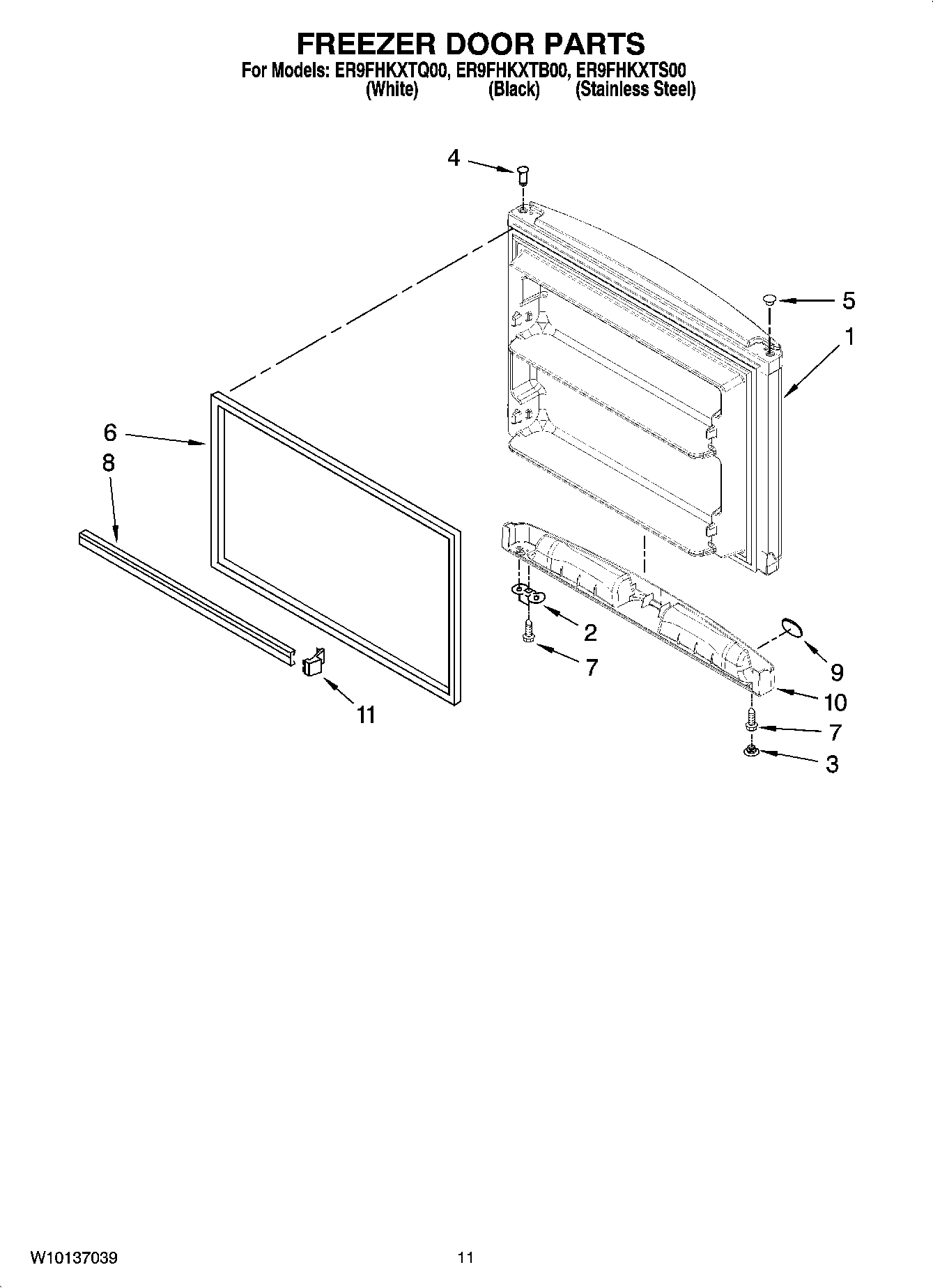

Freezer Door (Includes Illus. 4 & 6) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 4 & 6) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 4 & 6) (Stainle WPL 2212495 Contact Us For Availability

2

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

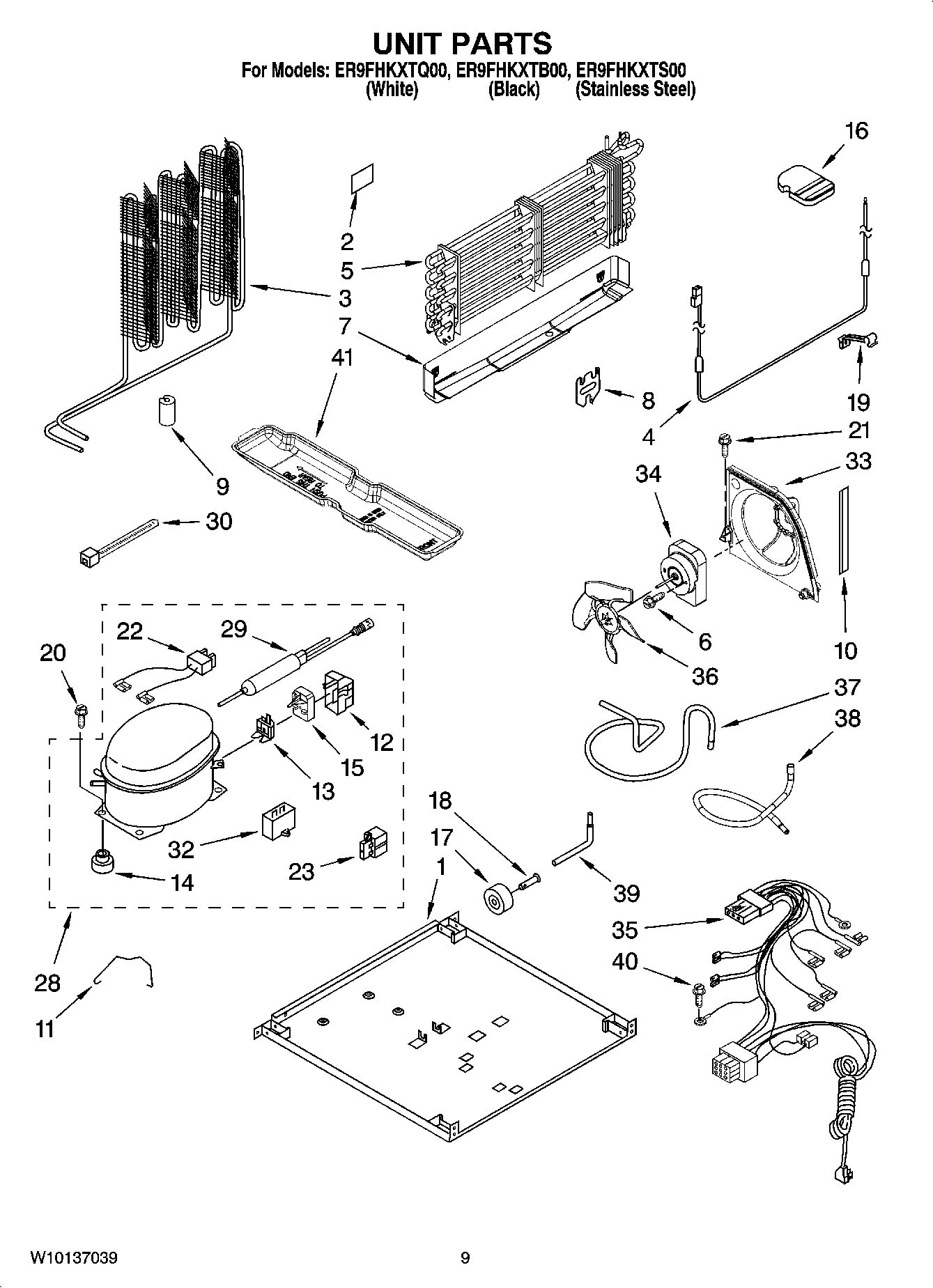

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

3

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $105.85

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

4

CLIP, GRILLE WPL 2189356 Contact Us For Availability

4

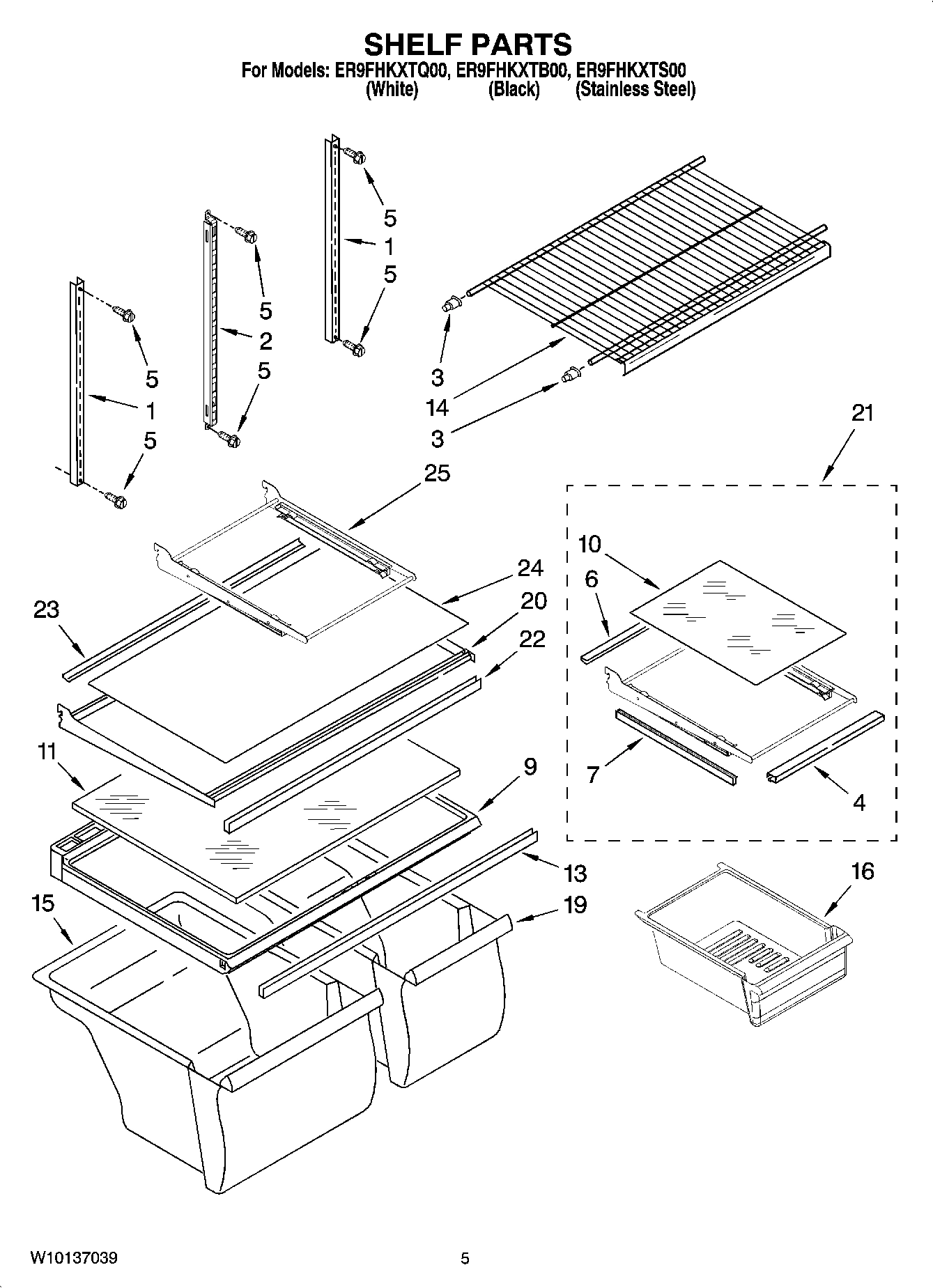

Trim, Shelf Front WPL 2188684 Contact Us For Availability

6

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

6

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

7

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

8

Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

9

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

9

Housing Compartment WPL 2210566 Contact Us For Availability

10

Tray, Door WPL 2159302 Contact Us For Availability

10

Handle, Endcap (White) WPL 2225090 Contact Us For Availability

10

Handle, Endcap (Black) WPL 2225158 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Handle, Endcap (White) WPL 2212689 Contact Us For Availability

Handle, Endcap (Black) WPL 2221652 Contact Us For Availability

12

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

12

Bin, Door (3) WPL 2204811 Contact Us For Availability

13

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

13

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

14

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

14

Shelf, Freezer WPL 2189453 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $89.14

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

16

WP2218127K Whirlpool Meat Pan Backorder WPL WP2218127K $81.90

16

Support Block WPL 2201184 Contact Us For Availability

17

Endcap, Door Trim WPL 2177340 Contact Us For Availability

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

18

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $90.63

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

Clip, Heater WPL 2182338 Contact Us For Availability

Grille (Includes Illus. 4 & 22) (Black) WPL 2254388 Contact Us For Availability

21

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

23

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

Shelf Assembly WPL 2201107K Contact Us For Availability

25

Cover, Hole WPL 2205003 Contact Us For Availability

25

Cover, Unit WPL 2254578 Contact Us For Availability

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

32

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

33

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $29.74

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

37

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2254574 Whirlpool Refrigerator Evaporator T In Stock WPL WP2254574 $57.83

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI40960A4 Contact Us For Availability
