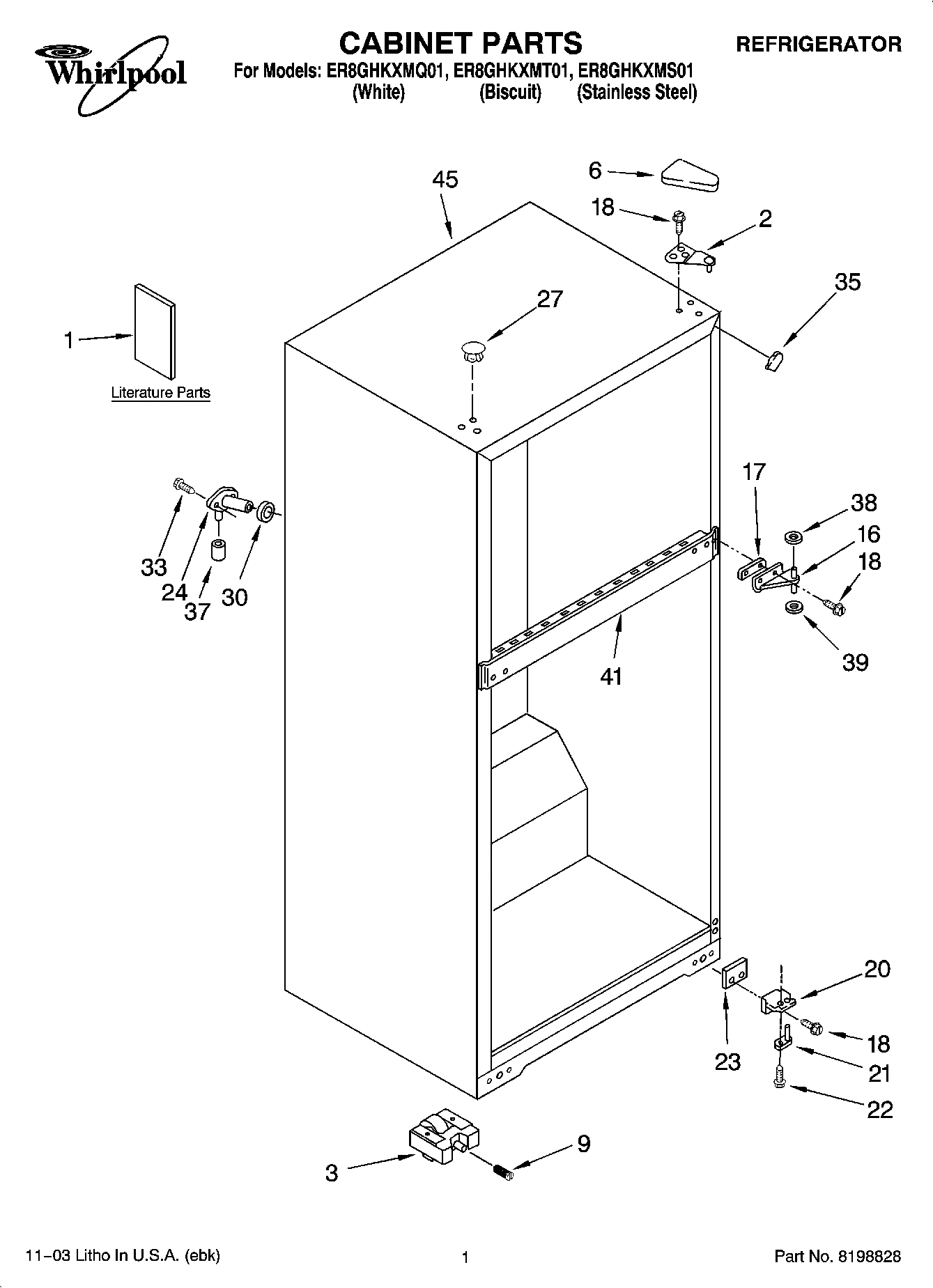

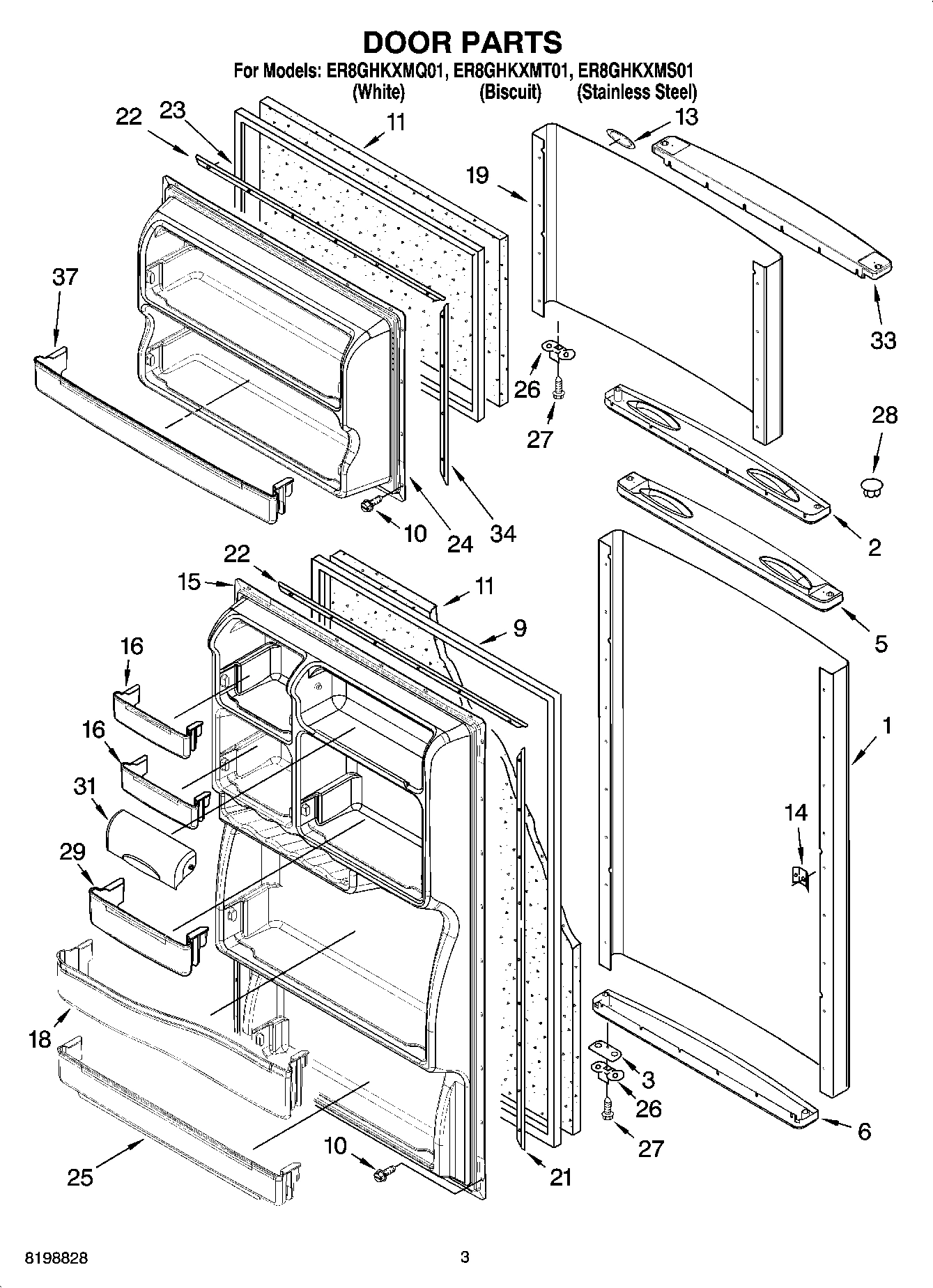

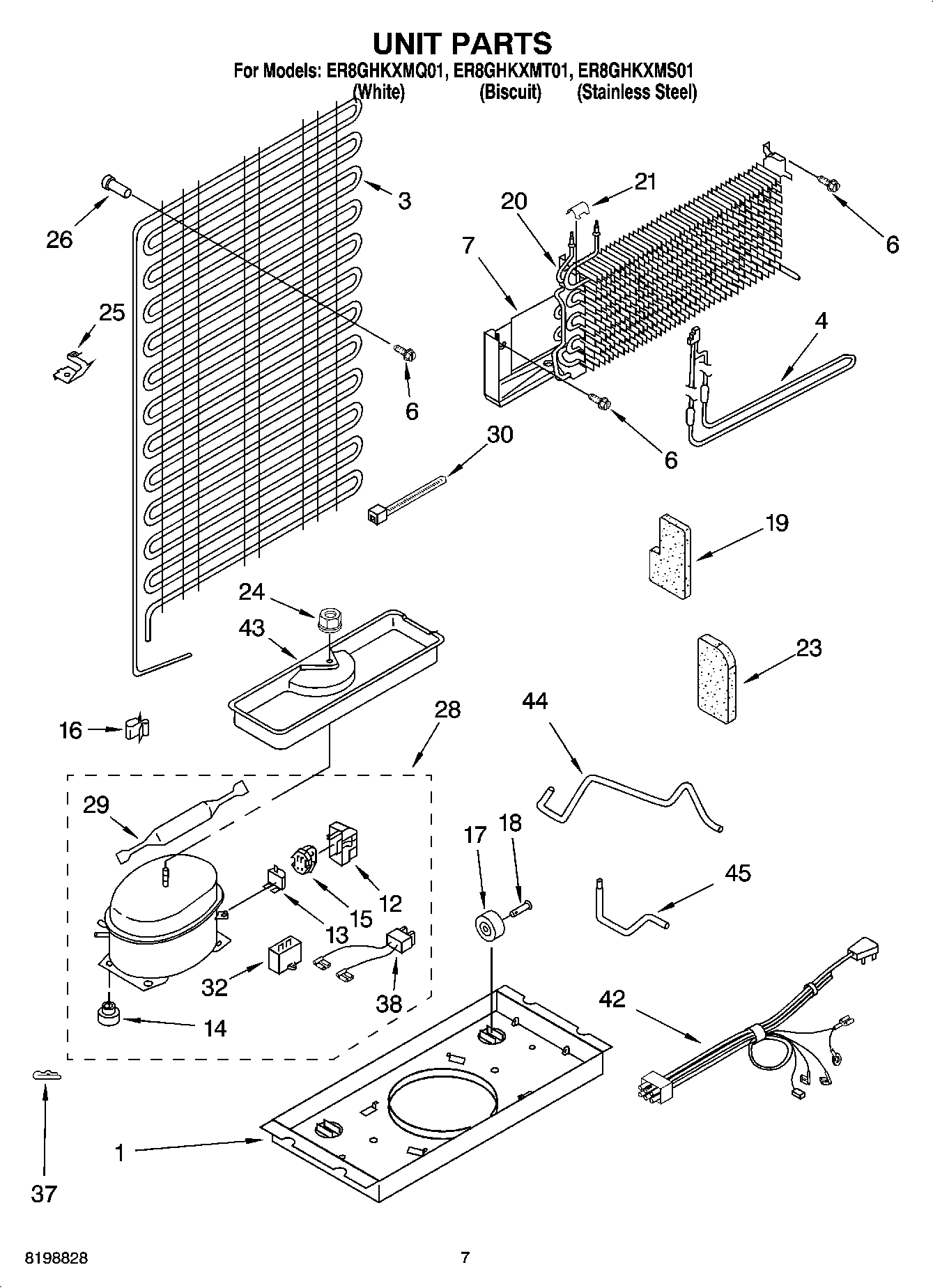

Model Whirlpool ER8GHKXMT01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WPW10222451 Whirlpool Refrigerator Support Backorder WPL WPW10222451 $28.09

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

3

2258681B Whirlpool Refrigerator Shim Backorder WPL 2258681B $27.74

3

WP2210047 Whirlpool Glass Shelf In Stock WPL WP2210047 $113.19

3

WP2258681W Whirlpool Refrigerator Shim Backorder WPL WP2258681W $3.70

3

WPW10219349 Whirlpool Refrigerator Condenser Backorder WPL WPW10219349 $195.22

3

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

4

WP2263749 Whirlpool Defrost Heater Assembly In Stock WPL WP2263749 $39.07

6

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

6

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Endcap, Bottom (Biscuit) WPL 2222047 Contact Us For Availability

6

Endcap, Bottom (Black) WPL 2222048 Contact Us For Availability

6

Screw WPL 8533892 Contact Us For Availability

7

Heat Shield WPL 2201515 Contact Us For Availability

8

WP2192250 Whirlpool Cover In Stock WPL WP2192250 $96.98

9

WP2319264B Whirlpool Door Gasket In Stock WPL WP2319264B $158.79

9

WP2319264T Whirlpool Door Gasket In Stock WPL WP2319264T $101.36

10

2256637 Whirlpool Refrigerator Screw Backorder WPL 2256637 $9.13

10

Support, Crisper WPL 9791824 Contact Us For Availability

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

11

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

11

Post, Crisper WPL 836410 Contact Us For Availability

12

2215210 Whirlpool Refrigerator Control Box Backorder WPL 2215210 $47.87

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

13

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $53.11

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $32.54

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $53.03

Interior Door Panel (Refrigerator) WPL 2202234 Contact Us For Availability

Start Relay (Service) WPL 2183454 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

Slide, Humidity Control WPL 2176222 Contact Us For Availability

16

Trim, Door Shelf WPL 2214110 Contact Us For Availability

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

18

Trim, Door (Middle) WPL 2214104 Contact Us For Availability

8201619 Whirlpool Refrigerator Support Assemb Backorder WPL 8201619 $60.33

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Freezer Door Panel (Includes Items 2 & 33) (A WPL 2222016S Contact Us For Availability

Freezer Door Panel (Includes Items 2 & 33) (A WPL 2222016T Contact Us For Availability

Freezer Door Panel (Includes Items 2 & 33) (A WPL 2222016W Contact Us For Availability

20

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $138.89

21

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

21

Hinge-Pin, Btm WPL 9791682 Contact Us For Availability

21

Retainer, Gasket WPL 2197082 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

WP3428970 Whirlpool Refrigerator Screw Backorder WPL WP3428970 $4.56

22

Retainer, Gasket WPL 1120614 Contact Us For Availability

2188462A Whirlpool Refrigerator Door Gasket In Stock WPL 2188462A $52.74

WP2201567 Whirlpool Hinge Shim Backorder WPL WP2201567 $3.70

Air Tower WPL 9790408 Contact Us For Availability

WPL 2262083 WPL 2262083 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WPL 2215043 WPL 2215043 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

Freezer Floor WPL 2174798 Contact Us For Availability

25

WPL 2214113 WPL 2214113 Contact Us For Availability

26

2258452 Whirlpool Refrigerator Spacer Backorder WPL 2258452 $7.85

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

26

Air Diffuser WPL 2221992 Contact Us For Availability

27

W10276642 Whirlpool Screw Backorder WPL W10276642 $5.18

27

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

29

WPL 2214101 WPL 2214101 Contact Us For Availability

30

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

31

WPL 2214116 WPL 2214116 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

2252863 Whirlpool Refrigerator Door Trim Backorder WPL 2252863 $60.09

33

2265644W Whirlpool Refrigerator Door Trim Backorder WPL 2265644W $58.35

33

WPL 2252862 WPL 2252862 Contact Us For Availability

34

WPL 1122553 WPL 1122553 Contact Us For Availability

35

W11500943 Whirlpool Refrigerator Filler Backorder WPL W11500943 $2.40

37

WPL 2214107 WPL 2214107 Contact Us For Availability

37

Clip, Compressor WPL 24364001 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

42

Wire Assy. Unit WPL 2165793 Contact Us For Availability

43

Tray, Evaporator WPL 2201801 Contact Us For Availability

44

Tube, Discharge WPL 2174791 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11661102 Whirlpool Tube Backorder WPL W11661102 $11.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI40616A3 Contact Us For Availability

REFRIGERANT CHARGE 3.75 Ozs. (R134A) WPL ARI40617A4 Contact Us For Availability
