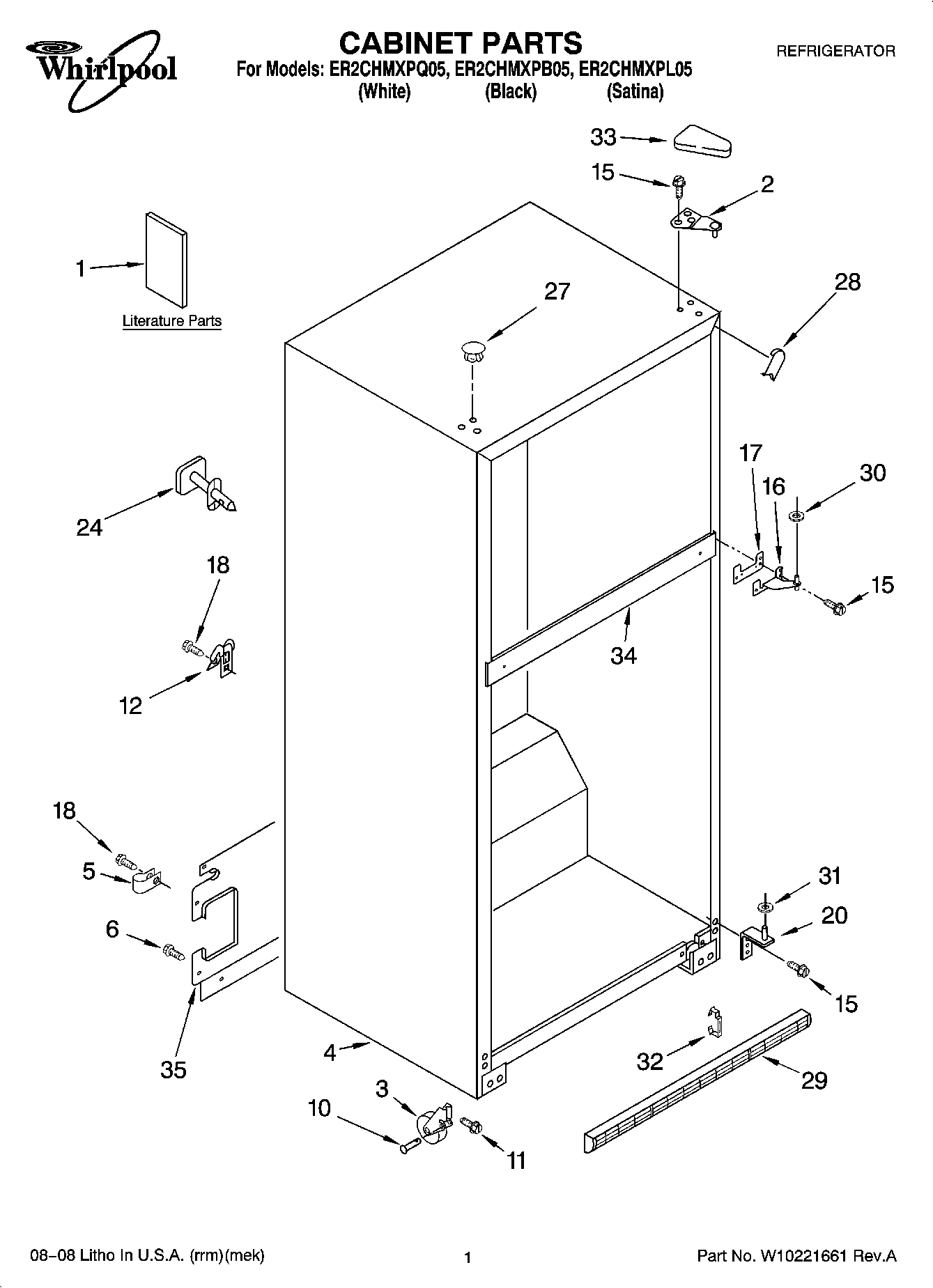

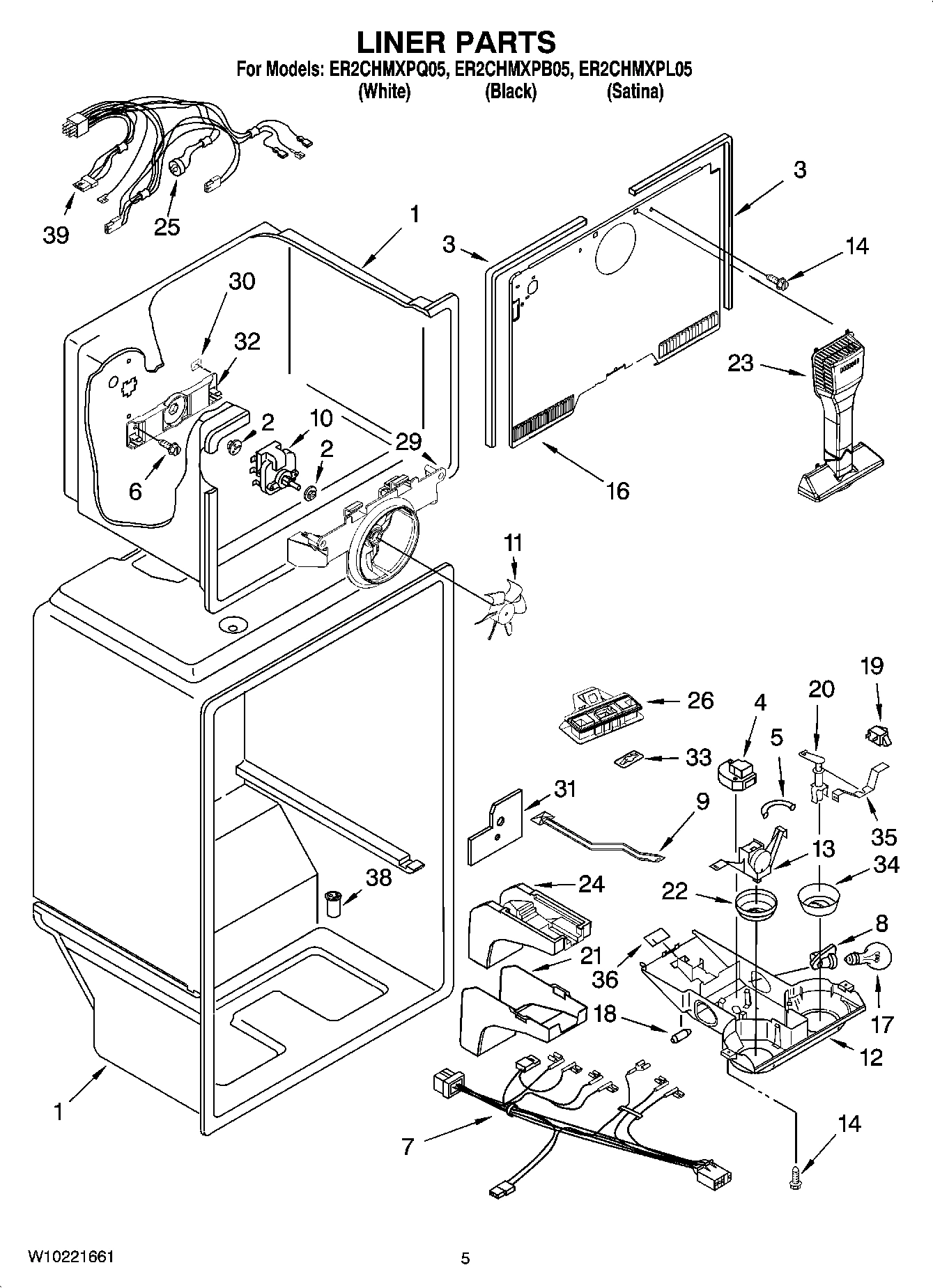

Model Whirlpool ER2CHMXPQ05 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

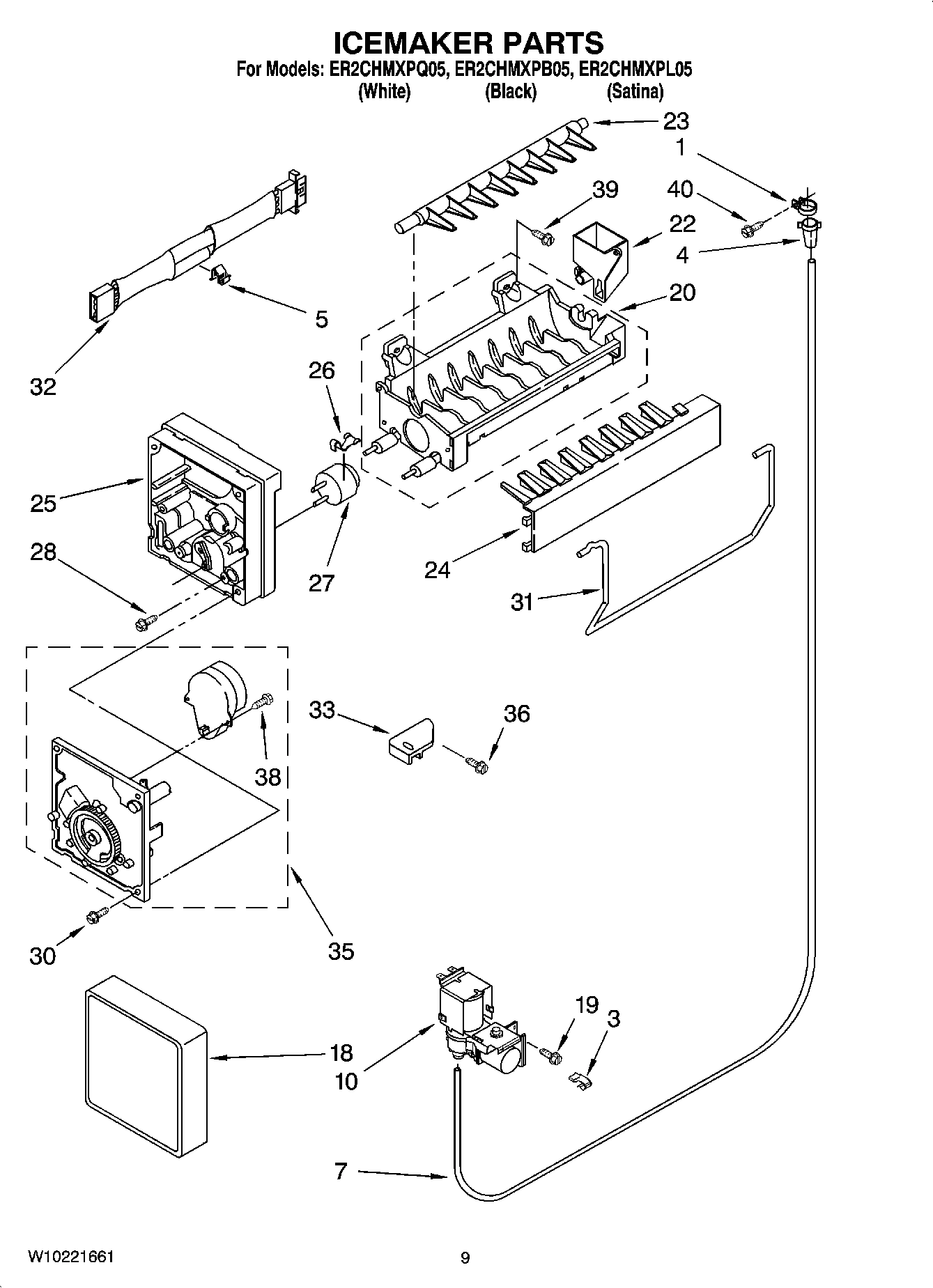

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Do-It-Yourself Manual Ref./Frz. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI39965A5 Contact Us For Availability

1

Use & Care Guide (Bilingual) WPL W10131409 Contact Us For Availability

1

Use & Care Guide (Trilingual) WPL W10131417 Contact Us For Availability

1

Service & Wiring Sheet WPL W10142142 Contact Us For Availability

1

Energy Label WPL W10206560 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $31.90

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $105.85

4

Cabinet, (Not A Serviceable Part) WPL ARI39966A7 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

7

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

7

Drain Pan WPL 2254295 Contact Us For Availability

8

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

8

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

10

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability

13

WP2302290 Whirlpool Refrigerator Overload Backorder WPL WP2302290 $49.76

13

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $81.99

13

Thermostat Assy. (Includes Illus. 5 & 18) WPL 2200859 Contact Us For Availability

15

WP2258450 Whirlpool Refrigerator Start Device Backorder WPL WP2258450 $43.68

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

Support Block WPL 2201185 Contact Us For Availability

Trim, Door Shelf WPL 2159306 Contact Us For Availability

Cover, Evaporator WPL 2320194 Contact Us For Availability

17

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $4.50

17

Shelf, Freezer WPL 2189454 Contact Us For Availability

18

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $102.95

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (Includes Illus. 22 & 23) (Satin WPL 2218508 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Housing Compartment WPL 2210566 Contact Us For Availability

22

WP2314293 Whirlpool Refrigerator Thimble Backorder WPL WP2314293 $3.70

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI39967A2 Contact Us For Availability

25

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $48.02

25

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $28.85

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

27

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

27

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

Grille (Includes Illus. 32) (White) WPL 2254313 Contact Us For Availability

Plug-Trim WPL 2177340 Contact Us For Availability

Grille (Includes Illus. 32) (Black) WPL 2254315 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

31

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

31

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

Endcap, Handle-FC (White) WPL 2225094 Contact Us For Availability

Endcap Handle (FC) (Black) WPL 2225108 Contact Us For Availability

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

TRIM, DOOR (2) WPL 2195947 Contact Us For Availability

34

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

34

Knob, Damper WPL 2302536 Contact Us For Availability

34

Rail, Center (Not Serviced) WPL ARI39968A6 Contact Us For Availability

35

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

35

Cover, Unit WPL 2254576 Contact Us For Availability

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $29.74

39

Wire Assembly, Freezer Compartment (Includes WPL W10129803 Contact Us For Availability

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

42

Wire Assembly, Unit WPL 2187764 Contact Us For Availability

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $37.81

49

WP2254574 Whirlpool Refrigerator Evaporator T In Stock WPL WP2254574 $57.83
