Model Whirlpool ED27RQXWW10 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

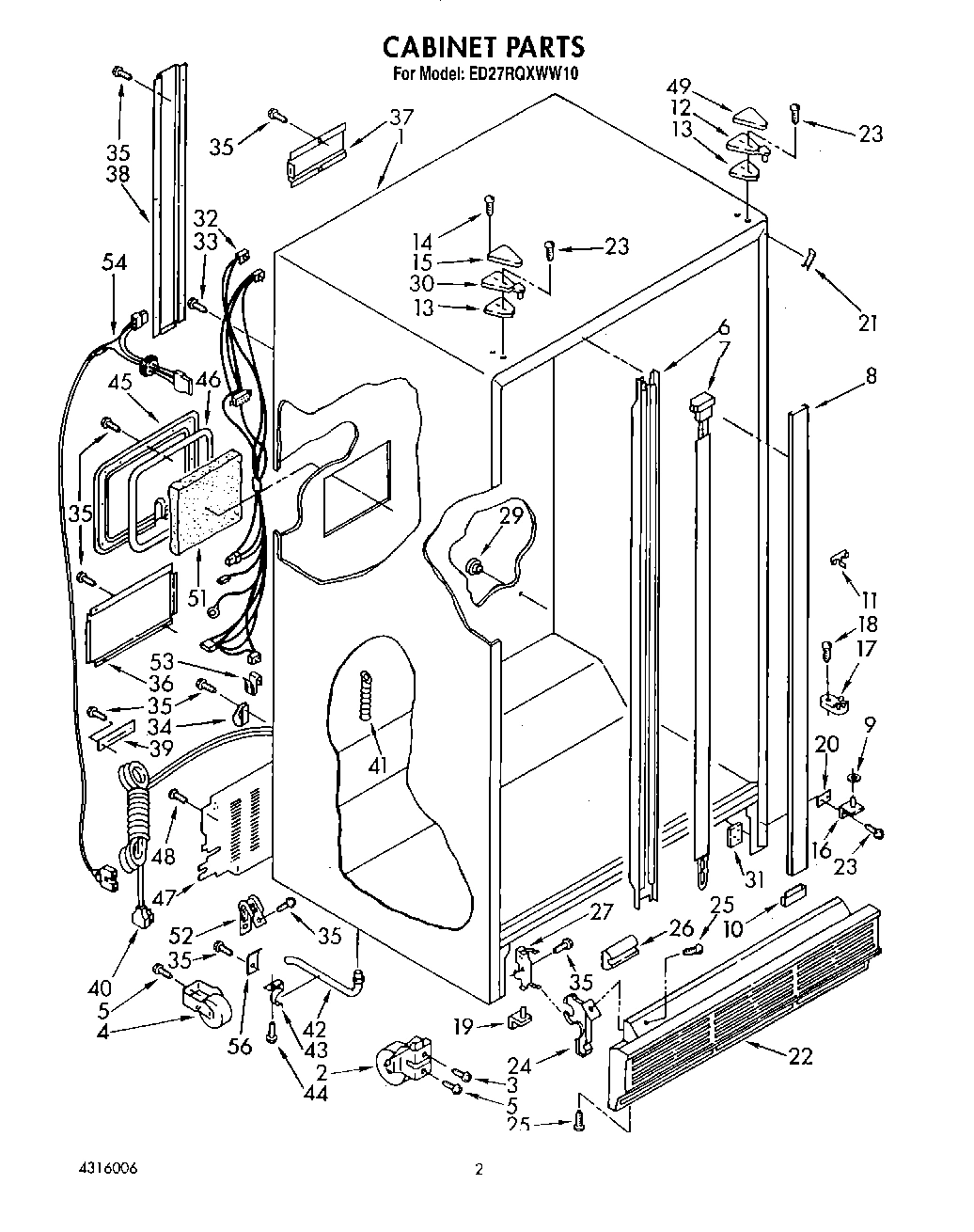

02 - CABINET

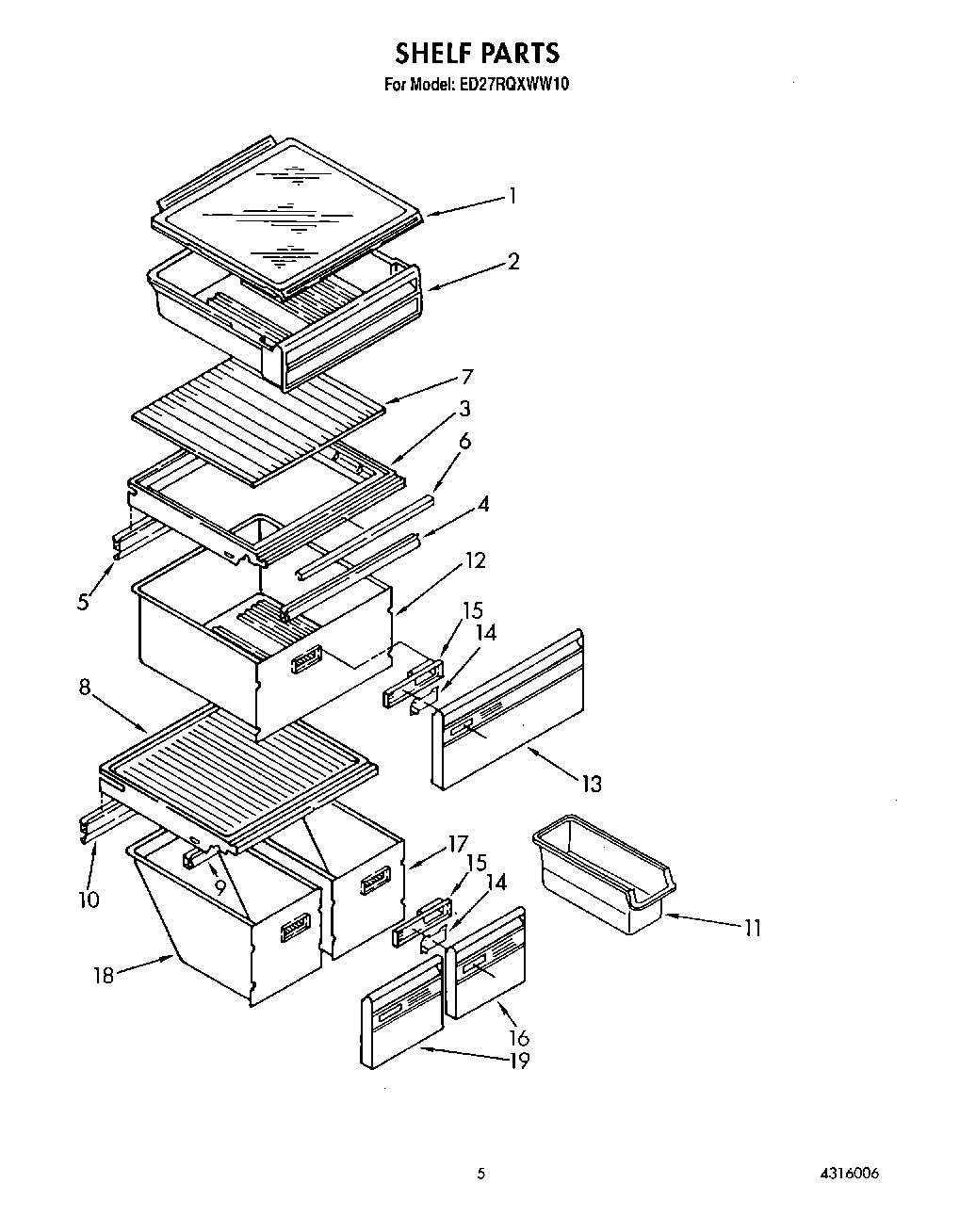

04 - SHELF
09 - DISPENSER FRONT
11 - AIR FLOW
12 - CONTROL
03 - REFRIGERATOR LINER
10 - UNIT
13 - ICEMAKER, LIT/OPTIONAL
06 - MOTOR AND ICE CONTAINER
07 - REFRIGERATOR DOOR
05 - FREEZER LINER
08 - FREEZER DOOR
Common parts from model Whirlpool ED27RQXWW10 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1127439 WPL LIT1127439 Contact Us For Availability
WPL LIT2147156 WPL LIT2147156 Contact Us For Availability
WPL LIT2148337 WPL LIT2148337 Contact Us For Availability
WPL LIT4316006 WPL LIT4316006 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Control Box WPL 1123962 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28579A5 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Also Order Item 18) WPL 1127321 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28580A3 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1127357 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
2
Pin Plate (6) WPL 1118048 Contact Us For Availability
2
Tap Plate WPL 1123568 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Door, Compartment WPL 1124845 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Door, Ice Compartment WPL 1124834 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Air Duct Freezer WPL 1110621 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Shelf Bin (4) WPL 2150134 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Frame, Slides WPL 1124724 Contact Us For Availability
7
Fan Motor WPL 1127165 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 1119217 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 1124725 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Basket (2) WPL 1114672 Contact Us For Availability
8
Divider WPL 1123293 Contact Us For Availability
9
Stud (2) WPL 1115290 No Longer Available
9
Door, Ice WPL 2147096 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
9
Shelf Bin (4) WPL 2150137 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 1119198 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Basket, Tall WPL 1114674 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Basket, Slope WPL 1114676 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Rack, Pizza WPL 1115253 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 1123749 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
13
Panel, Interior Door WPL 1121470 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Fan Motor, Harness WPL 1114721 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Door Dike (2) WPL 1123587 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Relay WPL 1101014 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Trim, Door Shelf WPL 1124851 Contact Us For Availability
17
Shield, Wiring WPL 1119041 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Panel, Interior Door WPL 1121447 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1114680 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Switch, Light WPL 1119205 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Control Box Harness WPL 1127817 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
Door, Top Compartment WPL 1124833 Contact Us For Availability
22
Insulation, Dispenser WPL 1119037 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Chute, Ice WPL 1121473 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1124718 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148238 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Cover, Conduit WPL 1123926 Contact Us For Availability
26
Receptacle, Housing WPL 1103840 Contact Us For Availability
27
Slide, Light Switch WPL 1124726 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Cover, Wiring WPL 1123921 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Bracket, Door Stop WPL 1127385 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Shim, Track (2) WPL 1129195 Contact Us For Availability
31
Switch WPL 841336 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
31
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
32
Insulator, Control Bracket WPL 1119208 Contact Us For Availability
32
Tube WPL 1129176 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Control Arm WPL 2147138 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
33
Bracket, Control WPL 2147132 Contact Us For Availability
33
Heater, Defrost WPL 1110669 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Insert, Handle WPL 1119373 Contact Us For Availability
35
Screw (2) WPL 489271 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Divider (4) WPL 1127172 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
End Cap (2) WPL 941259 Contact Us For Availability
36
Door Dike (2) WPL 1123622 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
37
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
38
Lever, Water Dispenser WPL 1124721 Contact Us For Availability
38
Trim, Door WPL 1119062 Contact Us For Availability
39
Plaque, Front Cover WPL 1124729 Contact Us For Availability
39
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 1124727 Contact Us For Availability
40
Nut, Compression WPL 1108005 Contact Us For Availability
40
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
41
Heat Shield, Frame WPL 1121404 Contact Us For Availability
41
Air Baffle WPL 1127907 Contact Us For Availability
41
Tray, Ice Chips WPL 1121387 Contact Us For Availability
41
Overlay WPL 1124853 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Tray (2) WPL 1121386 Contact Us For Availability
42
Pin Plate (8) WPL 1116986 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
44
Wiring Assembly, Door WPL 2147130 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
