Model Whirlpool ED27DQXXN02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

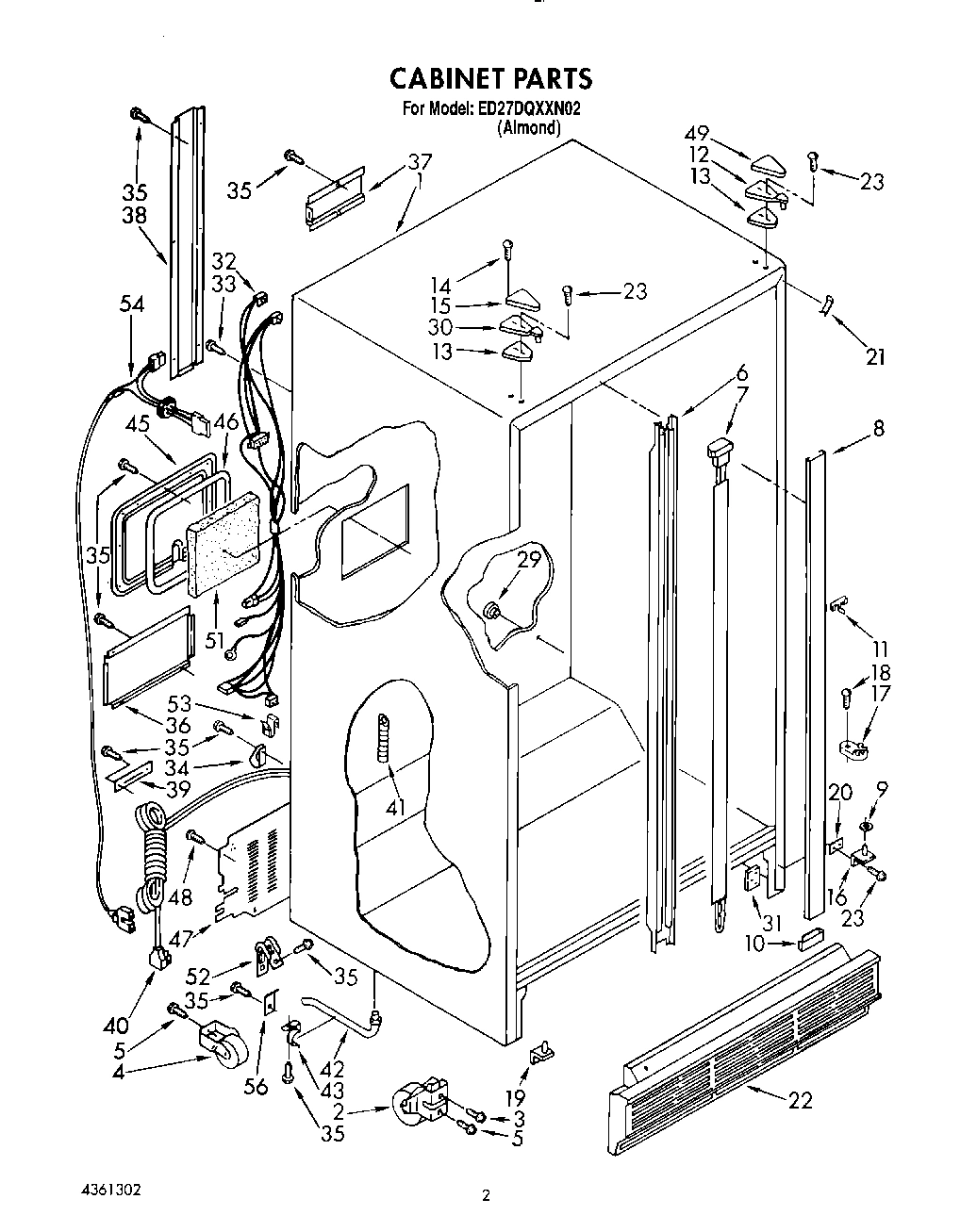

02 - CABINET

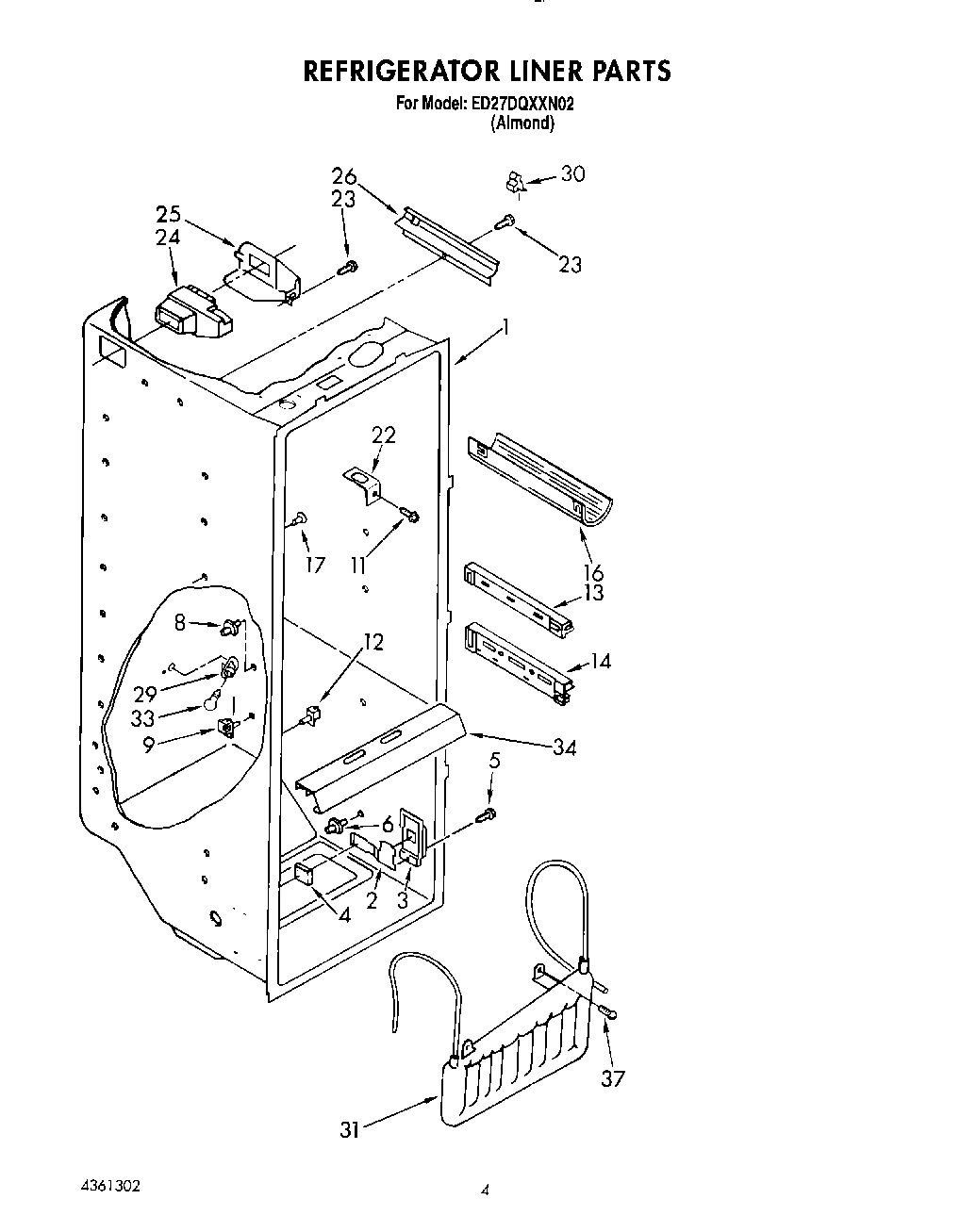

03 - REFRIGERATOR LINER
04 - REFRIGERATOR SHELF
07 - REFRIGERATOR DOOR
10 - UNIT
12 - CONTROL
05 - FREEZER LINER
09 - DISPENSER FRONT
11 - AIR FLOW
13 - ICE MAKER, LIT/OPTIONAL
06 - MOTOR AND ICE CONTAINER
08 - FREEZER DOOR
Common parts from model Whirlpool ED27DQXXN02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1127439 WPL LIT1127439 Contact Us For Availability
WPL LIT2148971 WPL LIT2148971 Contact Us For Availability
WPL LIT2154993 WPL LIT2154993 Contact Us For Availability
WPL LIT4361302 WPL LIT4361302 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2152113 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146260A Contact Us For Availability
1
Heater, Dispenser WPL 2154790 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 1127360 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap Plate WPL 1123568 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw WPL 488361 Contact Us For Availability
3
Door, Ice Compartment WPL 1115254 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Air Duct Freezer WPL 2157544 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
6
Shelf Bin (4) WPL 1127409 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154982 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2155171 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1127309 Contact Us For Availability
8
Basket (2) WPL 2152099 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
8
Divider WPL 1114380 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud (2) WPL 1115290 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Trim, Basket WPL 1120549 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Shelf Bin (4) WPL 1127410 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1127310 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 2154794 Contact Us For Availability
13
Screw, 8 x 1/2 (2) WPL 489327 Contact Us For Availability
13
Tube, Water Inlet WPL 2155064 Contact Us For Availability
13
Panel, Interior Door WPL 1121470 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Door Dike (2) WPL 1123587 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (Order Overload To Obtain Relay) WPL ARI146261A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 1115269 Contact Us For Availability
17
Panel, Interior Door WPL 1121447 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1119212 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Water WPL 841336 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 2157554 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2154838 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
21
Wire Connector WPL 850145 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Door, Top Compartment WPL 2148836 Contact Us For Availability
22
Insulation, Dispenser WPL 1119037 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Chute, Ice WPL 1121473 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens Compartment WPL 1115389 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148230 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317962 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 1123929 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw WPL 489360 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Divider (2) WPL 2152336 Contact Us For Availability
35
Screw (2) WPL 489155 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Door Dike (2) WPL 1123622 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
37
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
38
Trim, Door WPL 1119062 Contact Us For Availability
38
Lever, Water Dispenser WPL 1115349 Contact Us For Availability
39
Plaque, Front Cover WPL 2150319 Contact Us For Availability
39
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
40
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150311 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Pin Plate (8) WPL 1116986 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
43
Relay (Order Overload To Obtain Relay) WPL ARI146262A Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Insert, Tube WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
WPL 542639 WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1119002 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Washer (Repair) WPL 489336 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Spacer, Holding Switch WPL 625834 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
