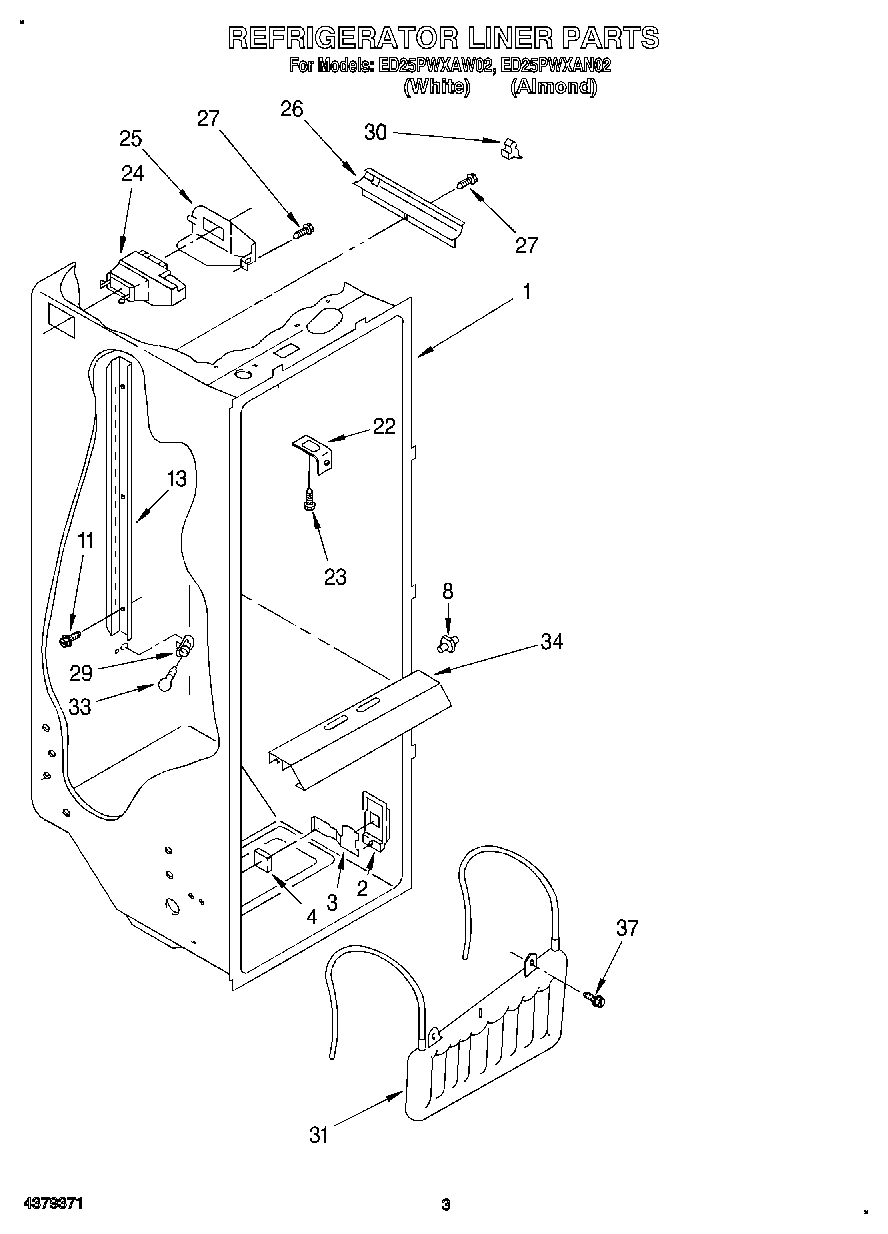

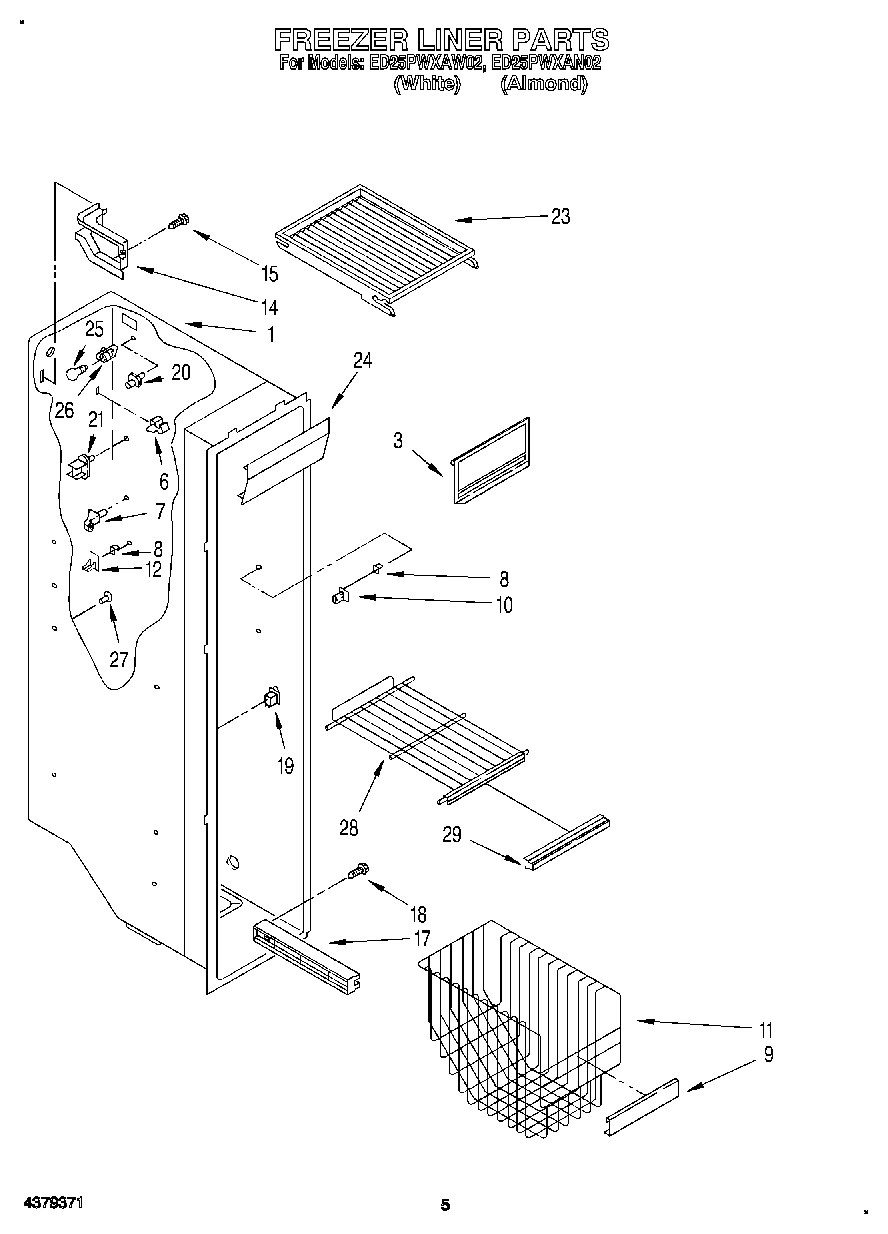

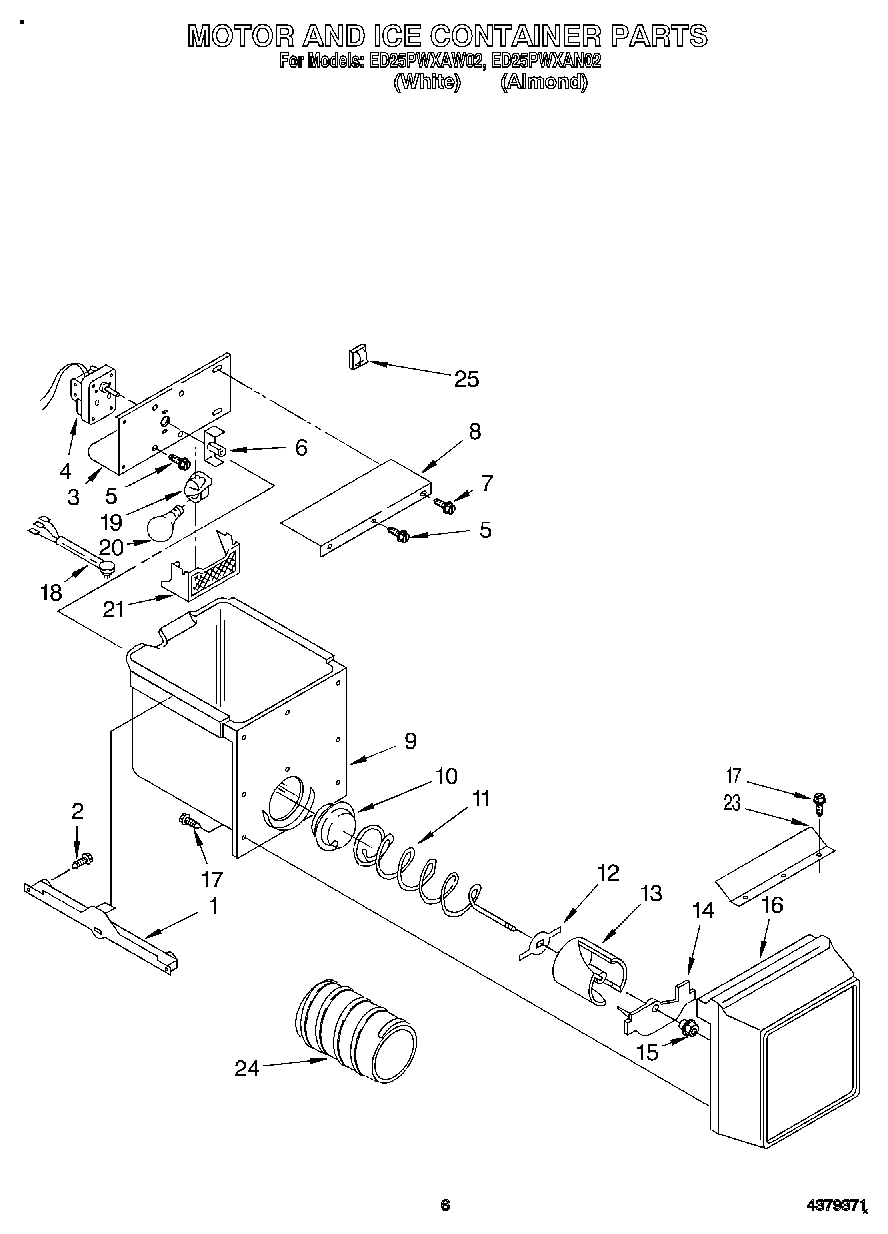

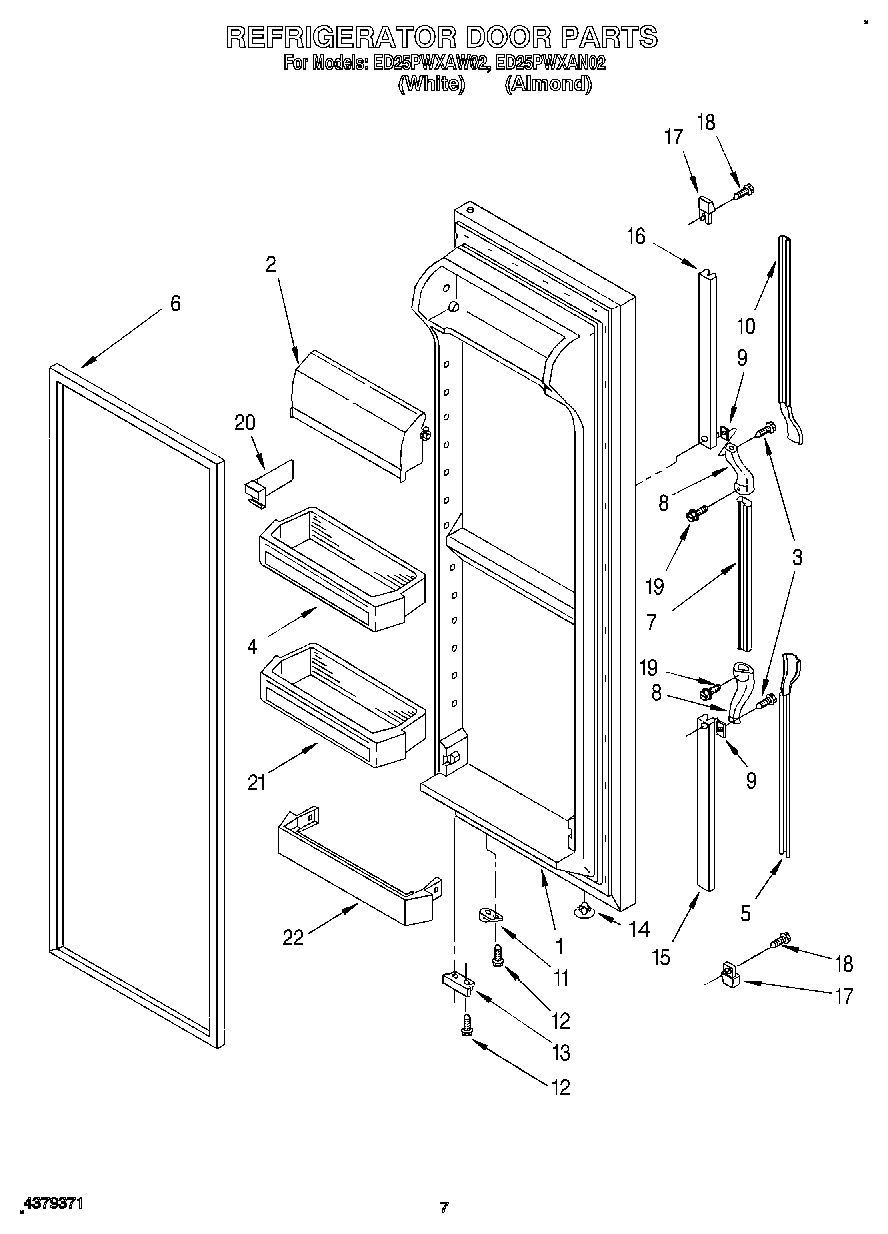

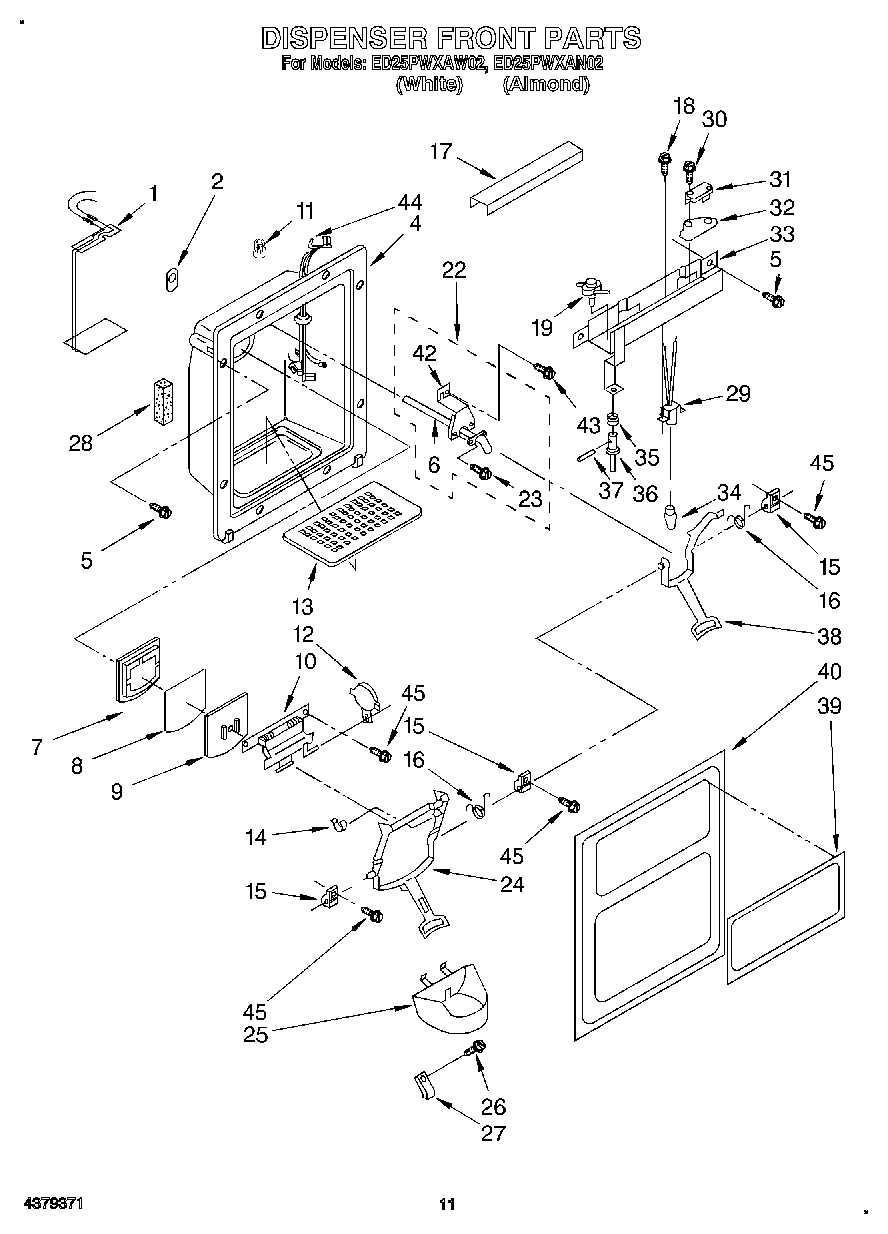

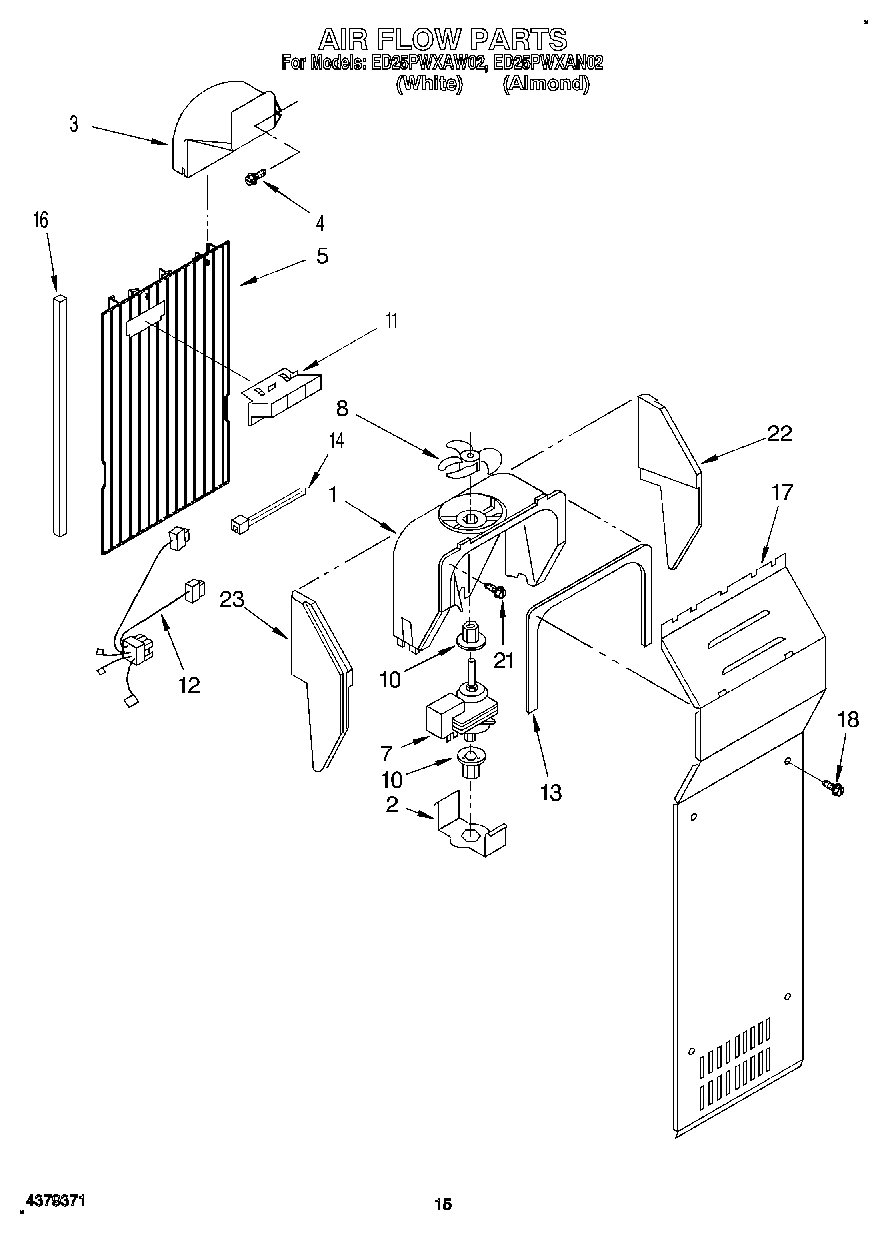

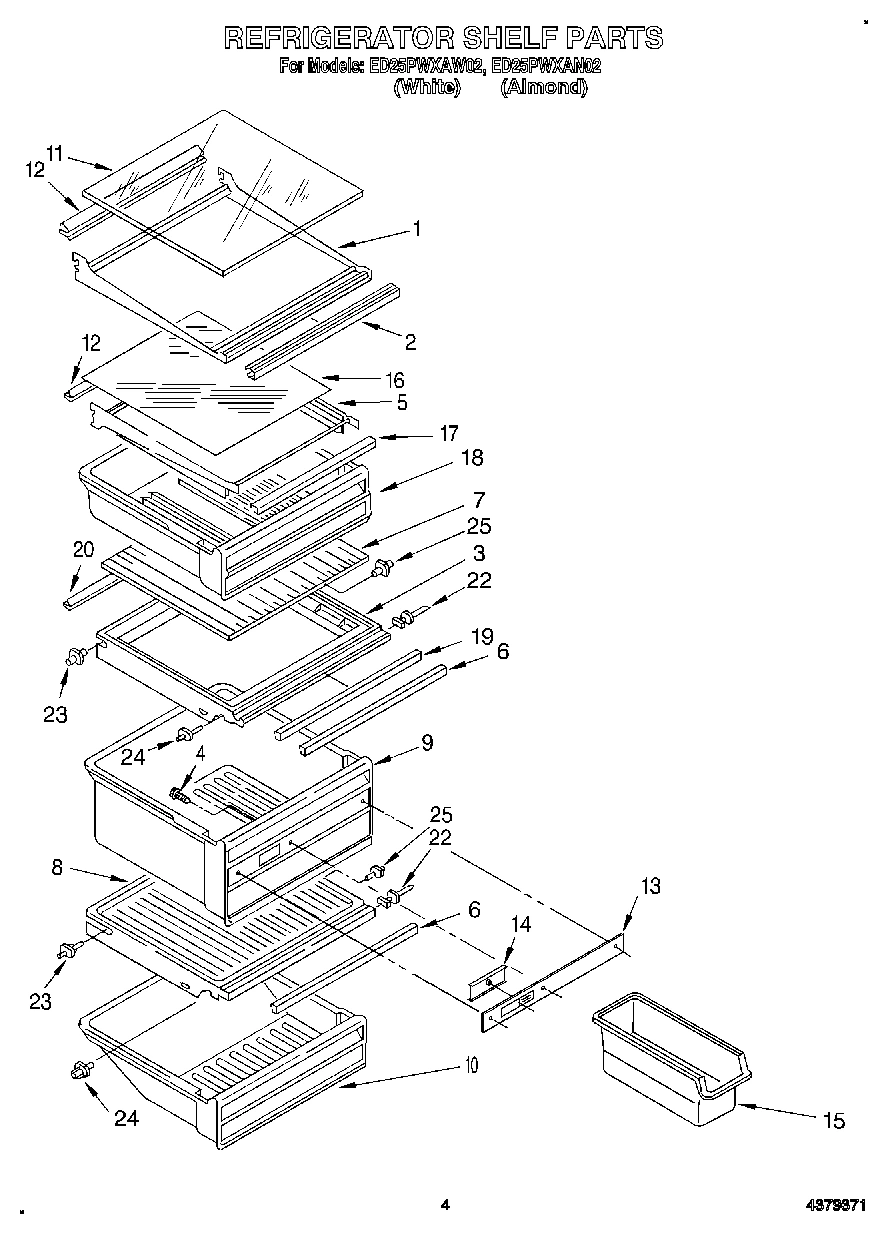

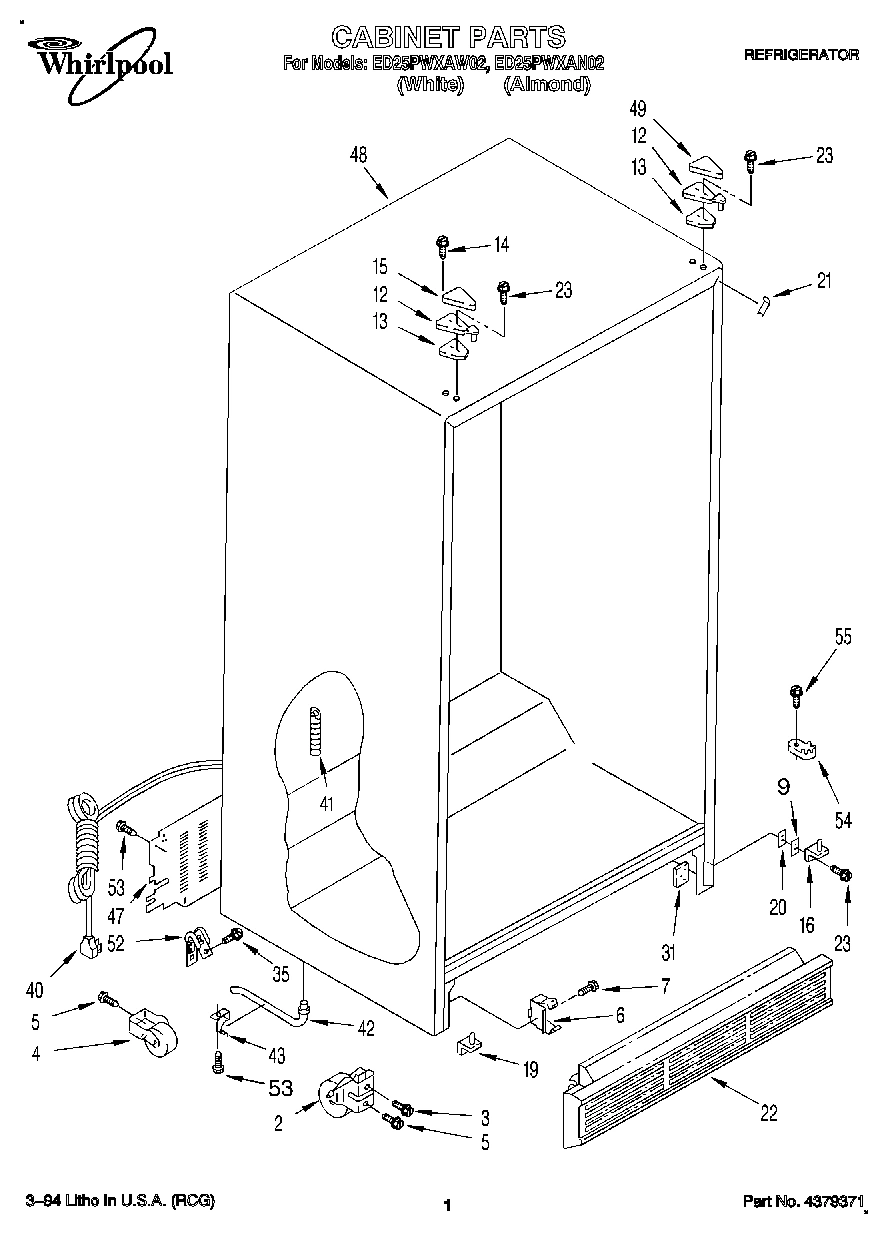

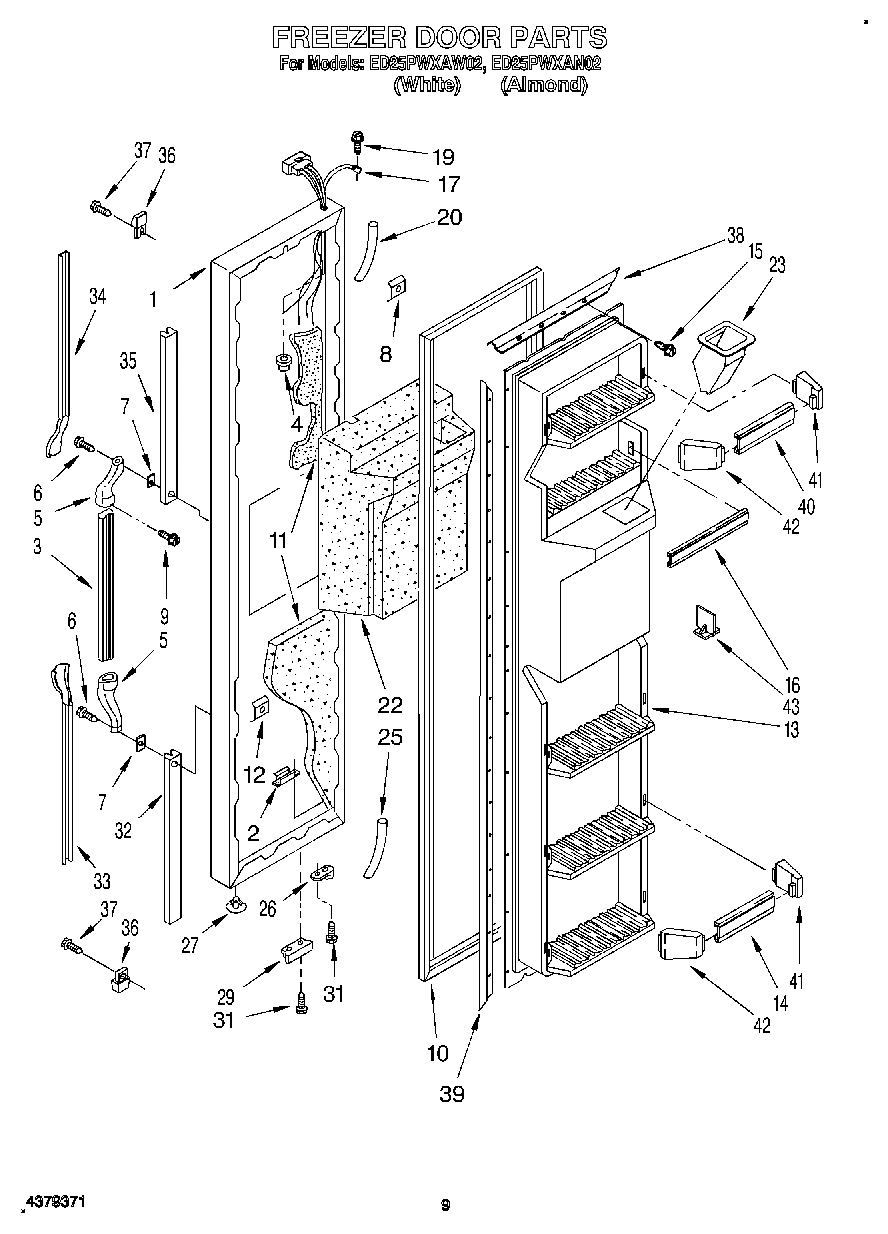

Model Whirlpool ED25PWXAW02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI146057A Contact Us For Availability

1

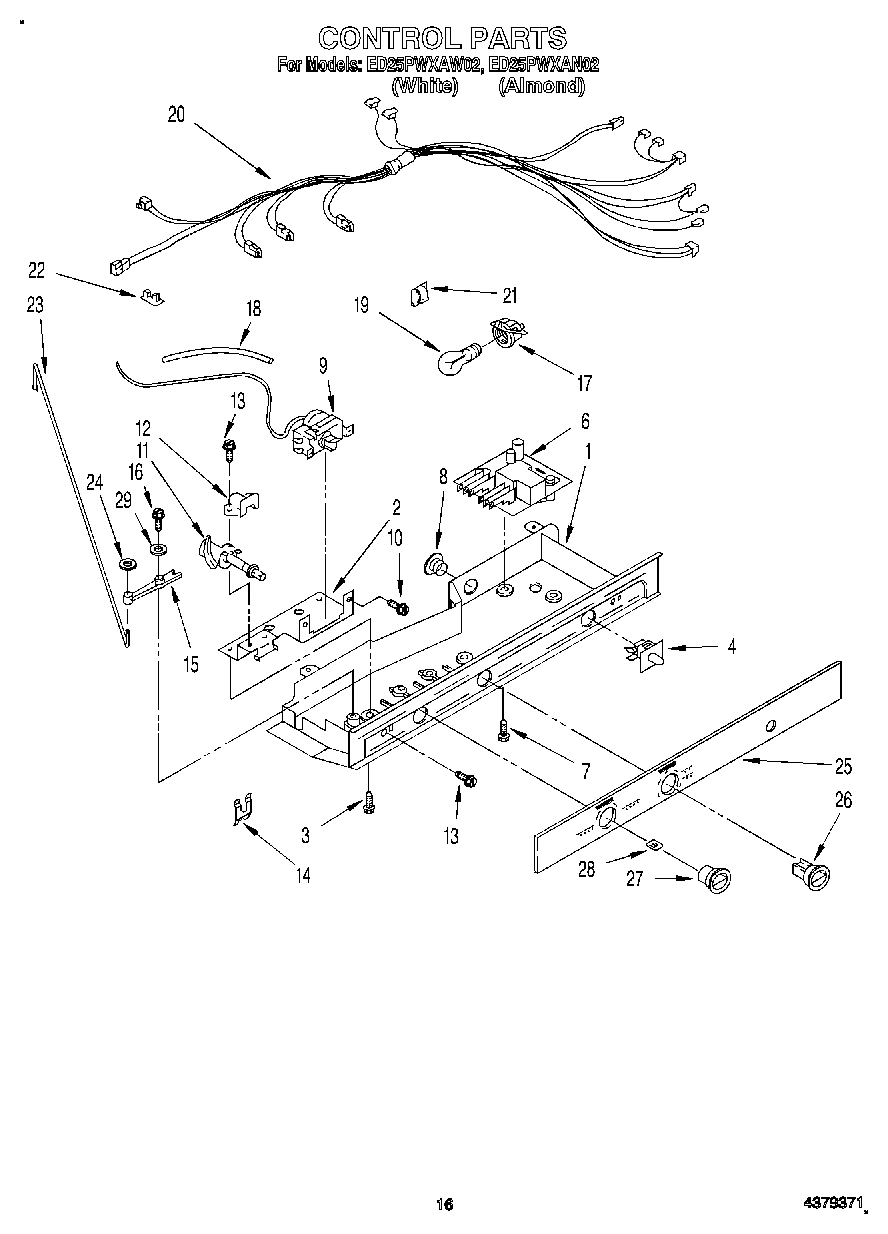

Control Box WPL 2169148 Contact Us For Availability

1

Freezer, Door Panel (White) WPL 1110652 Contact Us For Availability

1

Freezer, Door Panel (Almond (Also Order Item WPL 1110655 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI146056A Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 1118413 Contact Us For Availability

2

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

2

Front Roller (2) WPL 2152011 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

2

Trim, Shelf WPL 1114302 Contact Us For Availability

3

WP1126289 Whirlpool Refrigerator Cover In Stock WPL WP1126289 $71.42

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Door, Ice Compartment WPL 2155372 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Handle, Center WPL 1118417 Contact Us For Availability

3

Condenser Assembly WPL 2164504 Contact Us For Availability

3

Screw WPL 489393 Contact Us For Availability

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Seal, Hinge Pin WPL 939886 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

4

Screw (3) WPL 489226 Contact Us For Availability

4

Motor WPL 2155262 Contact Us For Availability

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2155575 Contact Us For Availability

5

End Cap (2) WPL 1119359 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

5

Screw, WPL 488454 Contact Us For Availability

5

Pan Shelf & Slide Assembly WPL 2148122 Contact Us For Availability

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

6

Trim, Crisper Cover WPL 2172710 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

7

Glass, Crisper Cover WPL 1114687 Contact Us For Availability

7

Gasket, Door WPL 983691 Contact Us For Availability

7

Shim, End Cap (2) WPL 935075 Contact Us For Availability

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2148298 Whirlpool Refrigerator Deli Drawer In Stock WPL WP2148298 $98.03

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

8

Shield, Ice Door WPL 987121 Contact Us For Availability

8

support stud (8) WPL 946355 Contact Us For Availability

8

Cover, Motor WPL 1115339 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

9

Door, Ice WPL 983690 Contact Us For Availability

9

Trim, Basket WPL 2148314 Contact Us For Availability

9

Screw (4) WPL 489022 Contact Us For Availability

9

Shim WPL 836196 Contact Us For Availability

9

Pan, Crisper WPL 2148980 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Door Mechanism Assembly WPL 938669 Contact Us For Availability

Grommet, Fan (2) WPL 2155589 Contact Us For Availability

Stud, Front (3) WPL 946356 Contact Us For Availability

Door Gasket, Magnetic WPL 1127310 Contact Us For Availability

Pan, Meat WPL 2148192 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Wire Connector WPL 850145 Contact Us For Availability

Basket, Slope WPL 2152090 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

Strap (Service) WPL 938384 Contact Us For Availability

Strap (Production) WPL 943322 Contact Us For Availability

Glass, Shelf WPL 2148237 Contact Us For Availability

Conveyor WPL 1115214 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $84.47

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability

Stud, Rear (3) WPL 1106982 Contact Us For Availability

Screw Anchor (2) WPL 941242 Contact Us For Availability

Cover (Production) WPL 1105055 Contact Us For Availability

Cover (Service) WPL 1108115 Contact Us For Availability

Reflector, Shelf WPL 1114306 Contact Us For Availability

4388953 Whirlpool Overload Relay Backorder WPL 4388953 $74.41

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP61006294 Whirlpool Refrigerator Overload Backorder WPL WP61006294 $51.22

Grille, Overflow WPL 983900 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Panel, Interior Door WPL 1124969 Contact Us For Availability

Ladder, Shelf (2) WPL 1116794 Contact Us For Availability

Front, Crisper Pan WPL 2148378 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Trim, Shelf (3) WPL 2148320 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Slide WPL 1116718 Contact Us For Availability

Baffle WPL 1115362 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Relay (See Overload) WPL ARI146059A Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Nut, Bearing WPL 946195 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

Spring, Lever (2) WPL 983696 Contact Us For Availability

Trim, Door Shelf WPL 2148321 Contact Us For Availability

Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability

Glass, Shelf WPL 2148300 Contact Us For Availability

Front Cover WPL 2148312 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Shield, Wiring WPL 984494 Contact Us For Availability

Cover, Evaporator WPL 2155612 Contact Us For Availability

Shelf Track (Right Side) WPL 1126354 Contact Us For Availability

Shelf Track (Left Side) WPL 1126355 Contact Us For Availability

Harness, Door WPL 1116960 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

Trim, Shelf WPL 2148301 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Snack Bin WPL 2148005 Contact Us For Availability

Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Switch, Light WPL 851386 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability

Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

Control Box Harness WPL 2162460 Contact Us For Availability

Tube, Door Wiring WPL 1119060 Contact Us For Availability

Spacer, Hinge WPL 1129868 Contact Us For Availability

Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability

Stud, Shelf (4) WPL 1115386 Contact Us For Availability

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

Lens, Dispenser Light WPL 983359 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $88.11

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Grille WPL 2155485 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Insulation, Dispenser WPL 1115345 Contact Us For Availability

Evaporator WPL 2164519 Contact Us For Availability

Shelf Stud WPL 1115290 No Longer Available

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 1118294 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Chute, Ice WPL 987188 Contact Us For Availability

Deflector, Ice Container WPL 1119043 Contact Us For Availability

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $35.08

Fastener, Push-On WPL 489285 Contact Us For Availability

Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability

Light Lens WPL 1115389 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Guide, Ice WPL 1118269 Contact Us For Availability

Escutcheon Control WPL 2161213 Contact Us For Availability

Tube, Door Wiring WPL 2147080 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

Screw WPL 489197 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Stop, Glass WPL 1119056 Contact Us For Availability

Grommet (8) WPL 1110779 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

Shim, Door Closer WPL 2151653 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

Seal WPL 482672 Contact Us For Availability

Shelf (Large 2) WPL 1116956 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

Socket, Lamp WPL 987265 Contact Us For Availability

Trim, Shelf (3) WPL 1120547 Contact Us For Availability

Bracket, Door Stop WPL 2155334 Contact Us For Availability

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

Screw WPL 488362 Contact Us For Availability

814037 Whirlpool Microwave Switch Backorder WPL 814037 $30.52

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Unit, Harness WPL 2149199 Contact Us For Availability

Tap Plate (2) WPL 2147310 Contact Us For Availability

32

Insulator, Switch (2) WPL 984683 Contact Us For Availability

32

Retainer, Insert WPL 1119360 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Heater, Defrost WPL 2161323 Contact Us For Availability

Bracket, Control WPL 1129283 Contact Us For Availability

Insert, Handle (White) WPL 1119361 Contact Us For Availability

Insert, Handle (Almond) WPL 1119363 Contact Us For Availability

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Insert, Handle (White) WPL 1119373 Contact Us For Availability

Insert, Handle (Almond) WPL 1119375 Contact Us For Availability

Clip WPL 2161330 Contact Us For Availability

Light Lens WPL 1118259 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

Spring, Plunger WPL 983986 Contact Us For Availability

Retainer, Insert WPL 1119372 Contact Us For Availability

36

Plunger WPL 1116563 Contact Us For Availability

36

End Cap (2) WPL 2156220 Contact Us For Availability

Pin, Retainer WPL 983987 Contact Us For Availability

Screw WPL 489075 Contact Us For Availability

Screw WPL 489387 Contact Us For Availability

Screw (2) WPL 488280 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

Lever Assembly, Water Dispenser WPL 2159196 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability

39

Plaque, Front Cover WPL 2150335 Contact Us For Availability

39

Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability

39

Grommet (4) WPL 2162067 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Front Cover, Housing (Includes Item 39) WPL 2150339 Contact Us For Availability

Trim, Door Shelf WPL 2148319 Contact Us For Availability

Cord, Service WPL 937360 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

41

End Cap, Trim (4) WPL 1115364 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Bracket, Water WPL 987049 Contact Us For Availability

End Cap, Trim (4) WPL 1115333 Contact Us For Availability

Clip, Heat Shield WPL 2155547 Contact Us For Availability

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Screw WPL 488316 Contact Us For Availability

Divider, Shelf WPL 1114380 Contact Us For Availability

Unit Cover, Bottom WPL 2161363 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Wiring Assembly, Door WPL 2149783 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

48

Cabinet (Not A Serviceable Part) WPL ARI146055A Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $25.31

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

NLA:SCREW Backorder WPL WPW10141645 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 227991 Contact Us For Availability

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

59

Spring-Tube WPL 983659 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability
