Model Whirlpool ED25DQXVF01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

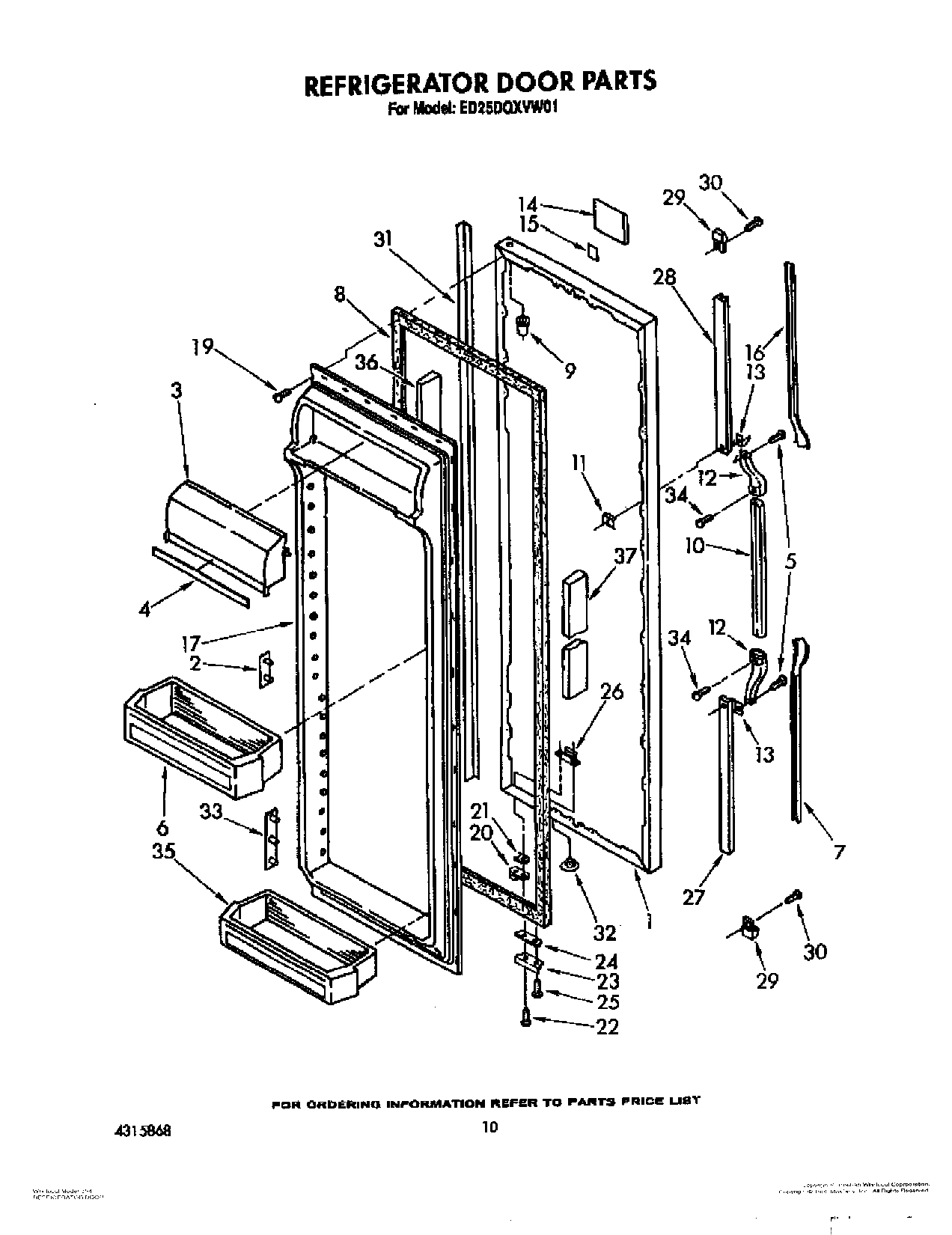

07 - REFRIGERATOR DOOR

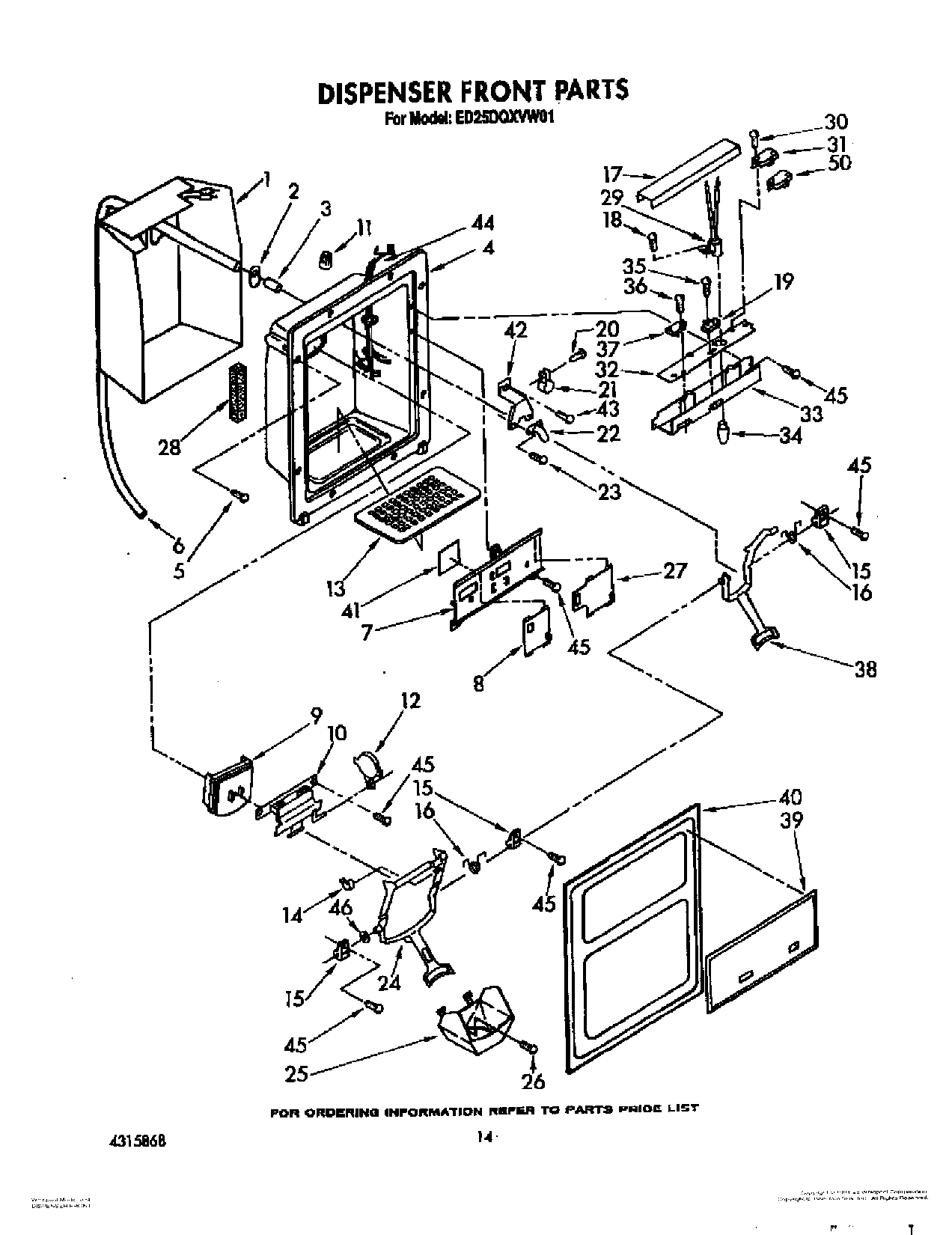

09 - DISPENSER FRONT

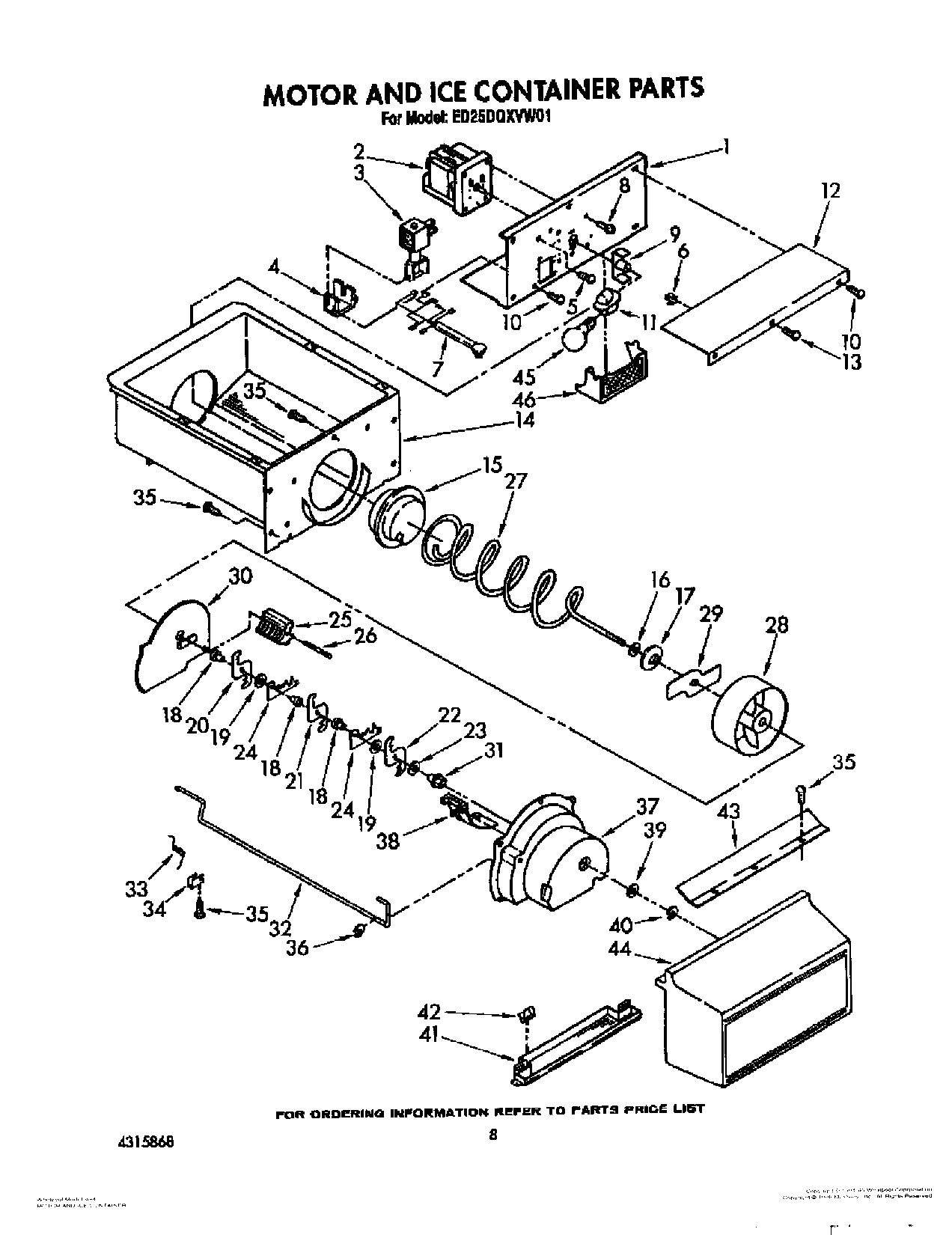

06 - MOTOR AND ICE CONTAINER

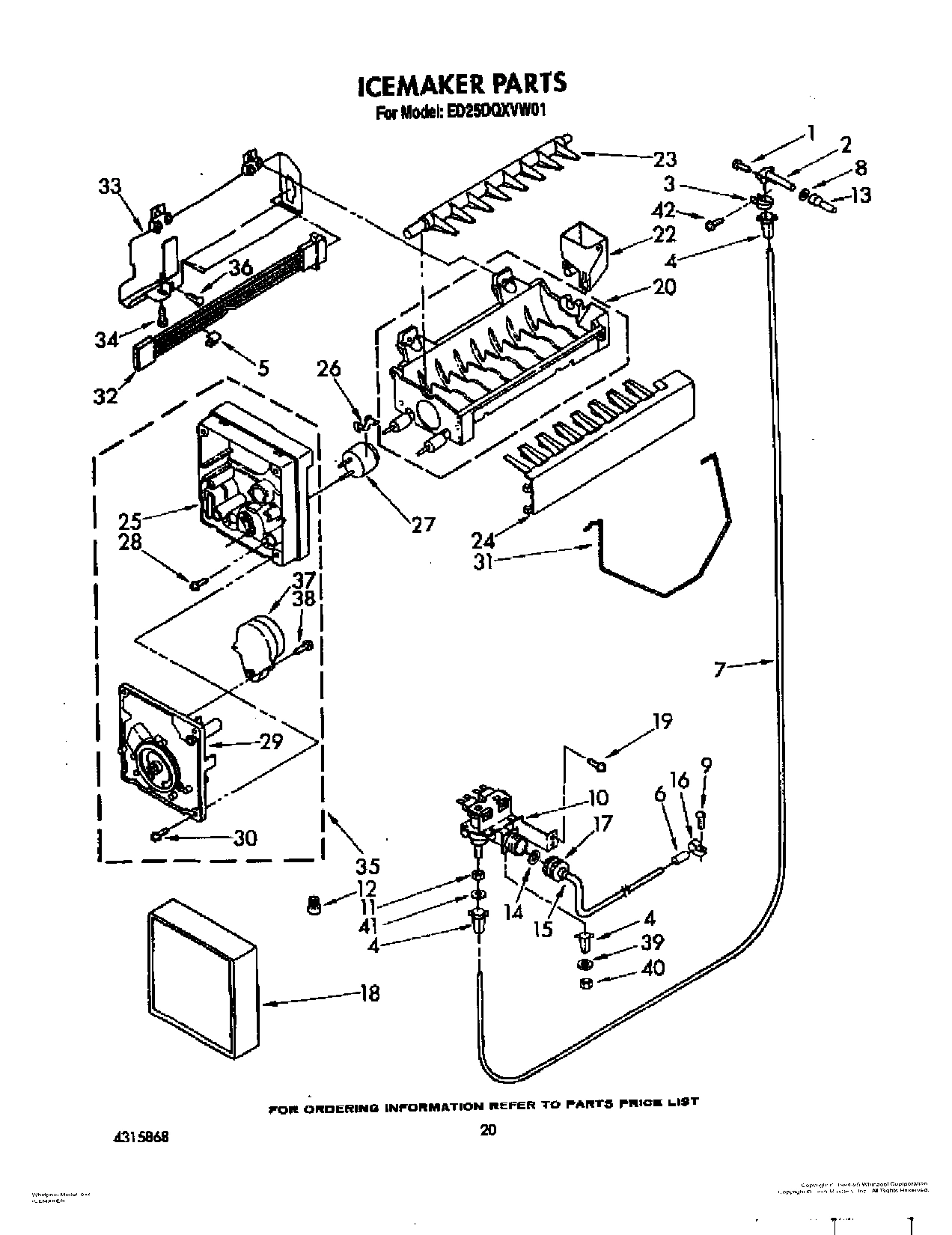

13 - ICEMAKER, LIT/OPTIONAL

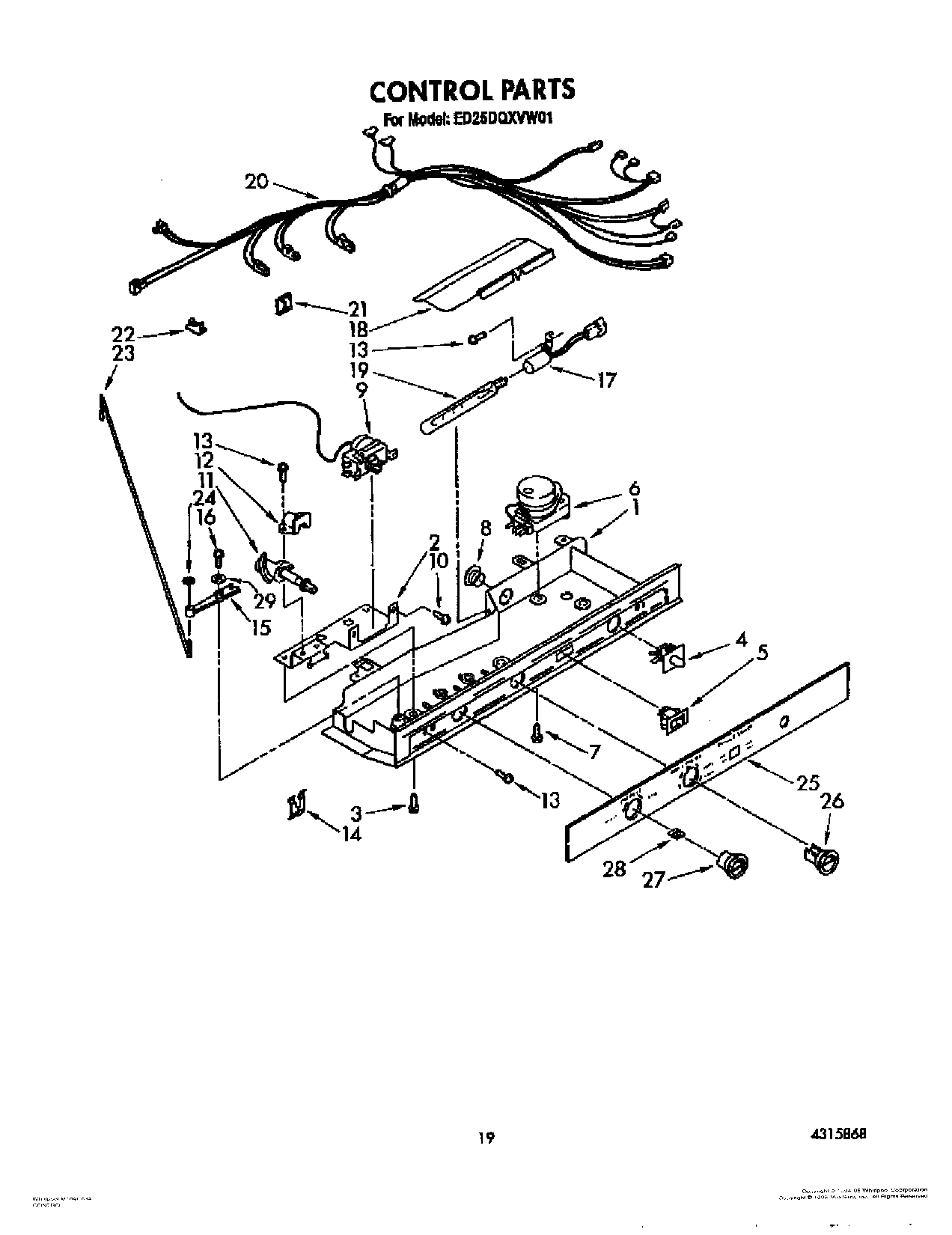

12 - CONTROL

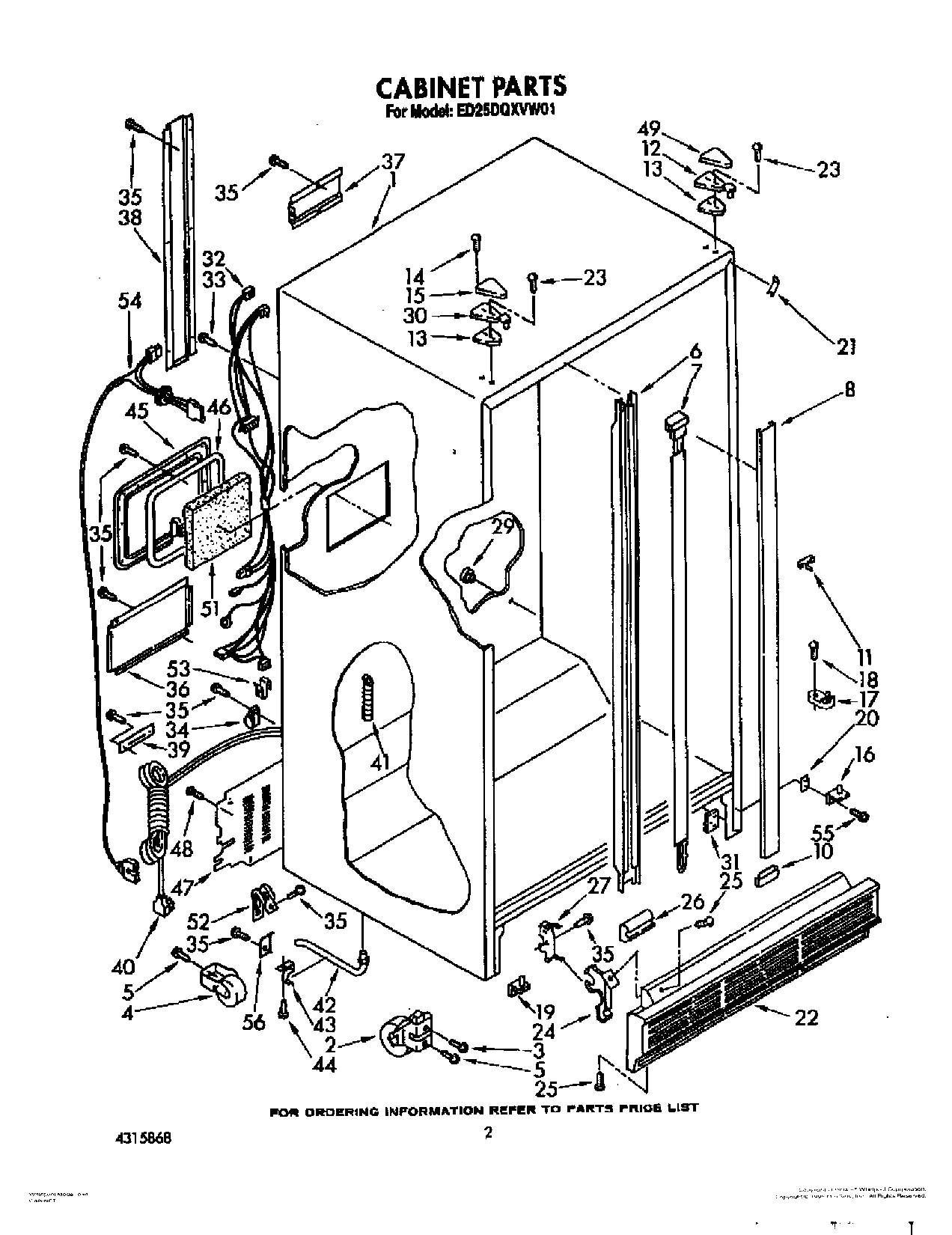

02 - CABINET

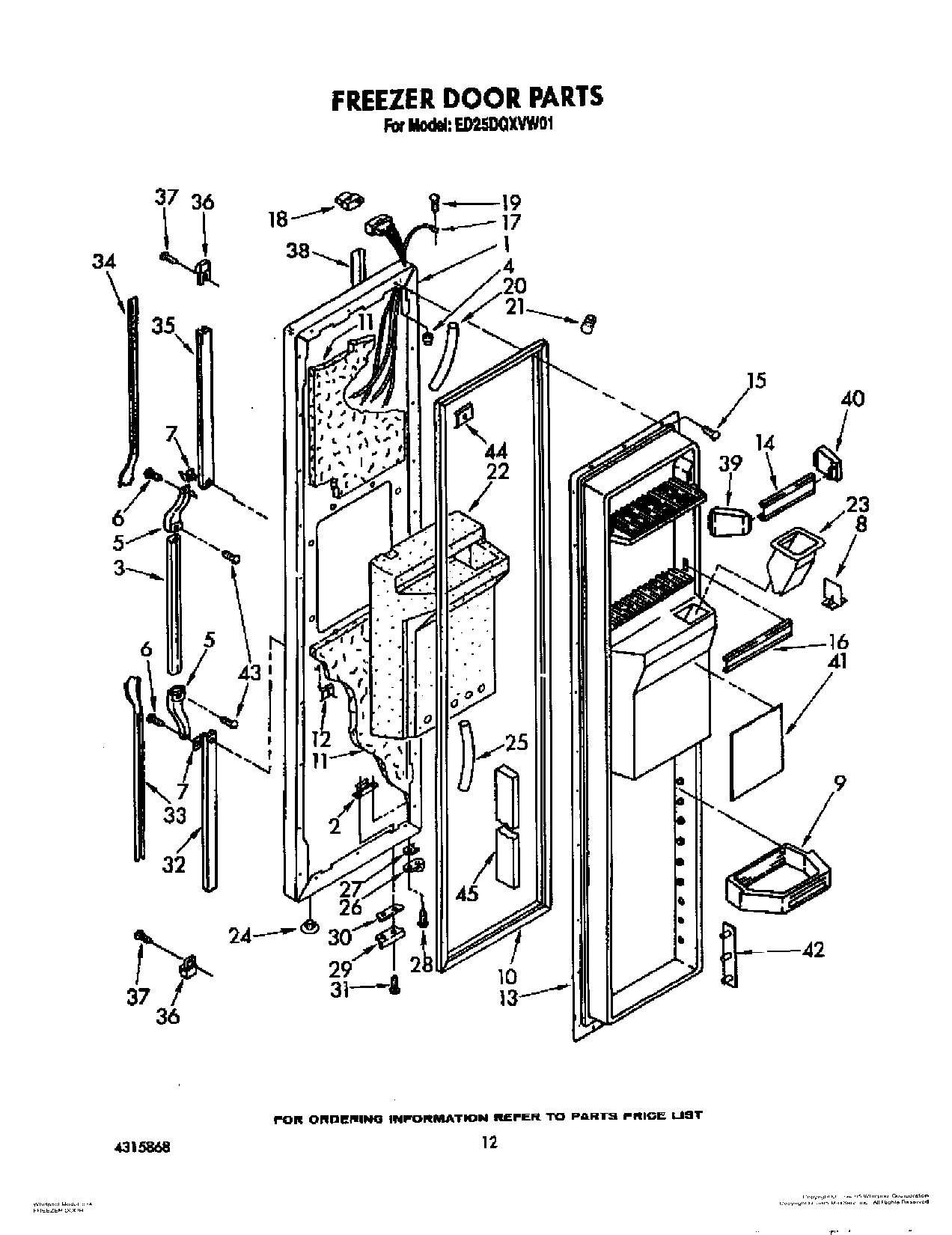

08 - FREEZER DOOR

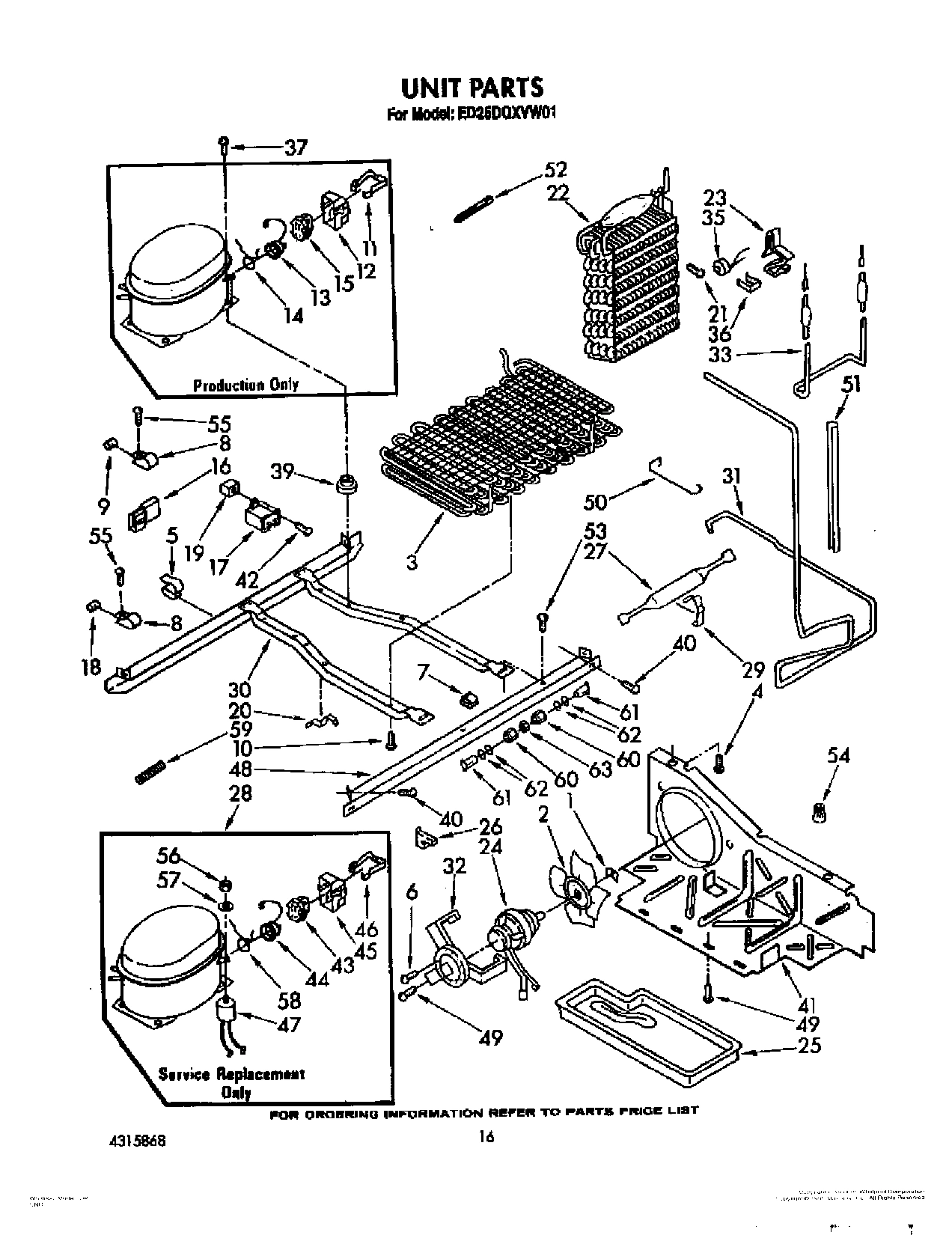

10 - UNIT

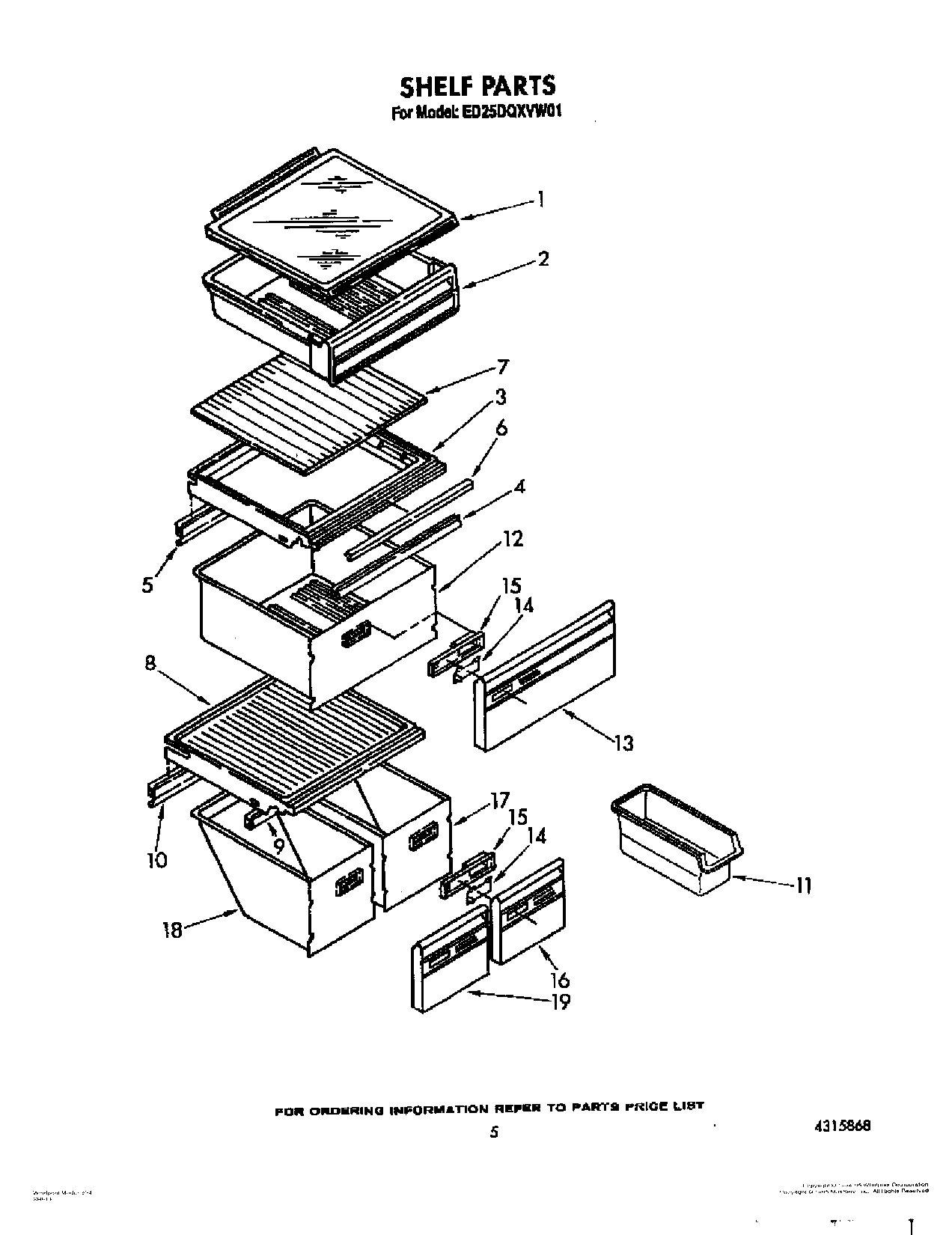

04 - SHELF

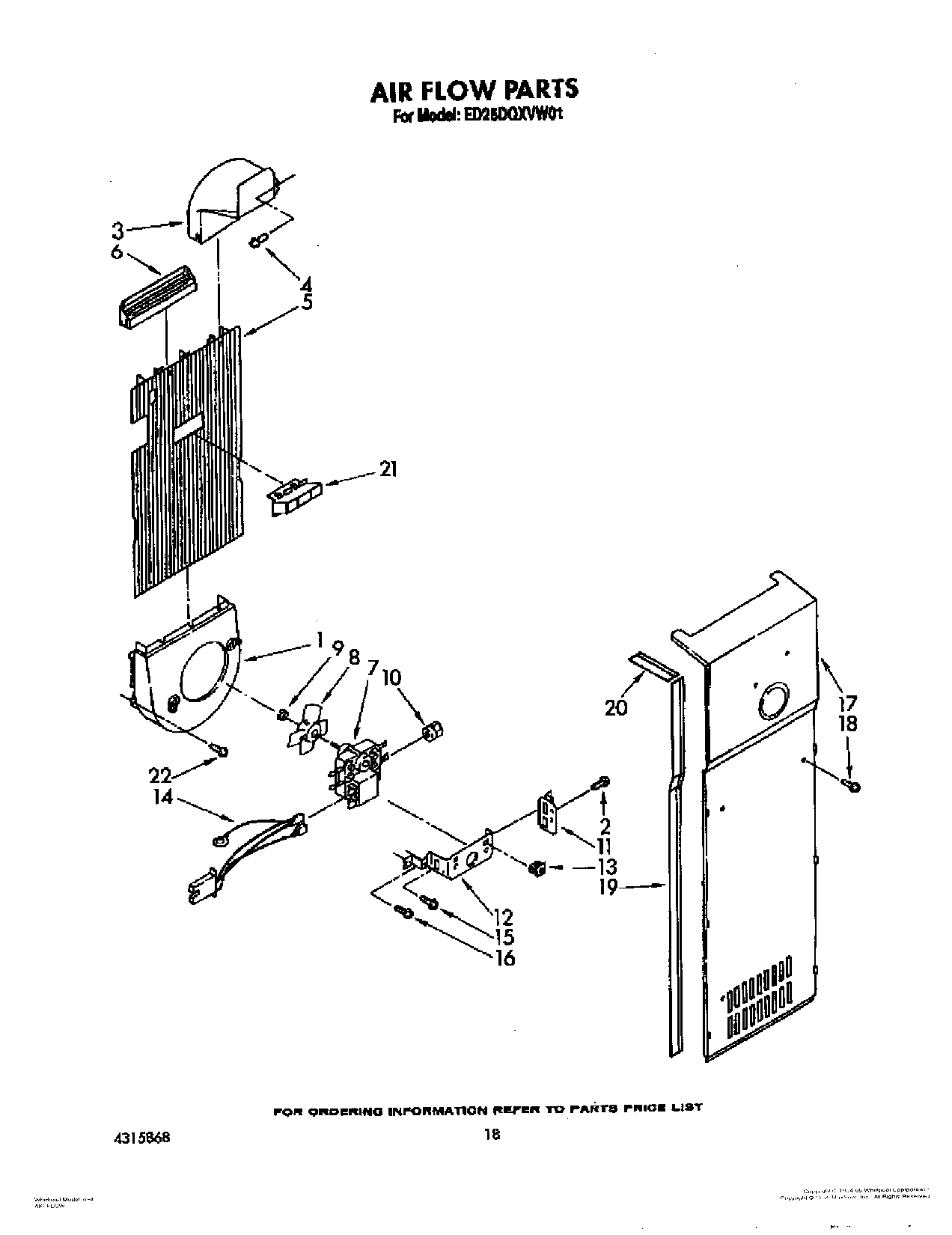

11 - AIR FLOW

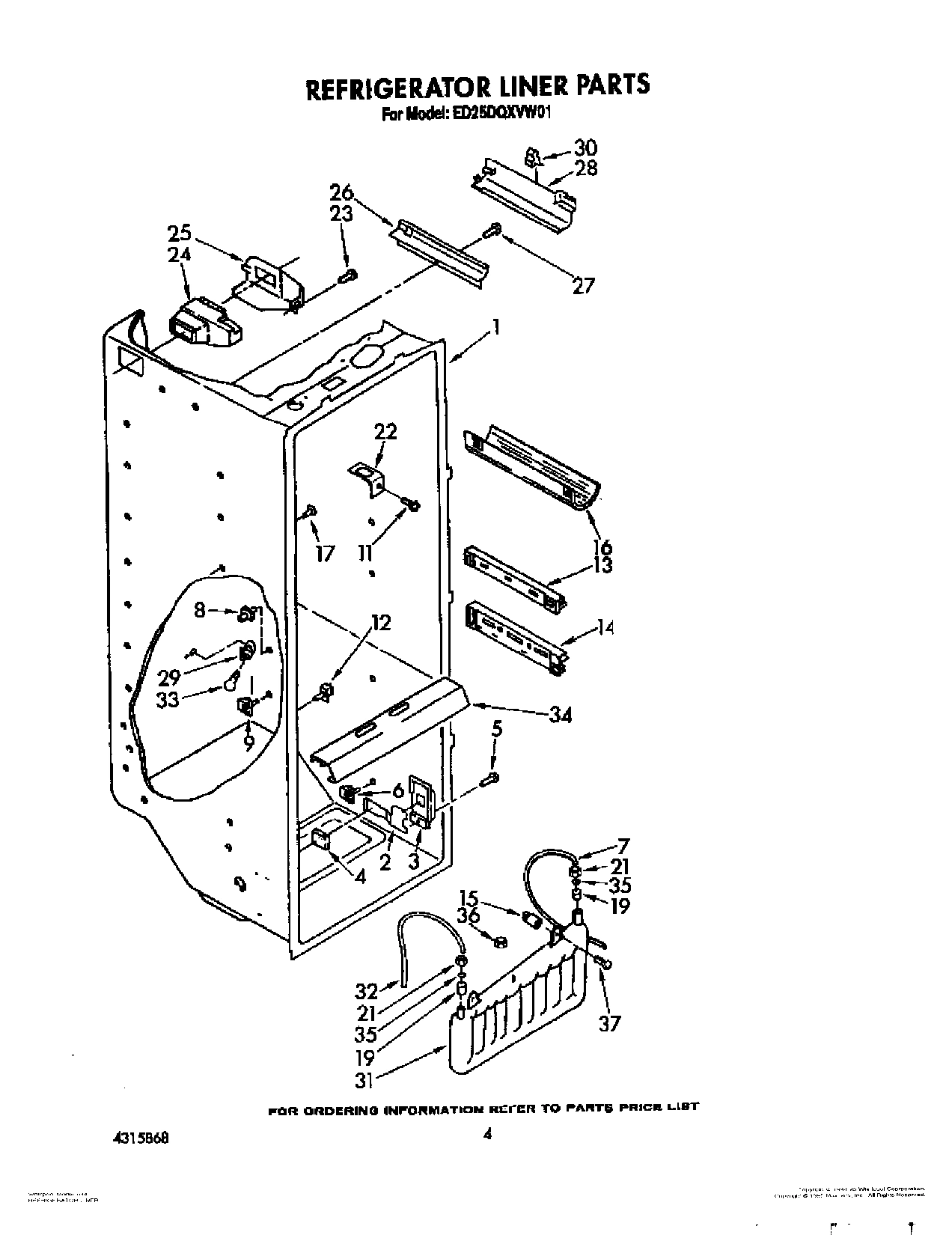

03 - REFRIGERATOR LINER

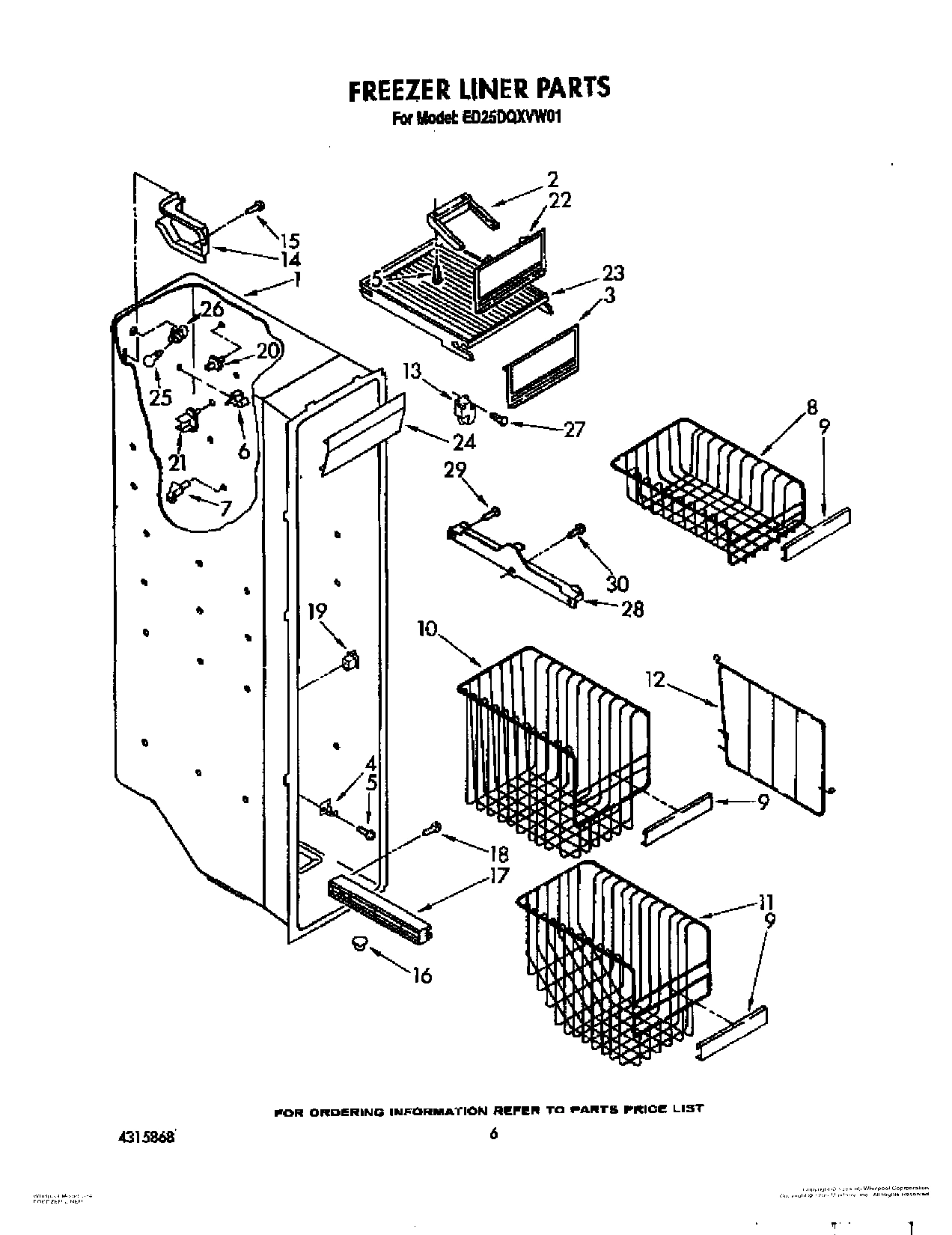

05 - FREEZER LINER
Common parts from model Whirlpool ED25DQXVF01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1119219 WPL LIT1119219 Contact Us For Availability
WPL LIT1124920 WPL LIT1124920 Contact Us For Availability
WPL LIT1127433 WPL LIT1127433 Contact Us For Availability
WPL LIT4315868 WPL LIT4315868 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Control Box WPL 1123962 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI145715A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1110652 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 1110654 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 1110655 Contact Us For Availability
1
Freezer, Door Panel (Toast) WPL 1110656 Contact Us For Availability
1
Freezer, Door Panel (Platinum (Also Order Ite WPL 1110657 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 1127158 Contact Us For Availability
1
Fan Scroll WPL 1108414 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145716A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145717A Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
2
Snack Bin WPL 1115262 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Condenser Assembly WPL 1116501 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1115254 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 1110621 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 945486 Contact Us For Availability
6
Mullion Rail WPL 1118355 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 1119217 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Clip, Water Line (3) WPL 934011 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123972 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1123974 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123975 Contact Us For Availability
8
Front Mullion Rail (Toast) WPL 1123976 Contact Us For Availability
8
Front Mullion Rail (Platinum) WPL 1123977 Contact Us For Availability
8
Divider, Shelf WPL 1114380 Contact Us For Availability
8
Cover, Meat Pan WPL 1118198 Contact Us For Availability
8
Basket (2) WPL 1114672 Contact Us For Availability
9
Stud, Rear (2) WPL 1115290 No Longer Available
9
Shelf Bin (3) WPL 1121337 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Trim, Basket WPL 1120549 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1118363 Contact Us For Availability
10
Filler Bottom Mullion (Toast) WPL 1118364 Contact Us For Availability
10
Filler Bottom Mullion (Platinum) WPL 1118365 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1110659 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
10
Fan Grommet (3) WPL 548268 Contact Us For Availability
10
Basket, Tall WPL 1114674 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Fan, Bracket Double WPL 548263 Contact Us For Availability
11
Basket, Slope WPL 1114676 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Fan, Bracket Single WPL 548264 Contact Us For Availability
12
Rack, Pizza WPL 1115253 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Panel, Interior Door WPL 1119215 Contact Us For Availability
13
Overload WPL 1127265 Contact Us For Availability
13
Front, Crisper Pan WPL 1114684 Contact Us For Availability
13
Screw Grommet WPL 538449 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Washer WPL 489323 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Trim, Door Shelf WPL 1127144 Contact Us For Availability
14
Slide, Humidity Control WPL 1110541 Contact Us For Availability
14
Fan Motor, Harness WPL 1110749 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Hinge Cover (Toast) WPL 1100381 Contact Us For Availability
15
Hinge Cover (Platinum) WPL 1100382 Contact Us For Availability
15
Hinge Cover (Golden Harvest) WPL 989885 Contact Us For Availability
15
Housing, Humidity Control WPL 1110542 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability
16
Trim, Door Shelf WPL 1115269 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Front, Meat Pan WPL 1114693 Contact Us For Availability
16
Wine Rack WPL 1115261 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Harness, Door (Includes Illustration 18) WPL 1119212 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
17
Cover, Evaporator WPL 1110623 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1114680 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
18
Heat Shield WPL 1123924 Contact Us For Availability
18
Screw (2) WPL 489296 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
19
Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Front, Meat Pan WPL 1114694 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Control Box Harness WPL 1123459 Contact Us For Availability
20
Spacer, Hinge WPL 1105474 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Nut, Compression WPL 488795 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golden Harvest) WPL 1110710 Contact Us For Availability
21
Filler, Wrapper (Toast) WPL 1110711 Contact Us For Availability
21
Filler, Wrapper (Platinum) WPL 1110712 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1118380 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
Door, Top Compartment WPL 1115258 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Escutcheon, Control Box WPL 1123998 Contact Us For Availability
25
Screw, (4) WPL 489173 Contact Us For Availability
25
Tube, Door Wiring WPL 1109246 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Bumper, Grille (2) WPL 546131 Contact Us For Availability
26
Receptacle, Housing WPL 943647 Contact Us For Availability
26
Cover, Conduit WPL 1123926 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Clip, Grille Retainer WPL 2147227 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
28
Cover, Wiring WPL 1123921 Contact Us For Availability
29
Lamp Holder WPL 1121418 Contact Us For Availability
29
Grommet WPL 839989 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Clamp, Drier WPL 548508 Contact Us For Availability
30
Screw, 4-4- x 9/16 (2) WPL 488361 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
31
Switch (2) WPL 841336 Contact Us For Availability
31
Tap Plate (2) WPL 836162 Contact Us For Availability
31
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
31
Exchanger, Heat WPL 1123675 Contact Us For Availability
32
Insulator, Control Bracket WPL 1119208 Contact Us For Availability
32
Control Arm WPL 1119019 Contact Us For Availability
32
Cabinet Harness WPL 1123740 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 1119204 Contact Us For Availability
33
Shield, Heat WPL 627751 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Golden Harvest) WPL 1119362 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Insert, Handle (Toast) WPL 1119364 Contact Us For Availability
33
Insert, Handle (Platinum) WPL 1119365 Contact Us For Availability
33
Heater, Defrost WPL 1110669 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Insert, Handle (White) WPL 1119373 Contact Us For Availability
34
Insert, Handle (Golden Harvest) WPL 1119374 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
34
Insert, Handle (Toast) WPL 1119376 Contact Us For Availability
34
Insert, Handle (Platinum) WPL 1119377 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Screw (2) WPL 489271 Contact Us For Availability
35
``O`` Ring WPL 488819 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Retainer Ring WPL 489272 Contact Us For Availability
36
WPL 1108442 WPL 1108442 Contact Us For Availability
36
End Cap (2) WPL 941259 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Nut, Compression WPL 1108005 Contact Us For Availability
37
WPL 1108440 WPL 1108440 Contact Us For Availability
37
Screw, 10-32 x WPL 489075 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
38
WPL 1119063 WPL 1119063 Contact Us For Availability
38
WPL 1119062 WPL 1119062 Contact Us For Availability
39
Plaque, Front Cover WPL 1119214 Contact Us For Availability
39
WPL 1105607 WPL 1105607 Contact Us For Availability
39
WPL 1115333 WPL 1115333 Contact Us For Availability
40
Front Cover, Housing WPL 2150311 Contact Us For Availability
40
WPL 937360 WPL 937360 Contact Us For Availability
40
WPL 1115364 WPL 1115364 Contact Us For Availability
41
Heat Shield, Frame WPL 1121404 Contact Us For Availability
41
Tray, Ice Chips WPL 1121387 Contact Us For Availability
41
WPL 842258 WPL 842258 Contact Us For Availability
41
WPL 1115271 WPL 1115271 Contact Us For Availability
41
Air Baffle WPL 1110662 Contact Us For Availability
42
WPL 479502 WPL 479502 Contact Us For Availability
42
WPL 799344 WPL 799344 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Tray (2) WPL 1121386 Contact Us For Availability
42
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
42
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
42
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
42
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
42
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
42
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
42
WPL 515393 WPL 515393 Contact Us For Availability
42
WPL 542639 WPL 542639 Contact Us For Availability
42
WPL 72112 WPL 72112 Contact Us For Availability
42
WPL 799340 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
42
WPL 1116986 WPL 1116986 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
WPL 489022 WPL 489022 Contact Us For Availability
44
Wiring Assembly, Door WPL 1119209 Contact Us For Availability
44
Front Cover, Ice Container WPL 1119002 Contact Us For Availability
44
WPL 488978 WPL 488978 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
45
WPL 1110626 WPL 1110626 Contact Us For Availability
45
WPL 1115378 WPL 1115378 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
Washer (Repair) WPL 488307 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
WPL 1115322 WPL 1115322 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
WPL 1110664 WPL 1110664 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
49
WPL 1119790 WPL 1119790 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Switch (2) WPL 934316 Contact Us For Availability
51
WPL 1118237 WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
55
WPL 489297 WPL 489297 Contact Us For Availability
56
WPL 836472 WPL 836472 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
