Model Whirlpool ED25DQXAN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

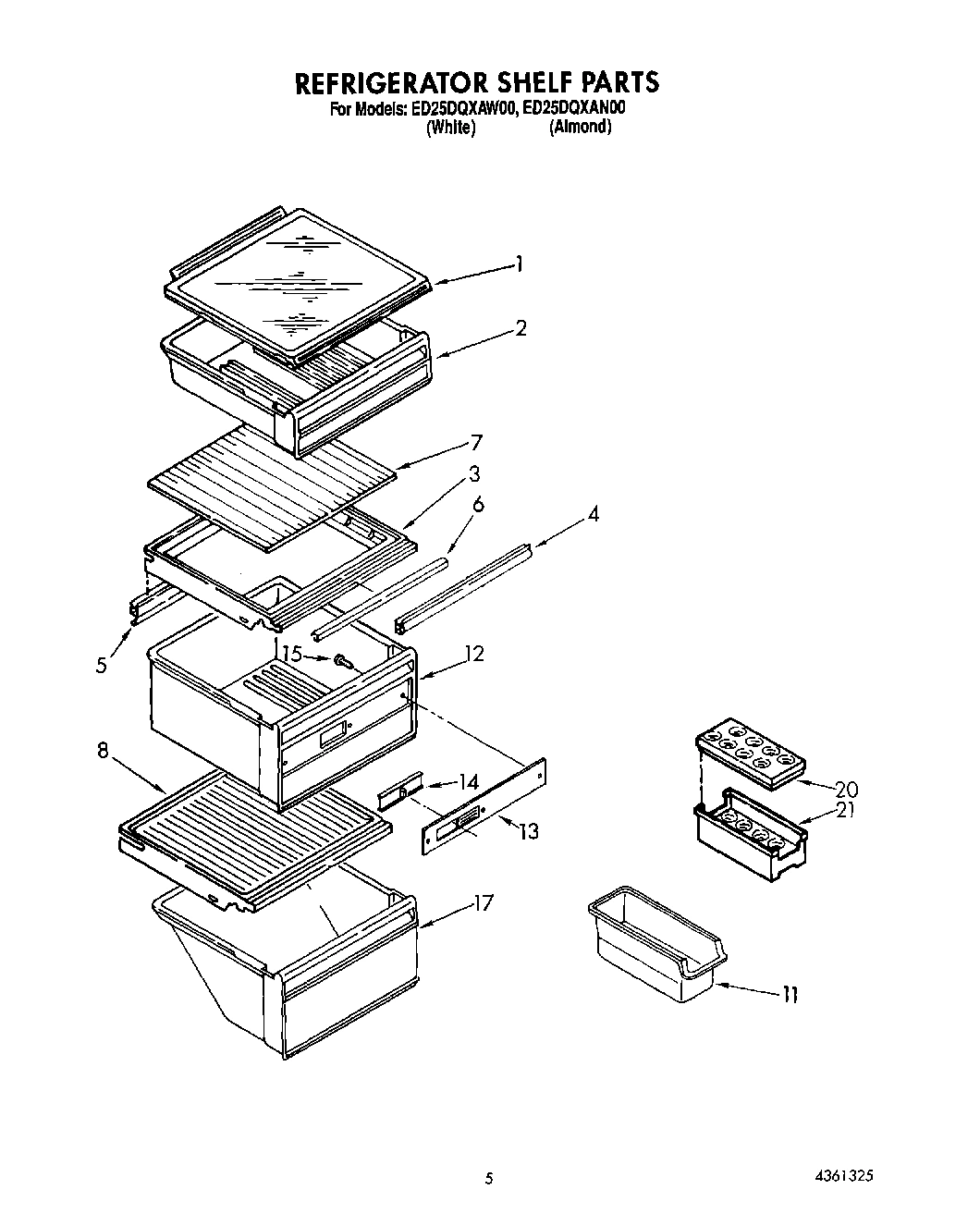

04 - REFRIGERATOR SHELF

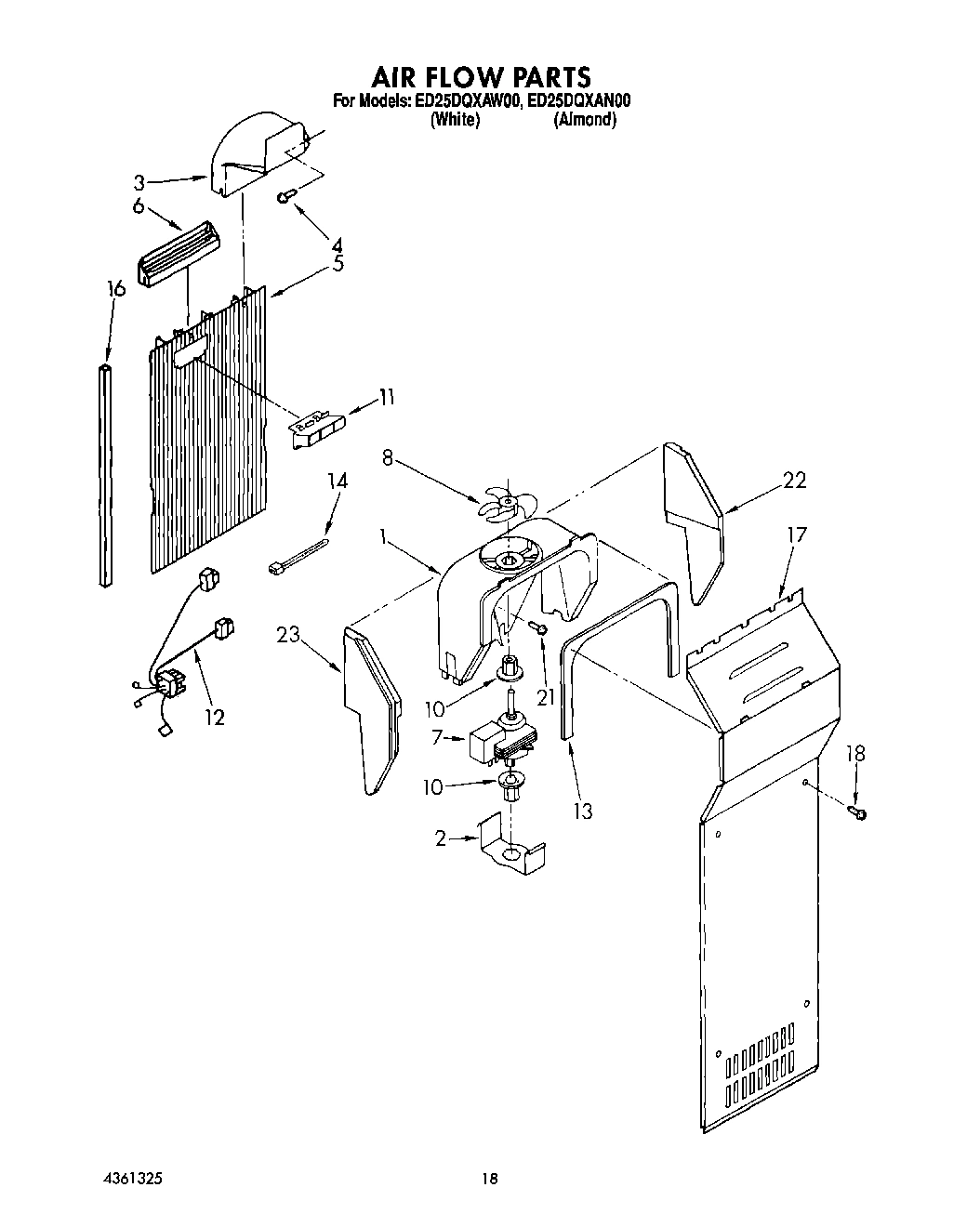

11 - AIR FLOW
10 - UNIT
12 - CONTROL
06 - MOTOR AND ICE CONTAINER
08 - FREEZER DOOR
02 - CABINET
13 - ICEMAKER, LIT/OPTIONAL
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT
03 - REFRIGERATOR LINER
05 - FREEZER LINER
Common parts from model Whirlpool ED25DQXAN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155535 WPL LIT2155535 Contact Us For Availability
WPL LIT2155717 WPL LIT2155717 Contact Us For Availability
WPL LIT2162750 WPL LIT2162750 Contact Us For Availability
WPL LIT4361325 WPL LIT4361325 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1110652 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1110655 Contact Us For Availability
1
Refrigerator Door (White) WPL 1110642 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 38 WPL 1110645 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27389A3 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27390A6 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1124834 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Housing, Dispenser WPL 1124715 Contact Us For Availability
4
Housing Dispenser (For Model ED25DQXAN00) WPL 1125969 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Door Gasket Magnetic (For Model ED25DQXAN00) WPL 1127307 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud (2) WPL 1115290 Contact Us For Availability
9
Shelf Bin (3) WPL 1124854 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle, Center (White) WPL 1124713 Contact Us For Availability
10
Handle, Center (Almond) WPL 943079 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Door Gasket Magnetic (For Model ED25DQXAN00) WPL 1127308 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 2150325 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Trim, Door Shelf WPL 1124851 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Trim, Door Shelf WPL 1124852 Contact Us For Availability
16
Insert, Handle (White) WPL 1119373 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
17
Panel, Interior Door WPL 1124842 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
22
Door, Top Compartment WPL 1124833 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Retainer, Insert WPL 1119372 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Pin Plate (10) WPL 1116986 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Shelf Bin (2) WPL 1124847 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
36
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 1124721 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125974 Contact Us For Availability
39
End Cap, Trim WPL 1115333 Contact Us For Availability
39
Divider (2) WPL 2152335 Contact Us For Availability
39
Plaque, Front Cover WPL 2150318 Contact Us For Availability
39
PLaque, Front Cover (For Model ED25DQXAN00) WPL 2162690 Contact Us For Availability
40
End Cap, Trim WPL 1115364 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150313 Contact Us For Availability
40
Fro WPL 2162702 Contact Us For Availability
41
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
41
Trim Kit WPL 4210344 Contact Us For Availability
41
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
41
Black Handle Insert WPL 4210378 Contact Us For Availability
41
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
46
WPL 841336 WPL 841336 Contact Us For Availability
47
Cover, Unit WPL 2161317 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27388A5 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
