Model Whirlpool ED22PKXDN03 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - AIR FLOW
09 - UNIT, LIT/OPTIONAL

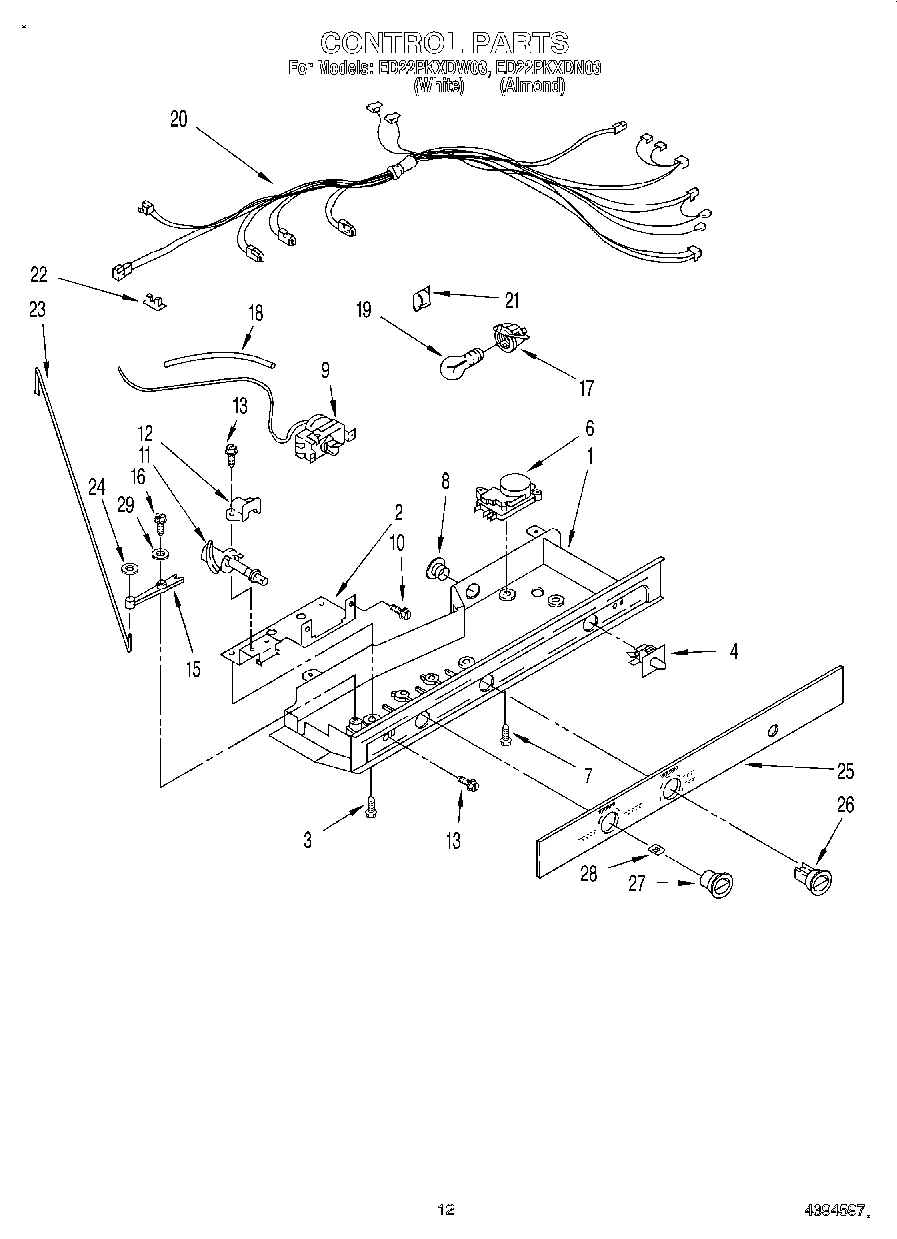

08 - CONTROL
03 - REFRIGERATOR SHELF

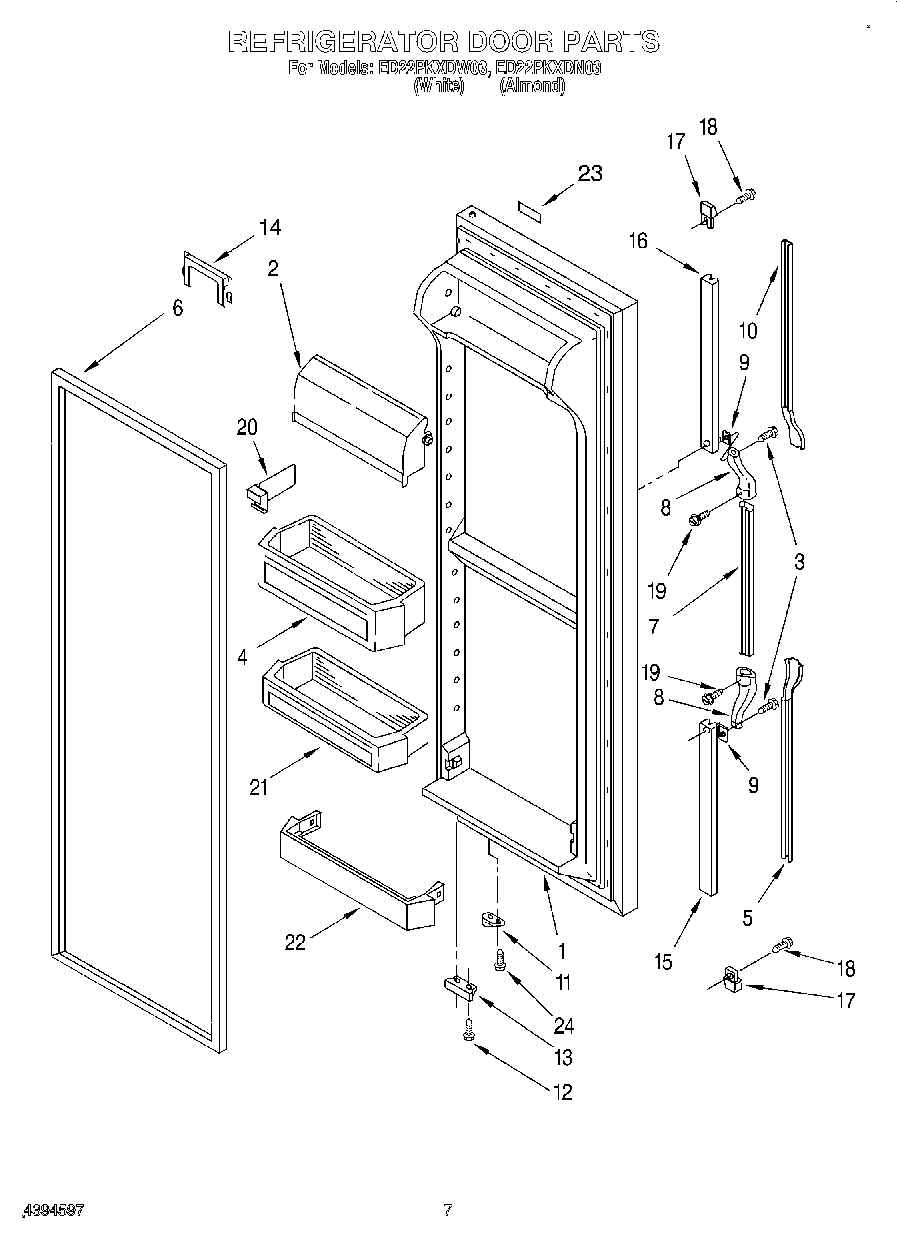

05 - REFRIGERATOR DOOR

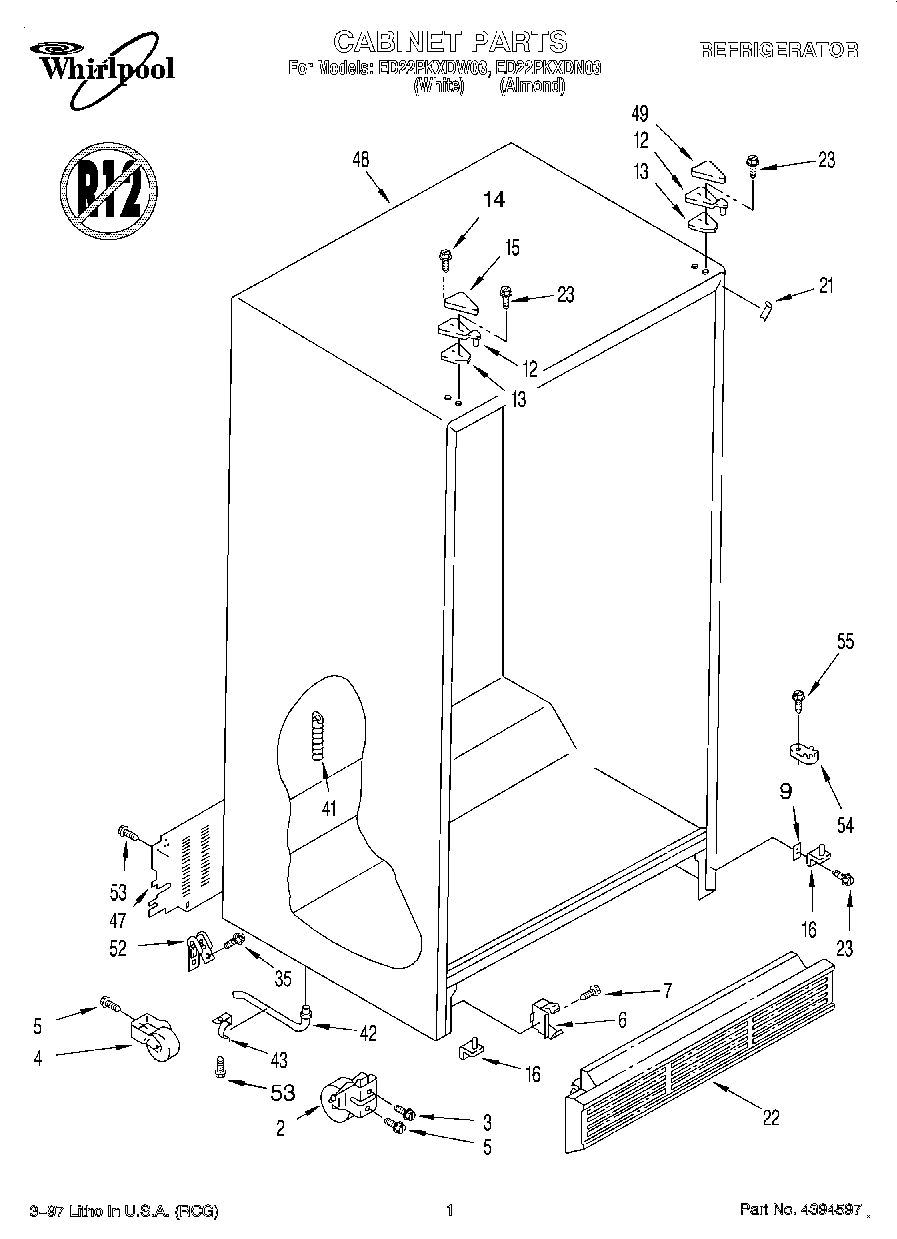

01 - CABINET

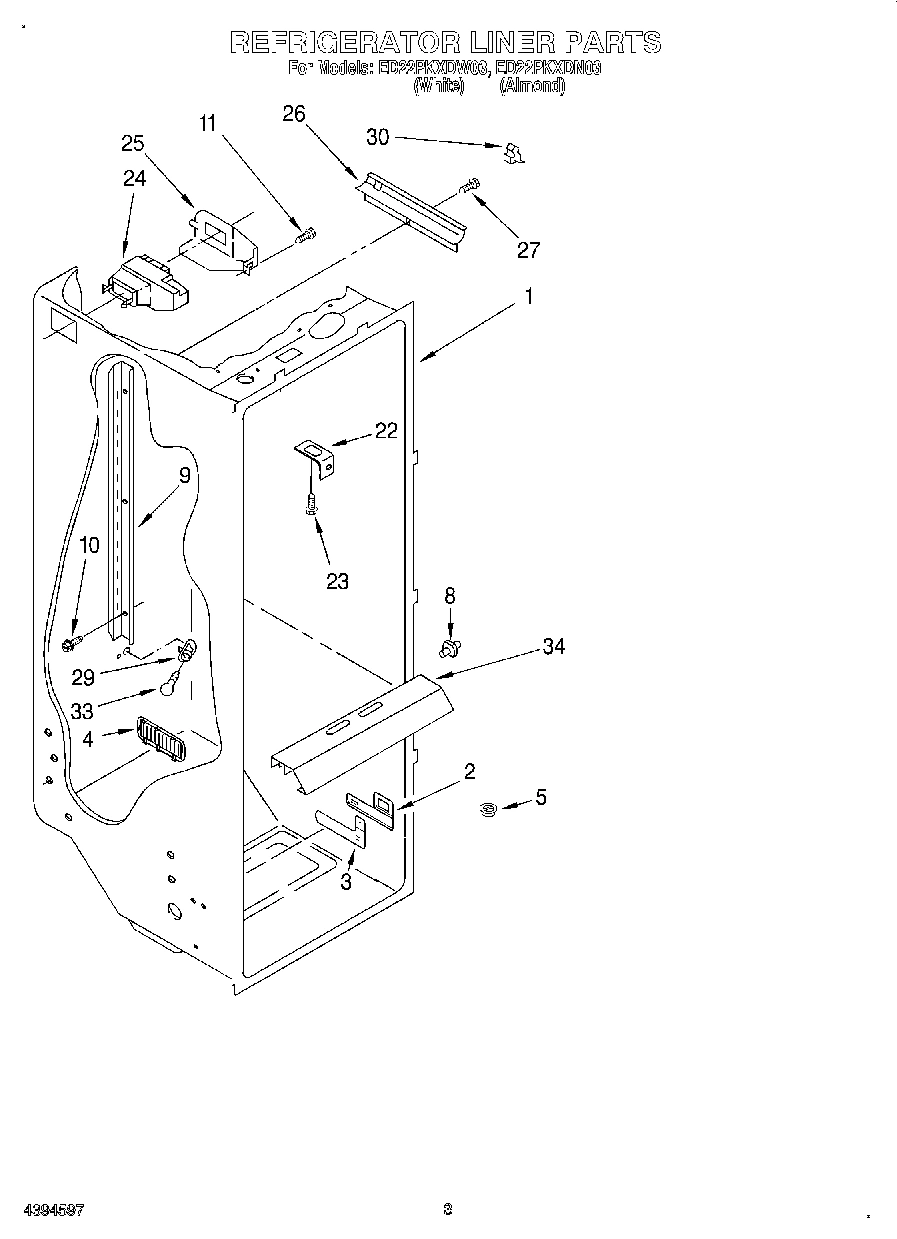

02 - REFRIGERATOR LINER

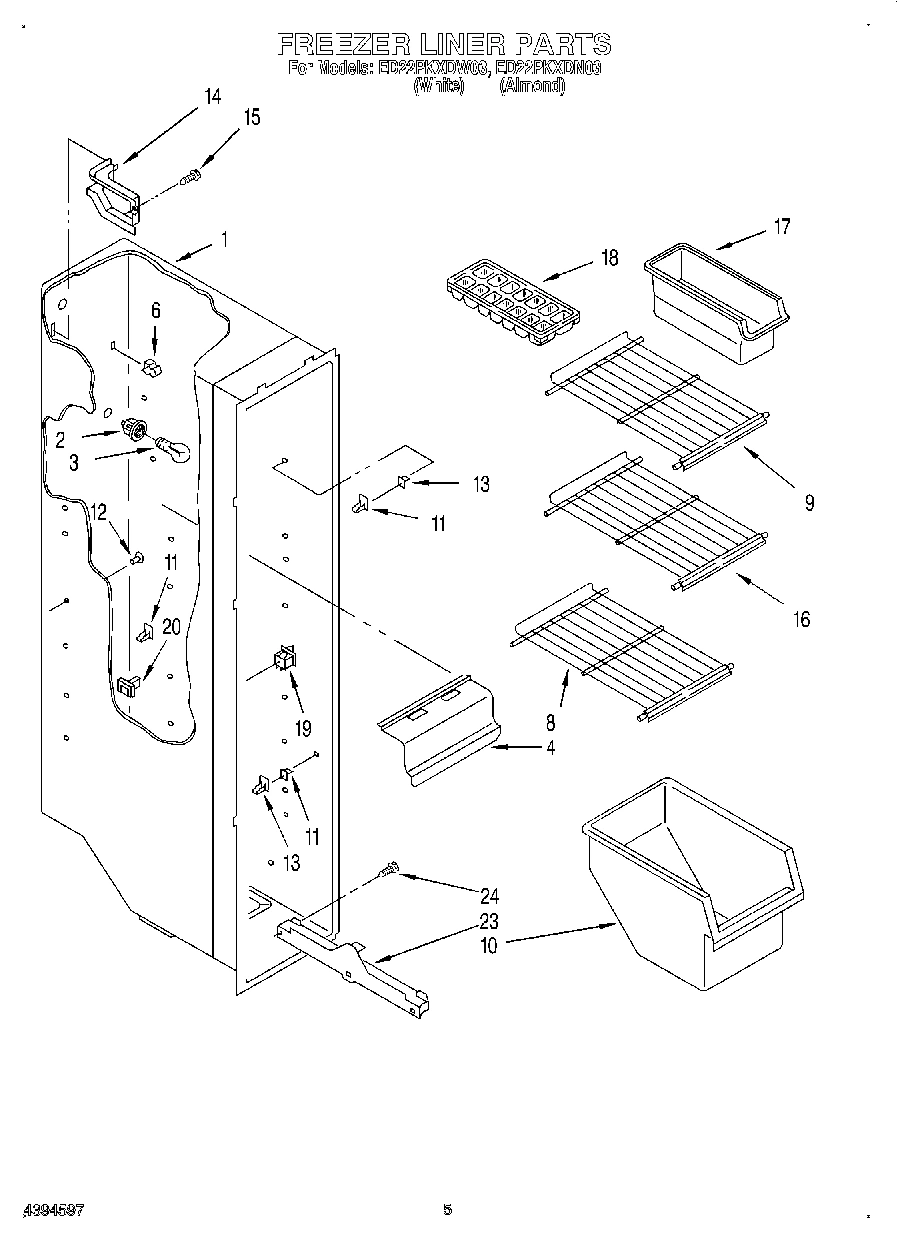

04 - FREEZER LINER

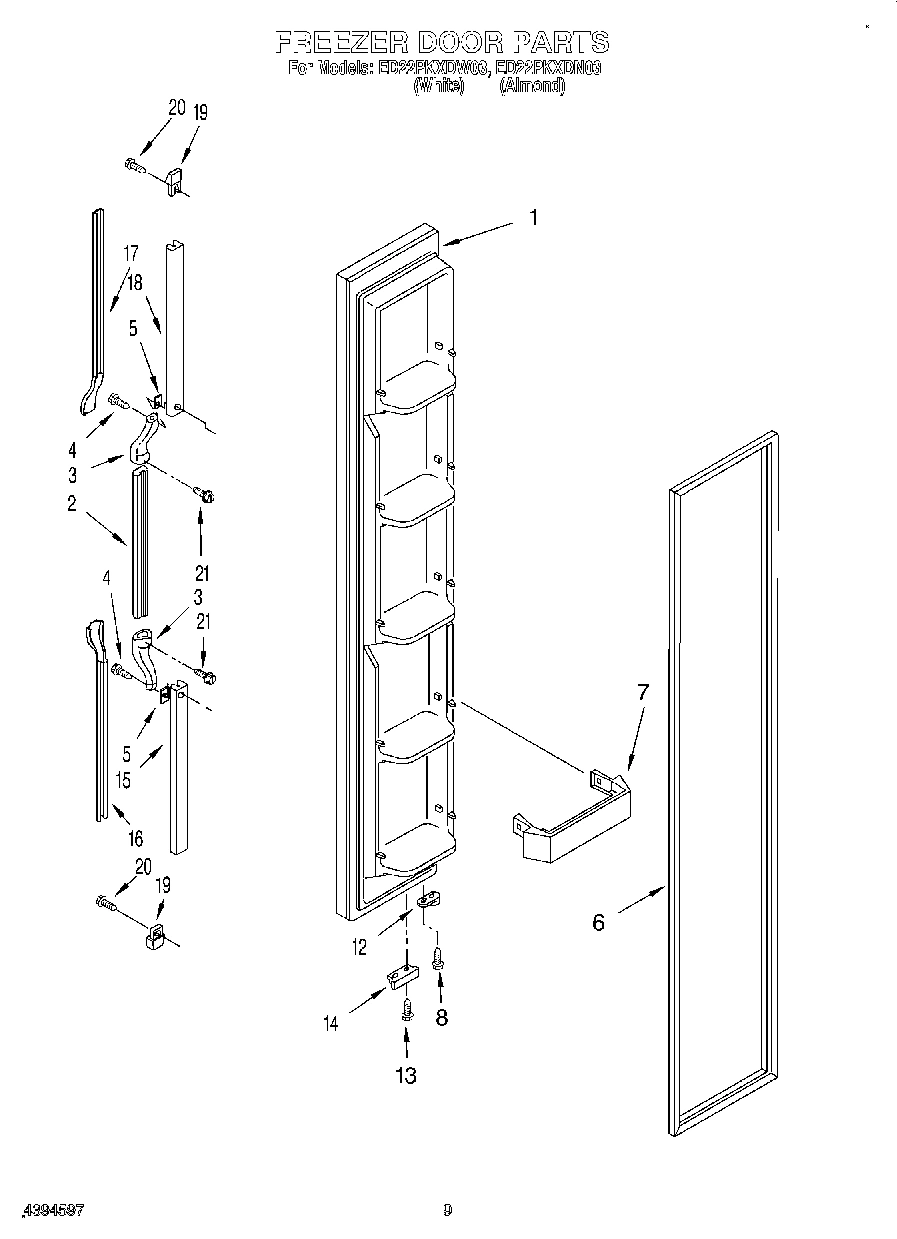

06 - FREEZER DOOR
Common parts from model Whirlpool ED22PKXDN03 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194275W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26677A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26678A4 Contact Us For Availability
1
Freezer Door (Includes No.6) (Almond) WPL 2194198N Contact Us For Availability
1
Freezer Door (Includes No.6) (White) WPL 2194198W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Louver Pan Control WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Shelf WPL 2179325 Contact Us For Availability
10
Bin, Freezer WPL 2171707 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Grommet (10) WPL 2176134 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155401 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert WPL 2194770 Contact Us For Availability
16
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
16
Insert, Handle (White) WPL 2194773W Contact Us For Availability
16
Shelf WPL 2174266 Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
17
Insert, Handle (White) WPL 2194774W Contact Us For Availability
18
Retainer, Insert WPL 2194771 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
20
Divider, Bin WPL 2195498 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Nameplate (White) WPL 2175383 Contact Us For Availability
23
Nameplate (Almond) WPL 2175384 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26676A5 Contact Us For Availability
59
WPL 978029 WPL 978029 Contact Us For Availability
59
WPL 876029 WPL 876029 Contact Us For Availability
59
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
