Model Whirlpool ED22PKXDN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

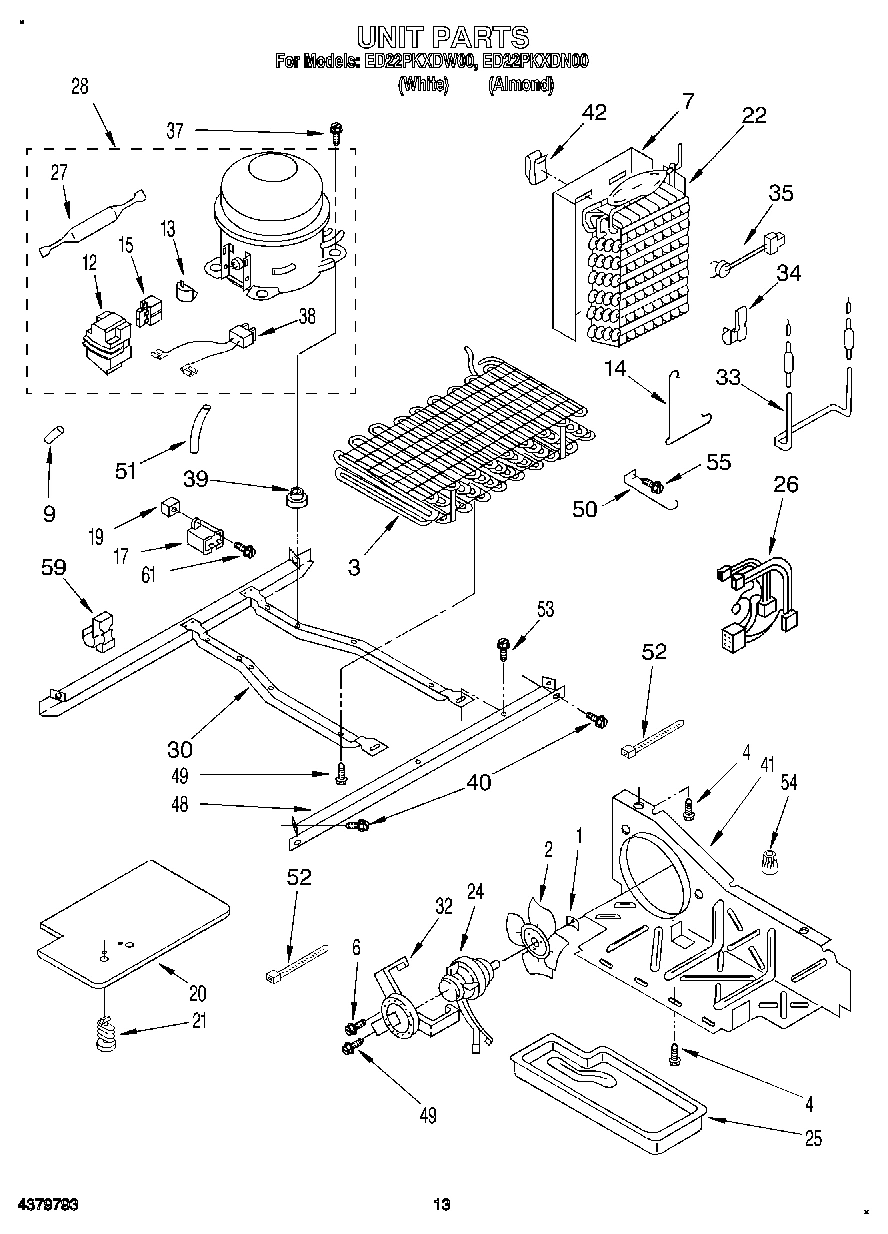

09 - UNIT, LIT/OPTIONAL

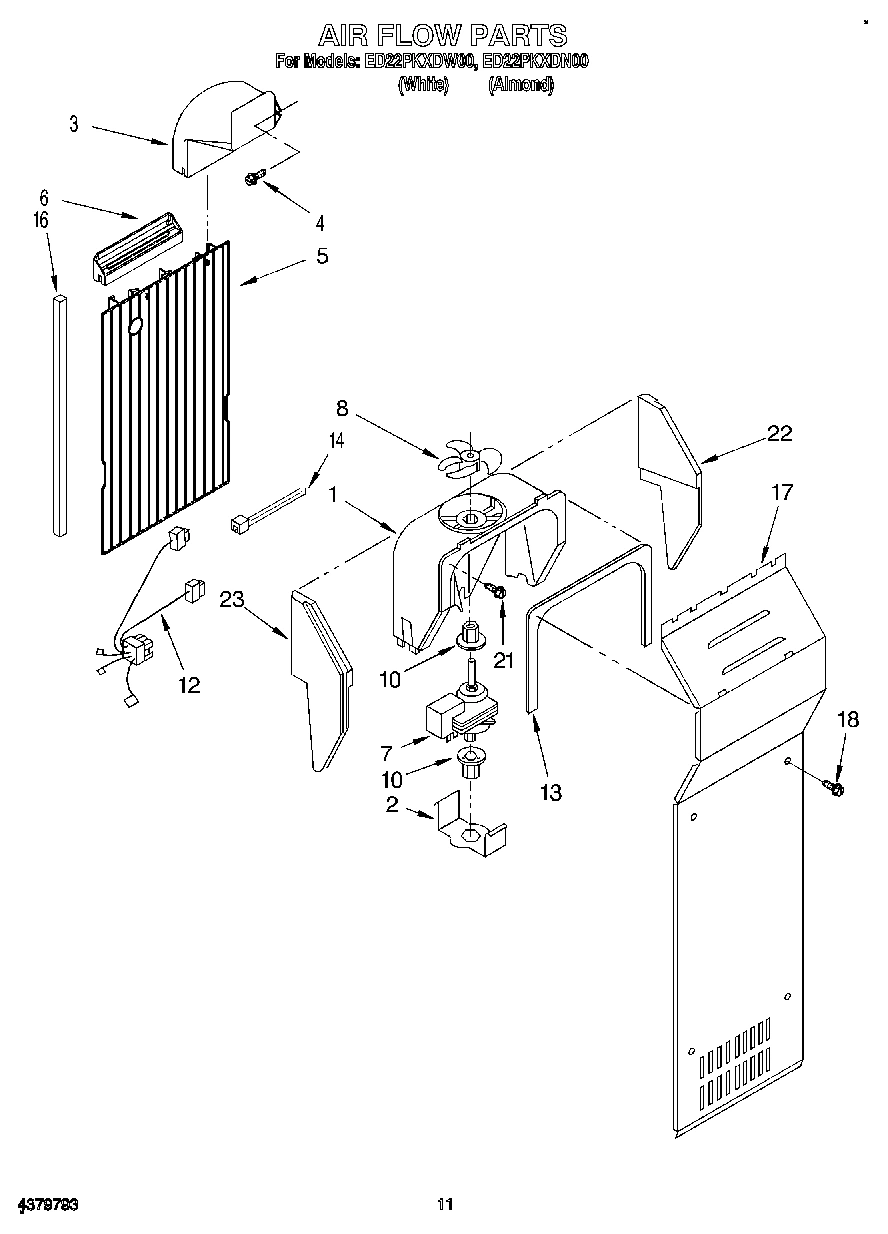

07 - AIR FLOW
05 - REFRIGERATOR DOOR
04 - FREEZER LINER
06 - FREEZER DOOR
08 - CONTROL
03 - REFRIGERATOR SHELF
01 - CABINET
02 - REFRIGERATOR LINER
Common parts from model Whirlpool ED22PKXDN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2171082 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2171083 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26670A5 Contact Us For Availability
1
Freezer Door (Includes No.6) (White) WPL 2171114 Contact Us For Availability
1
Freezer Door (Includes No.6) (Almond) WPL 2171115 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Water Inlet Tube WPL 2155247 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26669A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Gasket, Front WPL 2174442 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Gasket, Rear WPL 2174483 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Clip, Icemaker WPL 2155021 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Shelf WPL 2179325 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171995 Contact Us For Availability
10
Bin, Freezer WPL 2171707 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Grommet (10) WPL 2176134 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Cover WPL 2170969 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Cover, Wiring WPL 2155401 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert WPL 1119360 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
16
Insert, Handle (White) WPL 1119361 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
16
Shelf WPL 2174266 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Insert, Handle (White) WPL 1119367 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
18
Retainer, Insert WPL 1119366 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Nameplate (White) WPL 2162781 Contact Us For Availability
23
Nameplate (Almond) WPL 2162782 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26668A2 Contact Us For Availability
61
WPL 978029 WPL 978029 Contact Us For Availability
61
WPL 876029 WPL 876029 Contact Us For Availability
61
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
61
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
