Model Whirlpool ED20TWXDW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

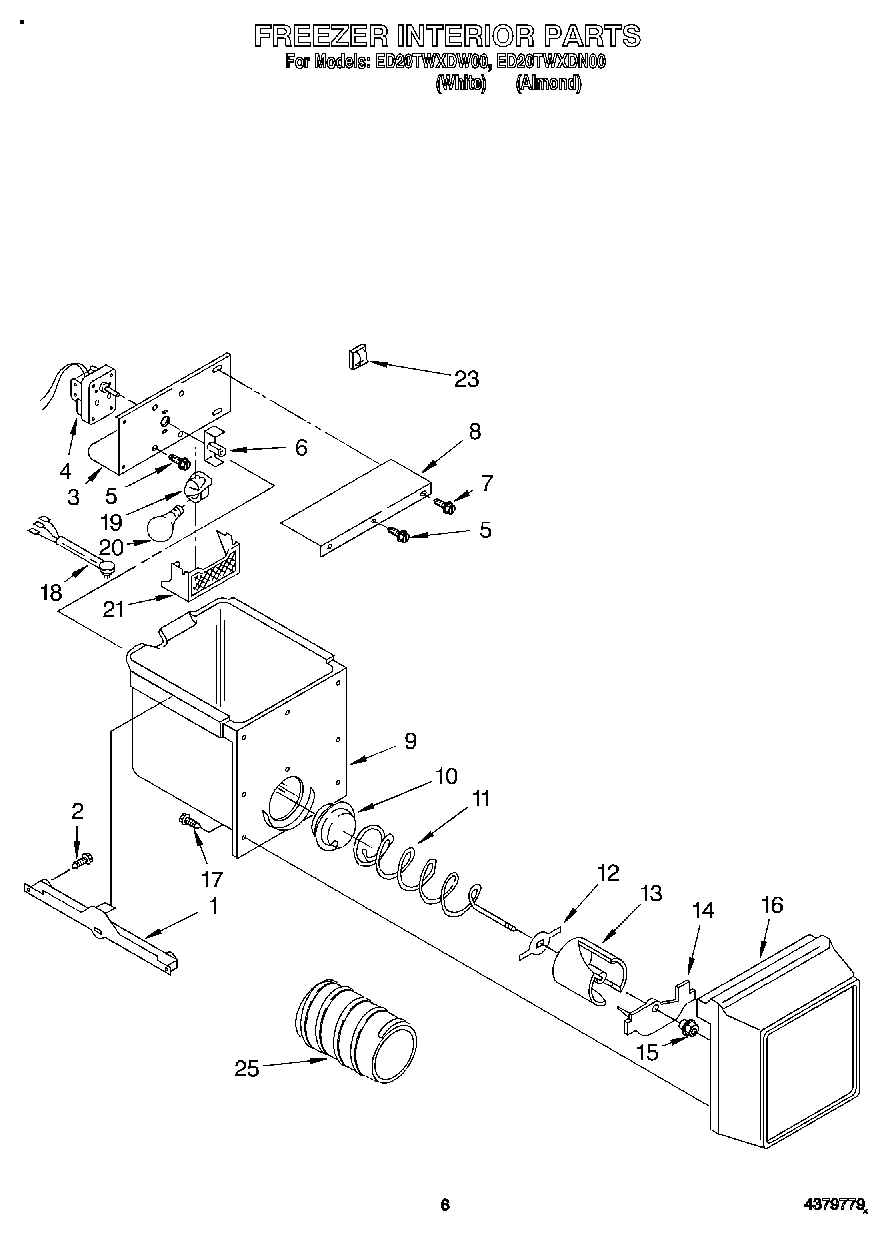

04 - FREEZER INTERIOR

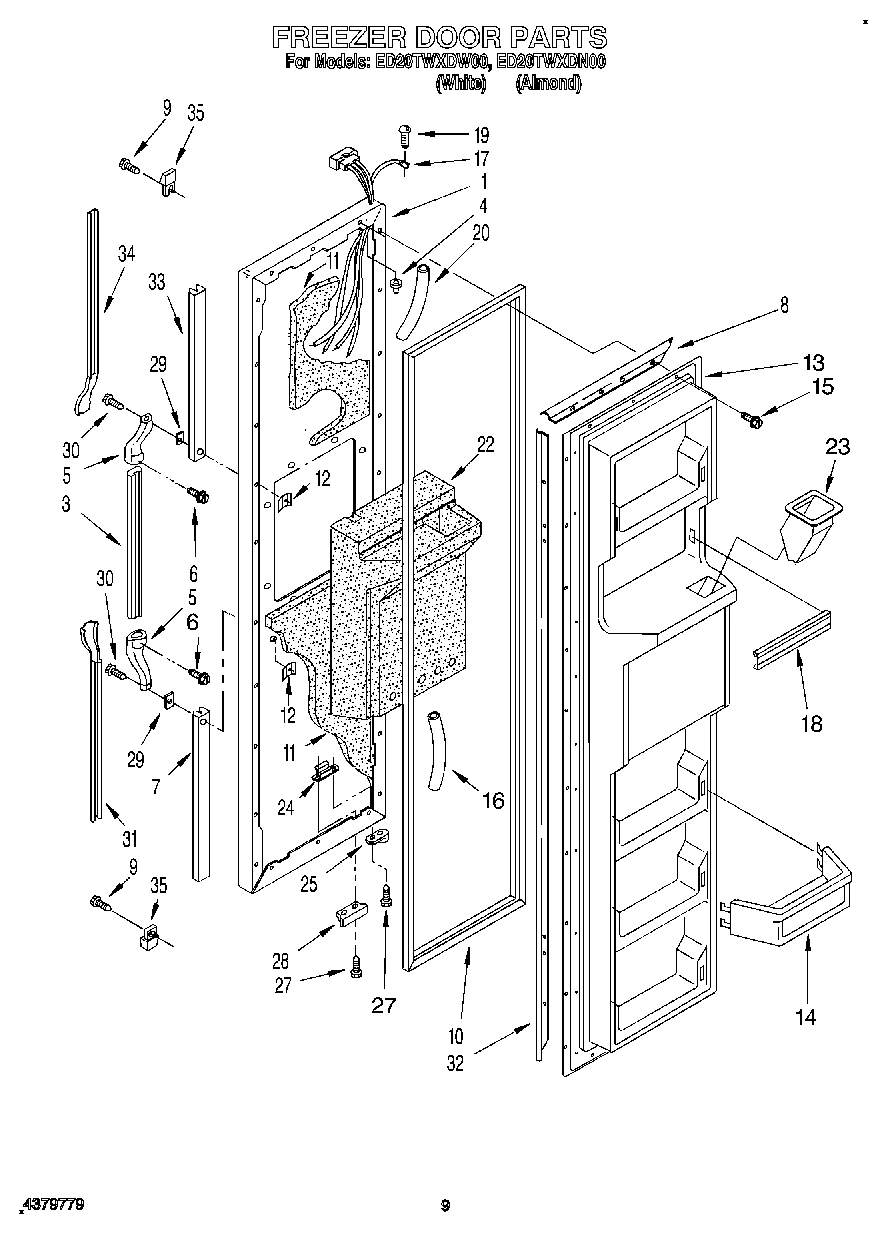

06 - FREEZER DOOR

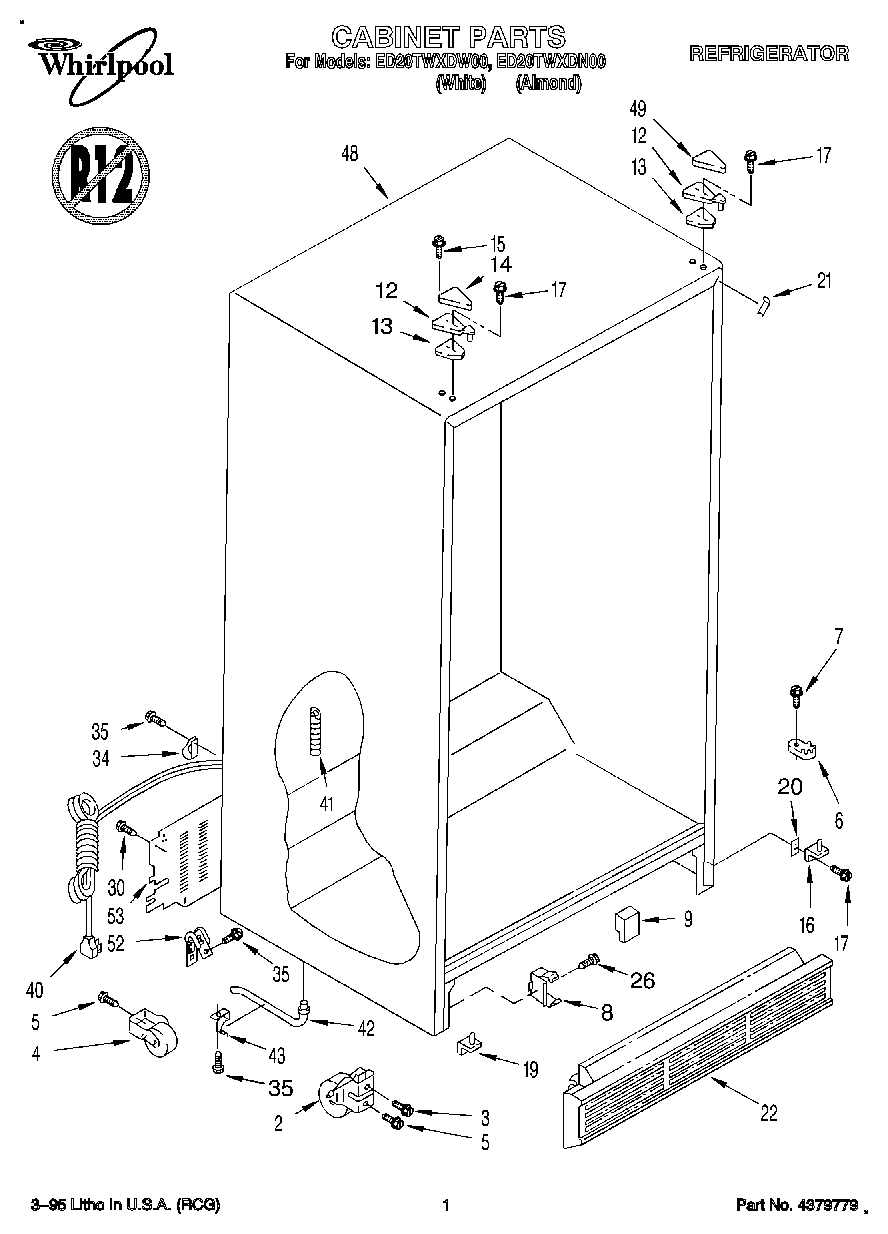

01 - CABINET

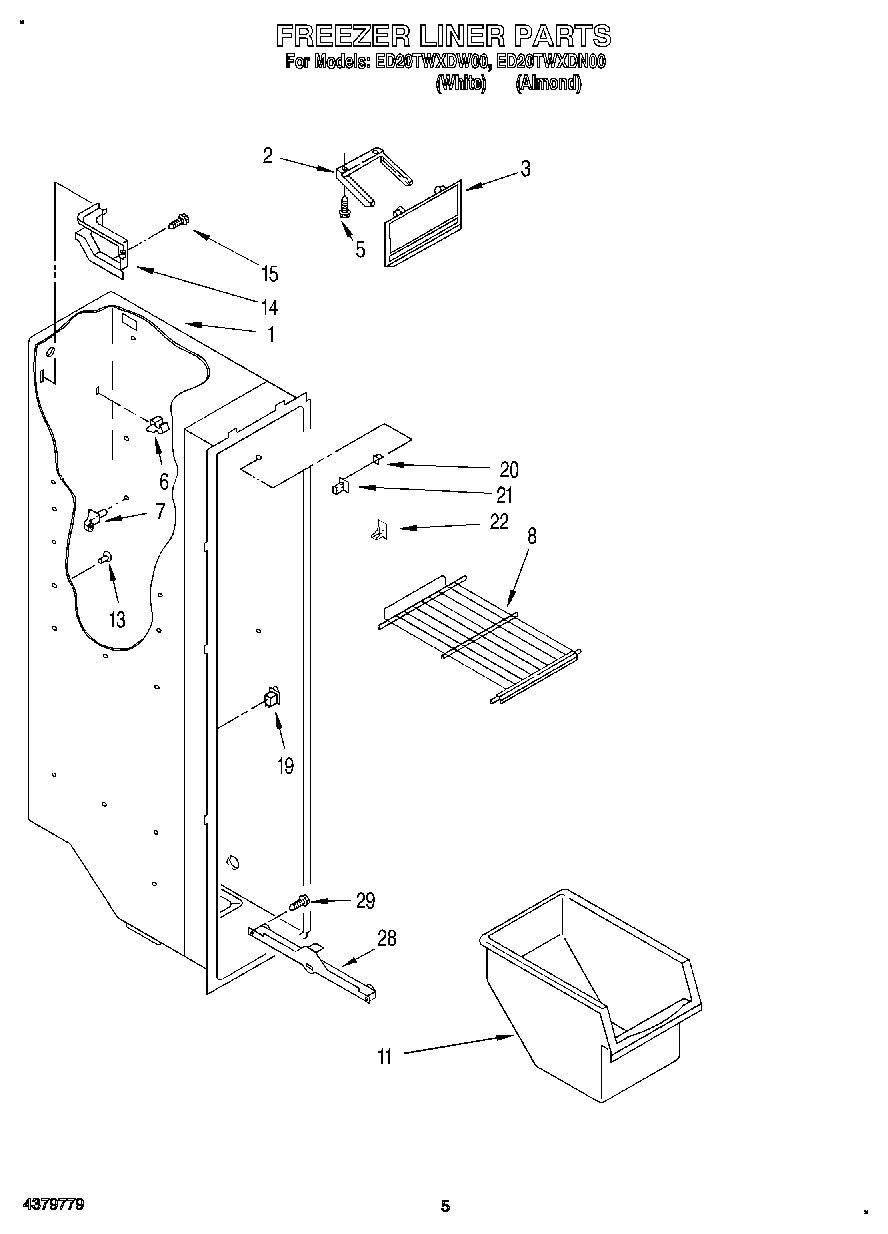

03 - FREEZER LINER

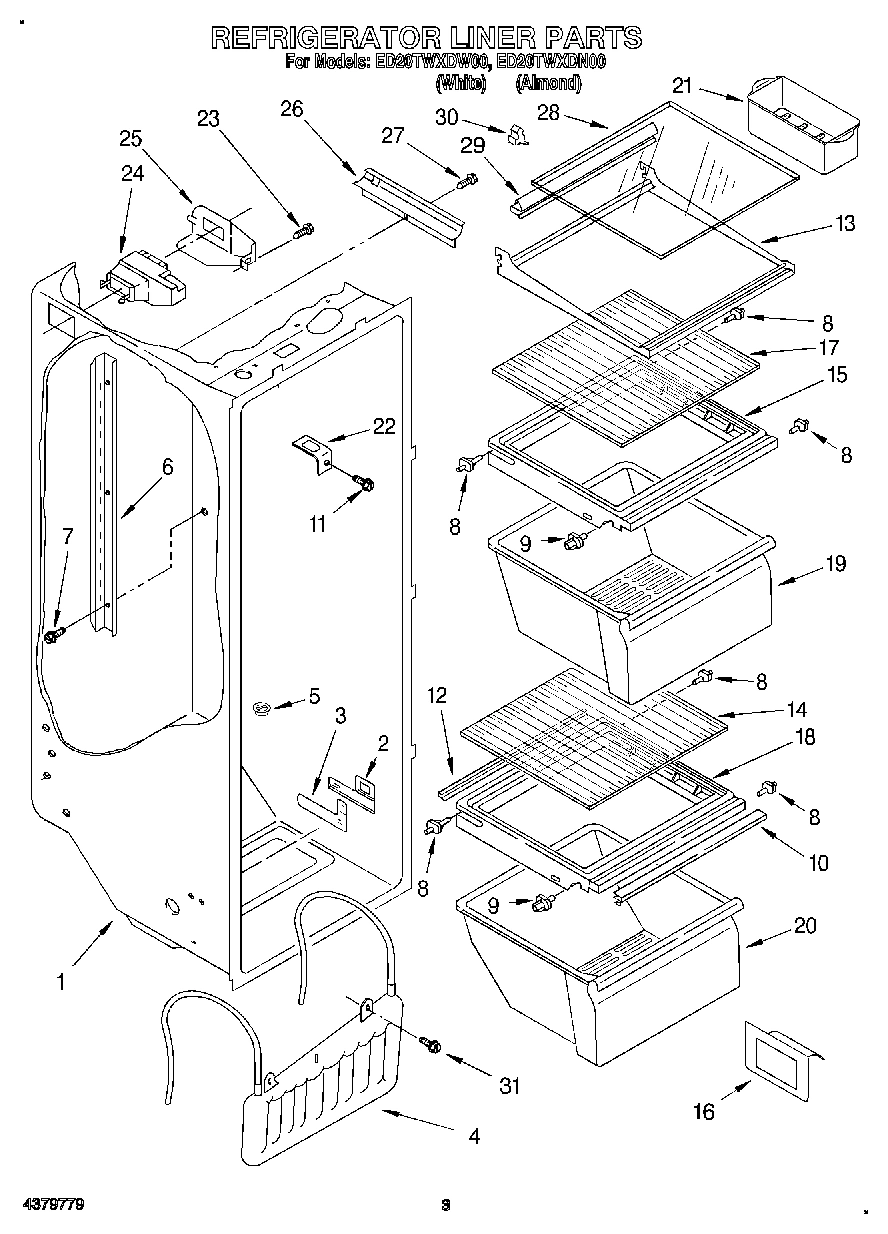

02 - REFRIGERATOR LINER

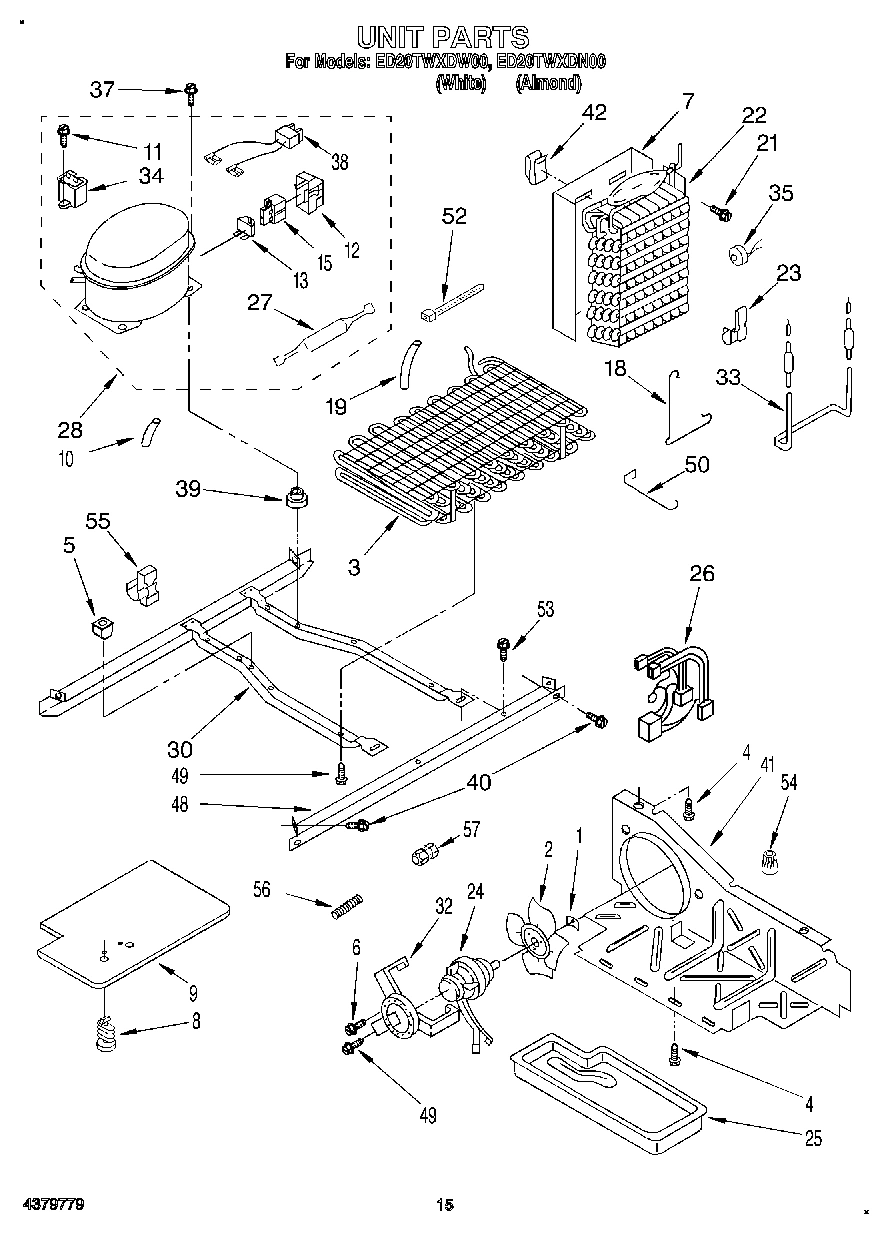

10 - UNIT

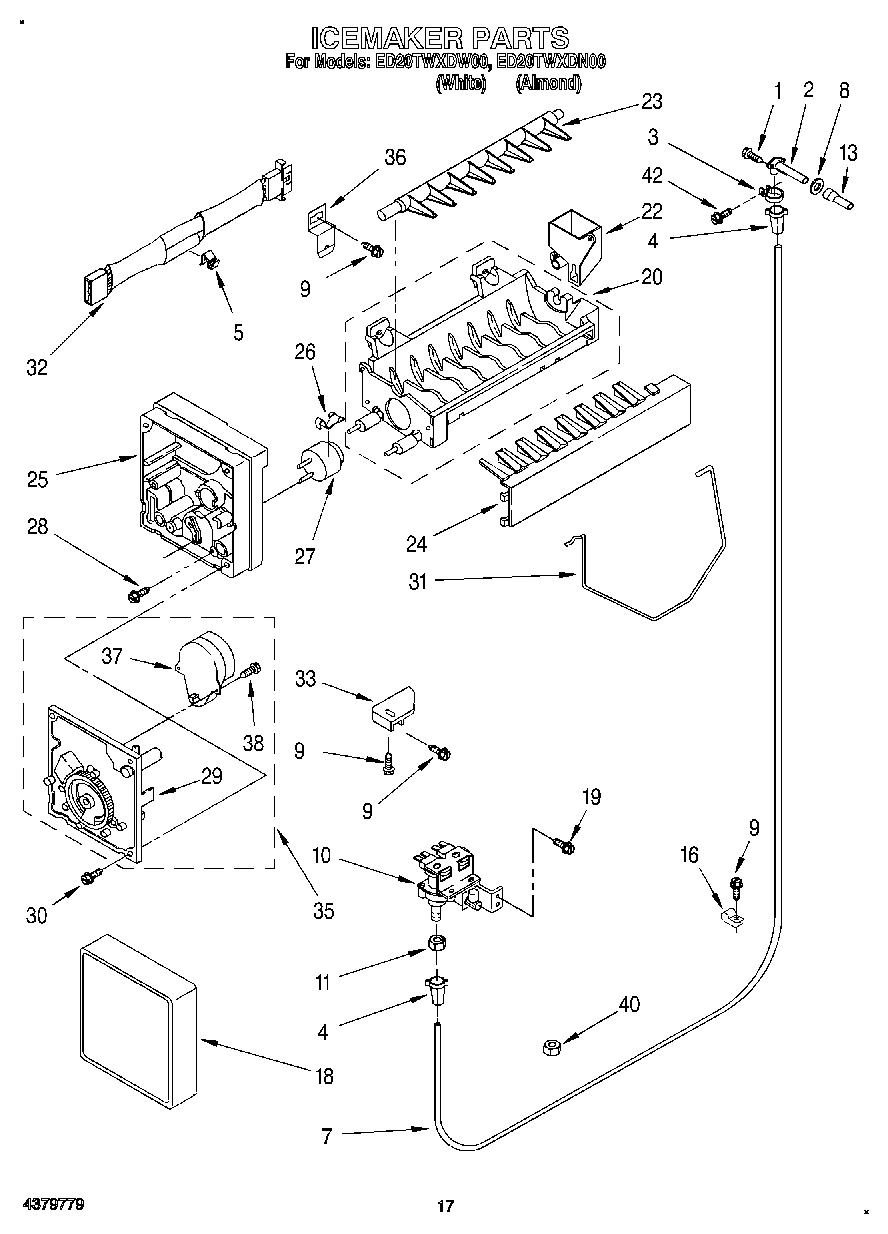

11 - ICEMAKER, LIT/OPTIONAL

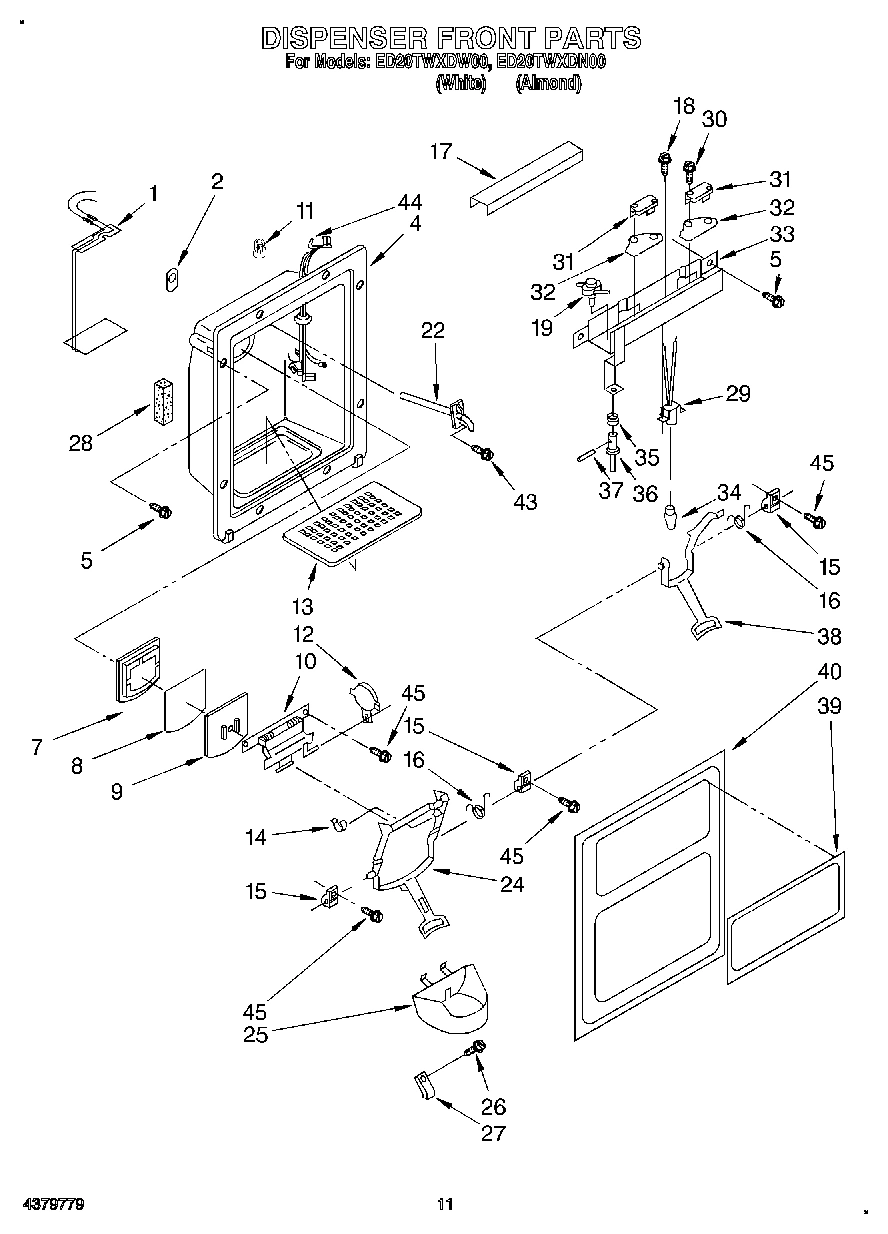

07 - DISPENSER FRONT

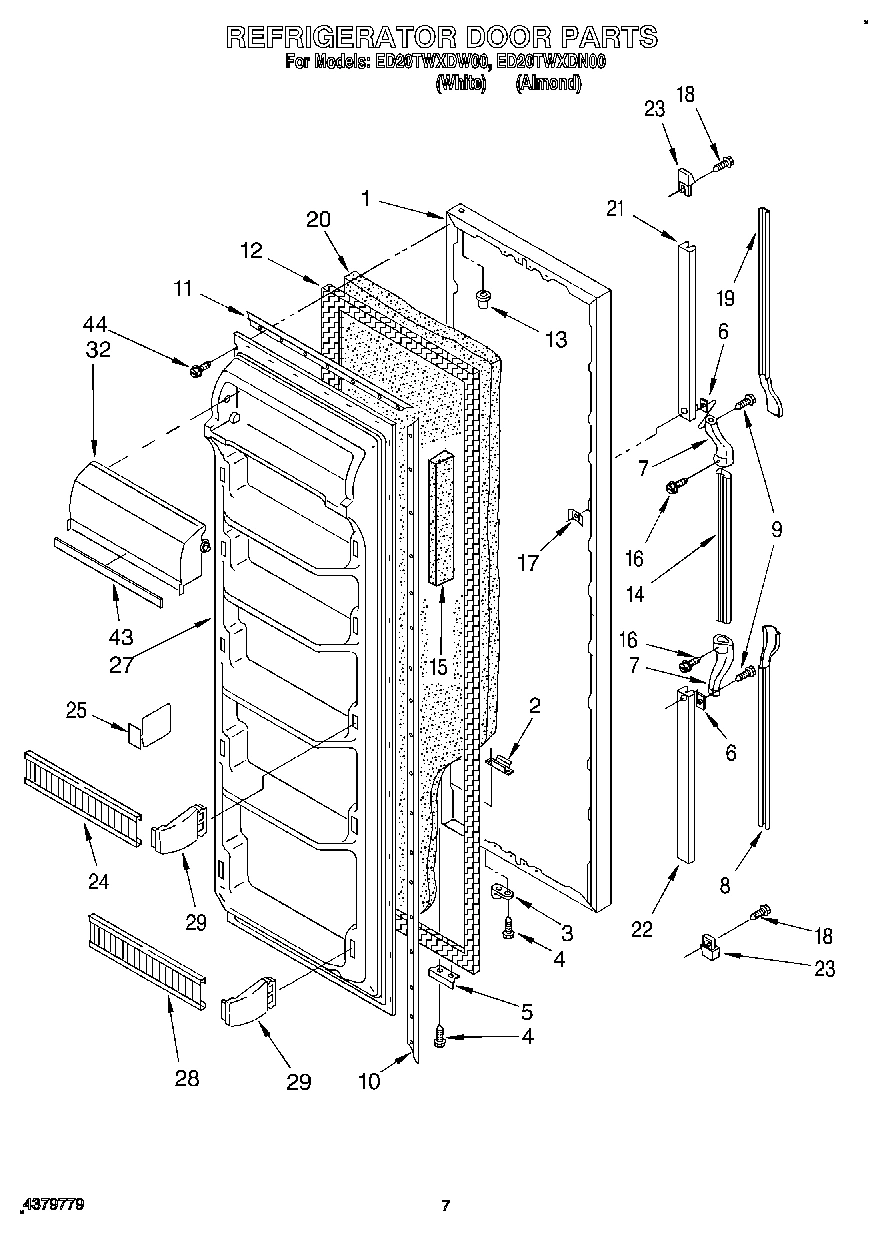

05 - REFRIGERATOR DOOR

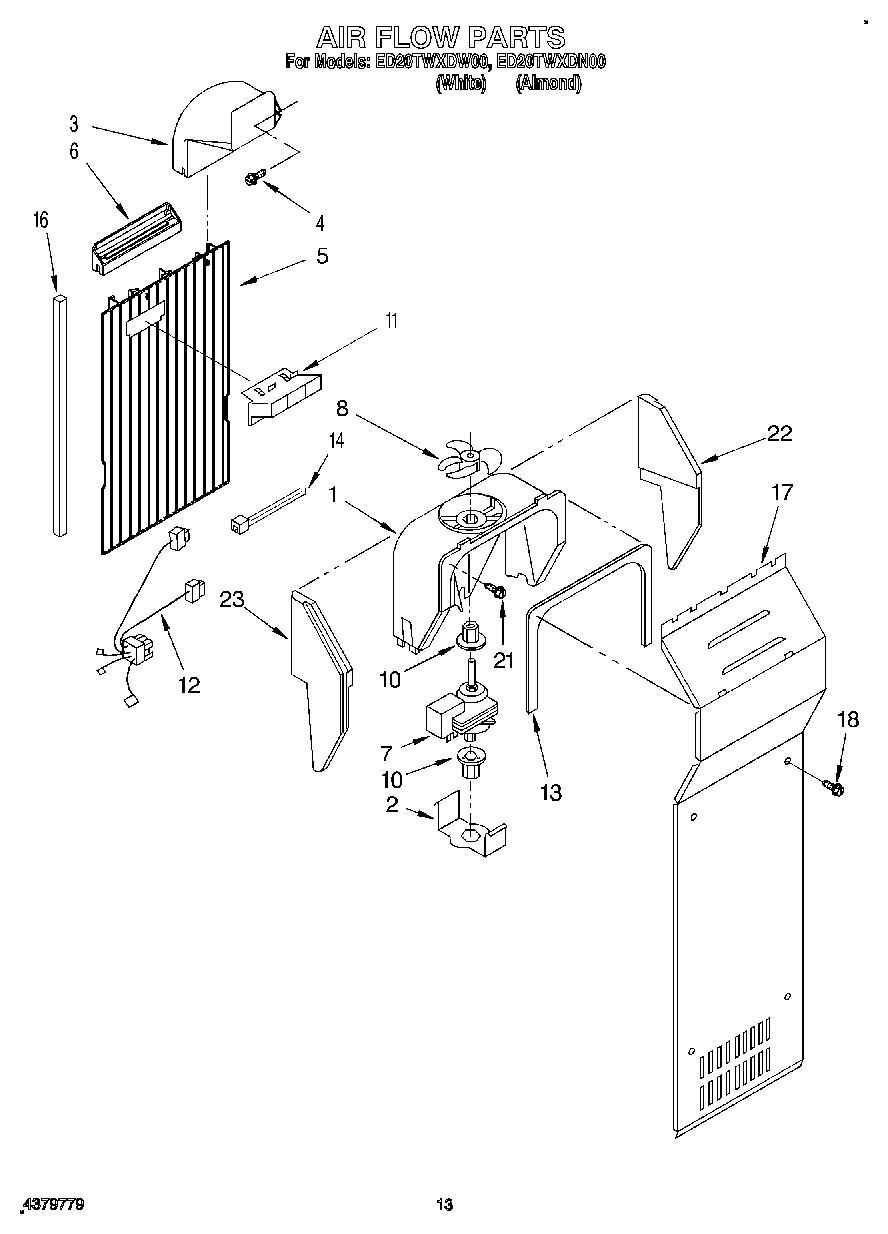

08 - AIR FLOW

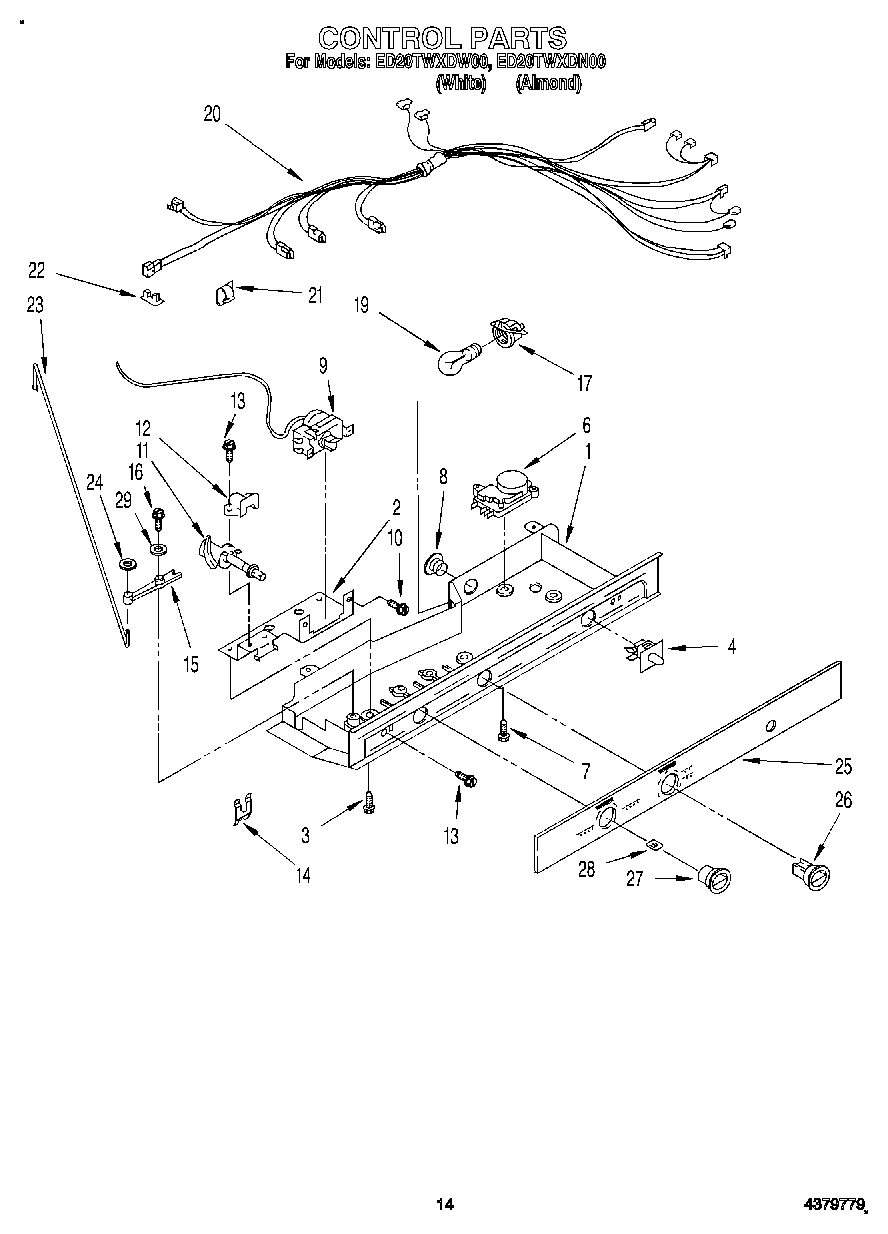

09 - CONTROL
Common parts from model Whirlpool ED20TWXDW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2179910 WPL LIT2179910 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT2182519 WPL LIT2182519 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26030A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26029A5 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
5
Bracket, Door Stop WPL 2155332 Contact Us For Availability
6
Shelf Ladder (2) WPL 2171995 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
End Cap (2) WPL 1119359 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (1) WPL 2163612 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
8
Insert, Bottom (White) WPL 1119361 Contact Us For Availability
8
Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
10
Gasket, Front WPL 2174442 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Gasket, Rear WPL 2174483 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Handle, Center (White) WPL 1124713 Contact Us For Availability
14
Handle, Center (Almond) WPL 943079 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI26031A1 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Insert, Top (White) WPL 1119367 Contact Us For Availability
19
Insert, Top (Almond) WPL 1119369 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
28
Glass, Shelf WPL 2175955 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Reflector WPL 2170621 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Door, Compartment WPL 2174901 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Capacitor WPL 2169137 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2171495 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175844 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2177169 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2177171 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Trim, Door Compartment WPL 2162896 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
Clip, Wire WPL 2155658 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
