Model Whirlpool ED20TWXDN02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
10 - UNIT
11 - ICEMAKER, LIT/OPTIONAL

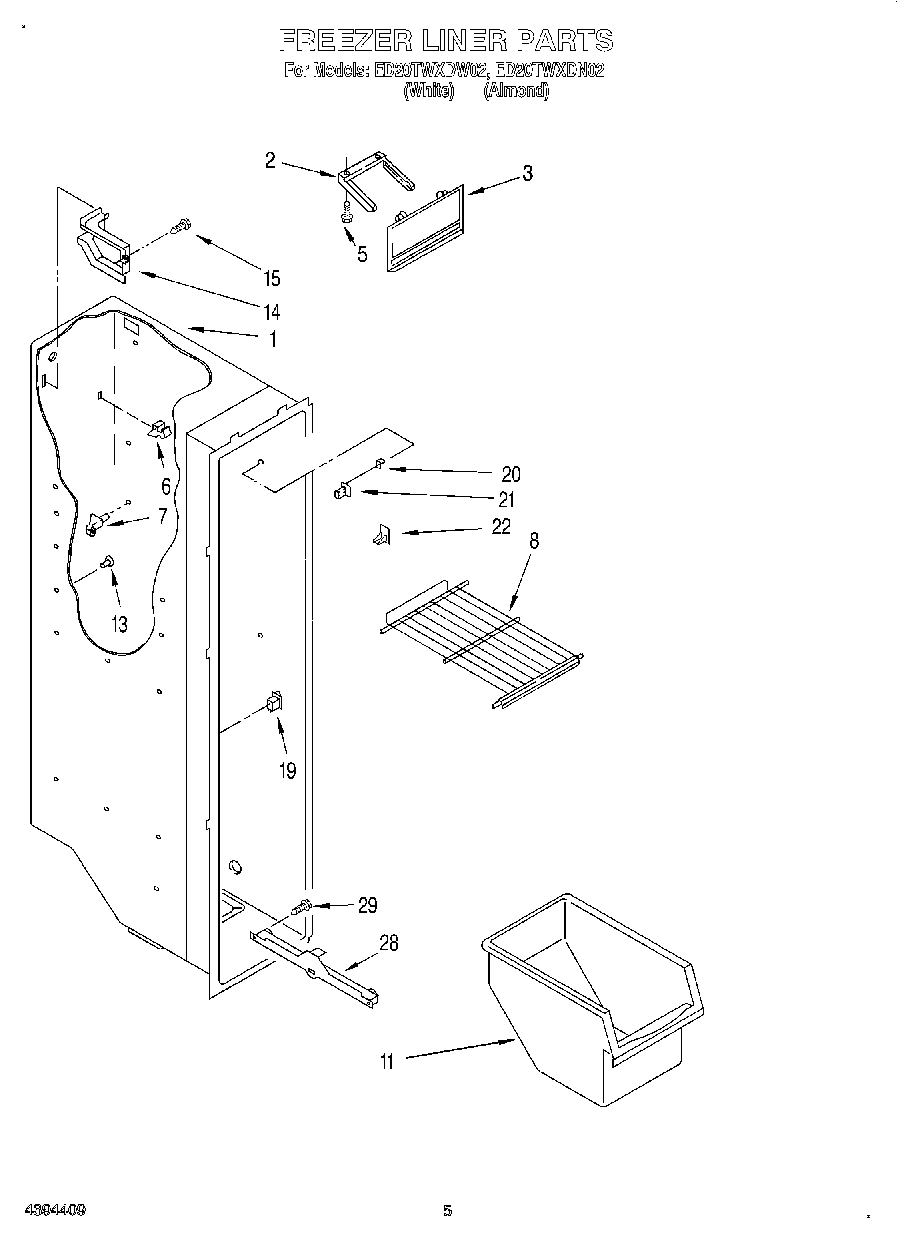

03 - FREEZER LINER

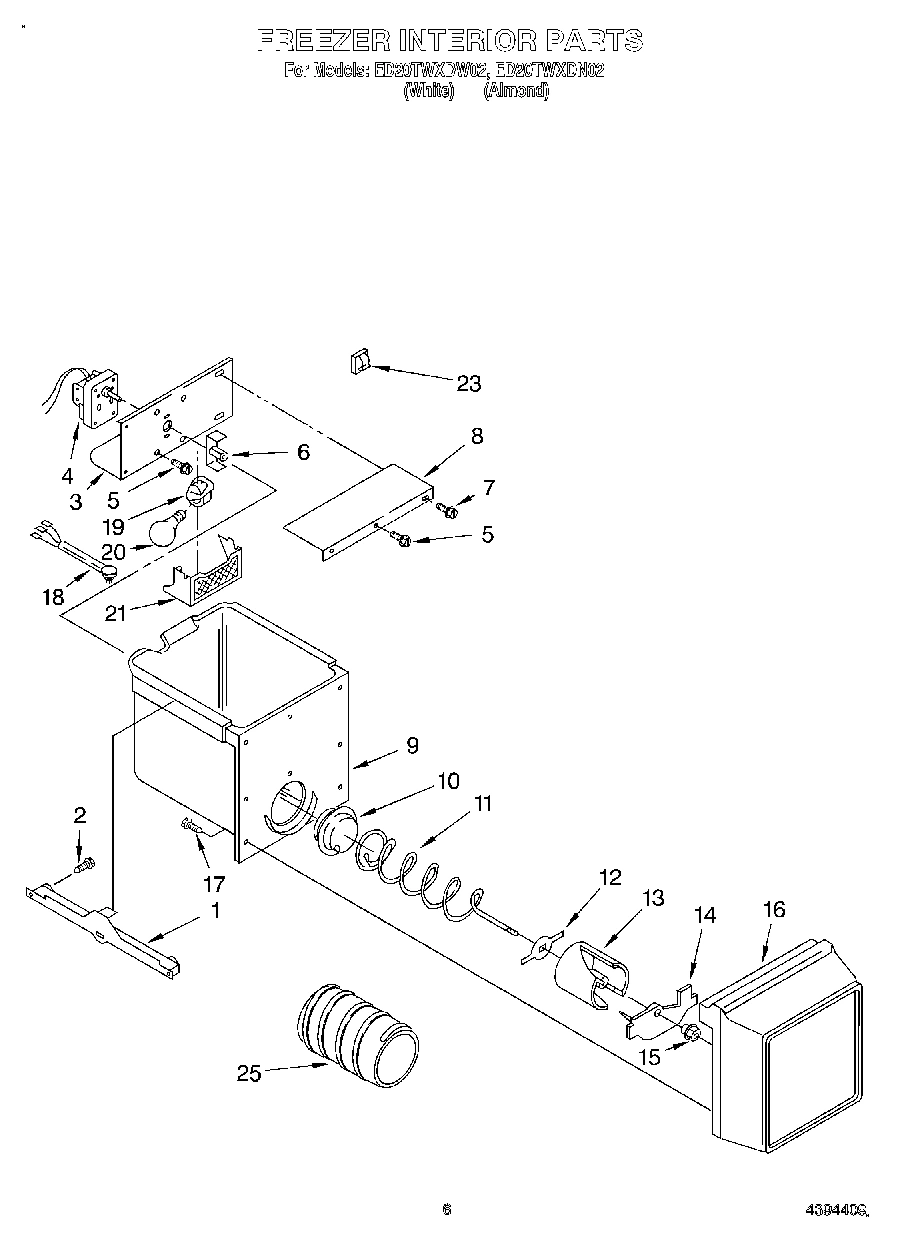

04 - FREEZER INTERIOR

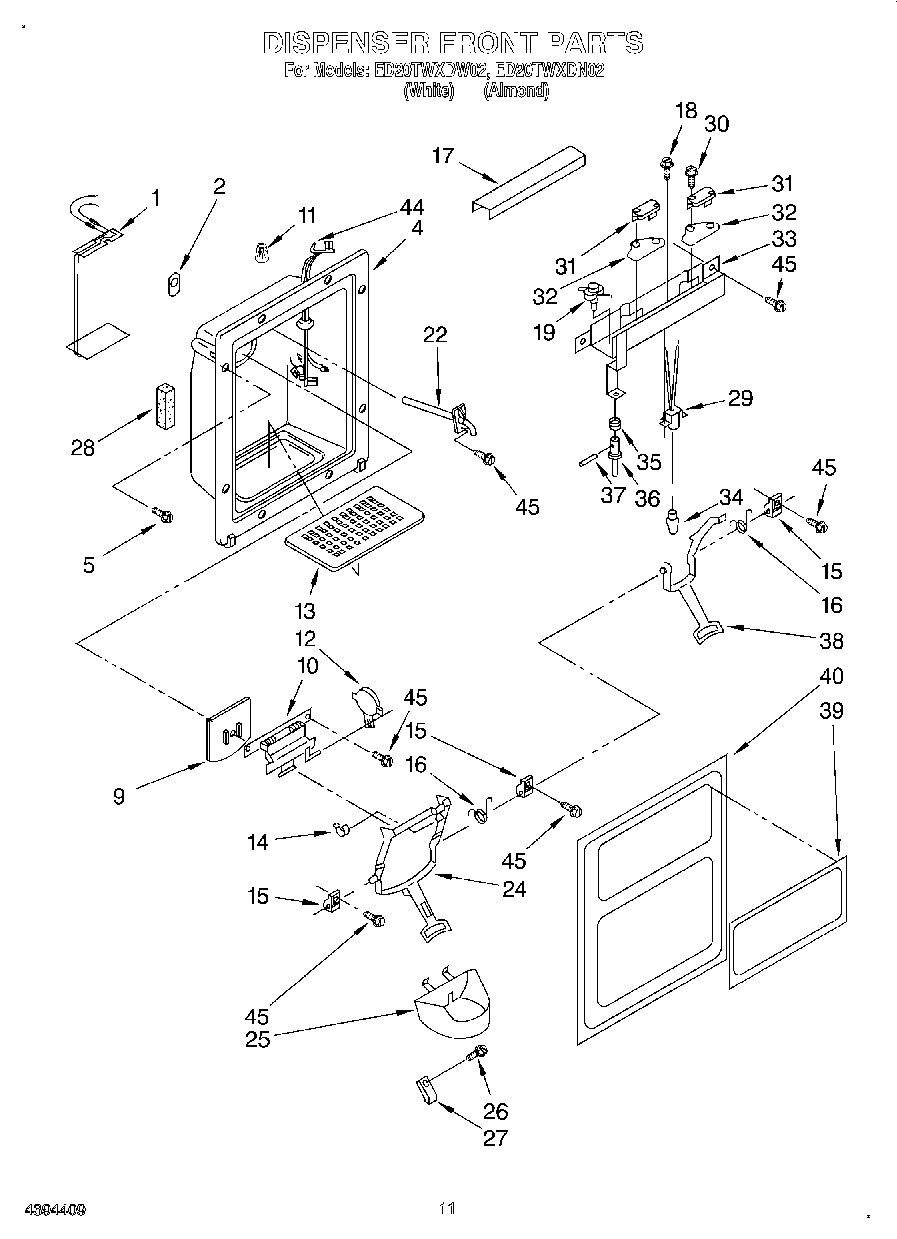

07 - DISPENSER FRONT

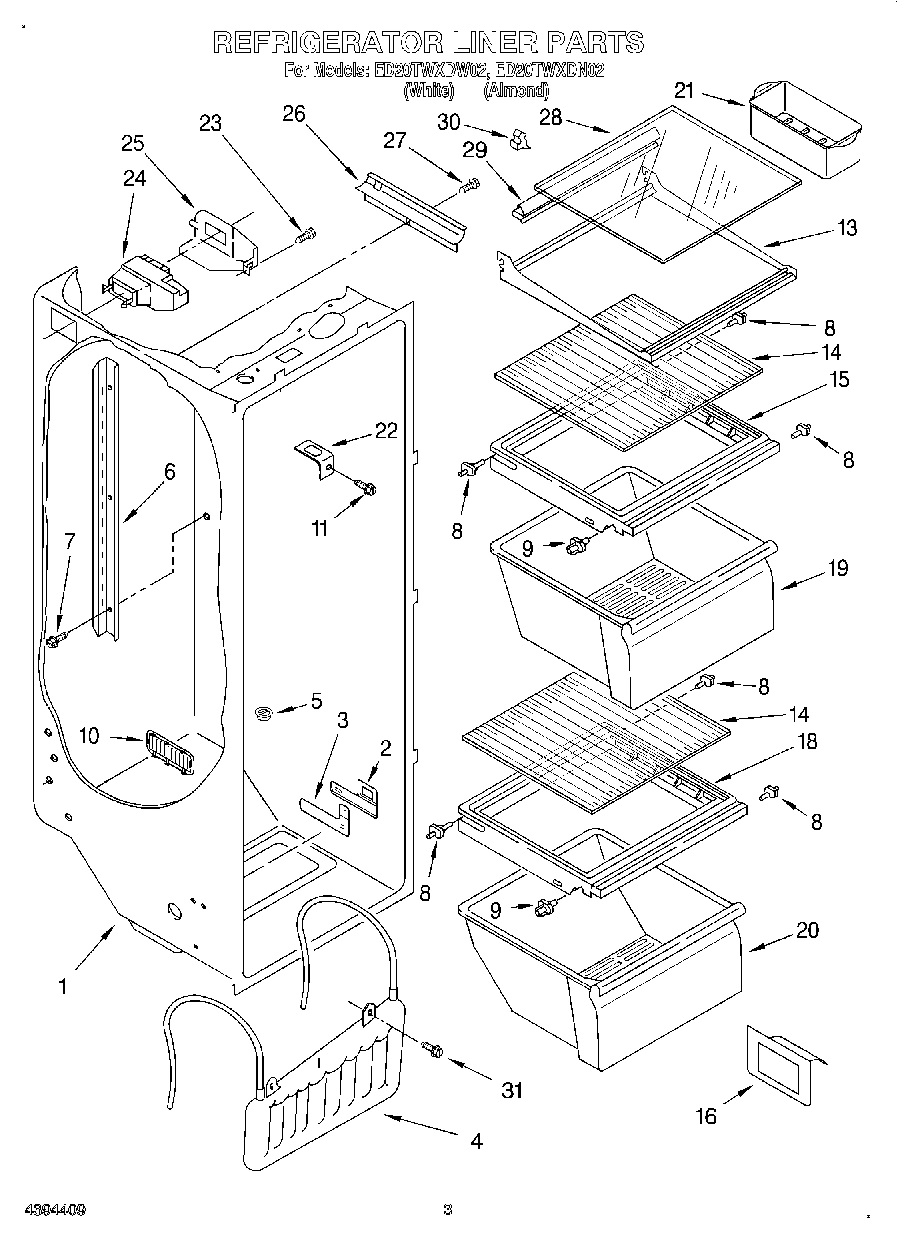

02 - REFRIGERATOR LINER

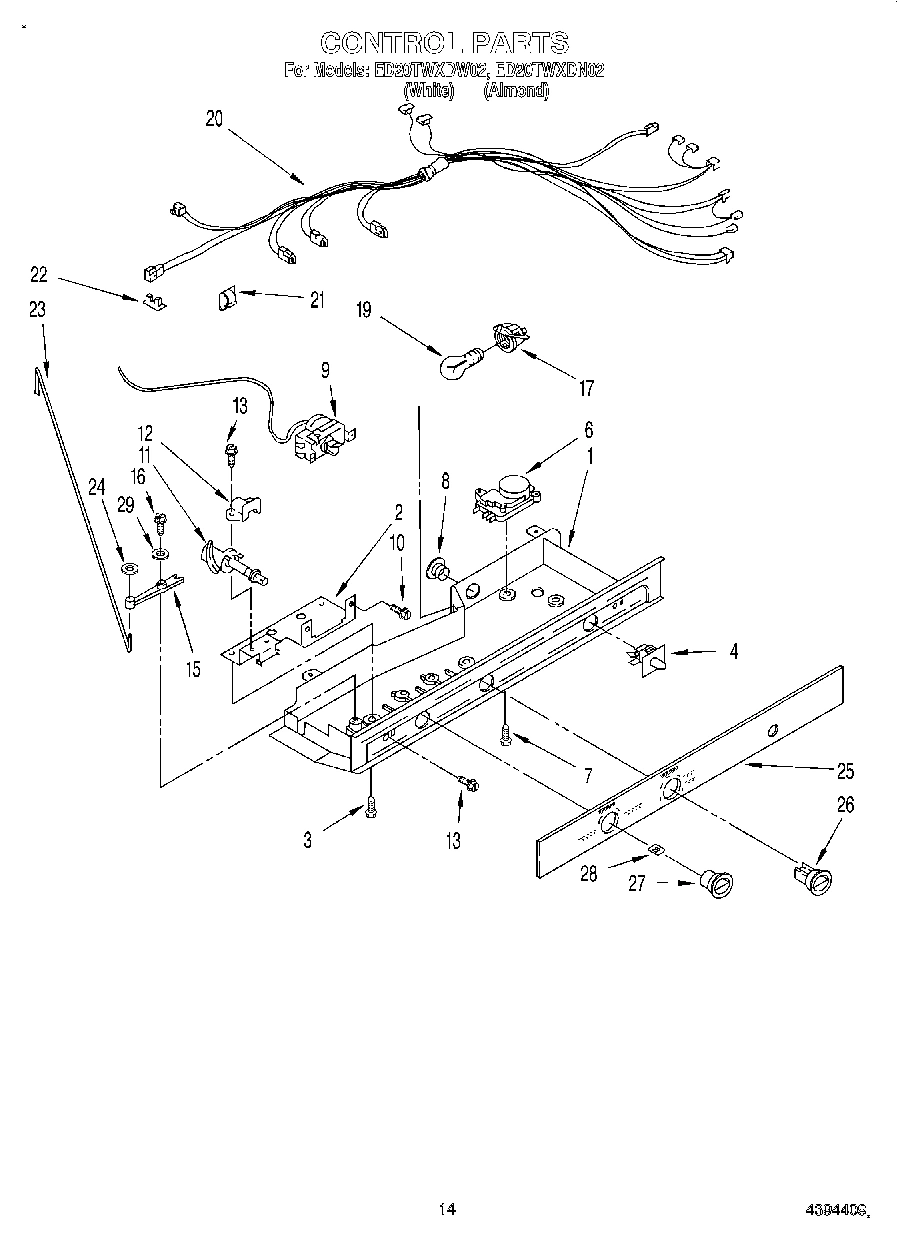

09 - CONTROL

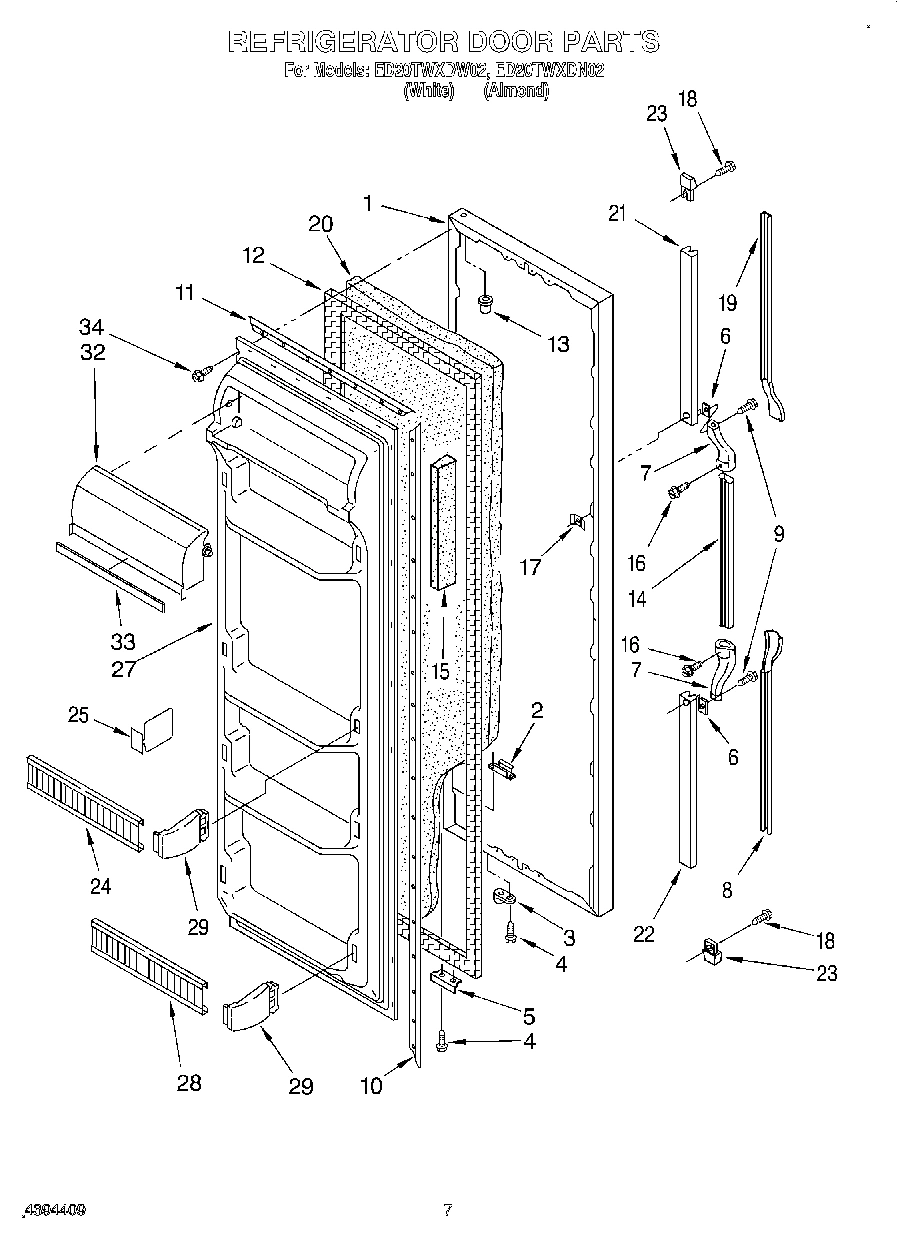

05 - REFRIGERATOR DOOR

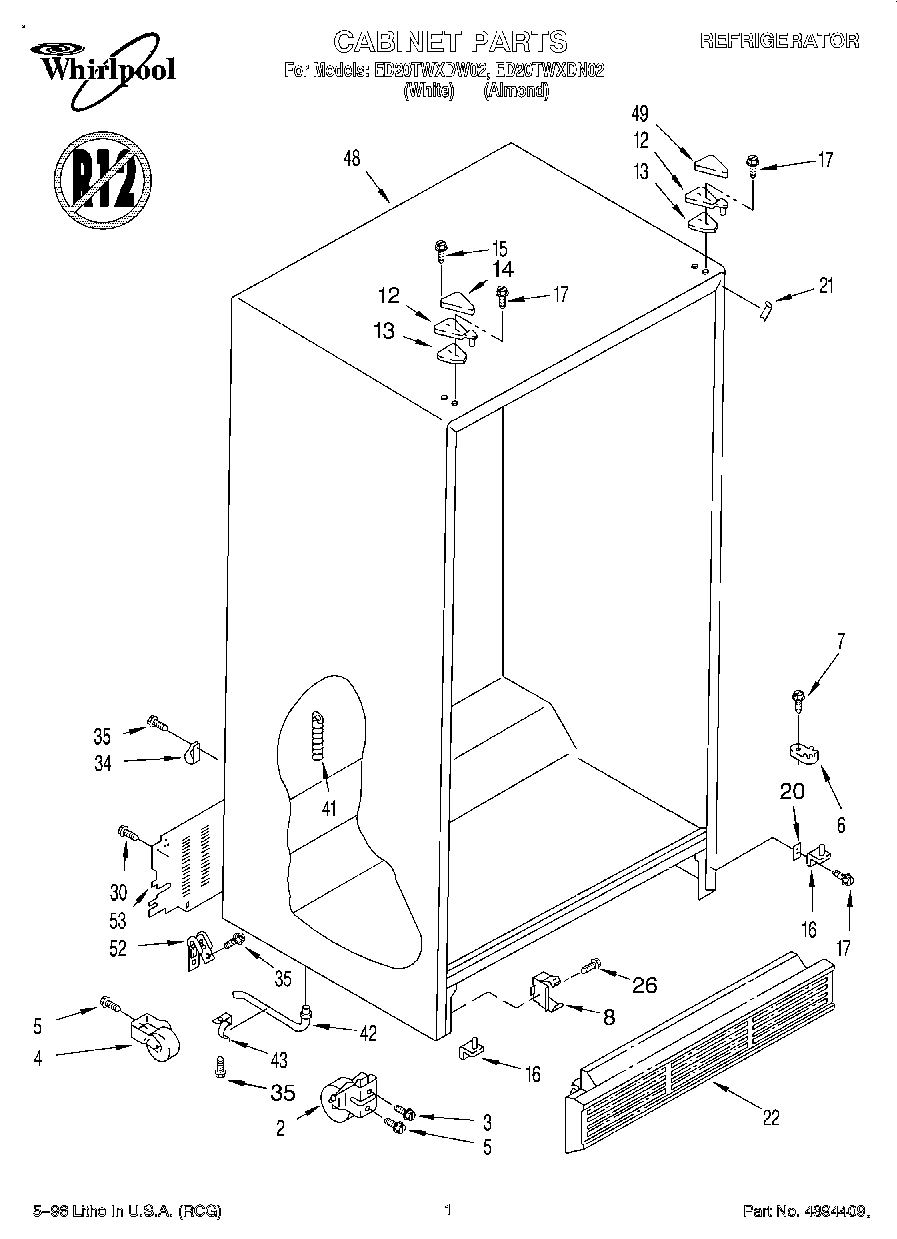

01 - CABINET

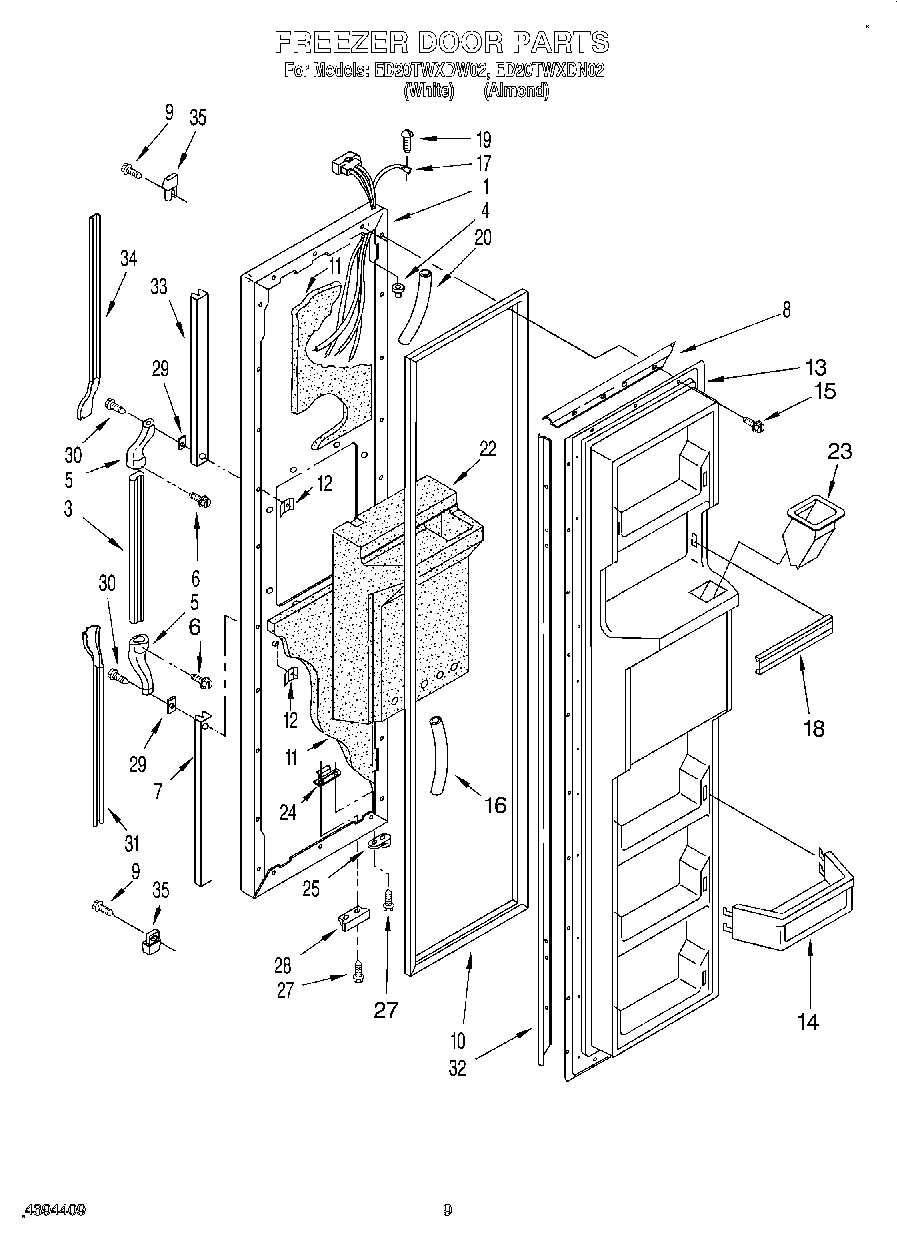

06 - FREEZER DOOR

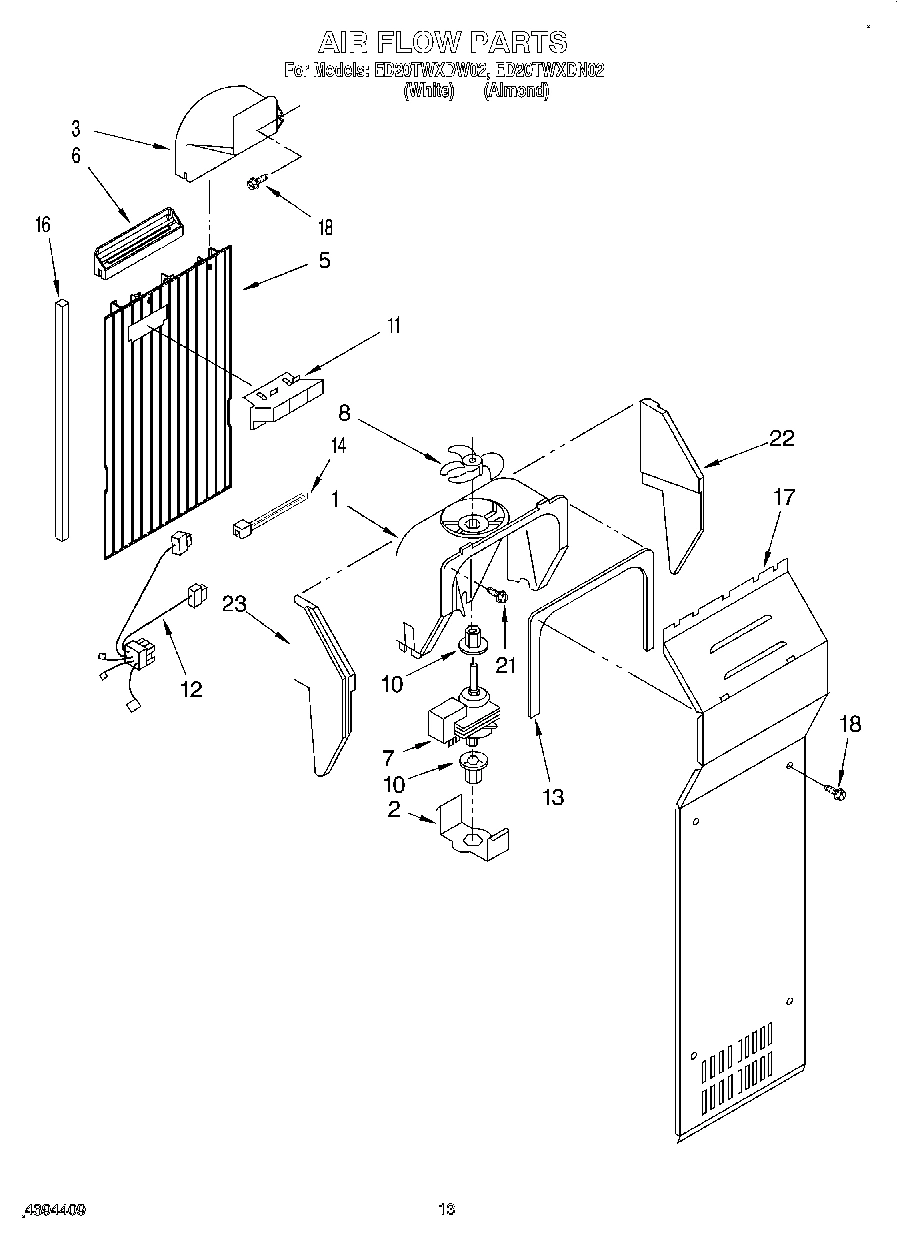

08 - AIRFLOW
Common parts from model Whirlpool ED20TWXDN02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26025A9 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362041 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Handle (White) WPL 1124713 Contact Us For Availability
3
Handle (Almond) WPL 943079 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
End Cap WPL 1119359 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Screw WPL 489022 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
Louver WPL 1127161 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2170705 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Screw WPL 489284 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Harness, Door WPL 2179915 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Trim, Door Shelf WPL 2170582 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Knob, Air Control WPL 2182110 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Glass, Shelf WPL 2175955 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Reflector WPL 2170621 Contact Us For Availability
29
Shim WPL 935075 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
31
Insert, Bottom (White) WPL 1119361 Contact Us For Availability
31
Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
33
Trim, Door Compartment WPL 2162896 Contact Us For Availability
34
Insert, Top (White) WPL 1119367 Contact Us For Availability
34
Insert, Top (Almond) WPL 1119369 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
End Cap WPL 2156220 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2171495 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175844 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2177169 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2177171 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI26024A1 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
