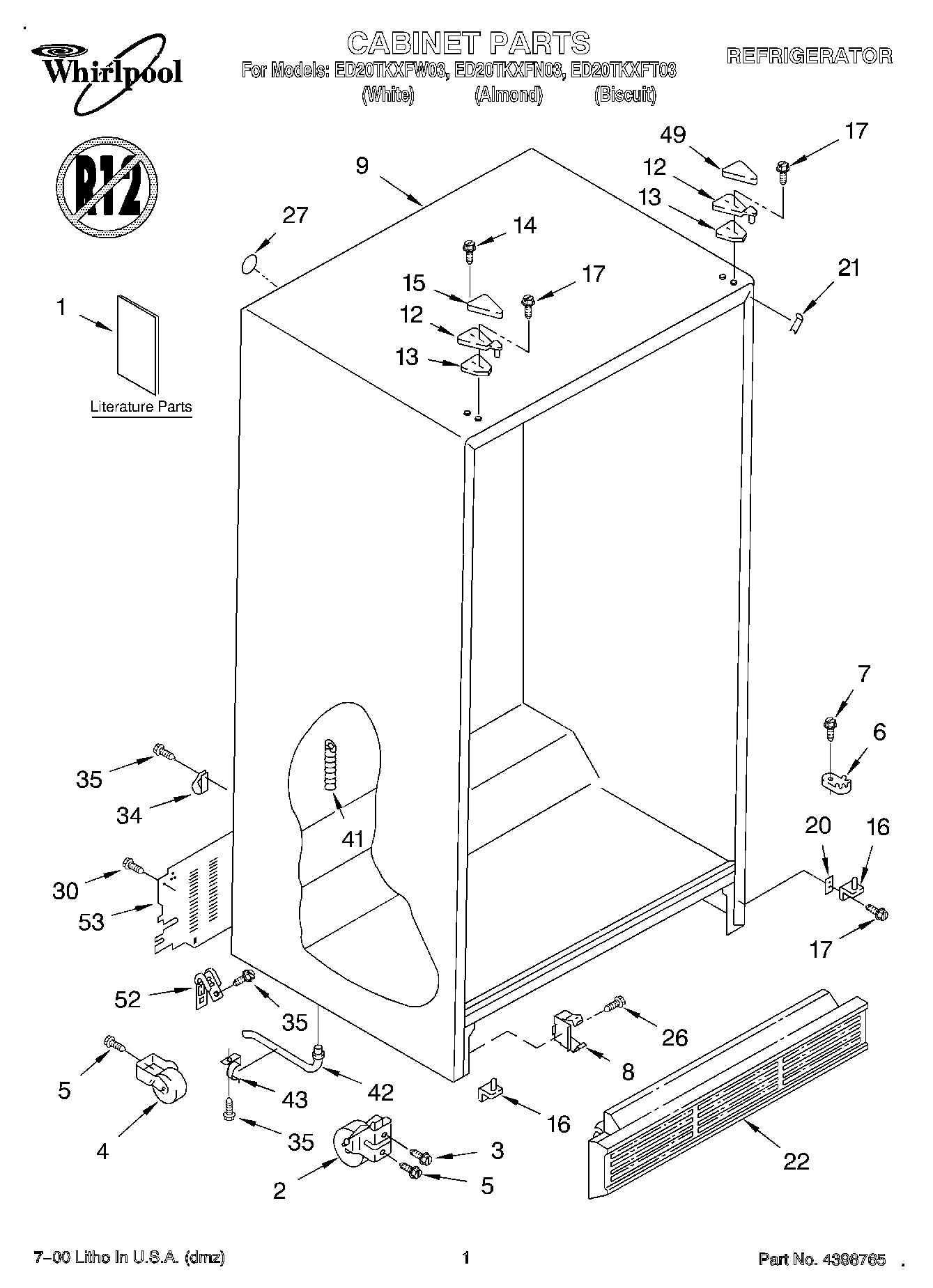

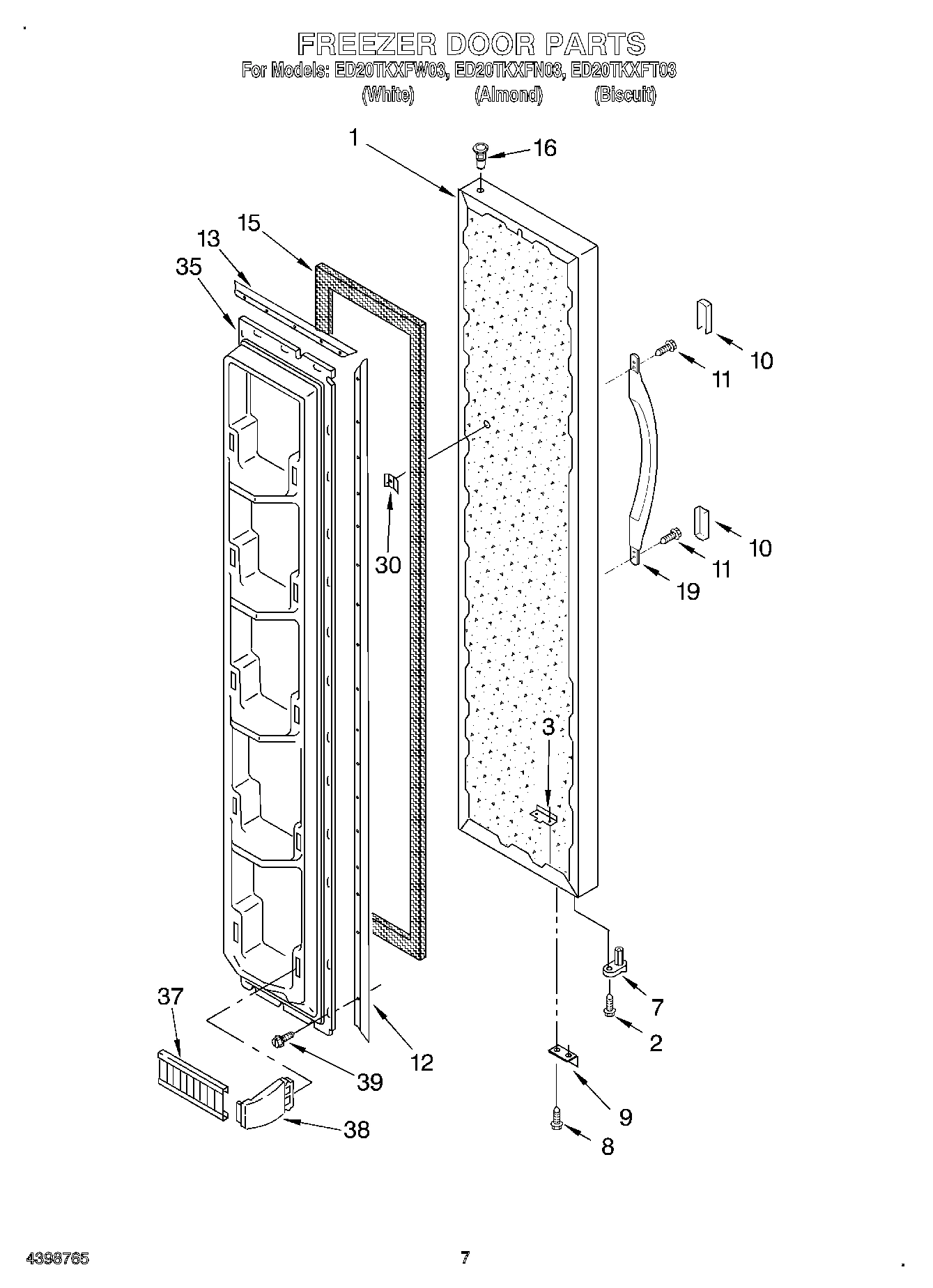

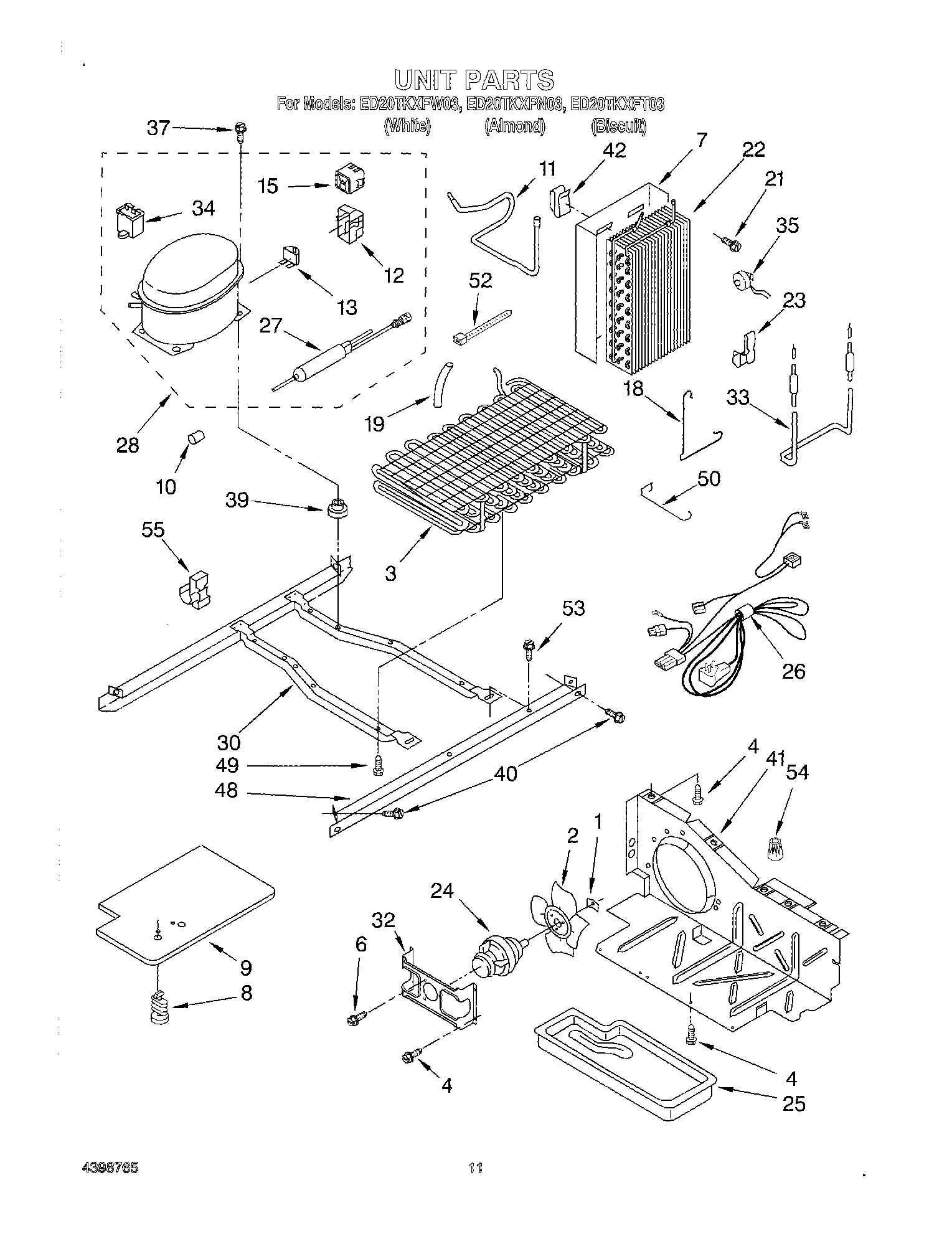

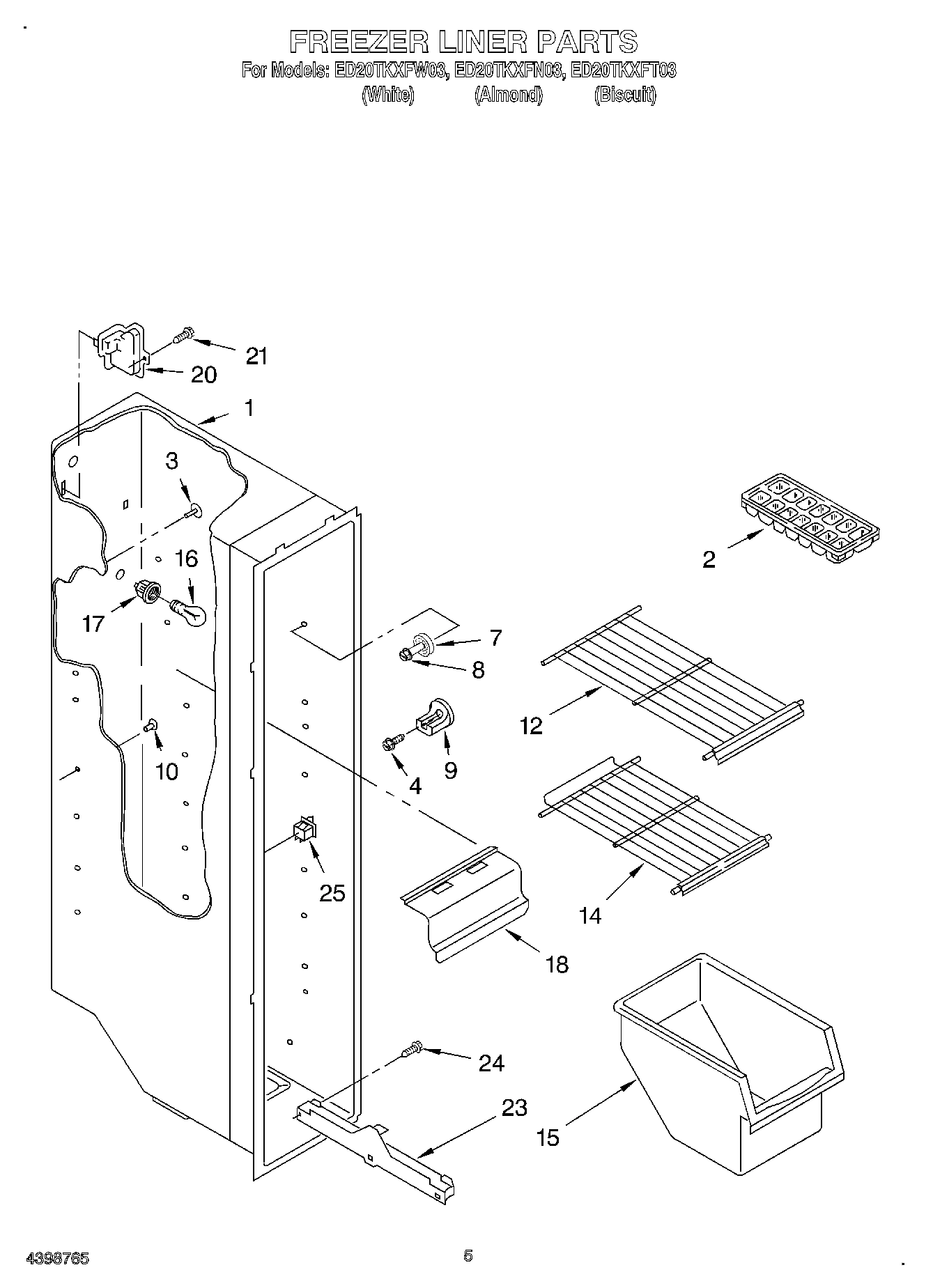

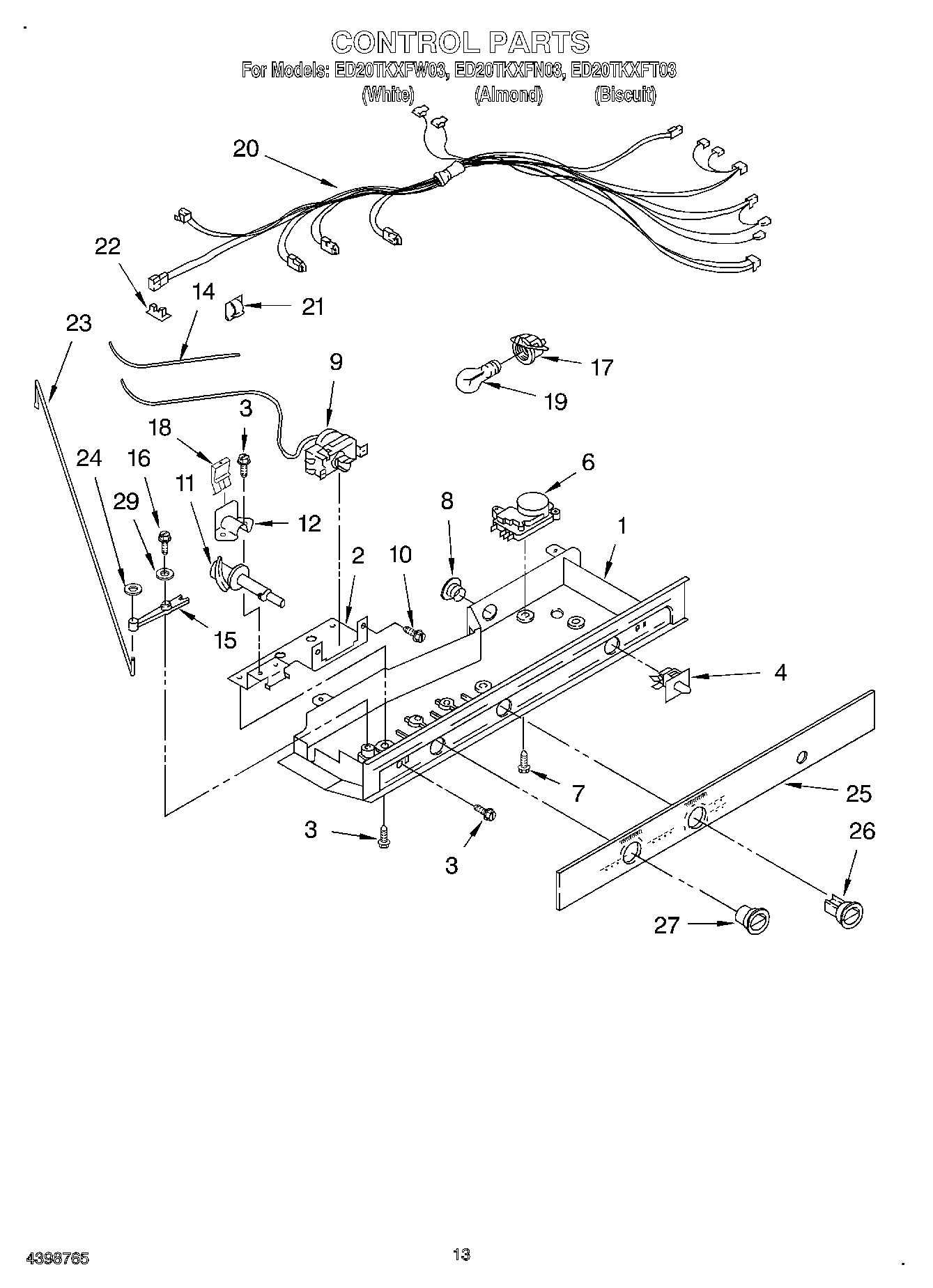

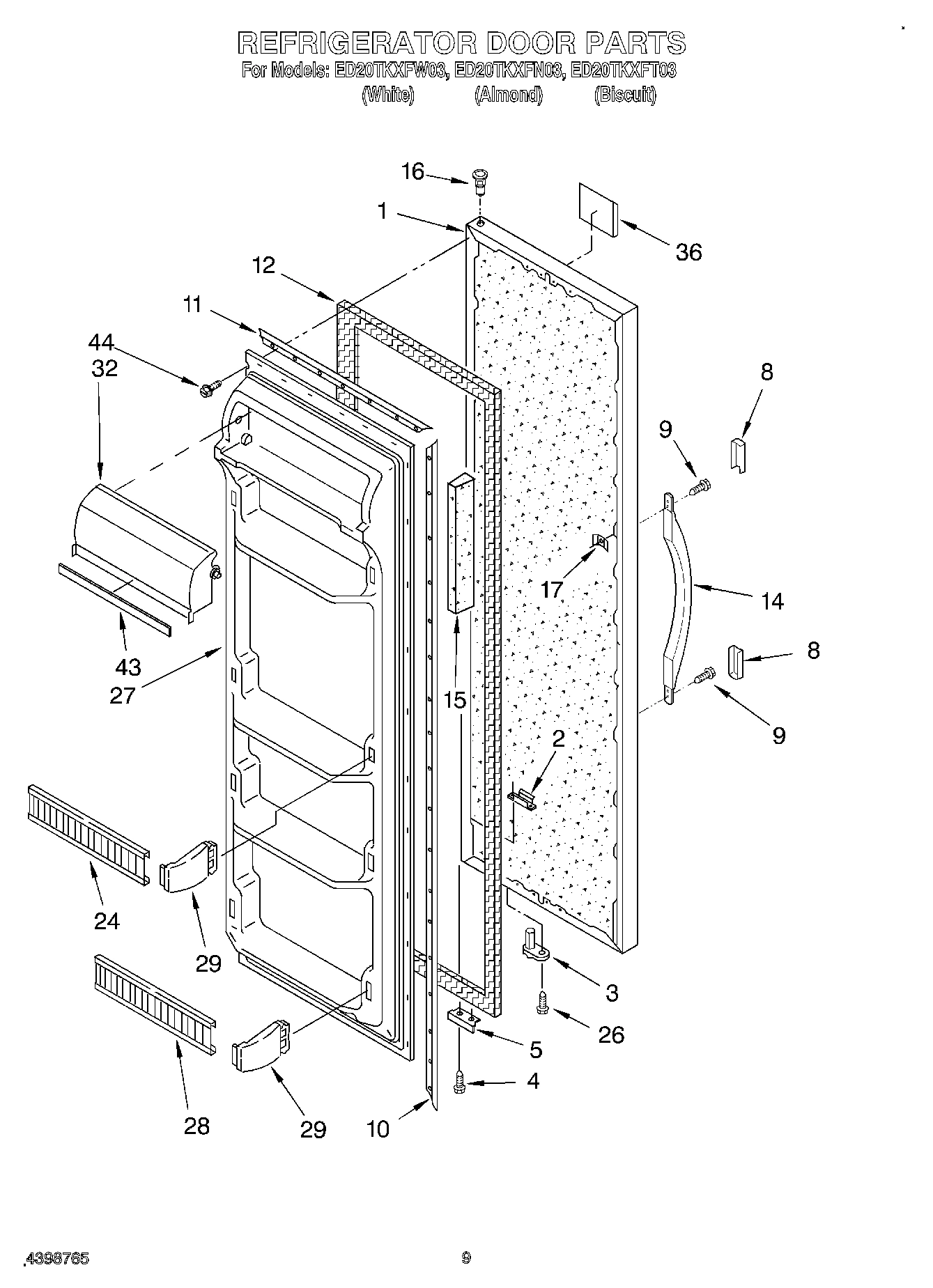

Model Whirlpool ED20TKXFN03 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI25892A2 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2186934 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2205958 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2211845 Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $4.74

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

Bracket, Door Stop WPL 2195950 Contact Us For Availability

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $18.14

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

9

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

9

Stud, Rear WPL 2196207 Contact Us For Availability

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

9

Cabinet (Not A Serviceable Part) WPL ARI25890A1 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $4.52

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (10) WPL 2176134 Contact Us For Availability

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

Shelf WPL 2163612 Contact Us For Availability

13

Shim, Hinge (2) WPL 2196048 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Handle, Center (White) WPL 2186649W Contact Us For Availability

Shelf (1) WPL 2174269 Contact Us For Availability

Shelf (2) WPL 2174270 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Bin, Freezer WPL 2171707 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

17

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

17

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

17

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

18

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $28.09

18

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

18

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

20

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

20

Cover, Wiring WPL 2155401 Contact Us For Availability

20

Control Box Harness WPL 2206513 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Grille (Almond) WPL 2198469N Contact Us For Availability

Grille (Biscuit) WPL 2198469T Contact Us For Availability

Grille (White) WPL 2198469W Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

23

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

23

Connecting Rod WPL 1123959 Contact Us For Availability

24

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

25

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

26

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Hole Seal WPL 1129056 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $105.37

WP2196189 Whirlpool Shelf Retainer Bar Backorder WPL WP2196189 $5.31

WP2196190 Whirlpool Shelf Retainer Bar Suppor In Stock WPL WP2196190 $5.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

NLA:SCREW Backorder WPL WPW10141645 $3.70

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

34

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

37

Screw WPL 489387 Contact Us For Availability

38

WP2196100 Whirlpool Shelf Retainer Bar Suppor In Stock WPL WP2196100 $3.70

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

41

Air Baffle WPL 2196201 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
