Model Whirlpool DU9903XL1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

Panel, L.S. WPL ARI24915A8 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Lev WPL 350941 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT303310 WPL LIT303310 Contact Us For Availability

WPL LIT303551 WPL LIT303551 Contact Us For Availability

WPL LIT303717 WPL LIT303717 Contact Us For Availability

WPL LIT303817 WPL LIT303817 Contact Us For Availability

WPL LIT304157 WPL LIT304157 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

1

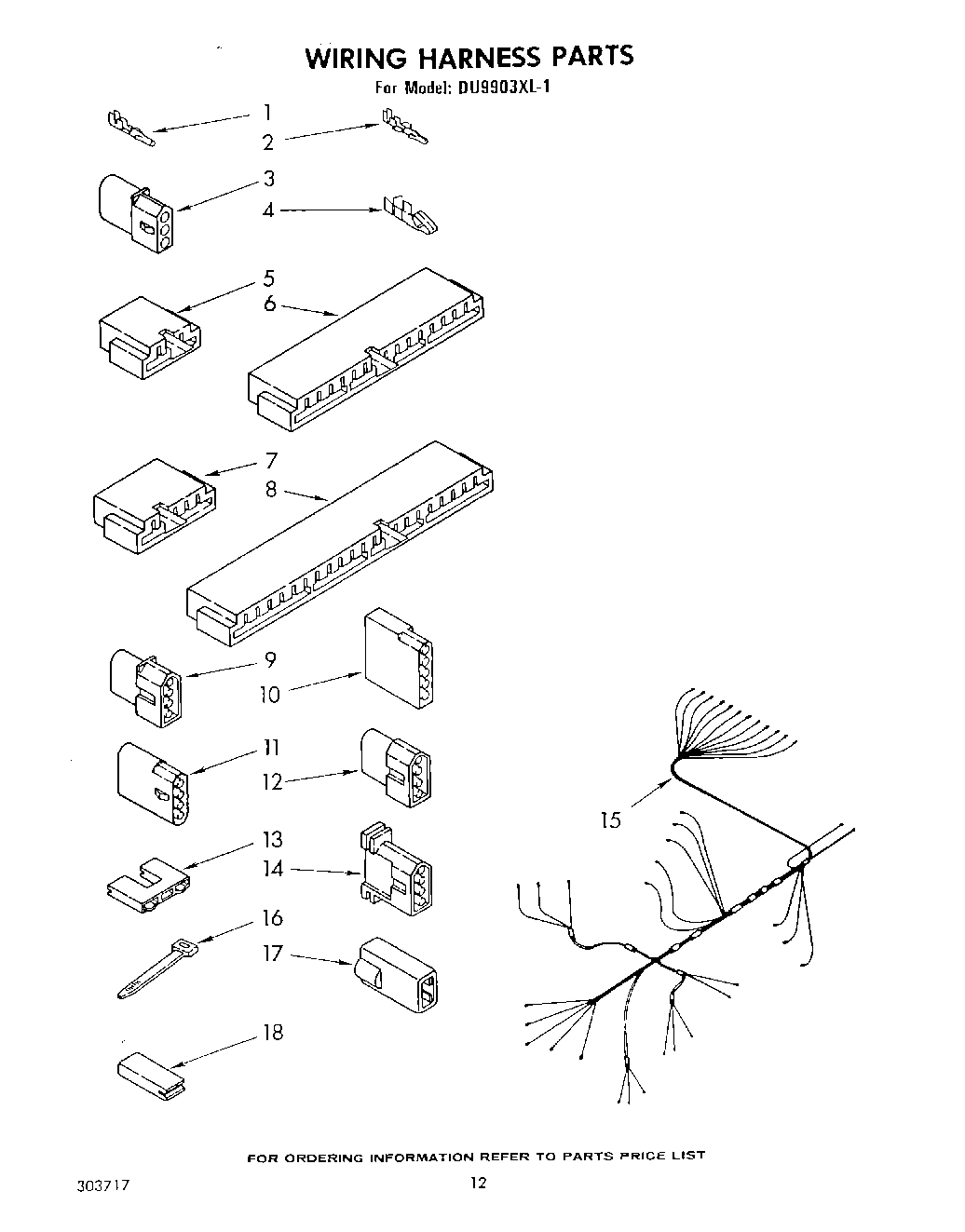

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Door, Inner (Includes Illus.4) WPL 303270 Contact Us For Availability

1

Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability

1

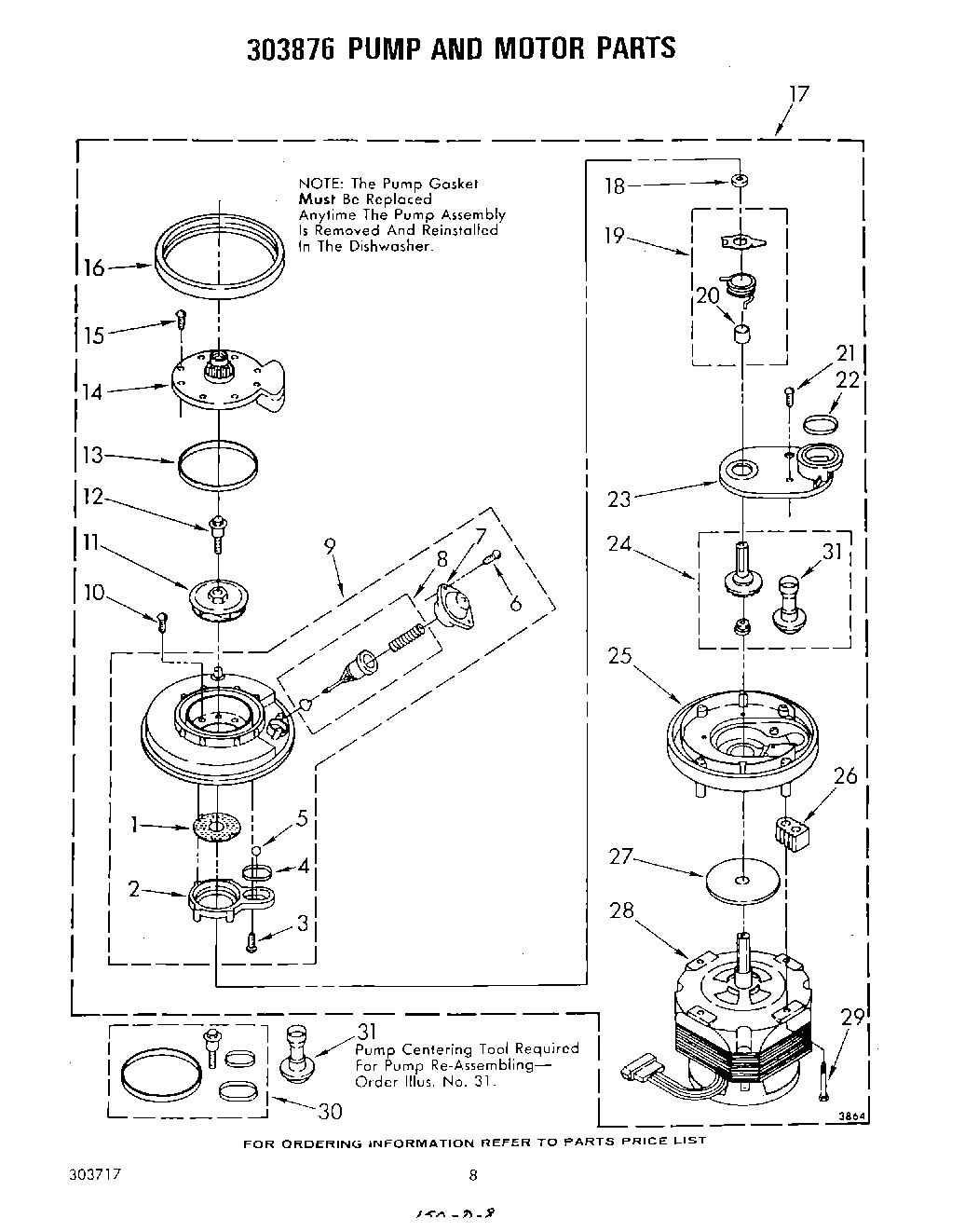

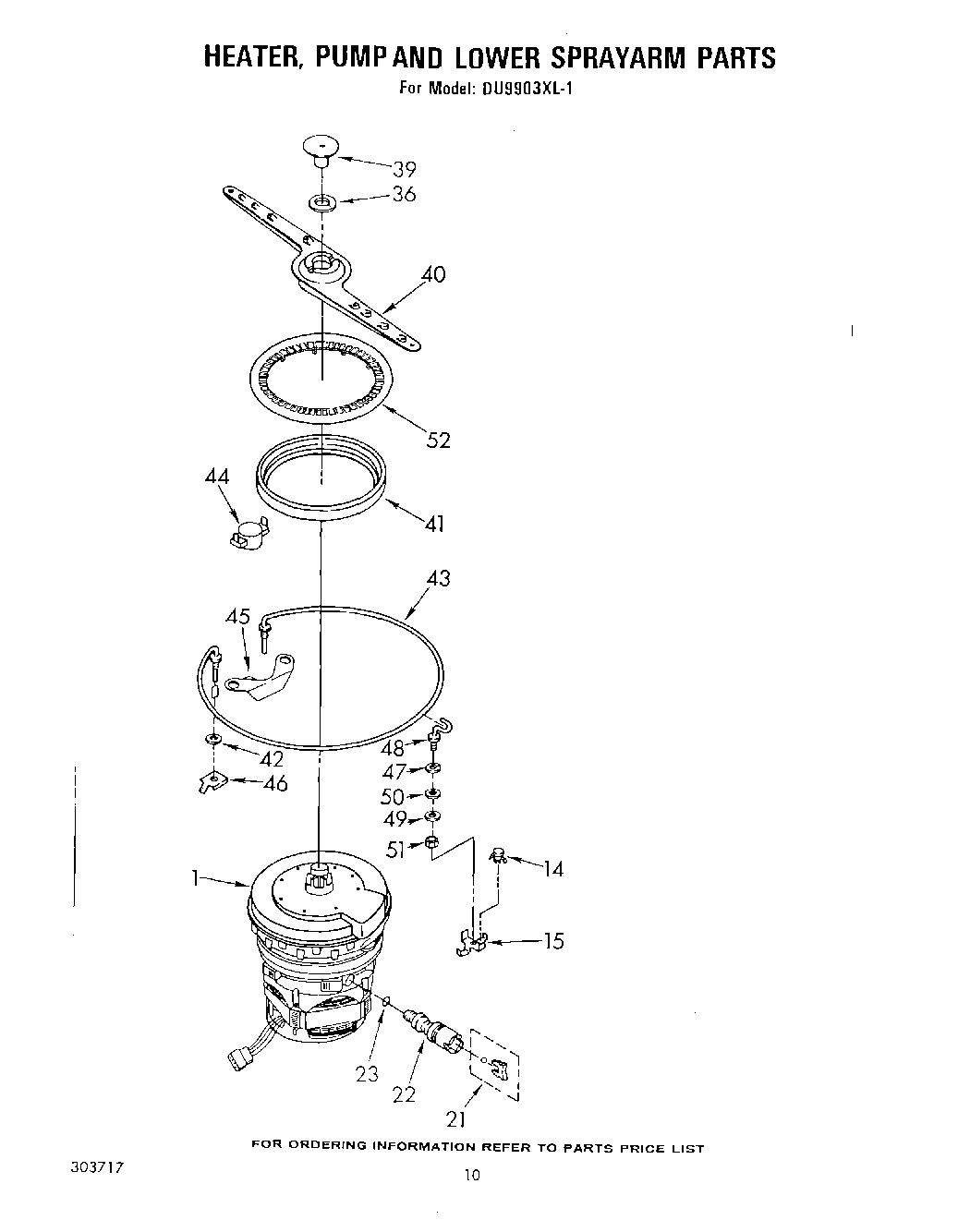

Pump & Motor Assembly (Includes Illus. 41) Fo WPL 303876 Contact Us For Availability

1

Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability

1

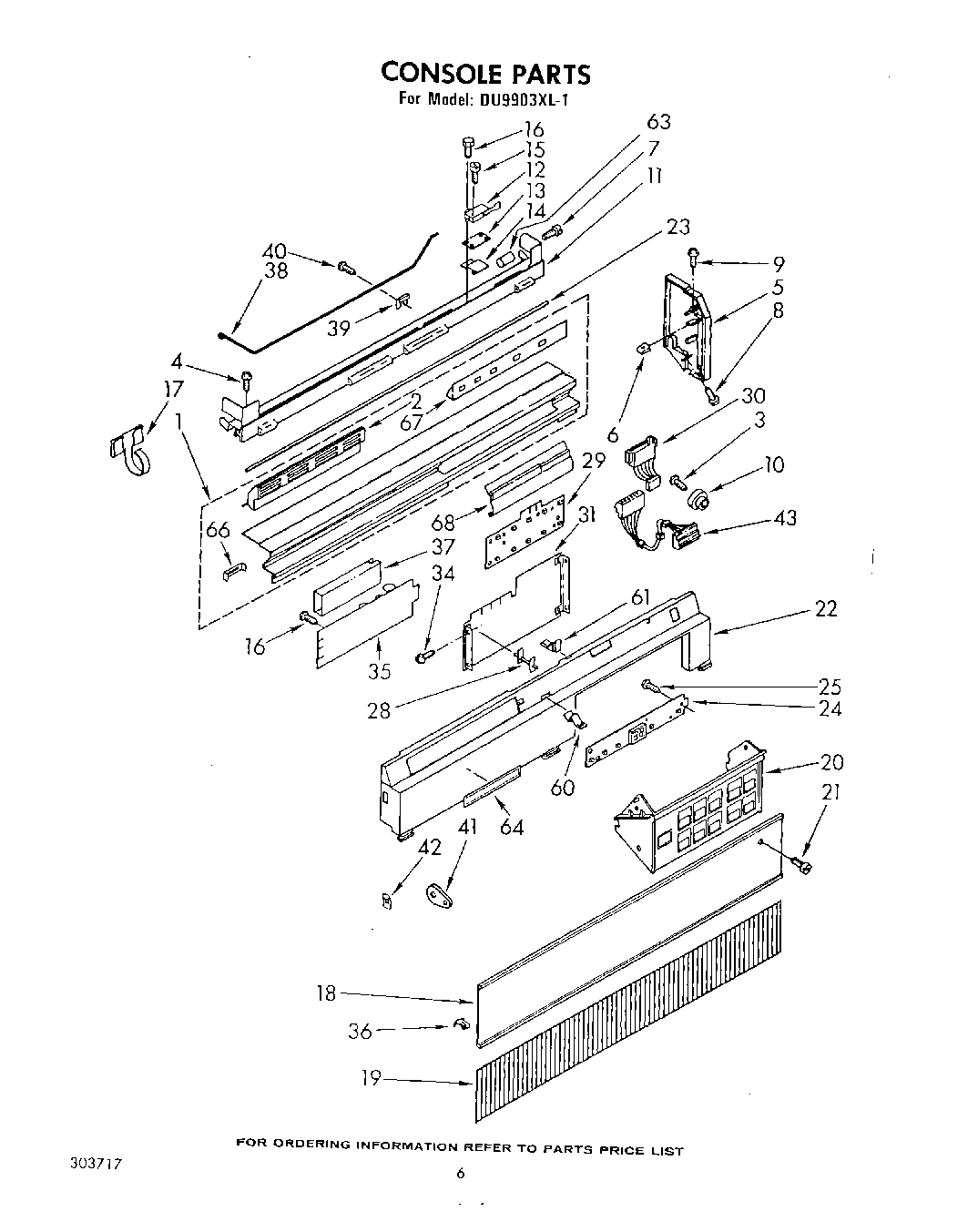

Bezel Assembly WPL 303275 Contact Us For Availability

2

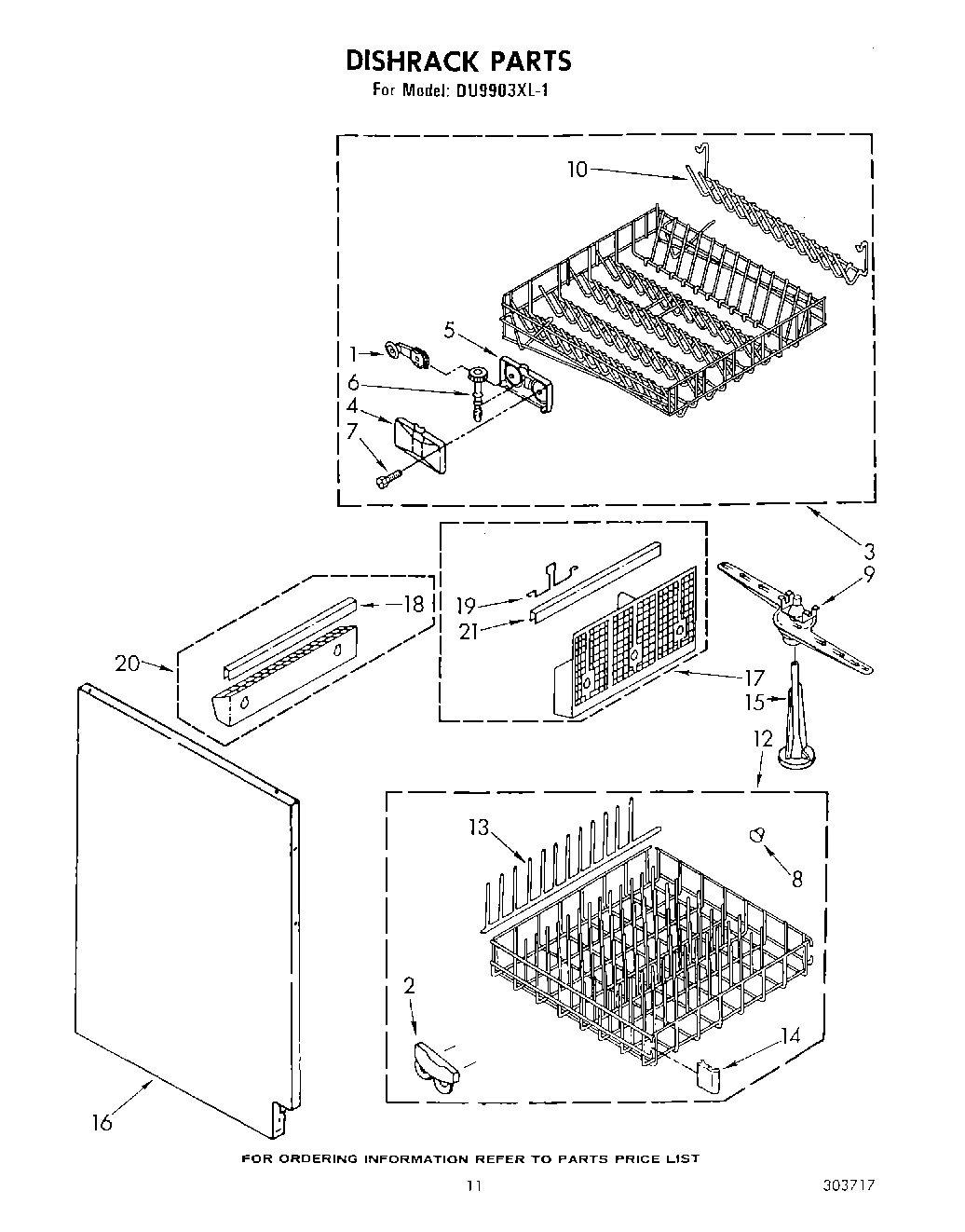

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $15.37

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability

2

Grille, Vent WPL 301878 Contact Us For Availability

3

353424 Whirlpool Connector Backorder WPL 353424 $10.76

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $142.90

3

Gasket, Door WPL 717921 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

Liner, Door WPL 303202 Contact Us For Availability

4

Cover, Housing (2) WPL 302029 Contact Us For Availability

4

Terminal WPL 60279 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $17.60

5

Ball, Check WPL 302709 Contact Us For Availability

5

Housing, Gear (2) WPL 302028 Contact Us For Availability

5

Connector (3-Circuit) WPL 60817 Contact Us For Availability

5

End Cap, R.H. WPL 302169 Contact Us For Availability

5

End Cap, L.H. WPL 302170 Contact Us For Availability

6

Button, Retainer (5) WPL 300239 Contact Us For Availability

6

Worm, Dishrack (2) WPL 302026 Contact Us For Availability

6

Connector (15-Circuit) WPL 60278 Contact Us For Availability

6

Clip, ``U`` Type (2) WPL 302267 Contact Us For Availability

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

7

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

7

Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability

7

Cover, Valve WPL 302721 Contact Us For Availability

7

Connector, 5 Circuit WPL 60671 Contact Us For Availability

8

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

8

Baffle WPL 719860 Contact Us For Availability

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

8

Bumper (1) WPL 715779 Contact Us For Availability

8

Connector (21-Circuit) WPL 60683 Contact Us For Availability

9

Baffle WPL 303978 Contact Us For Availability

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

9

Receptacle (3-Way) WPL 353425 Contact Us For Availability

9

Screw, 12 x 7/8 (2) WPL 301087 Contact Us For Availability

Label, User Guide WPL LIT303498 Contact Us For Availability

Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability

Shelf, Cup WPL 303491 Contact Us For Availability

Receptacle (5-Way) WPL 719585 Contact Us For Availability

Bumper, Rubber WPL 302186 Contact Us For Availability

11

Screen, Vent WPL 300246 Contact Us For Availability

11

Receptacle, 4-Way WPL 717315 Contact Us For Availability

11

Handrail, Hinge Assembly WPL 302587 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $177.46

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

Latch Assembly WPL 302233 Contact Us For Availability

Plug Connector WPL 342529 Contact Us For Availability

Switch, Micro WPL 302202 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

Adapter, Rack WPL 302052 Contact Us For Availability

Block, Connector (Alternate) WPL 300708 Contact Us For Availability

Block, Connector (Alternate) WPL 374230 Contact Us For Availability

Insulator, Terminal WPL 302466 Contact Us For Availability

Switch, Interlock WPL 302217 Contact Us For Availability

Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability

Bumper (2) WPL 719964 Contact Us For Availability

Plug, Terminal WPL 717316 Contact Us For Availability

Bracket, Switch Mounting WPL 302201 Contact Us For Availability

Thermostat, Hi Limit WPL 303824 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

Tower WPL 302030 Contact Us For Availability

Harness, Wiring WPL 304156 Contact Us For Availability

Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability

Bracket, Thermostat WPL 303808 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Panel, R.S. WPL ARI24914A9 Contact Us For Availability

Wire, Tie (Red, 4``) WPL 302473 Contact Us For Availability

Nut, .125 WPL 717488 Contact Us For Availability

Silverware Basket Assembly WPL 301994 Contact Us For Availability

Terminal, Insulator WPL 358736 Contact Us For Availability

Clip, Cable WPL 302426 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

Bushing, Grind WPL 302707 Contact Us For Availability

Connector Block WPL 301219 Contact Us For Availability

Door, Tiltout WPL 302550 Contact Us For Availability

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $90.19

Dispenser, Wetting Agent WPL 719341 Contact Us For Availability

Handle, Basket WPL 300086 Contact Us For Availability

Insert, Corduroy WPL 303274 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

Utensil Basket Assembly WPL 301998 Contact Us For Availability

Touch Module WPL 303224 Contact Us For Availability

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

Trim, Basket WPL 717528 Contact Us For Availability

Screw, 8 x 5/8 (Hil) (4) WPL 302191 Contact Us For Availability

Check Ball & Retainer WPL 675488 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $29.44

Indicator, Level WPL 303163 Contact Us For Availability

Seal, Drain Cover WPL 302704 Contact Us For Availability

Control Panel Assembly WPL 302558 Contact Us For Availability

23

Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability

23

Rod, Hinge WPL 302205 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

24

Wheel, Leg (2) WPL 302819 Contact Us For Availability

24

Display L.E.D. WPL 303095 Contact Us For Availability

25

Bracket WPL 302216 Contact Us For Availability

25

Base, Pump (Includes Illus. 24) (Also Order I WPL 675516 Contact Us For Availability

25

Screw, 8-18 x 3/8 (2) WPL 303220 Contact Us For Availability

26

Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability

26

Support, Pump Mounting (4) WPL 718260 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $3.46

Cover, Terminal Box WPL 300068 Contact Us For Availability

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

Motor (Includes Illus. 24 & 27) (Also Order I WPL 675515 Contact Us For Availability

Standoff (4) WPL 302220 Contact Us For Availability

29

Gravity Latch Assembly WPL 302432 Contact Us For Availability

29

WPL 301817 WPL 301817 Contact Us For Availability

29

Indicator, L.E.D. WPL 302230 Contact Us For Availability

30

WPL 675505 WPL 675505 Contact Us For Availability

30

Harness, Ind/Main WPL 302418 Contact Us For Availability

31

WPL 303918 WPL 303918 Contact Us For Availability

31

Pad, Rubber WPL 302460 Contact Us For Availability

31

Microcomputer Assembly WPL 303228 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

Seal, Lever WPL 300105 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

35

Control, Power Supply WPL 303664 Contact Us For Availability

36

Bearing, Nozzle WPL 719576 Contact Us For Availability

36

Clip, Panel Retainer (2) WPL 302547 Contact Us For Availability

37

Barrier, Power Supply WPL 302423 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

38

Spring, Door WPL 302207 Contact Us For Availability

Standpipe, Overflow WPL 719967 Contact Us For Availability

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

Retainer, Spring (2) WPL 302235 Contact Us For Availability

Cap, Nozzle WPL 302737 Contact Us For Availability

40

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Spray Arm, Lower WPL 302767 Contact Us For Availability

41

Gasket, Pump WPL 717000 Contact Us For Availability

41

Screw, 4-40 x 3/4 (1) WPL 98086 Contact Us For Availability

41

Arm, Linkage WPL 302378 Contact Us For Availability

42

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

42

Barrier, Door WPL 303223 Contact Us For Availability

42

Pushnut WPL 302377 Contact Us For Availability

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

Barrier, Console WPL 303222 Contact Us For Availability

Harness, Display/Main WPL 302984 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

44

Thermostat WPL 302376 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Panel, Edging (Door) WPL 304047 Contact Us For Availability

45

Bracket WPL 302342 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

46

Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

47

Washer, Retainer (2) WPL 717289 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

xxPanel, Front WPL ARI24912A1 Contact Us For Availability

48

Support, Heater (2) WPL 717096 Contact Us For Availability

49

Wheel Tub (8) WPL 300844 Contact Us For Availability

49

Trim, Door (2) WPL 303501 Contact Us For Availability

49

Washer (2) WPL 711284 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

50

Washer (2) WPL 14351 Contact Us For Availability

51

Track (2) WPL 303297 Contact Us For Availability

51

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

52

End Cap, Track (4) WPL 303299 Contact Us For Availability

52

Grate WPL 303469 Contact Us For Availability

54

Gasket (2) WPL 301662 Contact Us For Availability

55

Insert, Cup-Hose WPL 301656 Contact Us For Availability

57

Clip, Gasket (2) WPL 301663 Contact Us For Availability

58

Transformer WPL 60740 Contact Us For Availability

59

Bracket, Mounting WPL 302324 Contact Us For Availability

60

674744 Whirlpool Dishwasher Door Spring 3 3/4 In Stock WPL 674744 $41.72

60

Relay, 3-Coil (M WPL 302211 Contact Us For Availability

60

Clip, Mounting WPL 302557 Contact Us For Availability

61

WPL 302210 WPL 302210 Contact Us For Availability

61

Hanger, Cable WPL 302748 Contact Us For Availability

62

WPL 302424 WPL 302424 Contact Us For Availability

63

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

63

WPL 302425 WPL 302425 Contact Us For Availability

64

WPL 302331 WPL 302331 Contact Us For Availability

64

Label, Solid State WPL 303511 Contact Us For Availability

65

WPL 303298 WPL 303298 Contact Us For Availability

66

WPL 301588 WPL 301588 Contact Us For Availability

66

Clip (2) WPL 302994 Contact Us For Availability

67

WPL 354239 WPL 354239 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

67

Lens, Indicator WPL 303280 Contact Us For Availability

68

WPL 302332 WPL 302332 Contact Us For Availability

68

xxPanel, Access WPL ARI24913A9 Contact Us For Availability

68

Barrier, Water WPL 303102 Contact Us For Availability

70

Plate, Toe WPL 303144 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.33

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $5.09

74

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

75

WPL 302770 WPL 302770 Contact Us For Availability

76

WPL 302764 WPL 302764 Contact Us For Availability

77

WPL 596553 WPL 596553 Contact Us For Availability

77

Washer WPL 300237 Contact Us For Availability

78

WPL 719266 WPL 719266 Contact Us For Availability

79

WPL 770754 WPL 770754 Contact Us For Availability

81

Spring, Conical WPL 718592 Contact Us For Availability

82

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

84

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

85

WPL 718646 WPL 718646 Contact Us For Availability

86

WPL 718596 WPL 718596 Contact Us For Availability

87

WPL 718595 WPL 718595 Contact Us For Availability

89

WPL 300230 WPL 300230 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

WPL 303362 WPL 303362 Contact Us For Availability

94

WPL 303121 WPL 303121 Contact Us For Availability

95

WPL 303090 WPL 303090 Contact Us For Availability

96

WPL 301815 WPL 301815 Contact Us For Availability

97

WPL 301814 WPL 301814 Contact Us For Availability

98

WPL 301816 WPL 301816 Contact Us For Availability

99

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64
