Model Whirlpool DU960QPDB0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

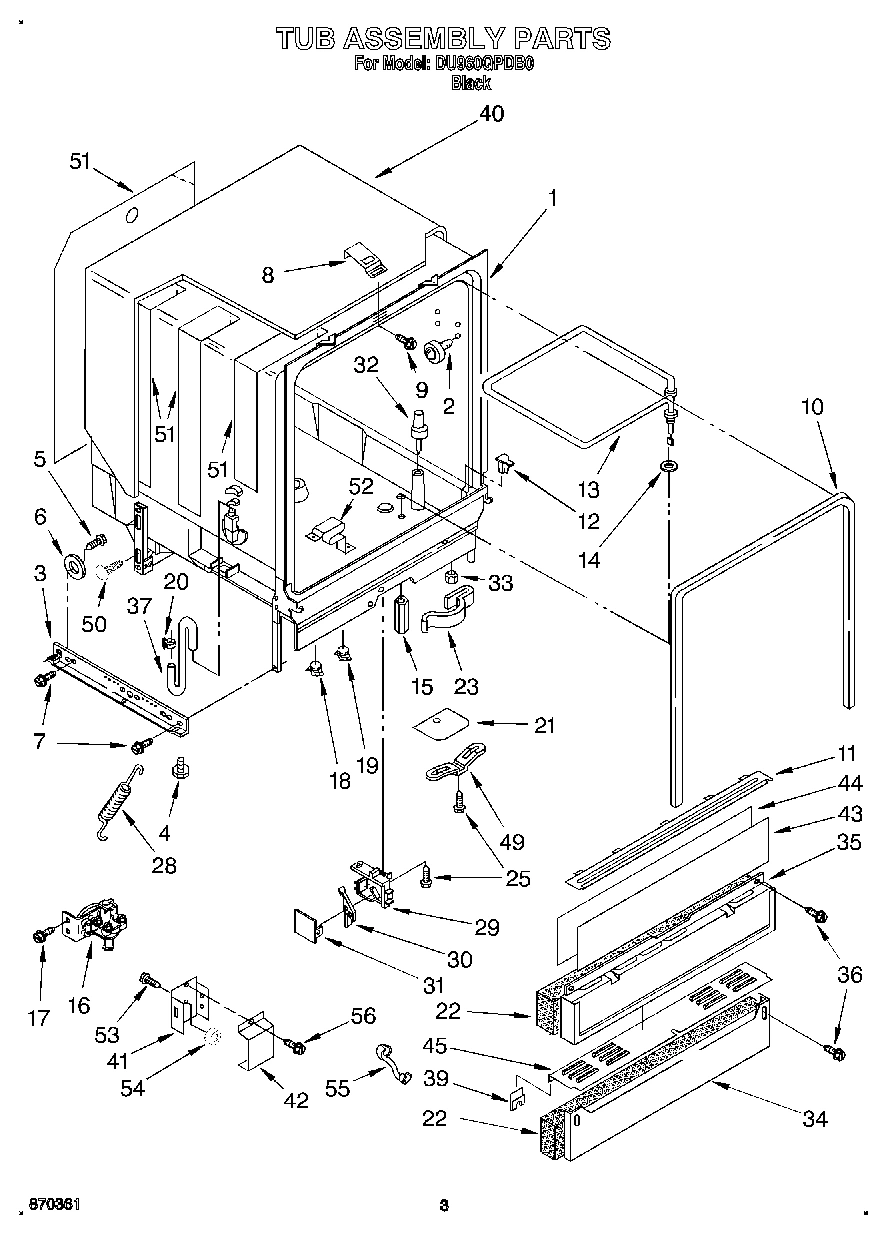

03 - TUB ASSEMBLY

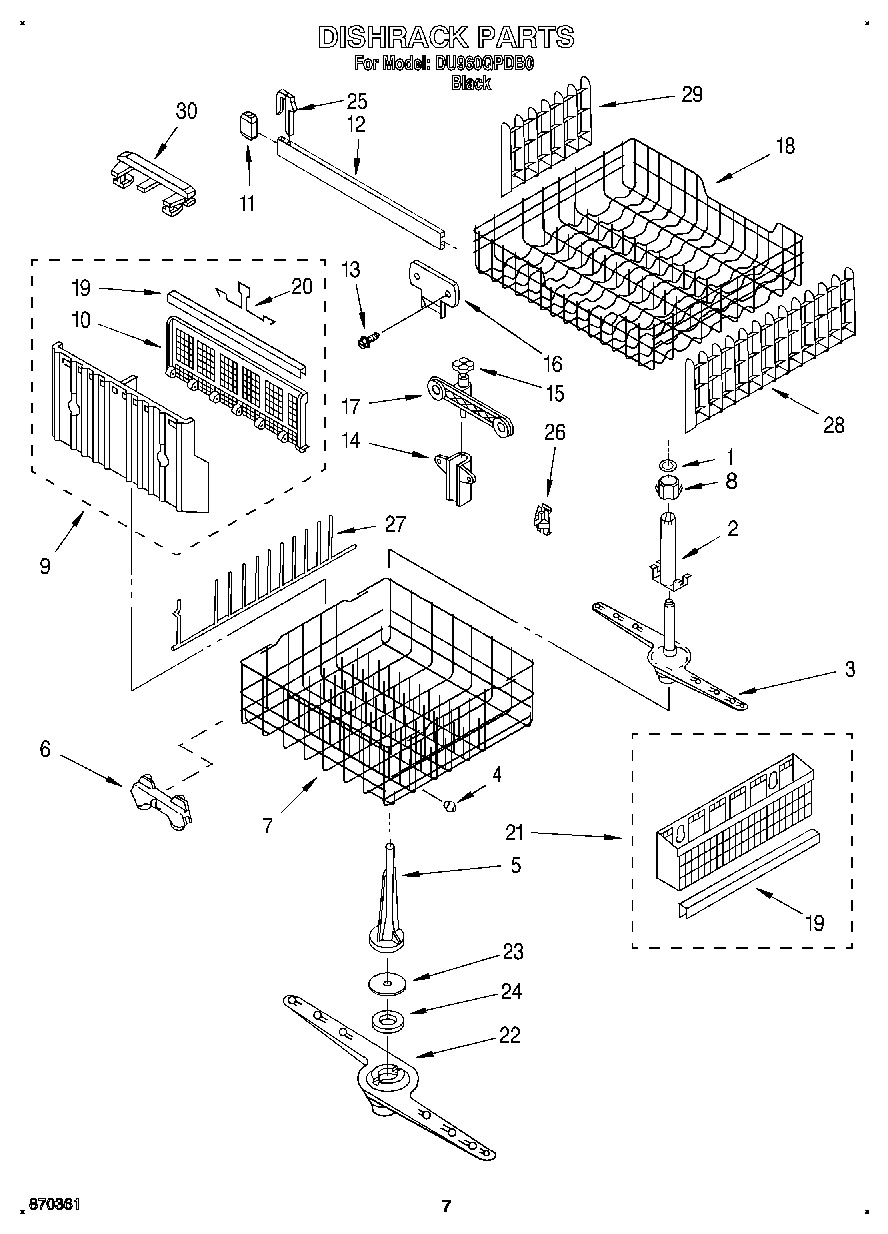

05 - DISHRACK, LIT/OPTIONAL

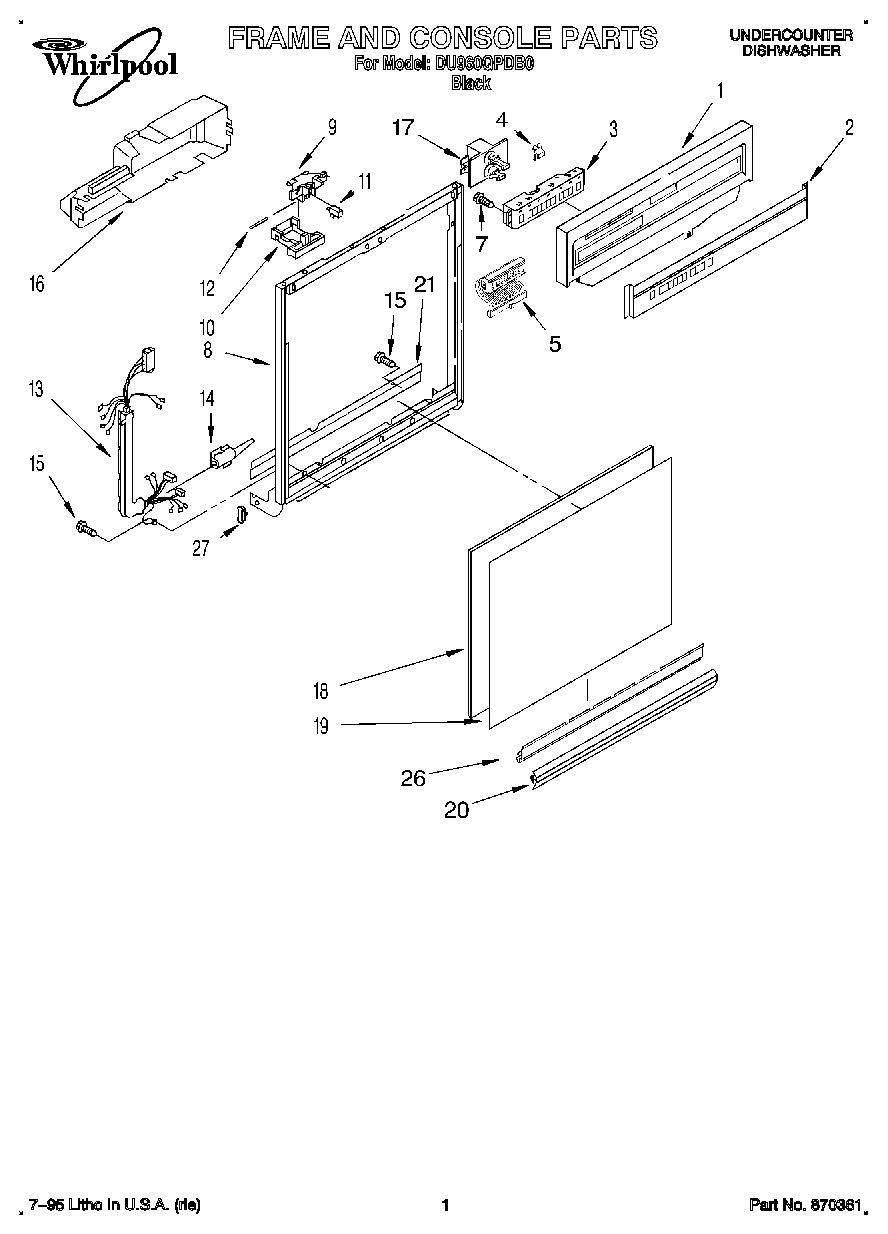

01 - FRAME AND CONSOLE

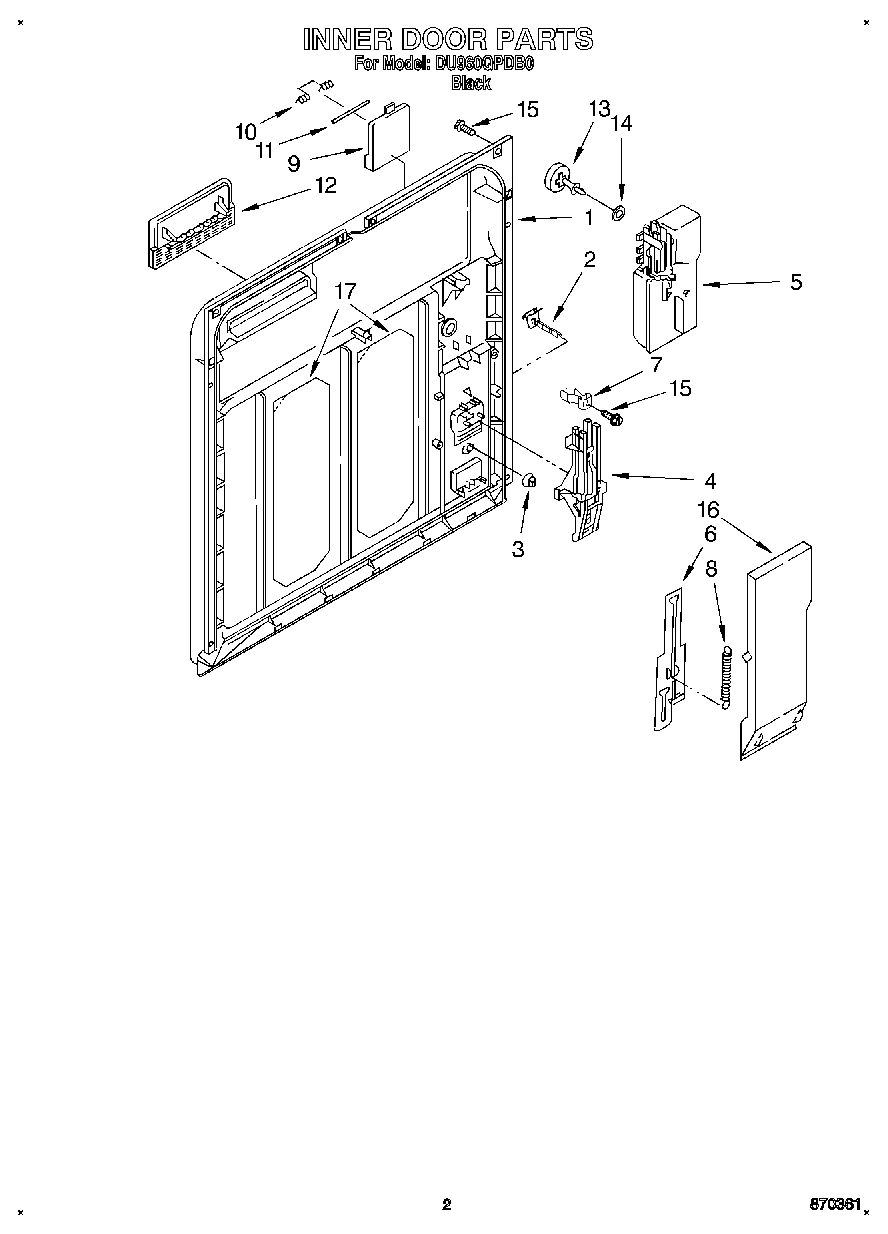

02 - INNER DOOR

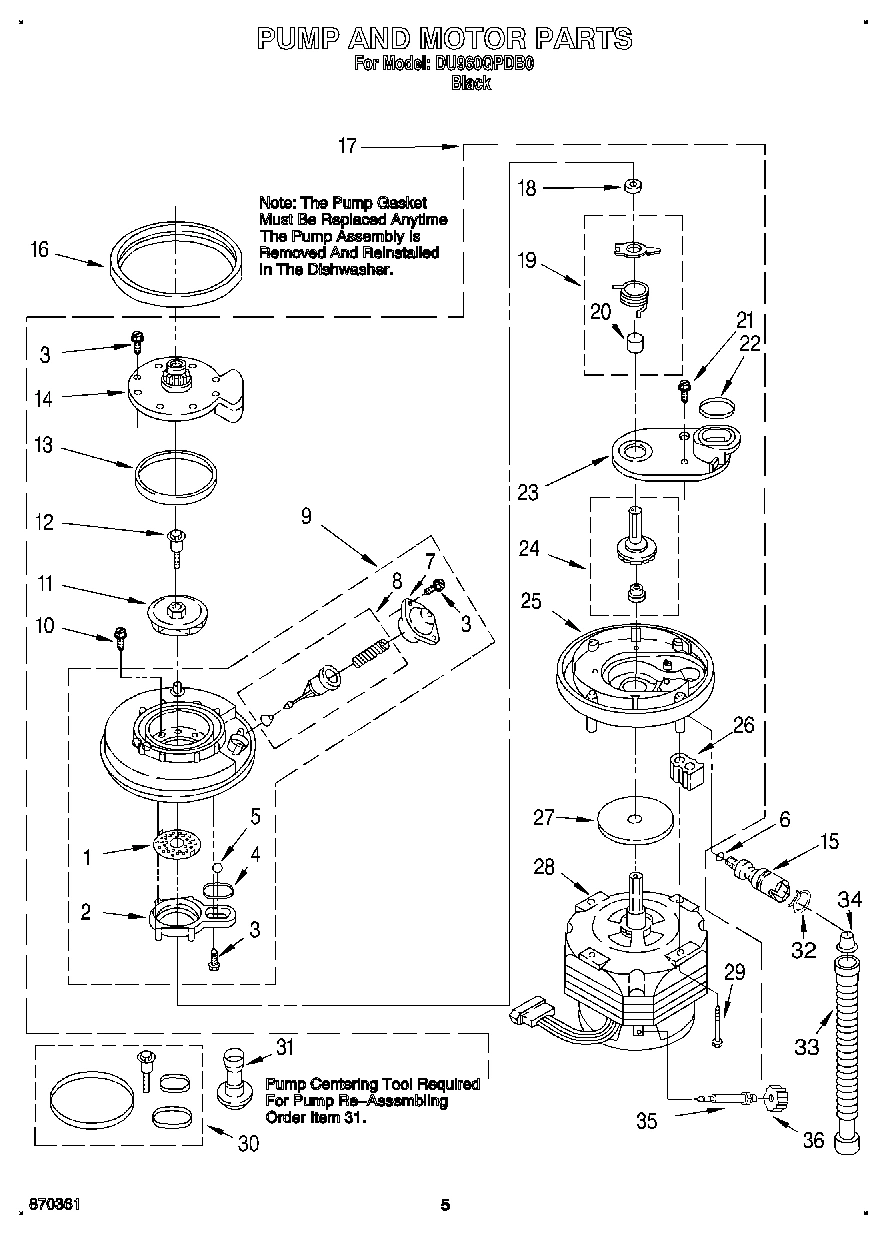

04 - PUMP AND MOTOR

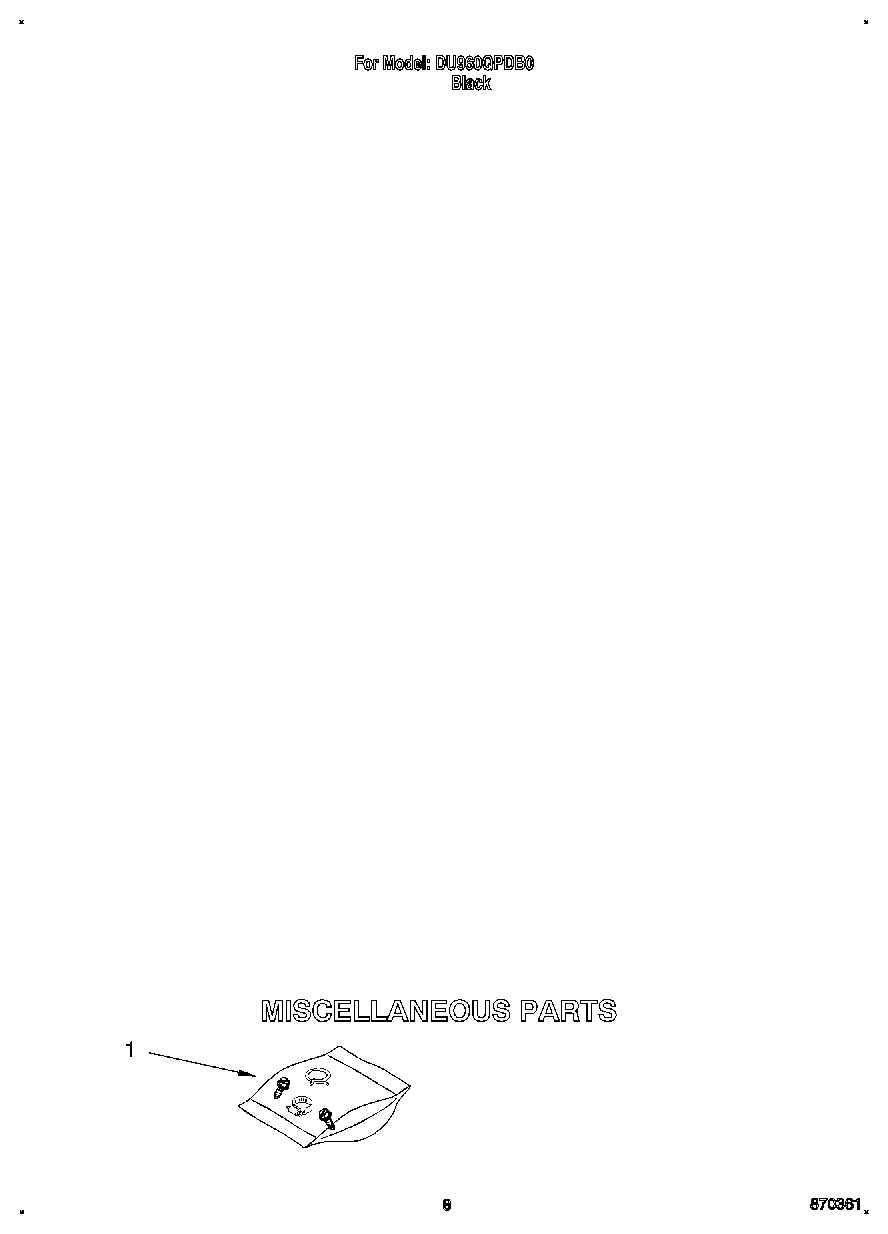

06 - MISCELLANEOUS
Common parts from model Whirlpool DU960QPDB0 UNDERCOUNTER DISHWASHER
1
Clip (Also Order Items 1 & 8) WPL 303722 Contact Us For Availability
1
Console (Includes Item 2) WPL 3375301 Contact Us For Availability
1
Inner Door (Also Order) WPL 3371480 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
2
Support, Arm WPL 3368290 Contact Us For Availability
2
Insert, Console WPL 3374808 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
3
Control, Electronic WPL 3375556 Contact Us For Availability
5
Switch, Display WPL 3374761 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Clip, Console Door Retainer WPL 3374771 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Lever, Latch WPL 3369457 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Harness and Protector WPL 3375572 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
15
Worm (2) WPL 3369981 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover Timer WPL 3375473 Contact Us For Availability
17
Motor, Dual WPL 3374501 Contact Us For Availability
17
Damper, Door (2) WPL 3374772 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3375495 Contact Us For Availability
18
Door, Sound Absorber WPL 3374777 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Retainer, Panel WPL 3374010 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
21
Basket, Utensil WPL 3369494 Contact Us For Availability
21
Barrier, Lower Vent WPL 3374776 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
25
Stop, Track (2) WPL 3374701 Contact Us For Availability
25
Base, Pump (Also Order Item 30) See Note A. WPL 3376151 Contact Us For Availability
28
Cupshelf, Large WPL 3371265 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3375481 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
30
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
30
Avocado WPL 4317926 Contact Us For Availability
30
Gold WPL 4317927 Contact Us For Availability
30
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
30
Toast WPL 4317930 Contact Us For Availability
30
Platinum WPL 4317931 Contact Us For Availability
30
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
30
WPL 799340 WPL 799340 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Shaft, Absorb WPL 3374757 Contact Us For Availability
36
WPL 3374756 WPL 3374756 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
× ![]()
