Model Whirlpool DU9450XB1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

Side Panel Kit (White) WPL 4317925 Contact Us For Availability

Avocado WPL 4317926 Contact Us For Availability

Gold WPL 4317927 Contact Us For Availability

Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability

Toast WPL 4317930 Contact Us For Availability

Platinum WPL 4317931 Contact Us For Availability

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Instructions, Installation WPL LIT3369679 Contact Us For Availability

Energy Guide WPL LIT3373484 Contact Us For Availability

Guide, Use & Care WPL LIT3373743 Contact Us For Availability

Wiring Diagram WPL LIT3375142 Contact Us For Availability

Tech Sheet WPL LIT3375143 Contact Us For Availability

1

Clip WPL 303722 Contact Us For Availability

1

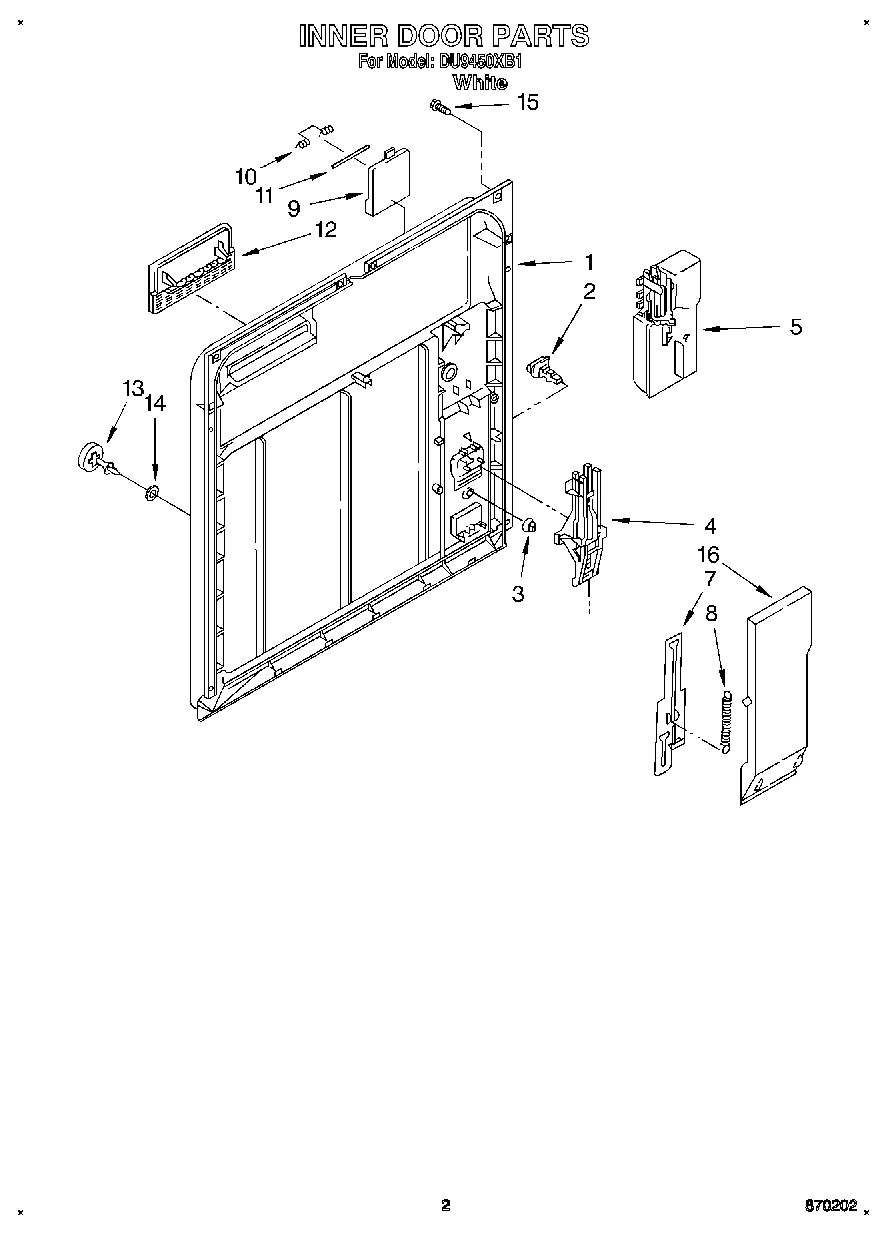

Inner Door (Also Order) WPL 3371480 Contact Us For Availability

1

Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability

1

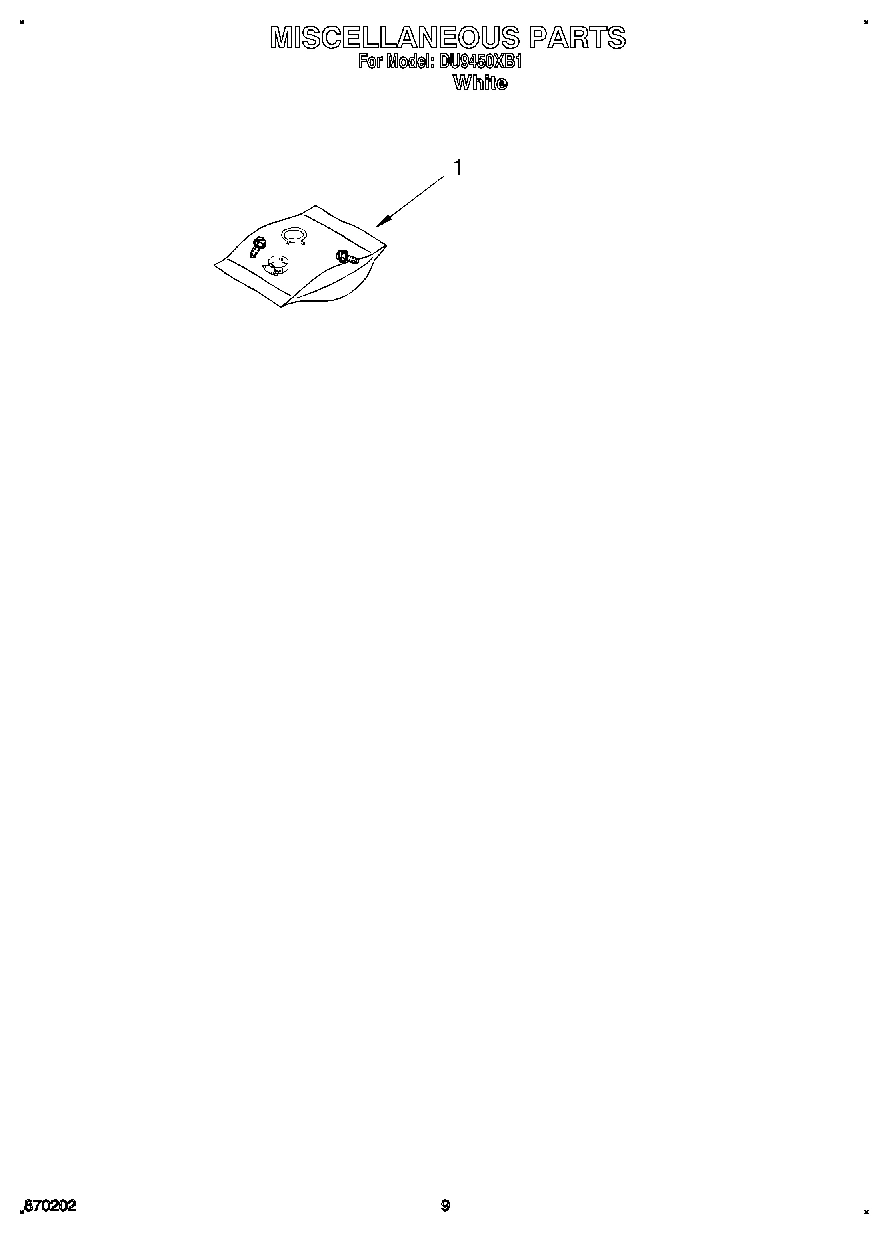

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

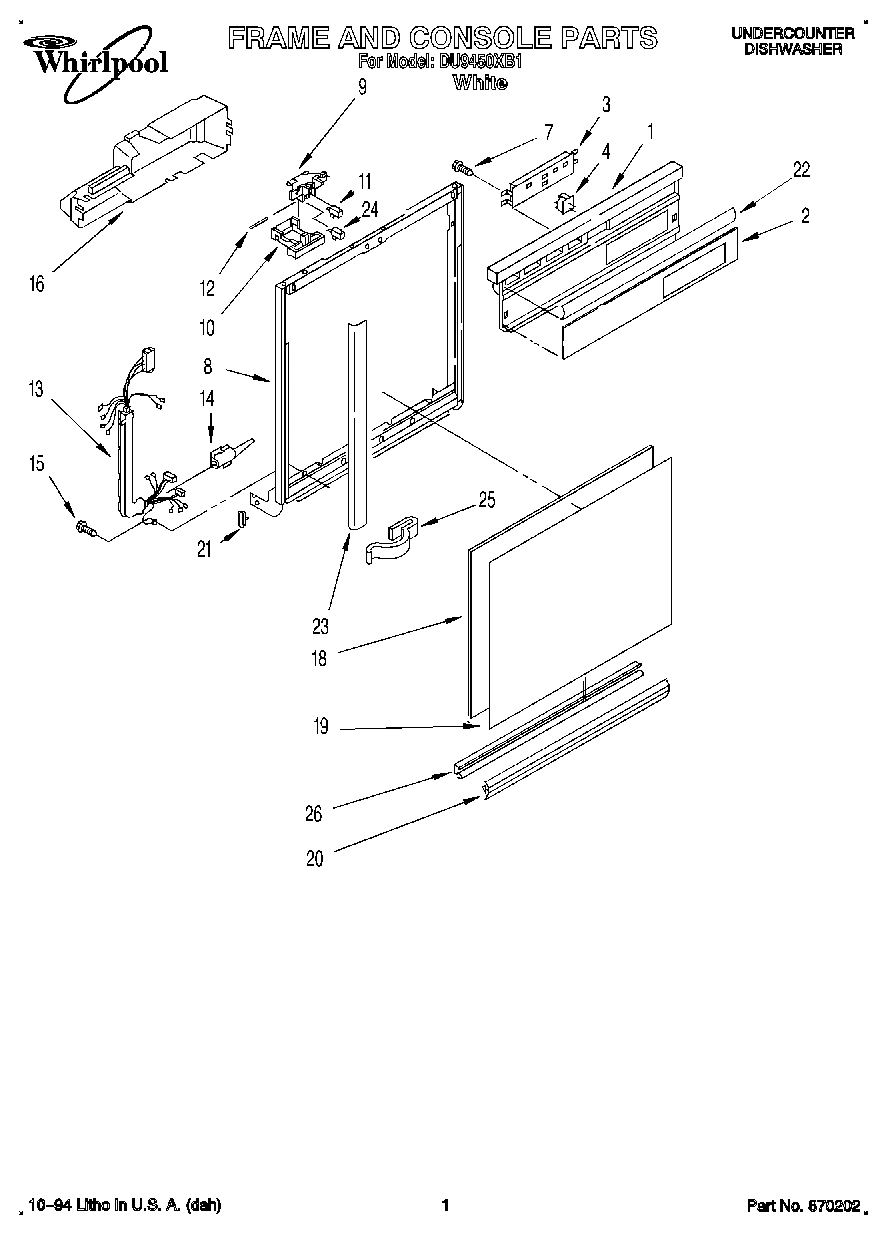

Console (Includes Item 2) WPL 3373730 Contact Us For Availability

2

Support, Arm WPL 3368290 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

2

Insert, Console WPL 3373667 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

Switch, Control WPL 3373258 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3369505 Whirlpool Dishwasher Actuator Backorder WPL WP3369505 $16.25

4

Motor, Dual WPL 3369417 Contact Us For Availability

5

WP8052028 Whirlpool Dishwasher Dispenser Backorder WPL WP8052028 $44.76

5

Ball, Check WPL 302709 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

``O`` Ring WPL 95080 Contact Us For Availability

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

7

Draw Bar, Electronic WPL 3369448 Contact Us For Availability

7

Cover, Valve WPL 302721 Contact Us For Availability

8

3374711 Whirlpool Dishwasher Frame Backorder WPL 3374711 $65.50

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

WP3370964 Whirlpool Dishwasher Latch Bolt Backorder WPL WP3370964 $29.59

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

10

WP3369503 Whirlpool Dishwasher Lever Backorder WPL WP3369503 $2.38

10

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

10

Screw, 8-18 x 1-5/8 (4) WPL 9741258 Contact Us For Availability

11

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

11

End Cap (Front or Rear) WPL 300845 Contact Us For Availability

11

Switch, (2) WPL 3369325 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

Track WPL 3369071 Contact Us For Availability

Pin, Switch (2) WPL 3369504 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

13

Harness and Protector WPL 3373637 Contact Us For Availability

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

WP3369980 Whirlpool Dishwasher Housing Backorder WPL WP3369980 $26.75

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.70

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $28.04

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

Worm (2) WPL 3369981 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

WP3369979 Whirlpool Dishwasher Plate Backorder WPL WP3369979 $3.51

Water Valve WPL 3374621 Contact Us For Availability

Cover, Drip WPL 3371569 Contact Us For Availability

Cover Timer WPL 3373367 Contact Us For Availability

17

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $40.64

17

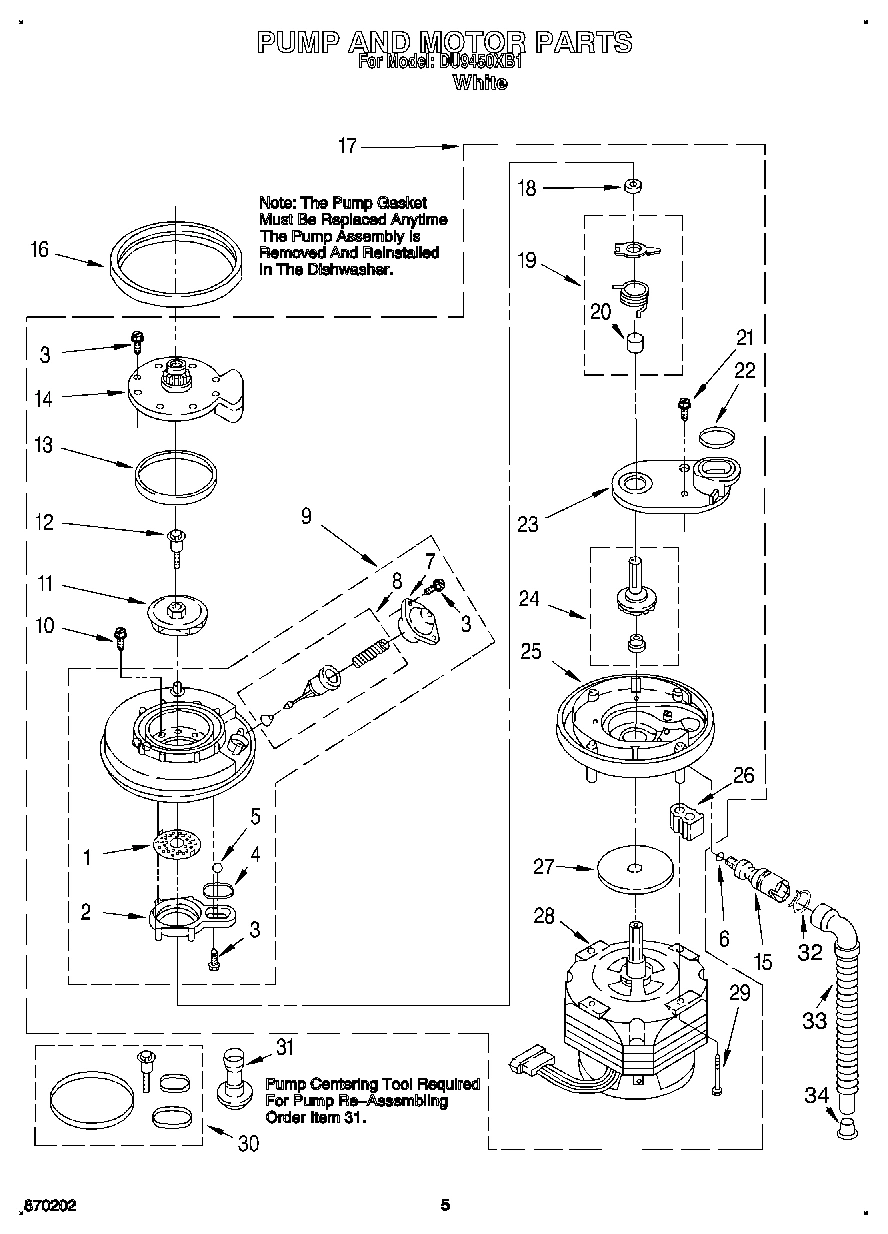

Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability

18

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

19

Trim, Basket WPL 717528 Contact Us For Availability

20

Retainer, Panel WPL 3374011 Contact Us For Availability

20

Handle, Basket WPL 300086 Contact Us For Availability

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

21

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

21

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

21

Basket, Utensil (Incl. Item 19) WPL 3369494 Contact Us For Availability

22

WP3376848 Whirlpool Dishwasher Spray Arm Backorder WPL WP3376848 $39.84

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

22

Trim, Console WPL 3369324 Contact Us For Availability

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability

23

Trim (2) WPL 3369592 Contact Us For Availability

24

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

24

Relay WPL 3369447 Contact Us For Availability

24

Switch (1) WPL 3369530 Contact Us For Availability

25

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

25

Stop, Track (2) WPL 3369046 Contact Us For Availability

25

Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability

26

W10728160 Whirlpool Tine Assembly In Stock WPL W10728160 $27.32

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $30.80

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP3368629 Whirlpool Dishwasher Retainer Backorder WPL WP3368629 $3.70

28

WP3374343 Whirlpool Dishwasher Spring Backorder WPL WP3374343 $11.07

28

Cupshelf, Large (2) WPL 3371265 Contact Us For Availability

28

Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability

29

WP8268828 Whirlpool Dishwasher Shelf Backorder WPL WP8268828 $47.91

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

29

Screw (4) WPL 3369331 Contact Us For Availability

30

8268826 Whirlpool Dishwasher Cup Holder Backorder WPL 8268826 $10.76

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

Nut WPL 717488 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $56.87

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

43

Access Panel (White/Black) WPL 3370868 Contact Us For Availability
