Model Whirlpool DU920PFGZ3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
03 - TUB ASSEMBLY
05 - DISHRACK

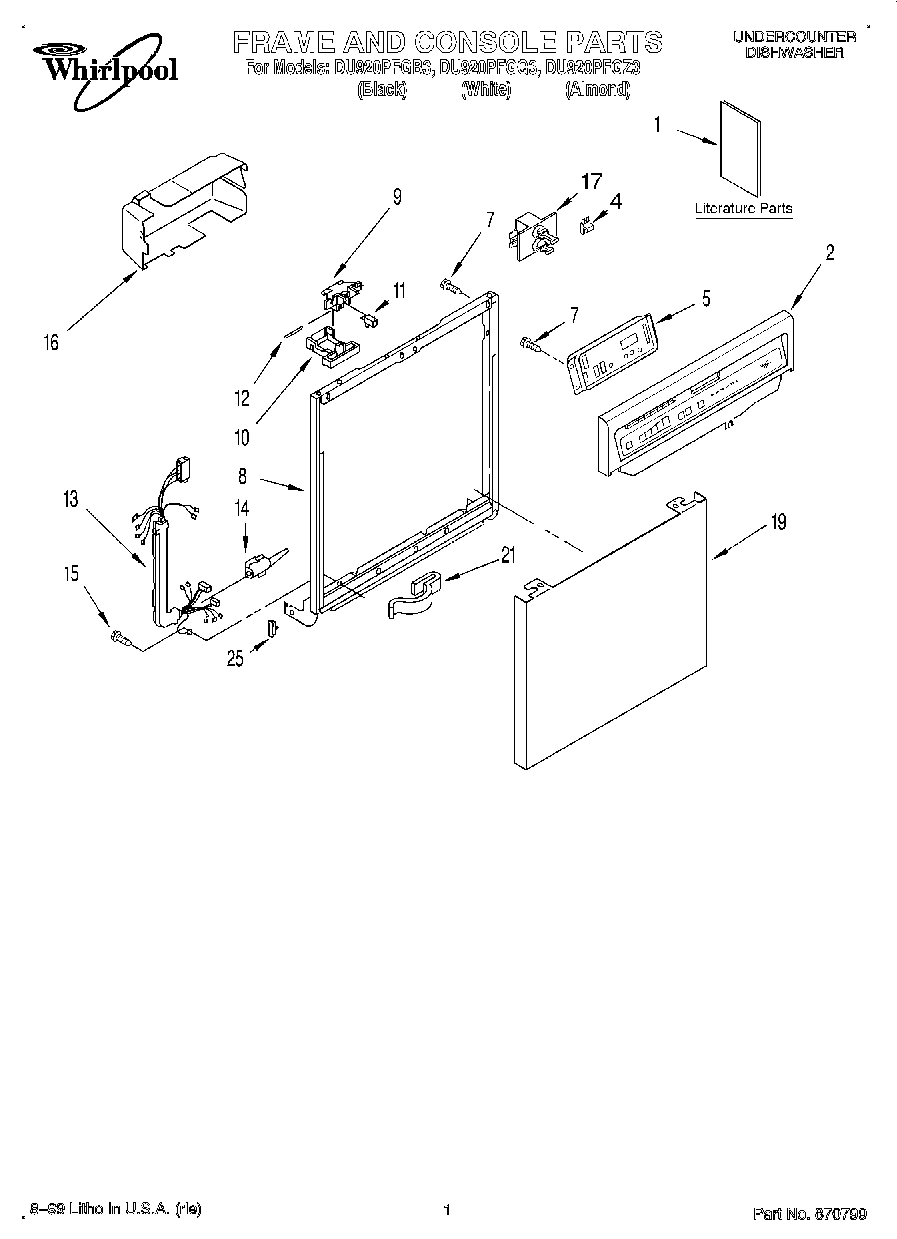

01 - FRAME AND CONSOLE, LITERATURE

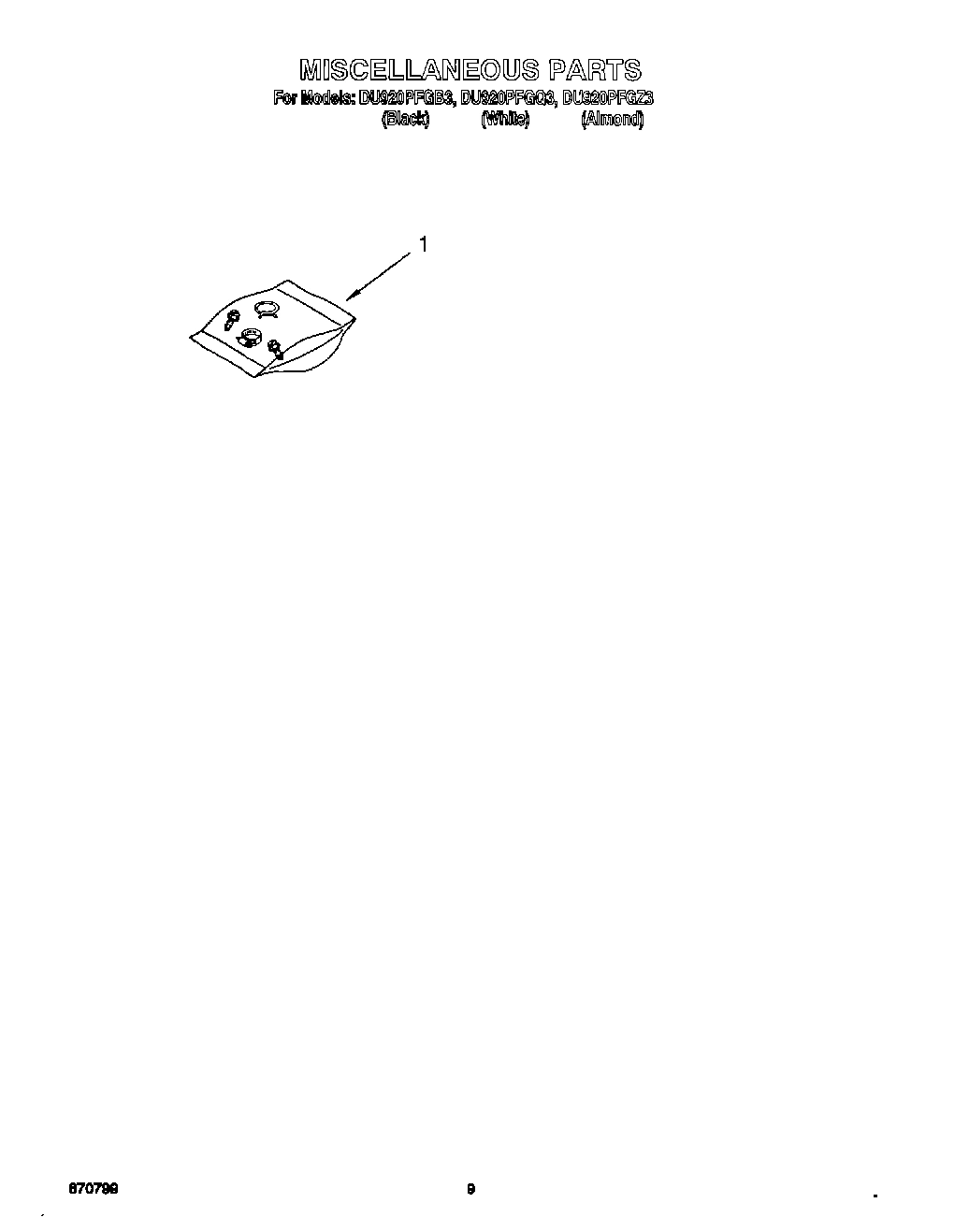

06 - MISCELLANEOUS, OPTIONAL

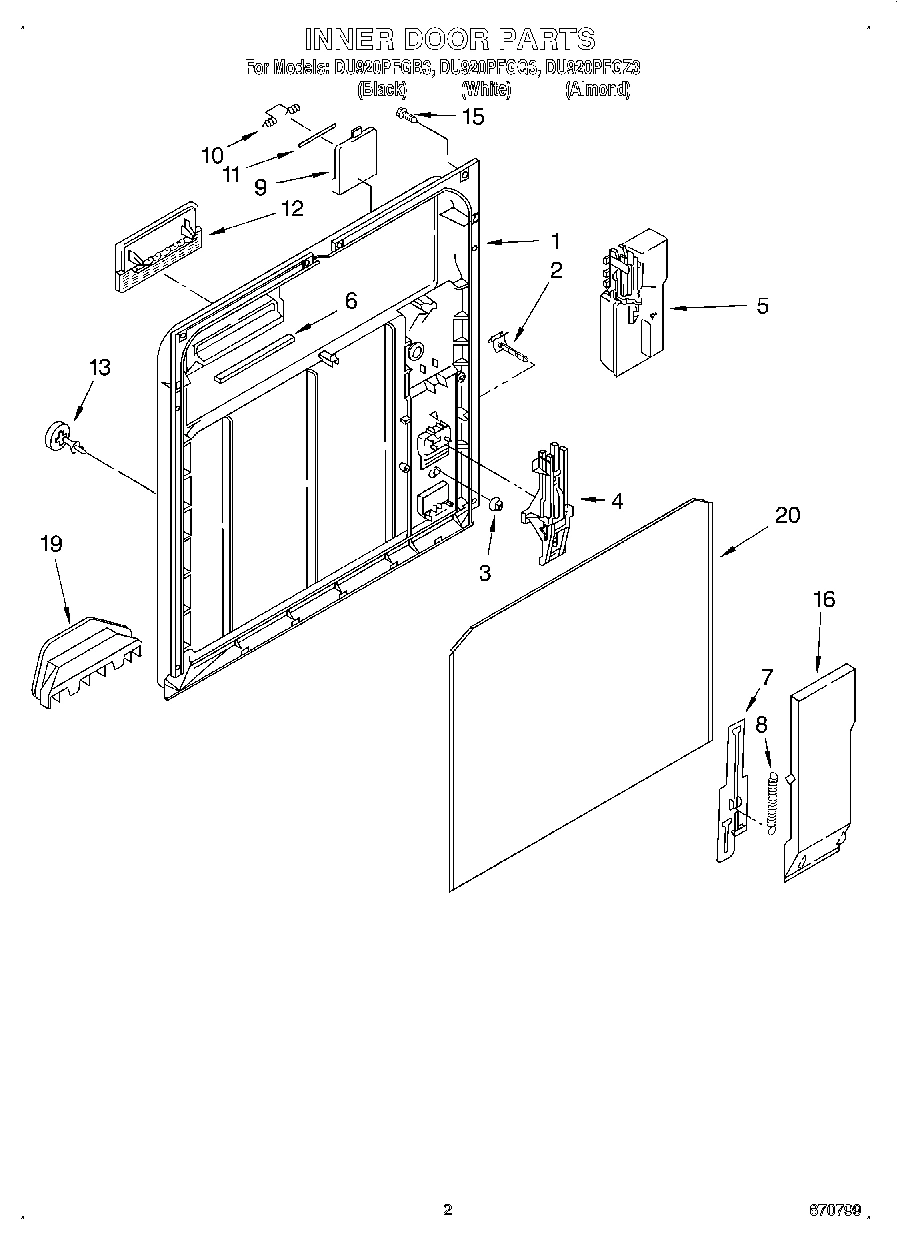

02 - INNER DOOR

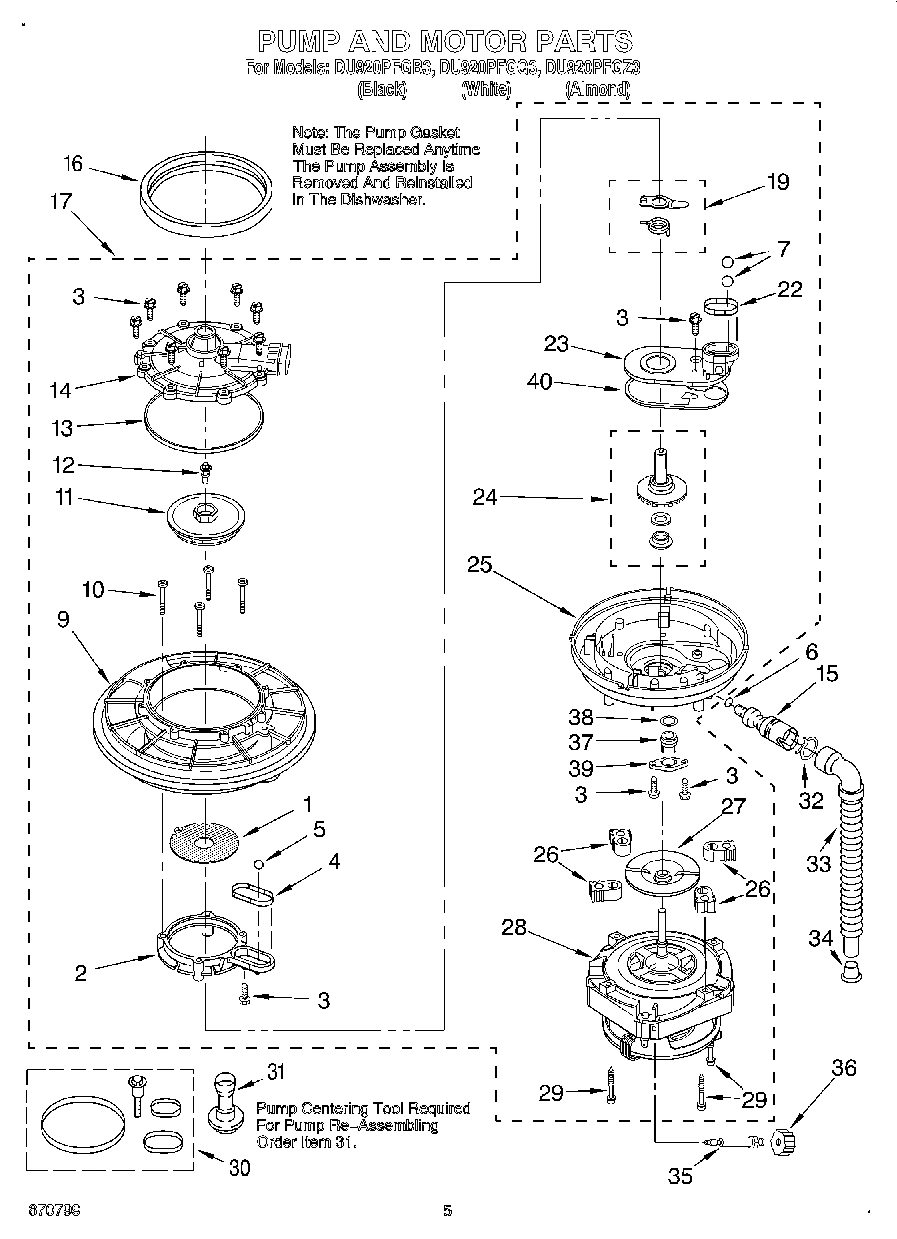

04 - PUMP AND MOTOR
Common parts from model Whirlpool DU920PFGZ3 UNDERCOUNTER DISHWASHER
1
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Door, Inner (Includes Items 2 & 3) WPL 8051463 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
2
Console (Includes Active Overlay) (Black) WPL 8051702 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
8
Plate, Latch WPL 3378149 Contact Us For Availability
8
Door Frame (Black) WPL 9743028 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
9
Filter WPL 9742968 Contact Us For Availability
9
Basket, Silverware WPL 3380872 Contact Us For Availability
10
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Stop, Track (4) WPL 3379941 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3376844 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
17
Motor, Dual Wax WPL 3374501 Contact Us For Availability
19
Panel Front (White) WPL 3379376 Contact Us For Availability
19
Panel Front (Black) WPL 3379375 Contact Us For Availability
20
Retainer, Tinerow WPL 3368629 Contact Us For Availability
20
Absorber, Sound WPL 8271325 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 3376845 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
25
Pivot, Folddown WPL 3379955 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3376157 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3377333 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3378202 Contact Us For Availability
37
Thermostat WPL 3378083 Contact Us For Availability
38
Seal, O-Ring WPL 3376723 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
54
Friction Pad (Velcro) WPL 8052018 Contact Us For Availability
× ![]()
