Model Whirlpool DU910PFGB1 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

Instructions, Installation
Instructions, Installation WPL LIT8051229 Contact Us For Availability
View on Model
Energy Guide
Energy Guide WPL LIT8051541 Contact Us For Availability
View on Model
1
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
1

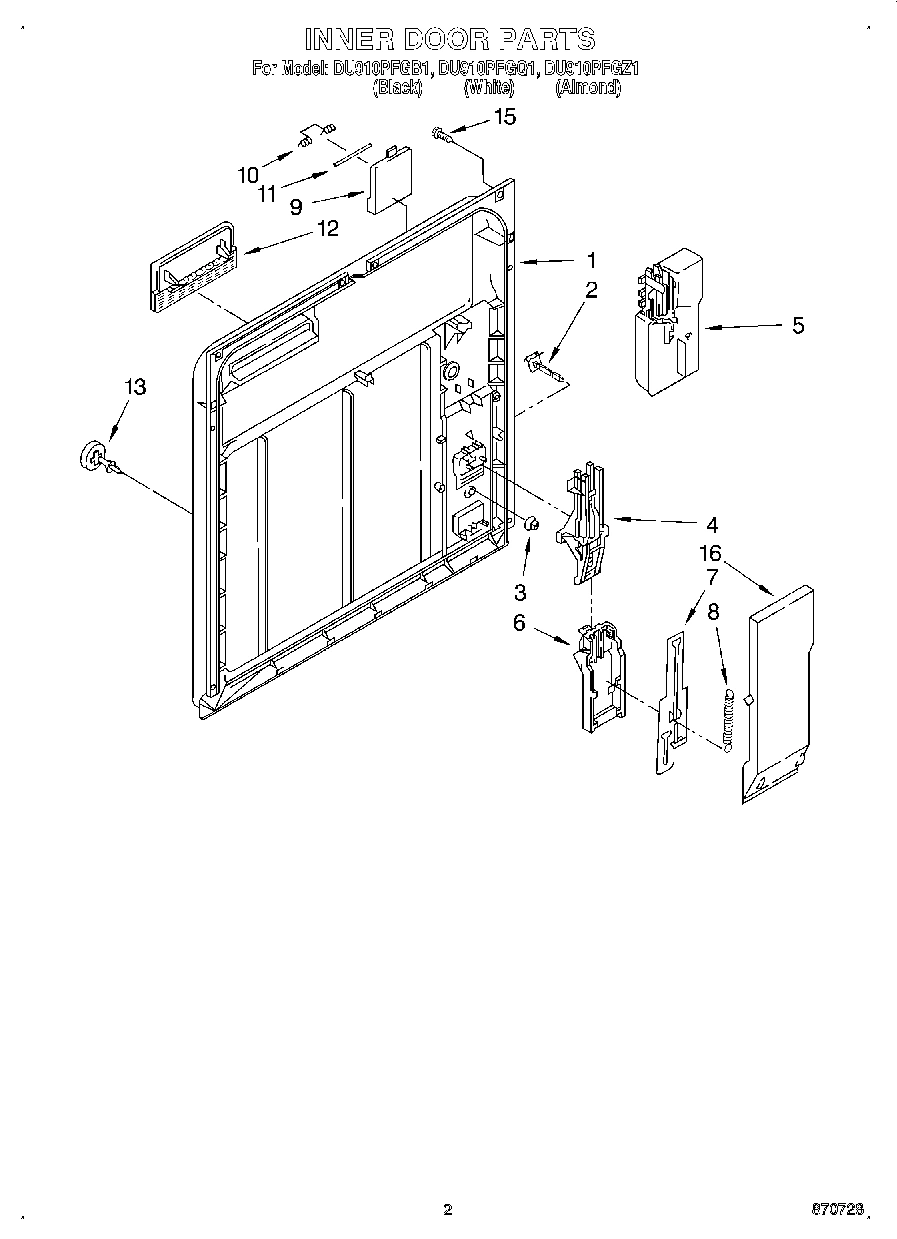

Door, Inner (Includes Items 2 & 3)
Door, Inner (Includes Items 2 & 3) WPL 3371435 Contact Us For Availability
View on Model
1
Support, Arm (Also Order Items 2 & 8)
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
View on Model
1

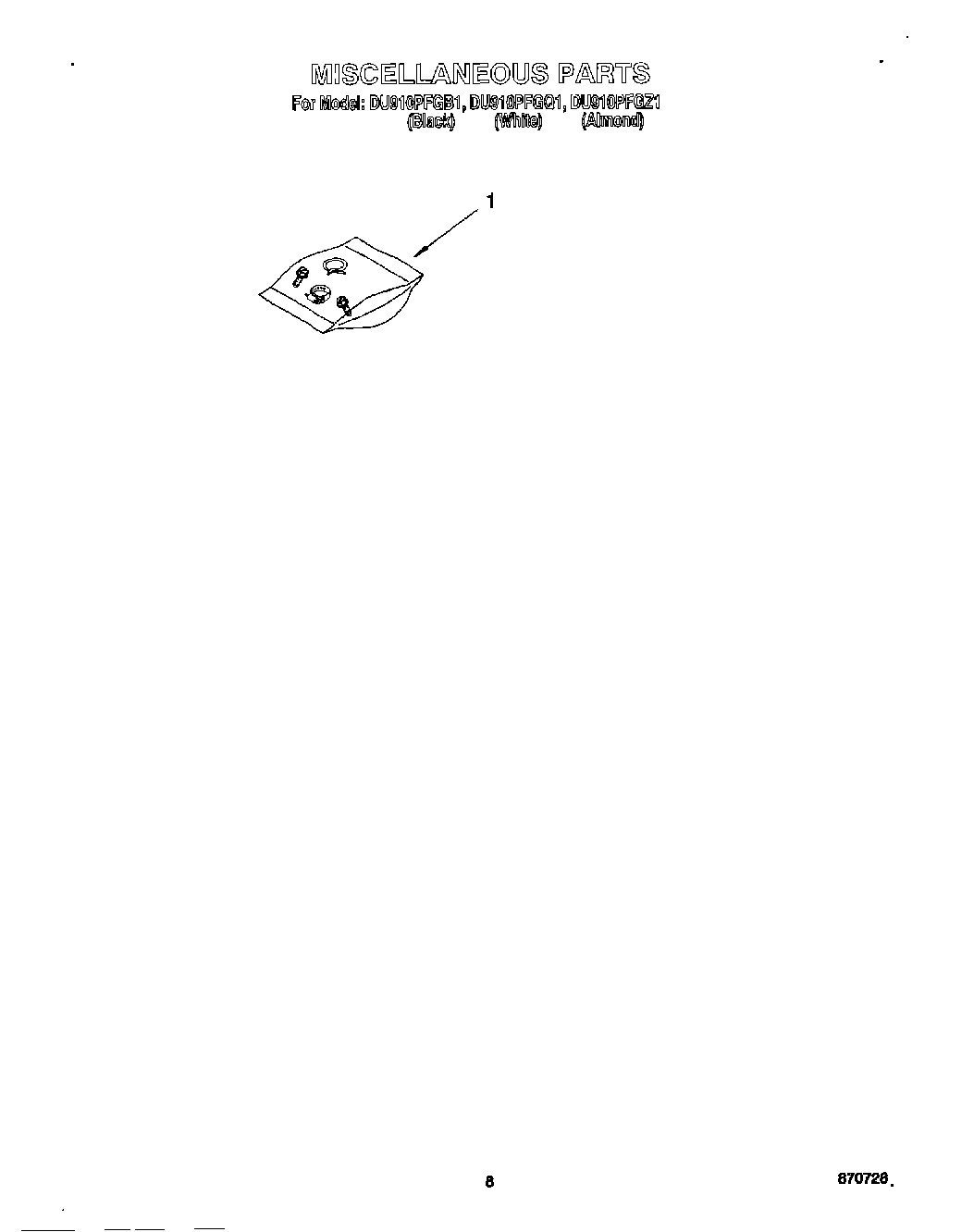

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
1
SIDE PANEL KITS: (WHITE)
SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability
View on Model
1
Side Panel Kits (Almond)
Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability
View on Model
1
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
1
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
1
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
1
Console (Includes Item 2) (Black)
Console (Includes Item 2) (Black) WPL 8051477 Contact Us For Availability
View on Model
1
Console (Includes Item 2) (White)
Console (Includes Item 2) (White) WPL 8051478 Contact Us For Availability
View on Model
1
Console (Includes Item 2) (Almond)
Console (Includes Item 2) (Almond) WPL 8051479 Contact Us For Availability
View on Model
2
Tub, Wheel Assembly (8)
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
View on Model
2
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
2
Insert, Console (Black)
Insert, Console (Black) WPL 8051336 Contact Us For Availability
View on Model
2
Insert, Console (White)
Insert, Console (White) WPL 8051337 Contact Us For Availability
View on Model
2
Insert, Console (Almond)
Insert, Console (Almond) WPL 8051338 Contact Us For Availability
View on Model
3
Switch, 5 Button (Black)
Switch, 5 Button (Black) WPL 8051166 Contact Us For Availability
View on Model
3
Switch, 5 Button (White)
Switch, 5 Button (White) WPL 8051167 Contact Us For Availability
View on Model
3
Switch, 5 Button (Almond)
Switch, 5 Button (Almond) WPL 8051168 Contact Us For Availability
View on Model
6
Draw Bar, (Upper Dispenser)
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
View on Model
8
Plate, Latch
Plate, Latch WPL 3378149 Contact Us For Availability
View on Model
8
Support, Lock Spray Arm
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
View on Model
9
Filter
Filter WPL 9742968 Contact Us For Availability
View on Model
10
Lever, Latch (Black)
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
View on Model
10
Lever, Latch White
Lever, Latch White WPL 3372231 Contact Us For Availability
View on Model
10
Lever, Latch (Almond)
Lever, Latch (Almond) WPL 3375061 Contact Us For Availability
View on Model
11
Switch, (2)
Switch, (2) WPL 3369325 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
13
Harness and Protector
Harness and Protector WPL 8271432 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
16
Cover, Timer
Cover, Timer WPL 3379954 Contact Us For Availability
View on Model
19
Panel Front (White)
Panel Front (White) WPL 3379376 Contact Us For Availability
View on Model
19
Panel Front (Black)
Panel Front (Black) WPL 3379375 Contact Us For Availability
View on Model
19
Panel Front (Almond Model)
Panel Front (Almond Model) WPL 3379377 Contact Us For Availability
View on Model
22
Shield, Control Cover
Shield, Control Cover WPL 3379671 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 3376845 Contact Us For Availability
View on Model
24
Relay
Relay WPL 3369447 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
54
Friction Pad (Velcro)
Friction Pad (Velcro) WPL 8052018 Contact Us For Availability
View on Model
