Model Whirlpool DU910PFGB0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
01 - FRAME AND CONSOLE
03 - TUB ASSEMBLY

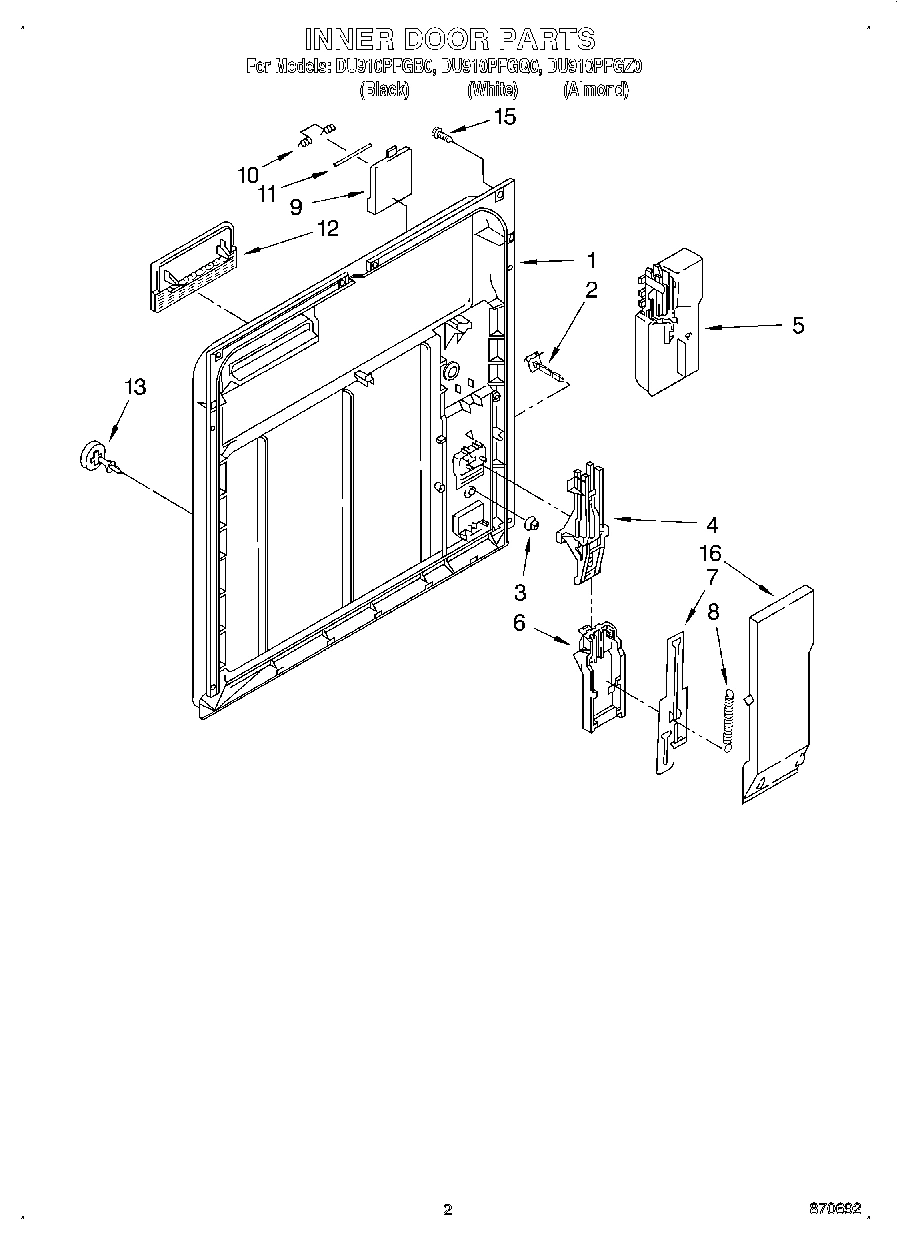

02 - INNER DOOR

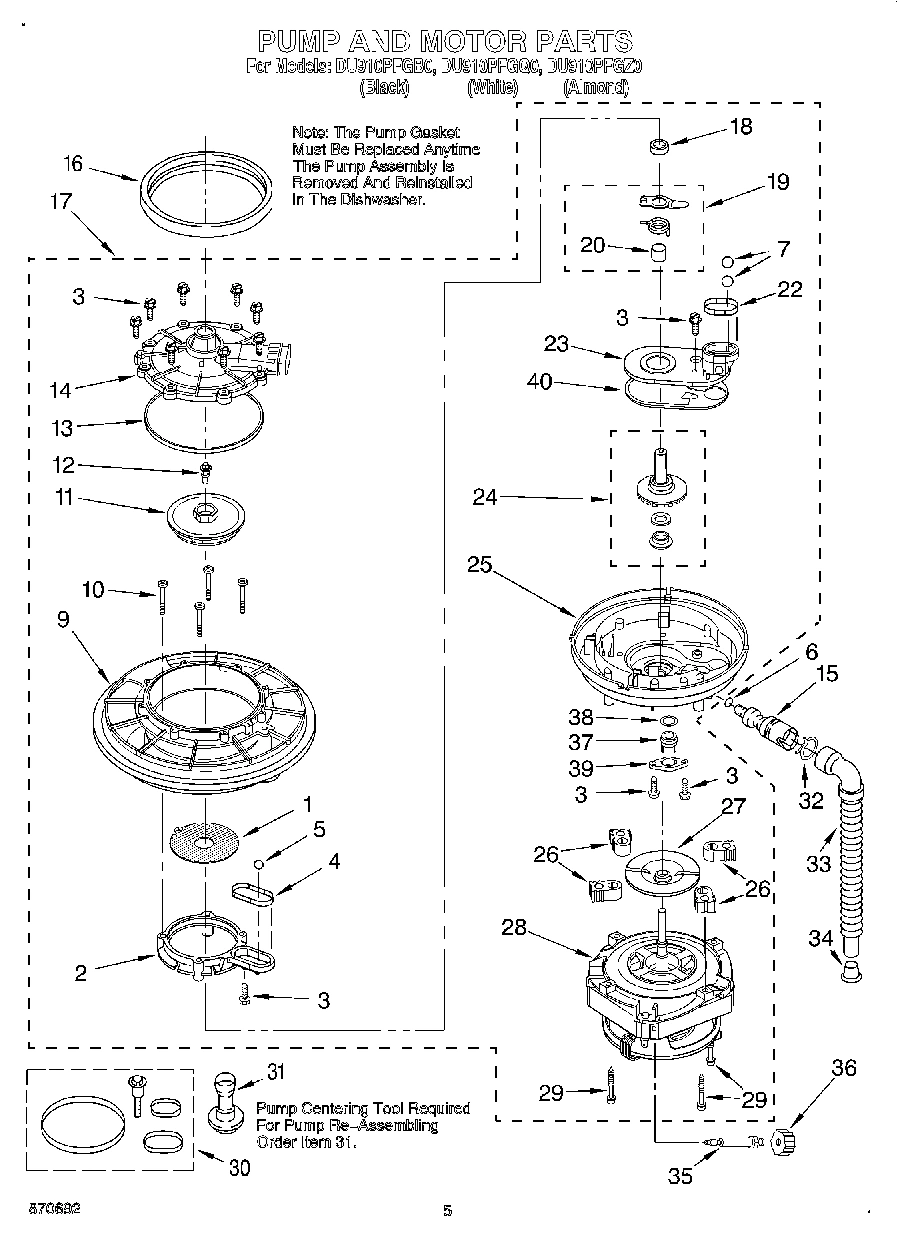

04 - PUMP AND MOTOR

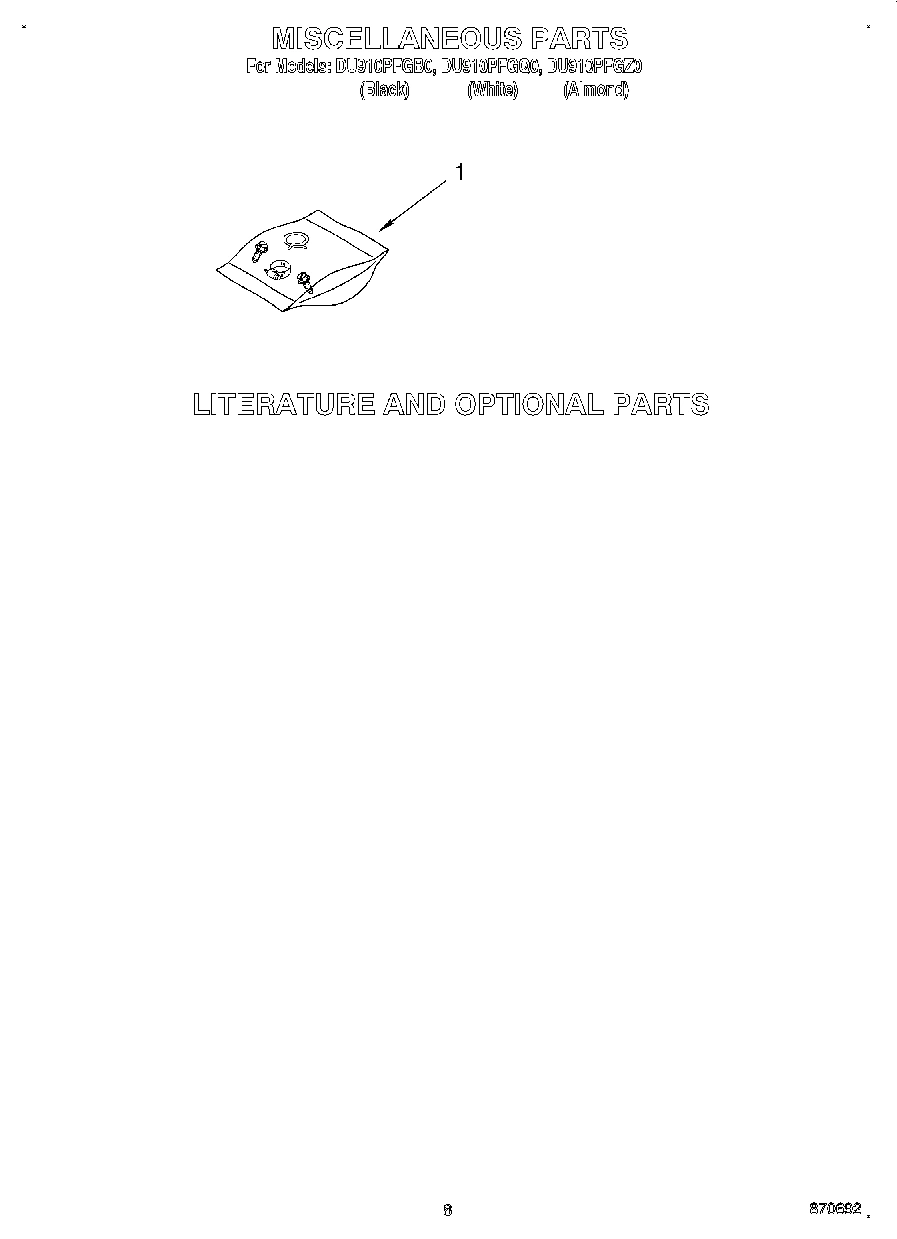

06 - MISCELLANEOUS, LIT/OPTIONAL

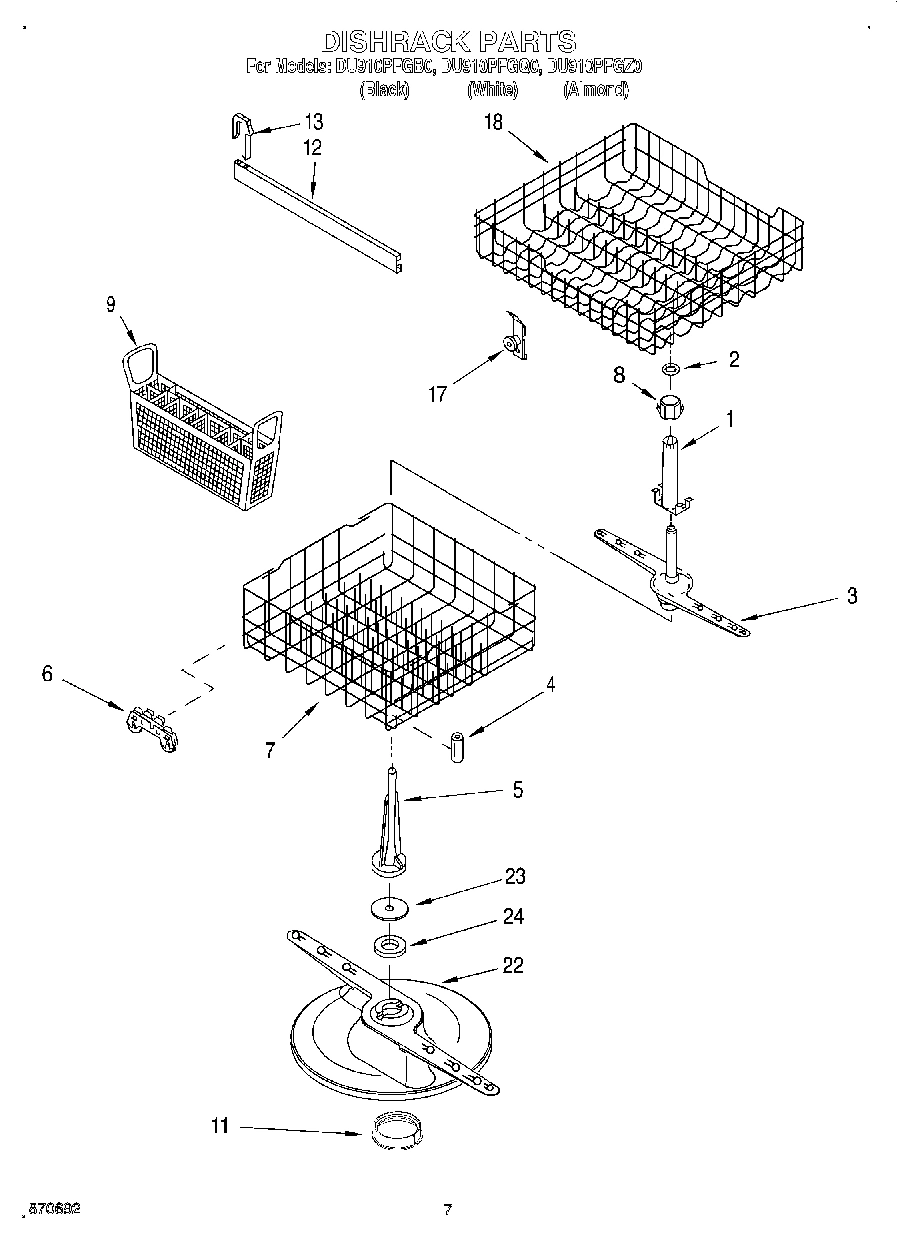

05 - DISHRACK
Common parts from model Whirlpool DU910PFGB0 UNDERCOUNTER DISHWASHER
Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Wiring Diagram WPL LIT3379193 Contact Us For Availability
Guide, Use & Care WPL LIT8051220 Contact Us For Availability
Instructions, Installation WPL LIT8051229 Contact Us For Availability
Energy Guide WPL LIT8051541 Contact Us For Availability
1
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
1
Door, Inner (Includes Items 2 & 3) WPL 3371435 Contact Us For Availability
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
1
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
1
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
1
Black (Uncut) WPL 799340 Contact Us For Availability
1
Almond (Uncut) WPL 978883 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
3
Spray Arm, Upper (Also Order Item 8) WPL 3377274 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
6
Cam WPL 3378124 Contact Us For Availability
8
Plate, Latch WPL 3378149 Contact Us For Availability
8
Door Frame (Black) WPL 9743028 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
9
Filter WPL 9742968 Contact Us For Availability
9
Basket, Silverware WPL 8051119 Contact Us For Availability
10
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Stop, Track (4) WPL 3379941 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
17
Wheel Assembly WPL 3380863 Contact Us For Availability
19
Panel Front (White) WPL 3379376 Contact Us For Availability
19
Panel Front (Black) WPL 3379375 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 3376845 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3376157 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3379364 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3378202 Contact Us For Availability
37
Thermostat WPL 3378083 Contact Us For Availability
38
Seal, O-Ring WPL 3376723 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
× ![]()
