Model Whirlpool DU900PCDZ3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
03 - TUB ASSEMBLY
05 - DISHRACK, LIT/OPTIONAL

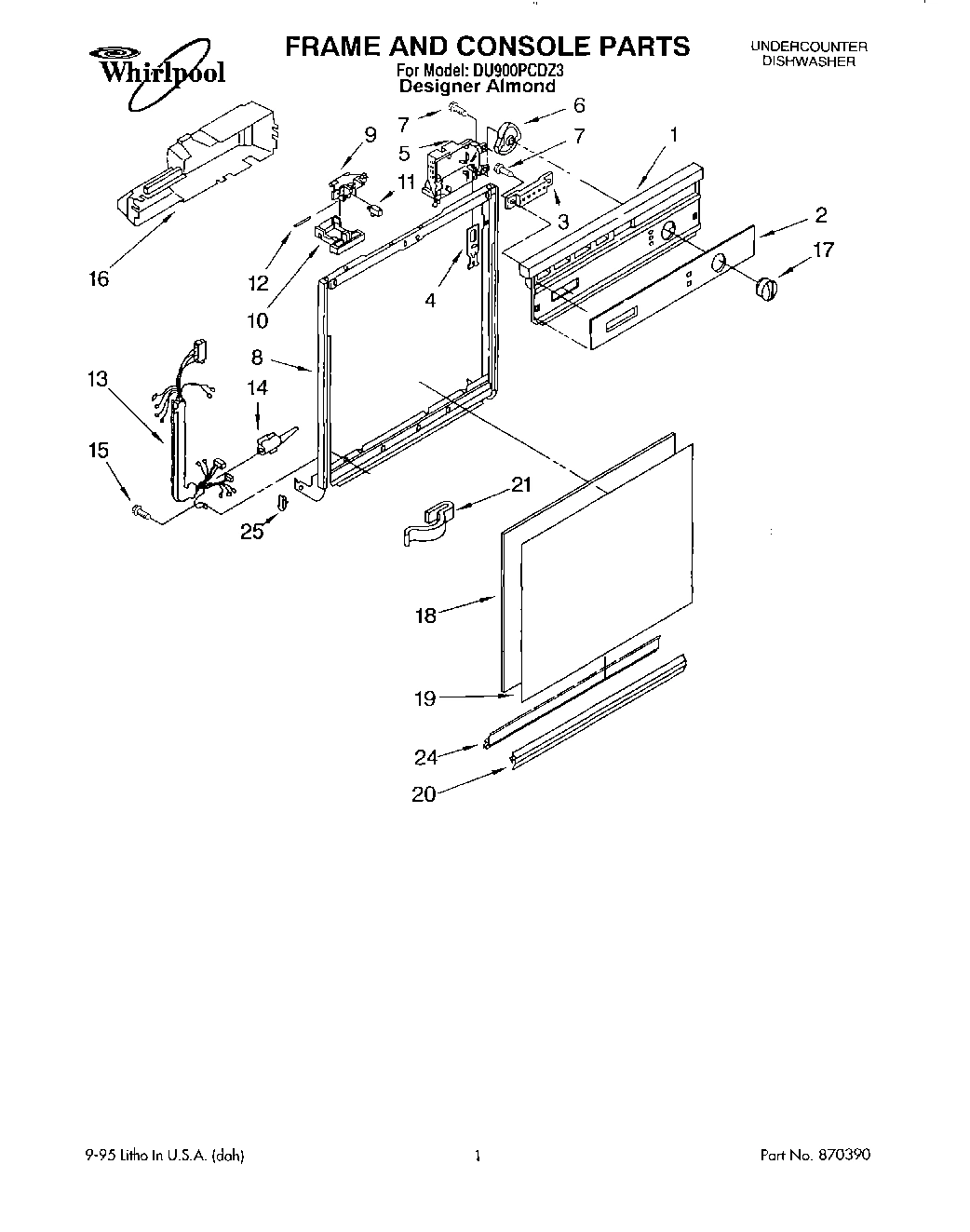

01 - FRAME AND CONSOLE

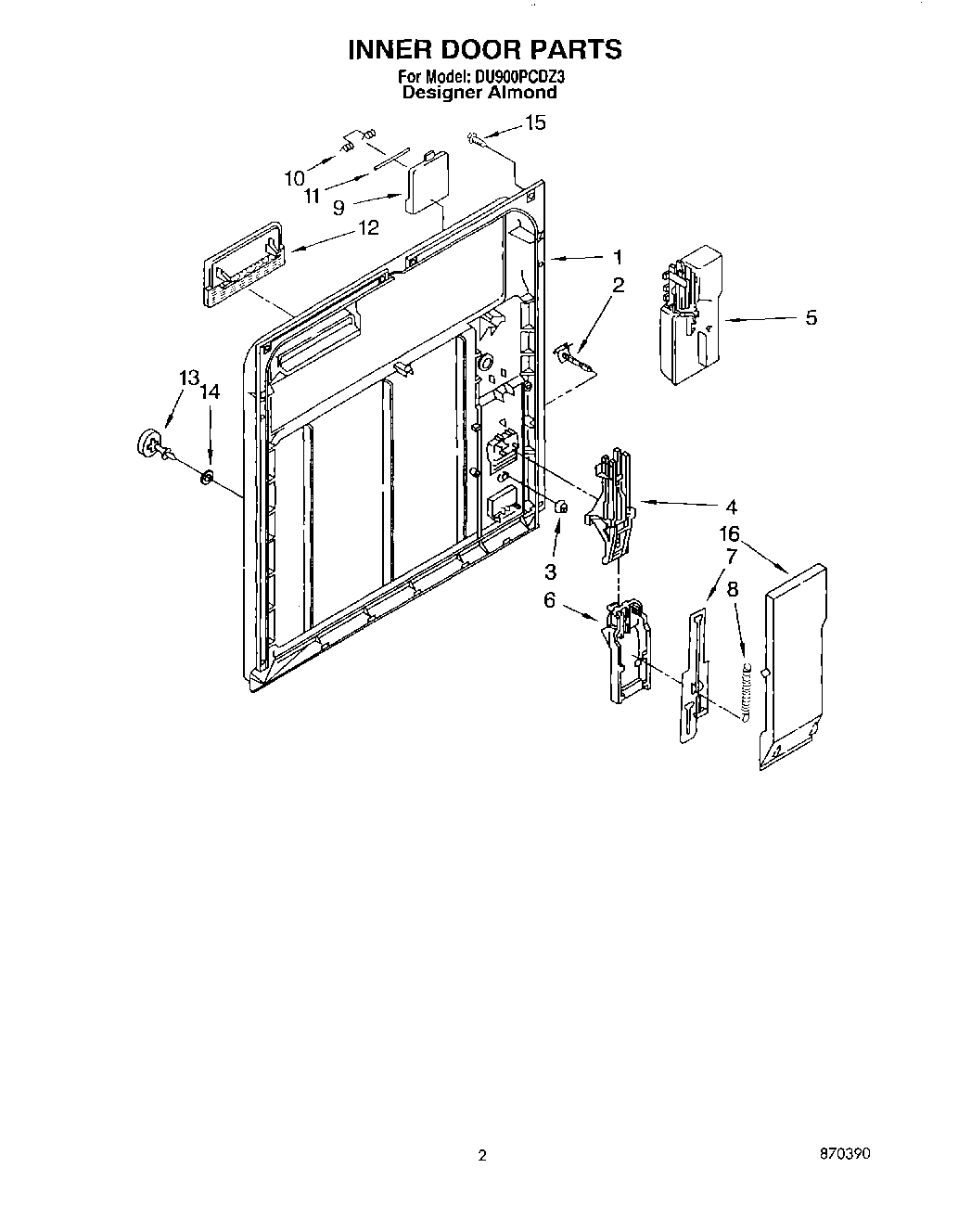

02 - INNER DOOR

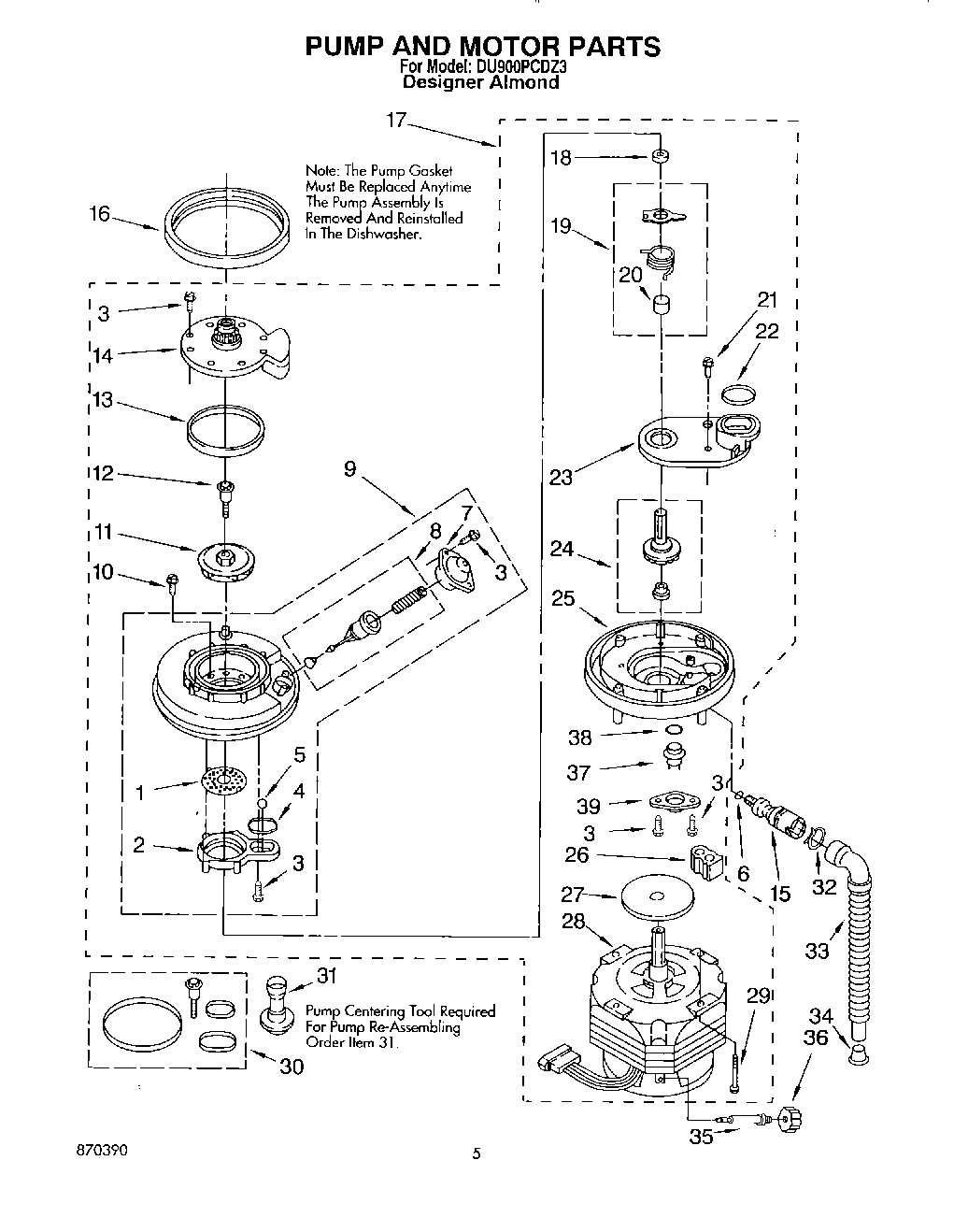

04 - PUMP AND MOTOR
Common parts from model Whirlpool DU900PCDZ3 UNDERCOUNTER DISHWASHER
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Console (Includes Item 2) WPL 3375275 Contact Us For Availability
1
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Insert, Console WPL 3376026 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
3
Switch WPL 3376029 Contact Us For Availability
5
Timer WPL 3373626 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Door Frame (Includes Item 24) WPL 3374713 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
10
Lever, Latch WPL 3375061 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Stop, Track (2) WPL 3374701 Contact Us For Availability
13
Harness and Protector WPL 3376440 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover Timer WPL 3375473 Contact Us For Availability
17
Wheel & Axle Assembly (4) WPL 3371581 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
20
Retainer, Panel WPL 3374012 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
24
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
24
Avocado WPL 4317926 Contact Us For Availability
24
Gold WPL 4317927 Contact Us For Availability
24
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
24
Toast WPL 4317930 Contact Us For Availability
24
Platinum WPL 4317931 Contact Us For Availability
24
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
24
Black (Uncut) WPL 799340 Contact Us For Availability
24
Almond (Uncut) WPL 978883 Contact Us For Availability
25
Base, Pump (Also Order Item 30) See Note A. WPL 3376157 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3378053 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3374756 Contact Us For Availability
37
Thermostat WPL 3376722 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
× ![]()
