Model Whirlpool DU900PCDQ0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
03 - TUB ASSEMBLY
04 - PUMP AND MOTOR

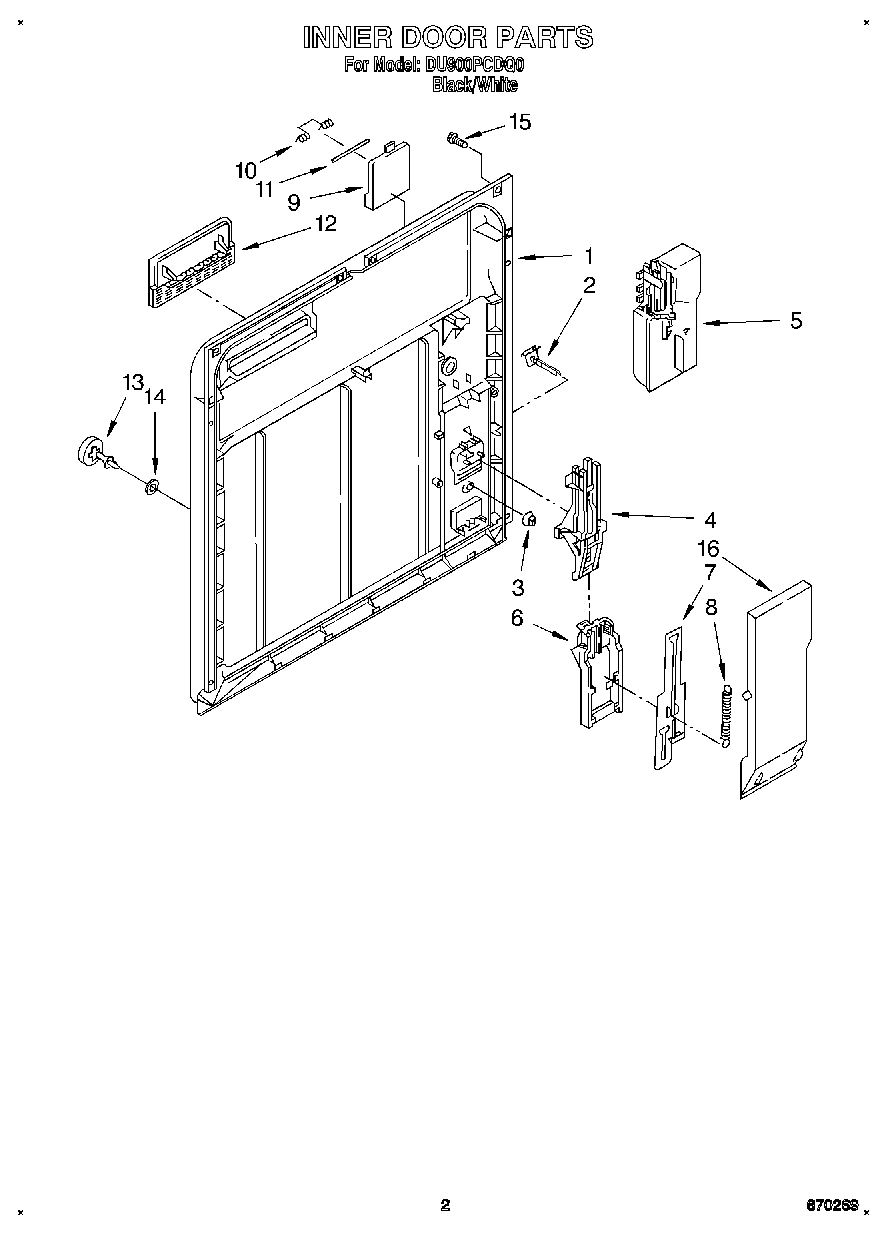

02 - INNER DOOR

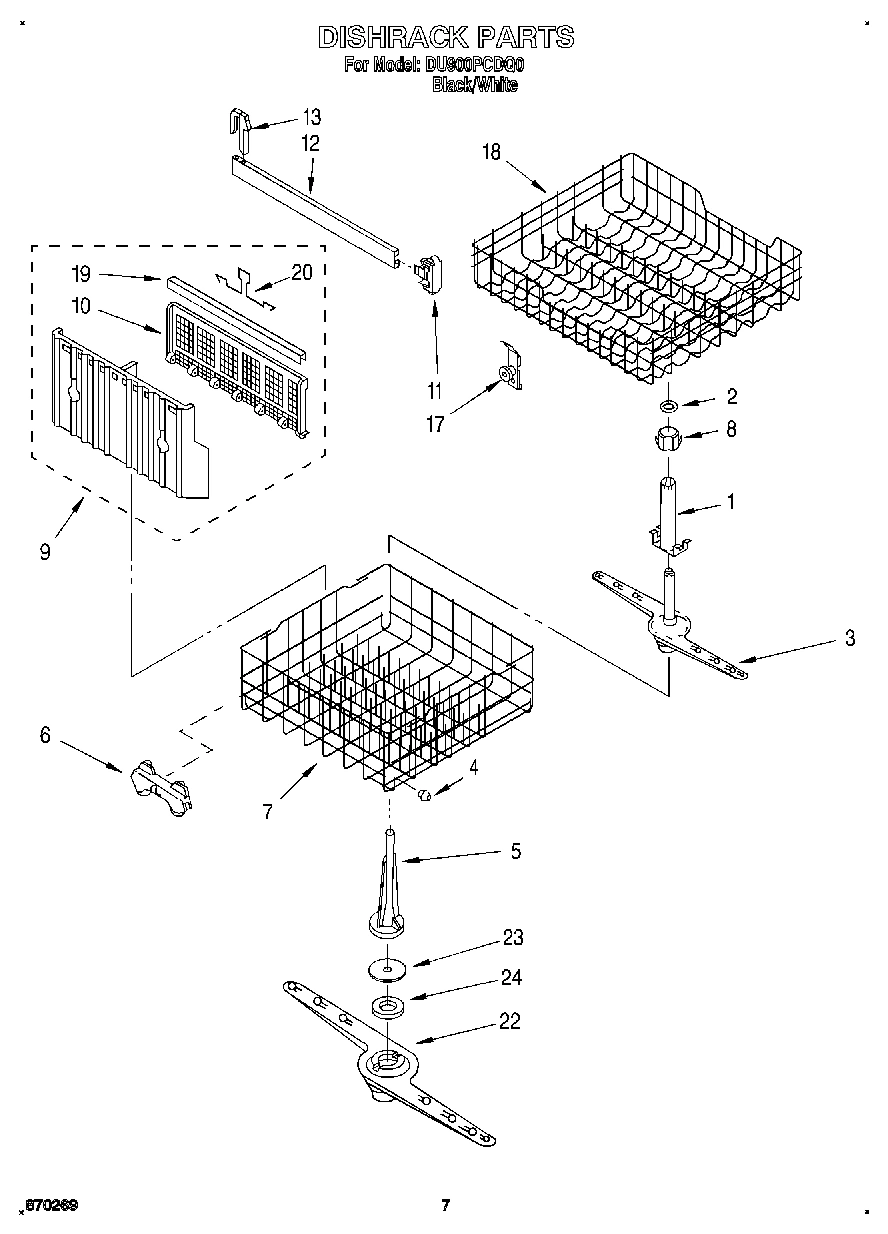

05 - DISHRACK, LIT/OPTIONAL

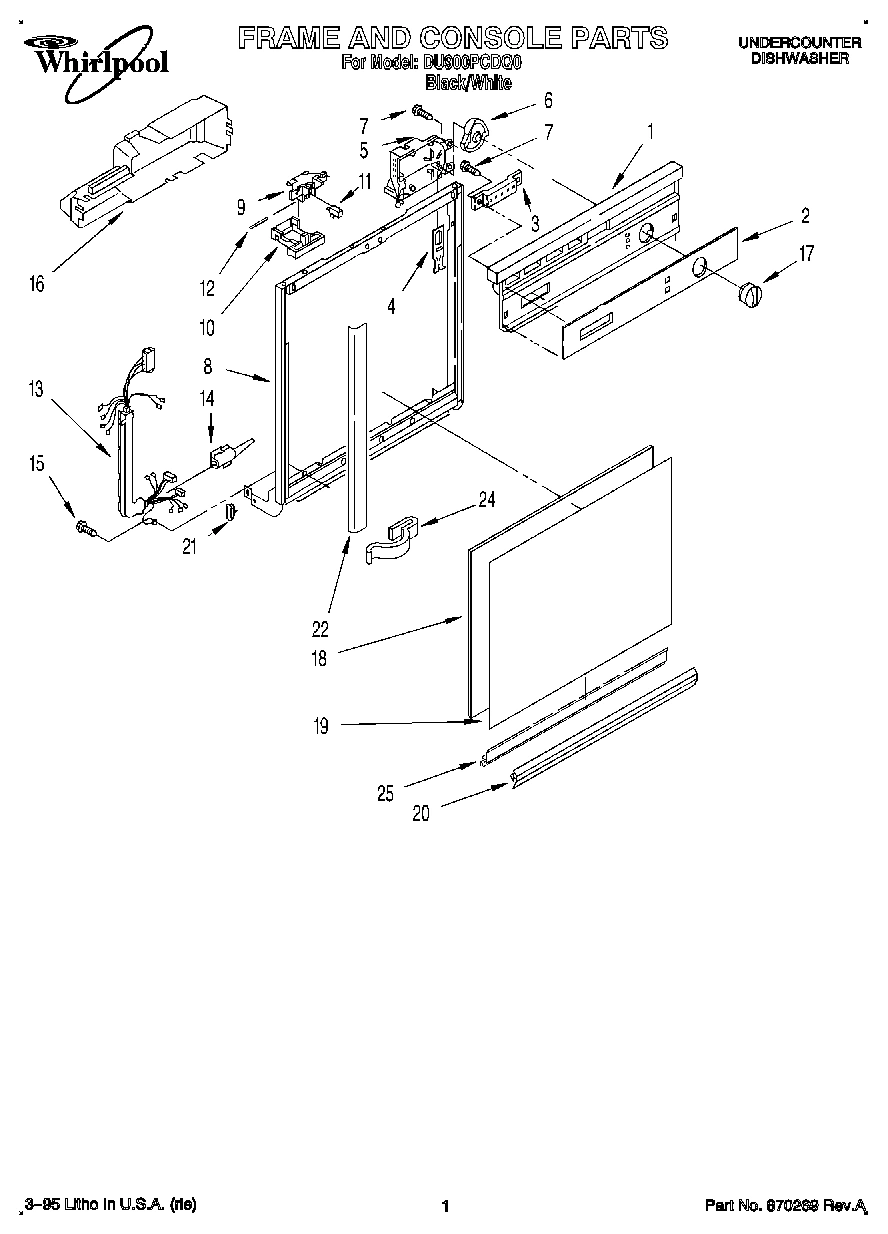

01 - FRAME AND CONSOLE

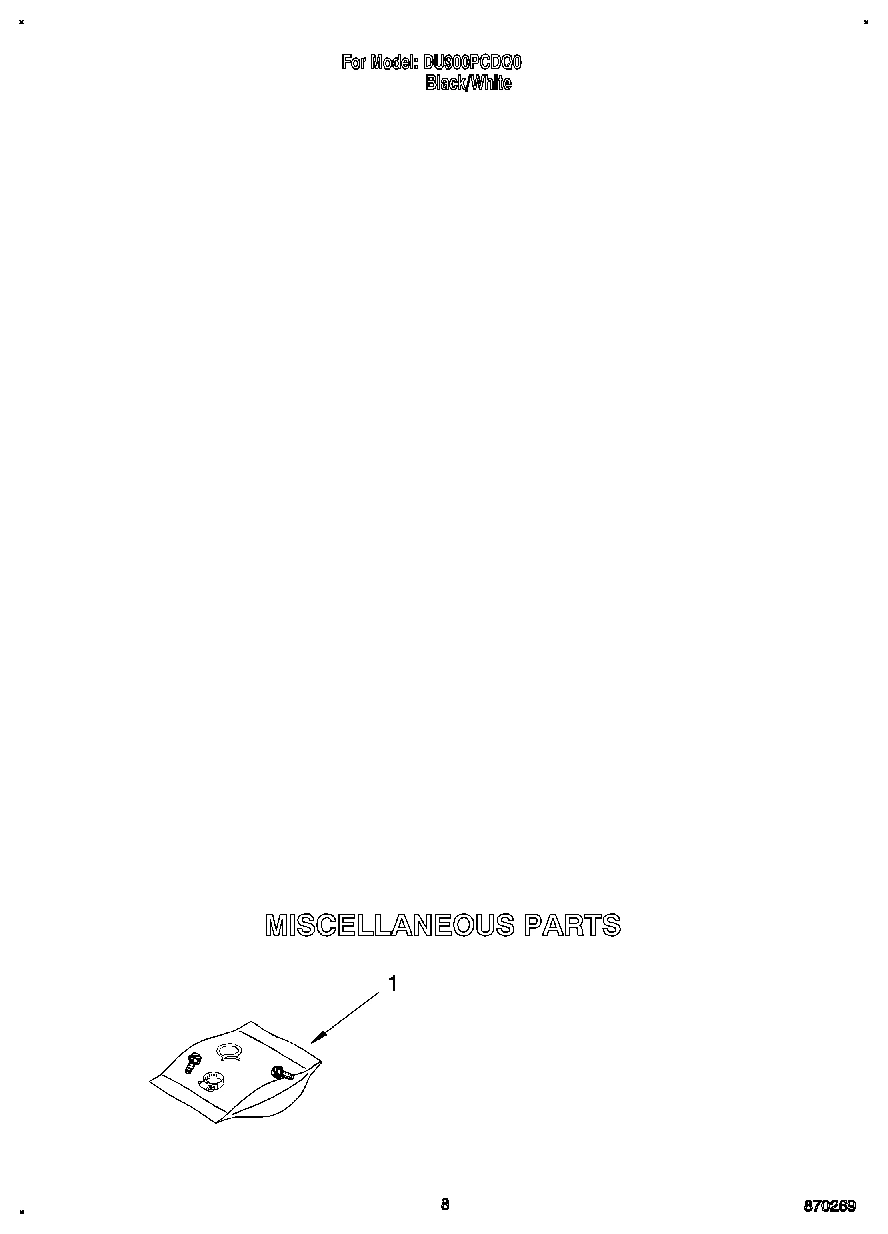

06 - MISCELLANEOUS
Common parts from model Whirlpool DU900PCDQ0 UNDERCOUNTER DISHWASHER
Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability
Instructions, Installation ( WPL LIT3367007 Contact Us For Availability
WPL LIT3369679 WPL LIT3369679 Contact Us For Availability
WPL LIT3373484 WPL LIT3373484 Contact Us For Availability
WPL LIT3373631 WPL LIT3373631 Contact Us For Availability
WPL LIT3373751 WPL LIT3373751 Contact Us For Availability
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
1
Console (Includes Item 2) WPL 3375274 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Insert, Console WPL 3376025 Contact Us For Availability
3
Spray Arm, Upper (Also Order Items 2 & 8) WPL 3368300 Contact Us For Availability
3
Switch, 5-Pushbutton WPL 3376028 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
5
Timer WPL 3373626 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
10
Lever, Latch WPL 3372231 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Stop, Track (2) WPL 3374701 Contact Us For Availability
13
Harness and Protector WPL 3373621 Contact Us For Availability
16
Water Valve WPL 3374621 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Cover, Timer WPL 3369192 Contact Us For Availability
17
Wheel Assy. WPL 3371581 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Retainer, Panel WPL 3374011 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
22
Trim (2) WPL 3375405 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
24
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
24
Avocado WPL 4317926 Contact Us For Availability
24
Gold WPL 4317927 Contact Us For Availability
24
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
24
Toast WPL 4317930 Contact Us For Availability
24
Platinum WPL 4317931 Contact Us For Availability
24
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
24
Black (Uncut) WPL 799340 Contact Us For Availability
24
Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability
24
Almond (Uncut) WPL 978883 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3376151 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3375480 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
35
WPL 3374757 WPL 3374757 Contact Us For Availability
36
WPL 3374756 WPL 3374756 Contact Us For Availability
43
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
× ![]()
