Model Whirlpool DU9000XR6 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
06 - PUMP AND MOTOR
03 - DOOR
05 - DISH RACK

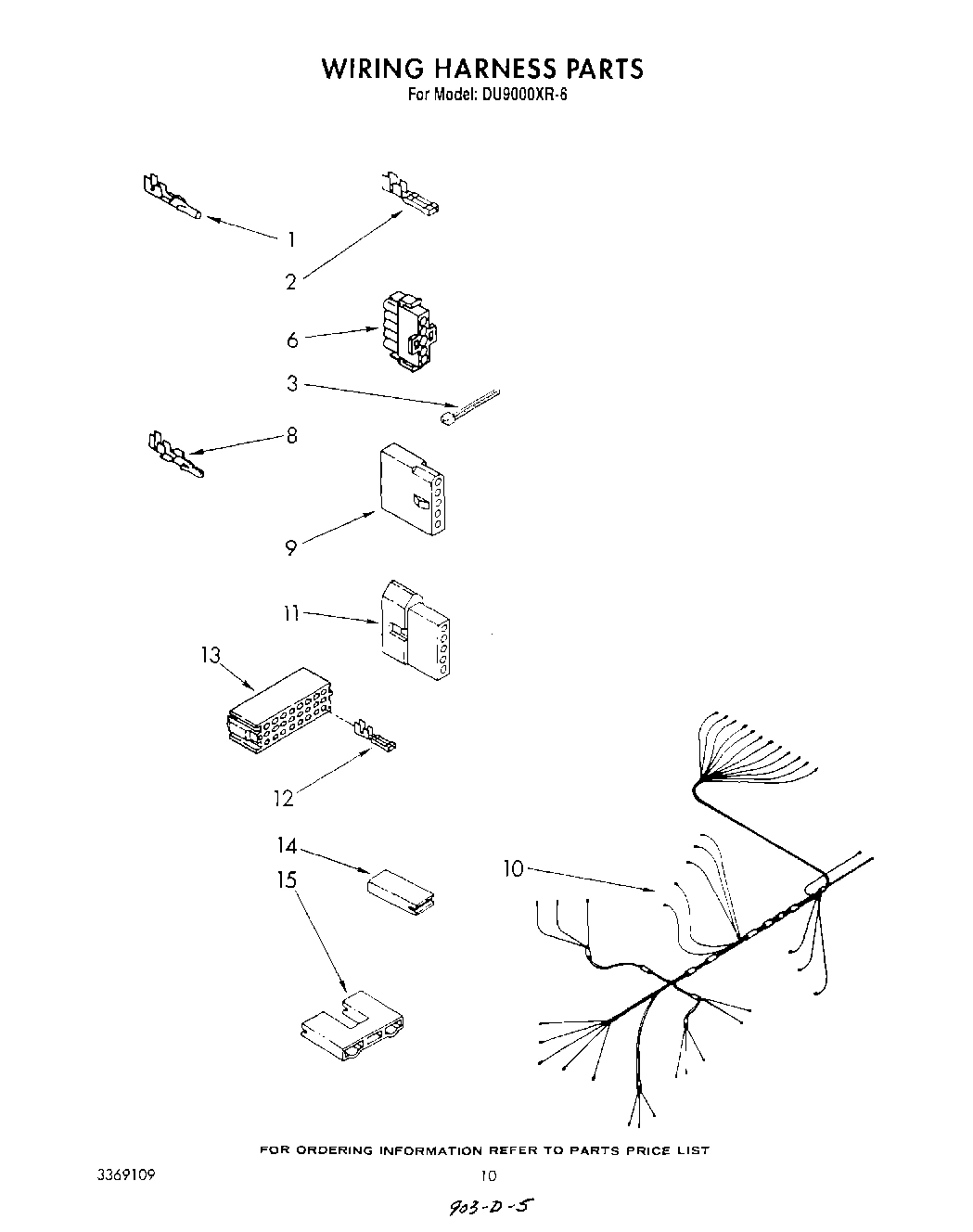

07 - WIRING HARNESS

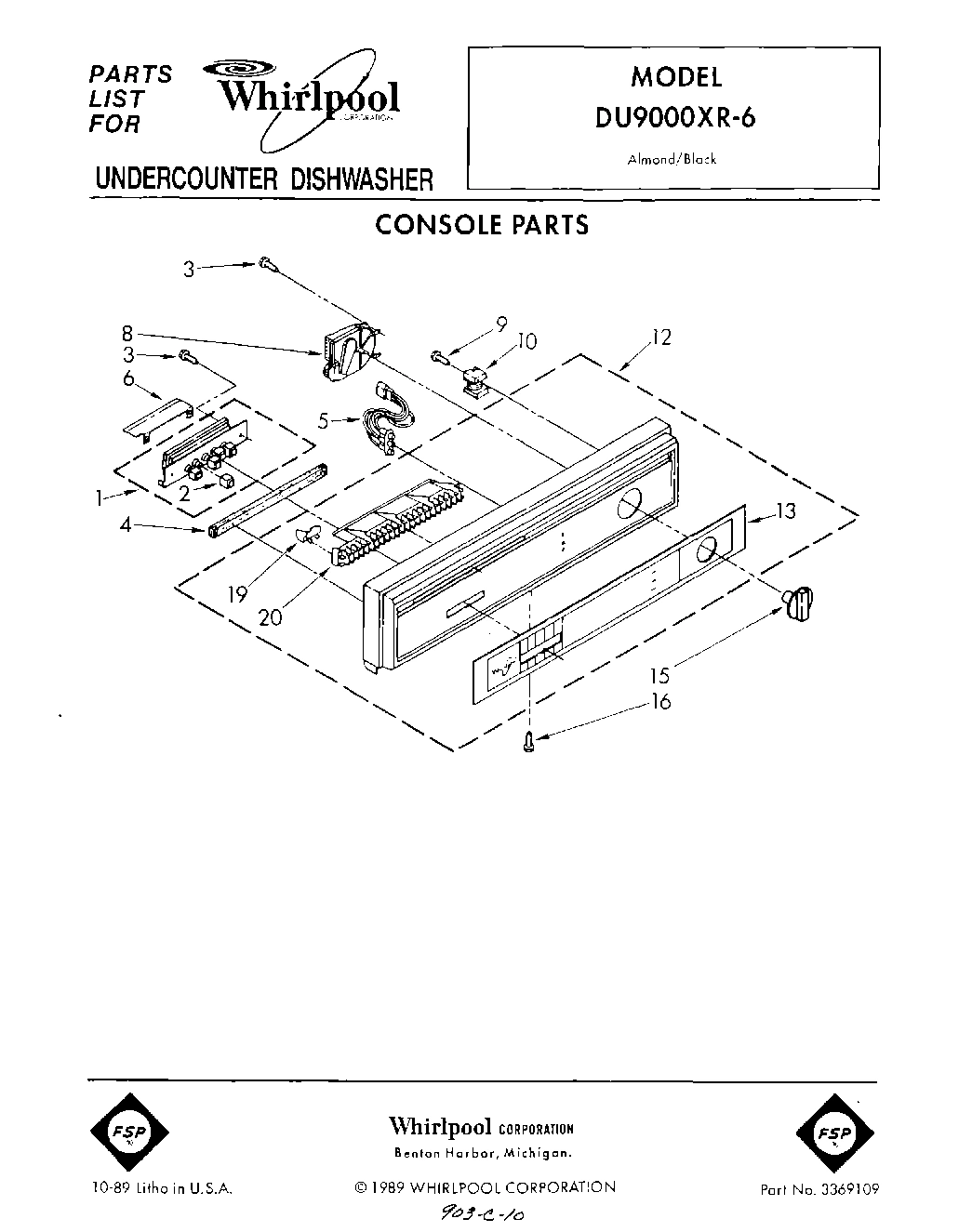

01 - CONSOLE

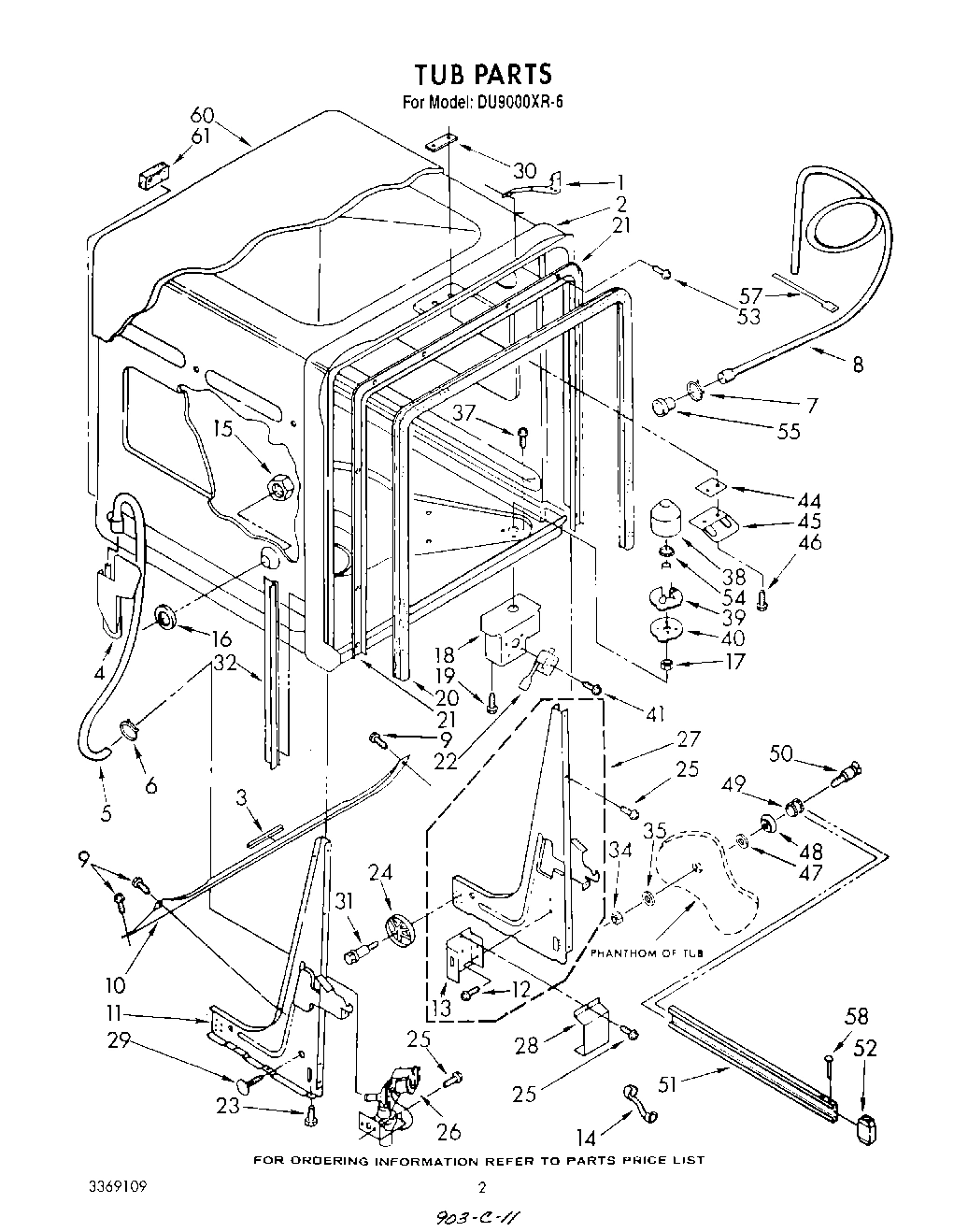

02 - TUB , LITERATURE AND OPTIONAL

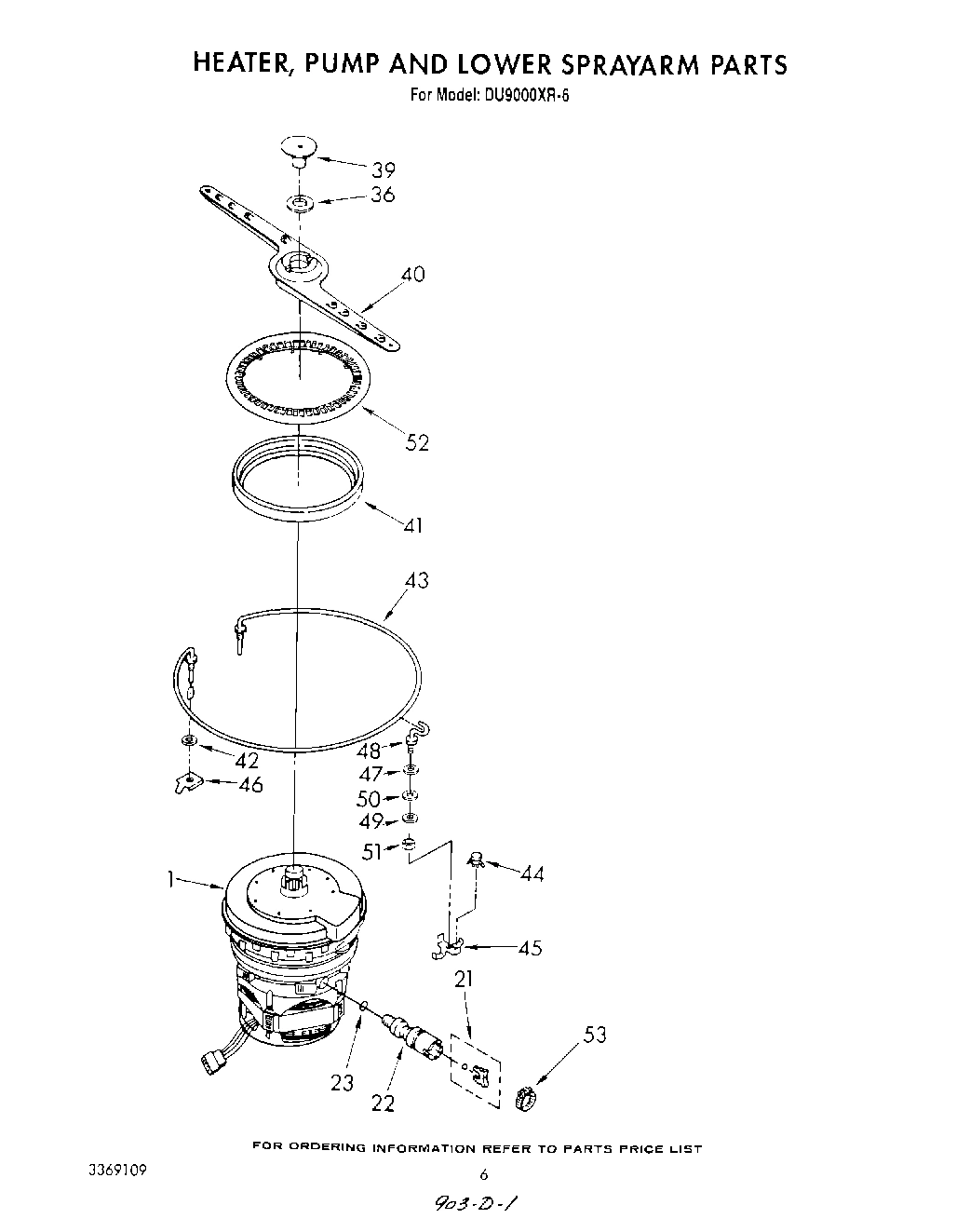

04 - HEATER, PUMP AND LOWER SPRAY ARM
Common parts from model Whirlpool DU9000XR6 UNDERCOUNTER DISHWASHER
WPL LIT304271 WPL LIT304271 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3368434 WPL LIT3368434 Contact Us For Availability
WPL LIT3369109 WPL LIT3369109 Contact Us For Availability
WPL LIT3369927 WPL LIT3369927 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 301120 Contact Us For Availability
1
Switch, Pushbutton WPL 3368539 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Pump & Motor Assembly (Includes Item 41) WPL 3367725 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Button (5) WPL 304456 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Cover, Housing (2) WPL 301066 Contact Us For Availability
4
Baffle WPL 3368537 Contact Us For Availability
4
Inlet, Water WPL 3367572 Contact Us For Availability
5
Housing, Gear (2) WPL 301065 Contact Us For Availability
5
Light, Indicator (For Electrical Connector On WPL 304474 Contact Us For Availability
5
Hose, Inlet WPL 3368563 Contact Us For Availability
6
Warm, Dishrack (2) WPL 301067 Contact Us For Availability
6
Connector, 5 Terminal WPL 388500 Contact Us For Availability
6
Shield, Sound WPL 3368538 Contact Us For Availability
8
Timer WPL 3370001 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Screw, 8-18 x 1-3/8 WPL 304232 Contact Us For Availability
9
Screw WPL 3368008 Contact Us For Availability
10
Harness, Wiring WPL 3370013 Contact Us For Availability
10
Relay, Start WPL 304409 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
11
Cap, 5 Pin WPL 719584 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Terminal, Timer WPL 304759 Contact Us For Availability
12
Console WPL 304612 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
13
Block, Timer (White) WPL 304757 Contact Us For Availability
13
block, timer (black) WPL 304758 Contact Us For Availability
13
Insert, Decorative WPL 304546 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Tower WPL 300848 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Knob, Timer WPL 304574 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
16
Panel, Reversible Side WPL ARI24509A1 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 WPL 717488 Contact Us For Availability
17
Silverware Basket WPL 304779 Contact Us For Availability
18
Screw, 8-18 x 1-7/8 (2) WPL 304233 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 304442 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
19
Cover, Grill WPL 304604 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
20
Utinsil Basket Assembly WPL 304781 Contact Us For Availability
20
Grill, Vent (Includes Item 19) WPL 304602 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Nut, 1-14 WPL 718575 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
22
Indicator, Level WPL 303163 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
Panel, Lower Side WPL 3367549 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
25
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Tool, Pump Centering (Included With Item 24) WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 3370031 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Retainer, Sound Shield WPL 3368112 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Bearing Nozzle Drain Kit WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Cap, Nozzle WPL 3367198 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
41
Gasket, Pump WPL 717000 Contact Us For Availability
41
Screw, 4-40 x 5/8 WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
43
Barrier, Console WPL 303908 Contact Us For Availability
43
Heater WPL 660318 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Thermostat WPL 661504 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Bracket WPL 3368272 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
47
Washer, Retainer WPL 717289 Contact Us For Availability
48
Panel, Front WPL ARI24507A9 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Support, Heater WPL 717096 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
51
Track (2) WPL 303297 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
52
End Cap, Track (4) WPL 303299 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
58
Pin, Track (4) WPL 303298 Contact Us For Availability
61
WPL 799344 WPL 799344 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
61
Coffee (Uncut) WPL 261887 Contact Us For Availability
61
New Avocado (Uncut) WPL 261889 Contact Us For Availability
61
Golden Harvest WPL 261890 Contact Us For Availability
61
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
61
Toast WPL 285365 Contact Us For Availability
61
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
61
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
61
Platinum (Uncut) WPL 285368 Contact Us For Availability
61
Block, Foam WPL 3368107 Contact Us For Availability
61
WPL 350941 WPL 350941 Contact Us For Availability
61
WPL 675476 WPL 675476 Contact Us For Availability
61
WPL 675506 WPL 675506 Contact Us For Availability
61
WPL 72112 WPL 72112 Contact Us For Availability
61
WPL 799640 WPL 799640 Contact Us For Availability
61
WPL 978883 WPL 978883 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access WPL ARI24508A1 Contact Us For Availability
70
Plate, Toe WPL 3367671 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
81
Shield, Sound WPL 304660 Contact Us For Availability
82
Shield, Sound WPL 304661 Contact Us For Availability
84
Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability
85
Actuator WPL 304443 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Spacer, Corrugated WPL 3368569 Contact Us For Availability
91
Clip, Wire (2) WPL 301857 Contact Us For Availability
92
Screw, 8 - 18 (4) WPL 3367288 Contact Us For Availability
93
Shield, Harness WPL 303362 Contact Us For Availability
94
Retainer, Clip WPL 3367720 Contact Us For Availability
95
Screw, 8 x 3/8 WPL 303090 Contact Us For Availability
96
Spacer, Corrugated WPL 303755 Contact Us For Availability
97
Trim, Access Panel WPL 303753 Contact Us For Availability
98
Trim, Access Panel Top WPL 303754 Contact Us For Availability
× ![]()
