Model Whirlpool DU8750XB1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

Side Panel Kit (White) WPL 4317925 Contact Us For Availability

Avocado WPL 4317926 Contact Us For Availability

Gold WPL 4317927 Contact Us For Availability

Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability

Toast WPL 4317930 Contact Us For Availability

Platinum WPL 4317931 Contact Us For Availability

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Instructions, Installation WPL LIT3369679 Contact Us For Availability

Energy Guide WPL LIT3373484 Contact Us For Availability

Wiring Diagram WPL LIT3373632 Contact Us For Availability

Guide, Use & Care WPL LIT3373741 Contact Us For Availability

1

Clip WPL 303722 Contact Us For Availability

1

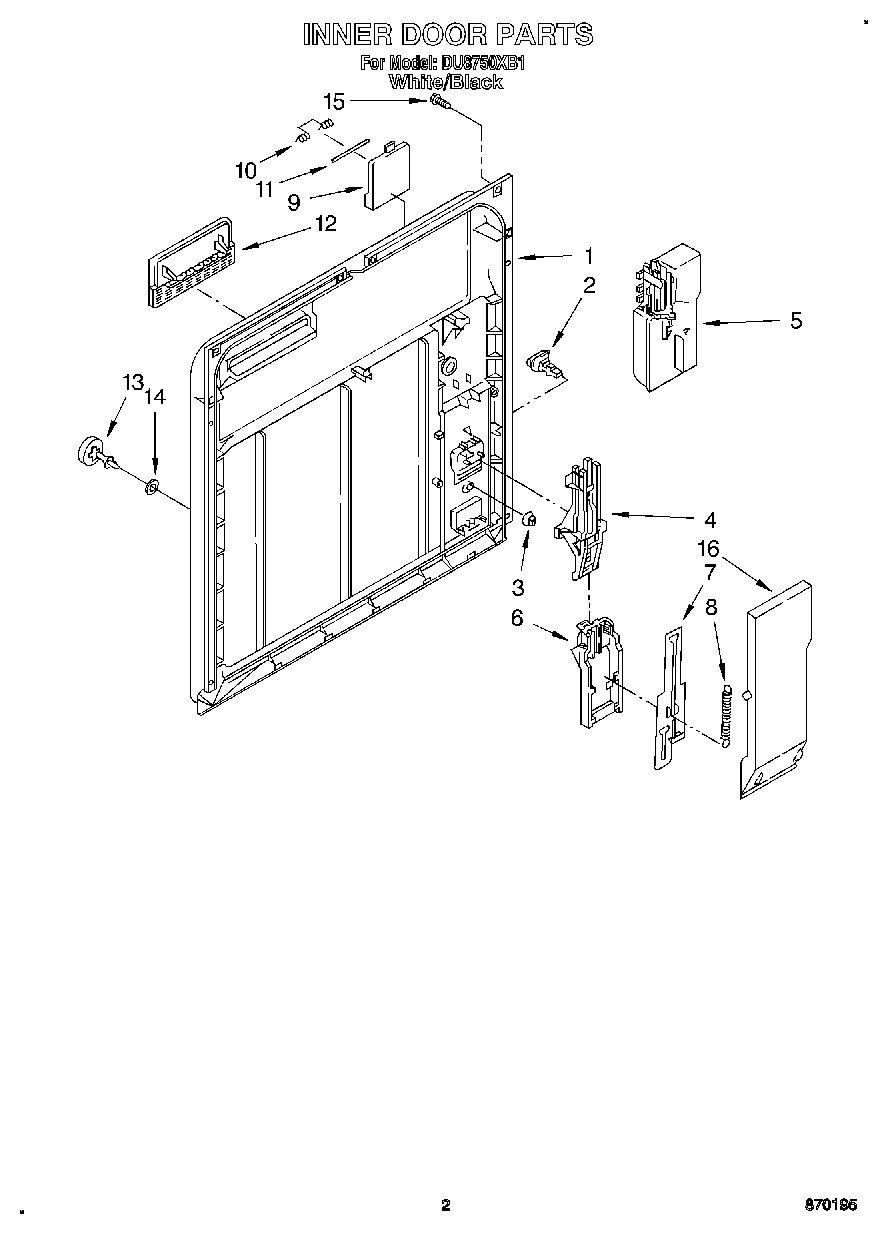

Inner Door (Also Order) WPL 3371481 Contact Us For Availability

1

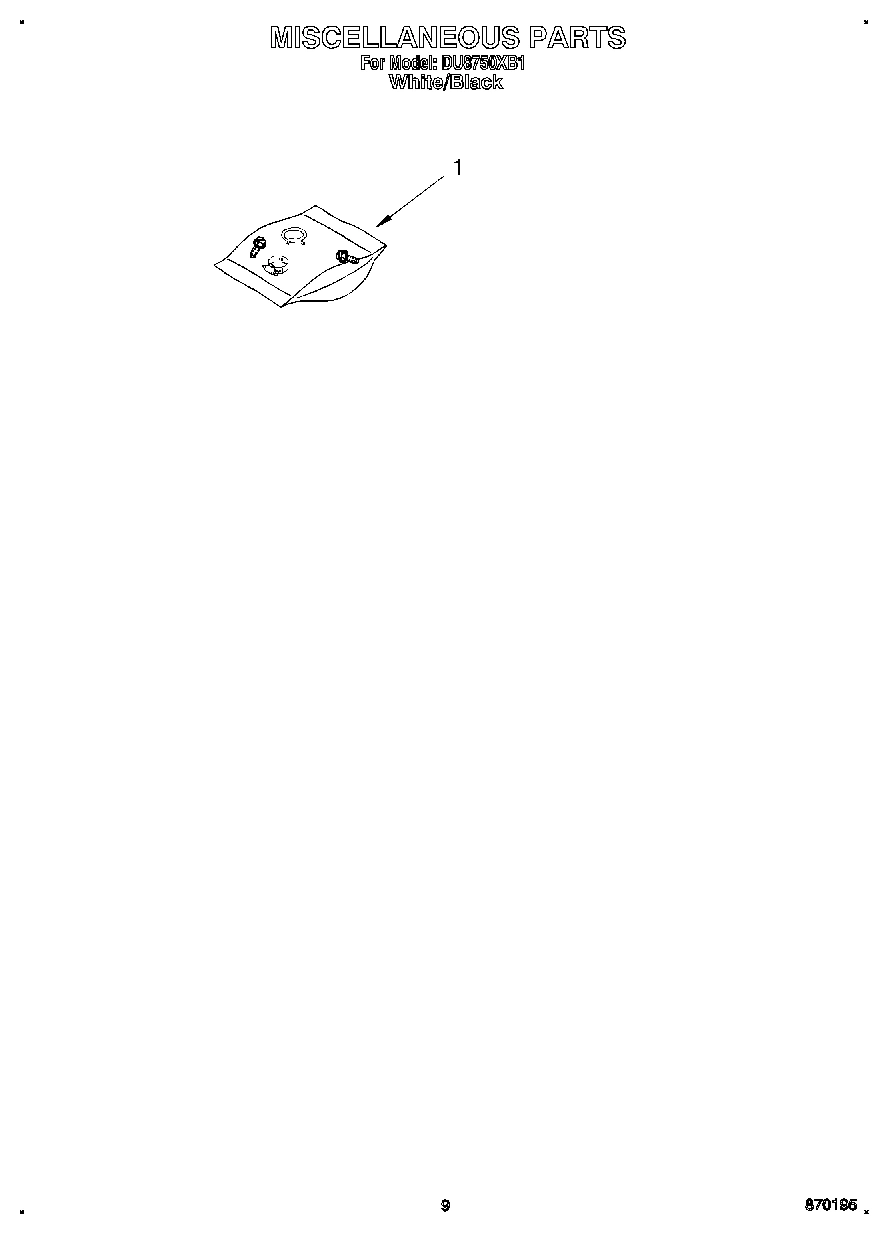

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

2

Support, Arm WPL 3368290 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

Spray Arm, Upper WPL 3368300 Contact Us For Availability

4

8193646 Whirlpool Dishwasher Lower Detergent In Stock WPL 8193646 $30.80

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3385142 Whirlpool Dishwasher Bumper Backorder WPL WP3385142 $33.07

4

Follower, Cam WPL 3368997 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $45.91

5

Tower, Pressure WPL 300848 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $30.03

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

7

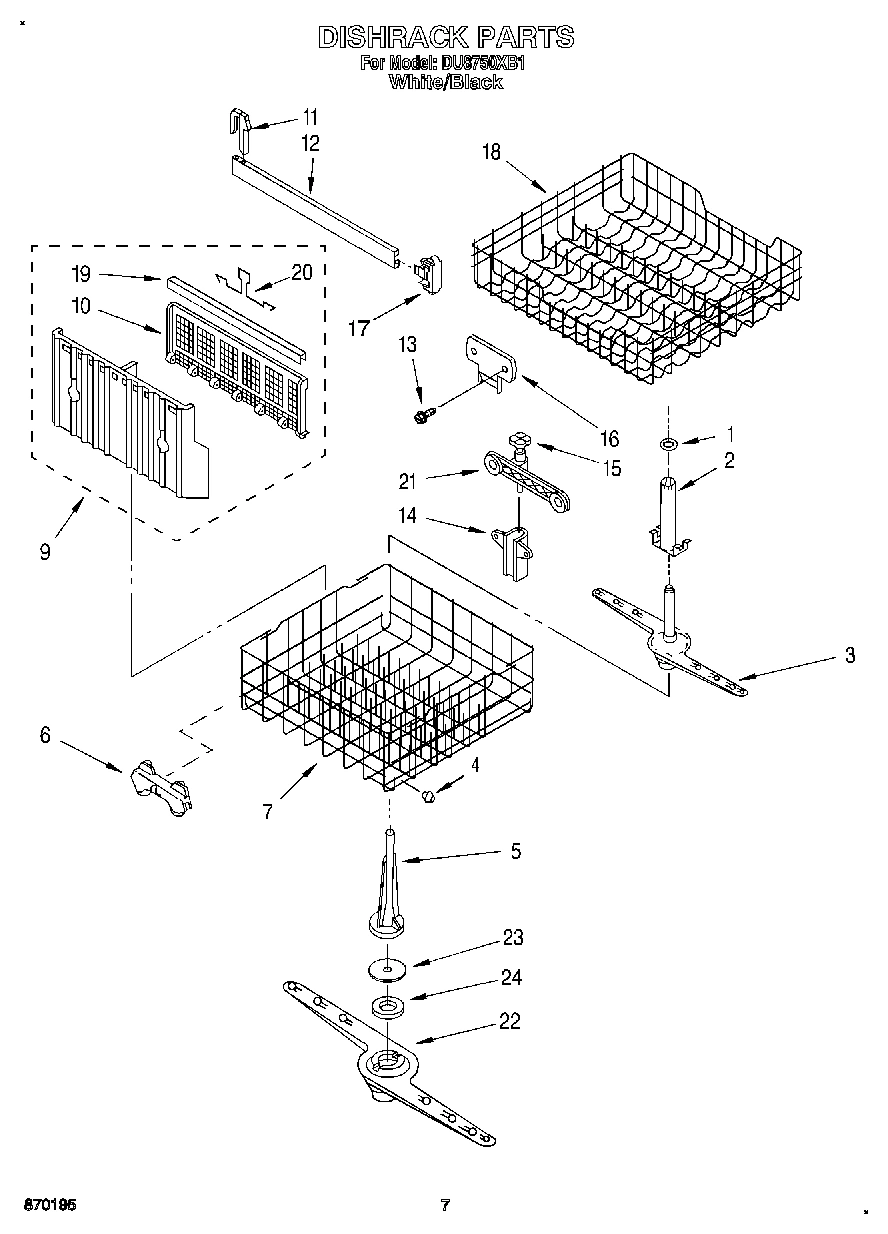

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

8

3374711 Whirlpool Dishwasher Frame Backorder WPL 3374711 $65.50

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

9

Screw, 8-32 WPL 3372029 Contact Us For Availability

9

Silverware Basket Assembly WPL 3369488 Contact Us For Availability

10

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

10

WPW10509257 Whirlpool Door Gasket In Stock WPL WPW10509257 $34.31

10

Cover, Basket WPL 3369485 Contact Us For Availability

11

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

11

Retainer, Access Panel WPL 3372413 Contact Us For Availability

11

Stop, Track (2) WPL 3369046 Contact Us For Availability

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $30.38

Pin, Switch (2) WPL 3368955 Contact Us For Availability

Track WPL 3369071 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

13

Heater WPL 3373358 Contact Us For Availability

14

WP3369980 Whirlpool Dishwasher Housing Backorder WPL WP3369980 $26.75

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.70

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

15

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

15

Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability

15

Worm (2) WPL 3369981 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

WP3369979 Whirlpool Dishwasher Plate Backorder WPL WP3369979 $3.51

Water Valve WPL 3374621 Contact Us For Availability

Cover, Drip WPL 3371569 Contact Us For Availability

17

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

17

End Cap WPL 300845 Contact Us For Availability

18

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

18

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

19

Thermostat WPL 3373359 Contact Us For Availability

19

Trim, Basket WPL 717528 Contact Us For Availability

20

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

20

Retainer, Panel WPL 3374011 Contact Us For Availability

20

Handle, Basket WPL 300086 Contact Us For Availability

21

675791 Whirlpool Dishwasher ARM Assembly Backorder WPL 675791 $40.64

21

Clip, Grounding WPL 3368992 Contact Us For Availability

22

WP3376848 Whirlpool Dishwasher Spray Arm Backorder WPL WP3376848 $39.84

22

Trim, Console WPL 3369598 Contact Us For Availability

23

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

24

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

24

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

24

Relay WPL 3369447 Contact Us For Availability

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

26

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $30.80

26

Sound Shield (2) WPL 3382404 Contact Us For Availability

27

Shield, Harness WPL 3368983 Contact Us For Availability

28

WP3374343 Whirlpool Dishwasher Spring Backorder WPL WP3374343 $11.07

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

30

Switch, Float WPL 3369067 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP3376397 Whirlpool Dishwasher Float Assembly In Stock WPL WP3376397 $51.33

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

Nut WPL 717488 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

34

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $56.87

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

37

Hose, Inlet WPL 3369414 Contact Us For Availability

40

Sound Shield WPL 3375552 Contact Us For Availability

41

Box, Terminal WPL 3370292 Contact Us For Availability

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

43

Access Panel (White/Black) WPL 3370868 Contact Us For Availability

44

Spacer, Corrugated WPL 3369526 Contact Us For Availability

45

Extension WPL 3369531 Contact Us For Availability

46

Trim, Side (2) WPL 3369593 Contact Us For Availability

47

Trim, Bottom WPL 3369588 Contact Us For Availability

49

Bracket, Thermostat WPL 3370555 Contact Us For Availability

50

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

51

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

52

Support, Heater WPL 3368987 Contact Us For Availability

53

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

54

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

55

Relief, Strain WPL 3370307 Contact Us For Availability

56

Screw, 8-18 WPL 3369138 Contact Us For Availability
