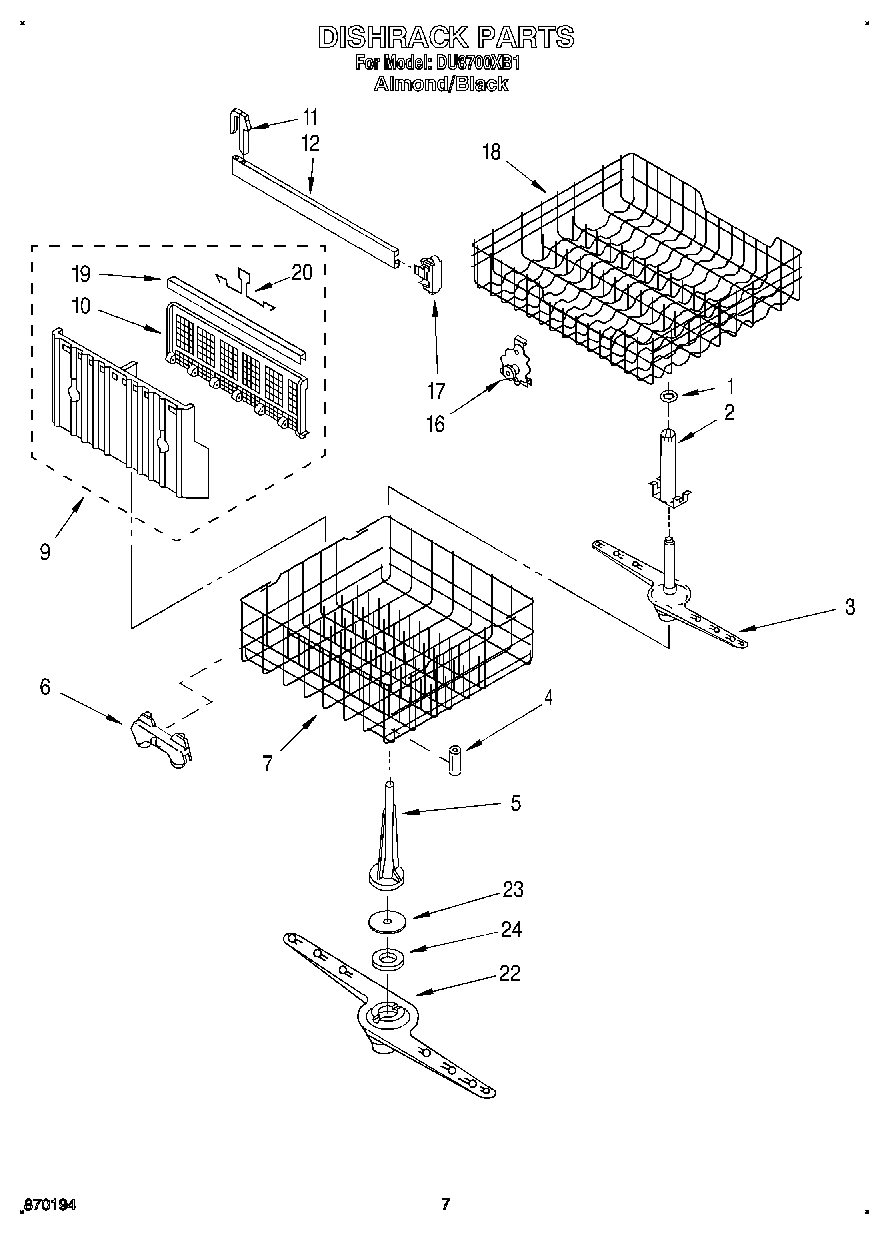

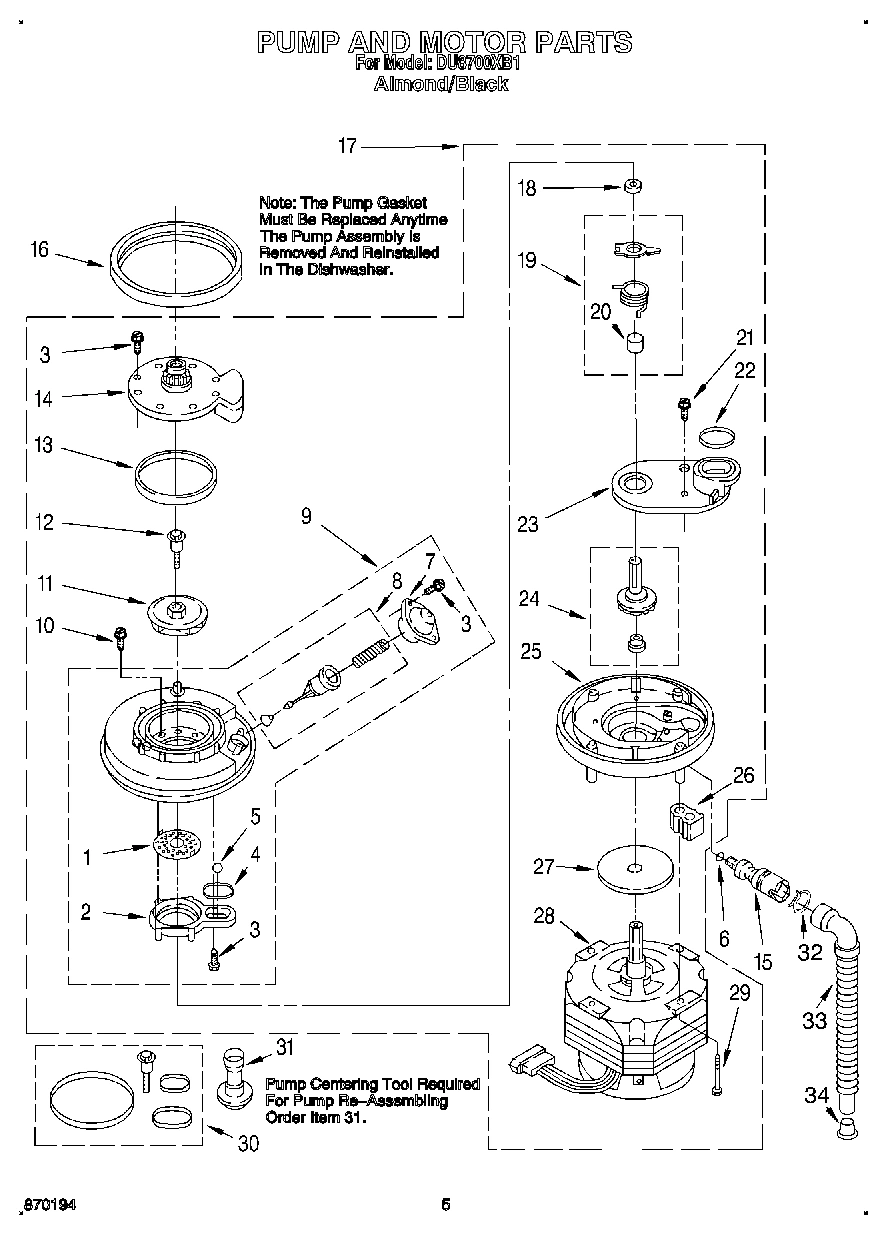

Model Whirlpool DU8700XB1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

Side Panel Kit (White) WPL 4317925 Contact Us For Availability

Avocado WPL 4317926 Contact Us For Availability

Gold WPL 4317927 Contact Us For Availability

Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability

Toast WPL 4317930 Contact Us For Availability

Platinum WPL 4317931 Contact Us For Availability

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself, Manual WPL LIT00677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Instructions, Installation WPL LIT3369679 Contact Us For Availability

Energy Guide WPL LIT3373484 Contact Us For Availability

Wiring Diagram WPL LIT3373632 Contact Us For Availability

Guide, Use & Care WPL LIT3373741 Contact Us For Availability

1

Clip WPL 303722 Contact Us For Availability

1

Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability

1

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

Inner Door (Also Order) WPL 3371481 Contact Us For Availability

2

Support, Arm WPL 3368290 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Spray Arm, Upper WPL 3368300 Contact Us For Availability

4

8193646 Whirlpool Dishwasher Lower Detergent In Stock WPL 8193646 $32.34

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP3385142 Whirlpool Dishwasher Bumper Backorder WPL WP3385142 $34.72

4

Follower, Cam WPL 3368997 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $48.20

5

Tower, Pressure WPL 300848 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

6

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $31.53

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Wheel (2) WPL 302819 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $176.67

7

Cover, Valve WPL 302721 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Door Frame (Includes Item 27) WPL 3374711 Contact Us For Availability

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

9

Silverware Basket Assembly WPL 3369488 Contact Us For Availability

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $2.51

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.64

Cover, Basket WPL 3369485 Contact Us For Availability

Screw WPL 9741258 Contact Us For Availability

11

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $16.78

11

WP3372412 Whirlpool Dishwasher Retainer Backorder WPL WP3372412 $33.27

11

Stop, Track (2) WPL 3369046 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

Pin, Switch (2) WPL 3368955 Contact Us For Availability

Track WPL 3369071 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $11.66

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.88

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

14

Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability

15

675238 Whirlpool Check Valve In Stock WPL 675238 $29.44

15

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

WPW10204131 Whirlpool Dishwasher Dishrack Adj In Stock WPL WPW10204131 $9.69

Gasket, Pump WPL 717000 Contact Us For Availability

Water Valve WPL 3374621 Contact Us For Availability

Cover, Drip WPL 3371569 Contact Us For Availability

17

Knob, Timer WPL 3368998 Contact Us For Availability

17

End Cap WPL 300845 Contact Us For Availability

17

Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability

18

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $142.10

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

19

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $89.38

19

Trim, Basket WPL 717528 Contact Us For Availability

20

Retainer, Panel WPL 3374010 Contact Us For Availability

20

Handle, Basket WPL 300086 Contact Us For Availability

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

21

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

22

Trim, Console WPL 3369598 Contact Us For Availability

22

Sprayarm, Lower WPL 3369347 Contact Us For Availability

22

Seal, Drain Cover WPL 302704 Contact Us For Availability

23

Cap, Nozzle WPL 3367910 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability

24

Bearing, Nozzle WPL 719576 Contact Us For Availability

24

Relay WPL 3369447 Contact Us For Availability

25

Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $32.34

28

WP3374343 Whirlpool Dishwasher Spring In Stock WPL WP3374343 $11.07

28

Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

29

Screw WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $50.11

33

Nut WPL 717488 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $59.71

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

42

COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability

51

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.37

52

Support, Heater WPL 3368987 Contact Us For Availability

53

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

54

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

55

Relief, Strain WPL 3370307 Contact Us For Availability

56

Screw WPL 3369138 Contact Us For Availability
