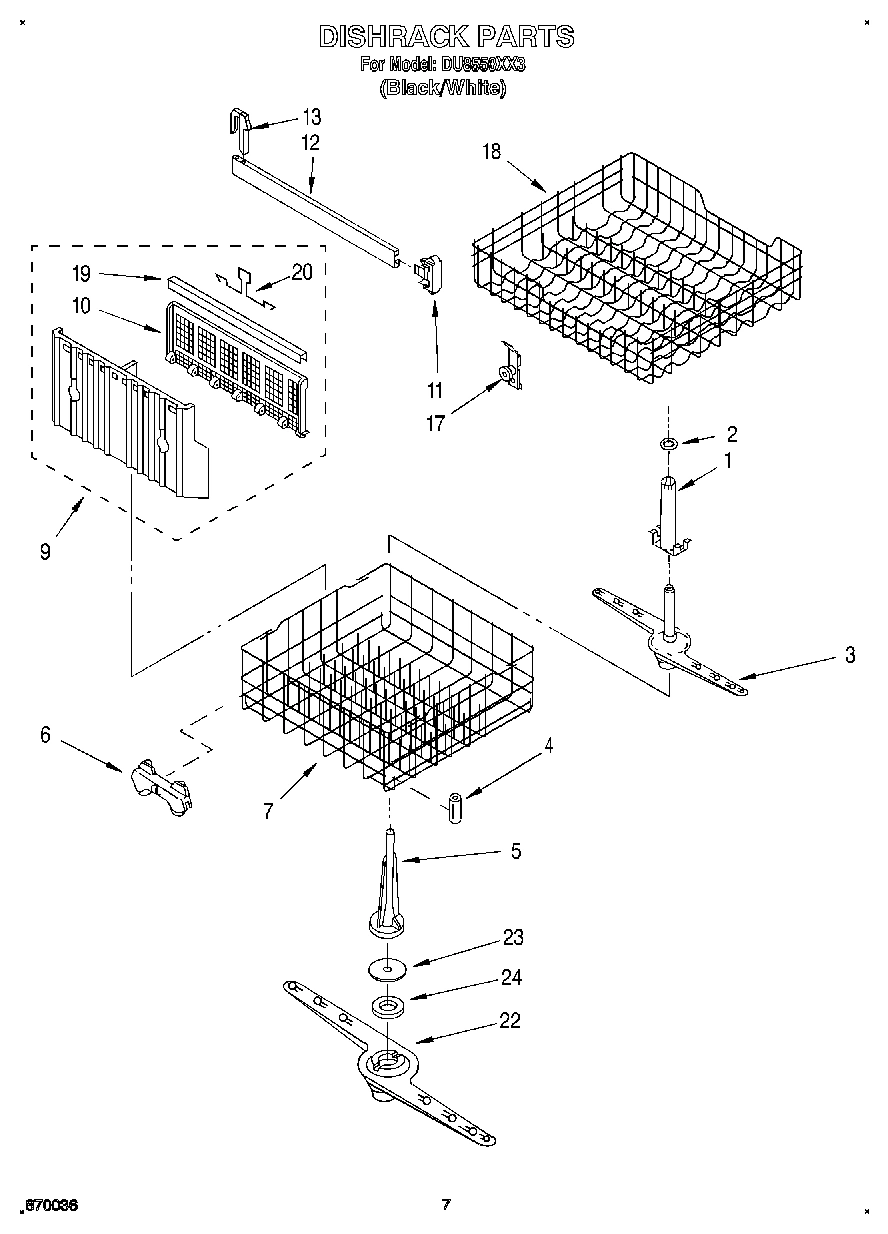

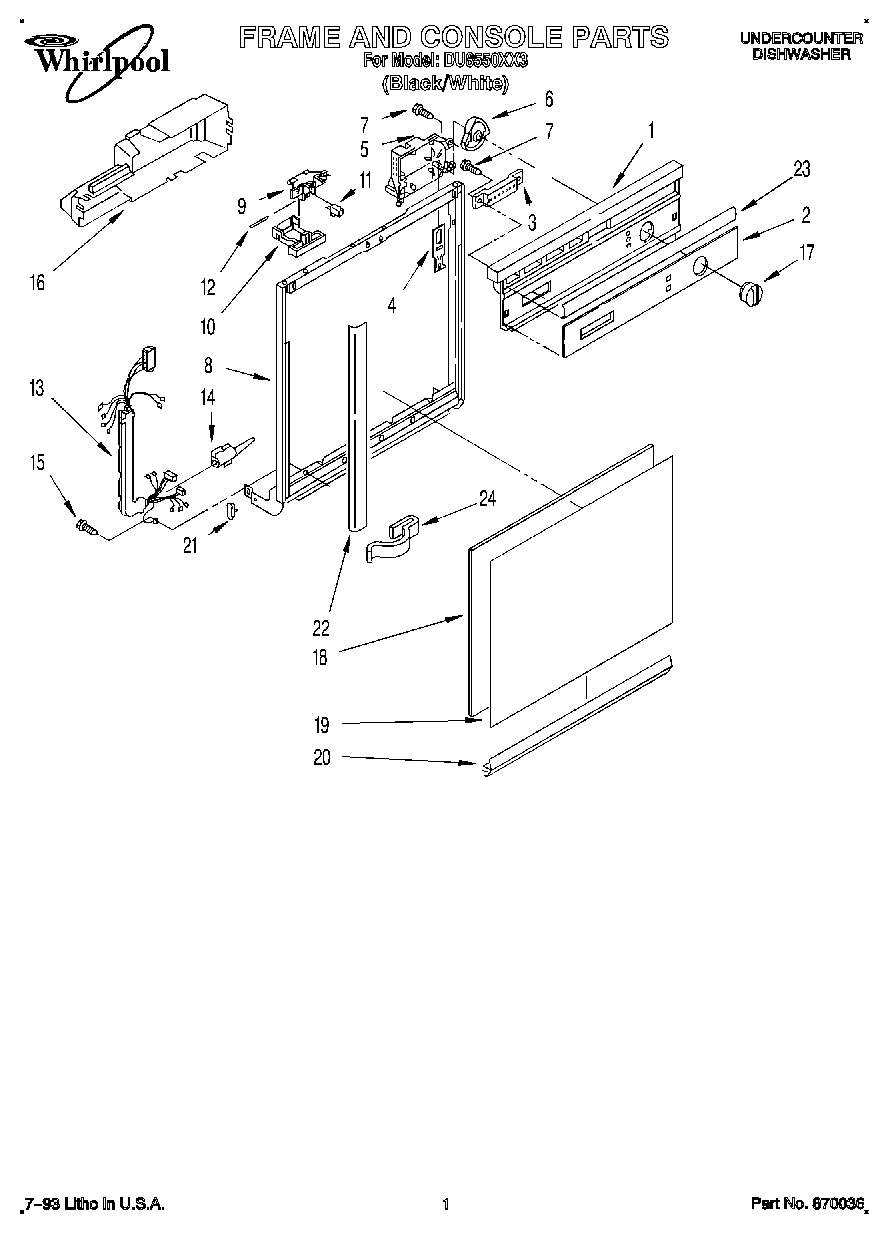

Model Whirlpool DU8550XX3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

1
Support, Arm
Support, Arm WPL 3368290 Contact Us For Availability
View on Model
1

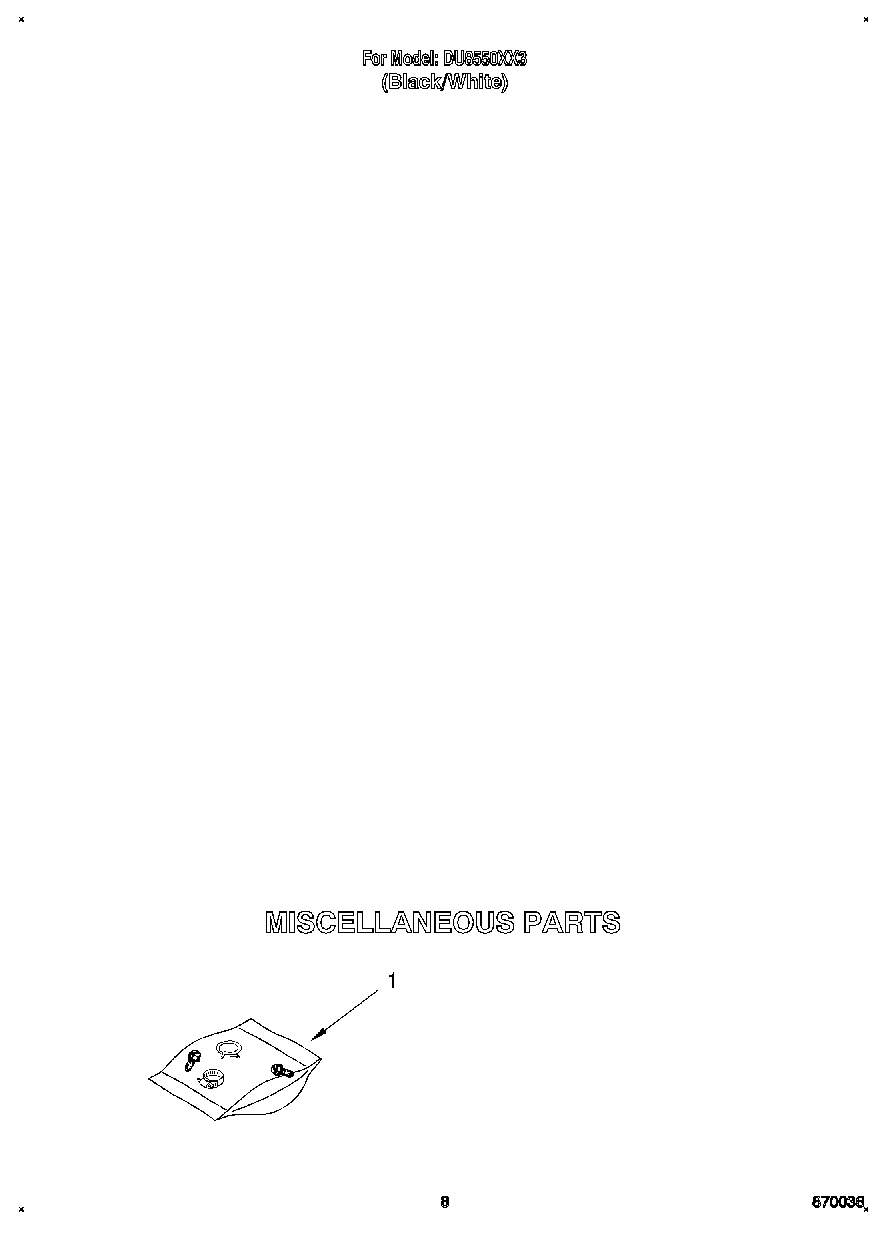

Miscellaneous Parts Bag (Includes 2 Screws &
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
View on Model
1

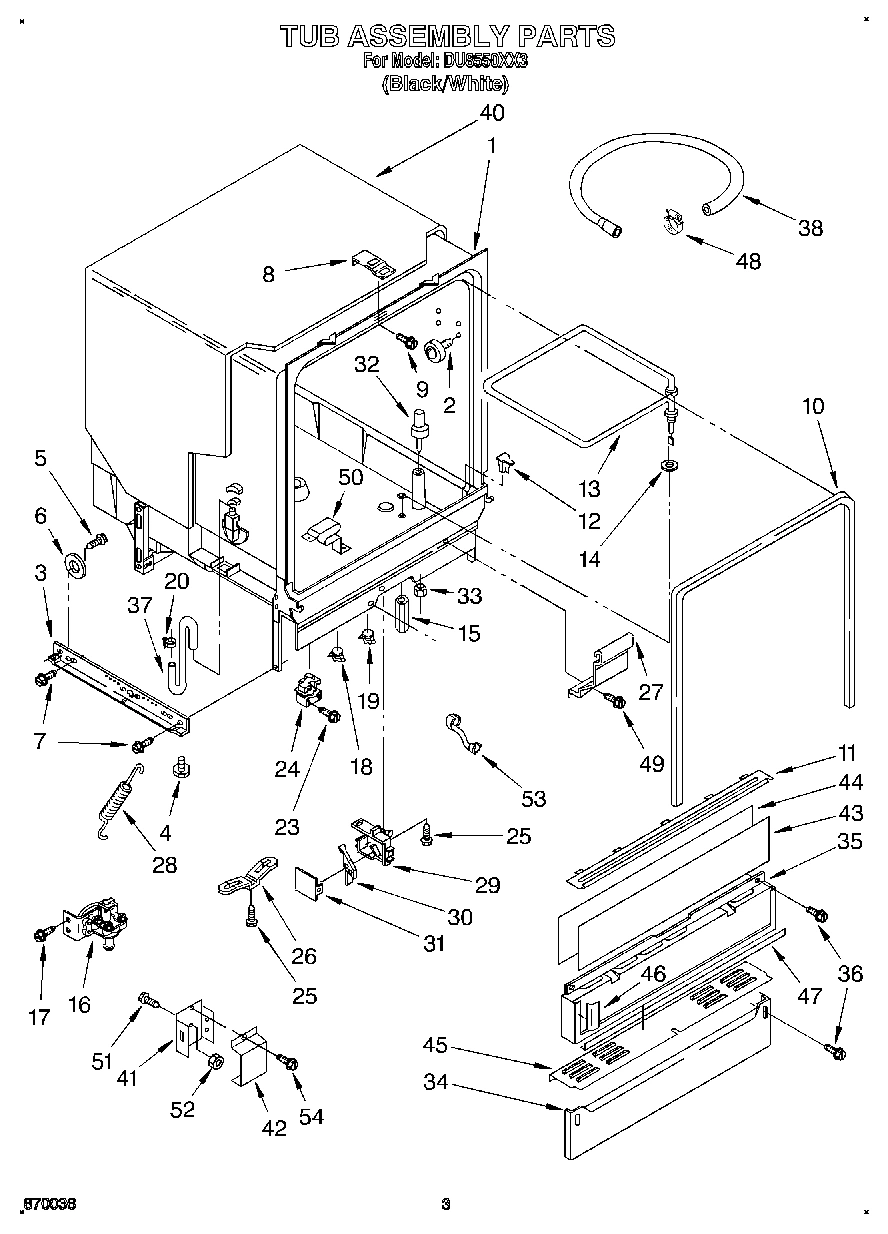

Tub Assembly
Tub Assembly WPL 3370851 Contact Us For Availability
View on Model
1

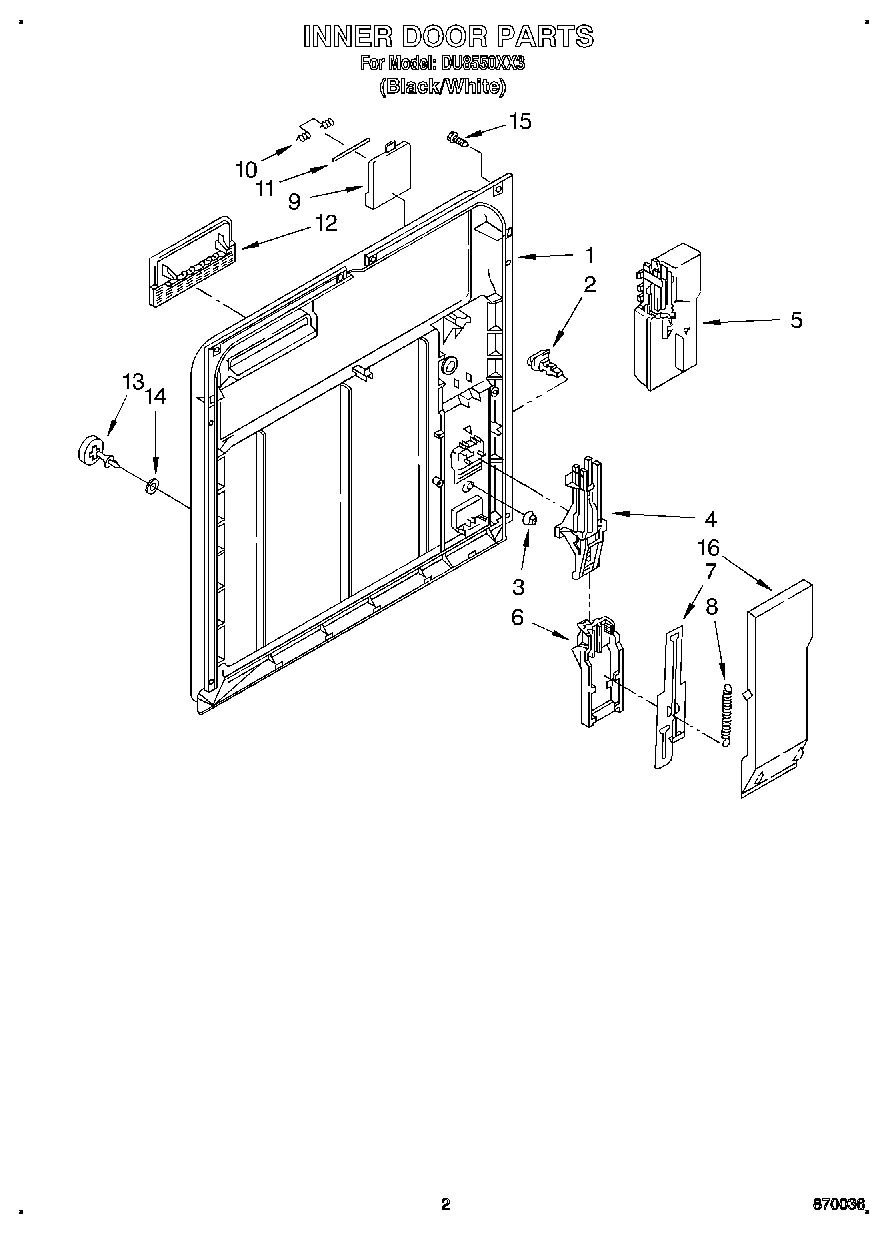

Inner Door (Also Order)
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
View on Model
1
Plate, Perforated (Includes Item 5) (Also Ord
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
View on Model
2
Clip
Clip WPL 303722 Contact Us For Availability
View on Model
2
Tub, Wheel Assembly (8)
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
View on Model
2
Base, Inlet (Includes Items 1 & 5) (Also Orde
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
View on Model
3
Runner (2)
Runner (2) WPL 3368932 Contact Us For Availability
View on Model
4
Follower, Cam
Follower, Cam WPL 3368997 Contact Us For Availability
View on Model
5
Screw, Shoulder (2)
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
View on Model
5
Ball, Check
Ball, Check WPL 302709 Contact Us For Availability
View on Model
6
Draw Bar, (Upper Dispenser)
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
View on Model
6
Wheel (2)
Wheel (2) WPL 302819 Contact Us For Availability
View on Model
6
``O`` Ring
``O`` Ring WPL 95080 Contact Us For Availability
View on Model
7
Cover, Valve
Cover, Valve WPL 302721 Contact Us For Availability
View on Model
8
Plate, Latch
Plate, Latch WPL 3372030 Contact Us For Availability
View on Model
8
Valve Stem Kit (Includes Items 12, 13 & 22) S
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
View on Model
9
Screw
Screw WPL 3372029 Contact Us For Availability
View on Model
9
Separator Assembly (Includes Items 12, 13 & 2
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
View on Model
10
Screw, 8-18 x 1-5/8 (4)
Screw, 8-18 x 1-5/8 (4) WPL 9741258 Contact Us For Availability
View on Model
11
End Cap (Front or Rear)
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
View on Model
11
Retainer, Access Panel
Retainer, Access Panel WPL 3372413 Contact Us For Availability
View on Model
12
Pin, Switch (2)
Pin, Switch (2) WPL 3368955 Contact Us For Availability
View on Model
13
Heater
Heater WPL 3369416 Contact Us For Availability
View on Model
14
Outlet, Pump (Includes Item 13)
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
View on Model
15
Nut (2) (Heater Terminal)
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
View on Model
16
Gasket, Pump
Gasket, Pump WPL 717000 Contact Us For Availability
View on Model
16
Cover, Drip
Cover, Drip WPL 3371569 Contact Us For Availability
View on Model
16
Water Valve
Water Valve WPL 3371817 Contact Us For Availability
View on Model
17

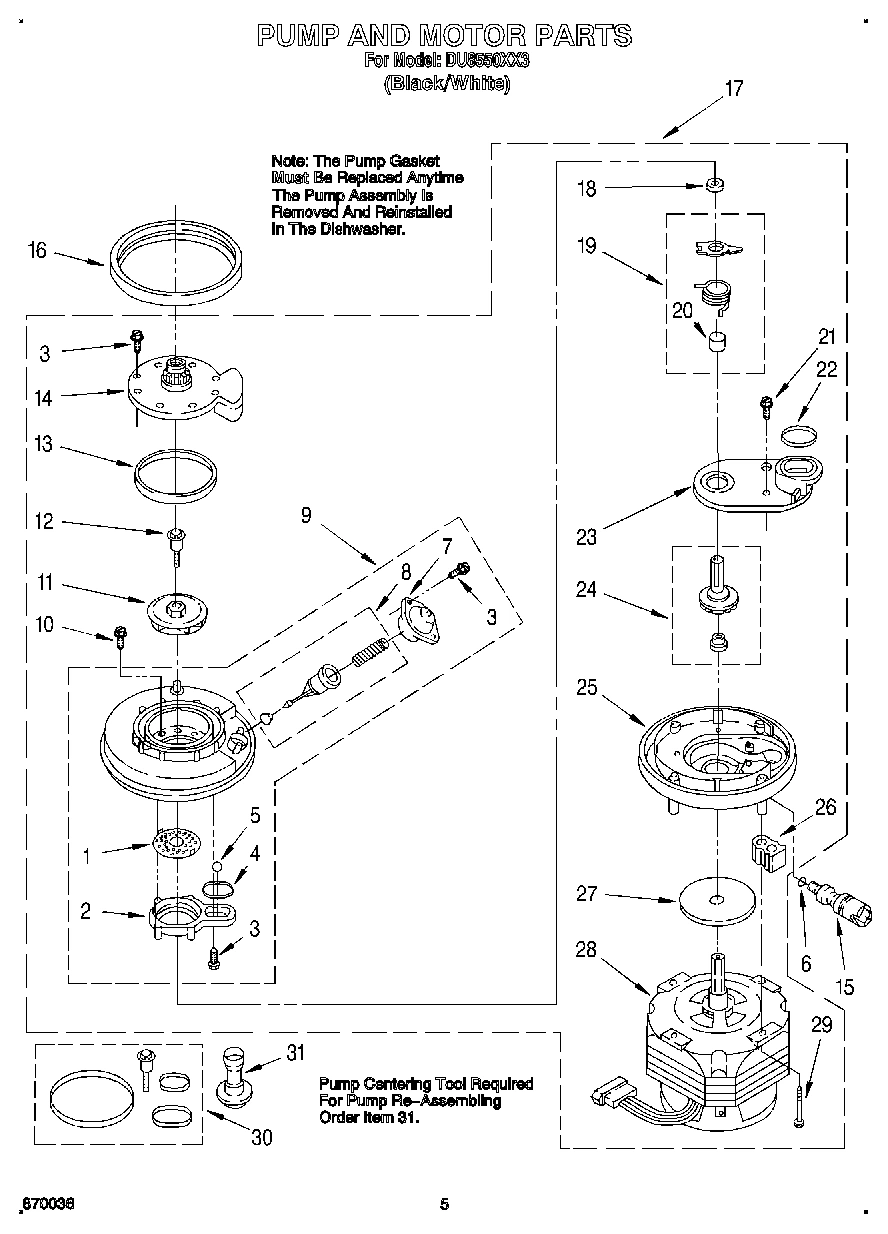

Pump & Motor Assembly (Includes Item 16)
Pump & Motor Assembly (Includes Item 16) WPL 3369475 Contact Us For Availability
View on Model
18
Bushing, Grind
Bushing, Grind WPL 302707 Contact Us For Availability
View on Model
19
Thermostat
Thermostat WPL 3373359 Contact Us For Availability
View on Model
20
Sleeve, Drain Impeller
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
View on Model
22
Seal, Drain Cover
Seal, Drain Cover WPL 302704 Contact Us For Availability
View on Model
23
Cap, Nozzle
Cap, Nozzle WPL 3367910 Contact Us For Availability
View on Model
23
Trim, Console
Trim, Console WPL 3369598 Contact Us For Availability
View on Model
23
Cover, Drain (Also Order Item 30) See Note A.
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
View on Model
24
Bearing, Nozzle
Bearing, Nozzle WPL 719576 Contact Us For Availability
View on Model
24
Relay
Relay WPL 3369447 Contact Us For Availability
View on Model
24
DOOR SPRING KIT: (HEAVY DUTY)
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
View on Model
24
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
24
Side Panel Kit (White)
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
View on Model
24
Avocado
Avocado WPL 4317926 Contact Us For Availability
View on Model
24
Gold
Gold WPL 4317927 Contact Us For Availability
View on Model
24
Side Panel Kit: (Almond)
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
View on Model
24
Toast
Toast WPL 4317930 Contact Us For Availability
View on Model
24
Platinum
Platinum WPL 4317931 Contact Us For Availability
View on Model
24
Tine Tip Repair Kit (Blue - Enough For Two Co
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
View on Model
24
Paint, (Touch-Up 1/2 Oz.) (Toast)
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
View on Model
24
Black (Uncut)
Black (Uncut) WPL 799340 Contact Us For Availability
View on Model
24
Kit, Epoxy Patch (White)
Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability
View on Model
24
Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
25
Base, Pump (Includes Item 24) (Also Order Ite
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
View on Model
26
Bracket, Thermostat
Bracket, Thermostat WPL 3370555 Contact Us For Availability
View on Model
27
Shield, Harness
Shield, Harness WPL 3368983 Contact Us For Availability
View on Model
28
Motor (Includes Item 27) (Also Order Item 30)
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
View on Model
29
Housing, Float Switch
Housing, Float Switch WPL 3369048 Contact Us For Availability
View on Model
29
Screw (4)
Screw (4) WPL 3369331 Contact Us For Availability
View on Model
30
Switch, Float
Switch, Float WPL 3369067 Contact Us For Availability
View on Model
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22)
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
View on Model
31
Tool, Pump Centering
Tool, Pump Centering WPL 303918 Contact Us For Availability
View on Model
31
Cover, Switch Housing
Cover, Switch Housing WPL 3369049 Contact Us For Availability
View on Model
33
Nut
Nut WPL 717488 Contact Us For Availability
View on Model
37
Hose, Inlet
Hose, Inlet WPL 3369414 Contact Us For Availability
View on Model
41
Box, Terminal
Box, Terminal WPL 3370292 Contact Us For Availability
View on Model
42
COVER ASSEMBLY TERMINAL BOX
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
View on Model
43
Access Panel (White/Black)
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
View on Model
44
Spacer, Corrugated
Spacer, Corrugated WPL 3369526 Contact Us For Availability
View on Model
45
Extension
Extension WPL 3369531 Contact Us For Availability
View on Model
46
Trim, Side (2)
Trim, Side (2) WPL 3371270 Contact Us For Availability
View on Model
47
Trim, Bottom
Trim, Bottom WPL 3369588 Contact Us For Availability
View on Model
50
Support, Heater
Support, Heater WPL 3368987 Contact Us For Availability
View on Model
53
Relief, Strain
Relief, Strain WPL 3370307 Contact Us For Availability
View on Model
54
Screw, 8-18
Screw, 8-18 WPL 3369138 Contact Us For Availability
View on Model
