Model Whirlpool DU8116XT3 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

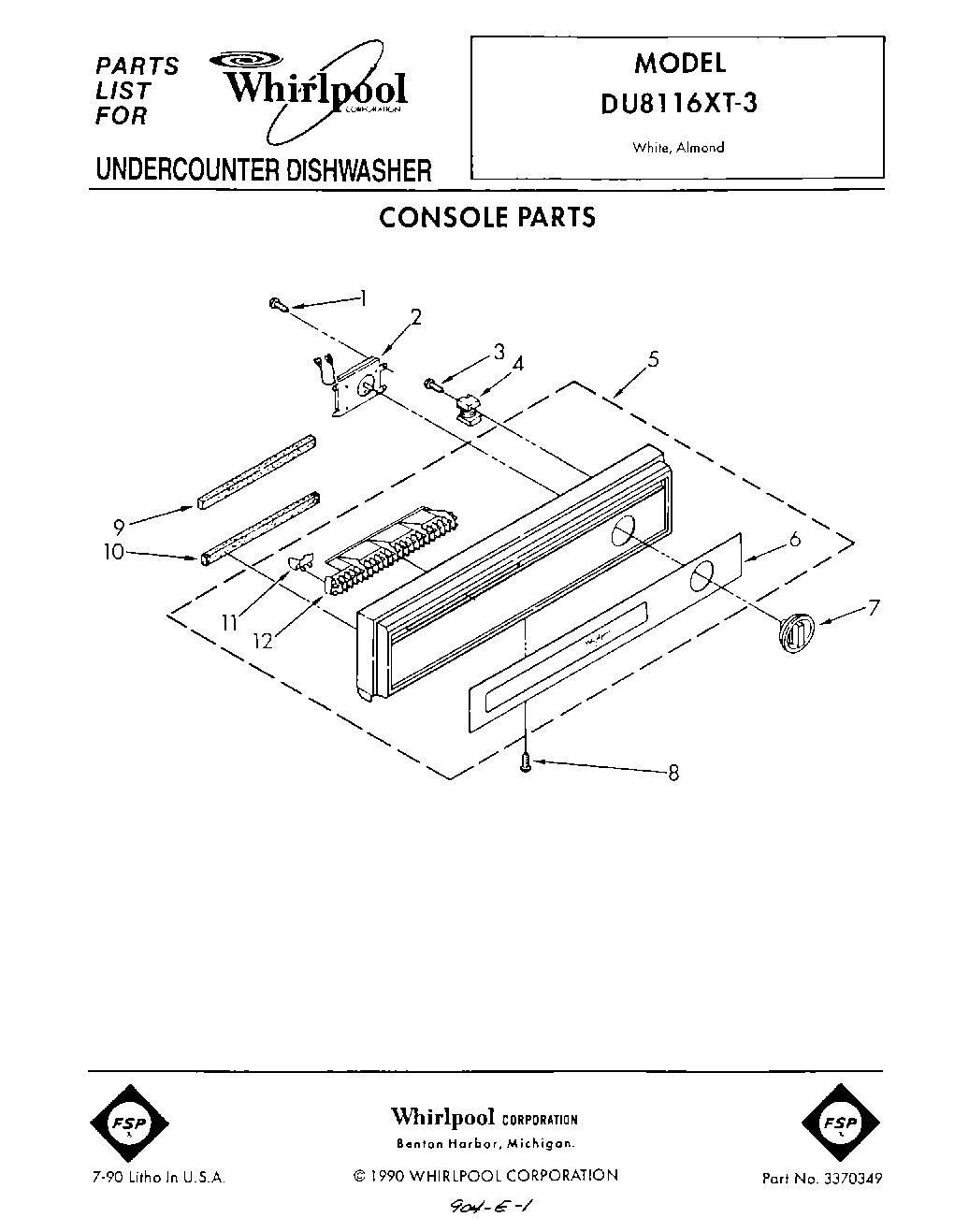

01 - CONSOLE

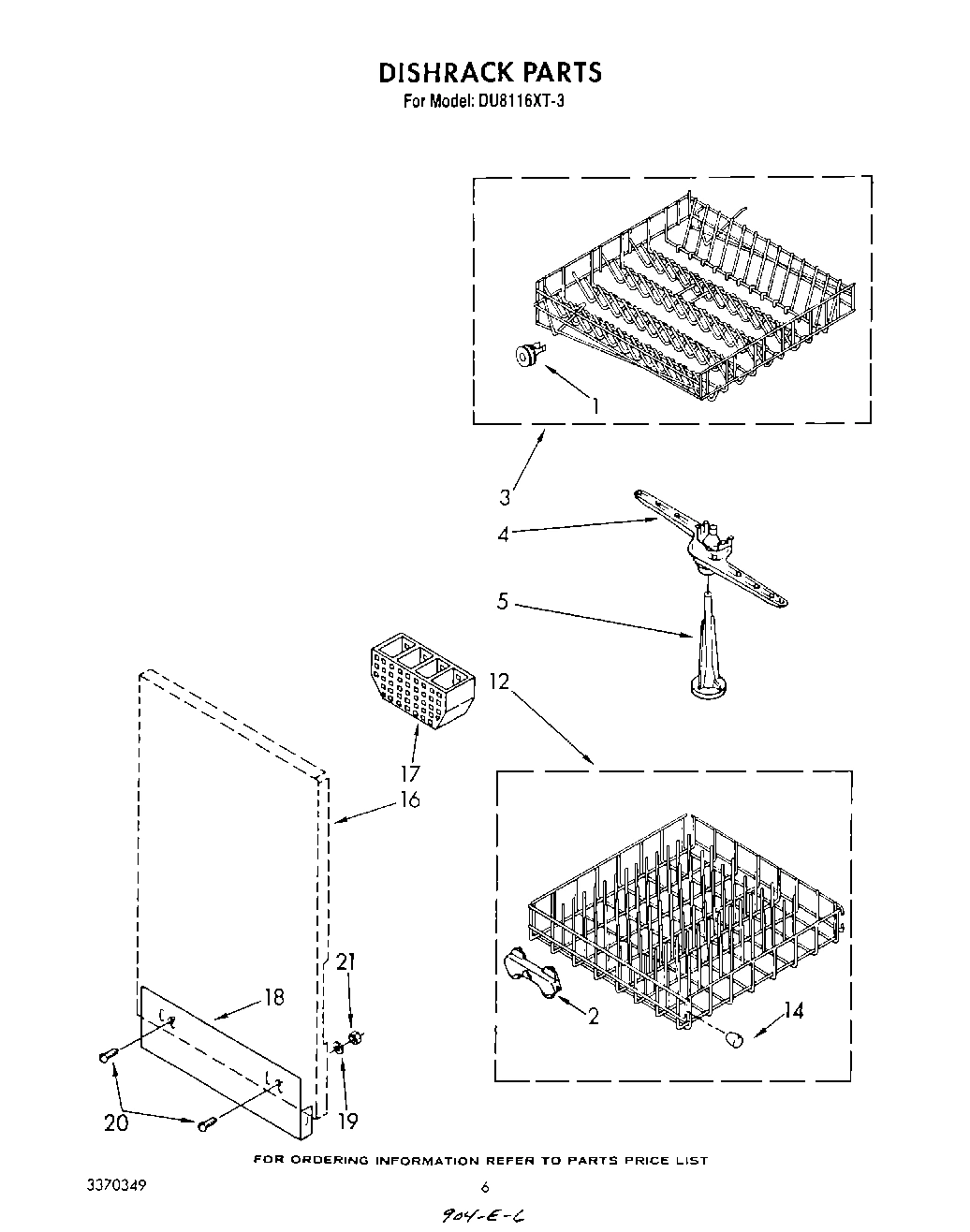

04 - DISH RACK

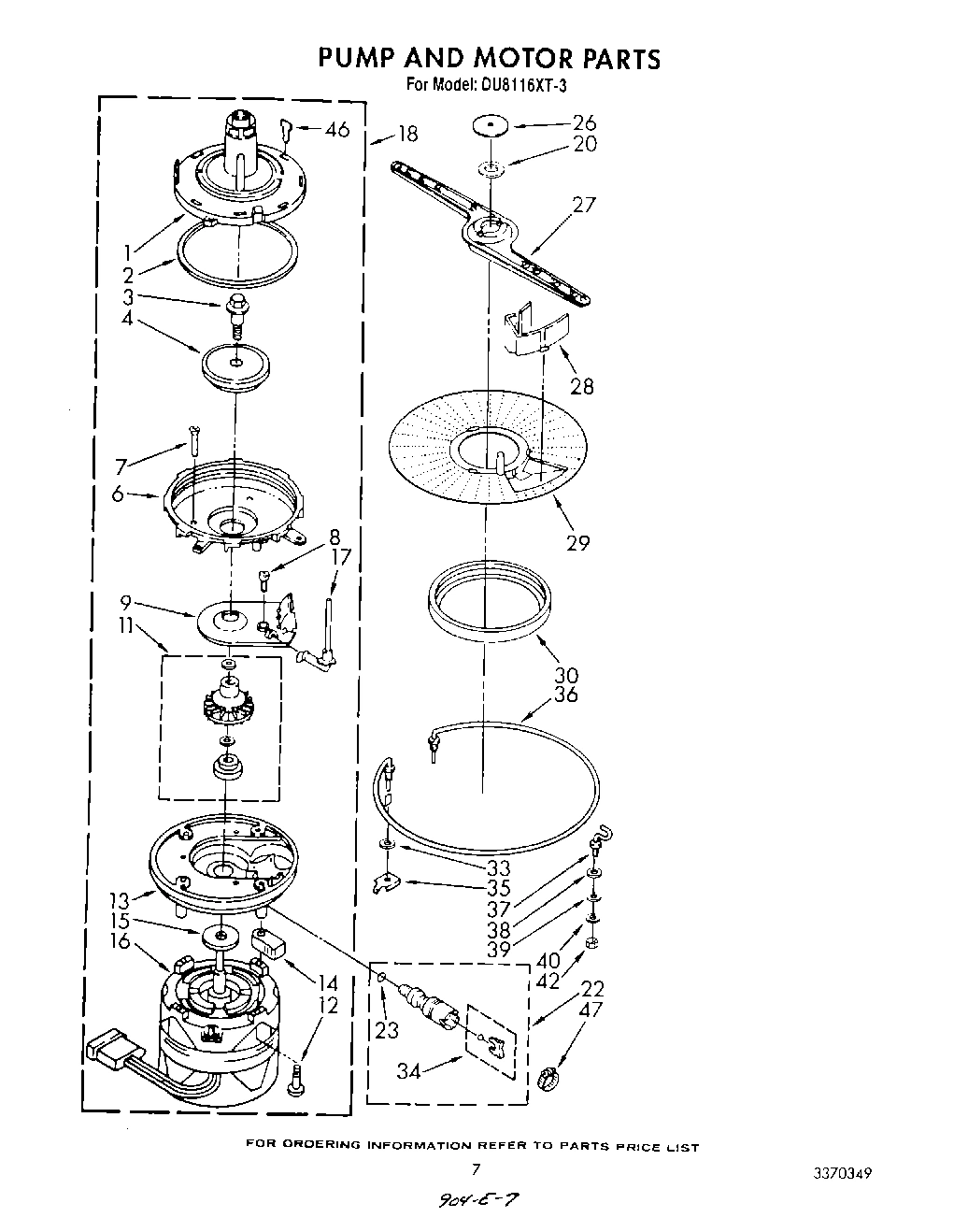

05 - PUMP AND MOTOR

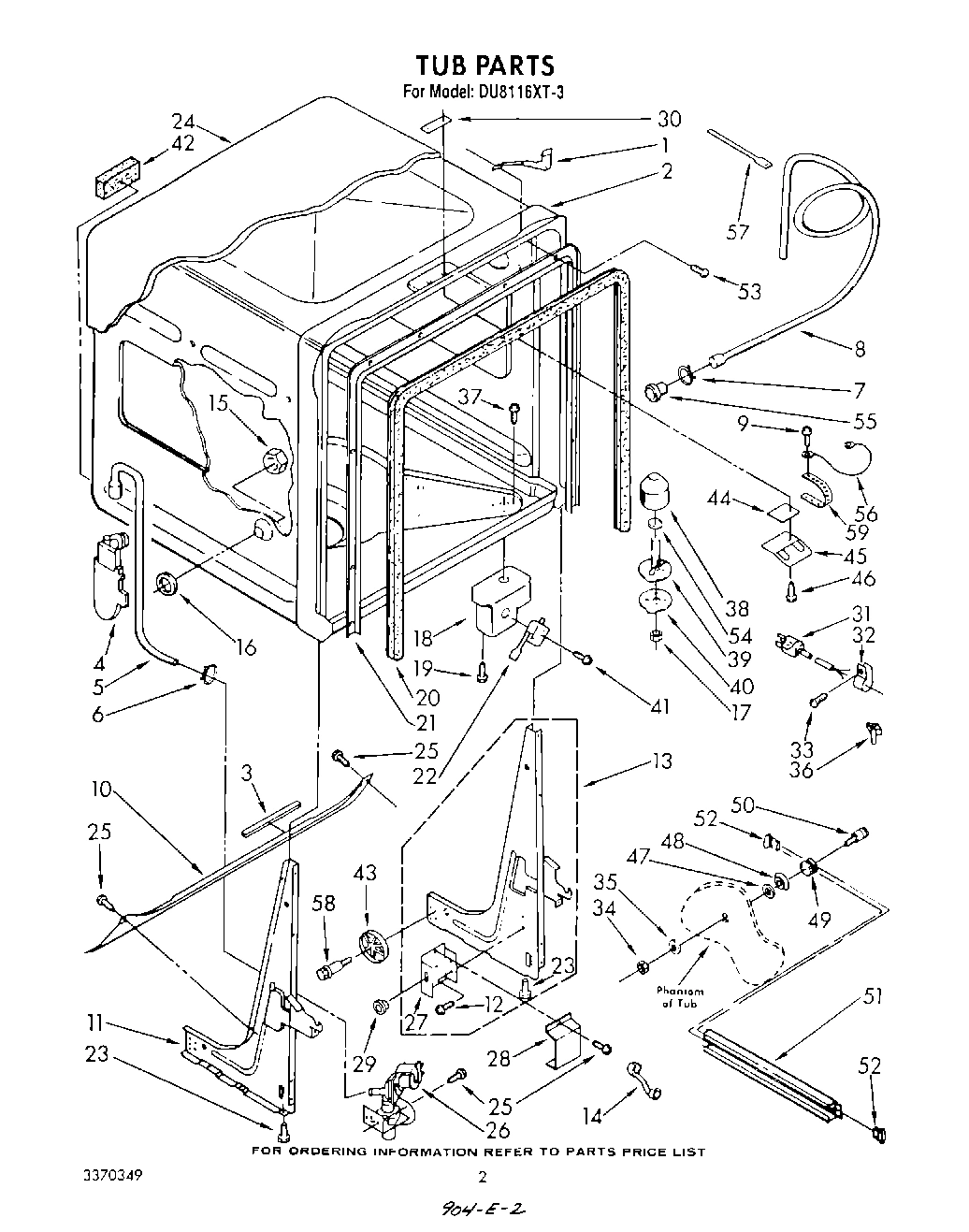

02 - TUB , LITERATURE AND OPTIONAL

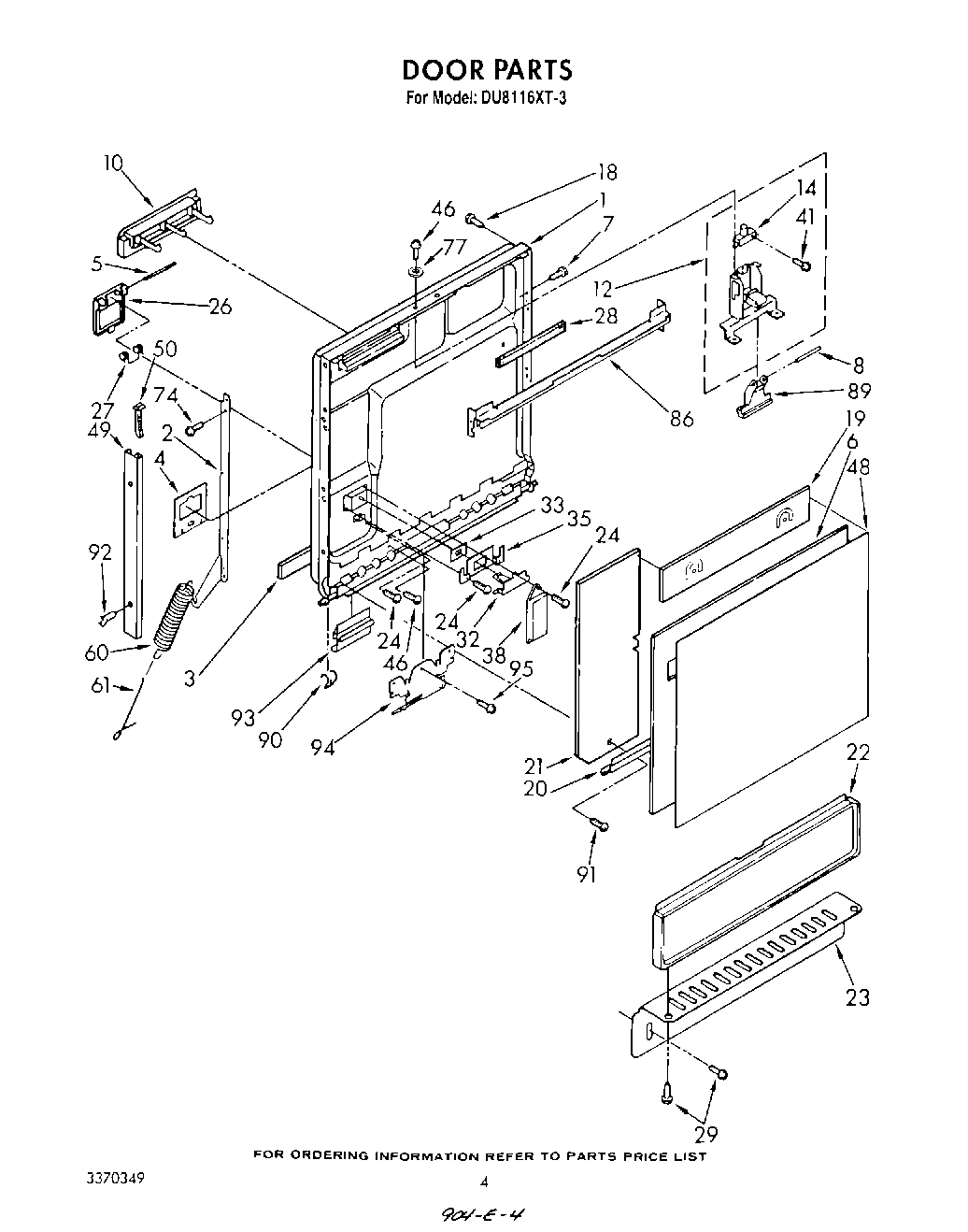

03 - DOOR

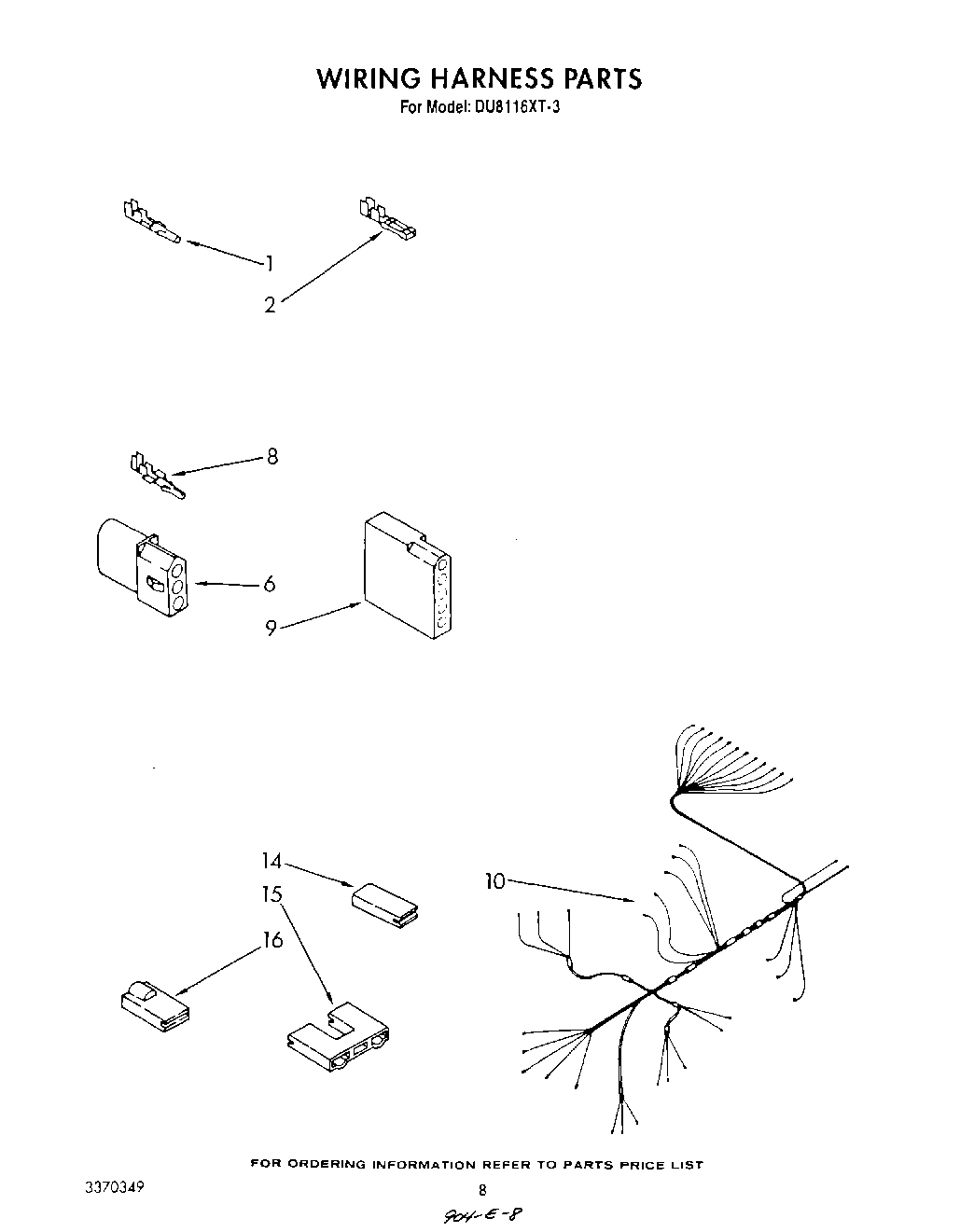

06 - WIRING HARNESS
Common parts from model Whirlpool DU8116XT3 UNDERCOUNTER DISHWASHER
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3368017 WPL LIT3368017 Contact Us For Availability
WPL LIT3370050 WPL LIT3370050 Contact Us For Availability
WPL LIT3370349 WPL LIT3370349 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 3367387 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
2
Support, Door (R.H.) WPL 3367201 Contact Us For Availability
2
Support, Door (L.H.) WPL 3367202 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Spray Arm, Upper WPL 304204 Contact Us For Availability
4
Inlet, Water WPL 3367572 Contact Us For Availability
4
Barrier WPL 303978 Contact Us For Availability
5
Tower WPL 304170 Contact Us For Availability
5
Hose, Inlet WPL 3368563 Contact Us For Availability
6
Spacer WPL 3368569 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
8
Pin, Pivot (2) Guide WPL 300234 Contact Us For Availability
9
Screw WPL 132848 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Harness, Wiring WPL 3367693 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
13
Leg & Hinge Assembly, R.H. WPL 3367285 Contact Us For Availability
14
Relief, Strain WPL 3370307 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Insulator WPL 358736 Contact Us For Availability
17
Nut, 1/8 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Pump & Motor Assembly WPL 3367440 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Screw, 8 x 1-7/8 (2) WPL 304233 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
19
Barrier, Console WPL 303908 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
20
Panel, Edging (Door) WPL 304047 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Barrier, Door WPL 303906 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Plate, Toe WPL 3367470 Contact Us For Availability
26
Cap, Connector WPL 3367910 Contact Us For Availability
26
Valve, Water Inlet WPL 303650 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
27
Box, Terminal WPL 3370292 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
28
Baffle WPL 719860 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
29
Bushing WPL 302770 Contact Us For Availability
30
Gasket, Pump (Includes Ring) WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Power Cord WPL 302764 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Clamp, Strain Relief WPL 596553 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
33
Screw, 8 x 3/8 WPL 719266 Contact Us For Availability
34
Check Ball & Retainer WPL 675488 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
36
Heater WPL 660318 Contact Us For Availability
36
Nut, Wire WPL 770754 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability
41
Screw, 6-32 x 1 (1) WPL 301582 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
42
Block Foam, Tub (2) WPL 3368107 Contact Us For Availability
43
Wheel, Leg WPL 302819 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Panel, Front (White/Almond) WPL 3367582 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
56
Wire, Ground WPL 303485 Contact Us For Availability
58
Shoulder Screw WPL 3370389 Contact Us For Availability
59
WPL 799344 WPL 799344 Contact Us For Availability
59
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
59
Strap, Ground WPL 22965 Contact Us For Availability
59
Golden Harvest WPL 261890 Contact Us For Availability
59
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
59
Toast WPL 285365 Contact Us For Availability
59
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
59
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
59
Platinum (Unc WPL 285368 Contact Us For Availability
59
WPL 675506 WPL 675506 Contact Us For Availability
59
WPL 72112 WPL 72112 Contact Us For Availability
59
WPL 799340 WPL 799340 Contact Us For Availability
59
WPL 799640 WPL 799640 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Clip, Wire WPL 301857 Contact Us For Availability
92
Screw, 8 x 1/2 (4) WPL 3367288 Contact Us For Availability
93
Retainer, Clip WPL 3367720 Contact Us For Availability
94
Shield, Harness WPL 303362 Contact Us For Availability
× ![]()
