Model Whirlpool DU800CWDB5 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

W10161215 Whirlpool Dishwasher Dishrack In Stock WPL W10161215 $314.21

1

WP3369011 Whirlpool Dishwasher Housing In Stock WPL WP3369011 $45.15

1

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

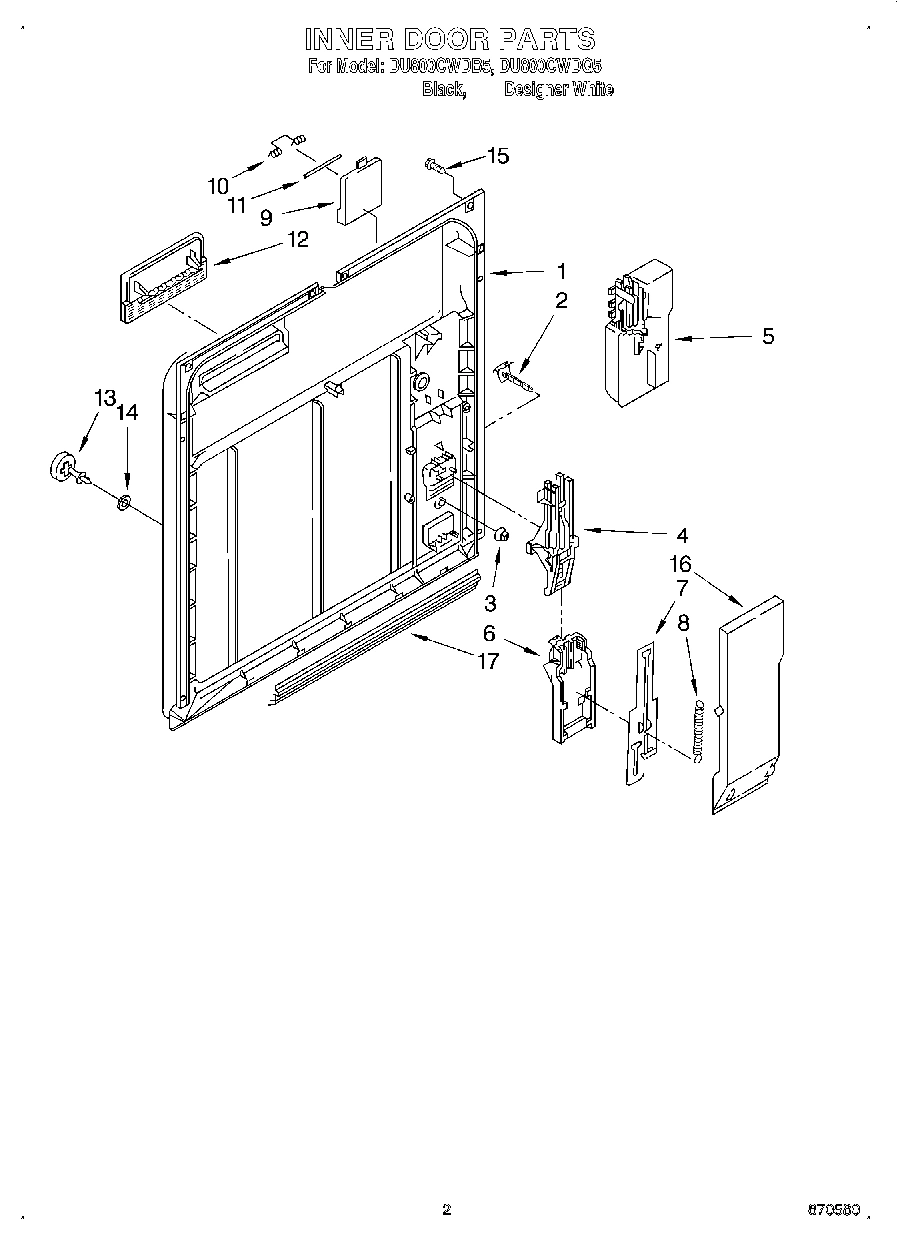

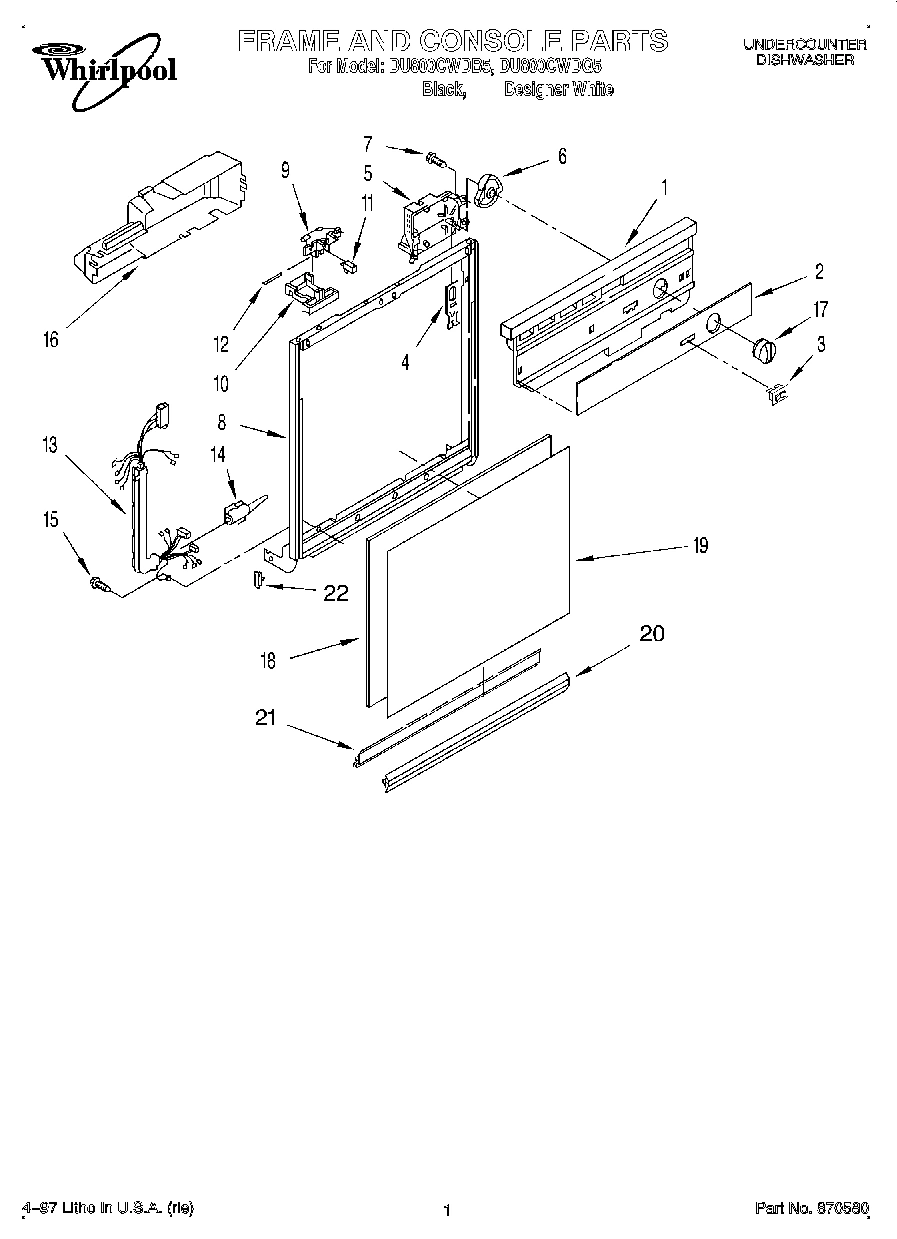

Console (Includes Item 2) (Black) WPL 3375269 Contact Us For Availability

1

Console (Includes Item 2) (White) WPL 3375270 Contact Us For Availability

2

WP3369031 Whirlpool Dishwasher Seal Backorder WPL WP3369031 $4.37

2

WP8268825 Whirlpool Dishwasher Protector In Stock WPL WP8268825 $34.62

2

Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability

2

Insert, Console (Black) WPL 3374796 Contact Us For Availability

2

Insert, Console (White) WPL 3374797 Contact Us For Availability

3

W11189178 Whirlpool Dishwasher Hose Backorder WPL W11189178 $10.12

3

WP3385142 Whirlpool Dishwasher Bumper Backorder WPL WP3385142 $33.07

3

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $29.37

4

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $30.03

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

5

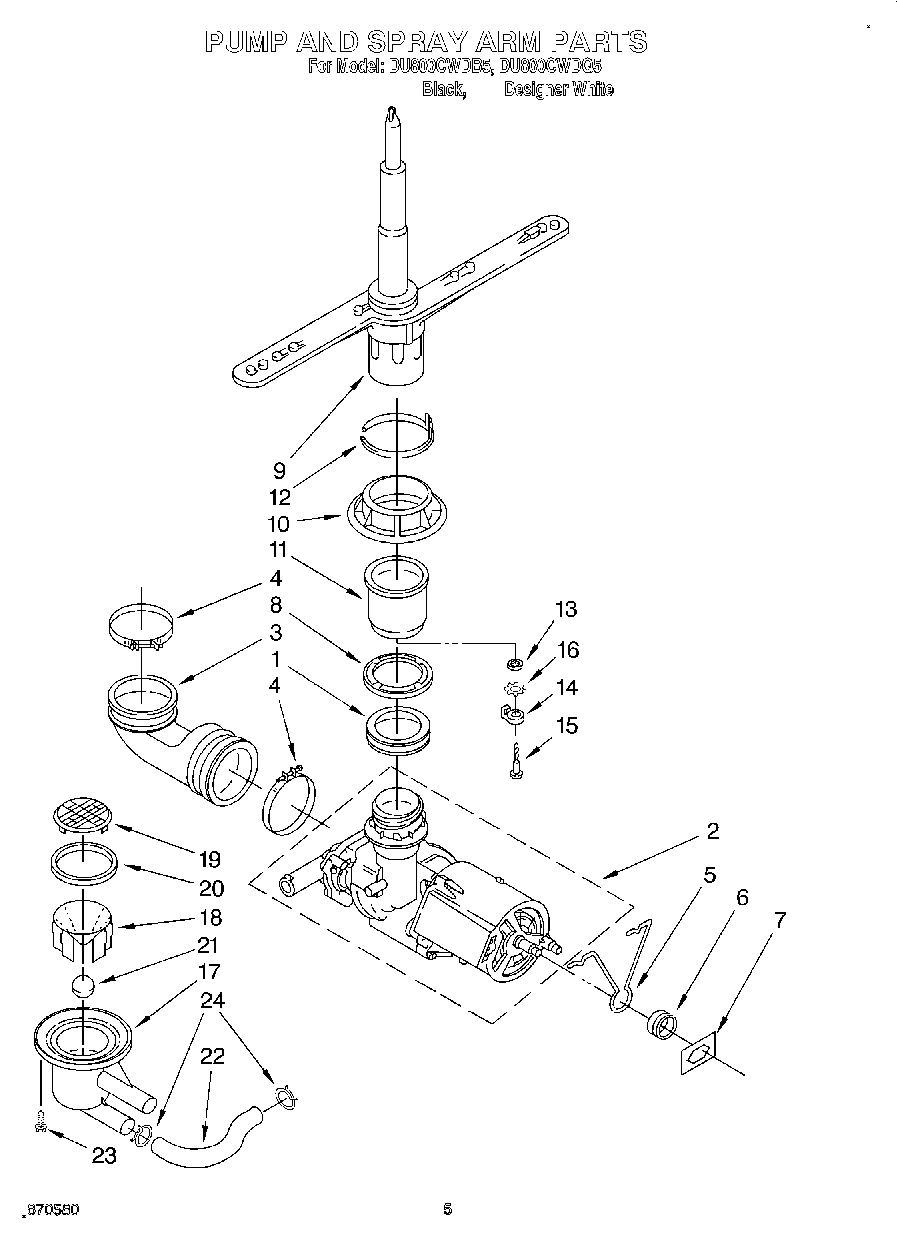

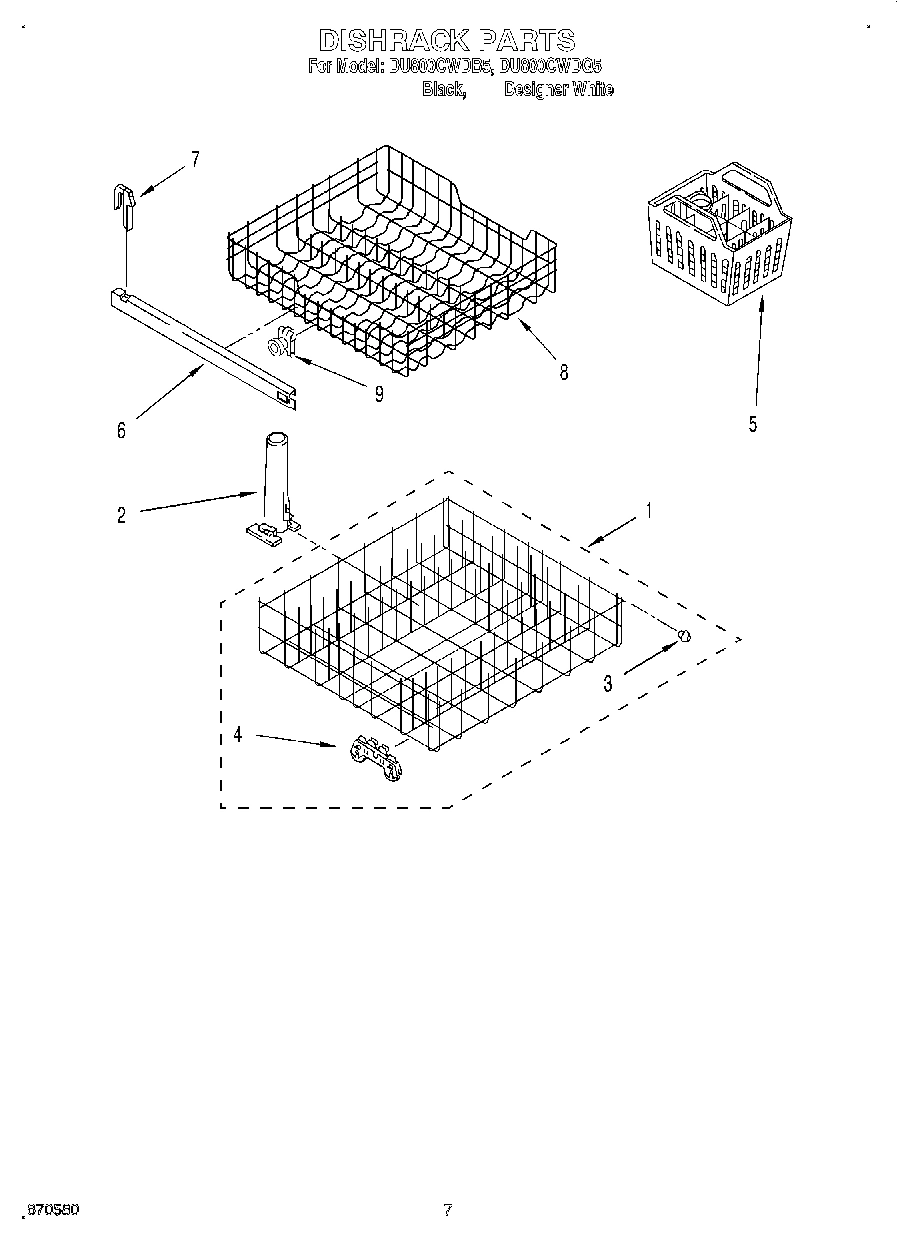

Basket, Silverware WPL 3369762 Contact Us For Availability

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Timer WPL 3373590 Contact Us For Availability

6

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

6

WP8271510 Whirlpool Dishwasher Cam Backorder WPL WP8271510 $2.51

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

7

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

7

Seal Seat WPL 3369020 Contact Us For Availability

8

3374711 Whirlpool Dishwasher Frame Backorder WPL 3374711 $65.50

8

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Washer, Grommet WPL 3369038 Contact Us For Availability

8

Door Frame (Includes Item 21) (White) WPL 3374712 Contact Us For Availability

9

4386996A Whirlpool Dishwasher Impeller In Stock WPL 4386996A $63.17

9

WP3380854 Whirlpool Door Latch Bolt In Stock WPL WP3380854 $32.13

9

Wheel & Axle Assembly (4) WPL 3379727 Contact Us For Availability

10

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $29.77

10

Lever, Latch (Black) WPL 3369457 Contact Us For Availability

10

Lever, Latch White WPL 3372231 Contact Us For Availability

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $28.80

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $4.43

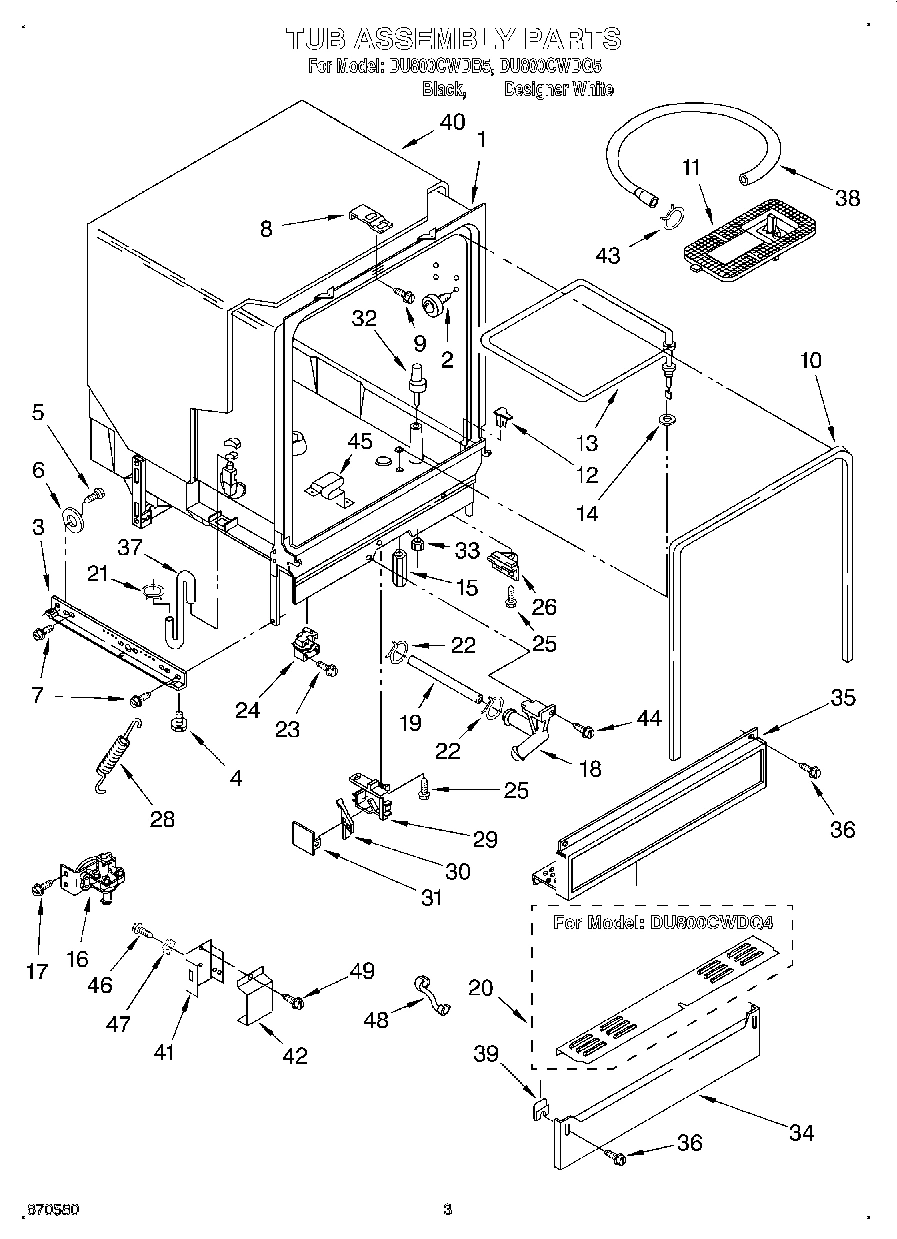

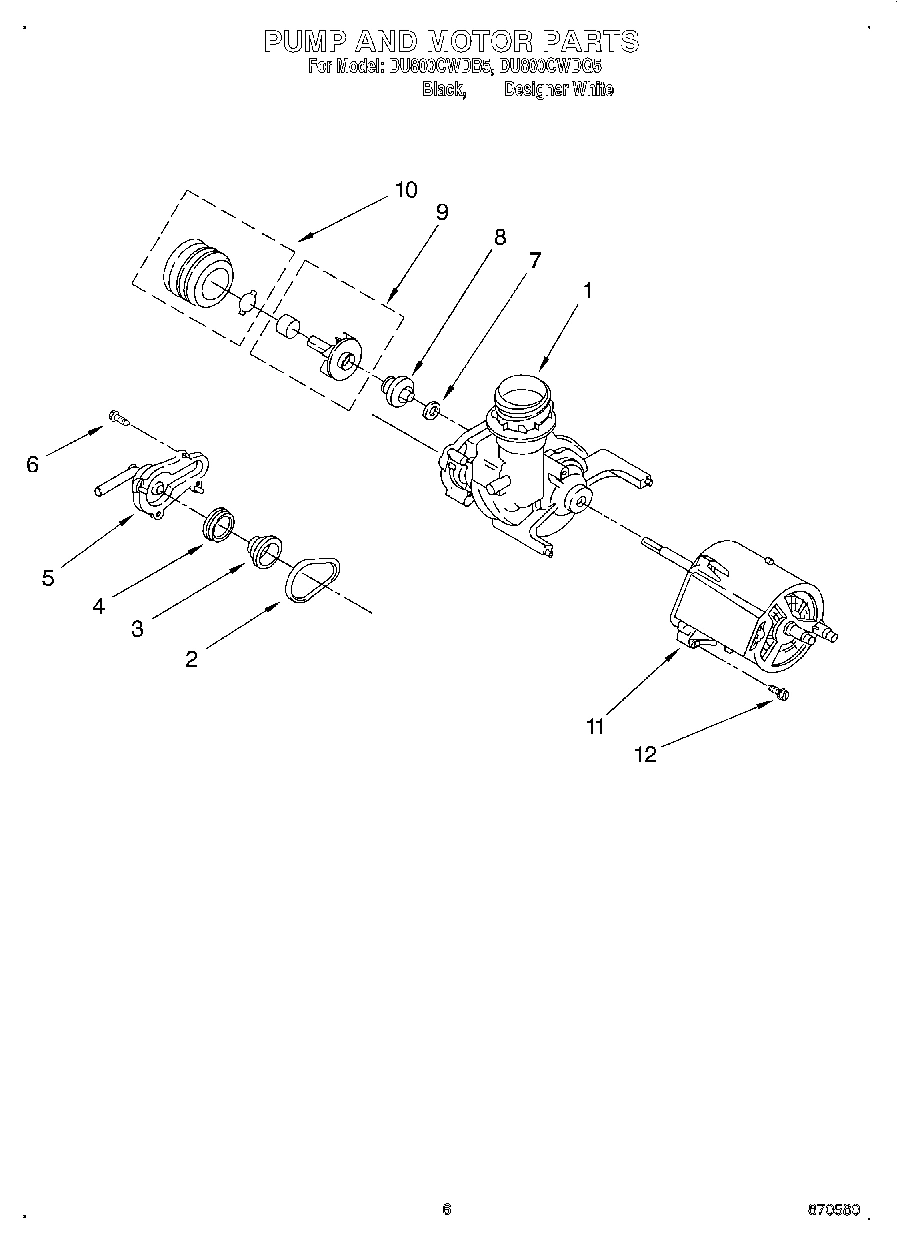

Motor WPL 3372625 Contact Us For Availability

Switch, (2) WPL 3369325 Contact Us For Availability

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.61

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $4.58

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

Washer WPL 3369044 Contact Us For Availability

13

Harness and Protector WPL 3378766 Contact Us For Availability

14

3371746 Whirlpool Dishwasher Bearing Backorder WPL 3371746 $9.59

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

15

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

16

Cover, Drip WPL 3371569 Contact Us For Availability

16

Washer, Curved WPL 3371634 Contact Us For Availability

16

Cover, Timer WPL 3368964 Contact Us For Availability

17

3375348 Whirlpool Dishwasher Timer Knob Backorder WPL 3375348 $38.43

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

19

Front Panel (Almond) WPL 3369851 Contact Us For Availability

19

+Front Panel (White) WPL 3371716 Contact Us For Availability

WP3369177 Whirlpool Dishwasher Seal Backorder WPL WP3369177 $4.92

Retainer, Panel (Black) WPL 3374010 Contact Us For Availability

Retainer, Panel (White) WPL 3374011 Contact Us For Availability

Extension & Clip Assembly WPL 3374728 Contact Us For Availability

21

WP3369178 Whirlpool Dishwasher Check Ball In Stock WPL WP3369178 $4.67

21

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $30.80

22

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $51.02

24

Clamp WPL 371499 Contact Us For Availability

26

WP3368928 Whirlpool Dishwasher Fuse Backorder WPL WP3368928 $41.52

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float In Stock WPL WP8519552 $37.57

33

Nut WPL 717488 Contact Us For Availability

35

Panel, Access (Black) WPL 3374730 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

42

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

43

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

45

3379740 Whirlpool Dishwasher Heater Support Backorder WPL 3379740 $32.08

46

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

47

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51
