Model Whirlpool DU8000XR0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

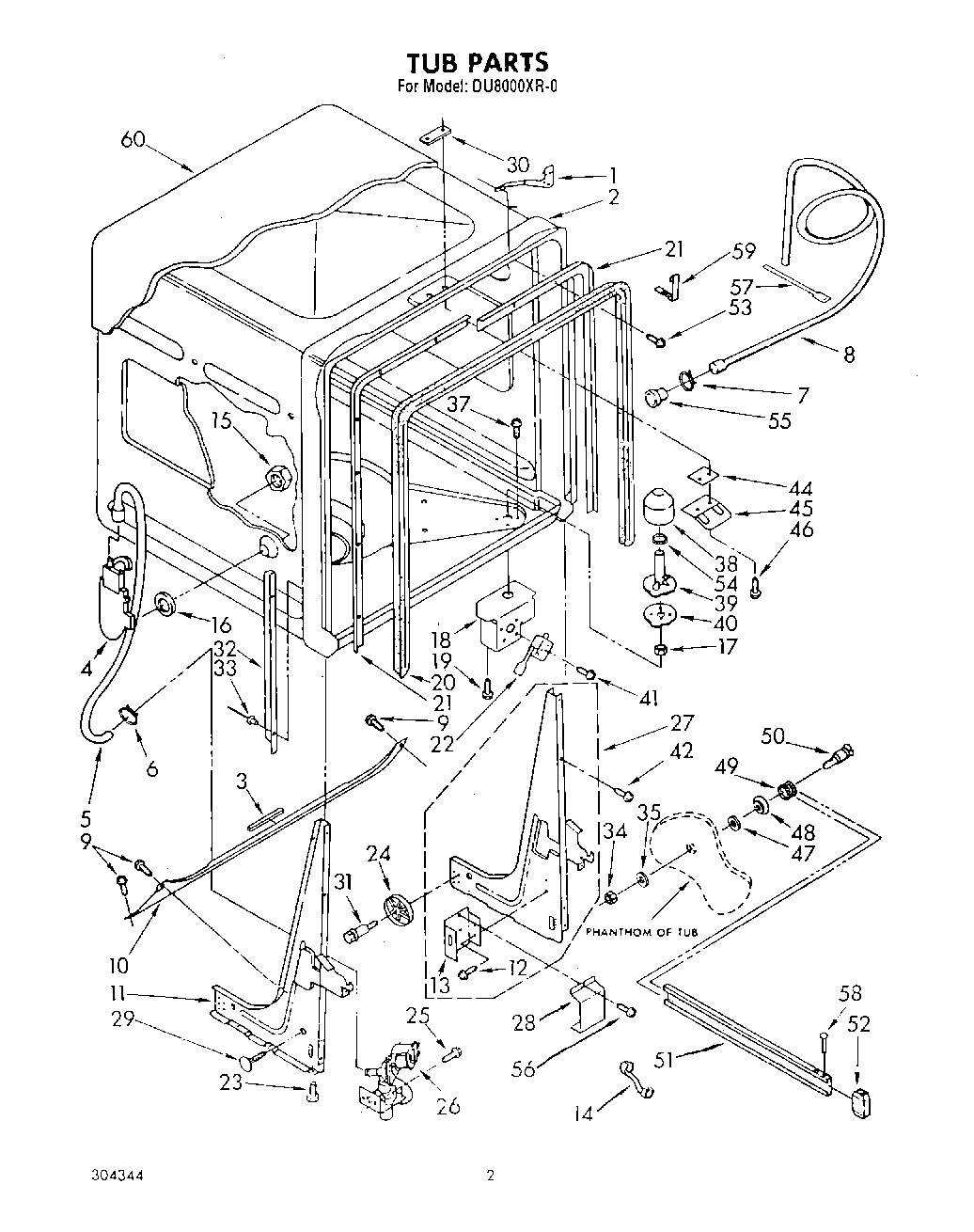

02 - TUB, LIT/OPTIONAL

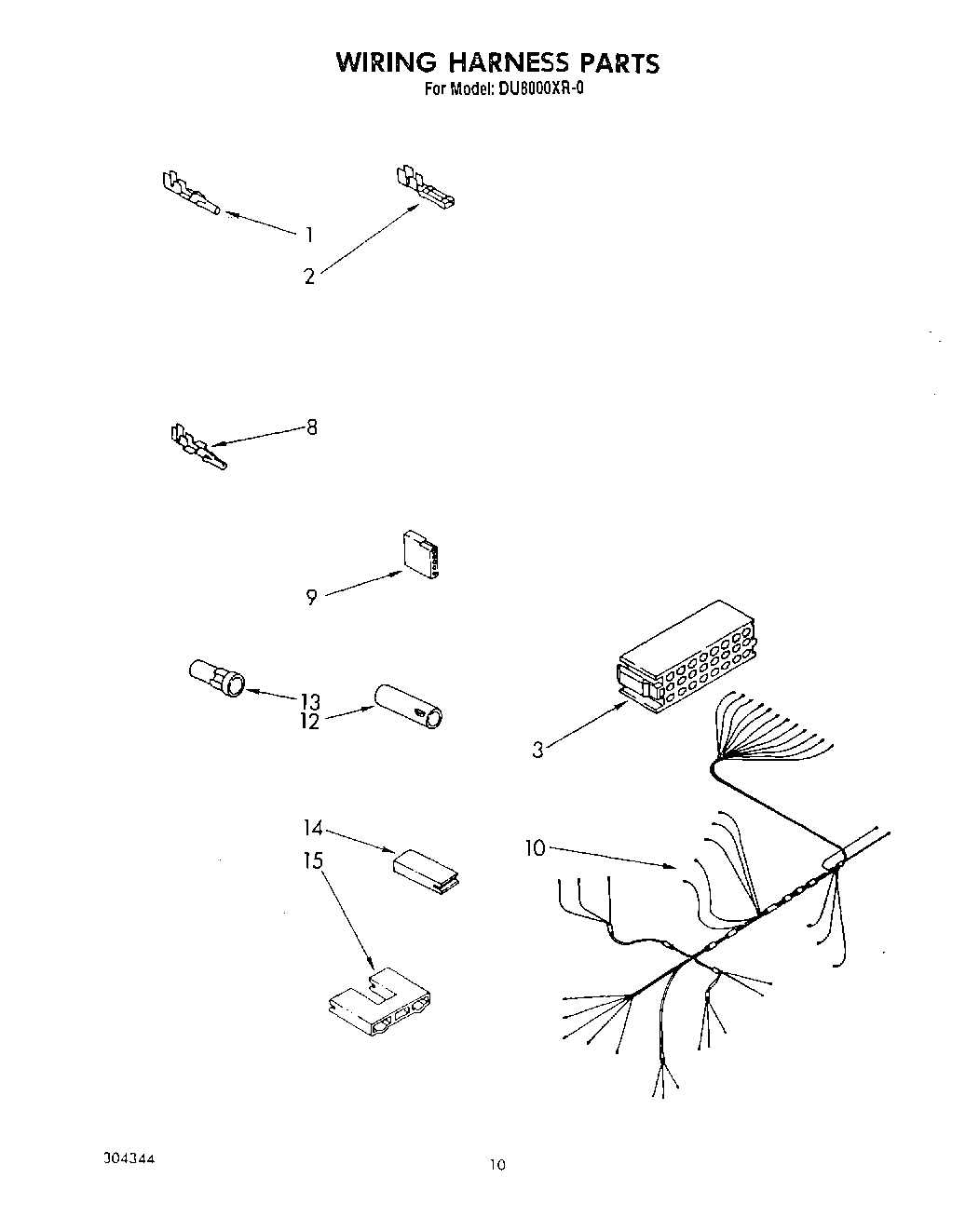

07 - WIRING HARNESS

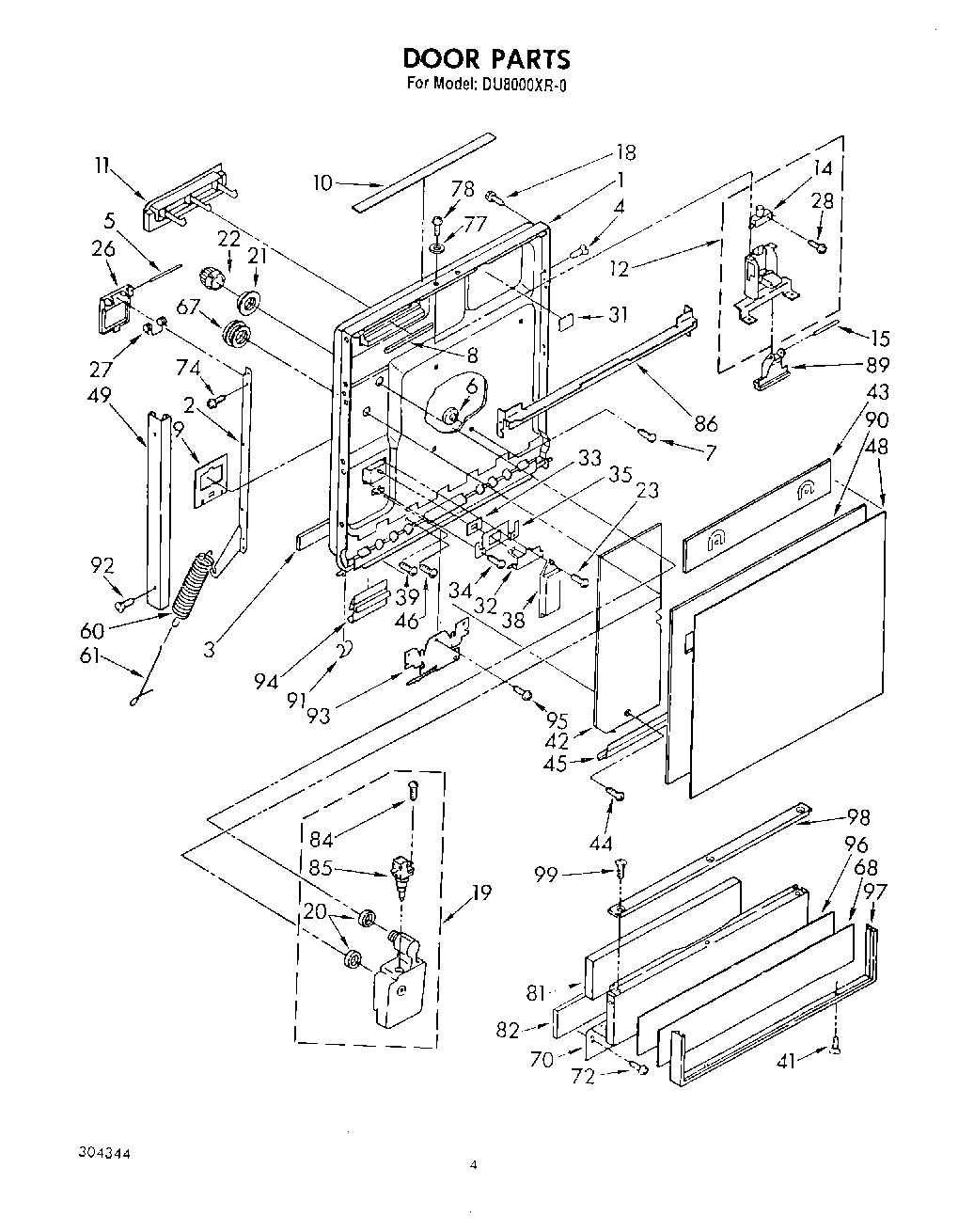

03 - DOOR

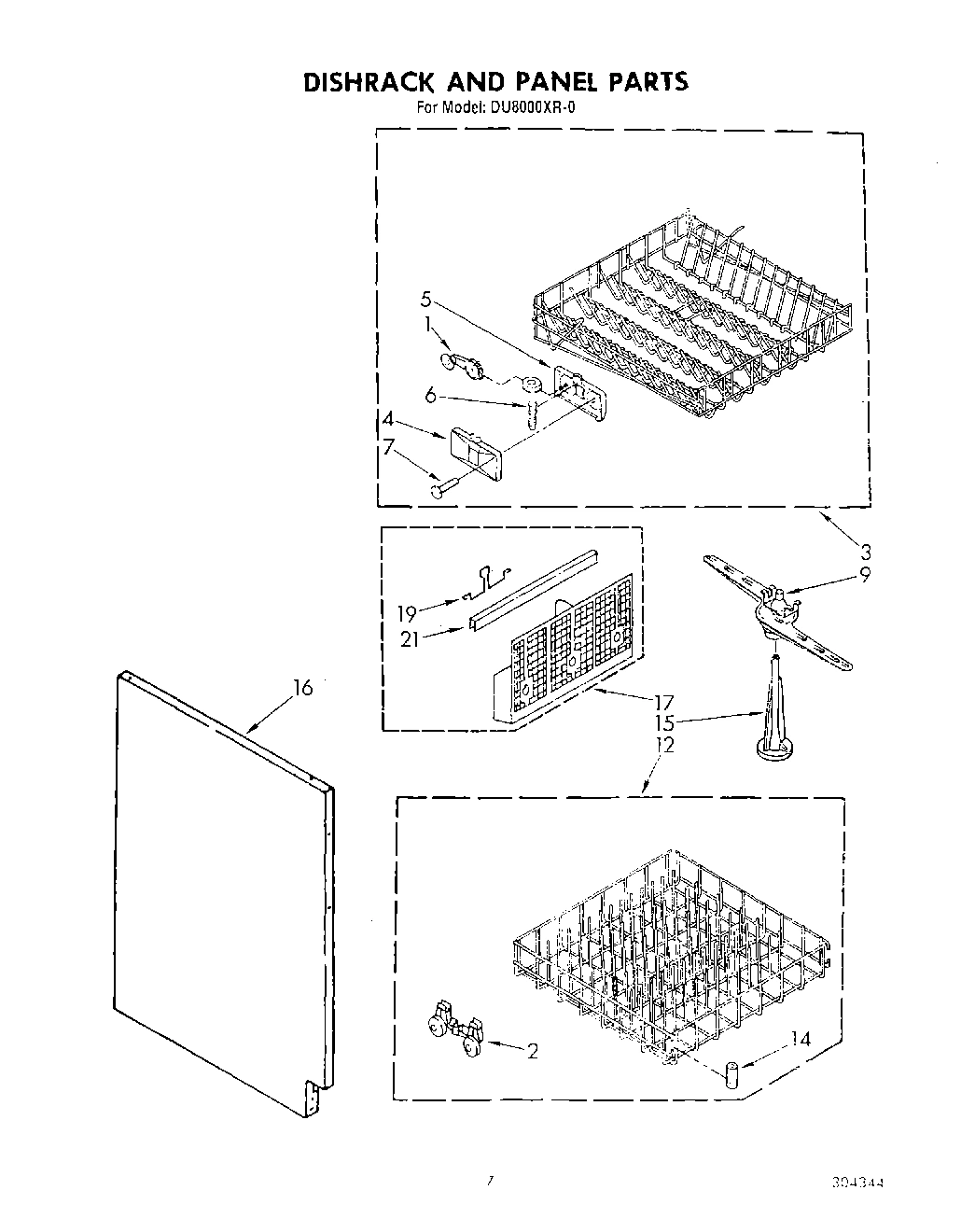

05 - DISHRACK AND PANEL

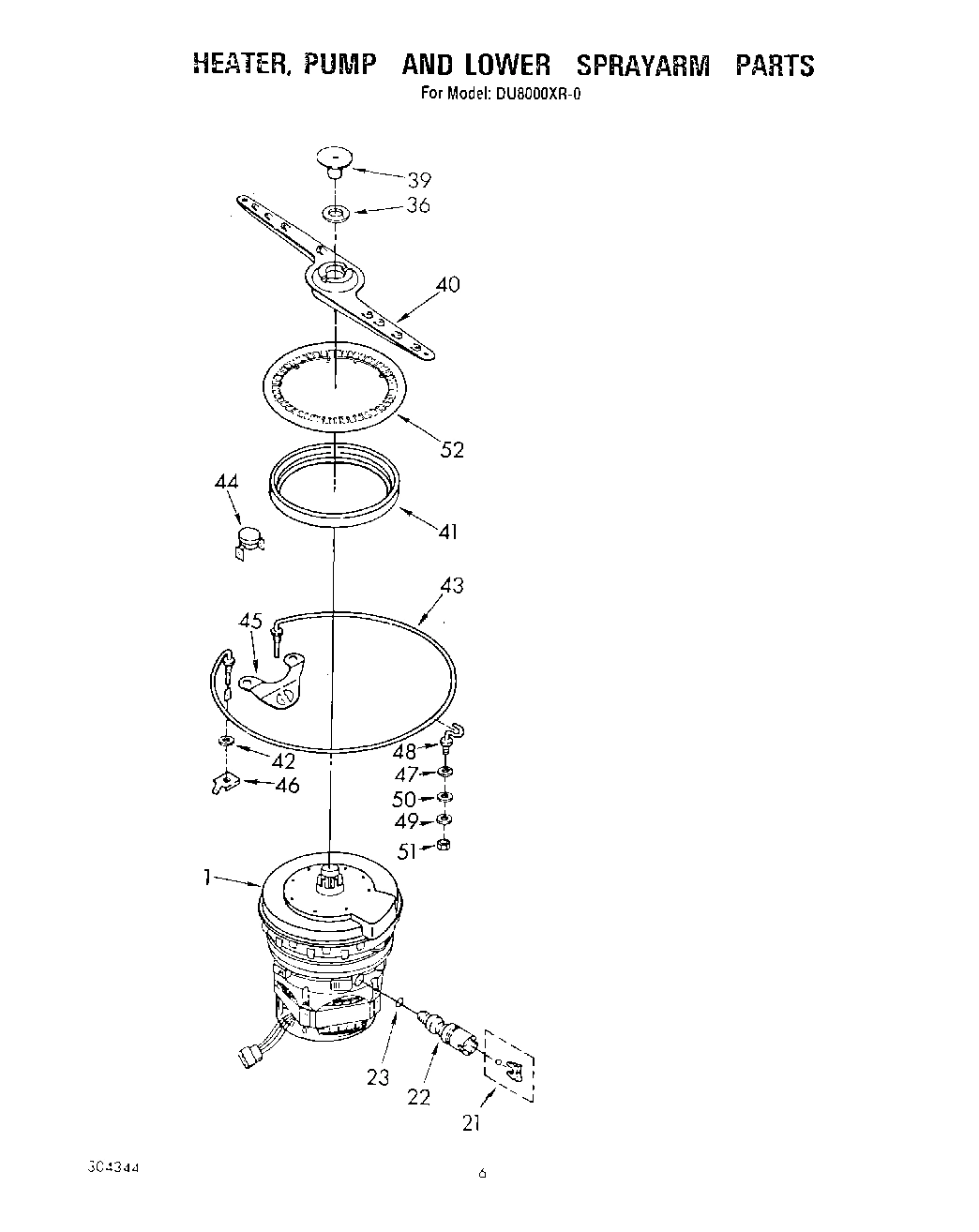

04 - HEATER, PUMP, AND LOWER SPRAYARM

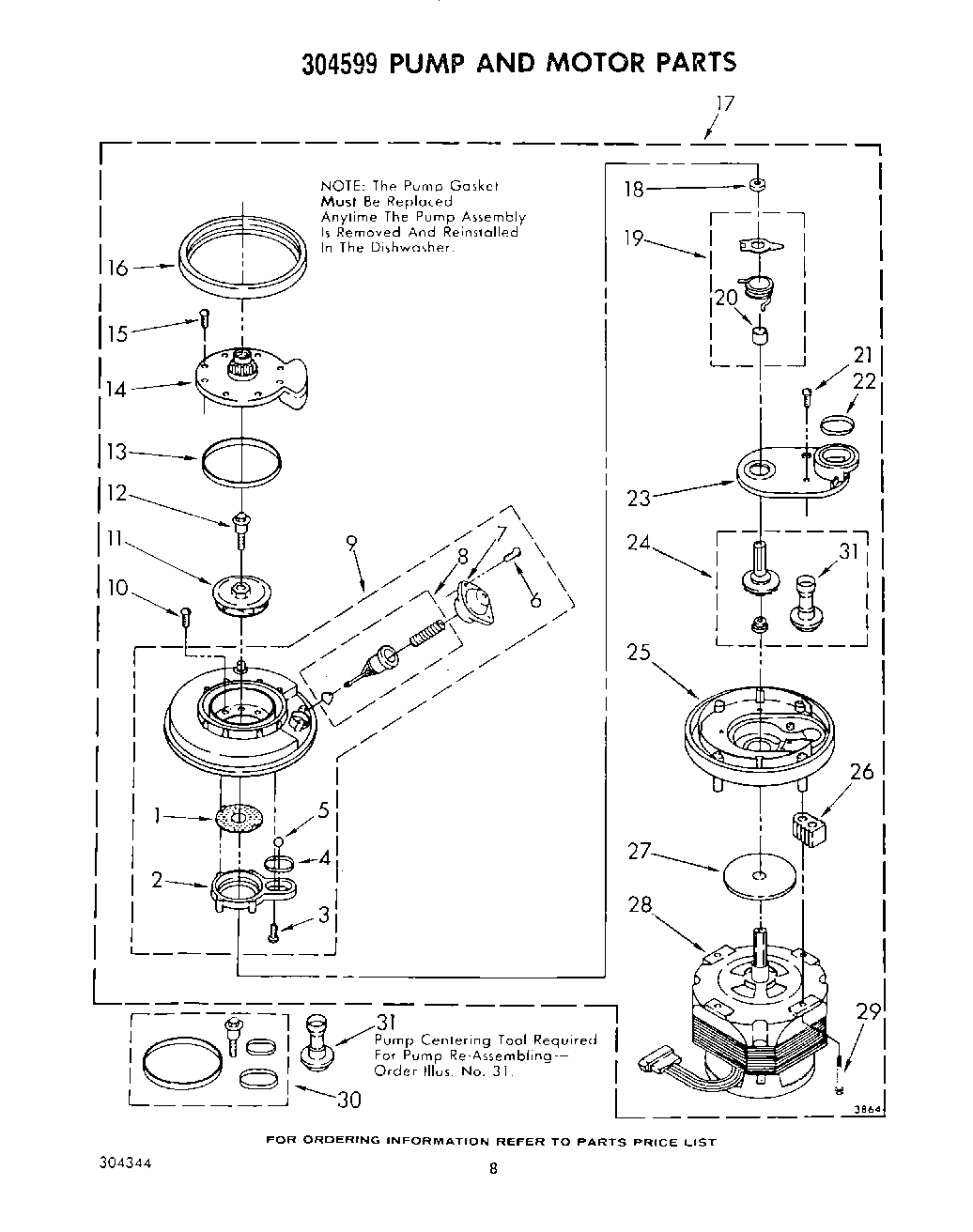

06 - 304599 PUMP AND MOTOR

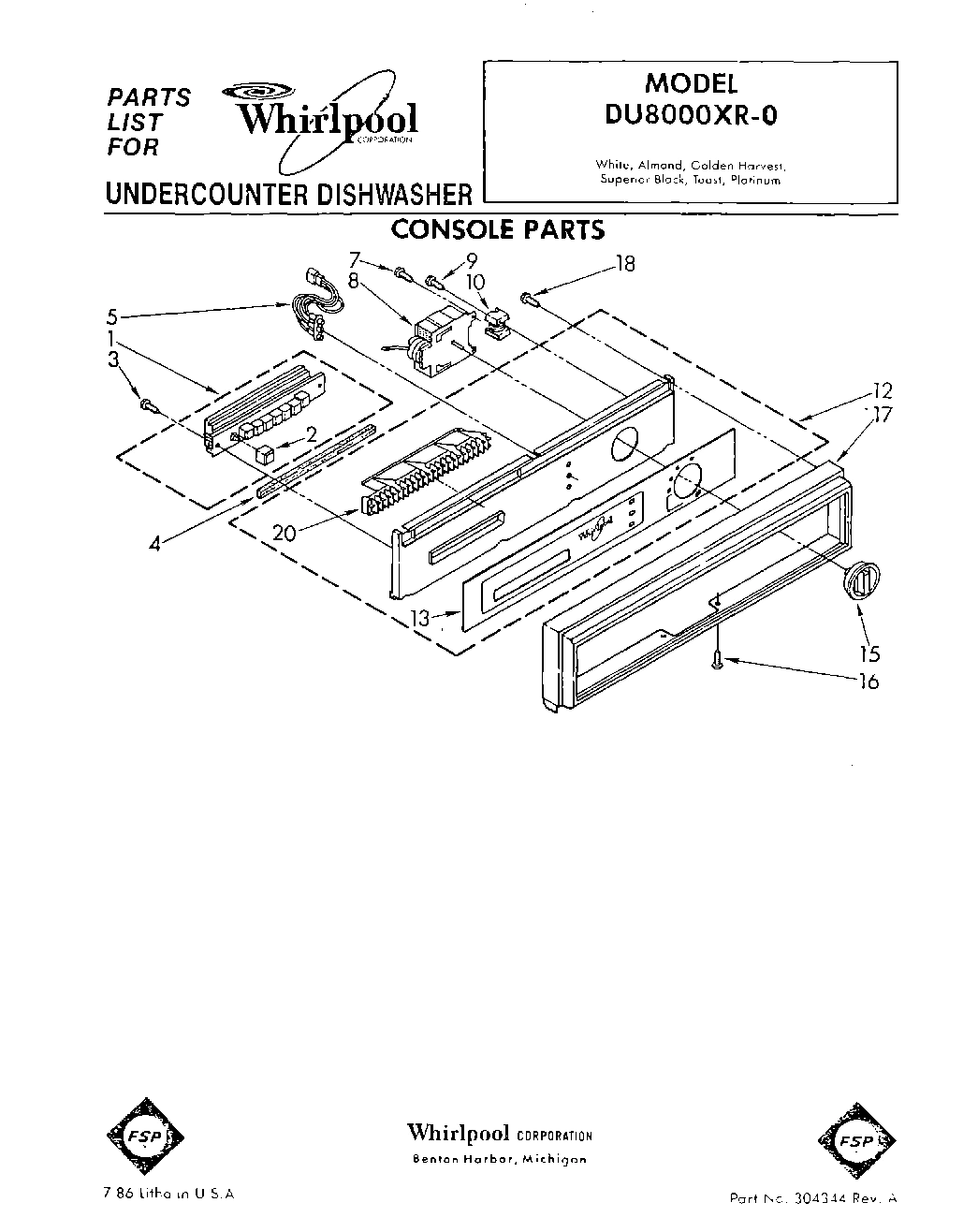

01 - CONSOLE
Common parts from model Whirlpool DU8000XR0 UNDERCOUNTER DISHWASHER
Panel, L.S. WPL ARI24051A4 Contact Us For Availability
1
Door, Inner WPL 304375 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 304200 Contact Us For Availability
1
Check Ball & Retainer WPL 67548 Contact Us For Availability
1
Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability
1
Switch, Pushbutton WPL 304453 Contact Us For Availability
2
Terminal, Female WPL 304759 Contact Us For Availability
2
Support Door (L.H.) WPL 303196 Contact Us For Availability
2
Support, Door (R.H.) WPL 303197 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability
2
Button (8) WPL 304455 Contact Us For Availability
3
Disconnect Block, Timer WPL 304758 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Baffle WPL 719860 Contact Us For Availability
4
Cover, Housing (2) WPL 304202 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Housing, Gear (2) WPL 304208 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
5
Light, Indicator (For Electrical Connector On WPL 304423 Contact Us For Availability
6
Button, Retainer (5) WPL 300239 Contact Us For Availability
6
Worm, Dishrack (2) WPL 304203 Contact Us For Availability
7
Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
8
Timer (For Electrical Connector Only, See Wir WPL 304463 Contact Us For Availability
9
Spray Arm WPL 304204 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Baffle WPL 303978 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability
9
Screw, 7-18 x 1-3/8 Slot Hex Wash Hd WPL 304232 Contact Us For Availability
10
Harness, Wiring WPL 304511 Contact Us For Availability
10
Label, Users Guide WPL 303498 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability
10
Relay, Start WPL 304658 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
12
Receptacle WPL 351296 Contact Us For Availability
12
Latch Assembly WPL 304395 Contact Us For Availability
12
Console WPL 304533 Contact Us For Availability
13
Plug WPL 351297 Contact Us For Availability
13
Insert, Decorative WPL 304544 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Knob, Timer WPL 304435 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Panel, R.S. WPL ARI24050A9 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Silverware Basket WPL 304166 Contact Us For Availability
17
Pump & Motor Assembly WPL 304599 Contact Us For Availability
17
Bezel, Console WPL 304396 Contact Us For Availability
18
Screw, 8-18 x 1-7/8 Truss Head Tapping (2) WPL 304650 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
Screw, 8-18 x1/2 Phlps, Truss Hd (4) WPL 304651 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 304442 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
20
Grill, Vent WPL 304602 Contact Us For Availability
21
Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
25
Base, Pump (Includes Illus. 24 & 31) (Also Or WPL 675516 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability
26
Support, Pump Mounting (4) WPL 718260 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability
28
Motor (Includes Illus. 24, 27 & 31) (Also Ord WPL 675540 Contact Us For Availability
29
WPL 301817 WPL 301817 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
WPL 675505 WPL 675505 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
31
Pad, Rubber WPL 302460 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Retainer, Sound Shield WPL 304662 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
33
Rivet WPL 304665 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Cap, Nozzle WPL 303870 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
41
Screw, 4-40 x 5/8 Hex Head Slotted Thread Cut WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
43
Barrier, Console WPL 303908 Contact Us For Availability
43
Heater (Alternate) WPL 302113 Contact Us For Availability
43
Heater (Alternate) WPL 302562 Contact Us For Availability
43
Heater (Alternate) WPL 717141 Contact Us For Availability
43
Heater (Alternate) WPL 719687 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Thermostat (Alternate) WPL 303282 Contact Us For Availability
44
Thermostat (Alternate) WPL 303652 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
45
Bracket WPL 303808 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
WPL 718750 WPL 718750 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
48
WPL 718817 WPL 718817 Contact Us For Availability
48
xxPanel, Front WPL ARI24048A2 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
49
WPL 300844 WPL 300844 Contact Us For Availability
49
Trim, Door (R.H.) WPL 304224 Contact Us For Availability
49
Trim, Door (L.H.) WPL 304225 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
50
WPL 712499 WPL 712499 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
51
WPL 303297 WPL 303297 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
52
WPL 303299 WPL 303299 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
53
WPL 719266 WPL 719266 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
58
WPL 303298 WPL 303298 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
WPL 261887 WPL 261887 Contact Us For Availability
60
WPL 261889 WPL 261889 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
xxPanel, Access WPL ARI24049A1 Contact Us For Availability
70
Plate, Toe WPL 303752 Contact Us For Availability
77
WPL 300237 WPL 300237 Contact Us For Availability
81
WPL 304660 WPL 304660 Contact Us For Availability
82
WPL 304661 WPL 304661 Contact Us For Availability
84
WPL 304444 WPL 304444 Contact Us For Availability
85
WPL 304443 WPL 304443 Contact Us For Availability
86
WPL 304391 WPL 304391 Contact Us For Availability
89
WPL 304407 WPL 304407 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
93
WPL 303362 WPL 303362 Contact Us For Availability
94
WPL 303121 WPL 303121 Contact Us For Availability
96
WPL 303755 WPL 303755 Contact Us For Availability
97
WPL 303753 WPL 303753 Contact Us For Availability
98
WPL 303754 WPL 303754 Contact Us For Availability
× ![]()
