Model Whirlpool DU7900XL0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
01 - CONSOLE
03 - DOOR

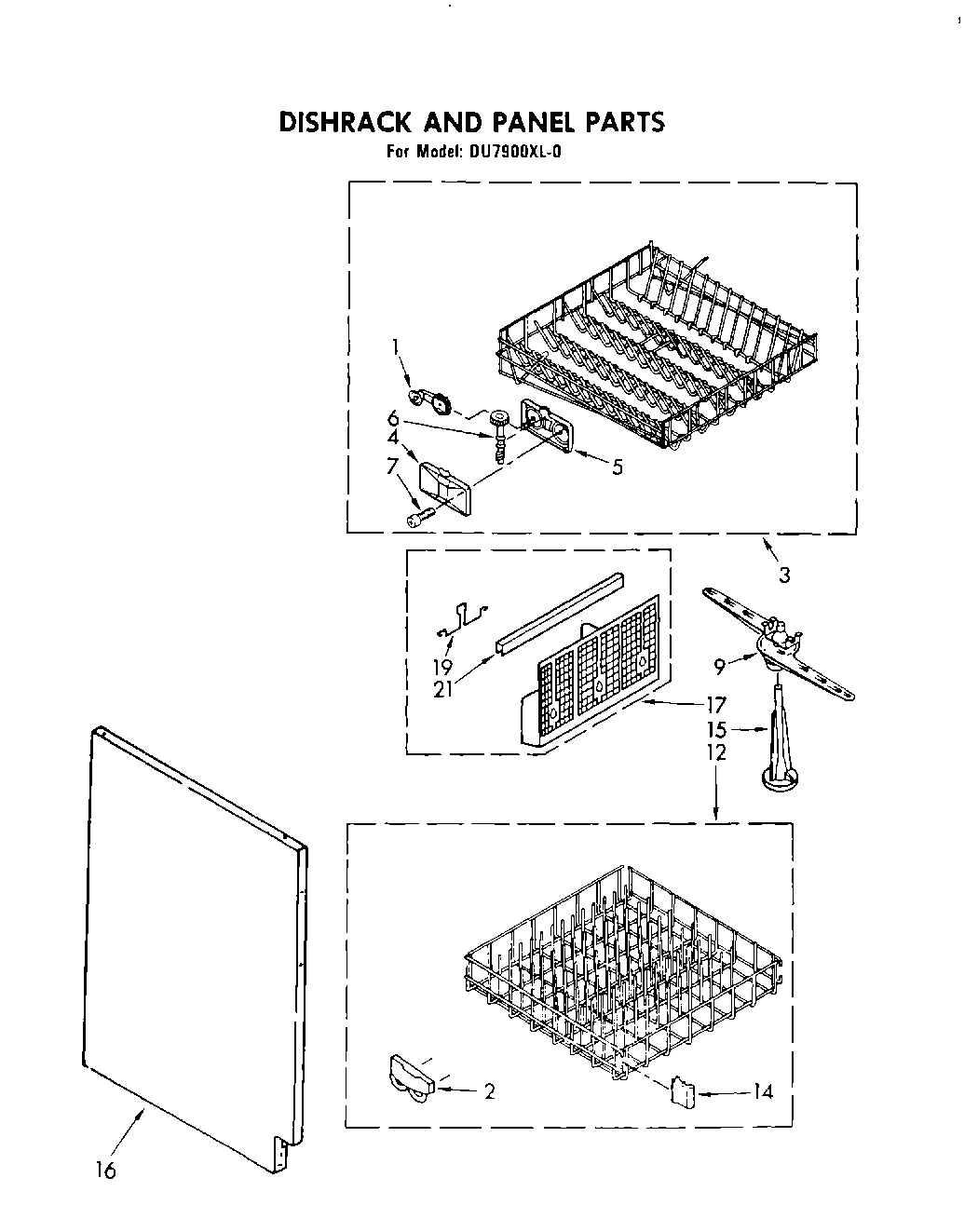

06 - DISHRACK AND PANEL

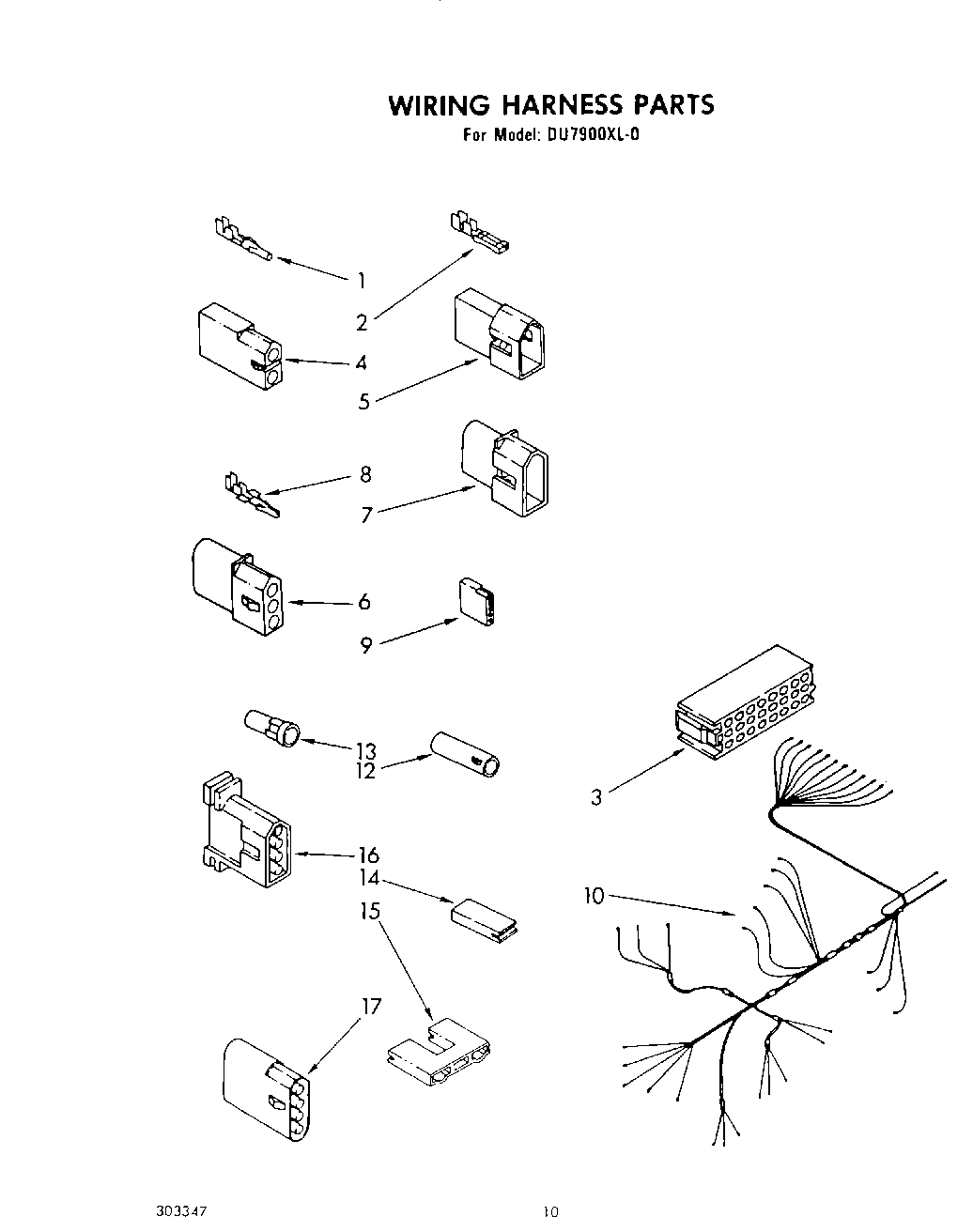

07 - WIRING HARNESS

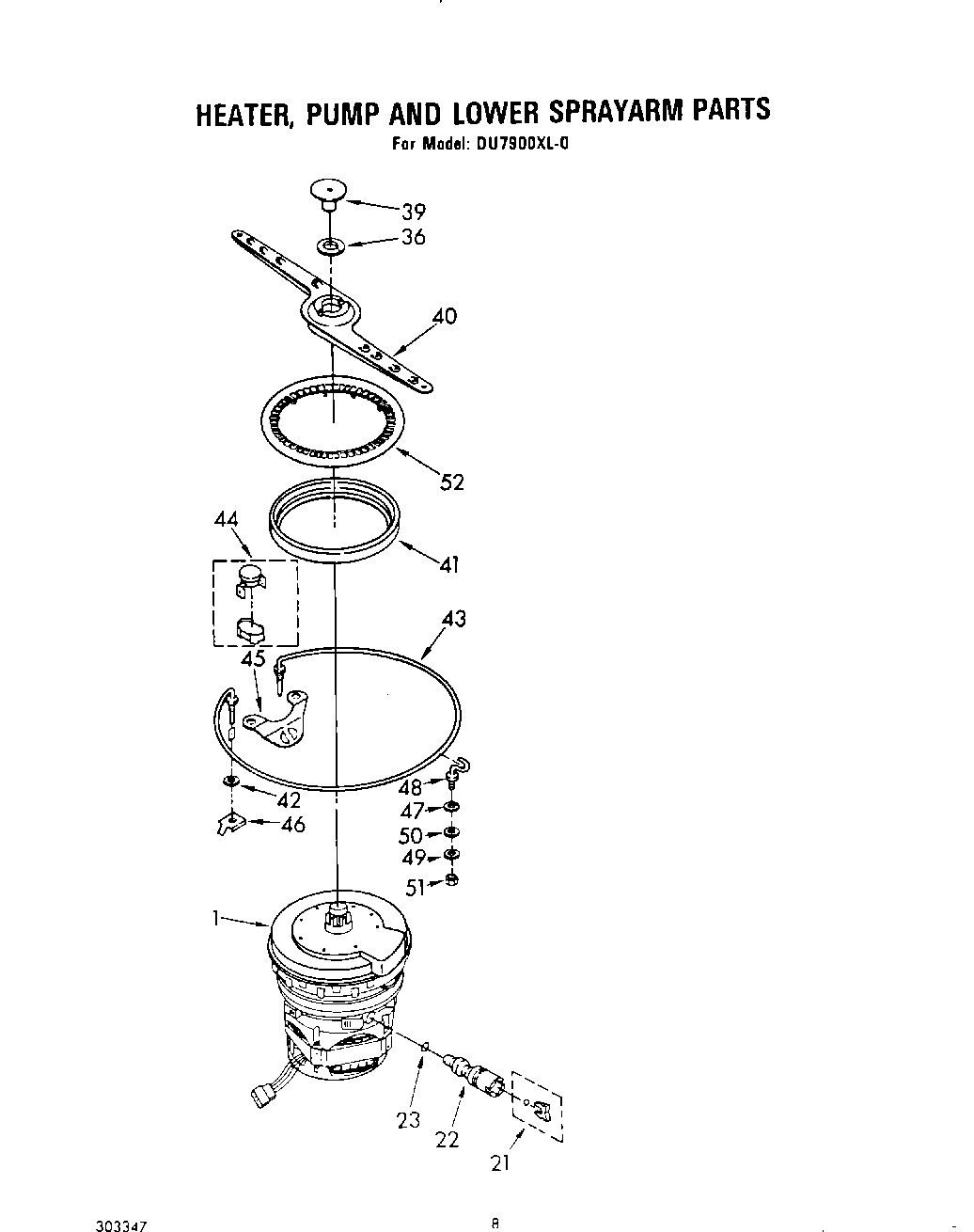

05 - HEATER, PUMP AND LOWER SPRAYARM

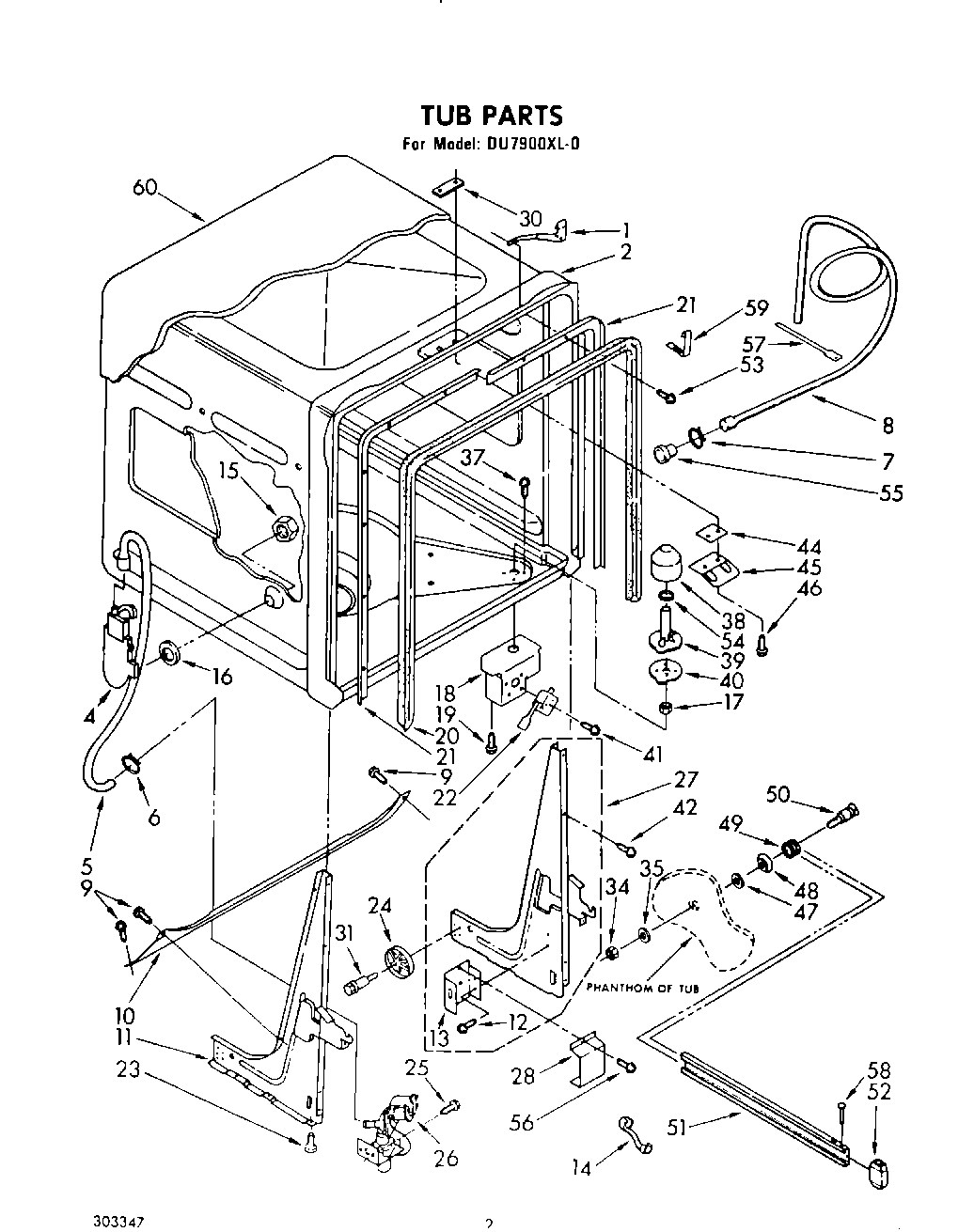

02 - TUB, LIT/OPTIONAL

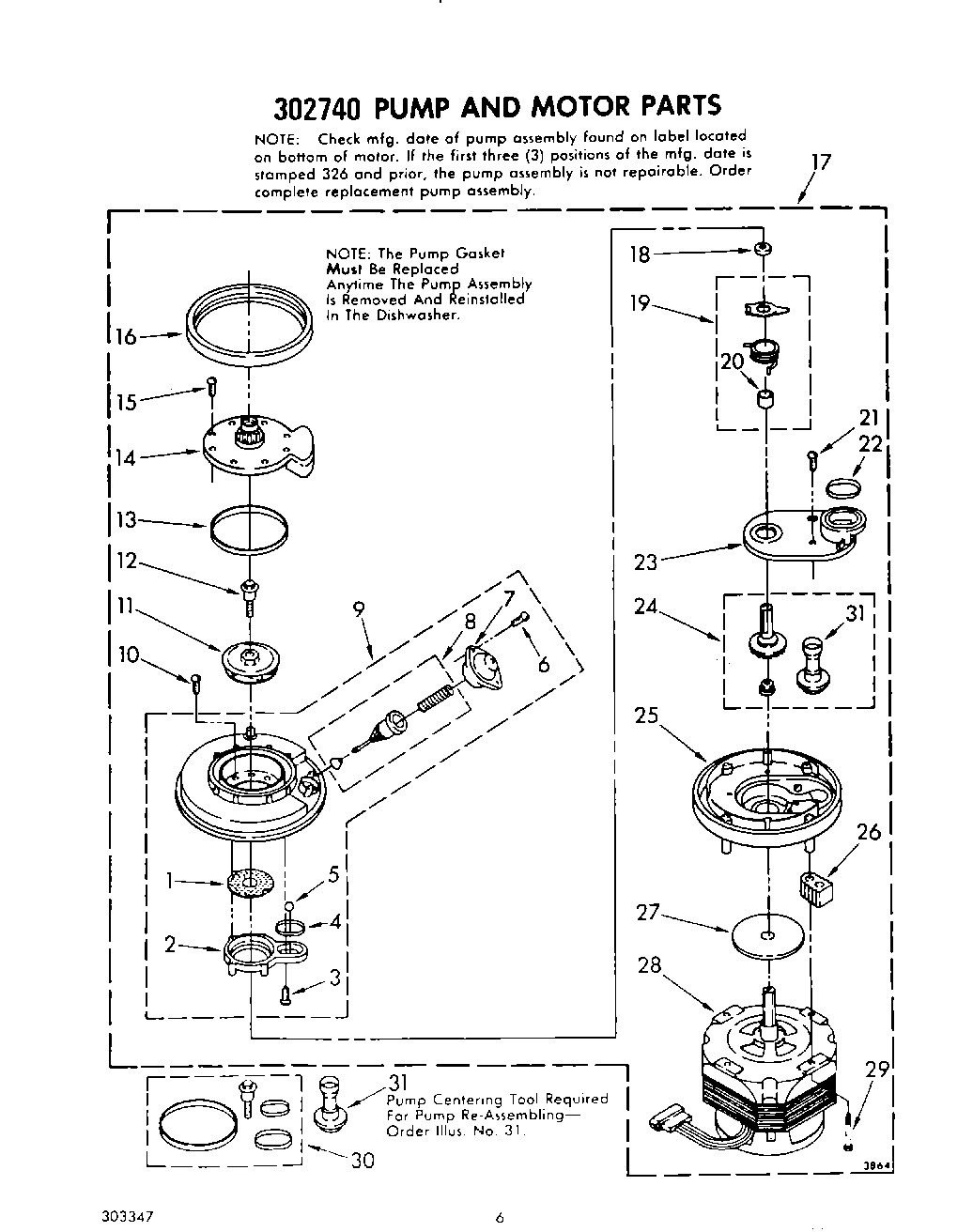

04 - 302740 PUMP AND MOTOR
Common parts from model Whirlpool DU7900XL0 UNDERCOUNTER DISHWASHER
xxPanel, L.S. WPL ARI24043A4 Contact Us For Availability
WPL LIT303210 WPL LIT303210 Contact Us For Availability
WPL LIT303311 WPL LIT303311 Contact Us For Availability
WPL LIT303347 WPL LIT303347 Contact Us For Availability
WPL LIT303373 WPL LIT303373 Contact Us For Availability
WPL LIT677813 WPL LIT677813 Contact Us For Availability
WPL LIT677818 WPL LIT677818 Contact Us For Availability
WPL LIT677821 WPL LIT677821 Contact Us For Availability
WPL LIT677967 WPL LIT677967 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 302025 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Tub Assembly WPL 303110 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 302726 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
4
Liner, Door WPL 303202 Contact Us For Availability
4
Cover, Housing (2) WPL 302029 Contact Us For Availability
4
Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Housing, Gear (2) WPL 302028 Contact Us For Availability
5
Hose, Inlet WPL 301054 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Button, Retainer (5) WPL 300239 Contact Us For Availability
6
Worm, Dishrack (2) WPL 302026 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
7
Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Baffle WPL 719860 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Separator Assembly (Includes Illus. 12, 13 & WPL 302741 Contact Us For Availability
10
Label, Users Guide WPL 303498 Contact Us For Availability
10
Harness, Wiring WPL 303434 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
10
Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
12
Receptacle WPL 351296 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Plug WPL 351297 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Bumper (2) WPL 719964 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
xPanel, Reversible Side WPL ARI24042A6 Contact Us For Availability
16
Plug Connector WPL 717316 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Silverware Basket Assembly WPL 301994 Contact Us For Availability
17
Receptacle, 4-Way WPL 717315 Contact Us For Availability
17
Pump & Motor Assembly WPL 302740 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 719341 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
21
Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
22
Indicator, Level WPL 303163 Contact Us For Availability
22
Switch, Pressure WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
23
Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability
25
Base, Pump (Includes Illus. 24) (Also Order I WPL 675516 Contact Us For Availability
26
Valve, Water Inlet WPL 300453 Contact Us For Availability
26
Support, Pump Mounting (4) WPL 718260 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
28
Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability
28
Motor (Includes Illus. 24 & 27) (Also Order I WPL 675515 Contact Us For Availability
29
WPL 301817 WPL 301817 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
30
WPL 675505 WPL 675505 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Pad, Rubber WPL 302460 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, Nozzle WPL 302737 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 3/4 Hex Head Slotted Thread Cut WPL 98086 Contact Us For Availability
42
Barrier, Door WPL 303223 Contact Us For Availability
43
Barrier, Console WPL 303222 Contact Us For Availability
43
Heater (Alternate) WPL 302113 Contact Us For Availability
43
Heater (Alternate) WPL 302562 Contact Us For Availability
43
Heater (Alternate) WPL 717141 Contact Us For Availability
43
Heater (Alternate) WPL 719687 Contact Us For Availability
44
Thermostat WPL 302104 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Panel Edging, Door WPL 301971 Contact Us For Availability
45
Bracket WPL 715073 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
xxPanel, Front WPL ARI24040A4 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door (2) WPL 303501 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Nut, 10-32 (2) WPL 9420162 Contact Us For Availability
51
Track (2) WPL 303297 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
52
End Cap, Track (4) WPL 303299 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex Head WPL 719266 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
58
WPL 303298 WPL 303298 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access WPL ARI24041A7 Contact Us For Availability
70
Plate, Toe WPL 303144 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
81
Spring, Conical WPL 718592 Contact Us For Availability
85
WPL 718646 WPL 718646 Contact Us For Availability
86
WPL 718596 WPL 718596 Contact Us For Availability
87
WPL 718595 WPL 718595 Contact Us For Availability
89
WPL 300230 WPL 300230 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
93
WPL 303362 WPL 303362 Contact Us For Availability
94
WPL 303121 WPL 303121 Contact Us For Availability
96
WPL 301815 WPL 301815 Contact Us For Availability
97
WPL 301814 WPL 301814 Contact Us For Availability
98
WPL 301816 WPL 301816 Contact Us For Availability
× ![]()
