Model Whirlpool DU7600XS6 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

Wheel & Axle Assembly WPL 300995 Contact Us For Availability

1

Plate, Perforated (Includes Illus. 5) (Also O WPL 302720 Contact Us For Availability

1

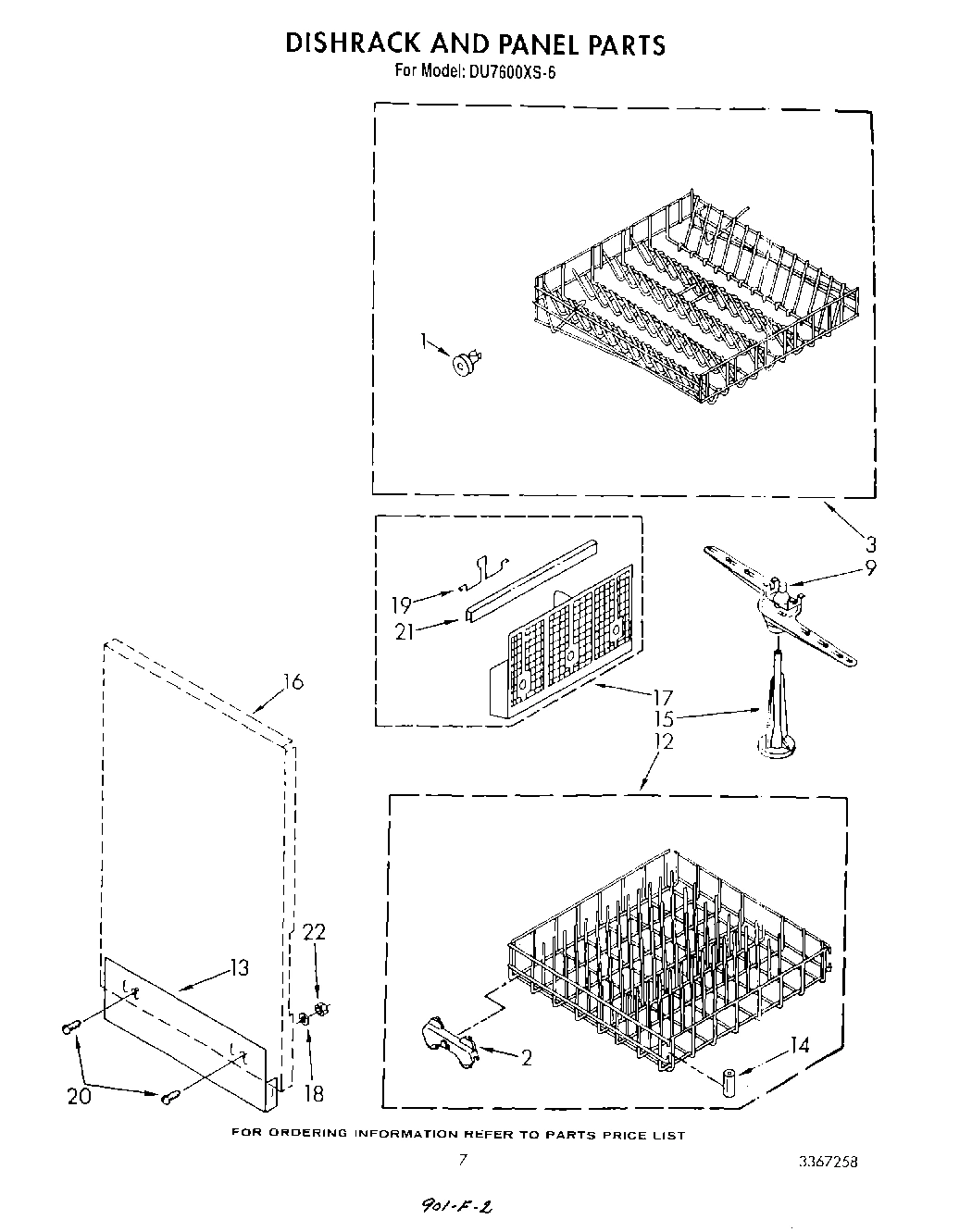

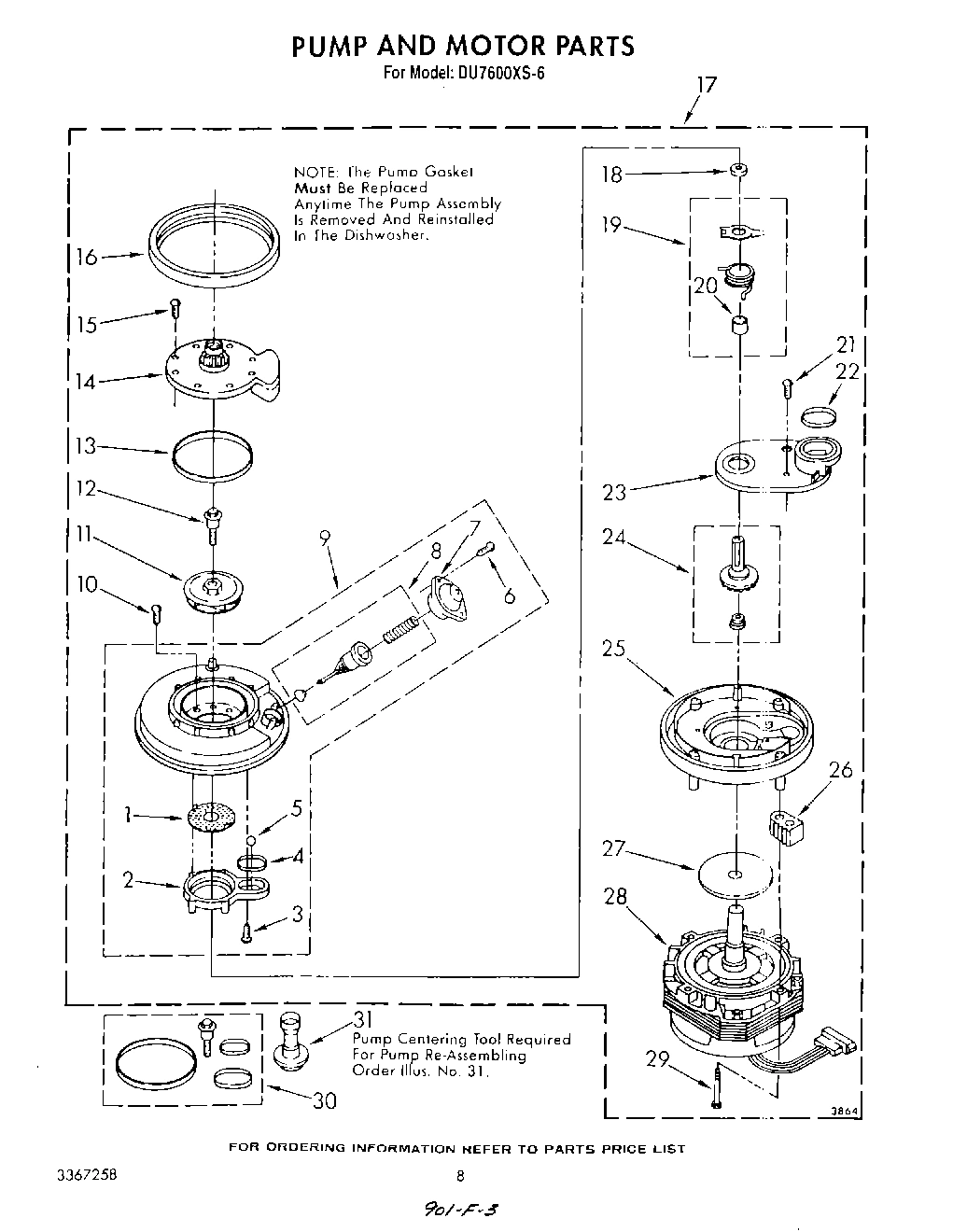

Pump & Motor Assembly (Includes Illus. 41) WPL 3369476 Contact Us For Availability

1

Switch, Pushbutton WPL 3368540 Contact Us For Availability

1

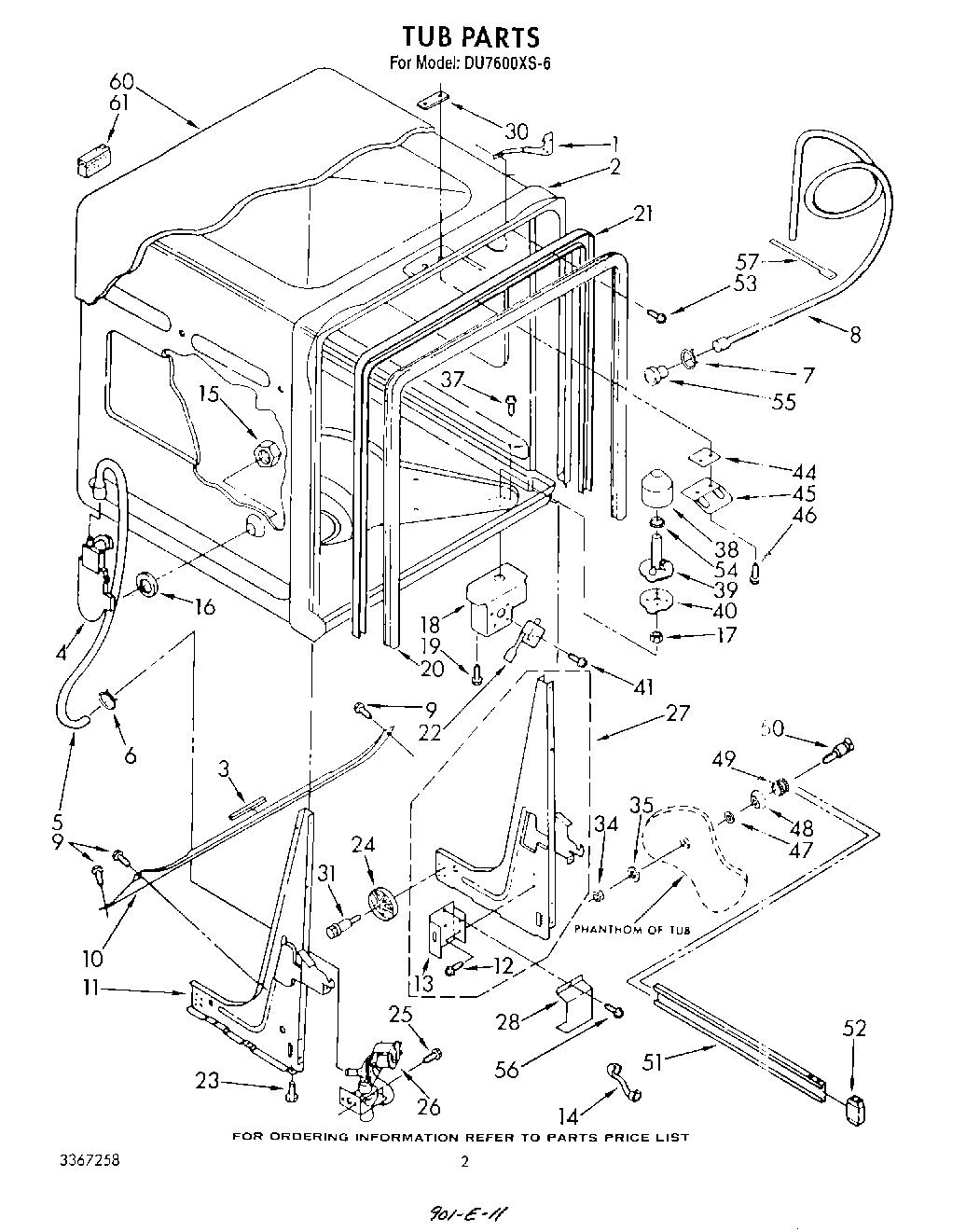

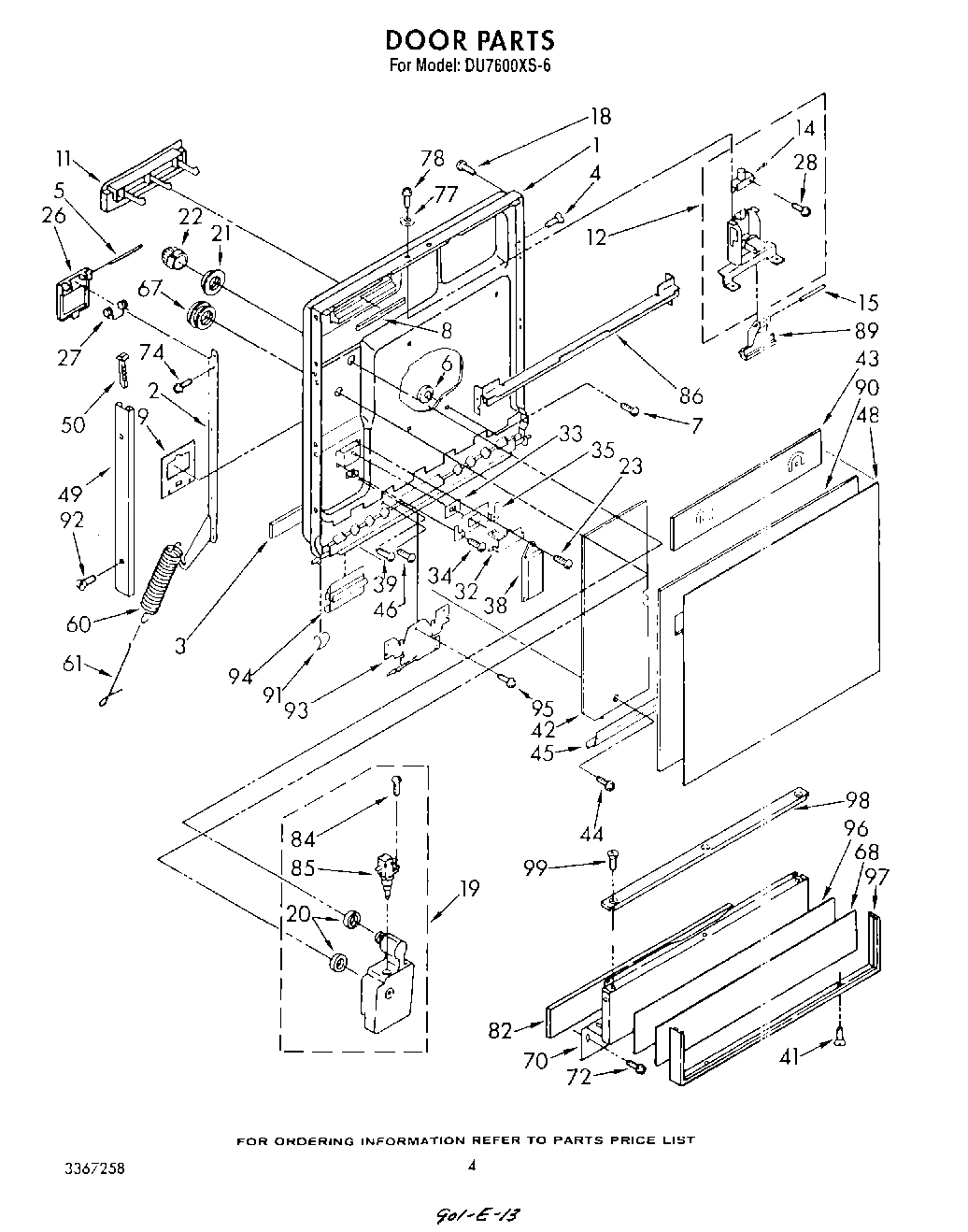

Door, Inner WPL 3367388 Contact Us For Availability

2

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $30.03

2

Base, Inlet (Includes Illus. 1 & 5) (Also Ord WPL 3367173 Contact Us For Availability

2

Button (6) WPL 304456 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

Gasket, Door WPL 717921 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

4

Baffle WPL 3368537 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Ball, Check WPL 302709 Contact Us For Availability

5

Light, Indicator (For Electrical Connector On WPL 304422 Contact Us For Availability

6

Shield, Switch WPL 3368538 Contact Us For Availability

6

Button, Retainer (5) WPL 300239 Contact Us For Availability

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

Cover, Valve WPL 302721 Contact Us For Availability

7

Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

8

Timer WPL 3368535 Contact Us For Availability

8

Baffle WPL 719860 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Screw, 8-18 x 1-1/4 Slot Hex Wash Hd WPL 304232 Contact Us For Availability

9

Baffle WPL 303978 Contact Us For Availability

10

Screw, 8-18 x 1-5/8 St. Stl. (4) WPL 302717 Contact Us For Availability

10

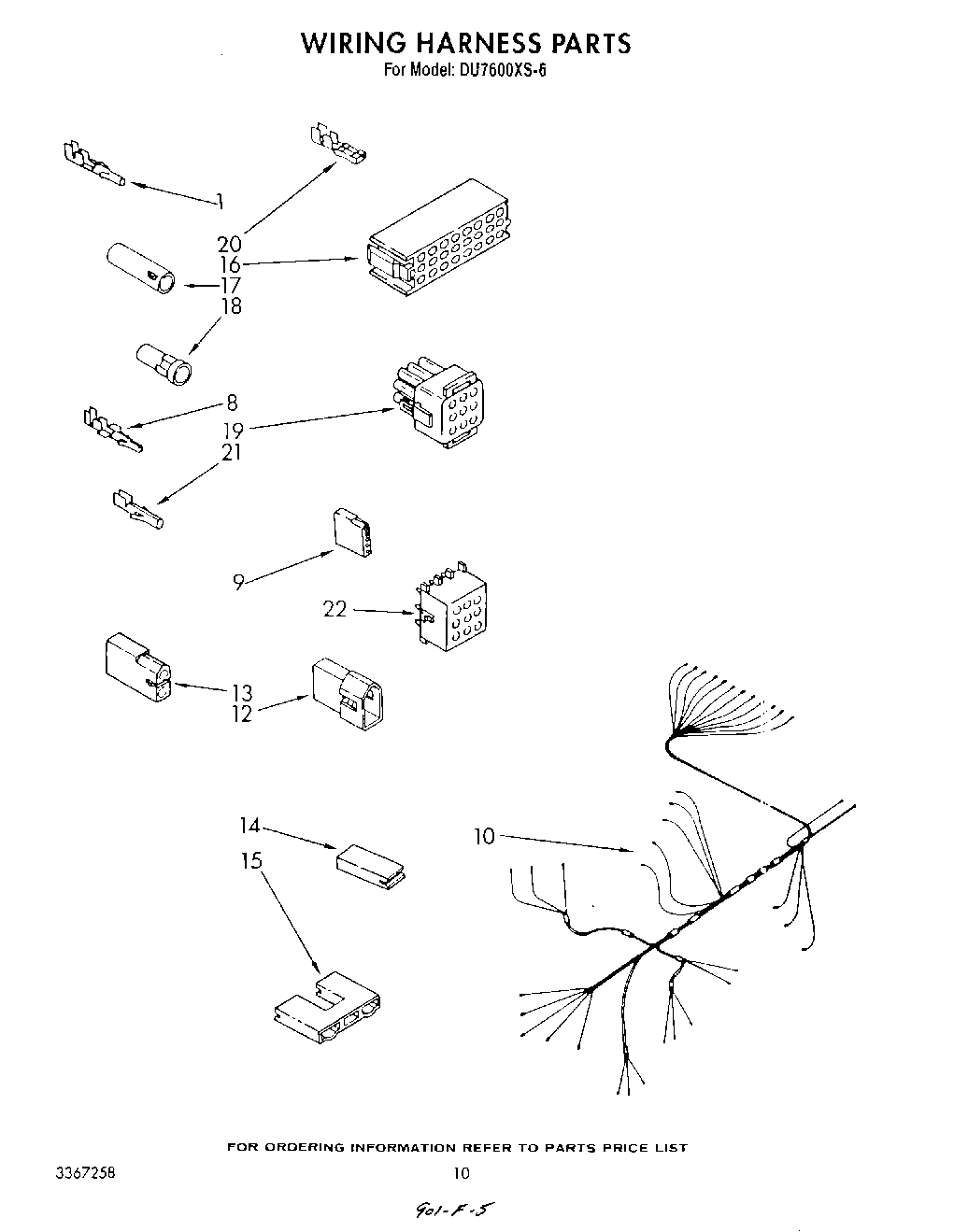

Harness, Wiring WPL 3367754 Contact Us For Availability

10

Relay, Start WPL 304658 Contact Us For Availability

11

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

11

Screen, Vent WPL 300246 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

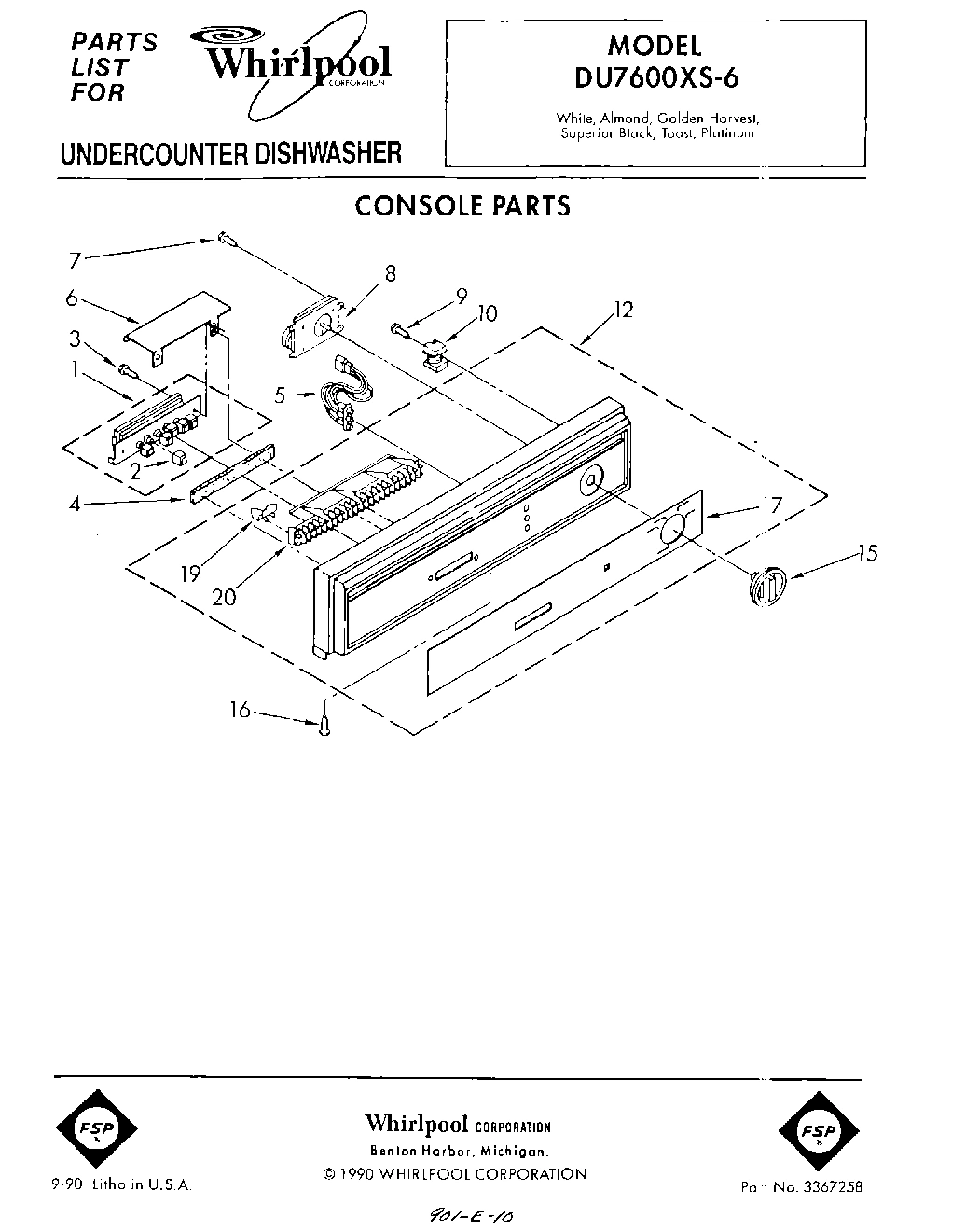

Console WPL 3367823 Contact Us For Availability

Latch Assembly WPL 3367058 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

Panel, Lower Side WPL 3367549 Contact Us For Availability

13

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

Bumper (2) WPL 717970 Contact Us For Availability

Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability

Connector Block (Alternate) WPL 301219 Contact Us For Availability

Connector Block (Alternate) WPL 358736 Contact Us For Availability

Switch, Interlock WPL 660951 Contact Us For Availability

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

Tower WPL 304170 Contact Us For Availability

Knob, Timer WPL 3367843 Contact Us For Availability

Connector, Block (Alternate) WPL 300708 Contact Us For Availability

Connector Block (Alternate) WPL 374230 Contact Us For Availability

Pin, Pivot WPL 300234 Contact Us For Availability

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

16

Panel, R.S. WPL ARI24023A1 Contact Us For Availability

16

Block, Disconnect (Timer) (Black) WPL 3369366 Contact Us For Availability

Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability

Silverware Basket WPL 304166 Contact Us For Availability

Receptacle WPL 351296 Contact Us For Availability

Insert, Decorative WPL 3367766 Contact Us For Availability

W11089212 Whirlpool Washer Backorder WPL W11089212 $3.29

Bushing, Grind WPL 302707 Contact Us For Availability

Plug WPL 351297 Contact Us For Availability

Screw, 8-18 x 1-7/8 Truss Head (2) WPL 304233 Contact Us For Availability

Backorder WPL 675500 $85.12

Handle, Basket WPL 300086 Contact Us For Availability

Housing, Plug WPL 3367821 Contact Us For Availability

Cover, Grill WPL 304604 Contact Us For Availability

Dispenser, Wetting Agent WPL 304442 Contact Us For Availability

Gasket WPL 3368007 Contact Us For Availability

Screw (2) WPL 9419621 Contact Us For Availability

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

Terminal WPL 304759 Contact Us For Availability

Grill, Vent (Includes Illus. 19) WPL 304602 Contact Us For Availability

Washer (2) WPL 713080 Contact Us For Availability

Retainer & Seal WPL 3368002 Contact Us For Availability

Trim, Basket WPL 717528 Contact Us For Availability

Check Ball & Retainer WPL 675488 Contact Us For Availability

Terminal WPL 304412 Contact Us For Availability

Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability

675238 Whirlpool Check Valve In Stock WPL 675238 $28.04

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

Seal, Drain Cover WPL 302704 Contact Us For Availability

Housing, Plug (9 Terminal) WPL 3367819 Contact Us For Availability

Cap WPL 718577 Contact Us For Availability

23

Cover, Drain (Also Order Illus. No. 30) See N WPL 302723 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Screw WPL 718250 Contact Us For Availability

24

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

25

Base, Pump (Includes Illus. 24) (Also Order I WPL 3367204 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

Valve, Water Inlet WPL 303650 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

28

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

28

Motor (Includes Illus. 24, 27 & 31) (Also Ord WPL 3369472 Contact Us For Availability

28

Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability

29

WPL 3369331 WPL 3369331 Contact Us For Availability

30

WPL 675505 WPL 675505 Contact Us For Availability

31

WPL 303918 WPL 303918 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

Seal, Lever WPL 300105 Contact Us For Availability

35

Retainer, Seal WPL 300104 Contact Us For Availability

36

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

38

Actuator WPL 300109 Contact Us For Availability

39

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

39

Cap, Nozzle WPL 3367910 Contact Us For Availability

40

Spray Arm, Lower WPL 302767 Contact Us For Availability

41

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

42

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

42

Barrier, Door WPL 303906 Contact Us For Availability

43

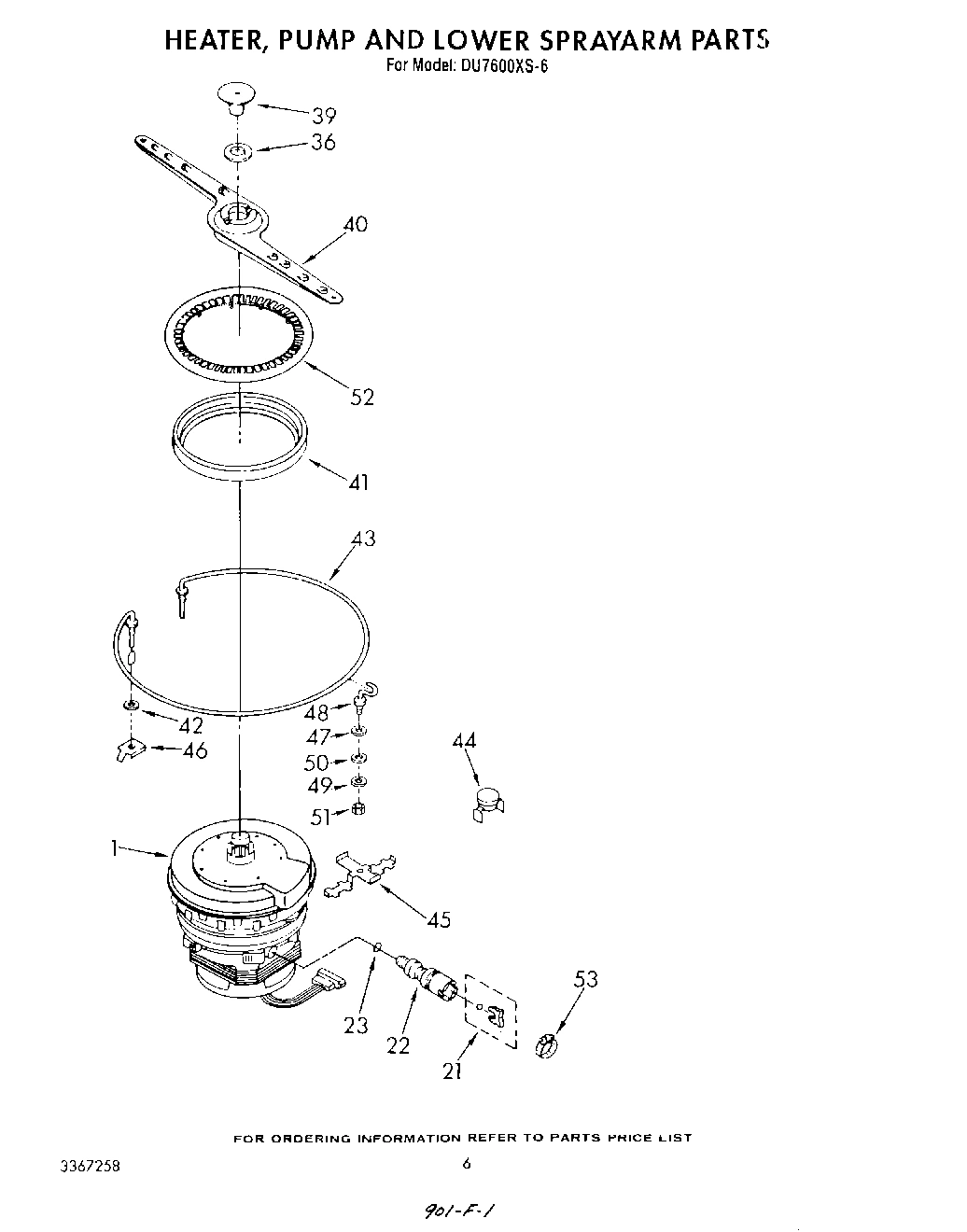

Heater (Alternate) WPL 302113 Contact Us For Availability

43

Heater (Alternate) WPL 660318 Contact Us For Availability

43

Barrier, Console WPL 303908 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Thermostat WPL 661504 Contact Us For Availability

45

Bracket WPL 3368272 Contact Us For Availability

45

Panel, Edging (Door) WPL 304047 Contact Us For Availability

46

Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability

47

Washer, Retainer (2) WPL 717289 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Support, Heater (2) WPL 717096 Contact Us For Availability

48

Panel, Front (Almond/Black) WPL 304668 Contact Us For Availability

Wheel Assembly (8) WPL 300844 Contact Us For Availability

Washer (2) WPL 711284 Contact Us For Availability

Trim, Door R.H. WPL 3367999 Contact Us For Availability

Trim, Door L.H. WPL 3368000 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

50

Washer (2) WPL 14351 Contact Us For Availability

50

Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

51

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

52

Grate WPL 303469 Contact Us For Availability

53

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

53

Screw, 8-18 x 5/8 Indented Hex-Head (10) WPL 3368008 Contact Us For Availability

54

Gasket (2) WPL 301662 Contact Us For Availability

55

Insert, Cup-Hose WPL 301656 Contact Us For Availability

57

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

60

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3368107 WPL 3368107 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 675476 WPL 675476 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

68

Panel, Access (Almond/Black) WPL 3367012 Contact Us For Availability

70

Plate, Toe WPL 3367671 Contact Us For Availability

72

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer WPL 300237 Contact Us For Availability

78

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

82

Shield, Sound WPL 303809 Contact Us For Availability

84

Screw, 4-20 x 3/8 Torx Pan Hd (2) WPL 304444 Contact Us For Availability

85

WPL 304443 WPL 304443 Contact Us For Availability

86

WPL 304391 WPL 304391 Contact Us For Availability

89

WPL 304408 WPL 304408 Contact Us For Availability

90

WPL 3368569 WPL 3368569 Contact Us For Availability

91

WPL 301857 WPL 301857 Contact Us For Availability

92

WPL 3367288 WPL 3367288 Contact Us For Availability

93

WPL 303362 WPL 303362 Contact Us For Availability

94

WPL 3367720 WPL 3367720 Contact Us For Availability

96

WPL 303755 WPL 303755 Contact Us For Availability

97

WPL 303753 WPL 303753 Contact Us For Availability

98

WPL 303754 WPL 303754 Contact Us For Availability

99

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59
