Model Whirlpool DU7500XR0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

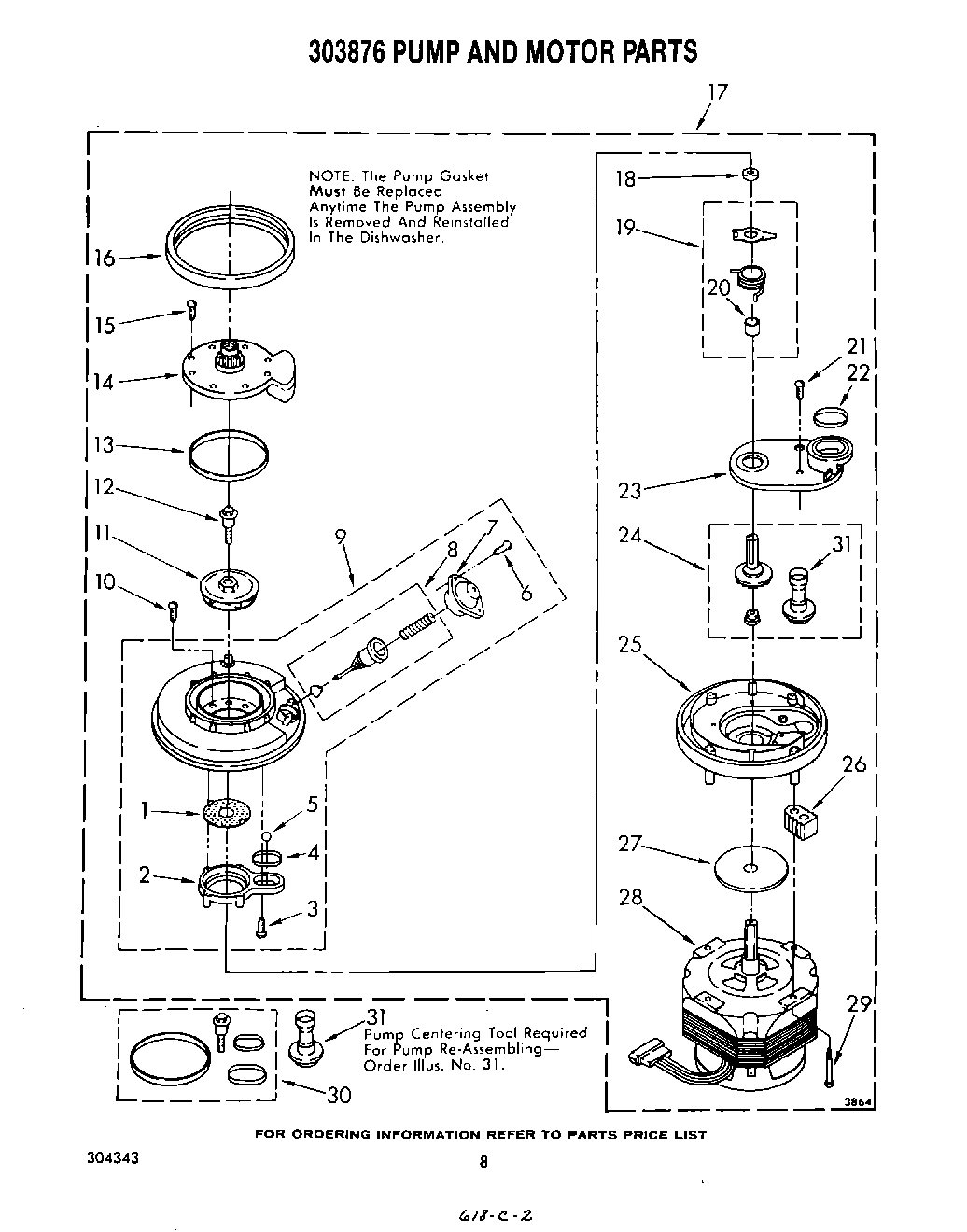

06 - PUMP AND MOTOR

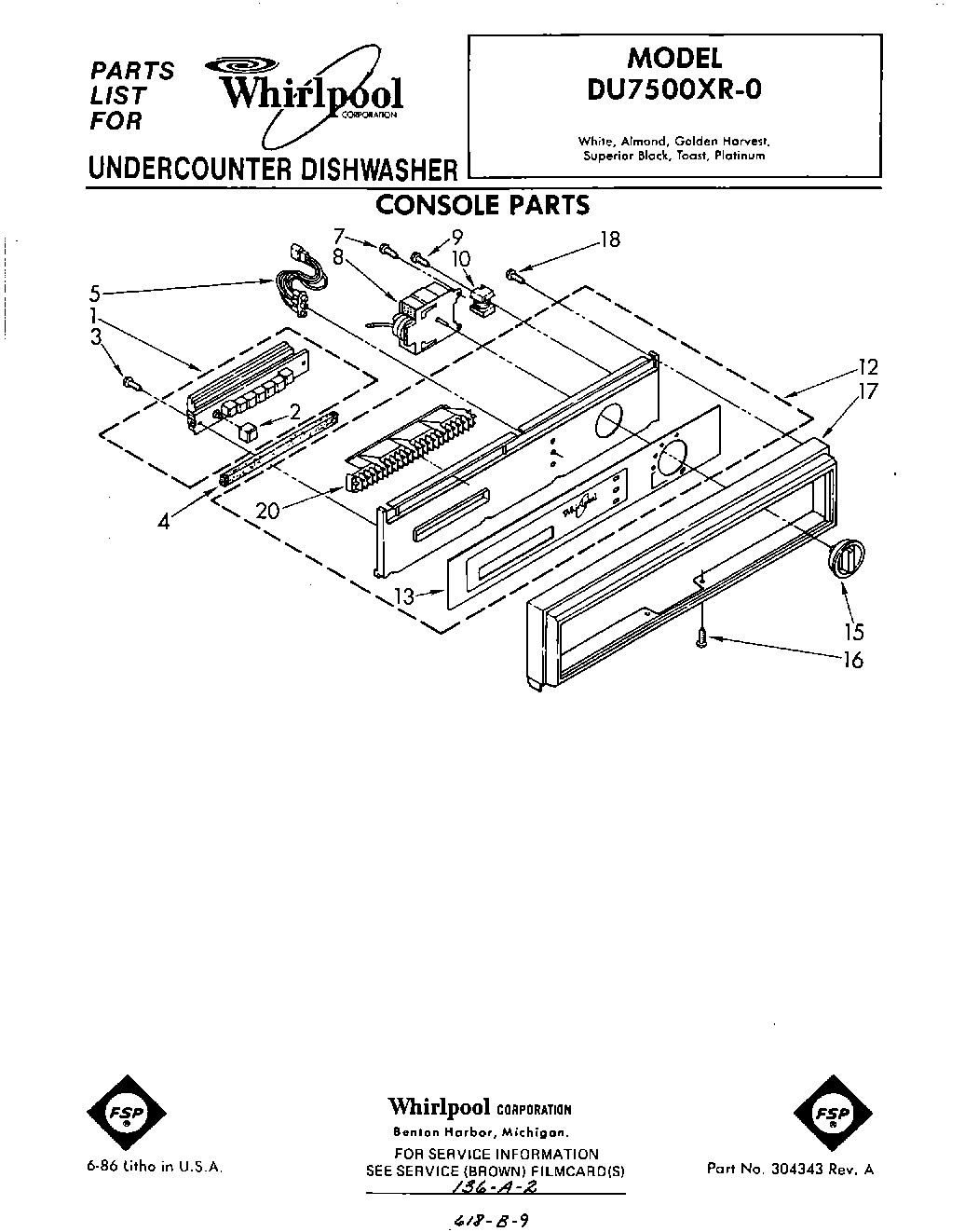

01 - CONSOLE
07 - WIRING HARNESS
03 - DOOR
05 - DISHRACK AND PANEL
02 - TUB , LITERATURE AND OPTIONAL
04 - HEATER, PUMP AND LOWER SPRAY ARM
Common parts from model Whirlpool DU7500XR0 UNDERCOUNTER DISHWASHER
WPL LIT304278 WPL LIT304278 Contact Us For Availability
WPL LIT304343 WPL LIT304343 Contact Us For Availability
WPL LIT304417 WPL LIT304417 Contact Us For Availability
WPL LIT304673 WPL LIT304673 Contact Us For Availability
1
Door, Inner WPL 304375 Contact Us For Availability
1
Wheel & Gear Assembly (4) WPL 304200 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Pump & Motor Assembly (Includes Illus. 41) WPL 303876 Contact Us For Availability
2
Terminal, Female WPL 304759 Contact Us For Availability
2
Support Door (L.H.) WPL 303196 Contact Us For Availability
2
Support, Door (R.H.) WPL 303197 Contact Us For Availability
2
Tub Assembly WPL 303110 Contact Us For Availability
3
Disconnect Block, Timer WPL 304758 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Cover, Housing (2) WPL 304202 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Housing, Gear (2) WPL 304208 Contact Us For Availability
6
Button, Retainer (5) WPL 300239 Contact Us For Availability
6
Worm, Dishrack (2) WPL 304203 Contact Us For Availability
7
Screw, 8-18 x 3/8 Hi-Lo (5) WPL 300250 Contact Us For Availability
8
Baffle WPL 719860 Contact Us For Availability
9
Spray Arm WPL 304204 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Baffle WPL 303978 Contact Us For Availability
10
Harness, Wiring WPL 304511 Contact Us For Availability
10
Label, Users Guide WPL 303498 Contact Us For Availability
10
Brace WPL 303111 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 302822 Contact Us For Availability
12
Receptacle WPL 351296 Contact Us For Availability
12
Latch Assembly WPL 304395 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Plug WPL 351297 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Panel, R.S. Panel, L.S. WPL ARI24000A7 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Silverware Basket WPL 304166 Contact Us For Availability
18
Screw, 6-19 x3/8 Torx Pan Hd (4) WPL 3367054 Contact Us For Availability
18
Screw, 8-32 x 1-7/8 Truss Head Tapping (2) WPL 304650 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 304442 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
20
Grill, Vent WPL 304602 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
20
Gasket (Alternate) WPL 302090 Contact Us For Availability
20
Gasket (Alternate) WPL 302091 Contact Us For Availability
21
Nut, 1-14 Buttress Thread (1) WPL 718575 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
21
Retainer (R.H.) WPL 302093 Contact Us For Availability
21
Retainer (L.H.) WPL 302094 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
22
Cap WPL 303163 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301671 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability
22
Switch, Pressure (Alternate) WPL 304589 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 303650 Contact Us For Availability
26
Valve, Water Inlet (Alternate) WPL 300453 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 302823 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Screw, 6-32 x 1 Hex-Head Tapping (1) WPL 301582 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Cap, Nozzle WPL 303870 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Spray Arm, Lower WPL 302767 Contact Us For Availability
41
Gasket, Pump WPL 717000 Contact Us For Availability
41
Screw, 4-40 x 5/8 Hex Head Slotted Thread Cut WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
43
Barrier, Console WPL 303908 Contact Us For Availability
43
Heater (Alternate) WPL 302113 Contact Us For Availability
43
Heater (Alternate) WPL 302562 Contact Us For Availability
43
Heater (Alternate) WPL 717141 Contact Us For Availability
43
Heater (Alternate) WPL 719687 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Thermostat (Alternate) WPL 303282 Contact Us For Availability
44
Thermostat (Alternate) WPL 303652 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Bracket WPL 303808 Contact Us For Availability
46
Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
47
Washer, Retainer (2) WPL 717289 Contact Us For Availability
48
Panel, Front WPL ARI23998A7 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Support, Heater (2) WPL 717096 Contact Us For Availability
49
Trim, Door (R.H.) WPL 304224 Contact Us For Availability
49
Trim, Door (L.H.) WPL 304225 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Washer (2) WPL 711284 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Washer (2) WPL 14351 Contact Us For Availability
51
Track (2) WPL 303297 Contact Us For Availability
51
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
52
En WPL 303299 Contact Us For Availability
52
Grate WPL 303469 Contact Us For Availability
53
WPL 719266 WPL 719266 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
58
WPL 303298 WPL 303298 Contact Us For Availability
59
WPL 301663 WPL 301663 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access WPL ARI23999A7 Contact Us For Availability
70
Plate, Toe WPL 303752 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
82
WPL 302803 WPL 302803 Contact Us For Availability
84
WPL 304444 WPL 304444 Contact Us For Availability
85
WPL 304443 WPL 304443 Contact Us For Availability
86
WPL 304391 WPL 304391 Contact Us For Availability
89
WPL 304407 WPL 304407 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
93
WPL 303362 WPL 303362 Contact Us For Availability
94
WPL 303121 WPL 303121 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
96
WPL 303755 WPL 303755 Contact Us For Availability
97
WPL 303753 WPL 303753 Contact Us For Availability
98
WPL 303754 WPL 303754 Contact Us For Availability
× ![]()
