Model Whirlpool DU6000XR4 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

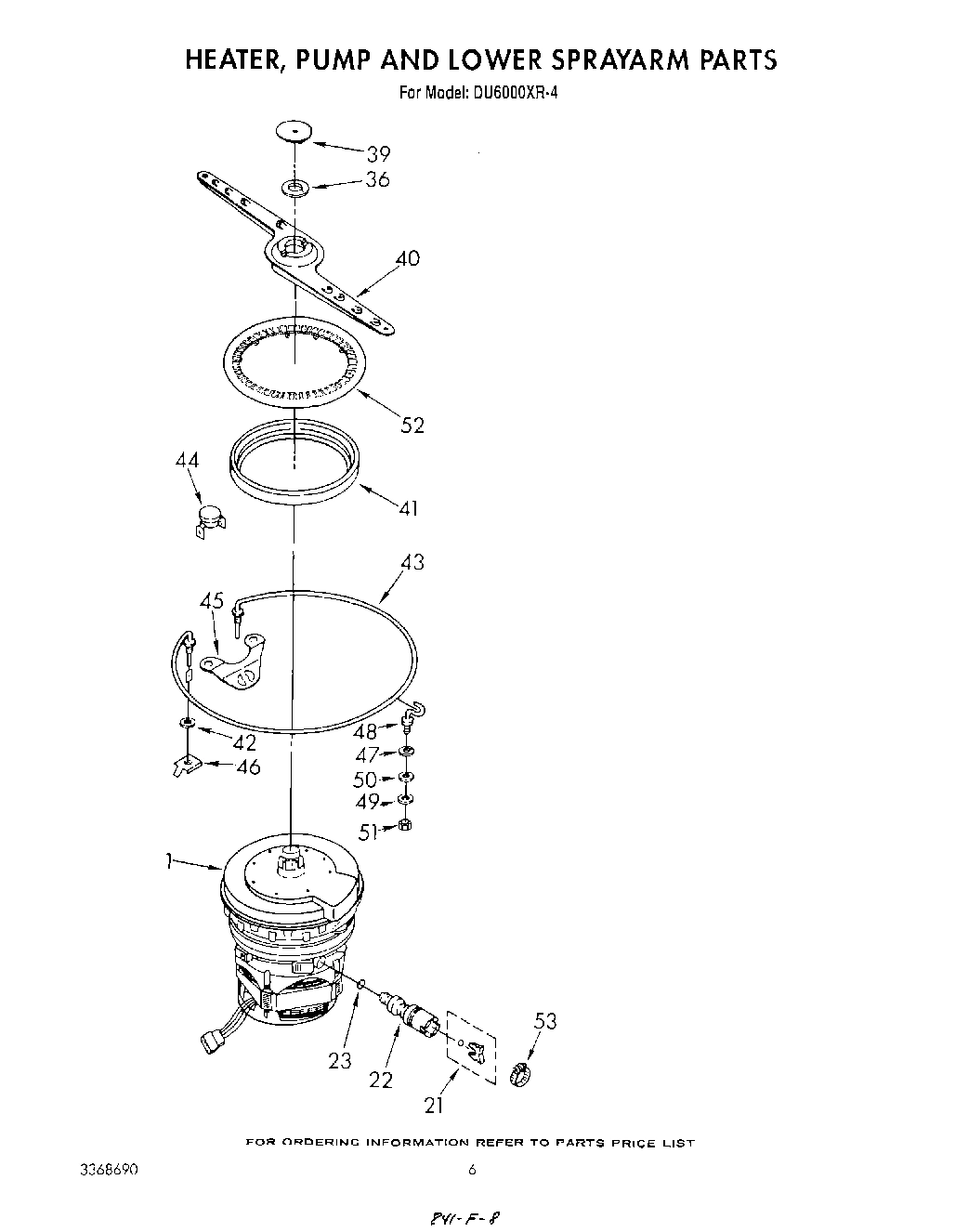

04 - HEATER, PUMP AND LOWER SPRAY ARM

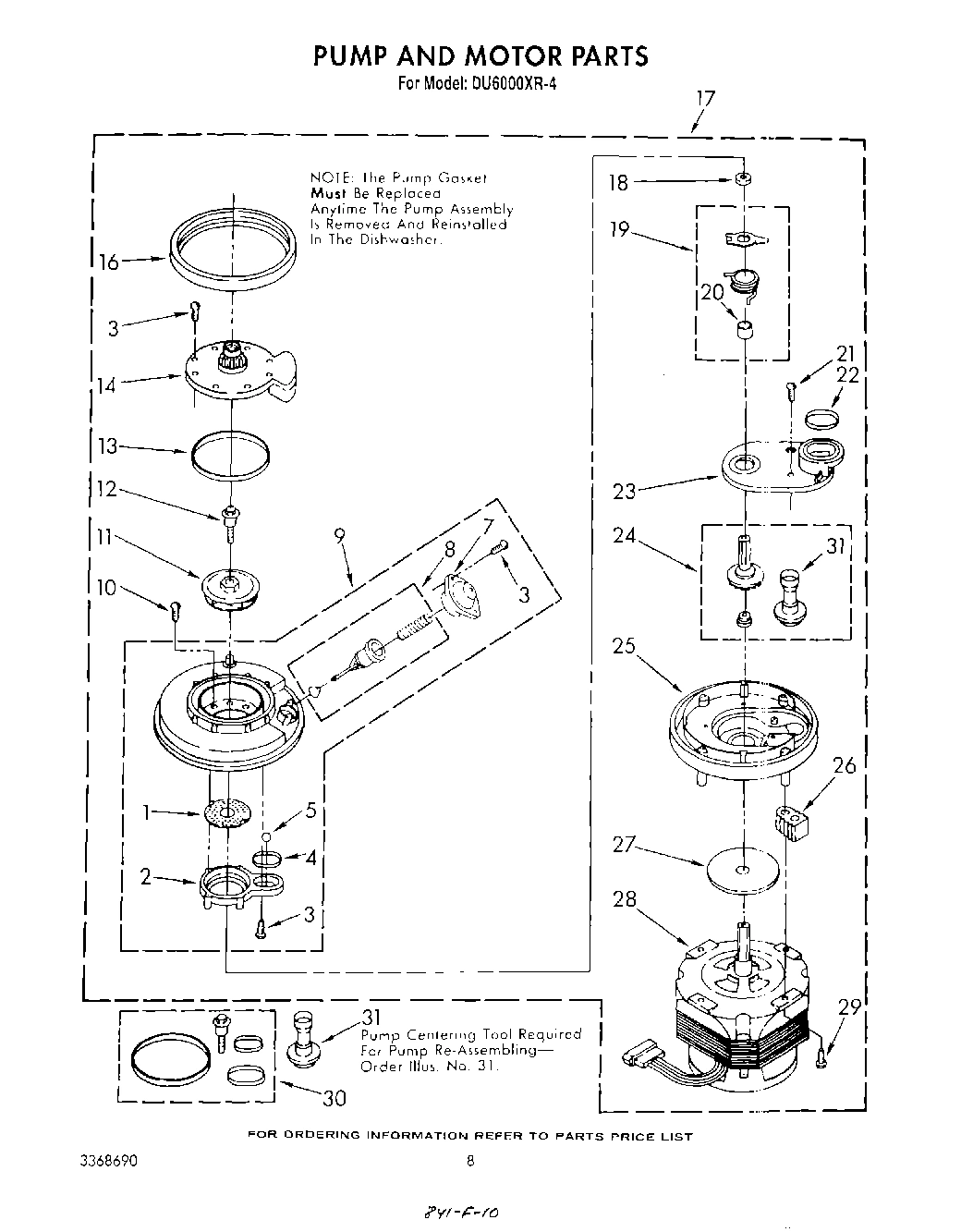

06 - PUMP AND MOTOR
02 - TUB , LITERATURE AND OPTIONAL
01 - CONSOLE
03 - DOOR
05 - DISHRACK AND PANEL
07 - WIRING HARNESS
Common parts from model Whirlpool DU6000XR4 UNDERCOUNTER DISHWASHER
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3368690 WPL LIT3368690 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Switch, Pushbutton WPL 304452 Contact Us For Availability
1
Door, Inner WPL 3367388 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
2
Button (6) WPL 304455 Contact Us For Availability
2
Support, Door (R.H.) WPL 3367201 Contact Us For Availability
2
Support, Door (L.H.) WPL 3367202 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Disconnect Block, Timer WPL 304758 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Receptacle, Terminal WPL 717252 Contact Us For Availability
5
Hose, Inlet WPL 304670 Contact Us For Availability
5
Light, Indicator (For Electrical Connector On WPL 304422 Contact Us For Availability
6
Button, Retainer (5) WPL 300239 Contact Us For Availability
7
Screw, 8-18 x 3/8 (5) WPL 300250 Contact Us For Availability
8
Baffle WPL 719860 Contact Us For Availability
8
Timer (For Electrical Connector Only, See Wir WPL 304676 Contact Us For Availability
9
Spray Arm WPL 304204 Contact Us For Availability
9
Screw, 8-18 x 1-3/8 WPL 304232 Contact Us For Availability
9
Barrier WPL 303978 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
10
Relay, Start WPL 304409 Contact Us For Availability
10
Harness, Wiring WPL 304679 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
11
Screen, Vent WPL 300246 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
12
Console WPL 304609 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
12
Receptacle WPL 351296 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
13
Insert, Decorative WPL 304541 Contact Us For Availability
13
Plug WPL 351297 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Bumper (2) WPL 717970 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
15
Knob, Timer WPL 3367282 Contact Us For Availability
15
Pin, Pivot WPL 300234 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Panel, Reversible Side WPL ARI23963A1 Contact Us For Availability
17
Nut, 1/8 WPL 717488 Contact Us For Availability
17
Silverware Basket WPL 304166 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Screw, 8-18 x 1-7/8 (2) WPL 304233 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 304442 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Grill, Vent (Includes Item 19) WPL 304426 Contact Us For Availability
20
Washer (2) WPL 713080 Contact Us For Availability
21
Retainer WPL 3368002 Contact Us For Availability
21
Nut, 1-14 WPL 718575 Contact Us For Availability
21
Trim, Basket WPL 717528 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
22
Cap WPL 718577 Contact Us For Availability
22
Panel, Lower Side WPL 3367549 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
24
Screw, Lower Side Panel Mounting (2) WPL 9419621 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
29
Block, Foam (2) WPL 3368107 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Tool, Pump Centering (Included With Item 24) WPL 303918 Contact Us For Availability
31
Screw, Shoulder WPL 3370031 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer, Seal WPL 300104 Contact Us For Availability
36
Bearing, Nozzle WPL 719576 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Cap, Nozzle WPL 3367910 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Gasket, Pump WPL 717000 Contact Us For Availability
41
Screw, 4-40 x 5/8 WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
43
Barrier, Console WPL 303908 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Panel, Front (Platinum/Toast) WPL 303740 Contact Us For Availability
48
Panel, Front (Almond/Black) WPL 304668 Contact Us For Availability
48
Panel, Front (White/Harvest Gold) WPL 304761 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
49
Trim, Door R.H. WPL 3367206 Contact Us For Availability
49
Trim, Door (L.H.) WPL 3367207 Contact Us For Availability
50
Screw, Shoulder WPL 712499 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw (10) WPL 3368008 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
Coffee (Uncut) WPL 261887 Contact Us For Availability
60
New Avocado (Uncut) WPL 261889 Contact Us For Availability
60
Golden Harvest WPL 261890 Contact Us For Availability
60
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
60
Toast WPL 285365 Contact Us For Availability
60
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
60
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
60
Platinum (Uncut) WPL 285368 Contact Us For Availability
60
Leveler (Thinner) WPL 350941 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access (White/Black) WPL 303756 Contact Us For Availability
68
Panel, Access (Almond/Harvest Gold) WPL 303757 Contact Us For Availability
68
Panel, Access (Platinum/Toast) WPL 303758 Contact Us For Availability
70
Plate, Toe WPL 3367671 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
82
Shield, Sound WPL 302803 Contact Us For Availability
84
Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability
85
Actuator WPL 304443 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304407 Contact Us For Availability
90
Spacer, Corrugated WPL 3368569 Contact Us For Availability
91
Clip, Wire (2) WPL 301857 Contact Us For Availability
92
Screw (4) WPL 3367288 Contact Us For Availability
93
Shield, Harness WPL 303362 Contact Us For Availability
94
Retainer, Clip WPL 3367720 Contact Us For Availability
96
Spacer, Corr WPL 303755 Contact Us For Availability
97
WPL 303753 WPL 303753 Contact Us For Availability
98
WPL 303754 WPL 303754 Contact Us For Availability
× ![]()
